Diamond Star 18'x40' Oval 54" Wall (Resin Top Rail, Steel Upright) Parts

PDIA_YM_54RSRSRE1

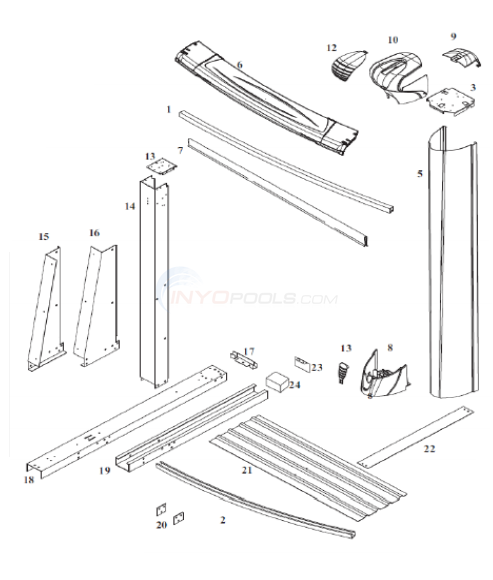

Diamond Star 18'x40' Oval 54" Wall (Resin Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Resin 50"
3	Top Plate 9" Oceanic (Single)
5	Upright 9" Damask 53-13/16"
6	Top Rail 10" RESIN STRAIGHT SIDE 41-1/4"
7	Plastic Coping 48" (Single)
8	Top Cap Oceanic Boot 10" (Single)
9	Top Cap 10" Oceanic Small Inner Half
10	Top Cap 10" Outer Half Straight
12	Top Cap Insert 10" Oceanic Grill (Wheat) (Single)
13	Top Cap 10" Oceanic Boot Cuff Grill (Wheat) (Single)
14	WRAP UPRIGHT OVAL DAMASK KK 54" ( 55" OVERALL LENGTH)
15	Yardmore Gusset Left Damask
16	Yardmore Gusset Right
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Resin 50"
3	Top Plate 9" Oceanic (Single)
5	Upright 9" Damask 53-13/16"
6	Top Rail 10" RESIN STRAIGHT SIDE 41-1/4"
7	Plastic Coping 48" (Single)
8	Top Cap Oceanic Boot 10" (Single)
9	Top Cap 10" Oceanic Small Inner Half
10	Top Cap 10" Outer Half Straight
12	Top Cap Insert 10" Oceanic Grill (Wheat) (Single)
13	Top Cap 10" Oceanic Boot Cuff Grill (Wheat) (Single)
14	WRAP UPRIGHT OVAL DAMASK KK 54" ( 55" OVERALL LENGTH)
15	Yardmore Gusset Left Damask
16	Yardmore Gusset Right
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

Inner Stabilizer Steel 54-1/8" (Single)

Part # 38503

Inner Stabilizer Steel 54-1/8" (Single)

$45.64 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$29.09 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$10.35 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$43.62 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Resin 50"

Part # 12331

Bottom Rail Resin 50"

$49.25 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Rail Resin 37-1/2" (Single)

Part # 12327

Bottom Rail Resin 37-1/2" (Single)

$42.64 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Bottom Rail Resin 39"

Part # 12328

Bottom Rail Resin 39"

$69.70 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Plate 9" Oceanic (Single)

Part # 21564

Top Plate 9" Oceanic (Single)

$19.99 IN STOCK

Quantity Per Pool 26

Quantity Per Pool 26

Qty:

Upright 9" Damask 53-13/16"

Part # 21411

Upright 9" Damask 53-13/16"

$89.68

Quantity Per Pool 14

Quantity Per Pool 14

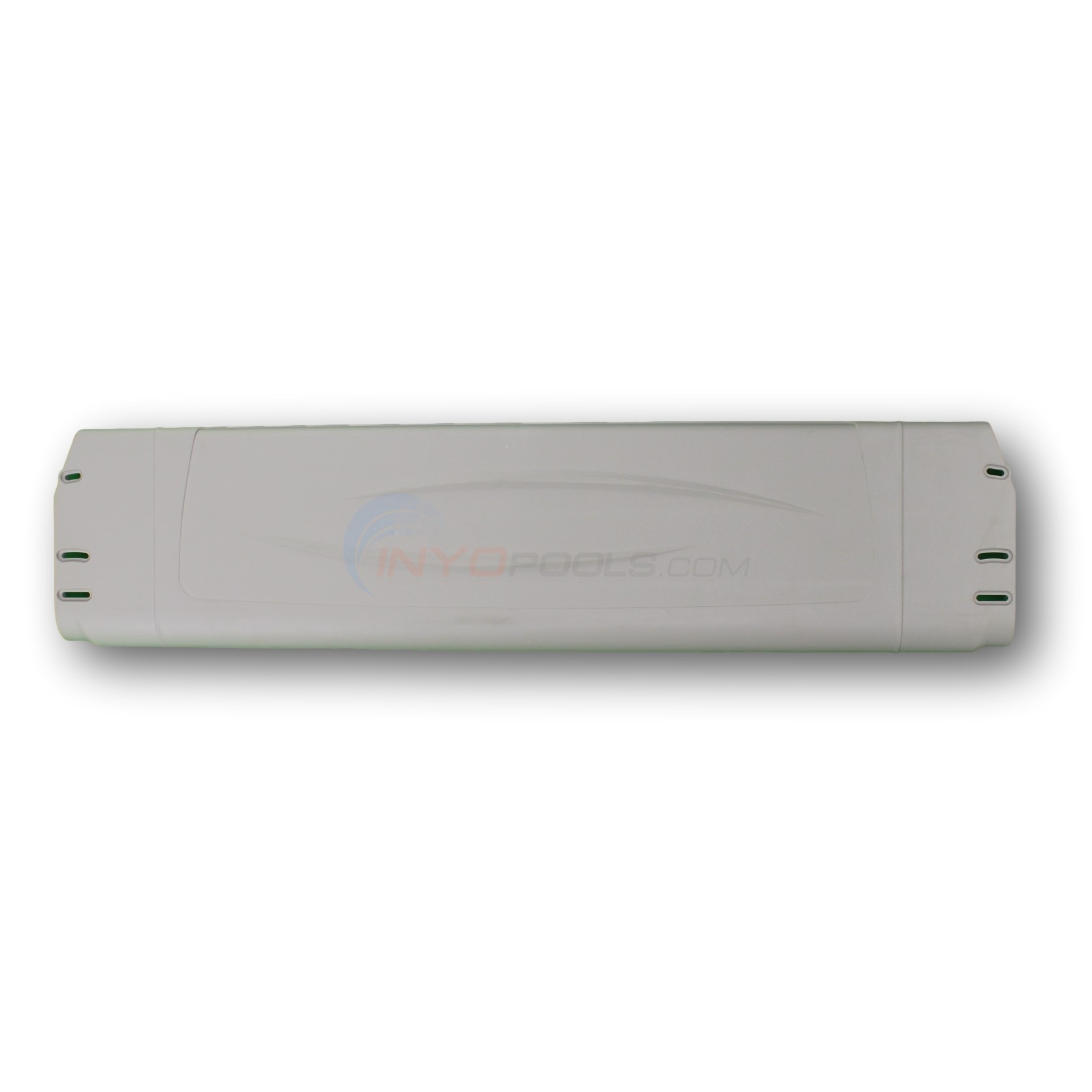

Top Rail 10" RESIN STRAIGHT SIDE 41-1/4"

Part # 22790

Top Rail 10" RESIN STRAIGHT SIDE 41-1/4"

$88.44 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Rail 10" Wheat Resin Infinity 51-29/32 (Single)

Part # 22914

Top Rail 10" Wheat Resin Infinity 51-29/32 (Single)

$190.30 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$12.31 IN STOCK

Quantity Per Pool 24

Quantity Per Pool 24

Qty:

Top Cap Oceanic Boot 10" (Single)

Part # 21381

Top Cap Oceanic Boot 10" (Single)

$19.02 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap 10" Oceanic Small Inner Half

Part # 21380

Top Cap 10" Oceanic Small Inner Half

$17.90 IN STOCK

Quantity Per Pool 26

Quantity Per Pool 26

Qty:

Top Cap 10" Outer Half Straight

Part # 21379

Top Cap 10" Outer Half Straight

$36.93 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap 10" Oceanic Large Outer Half CVD

Part # 21378

Top Cap 10" Oceanic Large Outer Half CVD

$22.37

Quantity Per Pool 14

Quantity Per Pool 14

Top Cap Insert 10" Oceanic Grill (Wheat) (Single)

Part # 21382

Top Cap Insert 10" Oceanic Grill (Wheat) (Single)

$22.98 IN STOCK

Quantity Per Pool 26

Quantity Per Pool 26

Qty:

Top Cap 10" Oceanic Boot Cuff Grill (Wheat) (Single)

Part # 21383

Top Cap 10" Oceanic Boot Cuff Grill (Wheat) (Single)

$15.44

Quantity Per Pool 14

Quantity Per Pool 14

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$12.48 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

WRAP UPRIGHT OVAL DAMASK KK 54" ( 55" OVERALL LENGTH)

Part # 22030

WRAP UPRIGHT OVAL DAMASK KK 54" ( 55" OVERALL LENGTH)

$135.46

Quantity Per Pool 14

Quantity Per Pool 14

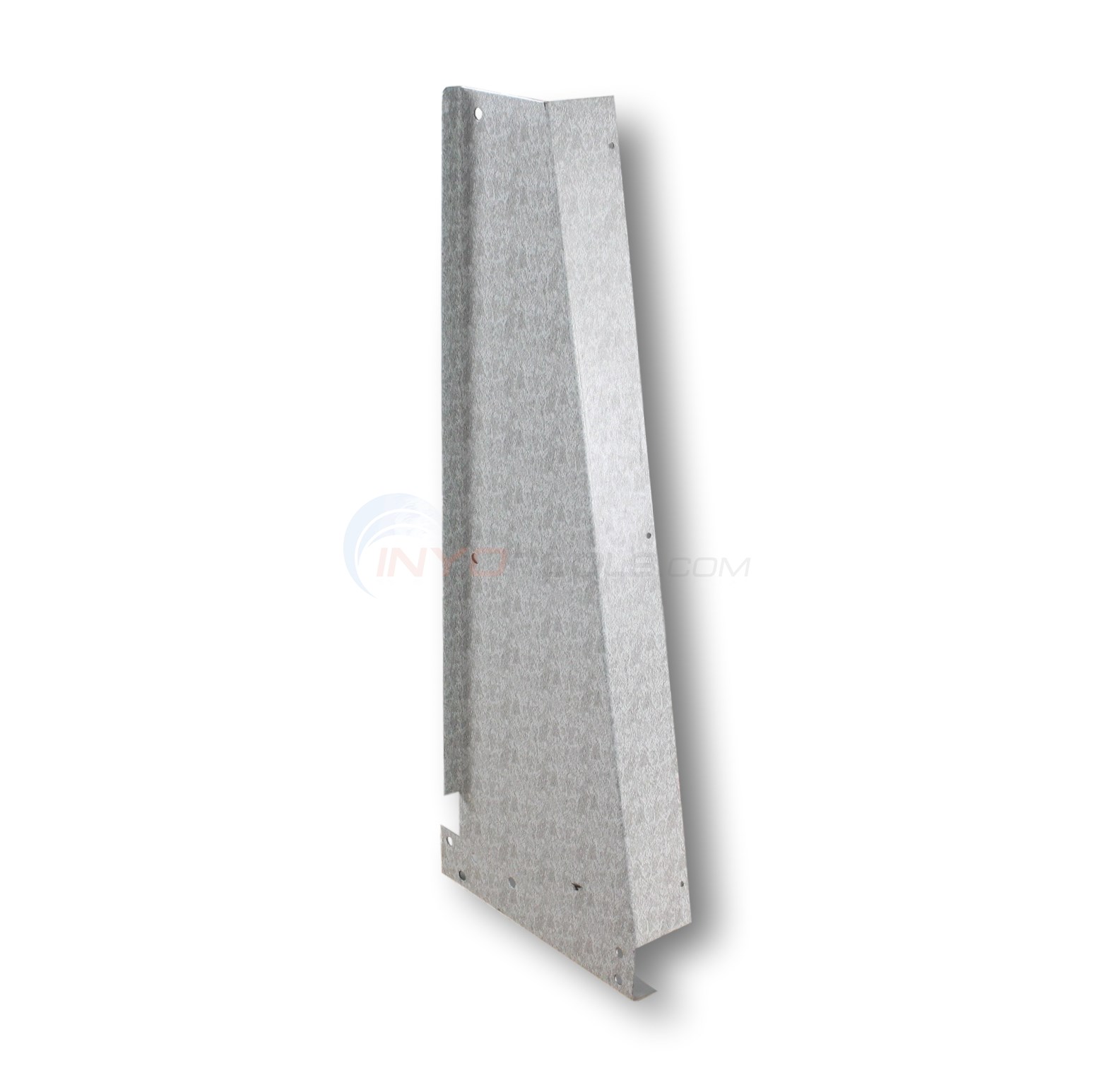

Yardmore Gusset Left Damask

Part # 29913

Yardmore Gusset Left Damask

$62.68

Quantity Per Pool 12

Quantity Per Pool 12

Yardmore Gusset Right

Part # 29914

Yardmore Gusset Right

$106.35

Quantity Per Pool 12

Quantity Per Pool 12

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$38.24 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$118.67

Quantity Per Pool 8

Quantity Per Pool 8

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$35.00

Quantity Per Pool 12

Quantity Per Pool 12

Fastener Pack

Part # 22-16720

Fastener Pack

$88.43

Quantity Per Pool 3

Quantity Per Pool 3

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$85.28 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Strap Section 52-11/16" (Single)

Part # 16726

Strap Section 52-11/16" (Single)

$45.90 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$11.43 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.47 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

*Not Shown
