Excursion 12'x24' Oval 54" Wall (Aluminum Top Rail, Aluminum Upright) Parts

PEXR-YM-54AAAARJ1

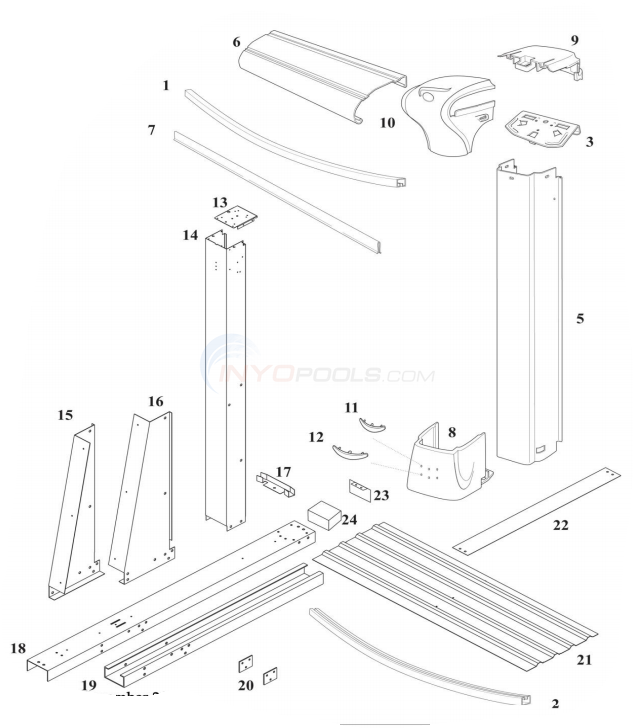

Excursion 12'x24' Oval 54" Wall (Aluminum Top Rail, Aluminum Upright) Diagram

Click to zoom in

Diagram #	Part Title
*	12' x 24' Oval 48"-54" Depth Overlap All Swirl Standard Gauge Liner
1	Top Track/Stabilizer for Curved Side fits Oval 12' Intrepid, Oasis, Bermuda Pools 33-3/8" (Single)
2	Bottom Rail (Yellow) 38-1/2" (Single)
3	Top Plate 6.5" for Curved Side Uprights on Oval & Round Intrepid, Oasis, Bermuda, Endeavour, Opera,
5	Up Right 53 13/16" (Single)
6	Top Rail 40-3/32" Aluminum Curved Side fits Intrepid, Oasis, Bermuda, Navigator Pools (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Outer Half 8" (Single)
10	Top Cap Inner Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Up Right ALUM 54" (55" OVERALL LENGTH) (Single)
15	Yardmore Gusset Left Desert Sand (Steel)
16	Yardmore Gusset Right Desert Sand (Steel)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*	12' x 24' Oval 48"-54" Depth Overlap All Swirl Standard Gauge Liner
1	Top Track/Stabilizer for Curved Side fits Oval 12' Intrepid, Oasis, Bermuda Pools 33-3/8" (Single)
2	Bottom Rail (Yellow) 38-1/2" (Single)
3	Top Plate 6.5" for Curved Side Uprights on Oval & Round Intrepid, Oasis, Bermuda, Endeavour, Opera,
5	Up Right 53 13/16" (Single)
6	Top Rail 40-3/32" Aluminum Curved Side fits Intrepid, Oasis, Bermuda, Navigator Pools (Single)
8	Bottom Boot 8" Resin Pumice (Single)
9	Top Cap Outer Half 8" (Single)
10	Top Cap Inner Half 8" (Single)
11	Accent Clip Pumice Resin Large (Single)
12	Accent Clip Pumice UR (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Up Right ALUM 54" (55" OVERALL LENGTH) (Single)
15	Yardmore Gusset Left Desert Sand (Steel)
16	Yardmore Gusset Right Desert Sand (Steel)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

12' x 24' Oval 48"-54" Depth Overlap All Swirl Standard Gauge Liner

Part # LI1224ASO

12' x 24' Oval 48"-54" Depth Overlap All Swirl Standard Gauge Liner

$324.99 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

12' x 24' x Oval 54" Depth Unibead All Swirl Standard Gauge Liner

Part # LI122454ASU

12' x 24' x Oval 54" Depth Unibead All Swirl Standard Gauge Liner

$393.99

Quantity Per Pool 1

Quantity Per Pool 1

12' x 24' Oval 54" Depth Unibead Mystri Gold Standard Gauge Liner

Part # LI122454MGU

12' x 24' Oval 54" Depth Unibead Mystri Gold Standard Gauge Liner

$401.99 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Top Track/Stabilizer for Curved Side fits Oval 12' Intrepid, Oasis, Bermuda Pools 33-3/8" (Single)

Part # 38053

Top Track/Stabilizer for Curved Side fits Oval 12' Intrepid, Oasis, Bermuda Pools 33-3/8" (Single)

$31.49

Quantity Per Pool 10

Quantity Per Pool 10

Top Track/Stabilizer for Transition/Corner fits Intrepid, Oasis & Bermuda Pools 36 7/8" (Single)

Part # 38060

Top Track/Stabilizer for Transition/Corner fits Intrepid, Oasis & Bermuda Pools 36 7/8" (Single)

$57.66 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Track/Stabilizer for Transition/Corner fits Intrepid, Oasis, Bermuda Pools 39-3/8" (Single)

Part # 38061

Top Track/Stabilizer for Transition/Corner fits Intrepid, Oasis, Bermuda Pools 39-3/8" (Single)

$37.79

Quantity Per Pool 4

Quantity Per Pool 4

Top & Bottom Straight Side Track/Stabilizer for Intrepid, Oasis, Bermuda Pools 37 1/2" (Single)

Part # 38063

Top & Bottom Straight Side Track/Stabilizer for Intrepid, Oasis, Bermuda Pools 37 1/2" (Single)

$26.22

Quantity Per Pool 8

Quantity Per Pool 8

Bottom Rail (Yellow) 38-1/2" (Single)

Part # 38052

Bottom Rail (Yellow) 38-1/2" (Single)

$47.24 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Plate 6.5" for Curved Side Uprights on Oval & Round Intrepid, Oasis, Bermuda, Endeavour, Opera,

Part # 16298

Top Plate 6.5" for Curved Side Uprights on Oval & Round Intrepid, Oasis, Bermuda, Endeavour, Opera,

$17.18 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Up Right 53 13/16" (Single)

Part # 29799

Up Right 53 13/16" (Single)

$150.23 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail 40-3/32" Aluminum Curved Side fits Intrepid, Oasis, Bermuda, Navigator Pools (Single)

Part # 29801

Top Rail 40-3/32" Aluminum Curved Side fits Intrepid, Oasis, Bermuda, Navigator Pools (Single)

$113.39 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Rail Straight Side 41-1/4" for Oval Intrepid, Oasis Pools (Single)

Part # 29805

Top Rail Straight Side 41-1/4" for Oval Intrepid, Oasis Pools (Single)

$108.08

Quantity Per Pool 6

Quantity Per Pool 6

Bottom Boot 8" Resin Pumice (Single)

Part # 27117

Bottom Boot 8" Resin Pumice (Single)

$28.83 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap Outer Half 8" (Single)

Part # 16301

Top Cap Outer Half 8" (Single)

$24.05 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap 8" Outer Straight Side of Oval Intrepid/Oasis Pools (Single)

Part # 16302

Top Cap 8" Outer Straight Side of Oval Intrepid/Oasis Pools (Single)

$36.19 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Top Cap Inner Half 8" (Single)

Part # 16300

Top Cap Inner Half 8" (Single)

$25.29 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Accent Clip Pumice Resin Large (Single)

Part # 16356

Accent Clip Pumice Resin Large (Single)

$12.59 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Accent Clip Pumice UR (Single)

Part # 16305

Accent Clip Pumice UR (Single)

$13.11 IN STOCK

Quantity Per Pool 36

Quantity Per Pool 36

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.71 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Wrap Up Right ALUM 54" (55" OVERALL LENGTH) (Single)

Part # 26340

Wrap Up Right ALUM 54" (55" OVERALL LENGTH) (Single)

$138.59

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Left Desert Sand (Steel)

Part # 17865

Yardmore Gusset Left Desert Sand (Steel)

$110.24

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Right Desert Sand (Steel)

Part # 17866

Yardmore Gusset Right Desert Sand (Steel)

$110.24

Quantity Per Pool 6

Quantity Per Pool 6

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$35.87 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$111.29

Quantity Per Pool 6

Quantity Per Pool 6

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$104.99 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Fastener Pack

Part # 22-16722

$49.99

Quantity Per Pool 1

Quantity Per Pool 1

Fastener Pack

Part # 22-16720

$87.99

Quantity Per Pool 1

Quantity Per Pool 1

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$127.04

Quantity Per Pool 6

Quantity Per Pool 6

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.32

Quantity Per Pool 6

Quantity Per Pool 6

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$10.73 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.19 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

*Not Shown
