Hayward / Arneson Cleaners Viper & Viio Turbo Parts

Diagram #	Part Title

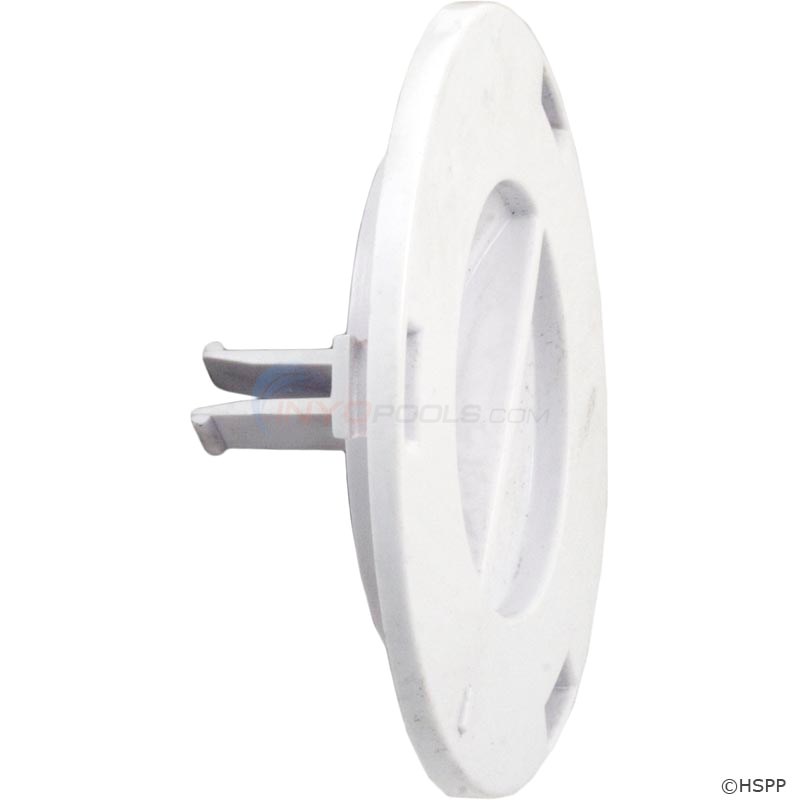

1	CAM CAP

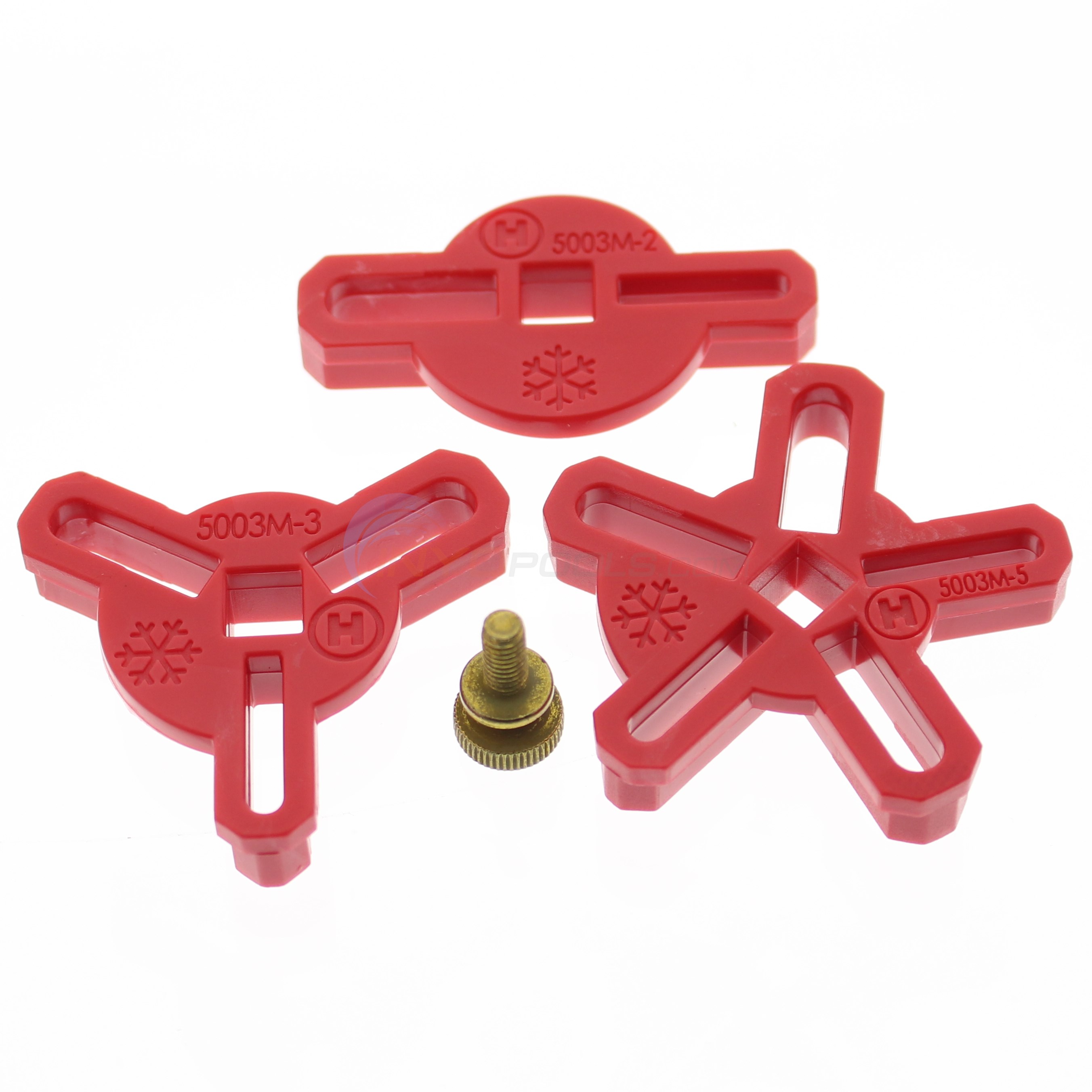

2	CAMS (3-PACK)
3	GEARBOX (WITH CAMS, HOSE & TIES)

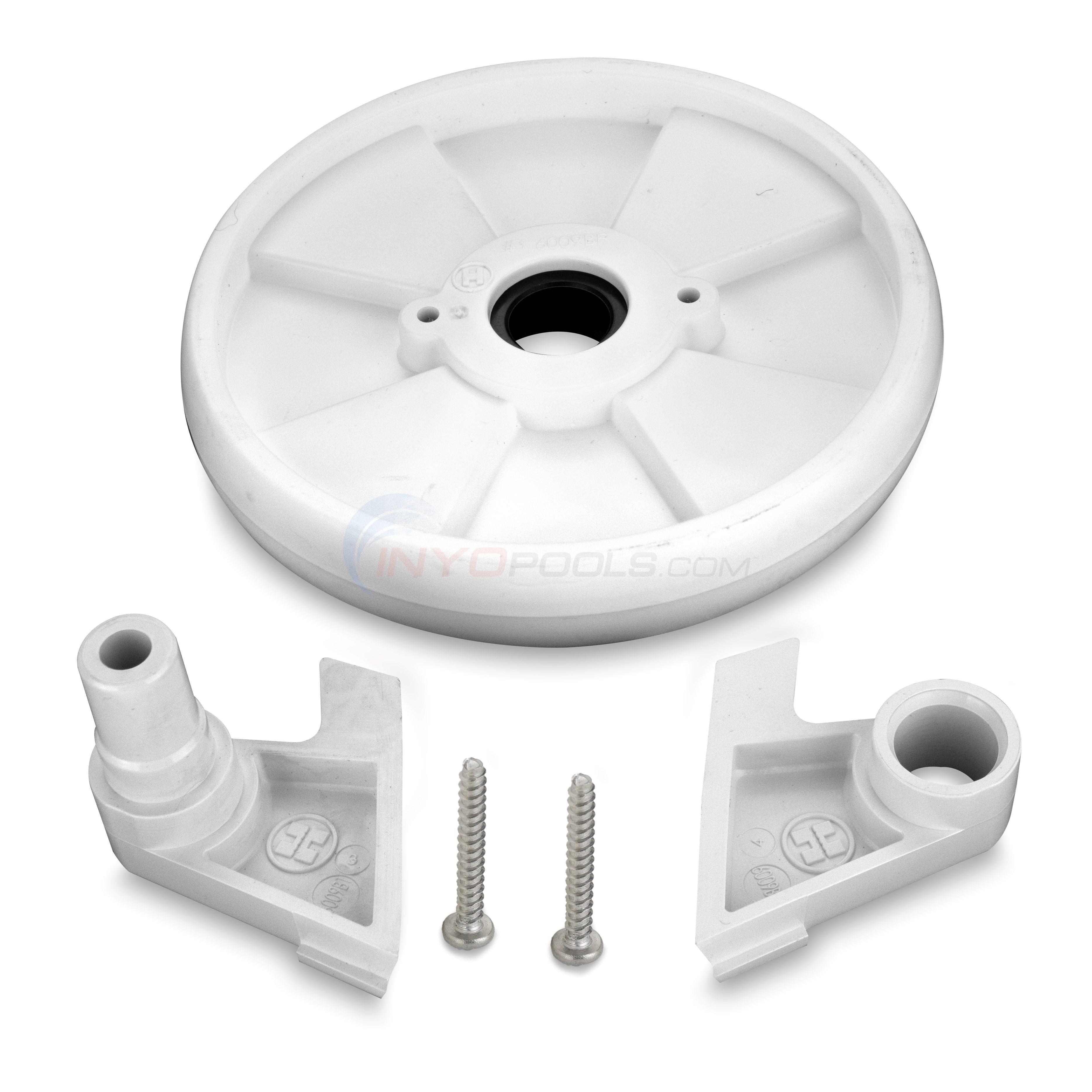

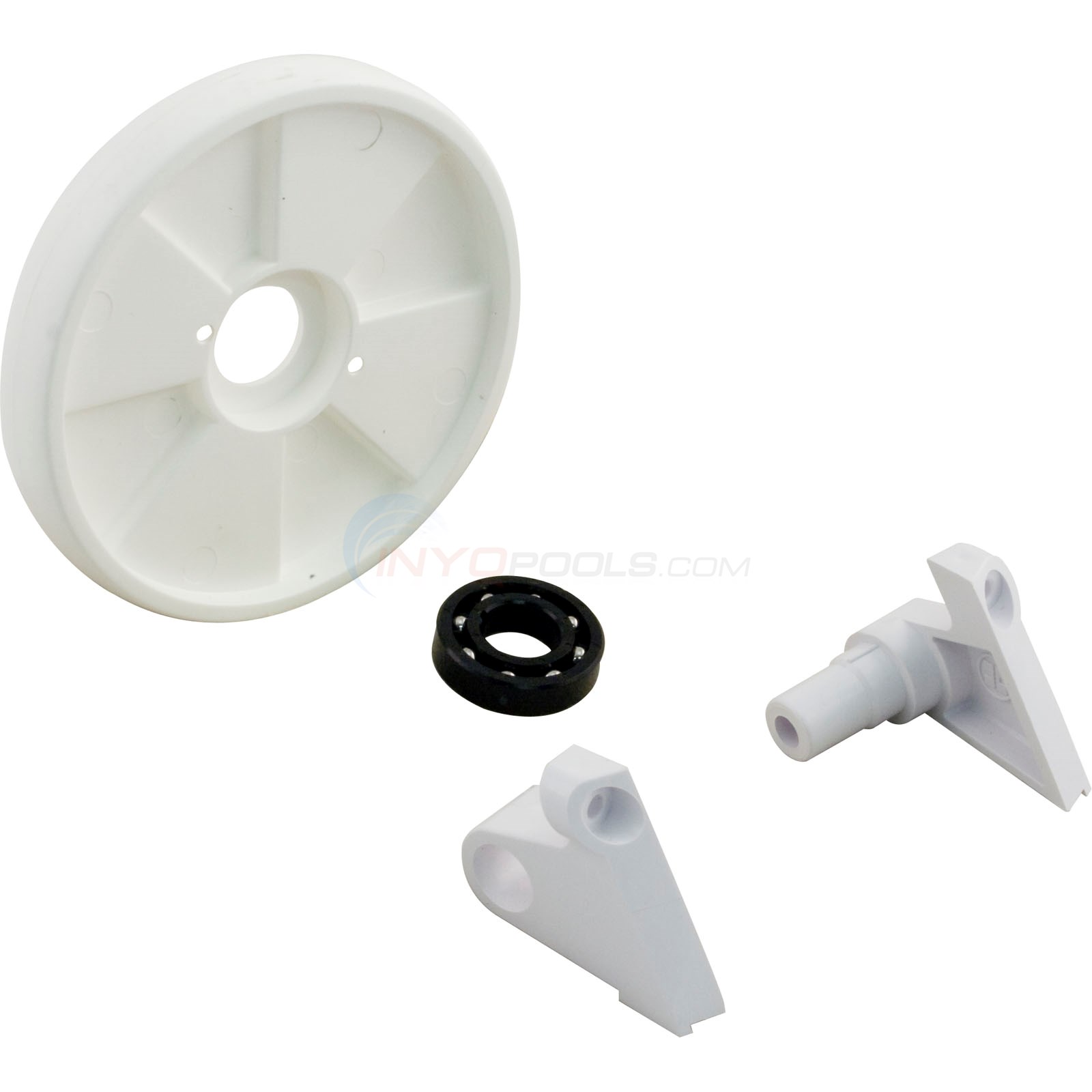

4	FRONT WHEEL With RETAINER & BEARING

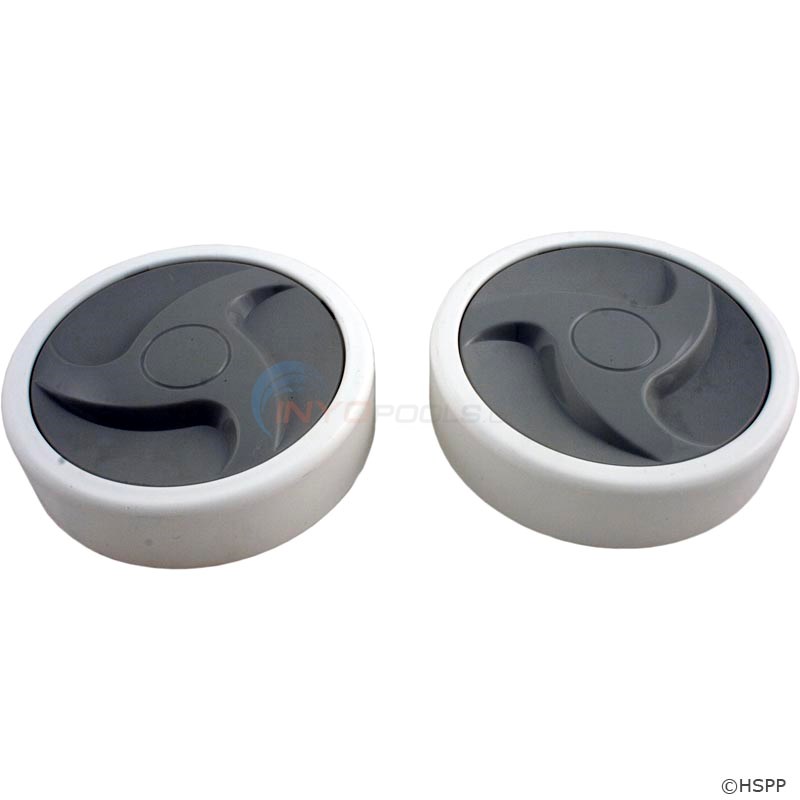

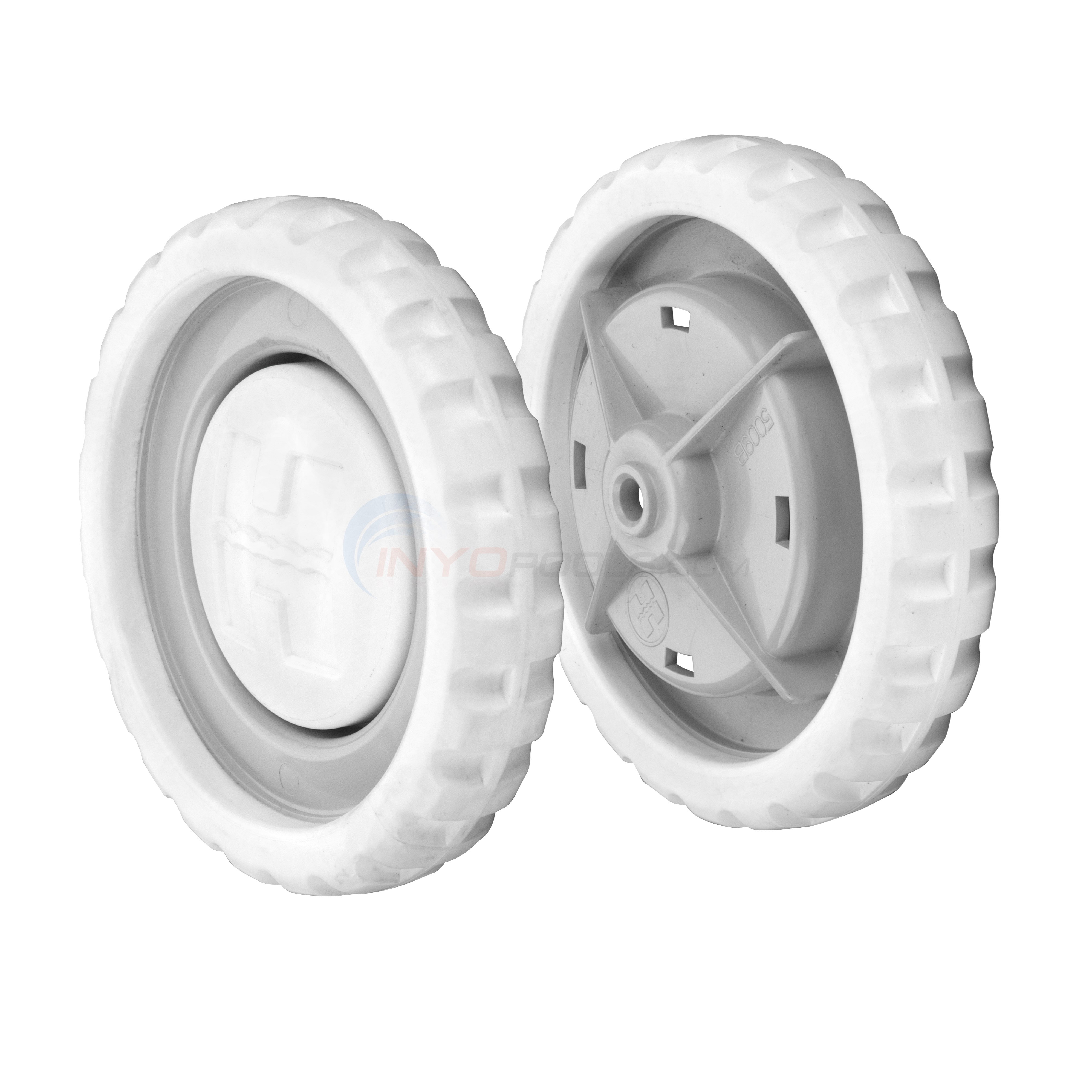

5	REAR With BEARINGS, NUTS & HUBCAPS GRAY AFTER 6-06

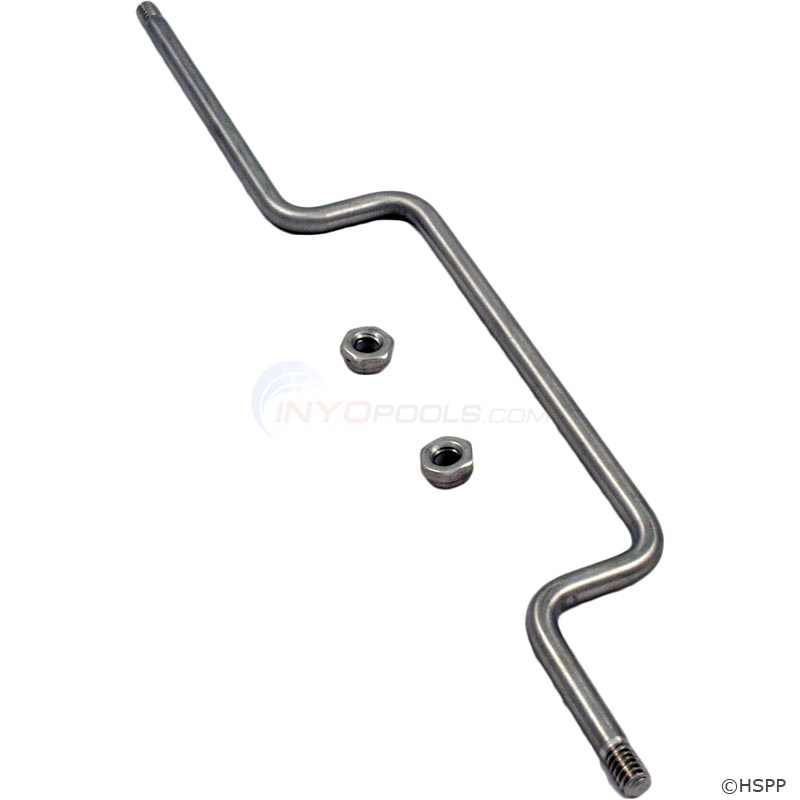

6	REAR AXLE

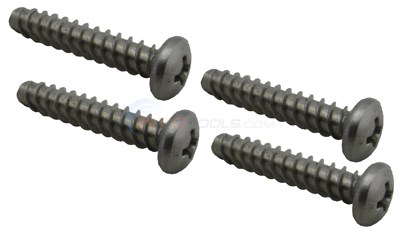

7	SCREWS (5-PACK)

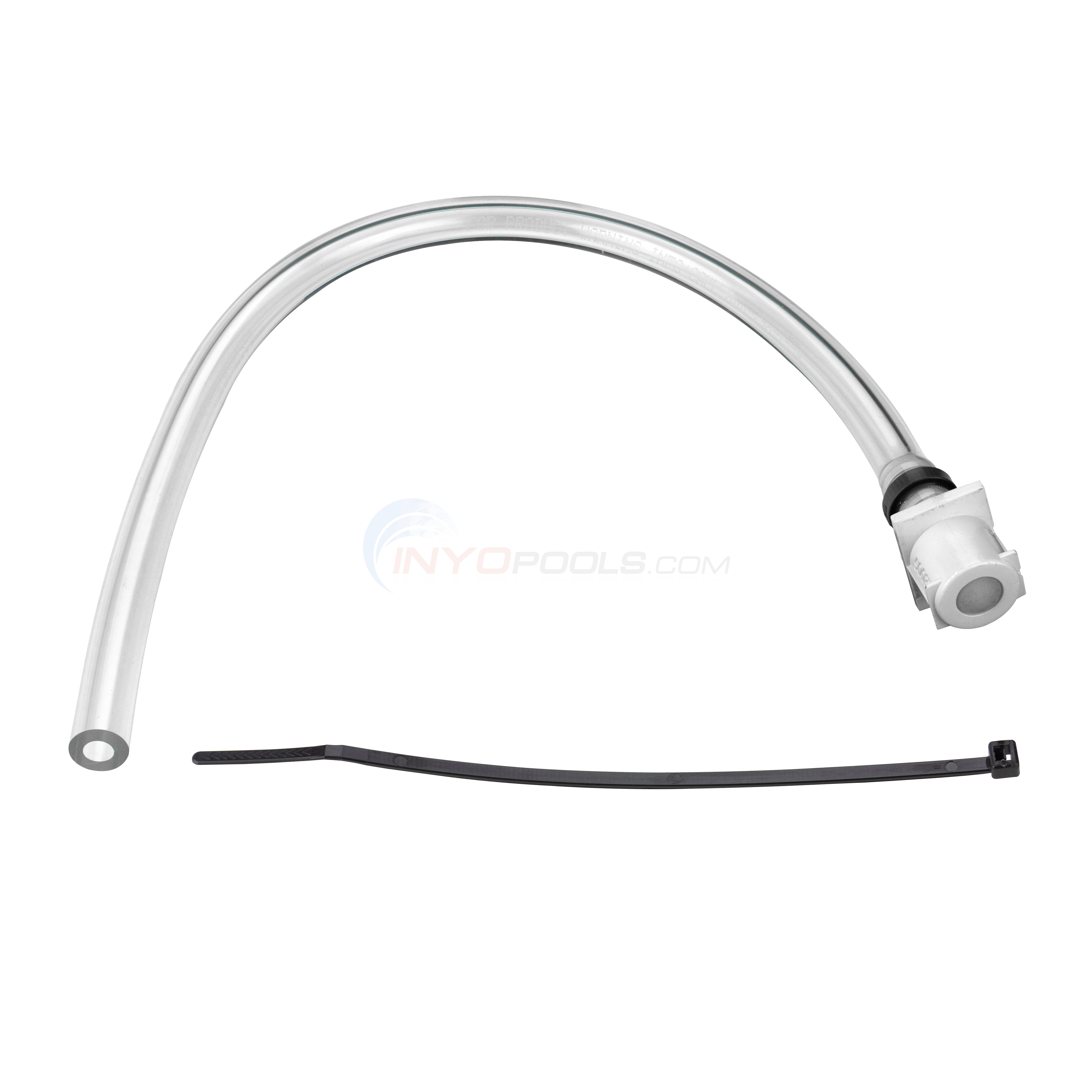

8	CHECK VALVE With HOSE & TIES
9	VAC TUBE
10**	No Longer Available MANIFOLD ASSY Replace With 3260-570

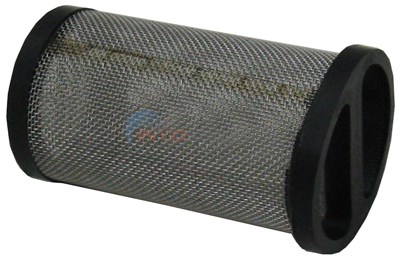

11	MANIFOLD FILTER SCREEN
12	ROLLERS 7-PACK With BEARINGS (AX5000D)

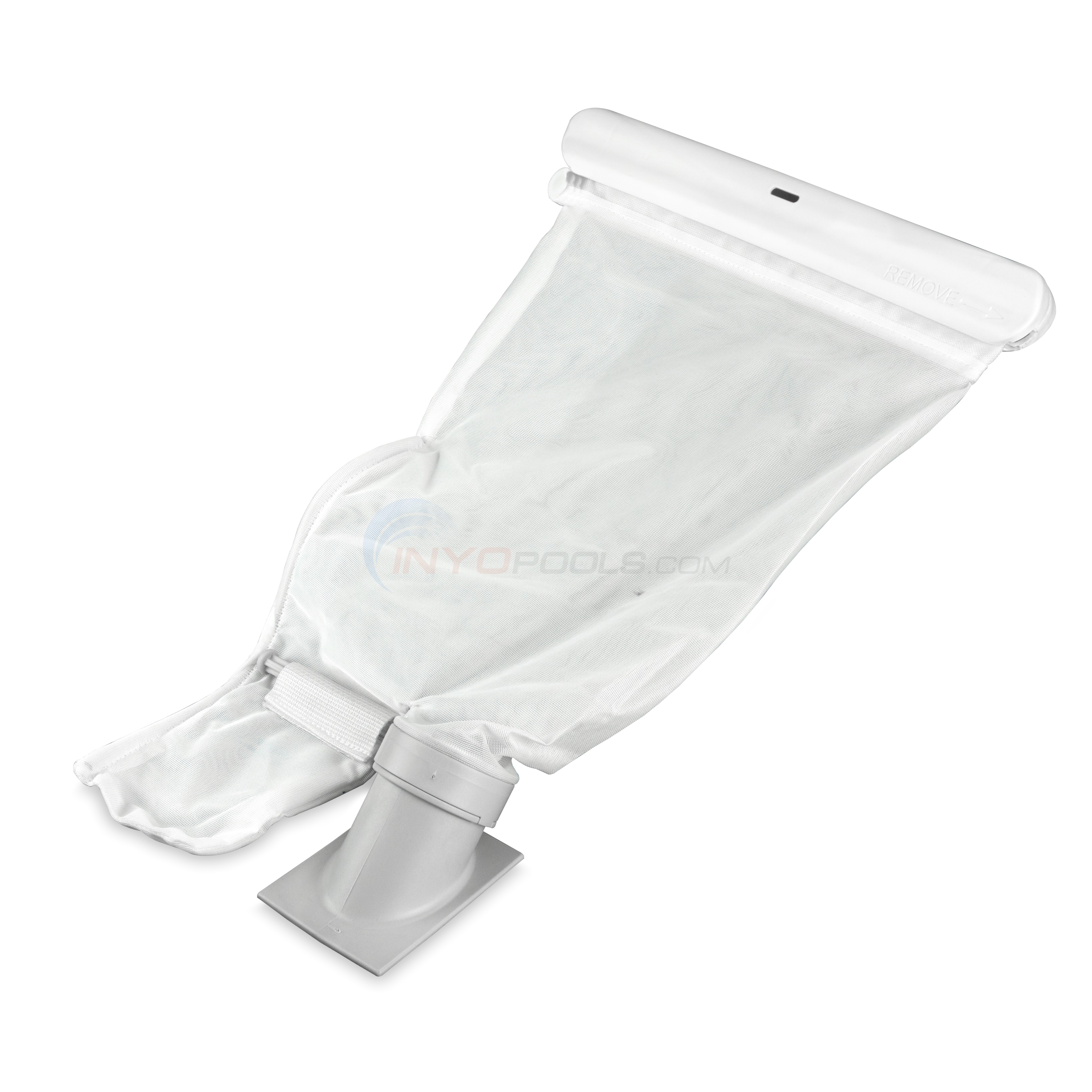

13	LARGE CAPACITY DEBRIS BAG With FLOAT

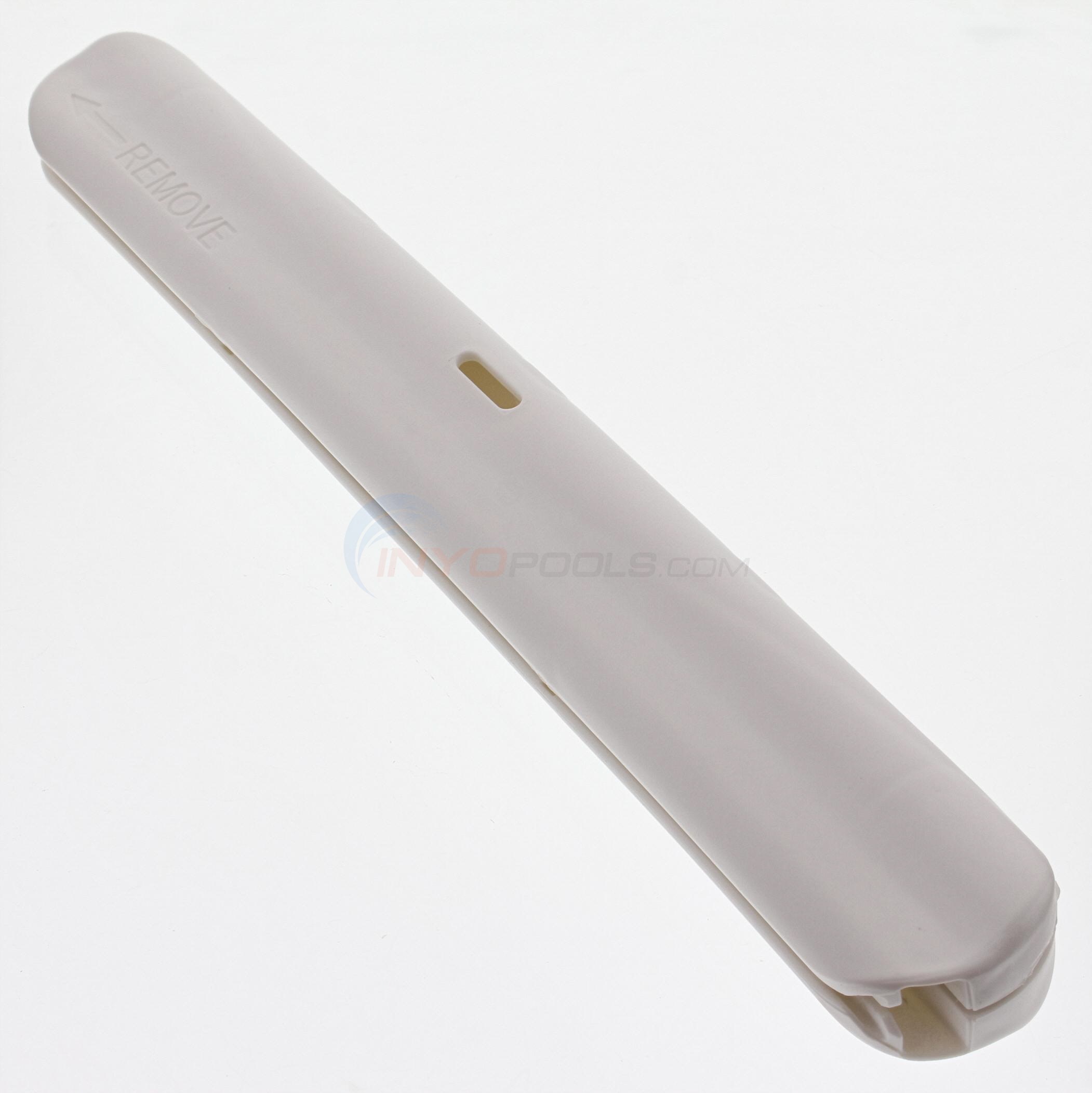

14	BAG CLOSURE With FLOAT

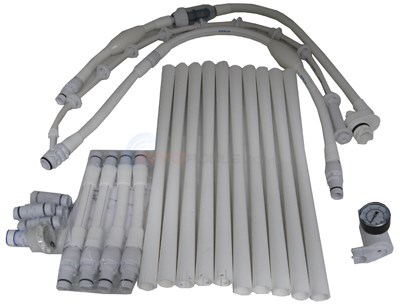

15	PRESSURE HOSE COMPLETE (RETROFIT)

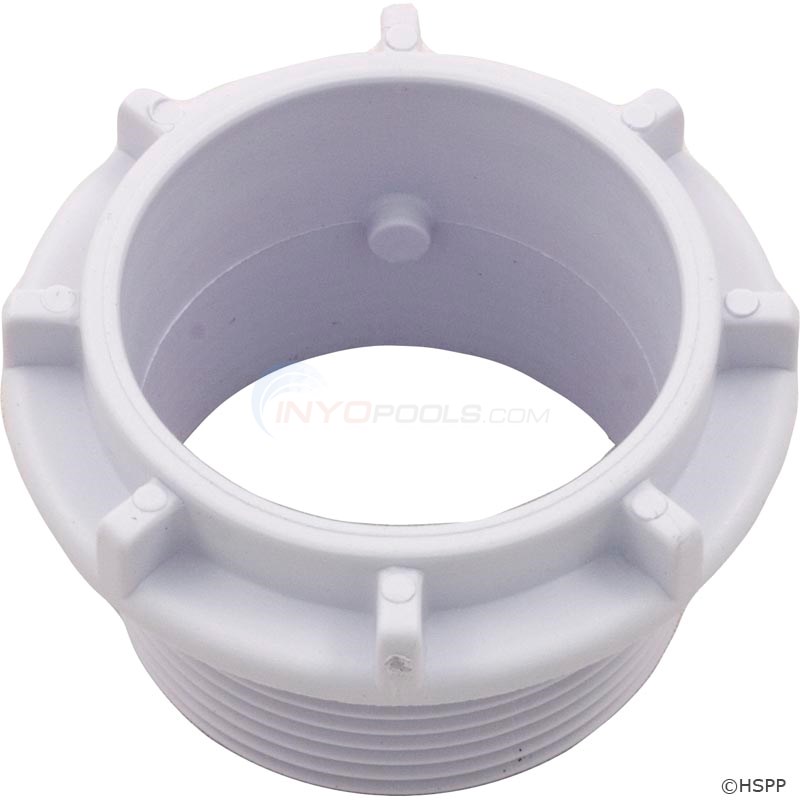

16	UNIVERSAL WALL FITTING

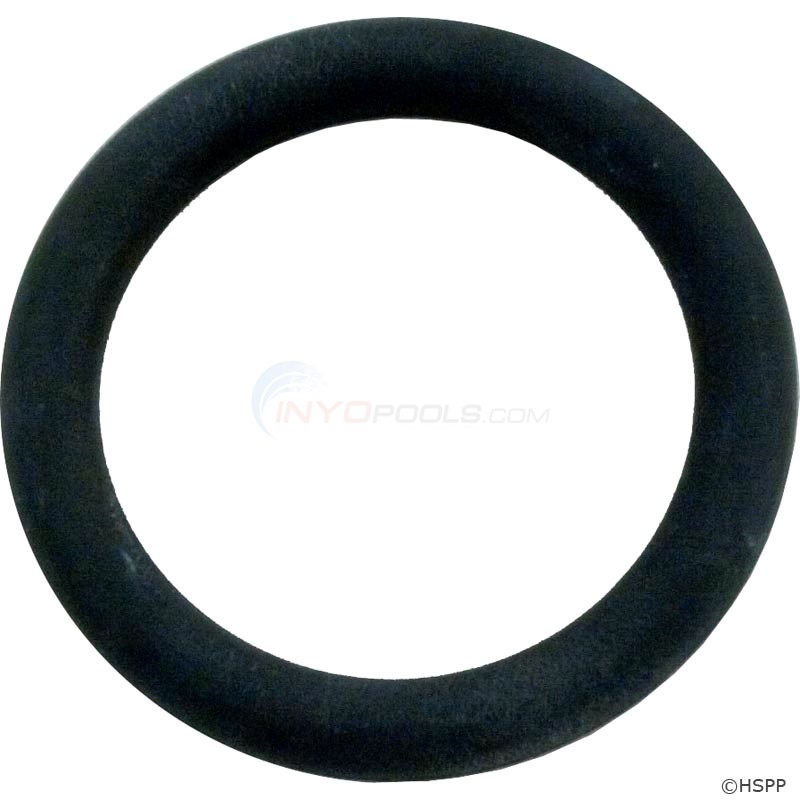

17	O-RING, WALL QUICK CONNECT
18	WALL QUICK CONNECT, BOTTOM INLINE FILTER
19	IN-LINE FILTER SCREEN
20	O-RING, IN-LINE FILTER
21	PRESSURE HOSE & TOP OF IN-LINE FILTER CAP ASSY

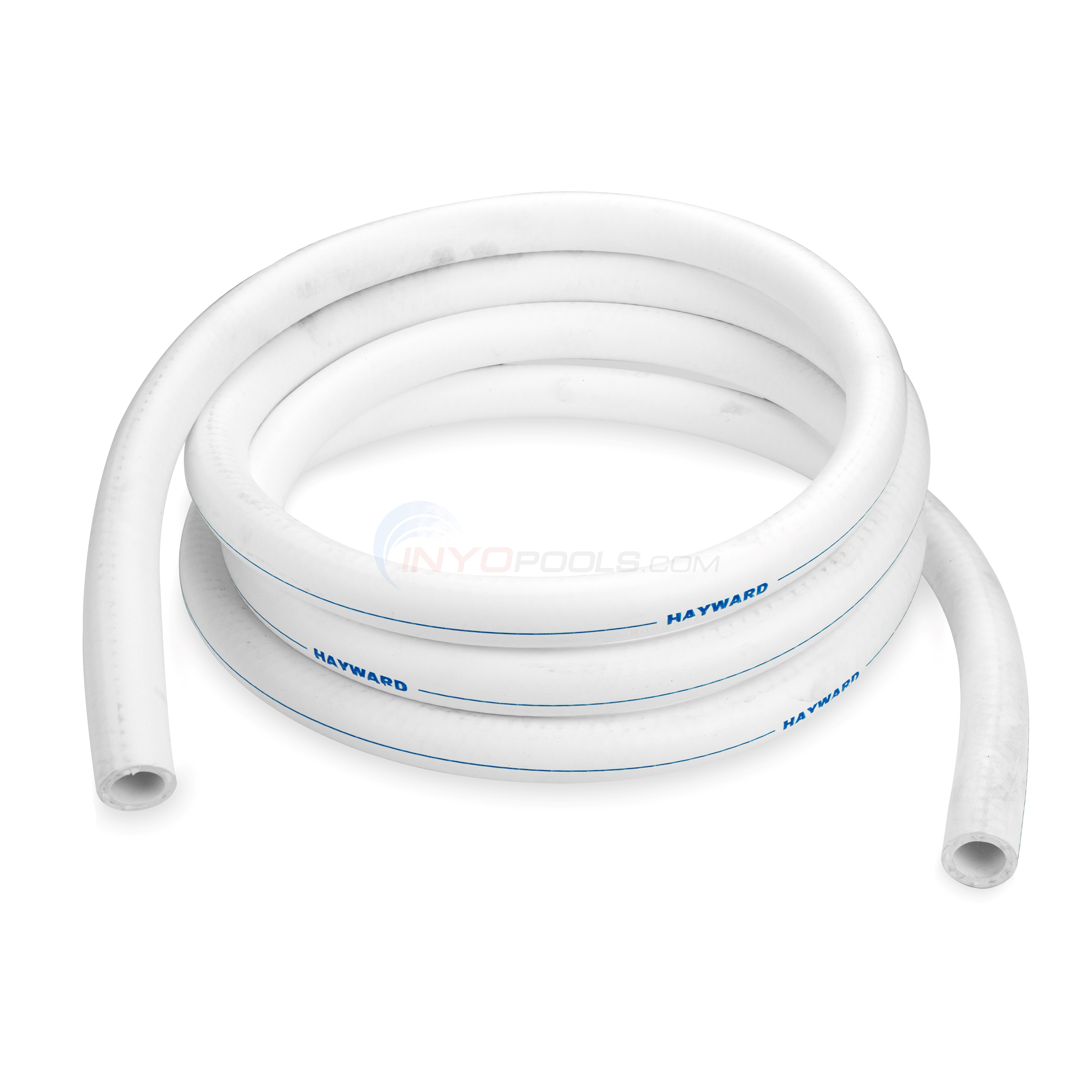

22	HOSE, PRESSURE 10' (AX501501-1)
23	HOSE FLOAT (5-PACK) ()
24	HOSE SWIVELS 3-PACK

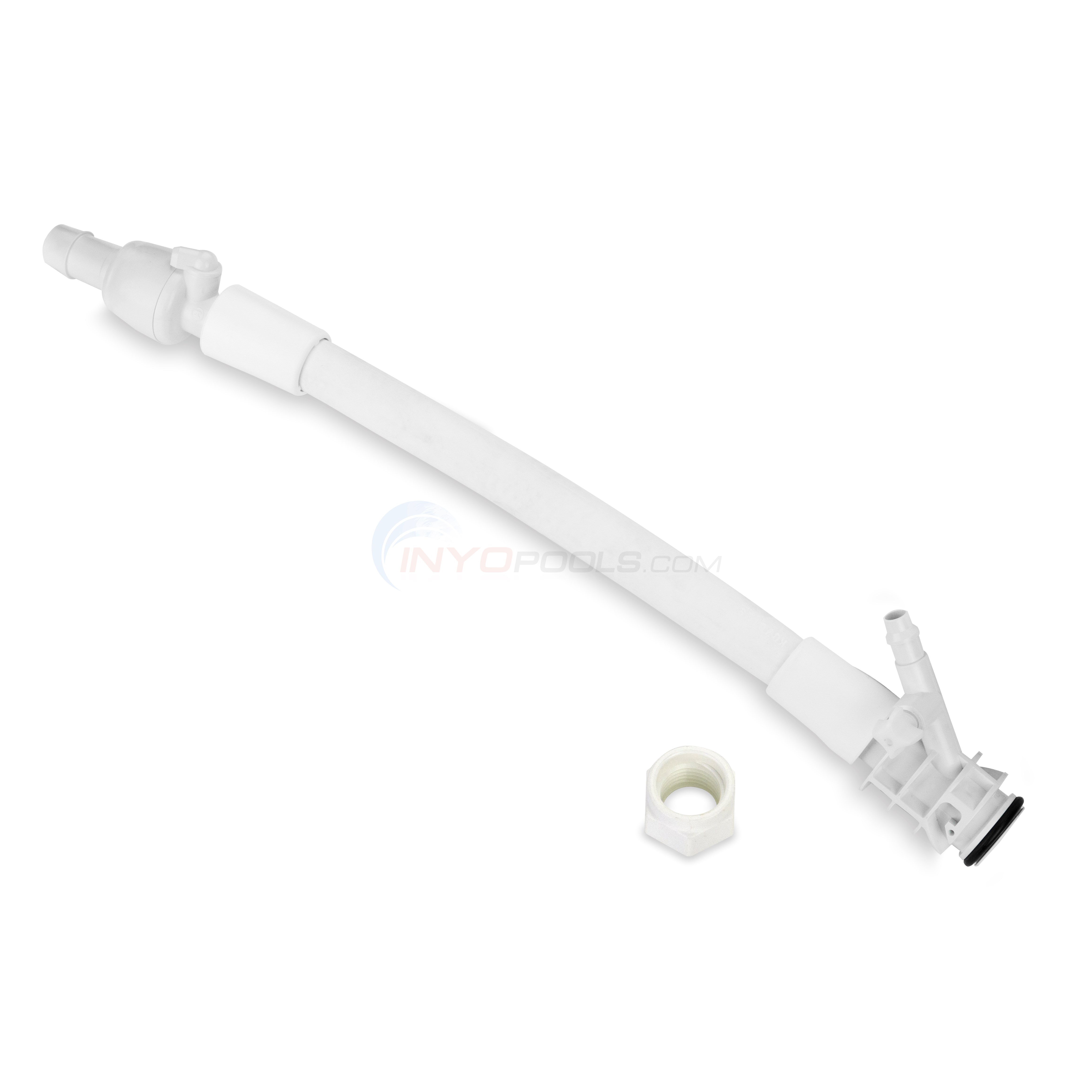

25	PRESSURE HOSE CLEANER END ASS'Y With O SWEEP HOSE

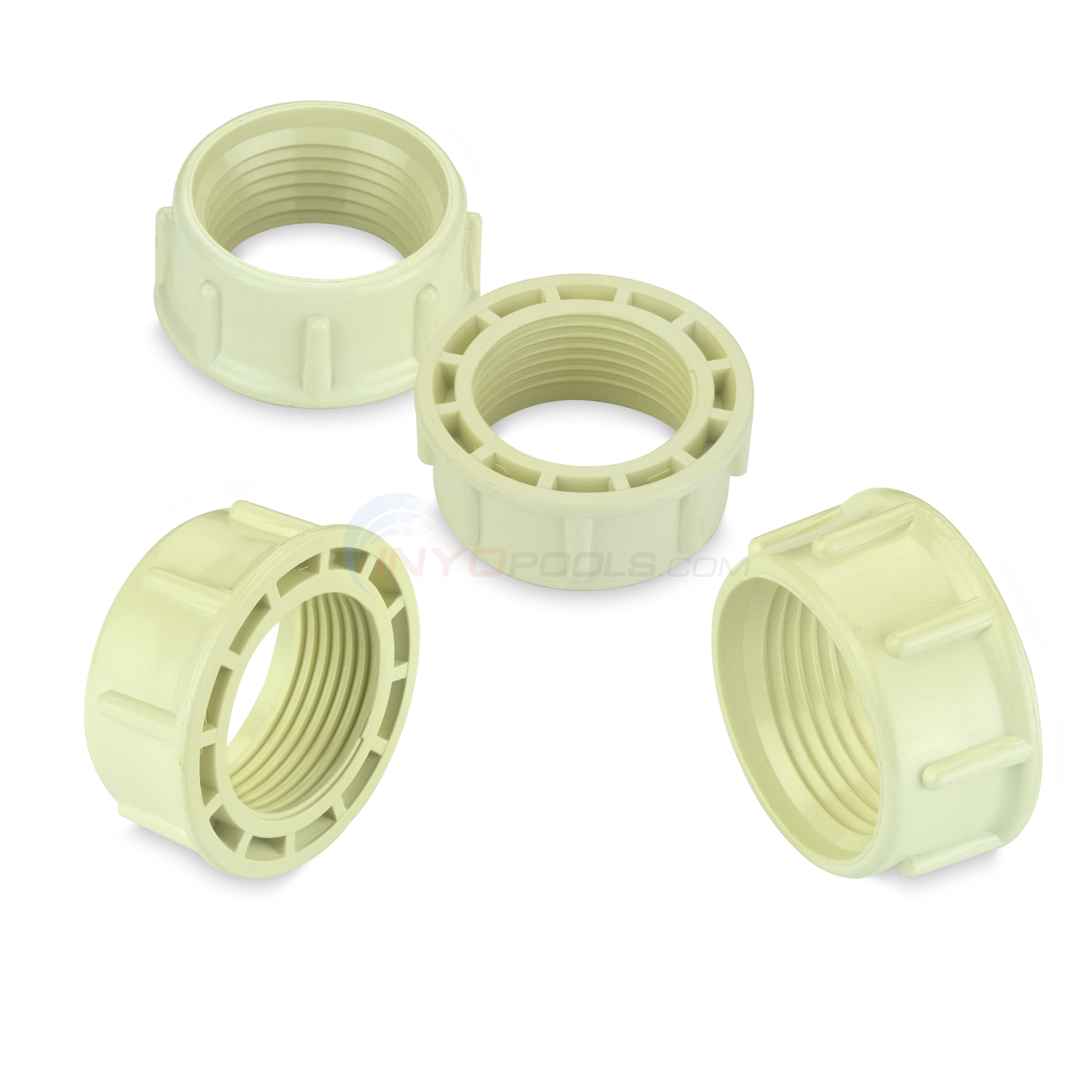

26	MENDER NUTS 4 PER PACK VIPER

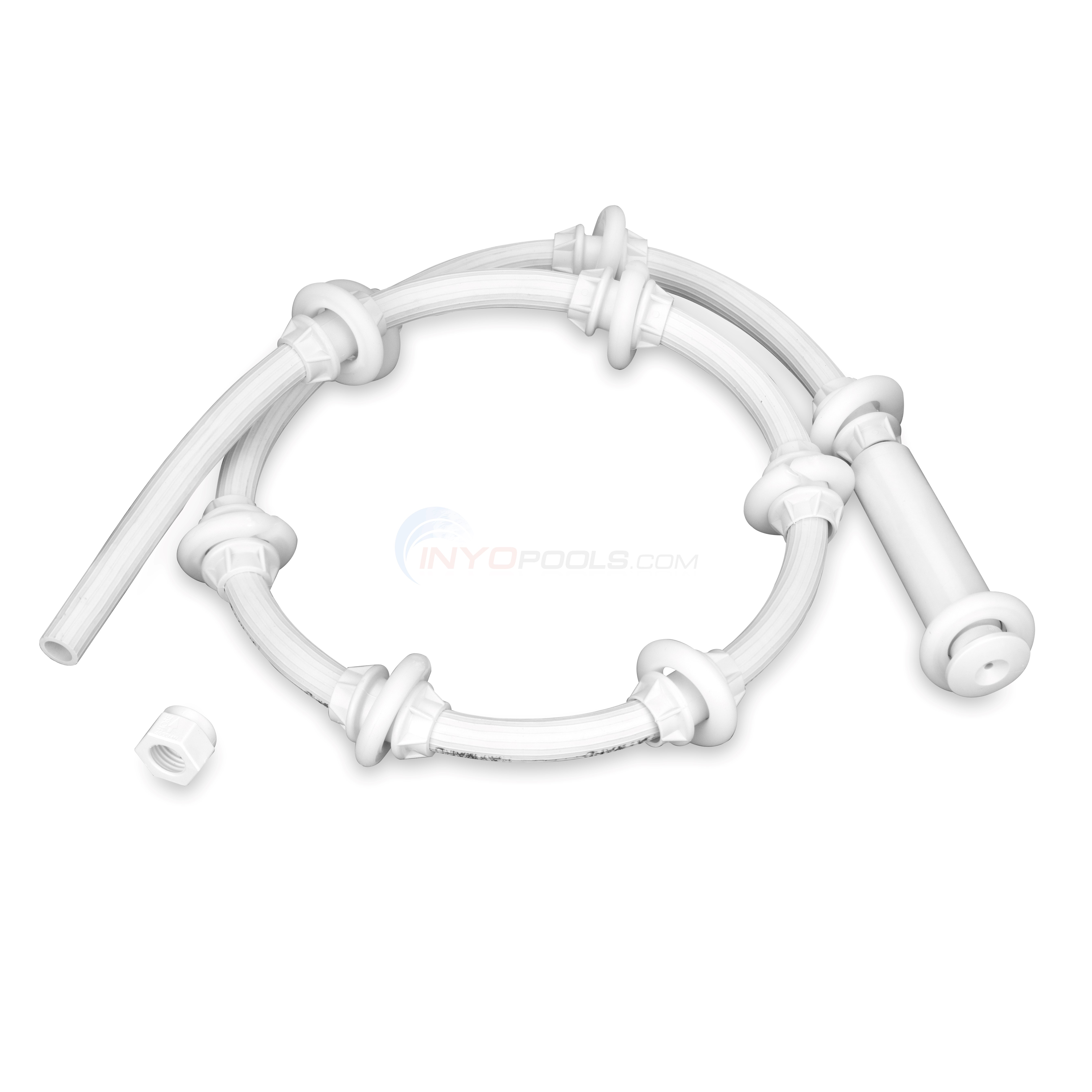

27	SWEEP HOSE With ROLLERS & CLAMP

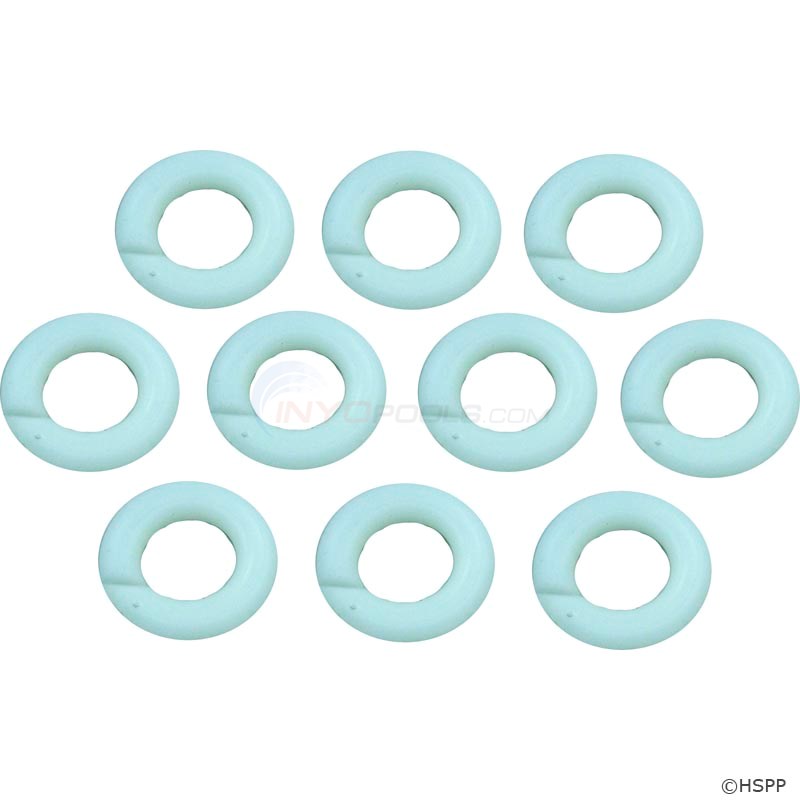

28	WEAR ROLLERS 10 PER PACK

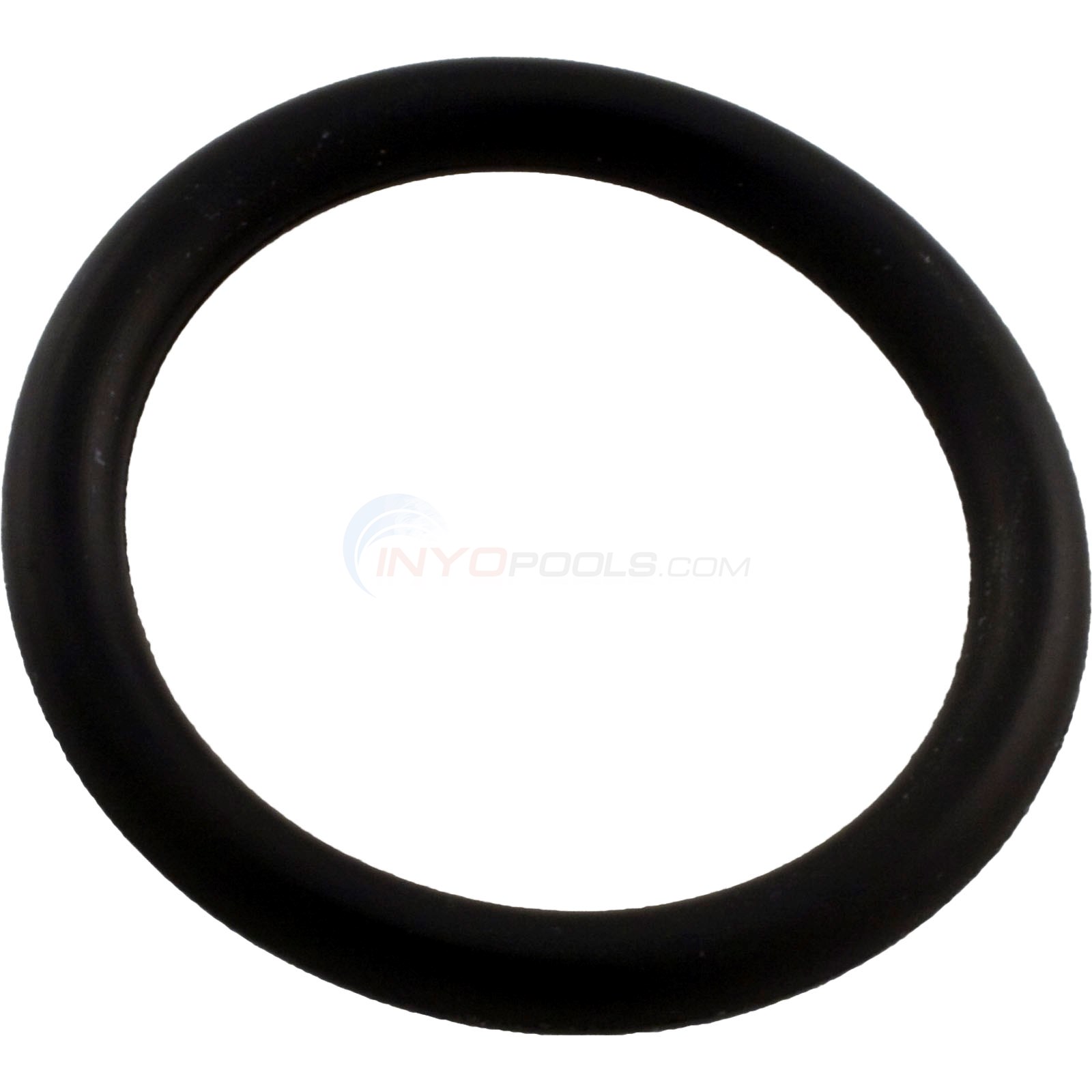

29	O-RING, CLEANER CONNECTOR

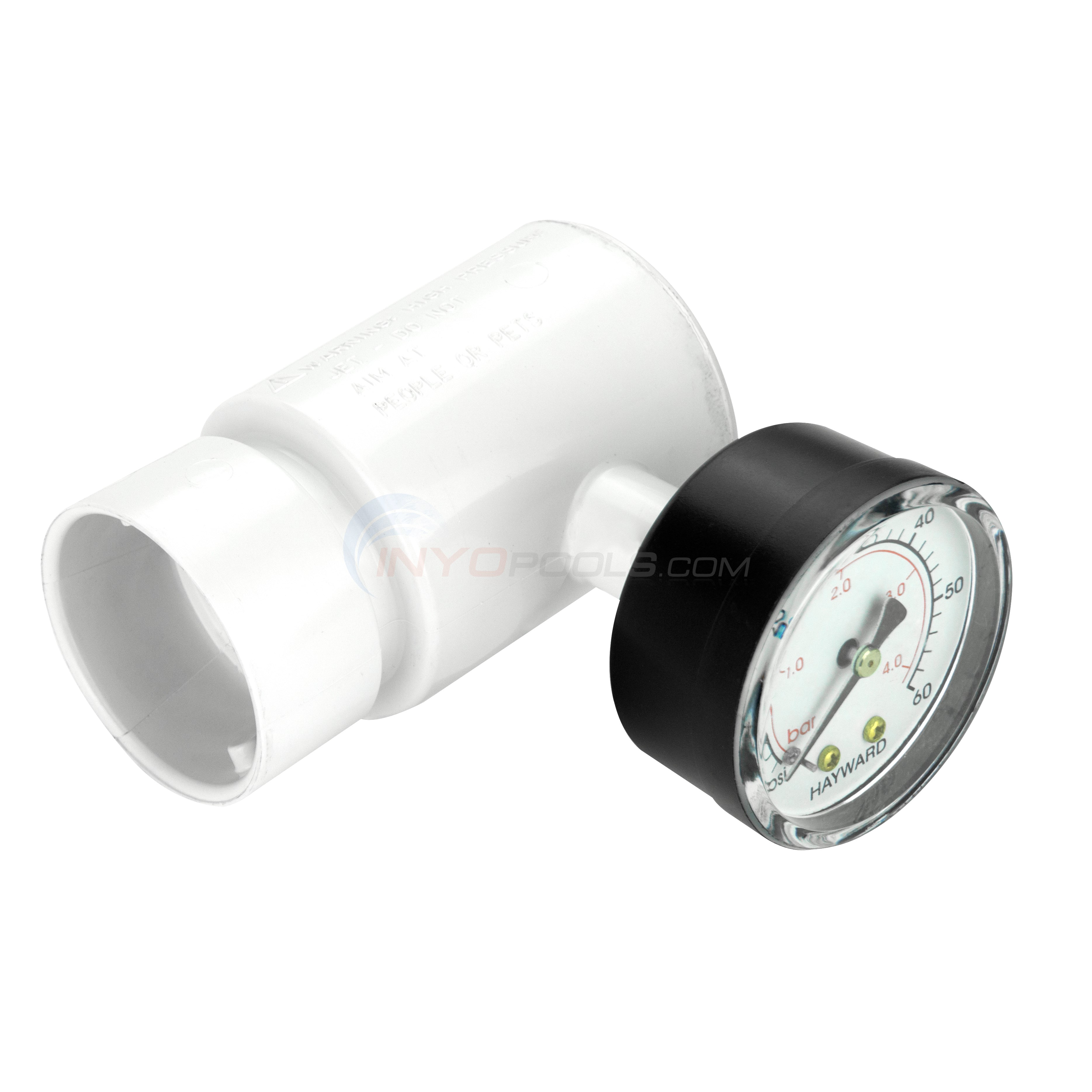

30	PRESSURE GUAGE SET-UP
31	DECK WITH WING & CAM CAP

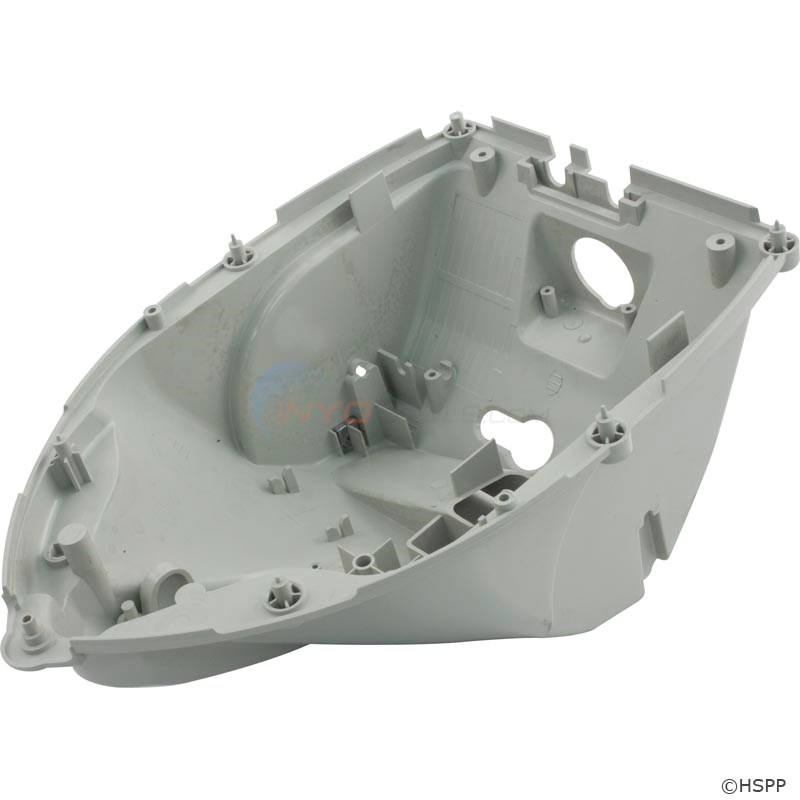

32	BOTTOM HOUSING (W/RETAINERS) LT GRAY

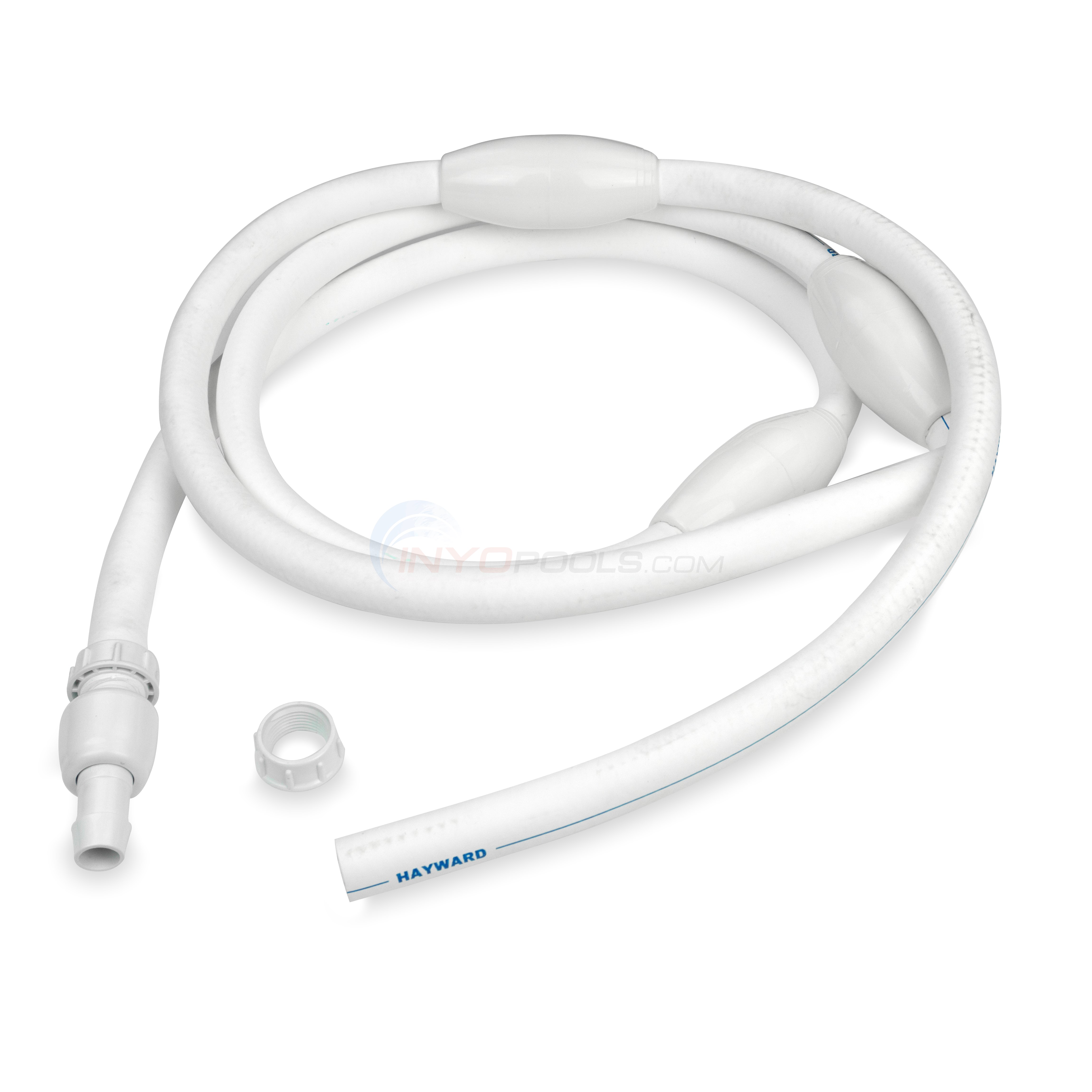

*	PRESSURE HOSE 10' COMPLETE

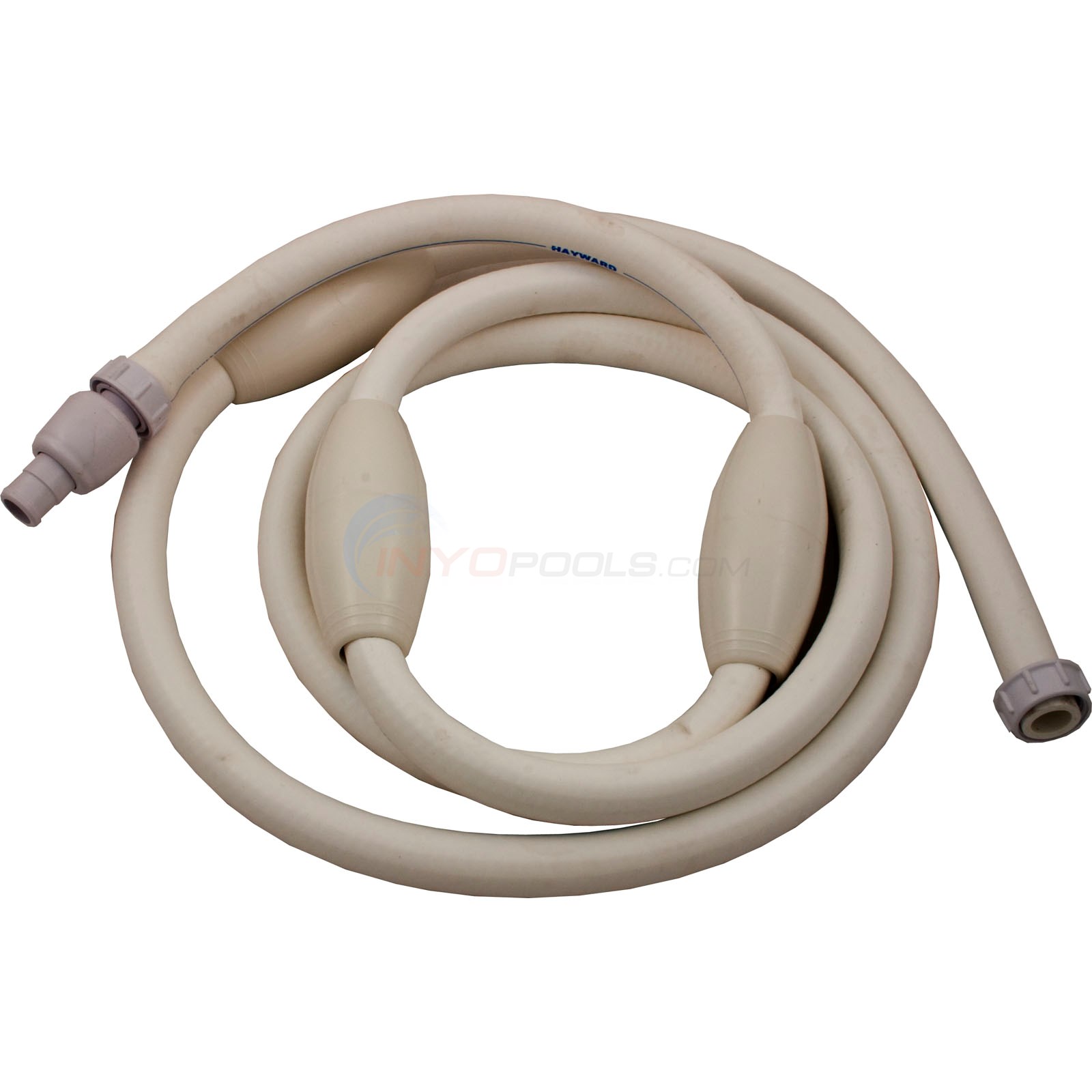

*	10 FOOT PRESSURE HOSE EXTENSION BLUE
