Hayward Phantom/Phantom Turbo Parts

Diagram #	Part Title

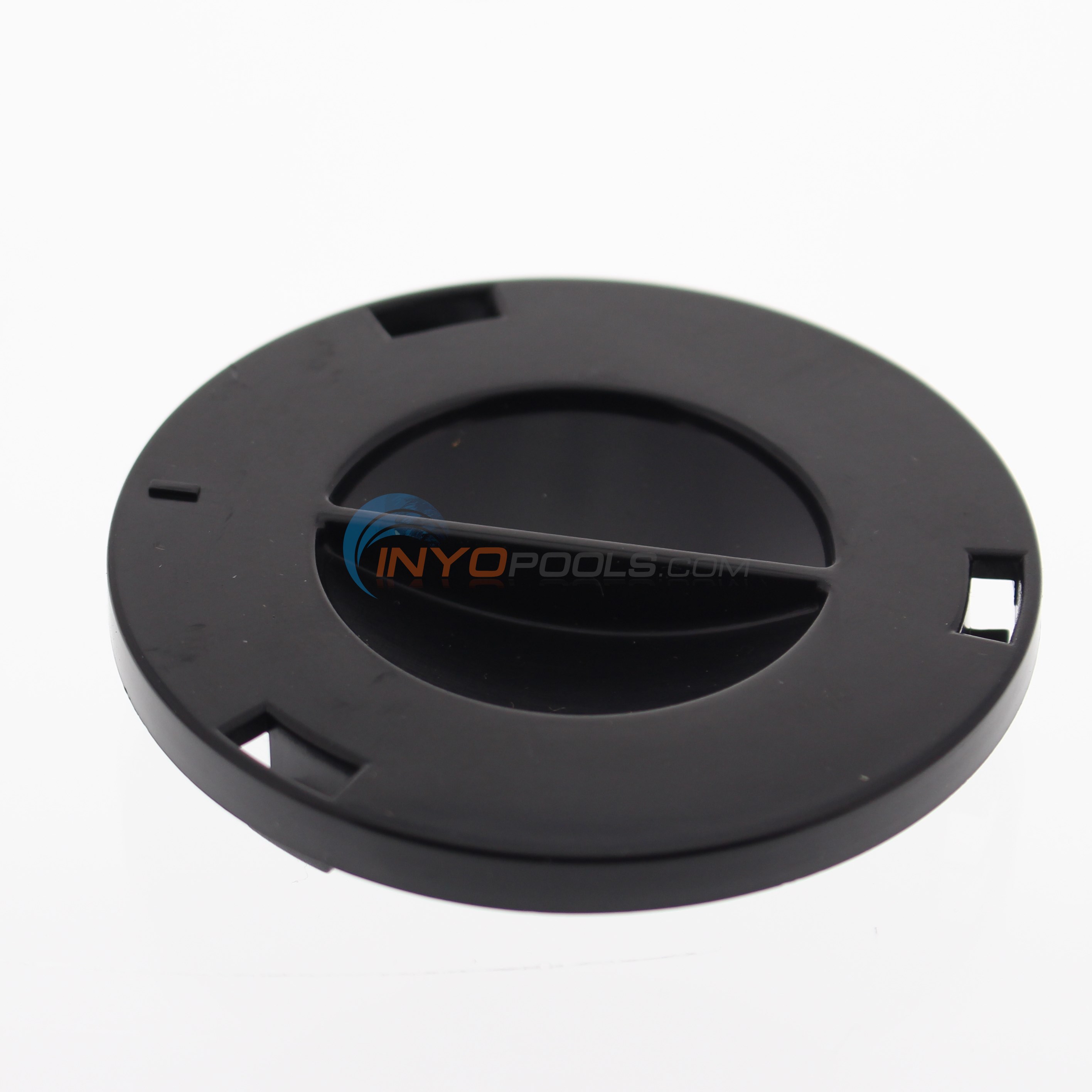

1	CAM CAP, PHANTOM
2	CAMS (3-PACK)

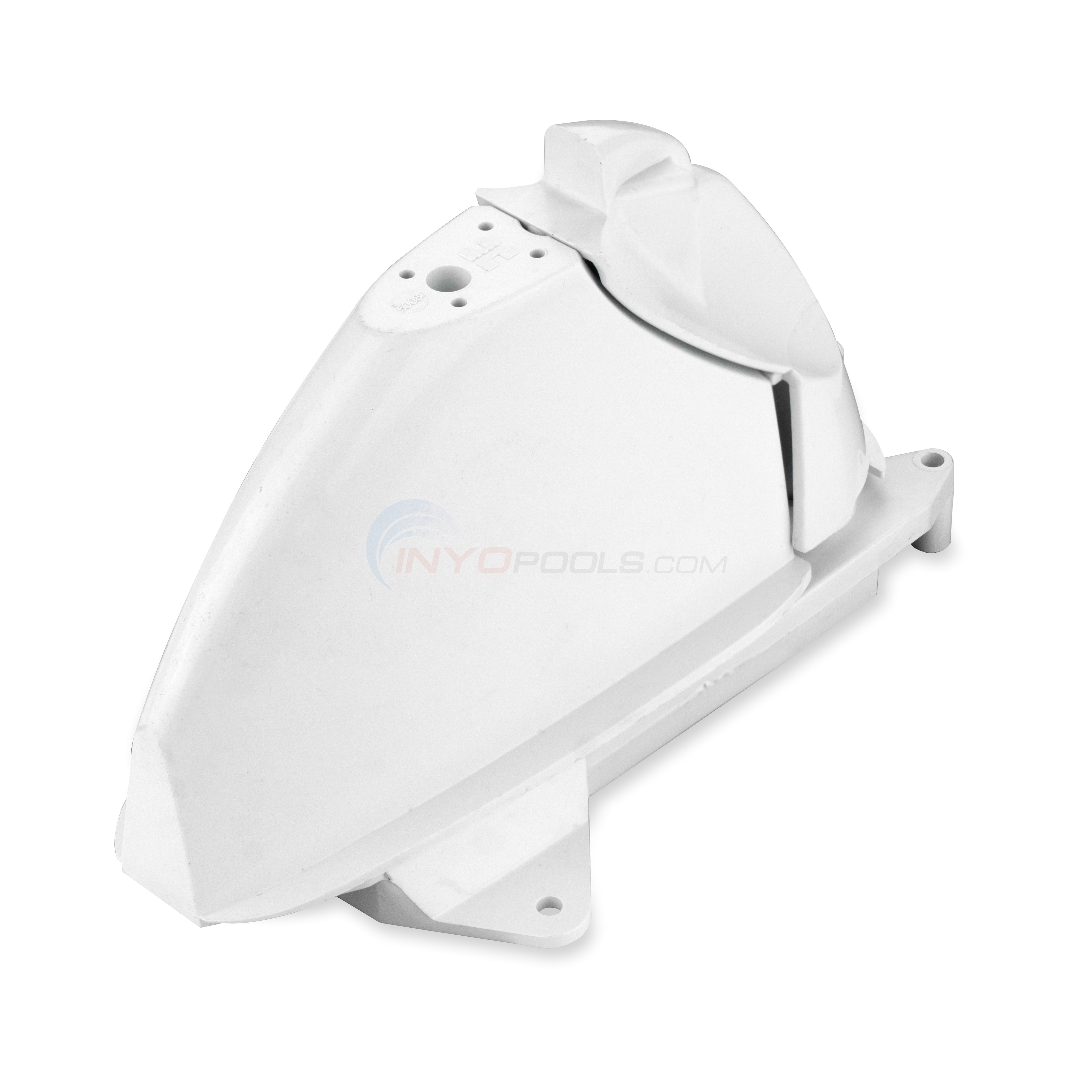

3	NOSE JET TANK
4	FRONT SPIN-OUT JET With HOSE & TIE

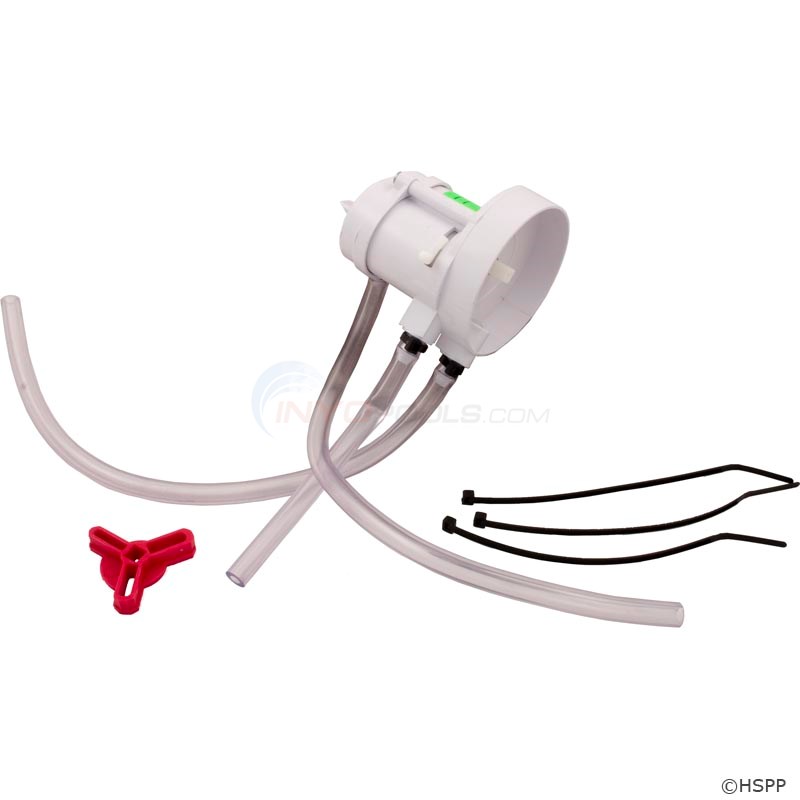

5	GEAR BOX, PHANTOM
6	FRONT WHEEL With RETAINER & BEARING
7	SCREWS (5-PACK)

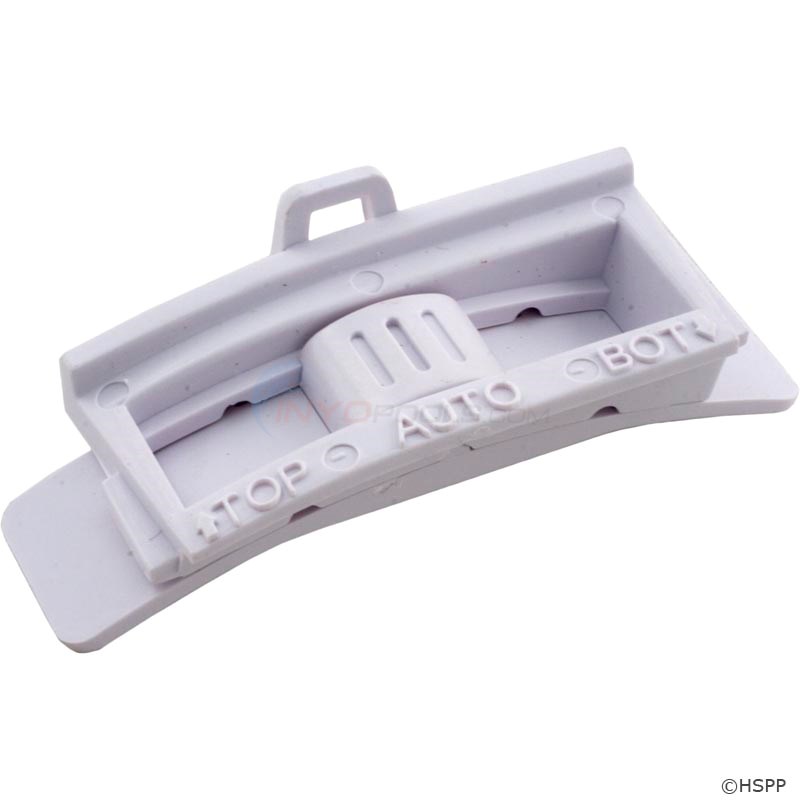

8	TOP / AUTO / BOT SWITCH

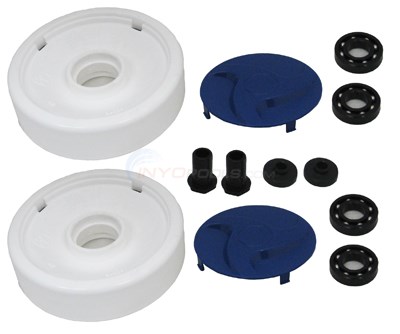

9	REAR WHEELS With BEARINGS NUTS & HUBCAPS
10	SPLIT REAR AXLE AFTER 6-06

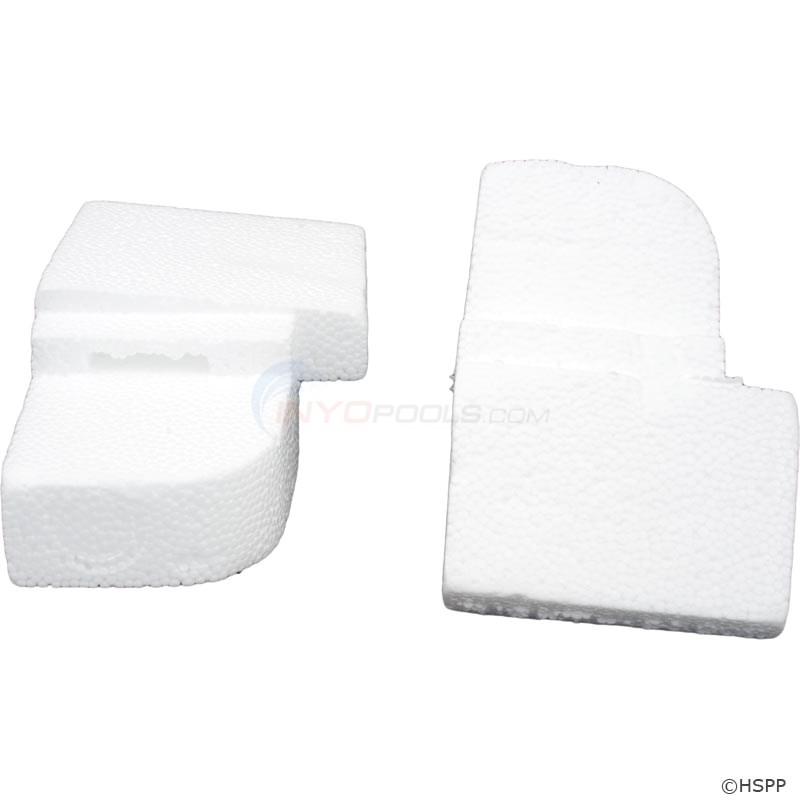

11	FLOATS, LEFT & RIGHT
12	VAC TUBE

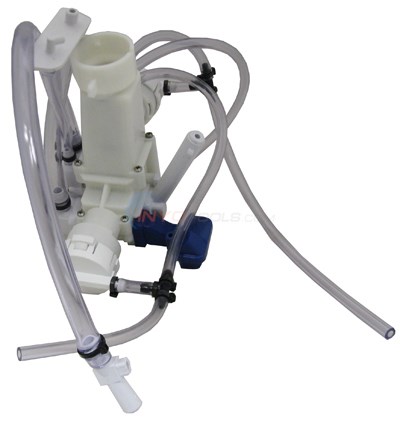

13	MANIFOLD ASS'Y With HOSES & TIRES
14	MANIFOLD FILTER SCREEN
15	ROLLERS 7-PACK With BEARINGS (AX5000D)

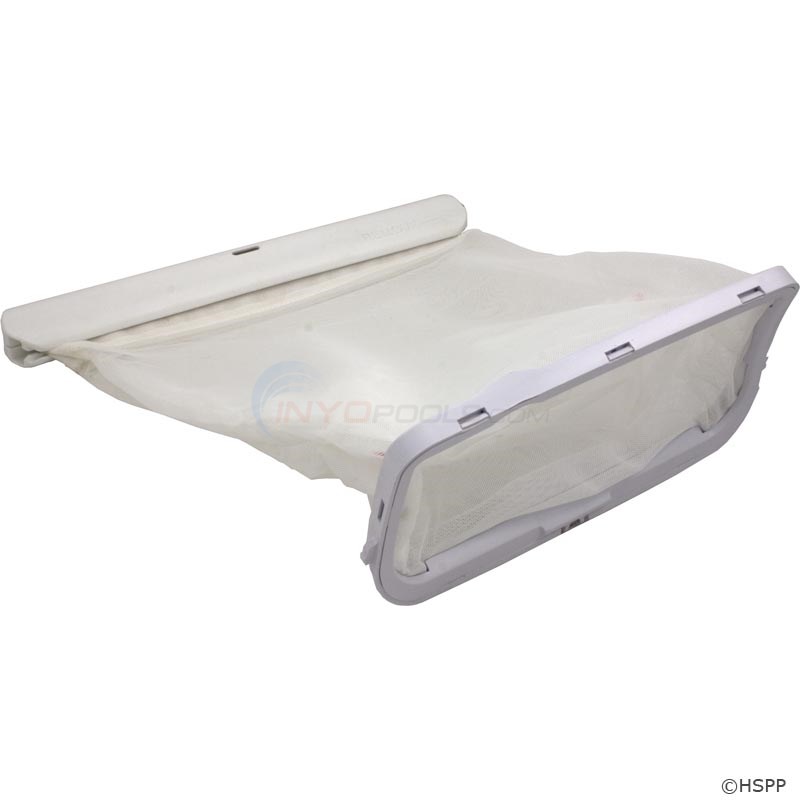

16	DEBRIS BAG With FLOAT, PHANTOM
17	BAG CLOSURE With FLOAT
18	Pressure Hose Complete (retrofit)
19	UNIVERSAL WALL FITTING
20	O-RING, WALL QUICK CONNECT
21	WALL QUICK CONNECT, HOSE, IN-LINE FILTER ASS'Y
22	IN-LINE FILTER SCREEN
23	O-RING, IN-LINE FILTER

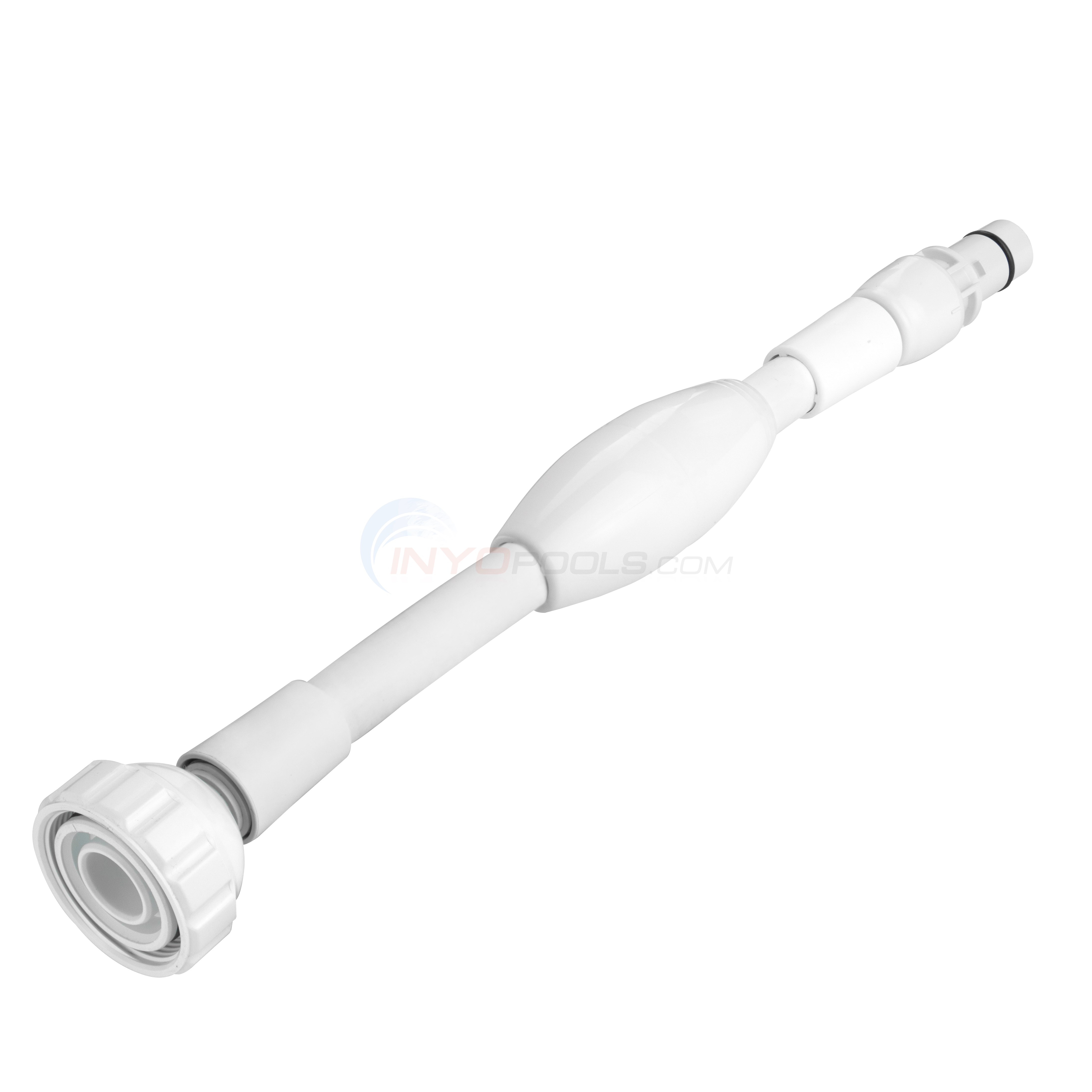

24	PRESSURE HOSE AND TOP OF INLINE FILTER ASS'Y

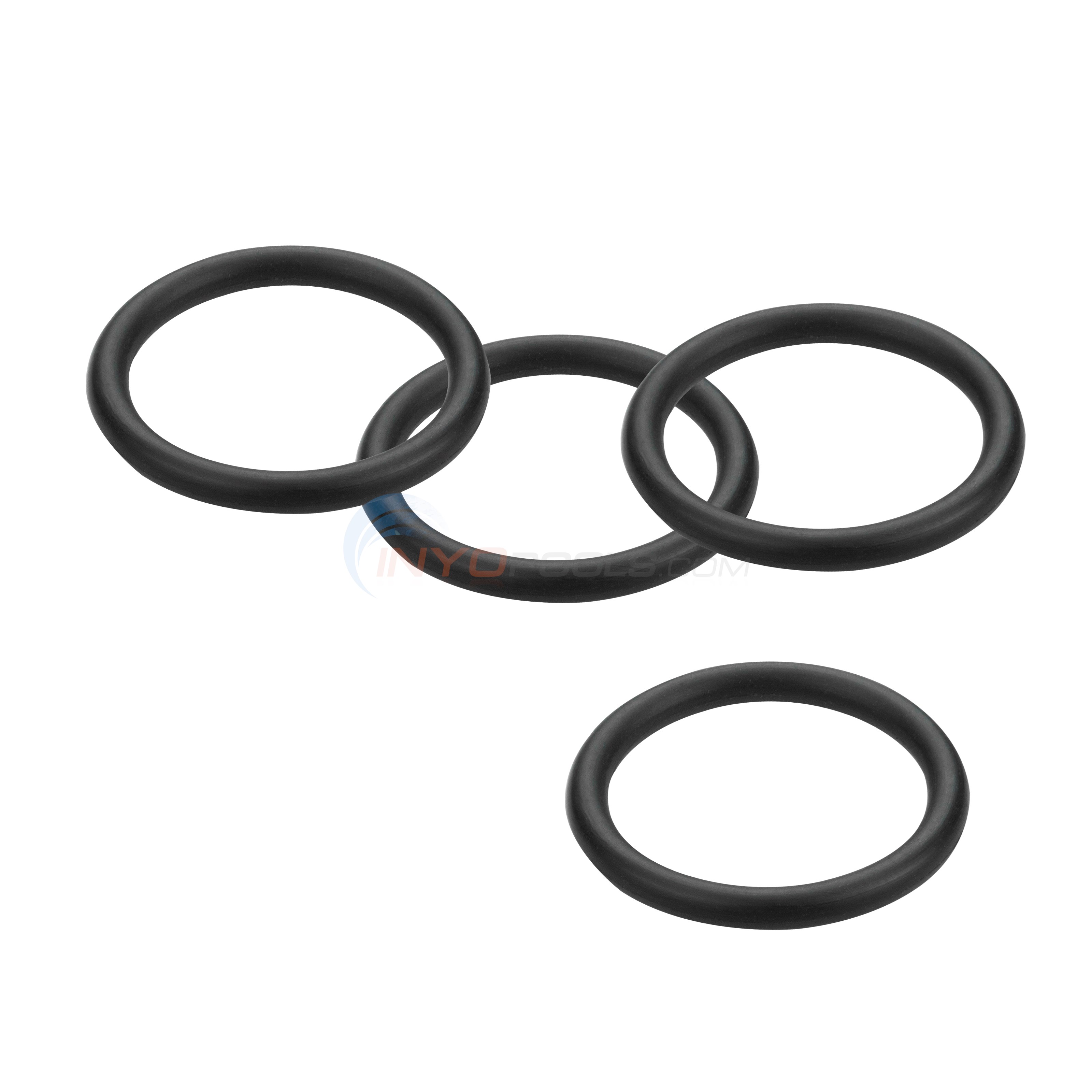

25	O-RING, PIPE CONNECTOR 6-PACK

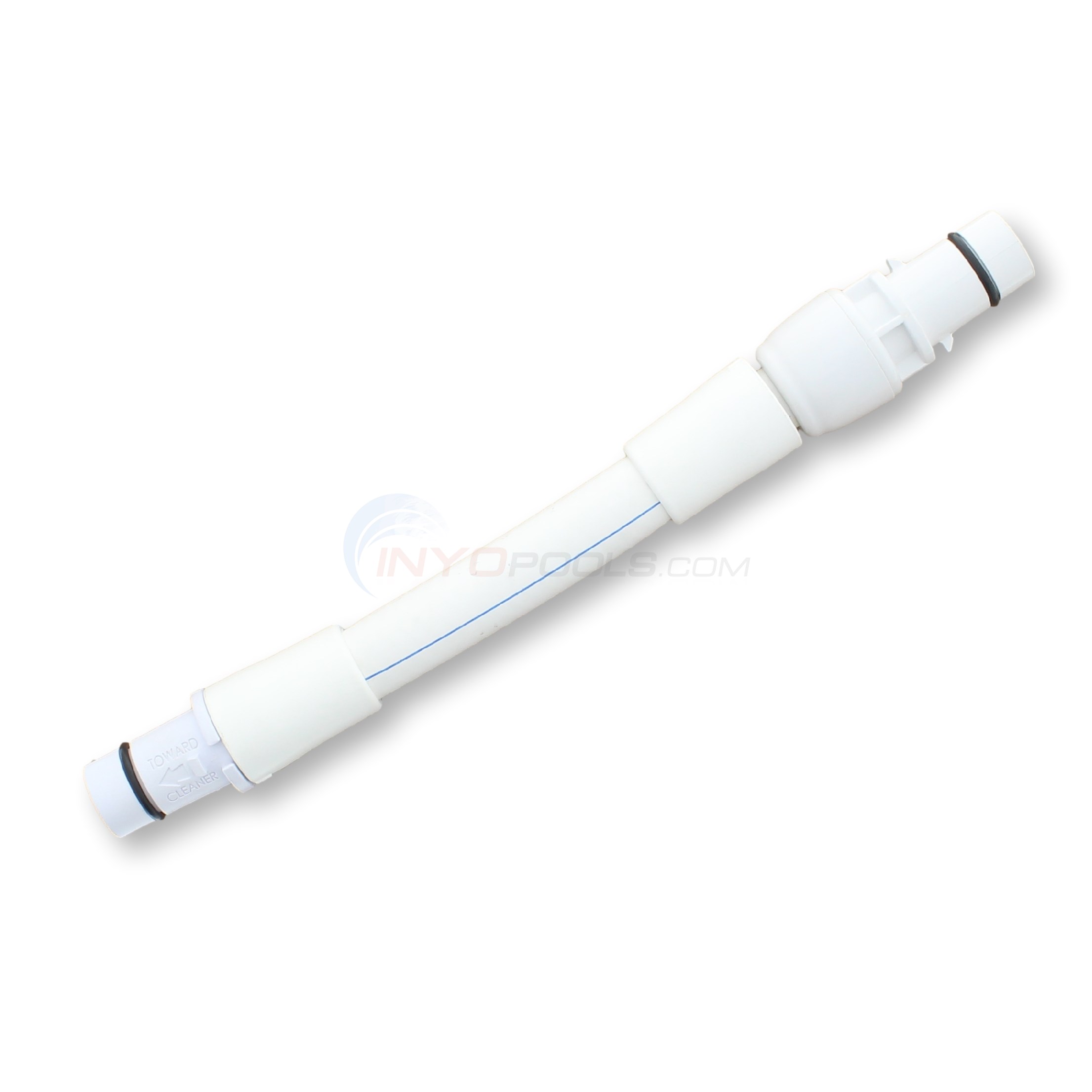

26	HOSE SWIVEL ASS'Y

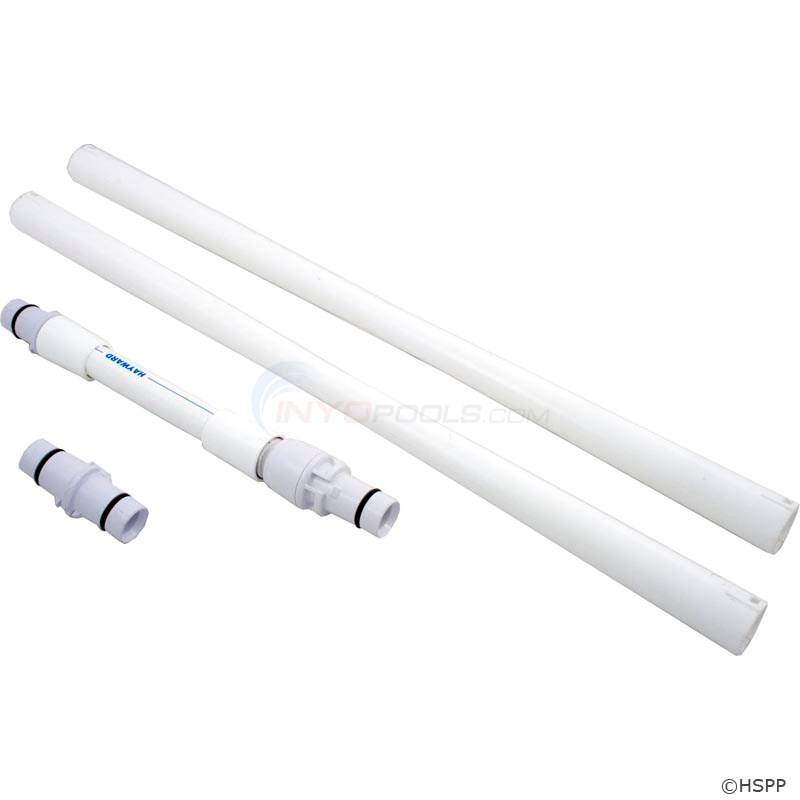

27	HOSE PIPE SECTION, 2 RIGID PIPES & 1 COUPLING

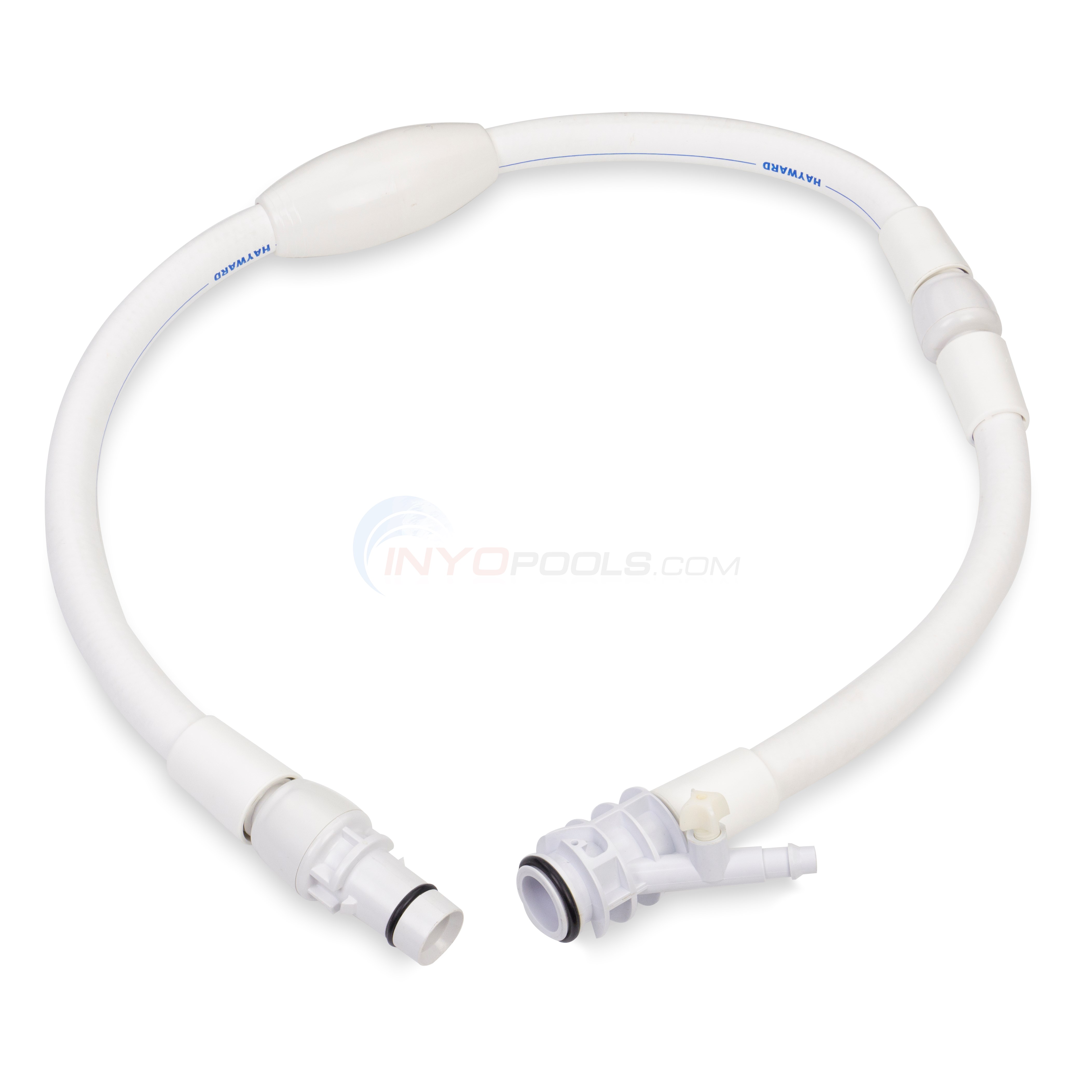

28	PRESSURE HOSE CLEANER END ASS'Y With O SWEEP HOSE
29	SWEEP HOSE COMPLETE, PHANTOM - No Longer Available, REPLACED WITH PART 3260-70
30	WEAR ROLLERS 10 PER PACK
31	O-RING, CLEANER CONNECTOR
32	PRESSURE GUAGE SET-UP

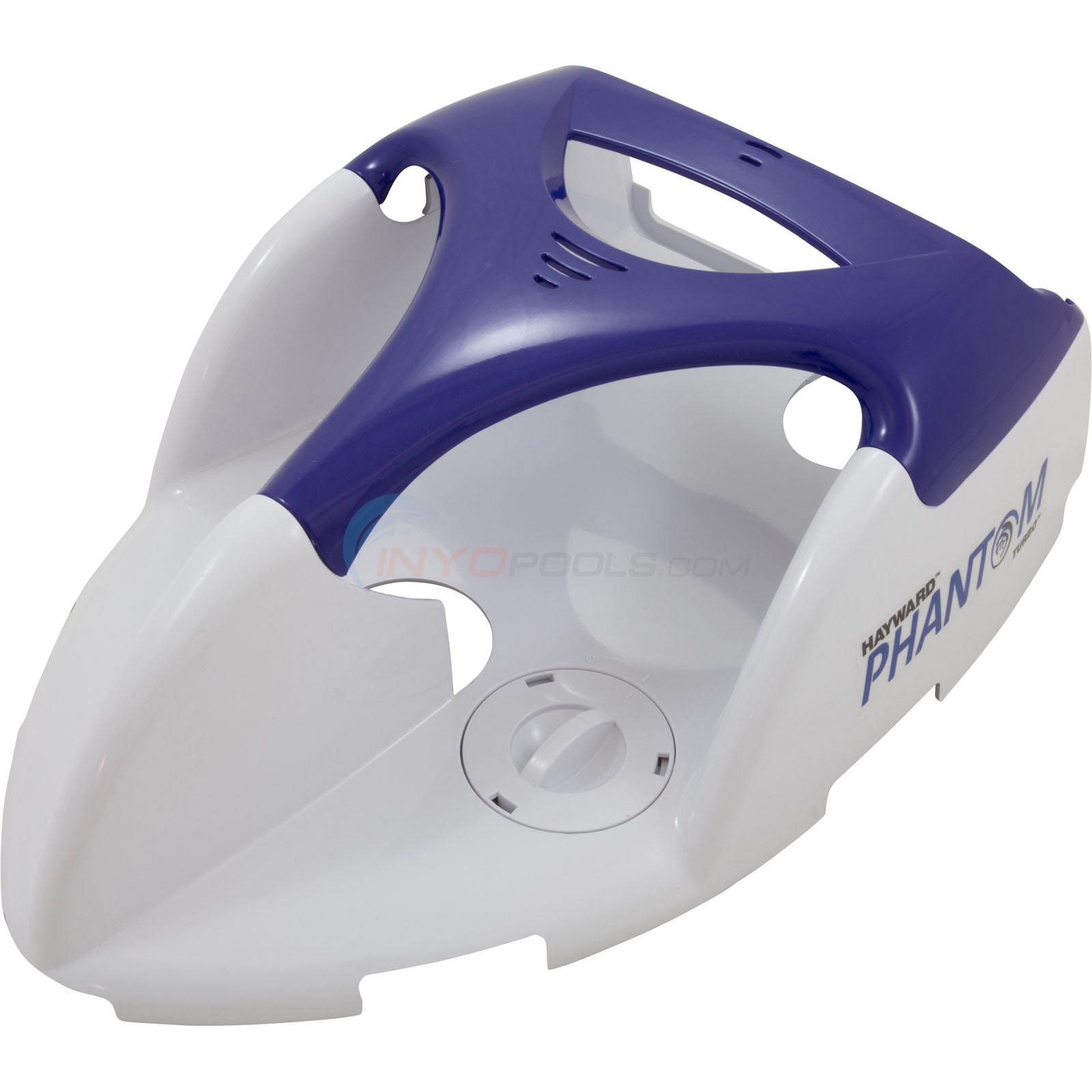

33	DECK With WING & CAM CAP, PHANTOM
33	Hayward Phantom Turbo Deck Replacement Black

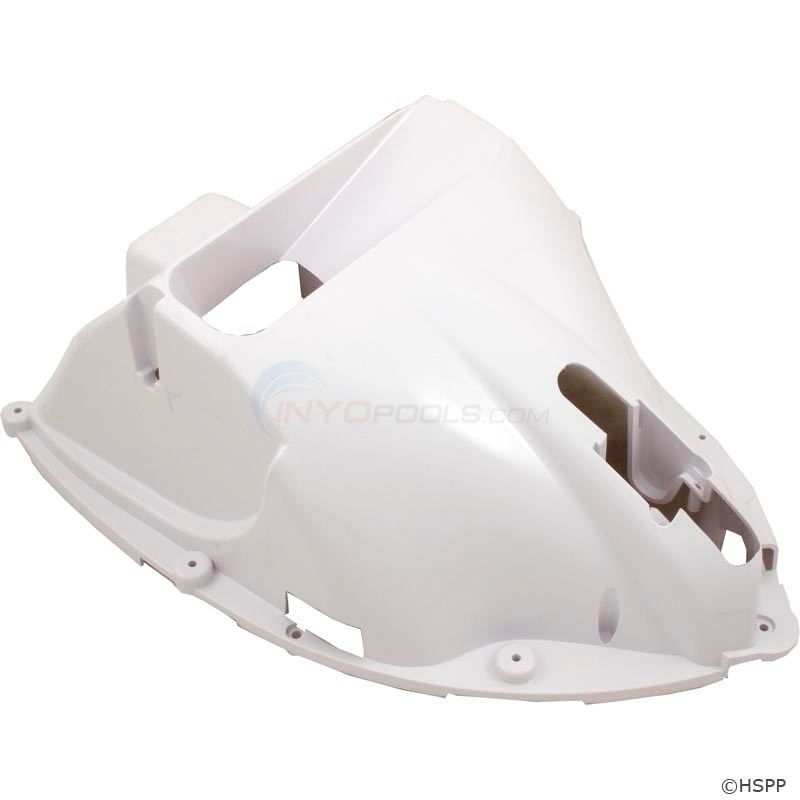

34	BOTTOM HOUSING
