Hayward Skim Filter SF-400 Parts

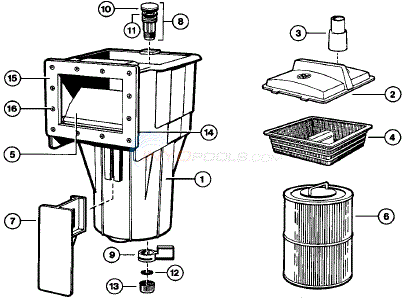

FILTER & SKIMMER COMBO-MODEL SF-400, SF-400-90

Click to zoom in

Diagram #	Part Title
1	OBSOLETE FILTER BODY
2	OBSOLETE COVER
3	OBSOLETE ADAPTER
4	OBSOLETE BASKET

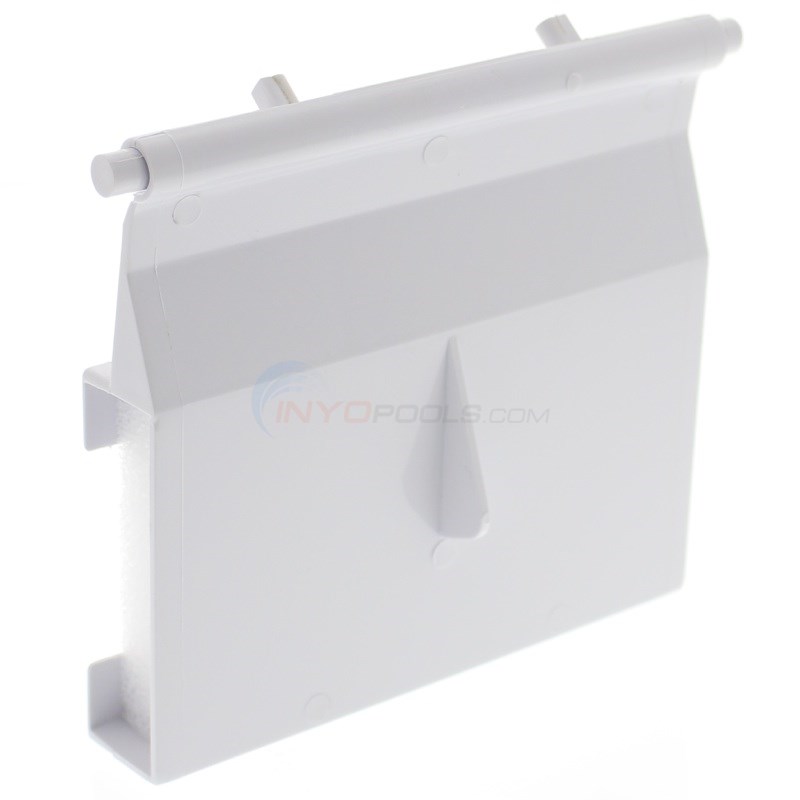

5	WEIR, SKIMMER 5 3/4IN

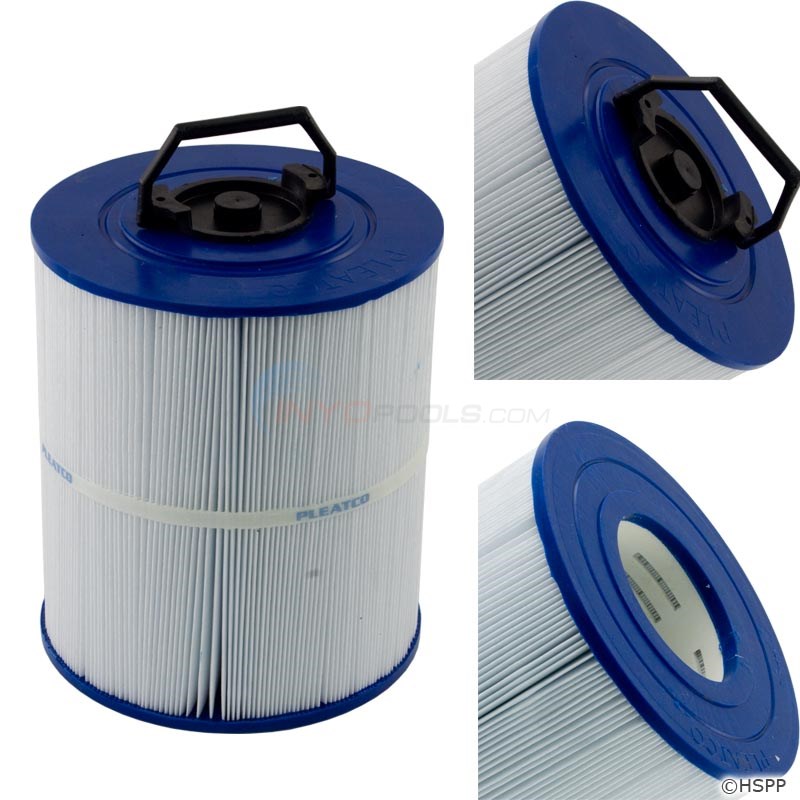

6	Hayward CX 400 Skim Filter Generic Cartridge

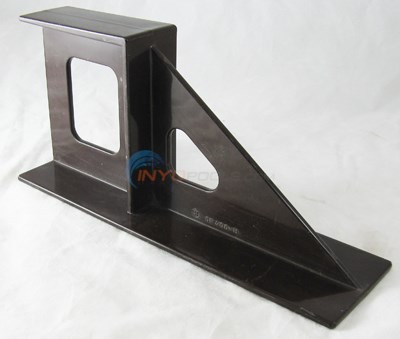

7	BRACKET, SUPPORT

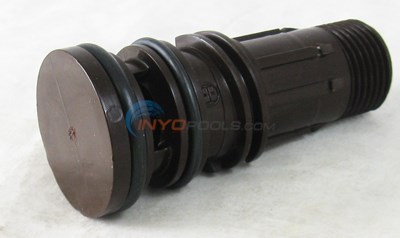

8	DRAIN VALVE ASSEMBLY

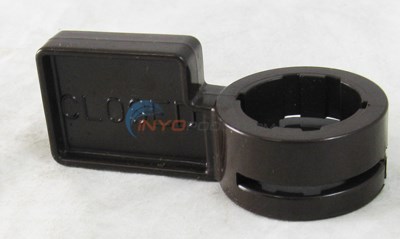

9	HANDLE, DRAIN VALVE

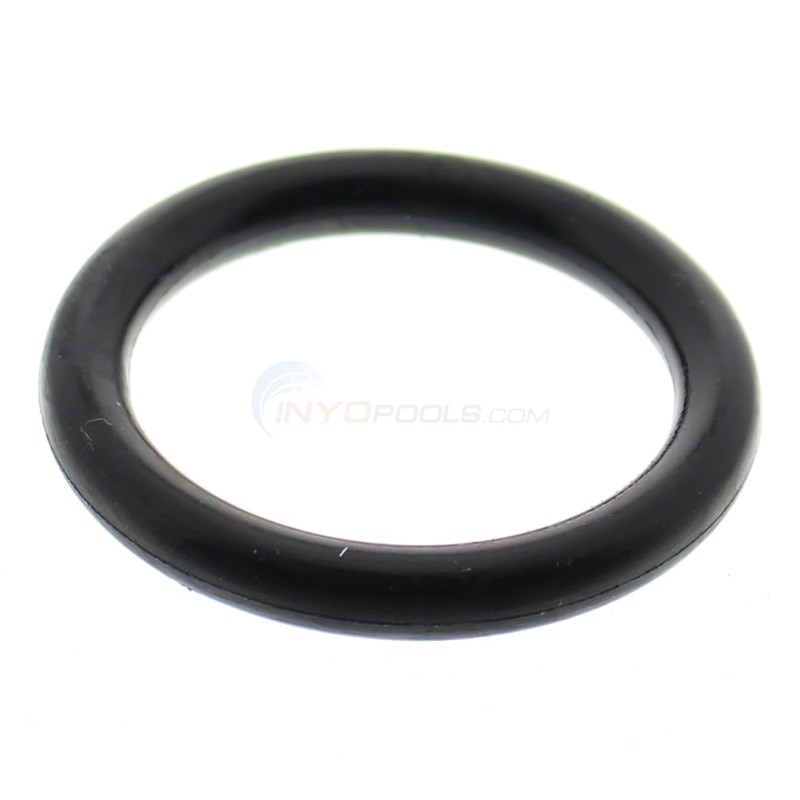

10	O-RING, DRAIN VALVE-LARGE (UPPER)

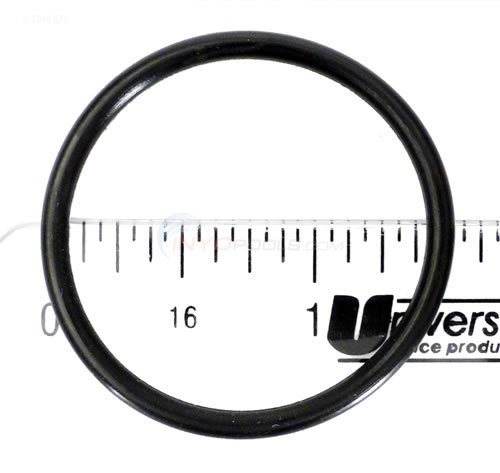

11	O-RING, DRAIN VALVE-SMALL (LOWER)
12	GASKET, DRAIN CAP
13	CAP DRAIN WITH GASKET
14	GASKET, 12 HOLE FACE PLATE
15	PLATE, FACE PLATE 12 HOLE

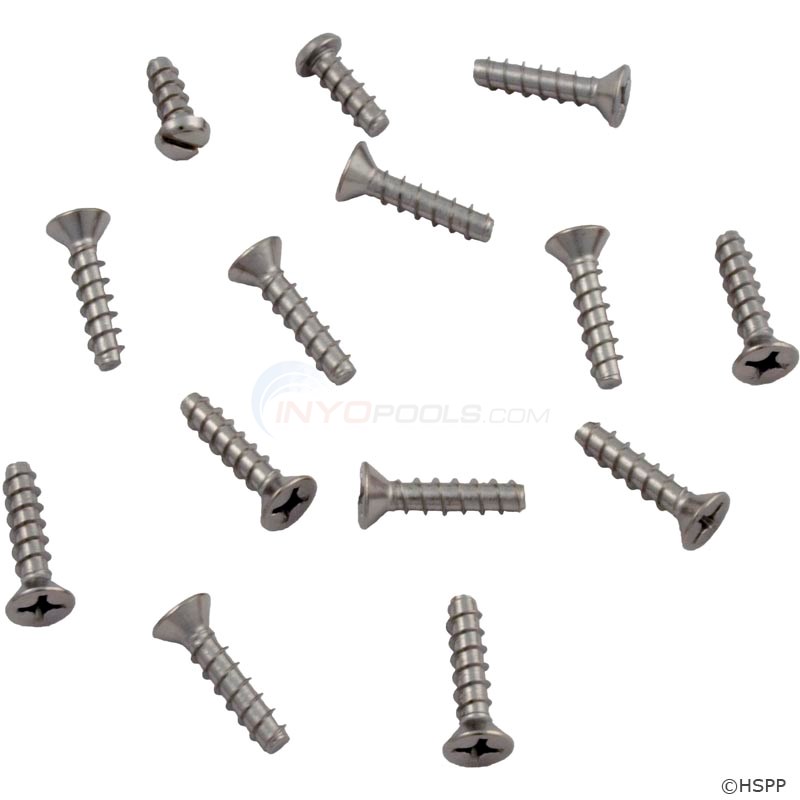

16	SCREW, 12 HOLE FACE PLATE
