Heritage 12'x17' Yardmore Oval (Resin Toprail, Resin Upright) Parts

Model PHER_52RRRSRH1 (Resin Top Rail, Resin Upright)

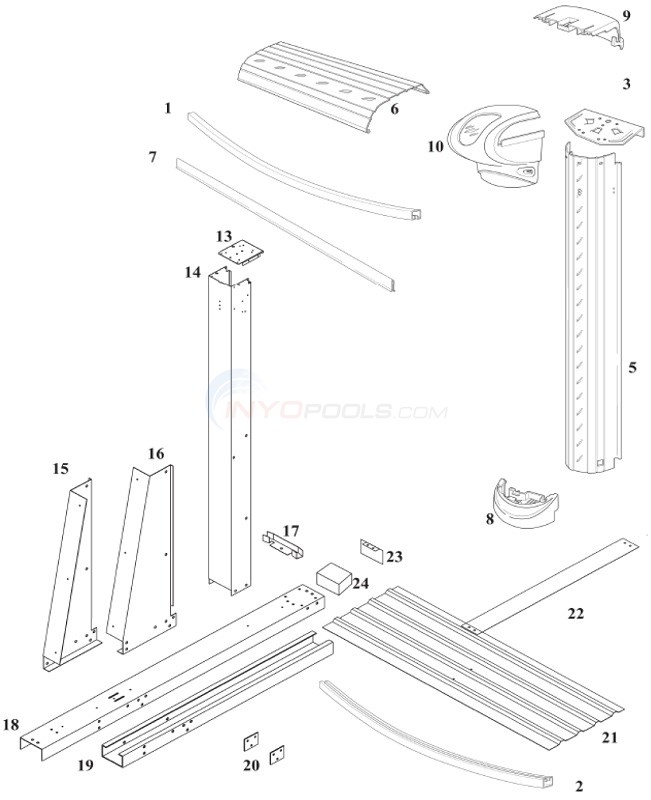

Heritage 12'x17' Yardmore Oval (Resin Toprail, Resin Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38" Aluminum (Single)
3	Top Plate 6" for Round & Oval Curved Side (Single)
5	Up Right 6” (Outer) 51 5/8” (Single)
6	Top Rail 7" Resin 40 1/8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Small Half Inner 7" (Single)
10	Top Cap Large Half Outer 7" STR (Single)
13	Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin
14	Up Right 51 13/16" (Single)
15	Yardmore Gusset Left Sand TXT
16	Yardmore Gusset Right Sand TXT
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware S/S Top Rail Resin 12'x24'/15'x26'
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD

View Parts List

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38" Aluminum (Single)
3	Top Plate 6" for Round & Oval Curved Side (Single)
5	Up Right 6” (Outer) 51 5/8” (Single)
6	Top Rail 7" Resin 40 1/8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Small Half Inner 7" (Single)
10	Top Cap Large Half Outer 7" STR (Single)
13	Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin
14	Up Right 51 13/16" (Single)
15	Yardmore Gusset Left Sand TXT
16	Yardmore Gusset Right Sand TXT
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware S/S Top Rail Resin 12'x24'/15'x26'
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD

Available Parts:

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1217ASO

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

$301.49

Inner Stabilizer Steel 42-5/8" (Single)

Part # 38501

Inner Stabilizer Steel 42-5/8" (Single)

$46.72 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$29.09 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$10.35 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Rim 8" Steel (4 pack)

Part # 38513-PACK4

Rim 8" Steel (4 pack)

$57.24 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

Part # 38501-1217-RESKIT

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

$885.03 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail 38" Aluminum (Single)

Part # 10289 Mfg # 10289

Bottom Rail 38" Aluminum (Single)

$41.64 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Rail Str Side Aluminum 37-1/2" (Single)

Part # 16543

Bottom Rail Str Side Aluminum 37-1/2" (Single)

$33.58 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Top Plate 6" for Round & Oval Curved Side (Single)

Part # 22761

Top Plate 6" for Round & Oval Curved Side (Single)

$19.50 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Up Right 6” (Outer) 51 5/8” (Single)

Part # 38745

Up Right 6” (Outer) 51 5/8” (Single)

$72.76 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Up Right 6” (Inner) 49 1/2” (Single)

Part # 38746

Up Right 6” (Inner) 49 1/2” (Single)

$19.00

Quantity Per Pool 10

Quantity Per Pool 10

Up Right 6” (Outer) 51 5/8” (4 pack)

Part # 38745-PACK4

Up Right 6” (Outer) 51 5/8” (4 pack)

$156.71 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Top Rail 7" Resin 40 1/8" (Single)

Part # 22769

Top Rail 7" Resin 40 1/8" (Single)

$106.61 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail 7” Resin 41 1/8” (Single)

Part # 22775

Top Rail 7” Resin 41 1/8” (Single)

$75.86

Quantity Per Pool 2

Quantity Per Pool 2

Top Rail 7" Resin 40 1/8" (4 pack)

Part # 22769-PACK4

Top Rail 7" Resin 40 1/8" (4 pack)

$197.03 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$12.81 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap Boot (Single)

Part # 22735

Top Cap Boot (Single)

$28.71 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Cap Small Half Inner 7" (Single)

Part # 22734

Top Cap Small Half Inner 7" (Single)

$21.31 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap Large Half Outer 7" STR (Single)

Part # 22733

Top Cap Large Half Outer 7" STR (Single)

$30.21

Quantity Per Pool 4

Quantity Per Pool 4

Top Cap Large Half Outer 7" CVD (Single)

Part # 22732

Top Cap Large Half Outer 7" CVD (Single)

$22.90 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin

Part # 22762

Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin

$17.18

Quantity Per Pool 4

Quantity Per Pool 4

Up Right 51 13/16" (Single)

Part # 35738

Up Right 51 13/16" (Single)

$91.79

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Left Sand TXT

Part # 17539

Yardmore Gusset Left Sand TXT

$94.03

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Right Sand TXT

Part # 17540

Yardmore Gusset Right Sand TXT

$91.79

Quantity Per Pool 4

Quantity Per Pool 4

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$9.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Strap Oval Channel 52-3/8" (Single)

Part # 16539

Strap Oval Channel 52-3/8" (Single)

$118.67

Quantity Per Pool 4

Quantity Per Pool 4

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$35.00

Quantity Per Pool 4

Quantity Per Pool 4

Hdw SS Base Pack YardMore (4 UPRIGHTS)

Part # 16720

Hdw SS Base Pack YardMore (4 UPRIGHTS)

$120.90

Quantity Per Pool 1

Quantity Per Pool 1

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$85.28 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Pressure Plate 44" (4 pack)

Part # 16549-PACK4

Pressure Plate 44" (4 pack)

$454.48 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.81

Quantity Per Pool 4

Quantity Per Pool 4

Oval Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Channel End Cap (Single)

$11.43 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Oval Channel Foam Block

Part # 29917

Oval Channel Foam Block

$4.47

Quantity Per Pool 4

Quantity Per Pool 4

Hardware S/S Top Rail Resin 12'x24'/15'x26'

Part # 19860

Hardware S/S Top Rail Resin 12'x24'/15'x26'

$101.87

Quantity Per Pool 1

Quantity Per Pool 1

Hdw YZ FOR 12X'17' OVAL

Part # 19218

Hdw YZ FOR 12X'17' OVAL

$128.73

Quantity Per Pool 1

Quantity Per Pool 1

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$16.78

Quantity Per Pool 1

Quantity Per Pool 1

Backyard Leisure Consumer DVD

Part # 36878

Backyard Leisure Consumer DVD

$1136.29

Quantity Per Pool 1

Quantity Per Pool 1
