Heritage 12'x24' Yardmore Oval (Steel Toprail, Steel Upright) Parts

Model PHER-52SSPSRH1 (Steel Top Rail, Steel Upright)

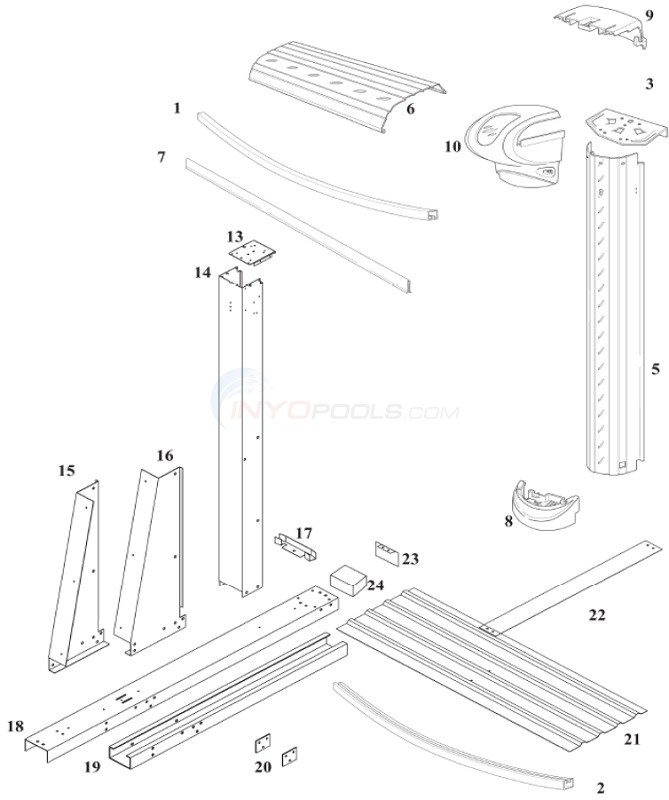

Heritage 12'x24' Yardmore Oval (Steel Toprail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail Steel 38"
3	Top Plate 6"
5	Up Right 51 5/8" (Single)
6	Top Rail 7" 40 1/8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Large Half Outer 7" CVD (Single)
10	Top Cap Small Half Inner 7" (Single)
13	Top Plate 6" Xylon (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Sand TXT
16	Yardmore Gusset Right Sand TXT
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hdw YZ 12'X24' / 15' X 26' OVAL
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD

View Parts List

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail Steel 38"
3	Top Plate 6"
5	Up Right 51 5/8" (Single)
6	Top Rail 7" 40 1/8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Large Half Outer 7" CVD (Single)
10	Top Cap Small Half Inner 7" (Single)
13	Top Plate 6" Xylon (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Sand TXT
16	Yardmore Gusset Right Sand TXT
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hdw YZ 12'X24' / 15' X 26' OVAL
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD

Available Parts:

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1224ASO

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

$326.61

12' x 24' 48"-54" Depth Country Stone Overlap

Part # FC1224OVOL

12' x 24' 48"-54" Depth Country Stone Overlap

$349.73

Inner Stabilizer Steel 42-5/8"

Part # 15325

Inner Stabilizer Steel 42-5/8"

$44.77 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Rim 5/8" (Single) SQ Steel 8" Black

Part # 16799

Rim 5/8" (Single) SQ Steel 8" Black

$10.39 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Rim 5/8" (Single) SQ Steel 37" Black

Part # 16797

Rim 5/8" (Single) SQ Steel 37" Black

$32.26 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Rim 5/8" (Single) SQ Steel 33" Black

Part # 16798

Rim 5/8" (Single) SQ Steel 33" Black

$42.68 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Inner Stabilizer Steel 42-5/8" (4 pack) REPLACED BY 38501!!

Part # 15325-PACK4

Inner Stabilizer Steel 42-5/8" (4 pack) REPLACED BY 38501!!

$109.16

Quantity Per Pool

Quantity Per Pool

Rim 5/8" (4 pack) SQ Steel 37" Black

Part # 16797-PACK4

Rim 5/8" (4 pack) SQ Steel 37" Black

$92.76 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Rim 5/8" (4 pack) SQ Steel 33" Black

Part # 16798-PACK4

Rim 5/8" (4 pack) SQ Steel 33" Black

$115.34 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

38501 Resin Stabilizer Upgrade Kit for 12' x 24' Oval Pool

Part # 38501-1224-RESKIT

38501 Resin Stabilizer Upgrade Kit for 12' x 24' Oval Pool

$1137.90 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail Steel 38"

Part # 15642

Bottom Rail Steel 38"

$48.13

Quantity Per Pool 10

Quantity Per Pool 10

Bottom Rail Steel Straight Side 37.5"

Part # 16713

Bottom Rail Steel Straight Side 37.5"

$42.68 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Steel Corner 39"

Part # 16714

Bottom Rail Steel Corner 39"

$39.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$115.34 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$341.45

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Bottom Rail Steel Corner 39-1/4" (4-PACK)

Part # 16714-PACK4

Bottom Rail Steel Corner 39-1/4" (4-PACK)

$115.34 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$158.91

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Top Plate 6"

Part # 22761

Top Plate 6"

$18.50 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

22761 Resin Top Plate Upgrade Kit for 12' x 24' Oval Pool

Part # 22761-1224-RESKIT

22761 Resin Top Plate Upgrade Kit for 12' x 24' Oval Pool

$278.67 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Up Right 51 5/8" (Single)

Part # 22759

Up Right 51 5/8" (Single)

$78.37 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Up Right 51 5/8" (4 pack)

Part # 22759-PACK4

Up Right 51 5/8" (4 pack)

$299.00 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Top Rail 7" 40 1/8" (Single)

Part # 22750

Top Rail 7" 40 1/8" (Single)

$68.28 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Rail 7" 41 1/4" (Single)

Part # 22756

Top Rail 7" 41 1/4" (Single)

$44.77 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Rail 7" 41 1/4" (4 pack)

Part # 22756-PACK4

Top Rail 7" 41 1/4" (4 pack)

$158.87 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$12.31 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Top Cap Boot (Single)

Part # 22735

Top Cap Boot (Single)

$27.71 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap Large Half Outer 7" CVD (Single)

Part # 22732

Top Cap Large Half Outer 7" CVD (Single)

$17.90 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap Small Half Inner 7" (Single)

Part # 22734

Top Cap Small Half Inner 7" (Single)

$21.31 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Top Cap Large Half Outer 7" STR (Single)

Part # 22733

Top Cap Large Half Outer 7" STR (Single)

$30.21

Quantity Per Pool 6

Quantity Per Pool 6

Top Plate 6" Xylon (Single)

Part # 22762

Top Plate 6" Xylon (Single)

$17.18

Quantity Per Pool 6

Quantity Per Pool 6

Wrap Upright 51-13/16" (Single)

Part # 19266

Wrap Upright 51-13/16" (Single)

$91.79

Quantity Per Pool 6

Quantity Per Pool 6

Wrap Upright 51-13/16" (4 pack)

Part # 19266-PACK4

Wrap Upright 51-13/16" (4 pack)

$313.45

Quantity Per Pool

Quantity Per Pool

Yardmore Gusset Left Sand TXT

Part # 17539

Yardmore Gusset Left Sand TXT

$94.03

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Right Sand TXT

Part # 17540

Yardmore Gusset Right Sand TXT

$91.79

Quantity Per Pool 6

Quantity Per Pool 6

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$38.24 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Strap Oval Channel 52-3/8" (Single)

Part # 16539

Strap Oval Channel 52-3/8" (Single)

$118.67

Quantity Per Pool 6

Quantity Per Pool 6

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$35.00

Quantity Per Pool 6

Quantity Per Pool 6

Hdw SS Base Pack YardMore (4 UPRIGHTS)

Part # 16720

Hdw SS Base Pack YardMore (4 UPRIGHTS)

$120.90

Quantity Per Pool 1

Quantity Per Pool 1

Hdw SS Base Pack YardMore (2 UPRIGHT)

Part # 16722

Hdw SS Base Pack YardMore (2 UPRIGHT)

$79.47

Quantity Per Pool 1

Quantity Per Pool 1

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$85.28 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Pressure Plate 44" (4 pack)

Part # 16549-PACK4

Pressure Plate 44" (4 pack)

$454.48 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.81

Quantity Per Pool 6

Quantity Per Pool 6

Oval Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Channel End Cap (Single)

$11.43 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Oval Channel Foam Block

Part # 29917

Oval Channel Foam Block

$4.47 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Hdw YZ 12'X24' / 15' X 26' OVAL

Part # 19220

Hdw YZ 12'X24' / 15' X 26' OVAL

$193.67

Quantity Per Pool 1

Quantity Per Pool 1

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$16.78

Quantity Per Pool 1

Quantity Per Pool 1

Backyard Leisure Consumer DVD

Part # 36878

Backyard Leisure Consumer DVD

$1136.29

Quantity Per Pool 1

Quantity Per Pool 1

* Not Shown
