Pentair IntelliProXF Variable Speed Pump (Pre - August 2015)

Pentair IntelliProXF Variable Speed Pump (Pre - August 2015) Diagram
Pentair IntelliProXF Variable Speed Pump
Key Part # Item Price
1 401000 Intellipro XF & Max-E-Pro XF Wet End Assembly $346.99 Description

Key Part # Item Price
2 410020 Union Kit Without Tap $154.49 Description

Key Part # Item Price
3 401605Z Power End Assy w/Drive & Motor $1,693.99 Description

Key Part # Item Price
4 401006 Max-E-Pro XF Lid with Locking Rick Assembly $79.99 Description

Key Part # Item Price
5 400007Z XF Series Replacement Basket $43.25 Description

Key Part # Mfg Code Item Price
6 5066-C1 O-12 Pump Lid O-ring (35505-1440)
Normally $16.99!
$6.99 Description

Key Part # Mfg Code Item Price
7 4600-4699 154699 Drain Plug 1/4" $6.99 Description

Key Part # Mfg Code Item Price
8 35-110-1652 192115 O-ring, Plug Drain 1/16"(o-130) $10.22 Description

Key Part # Item Price
9 411000 2.5 in. Union Nut $58.99 Description

Key Part # Item Price
10 410001 2.5 in. C-Clip Locking Ring $21.99 Description

Key Part # Item Price
11 410002 2.5 in. Union Adapter $54.99 Description

Key Part # Item Price
12 410016Z 2.5 in. Diamond Seal Kit - (Includes two - -

Key Part # Item Price
13 401004Z Motor Base $43.99 Description

Key Part # Item Price
14 357160 Motor Support Insert- Black $58.99 Description

Key Part # Item Price
15 071413 Acorn Nut (each) - -

Key Part # Mfg Code Item Price
16 5057-21 U43-12SS Washer $11.99 Description

Key Part # Mfg Code Item Price
17 6982-0 072184 Washer Ss 7/16"id X 7/8"od (sample W-7) $2.99 Description

Key Part # Item Price
18 350336 Diffuser O-ring $10.99 Description

Key Part # Item Price
19 353323 Diffuser Screw $12.99 Description

Key Part # Item Price
20 400010 XF Diffuser $128.51 Description

Key Part # Item Price
22 351446 Seal Plate O-Ring $14.99 Description

Key Part # Item Price
23 400015 XF-12 Impeller $152.99 Description

Key Part # Mfg Code Item Price
24 5053-100 17351-0101S Shaft Seal $26.32 Description

Key Part # Item Price
25 401002 Seal Plate $167.88 Description

Key Model # Mfg Code Item Price
26 5057-150 357294S Motor Pkg Vfd 3.2kw Pmswblk $826.00 Description

Key Part # Mfg Code Item Price

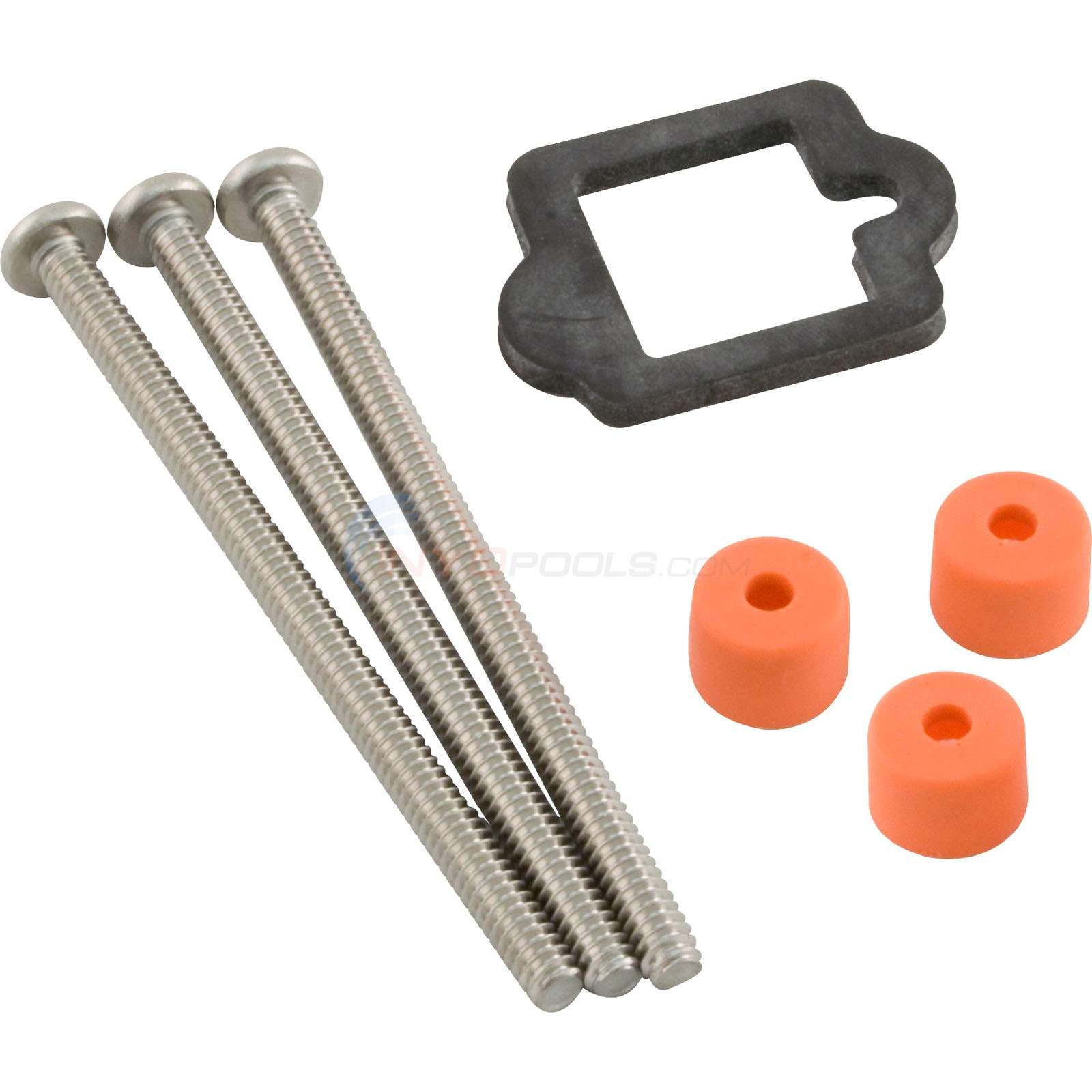

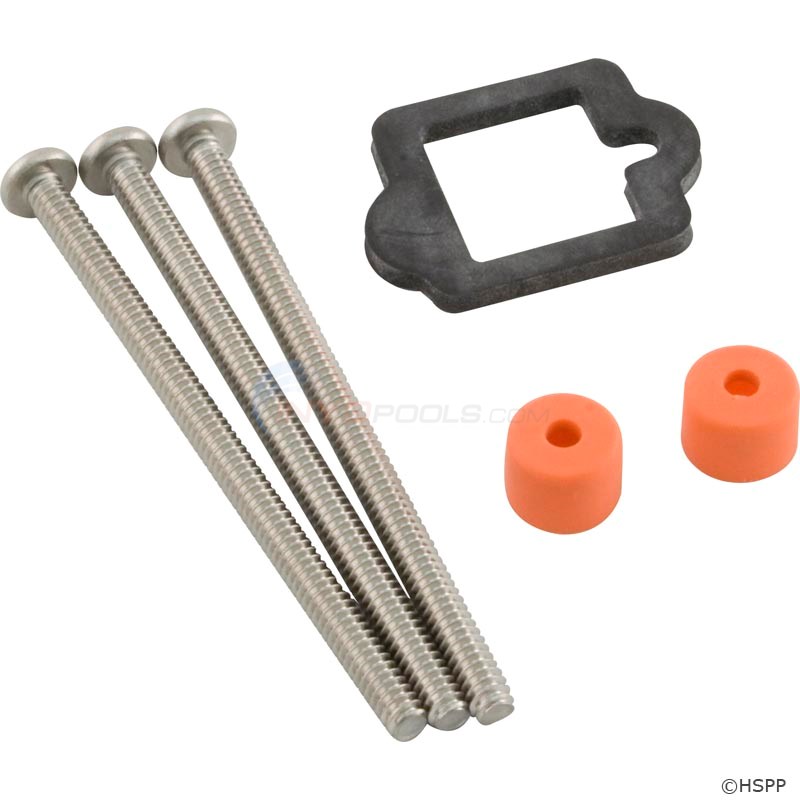

27 5057-041 350612 Hardware/gasket Kit $138.99 Description

Key Part # Item Price
28 353252 Variable Speed Drive Assy Kit $1,022.99 Description

Key Part # Item Price
29 353310 Field Wiring Comp Kit w/Gaske $106.99 Description

Key Part # Mfg Code Item Price
30 5057-060 350701 Cover Control Assy Kit Black $221.99 Description
30 401100 401100 Control Cover Assy Kit (incl. item #27) 2 - -

Key Part # Mfg Code Item Price
32 5057-170 352501 Fan Motor Kit, Intellipro $187.99 Description

Key Part # Mfg Code Item Price
* 400032Z 400032Z Seal Plate Kit w/ Mech Seal - -
* 400012 400012 Riser Plate XF to Challenger - -
* 5074-39 350122 Cable 50ft 2 Cond Intelliflo To Intellitouch $193.63 Description

*Not Shown
