Jandy JS Series JS60-SM Sand Filter Parts

Model JS60-SM (24")

Click here for Jandy JS Series JS100-SM Sand Filter Parts Diagram

Jandy JS Series JS60-SM Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1	Lid w/ Seal
2	Lid Seal
3	Gauge, Air Relief Assembly
4	Pressure Gauge
5	Tank Adapter w/ O-ring and Union
6	Diffuser
7	Air Relief Assembly
8	Inlet Piping Kit
9	Outlet Piping Kit

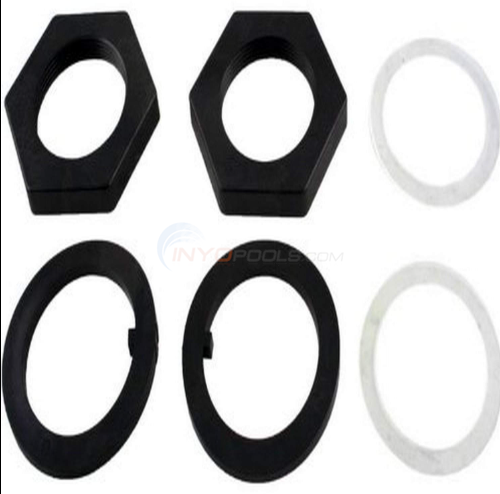

10	Slip Ring and Inner Spacer Nuts
11	Hub Assembly With 24" Laterals
12	Screw, #10 x 3/4" SS (Qty 6)
13	Sand Filter Drain Fitting Assembly
14	Drain Screen Assembly
15	Drain Fitting Seals Kit
16	O-Ring and Hardware Kit

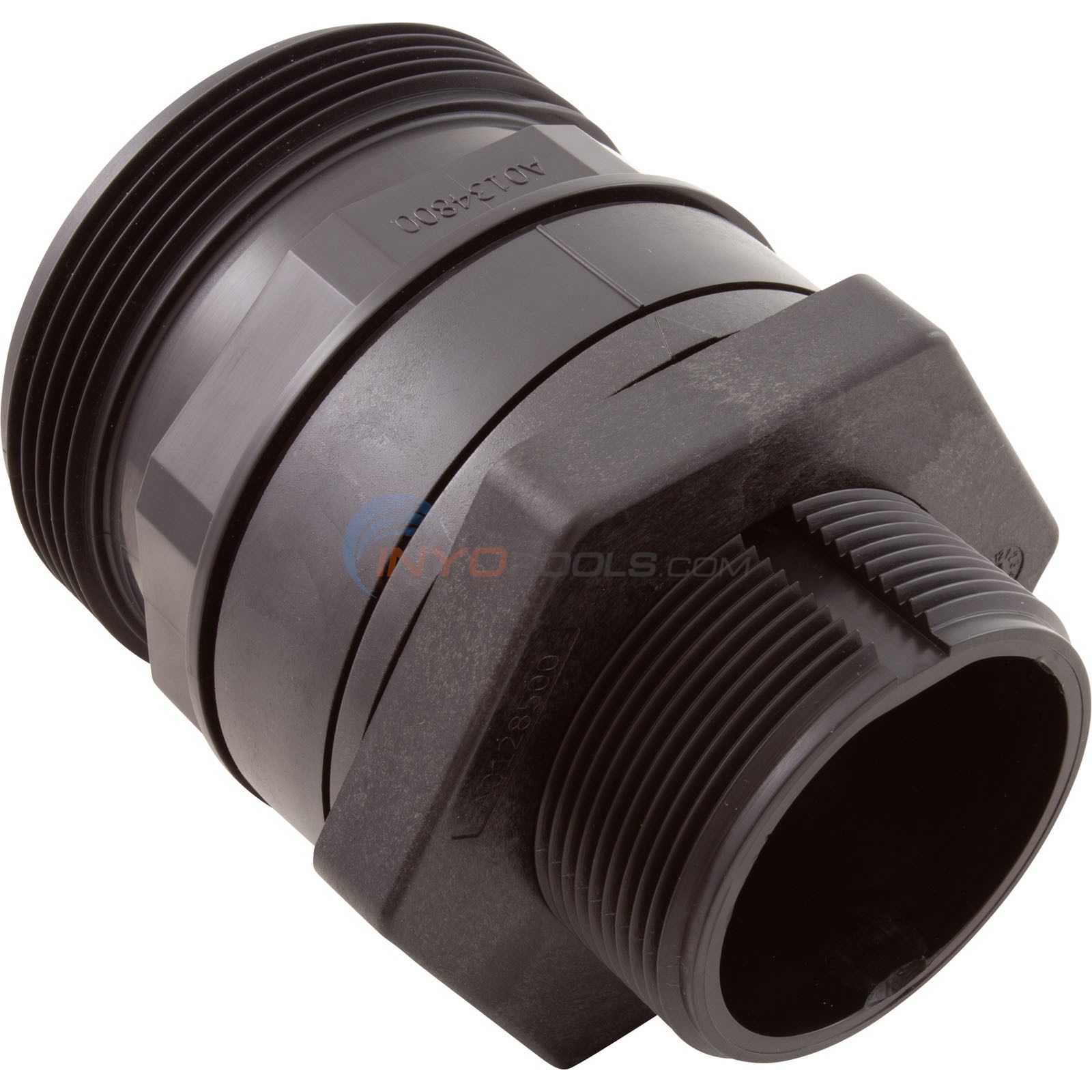

17	Outlet Fitting, Complete

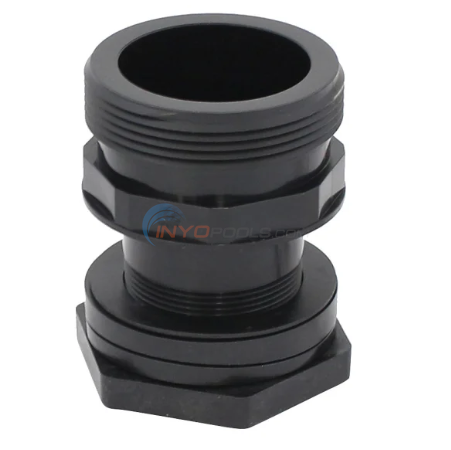

18	Inlet Fitting

View Parts List
