Jet Vac Parts

PARTS LIST

Jet Vac Diagram
 Click to zoom in

Available Parts:

Part # 3285-01 Mfg # JV2C

SHELL, VENTURI

$217.07 IN STOCK

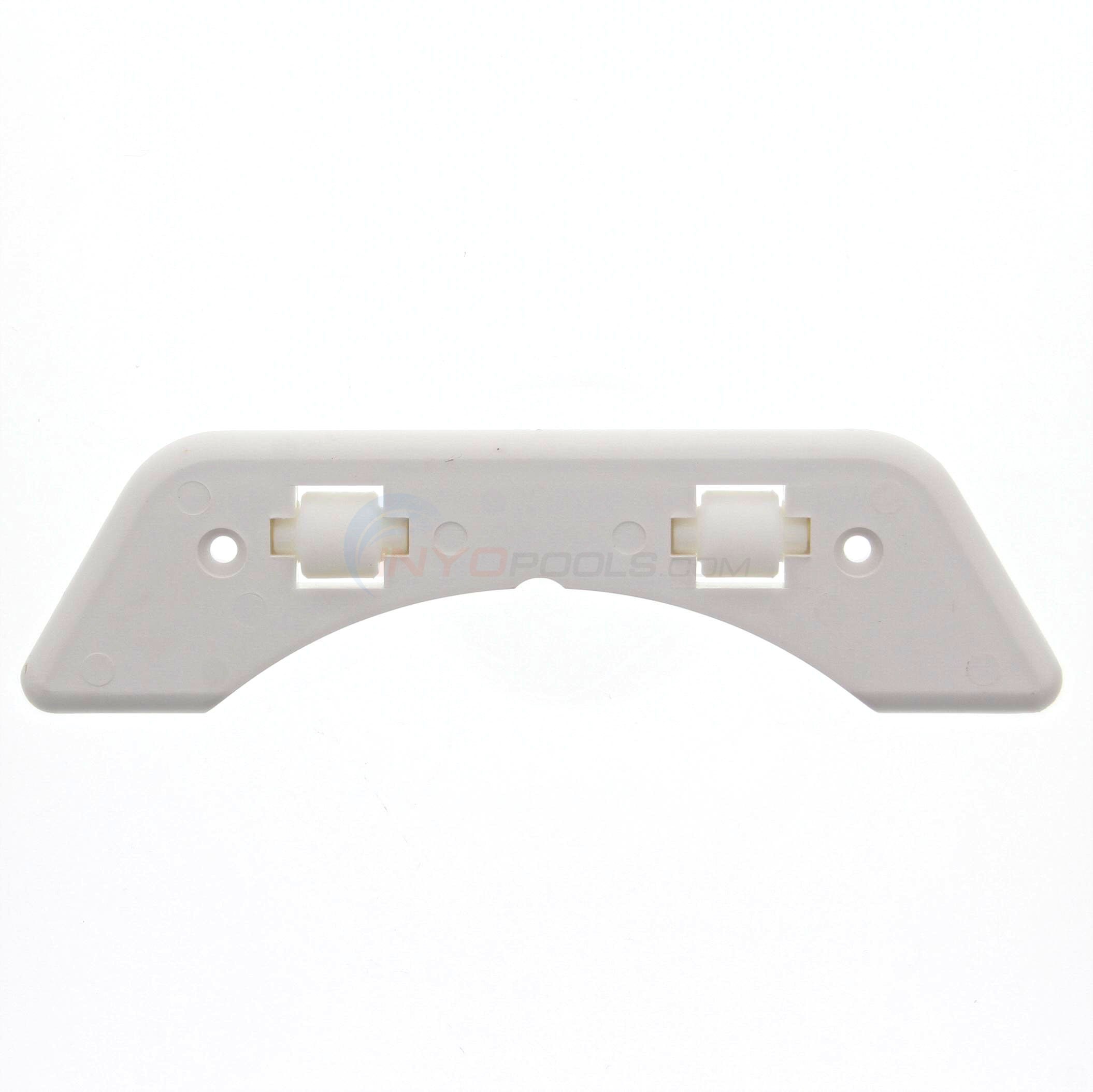

Part # 3285-02 Mfg # JV2B

DEFLECTOR ASSEMBLY

$74.36 IN STOCK
Part # 3285-03 Mfg # JV3

CONNECTOR

$32.15 IN STOCK
Part # 3250-F07 Mfg # 014

O-RING

$6.04 IN STOCK

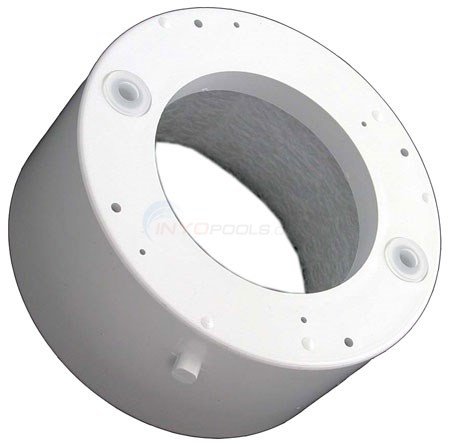

Part # 3285-05 Mfg # JV4

FLOAT

$113.55 IN STOCK
Part # 3285-06 Mfg # JV4B

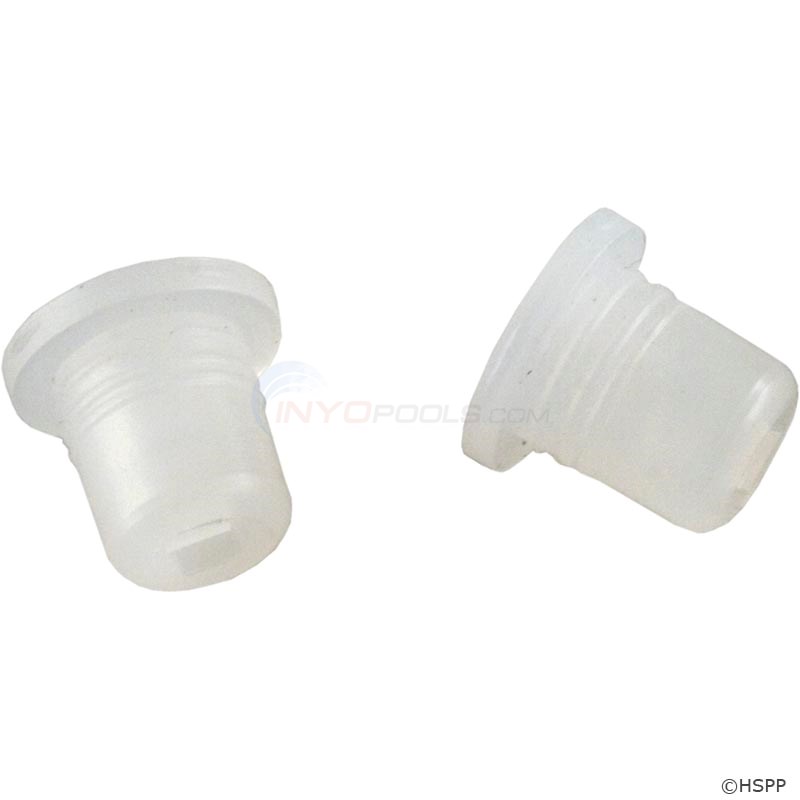

BUSHING

$15.06 IN STOCK

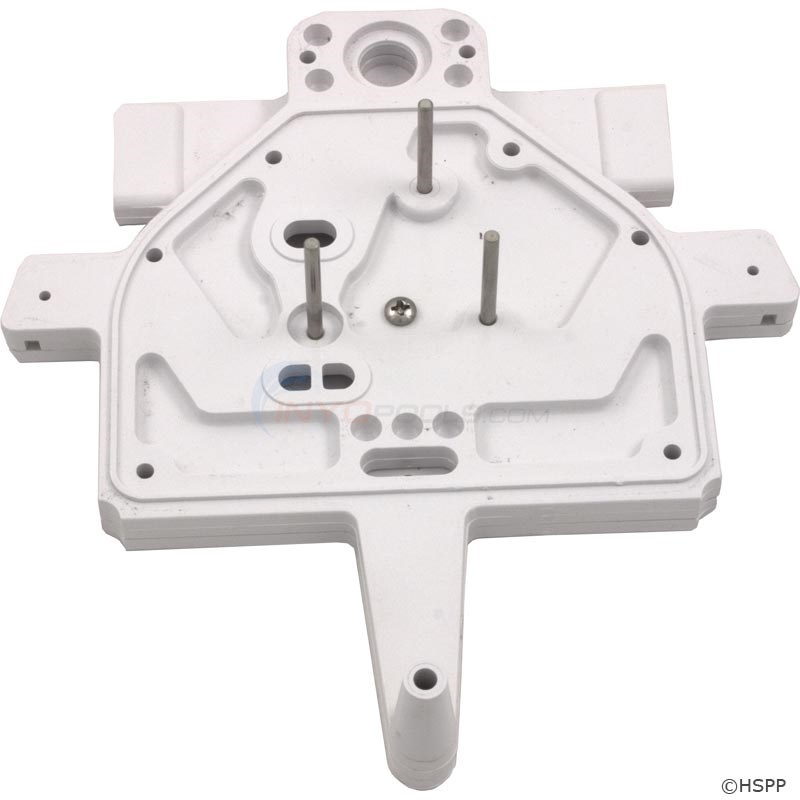

Part # 3285-07 Mfg # JV5

PLATE, GEAR

$163.80
Part # 3285-08 Mfg # JV5C

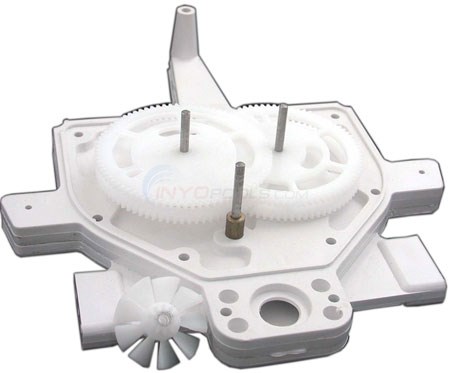

PLATE, GEAR With GEARS

$213.05

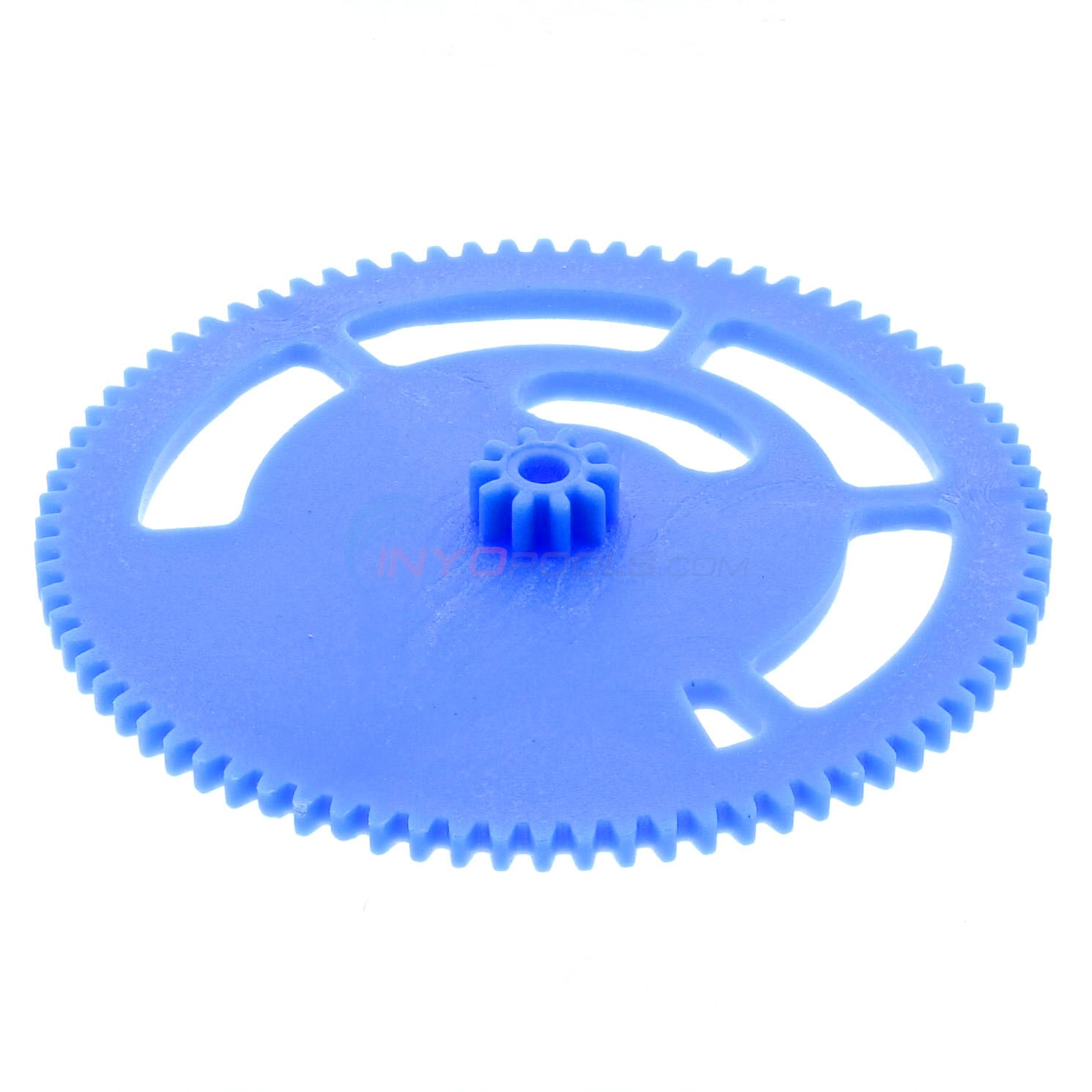

Part # 3285-09P Mfg # JV7

GEAR (SOLD AS SET OF 4)

$98.48 IN STOCK
Part # 3285-10 Mfg # JV8

PROPELLER

$33.15 IN STOCK
Part # 3285-11 Mfg # JV9

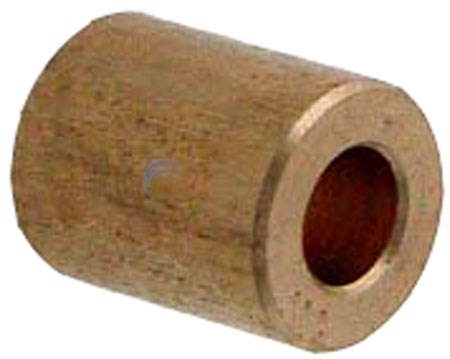

SPACER

$21.09 IN STOCK

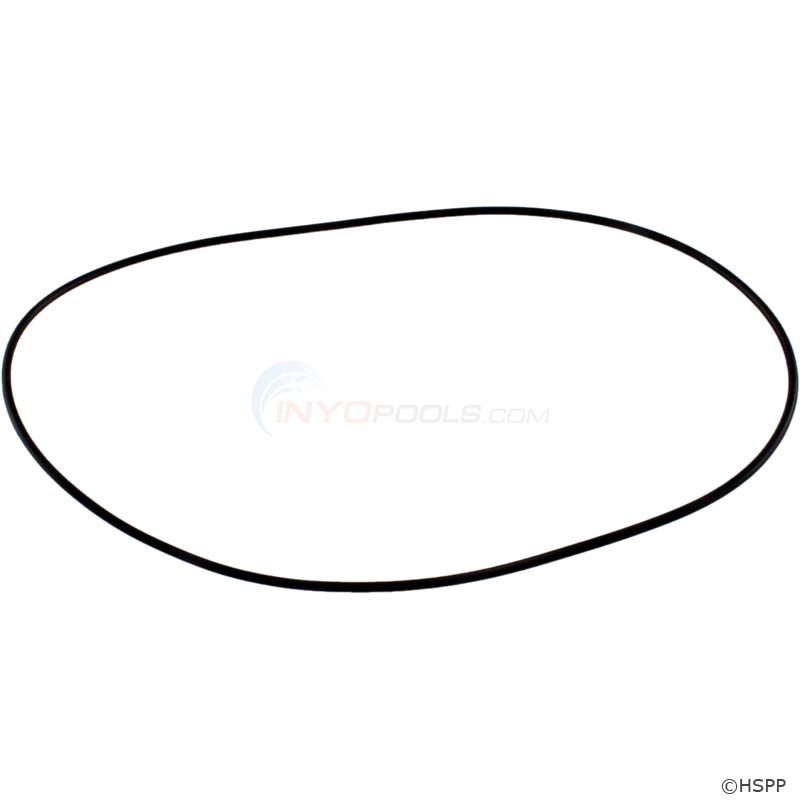

Part # 3285-12 Mfg # JV11

O-RING

$12.05 IN STOCK
Part # 3285-13 Mfg # JV12

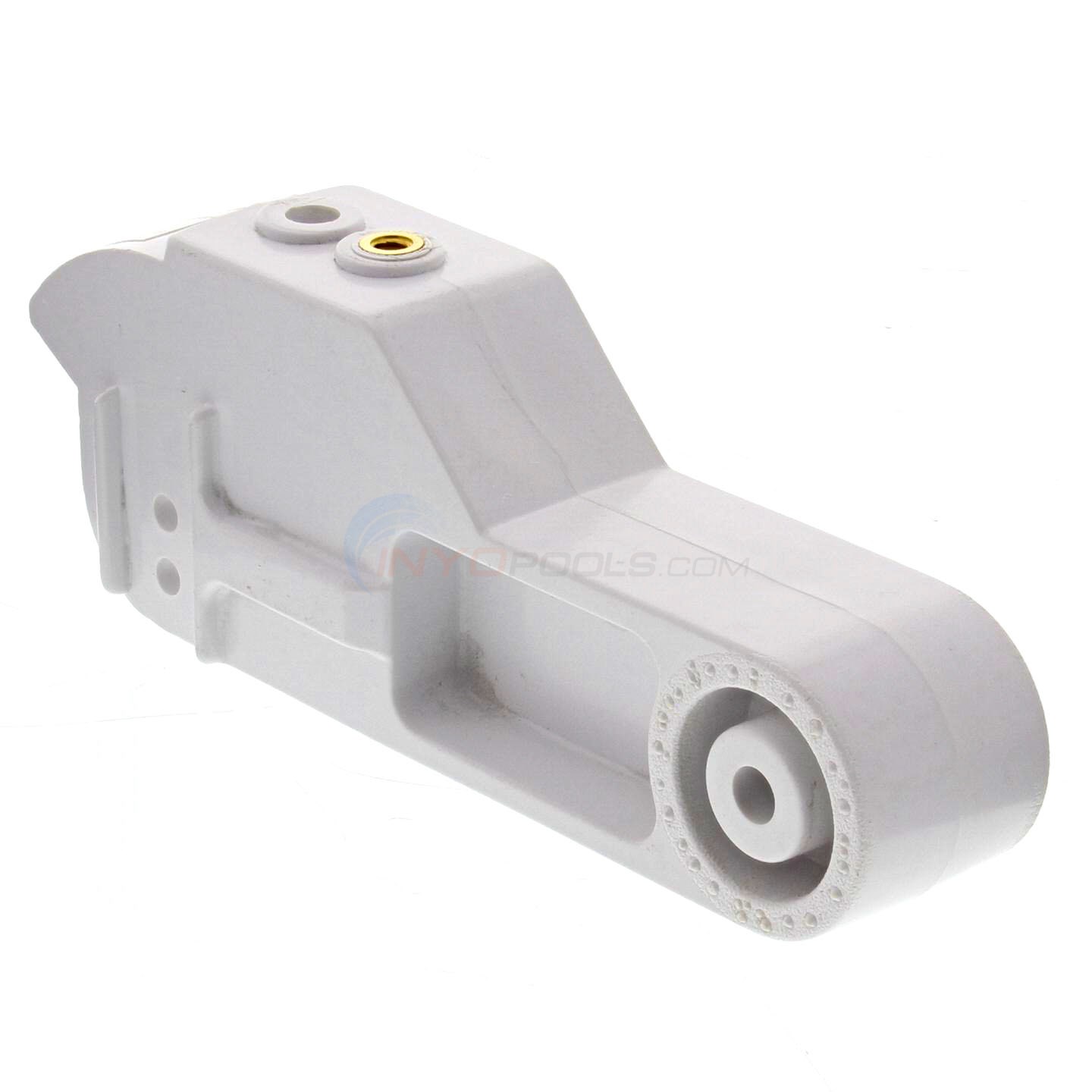

ARM, ROLLER

$59.45 IN STOCK

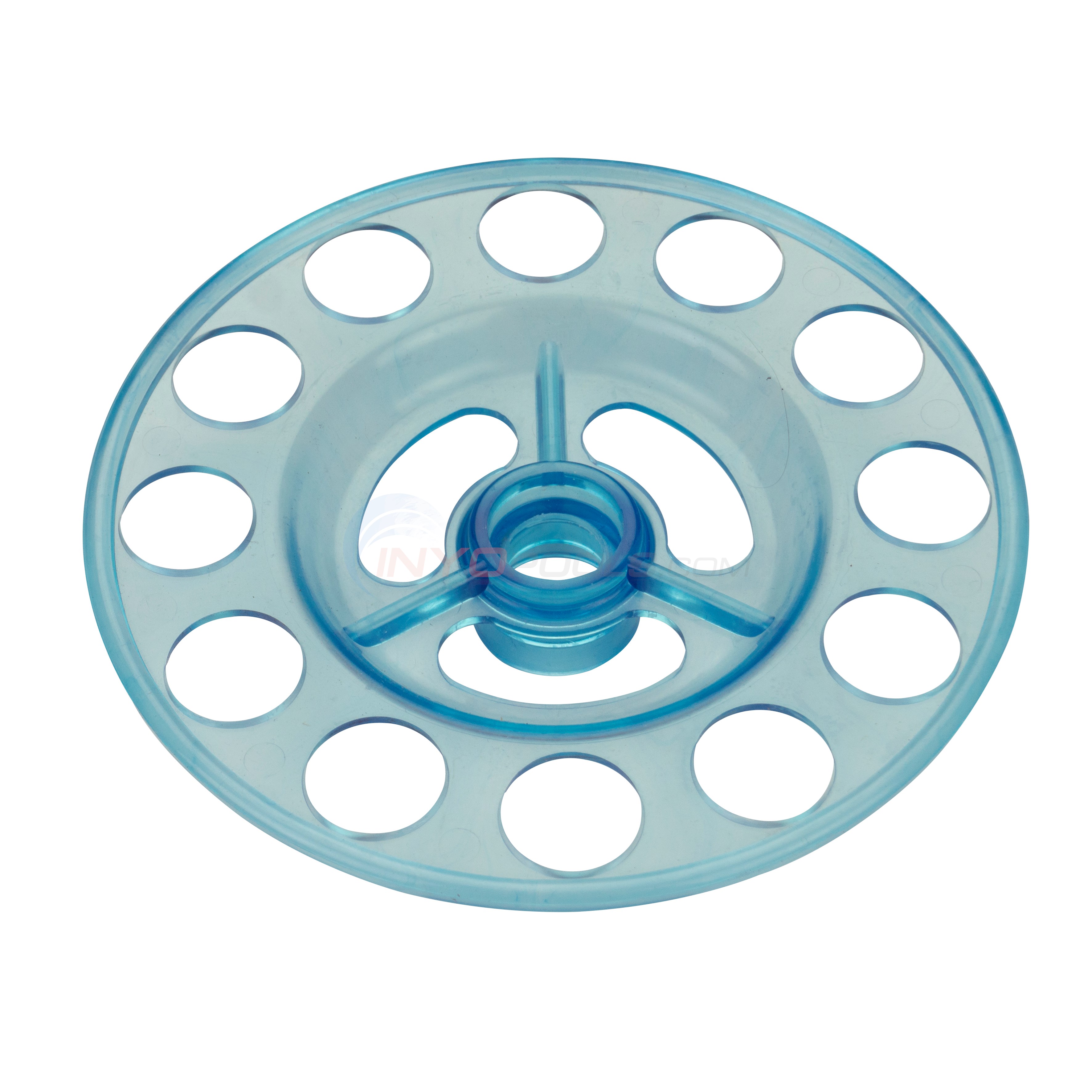

Part # 3285-14 Mfg # JV13

WHEEL, NOSE

$49.23 IN STOCK
Part # 3285-15 Mfg # JV14

HUB, NOSE WHEEL

$11.04 IN STOCK
Part # 3285-16 Mfg # JV15

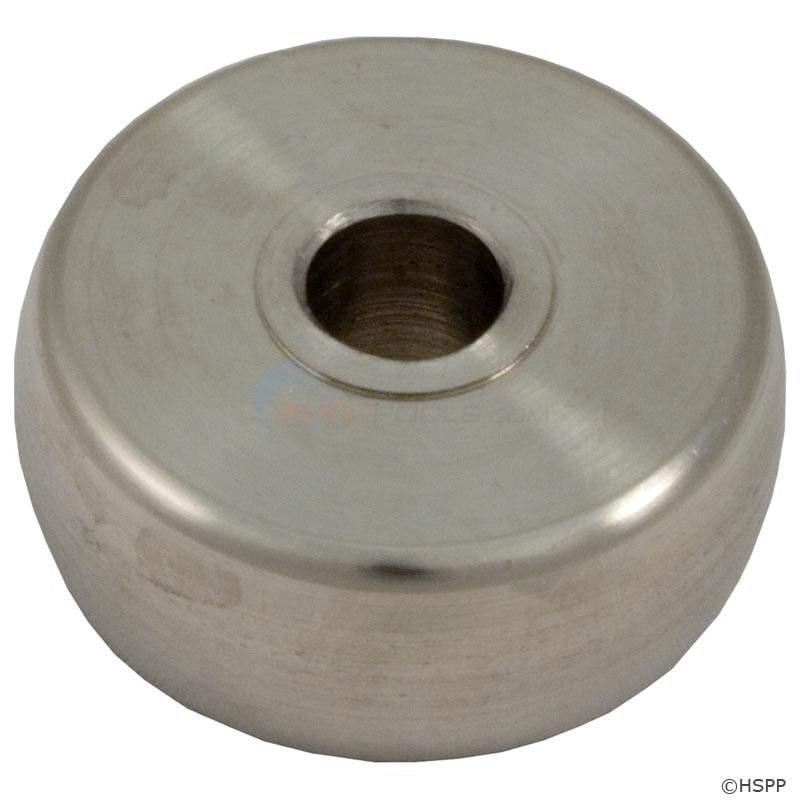

WHEEL

$64.31 IN STOCK
Part # 3285-17 Mfg # JV16

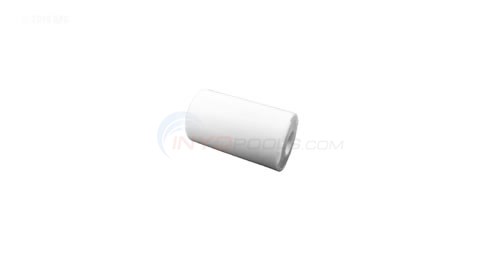

HUB

$18.08 IN STOCK

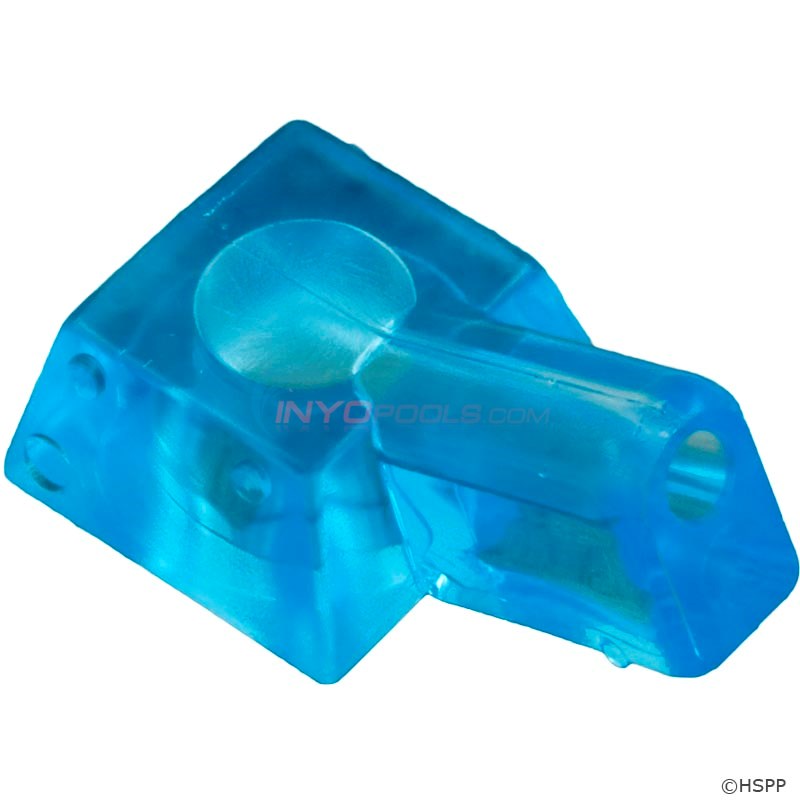

Part # 3285-18 Mfg # JV17

NOZZLE, PUSHER JET

$42.20 IN STOCK
Part # 3285-19 Mfg # E18

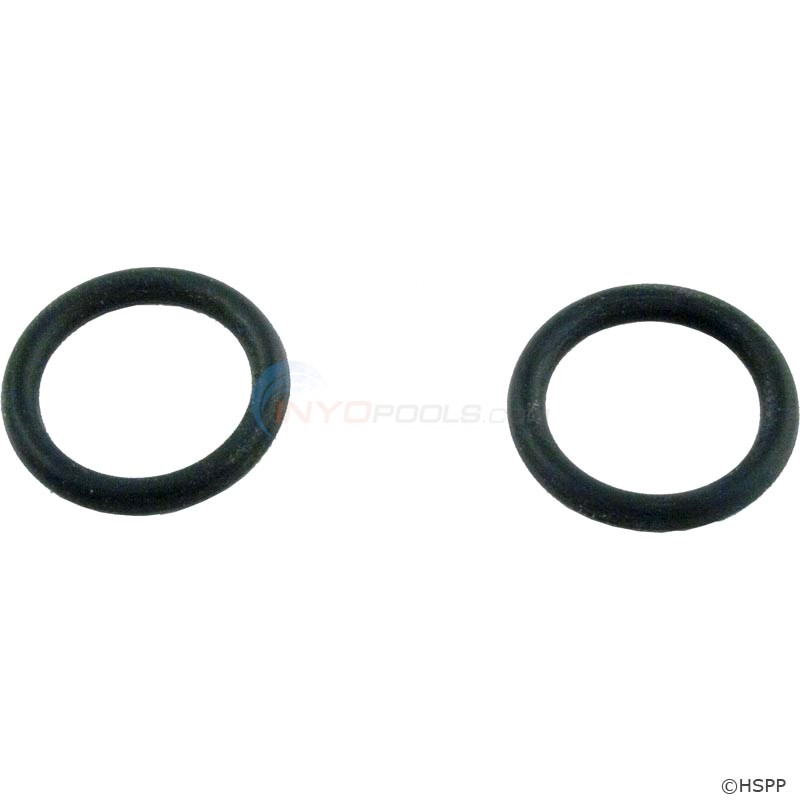

O-RING (SOLD EACH)

$11.04 IN STOCK

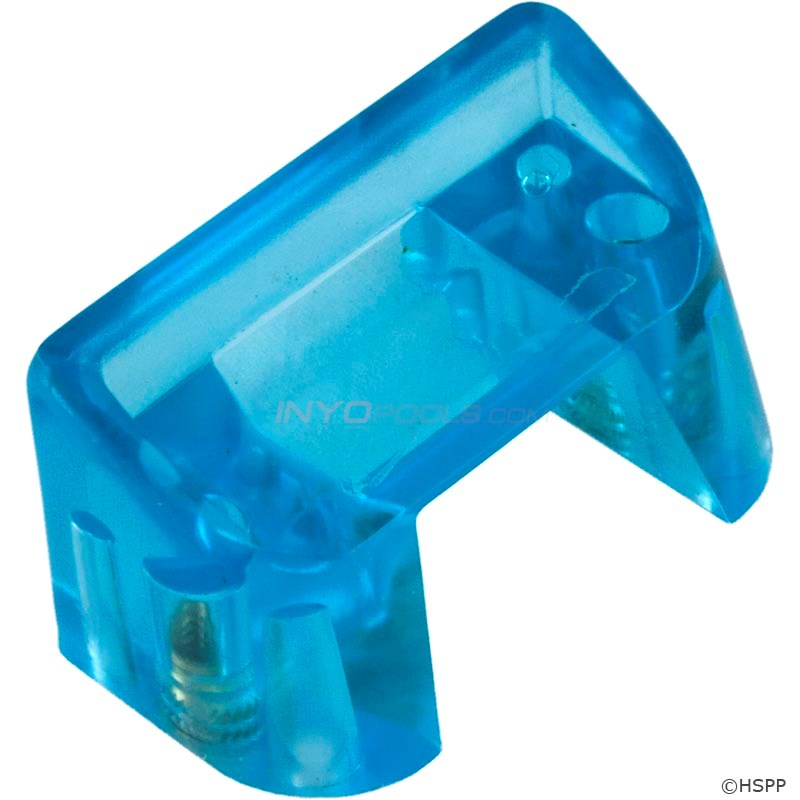

Part # 3285-20 Mfg # JV19

HOLDER, NOZZLE

$64.31
Part # 3285-21P Mfg # LG35B

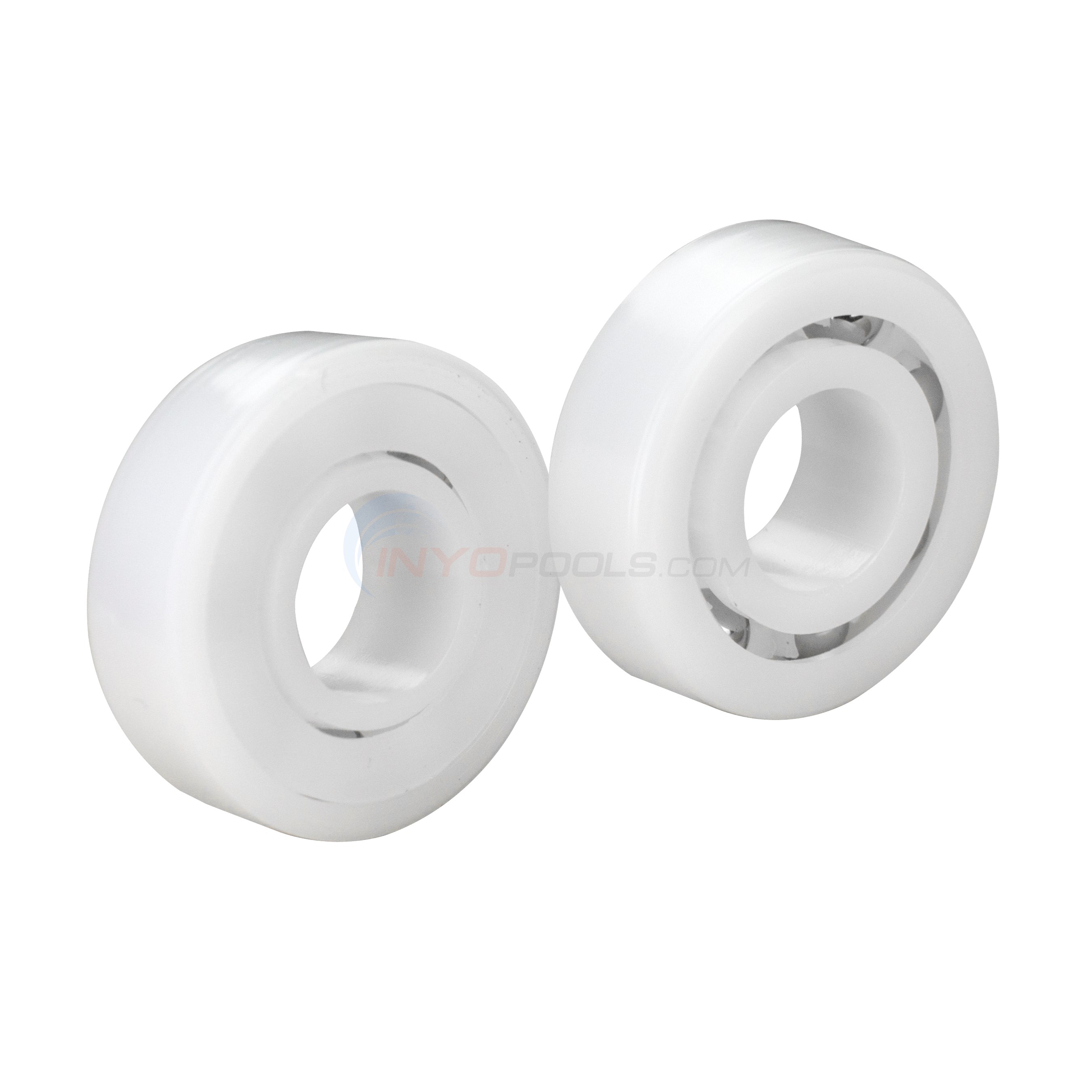

WHEEL BEARINGS, (SOLD AS SET OF 2)

$29.13 IN STOCK
Part # 3285-22P Mfg # JV21

TIRE (PK OF 2)

$25.11 IN STOCK
Part # 3285-23P Mfg # JV22

HUB, (SOLD AS SET OF 4)

$27.12 IN STOCK
Part # 3285-24 Mfg # JV29

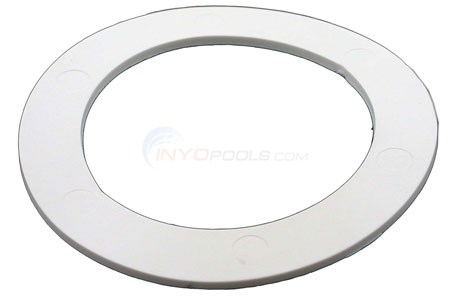

GASKET

$27.12 IN STOCK

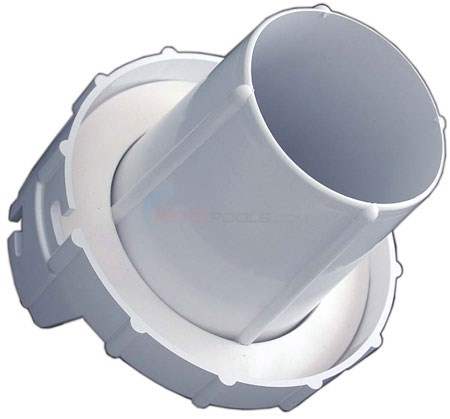

Part # 3285-25 Mfg # JV30

ADAPTER, FUNNEL

$126.62 IN STOCK
Part # 3285-26 Mfg # JV32

BAG, SILT

$59.28 IN STOCK
Part # 3285-64 Mfg # JV31

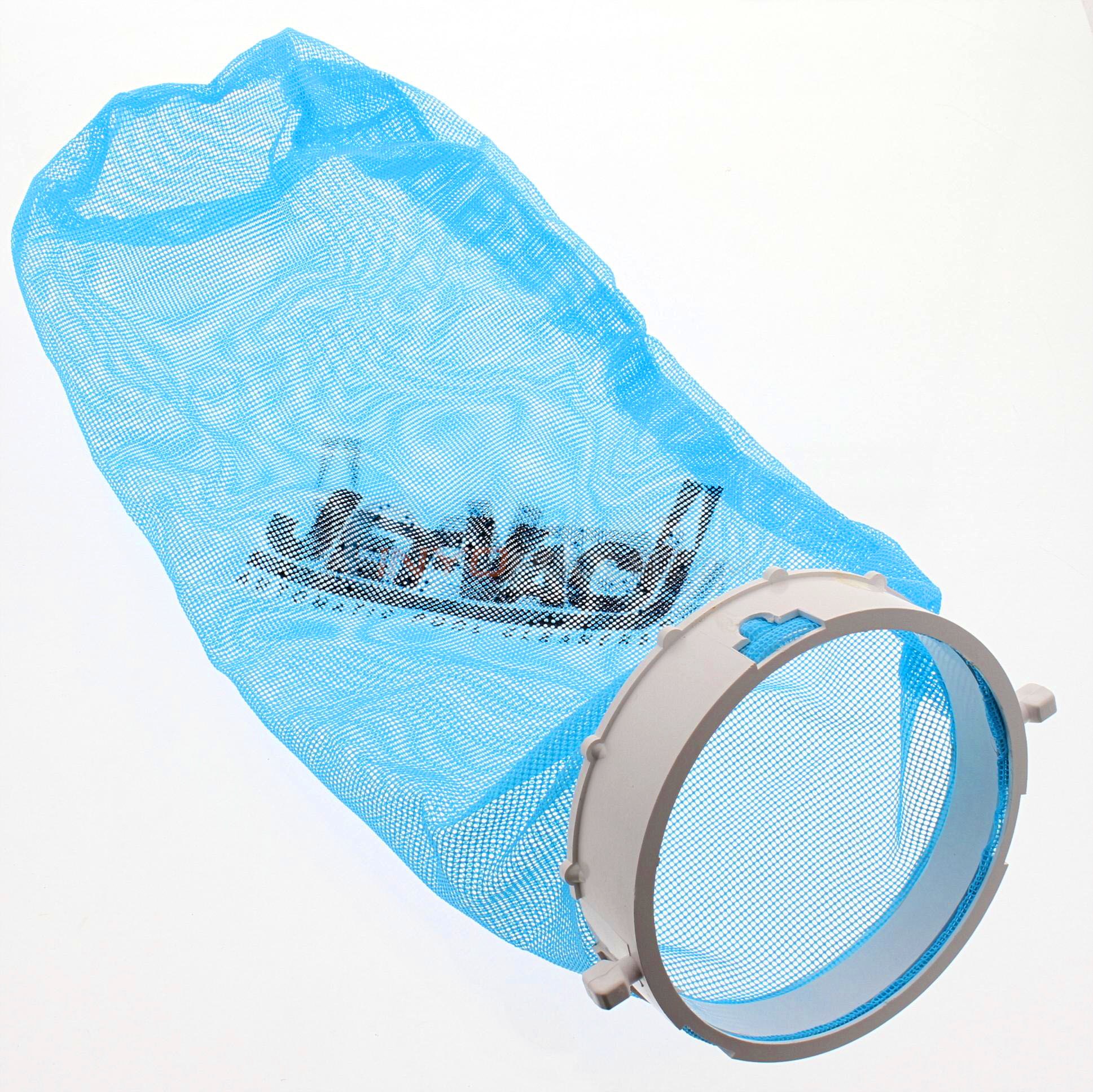

BAG, LEAF

$50.24 IN STOCK

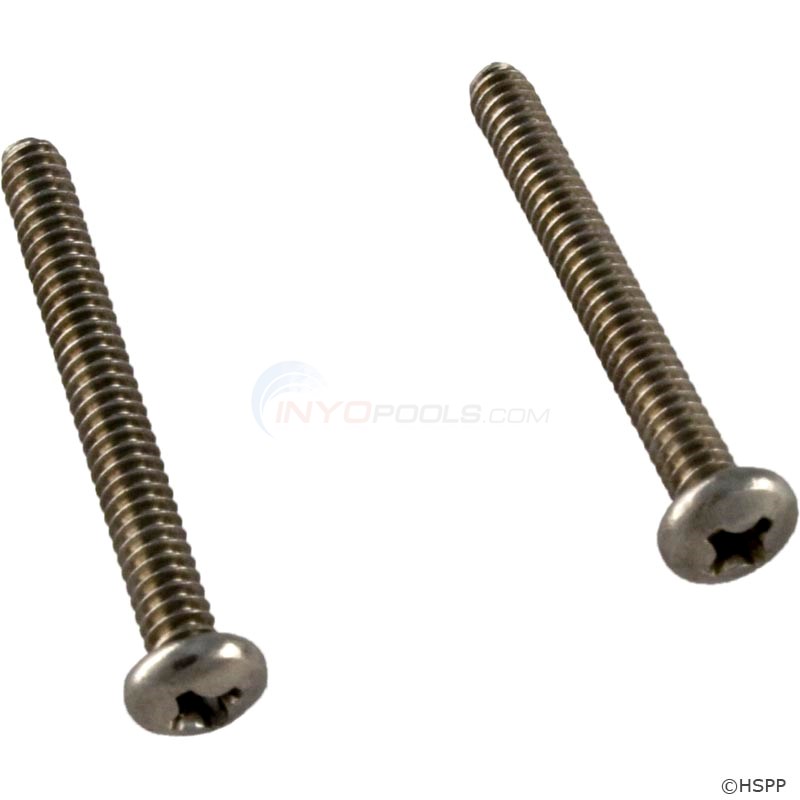

Part # 3285-27 Mfg # JV39

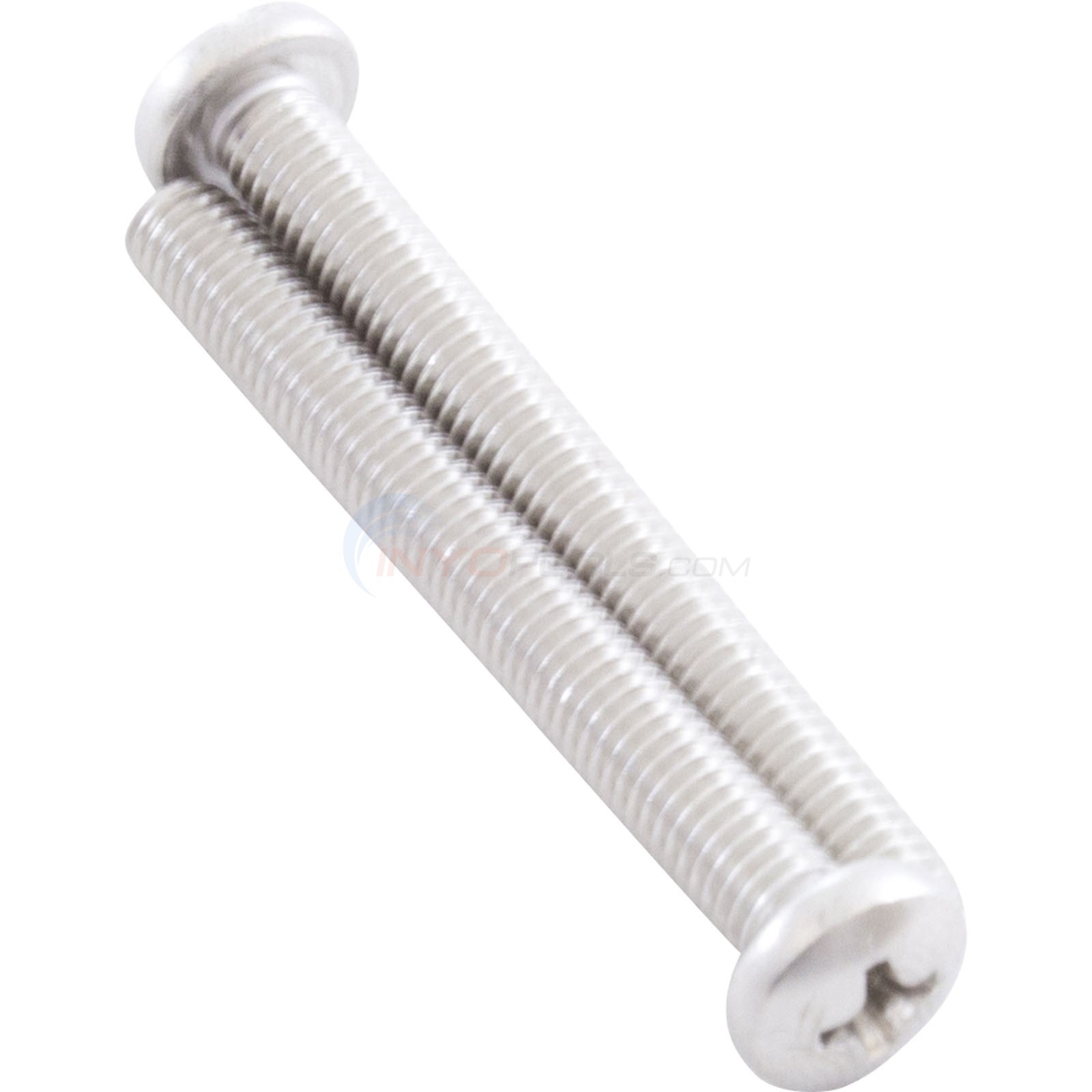

SCREW

$12.05 IN STOCK
Part # 3285-28 Mfg # JV40

SCREW

$18.08 IN STOCK
Part # 3285-29 Mfg # JV41

SCREW

$12.05 IN STOCK

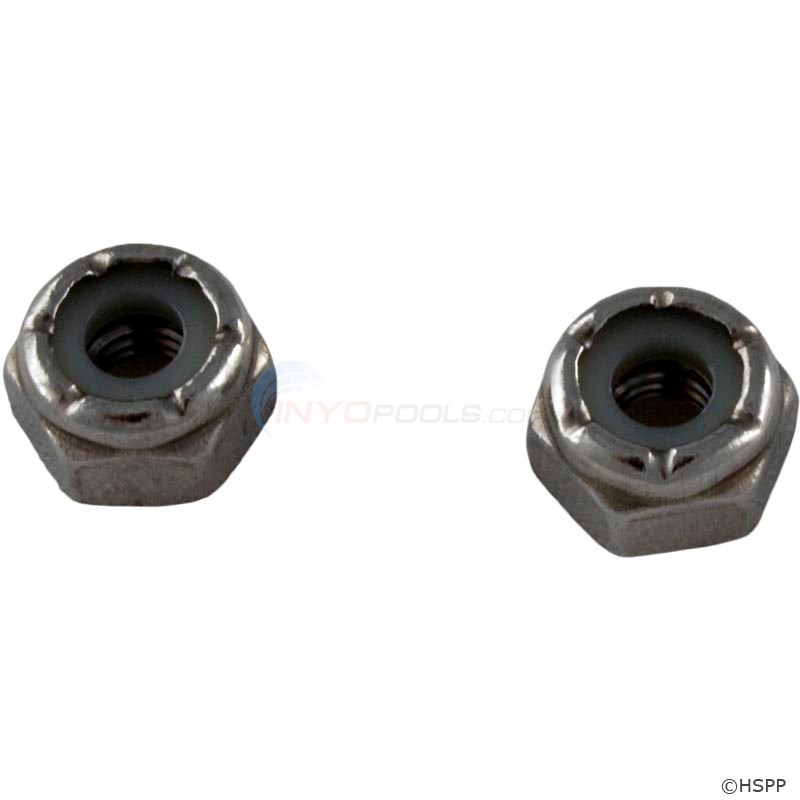

Part # 3285-30 Mfg # EU78

NUT (PKG OF 2)

$15.06 IN STOCK

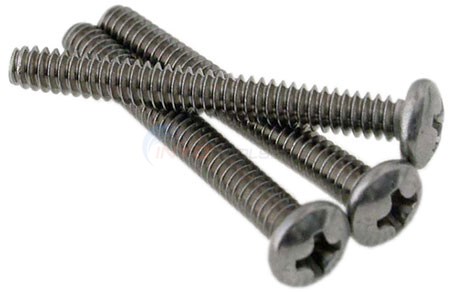

Part # 3285-31P Mfg # JV43

SCREW, (SOLD AS SET OF 3)

$11.04 IN STOCK

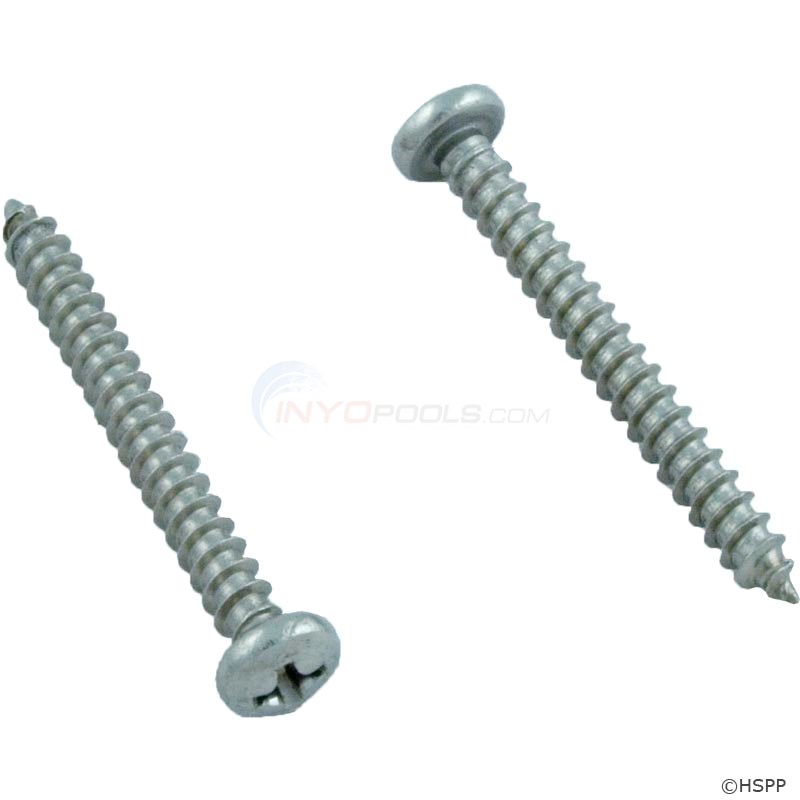

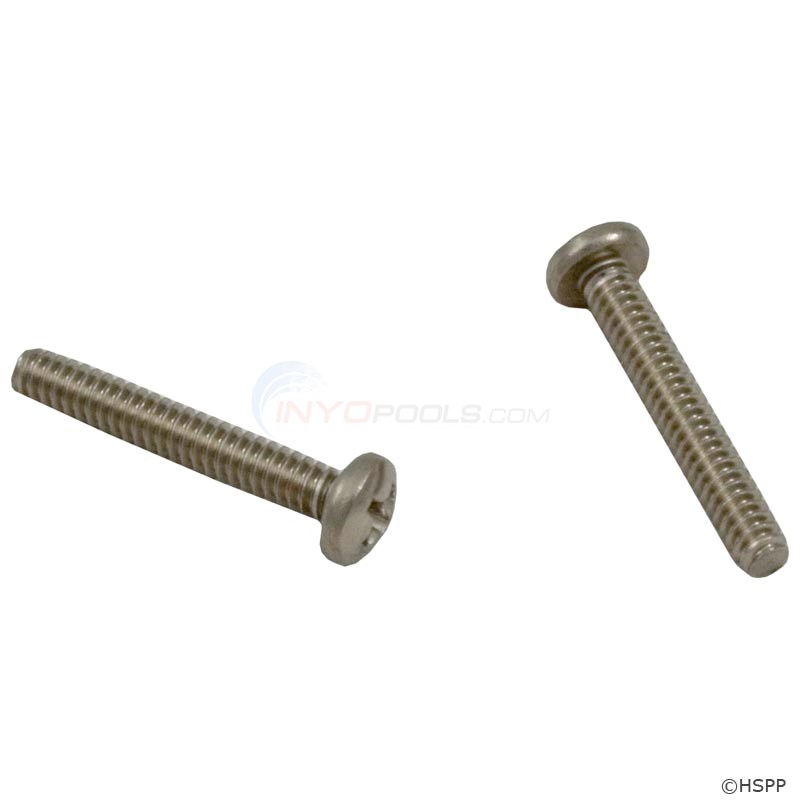

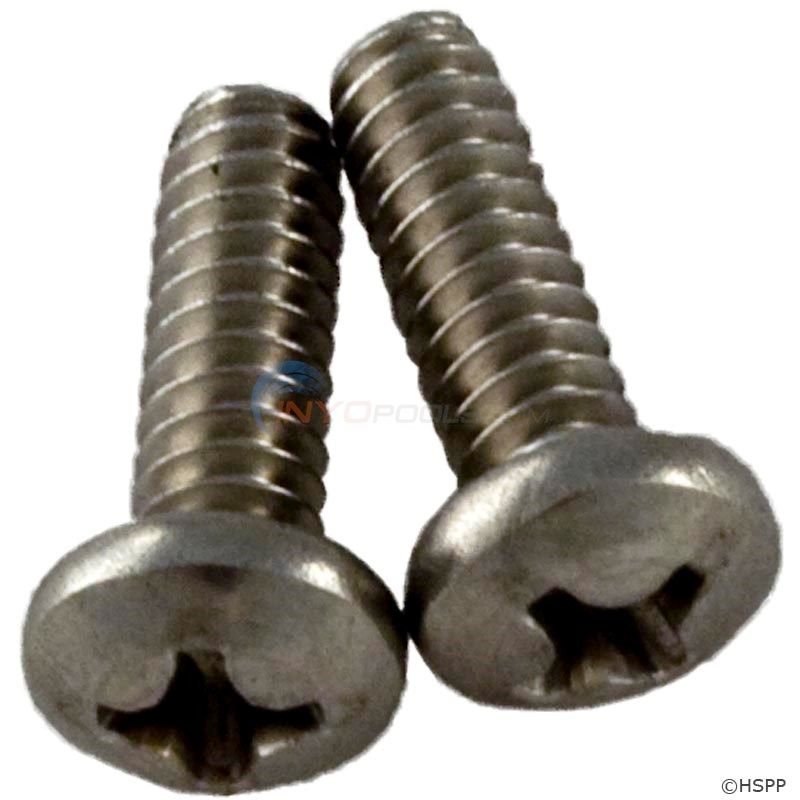

Part # 3285-32P Mfg # JV44

SCREW, (SOLD AS SET OF 2)

$11.04 IN STOCK

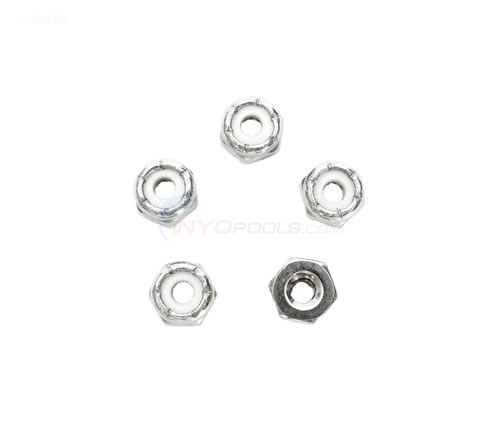

Part # 3285-33P Mfg # JV45

NUT, (SOLD AS SET OF 5)

$18.08 IN STOCK
Part # 3285-34P Mfg # JV46

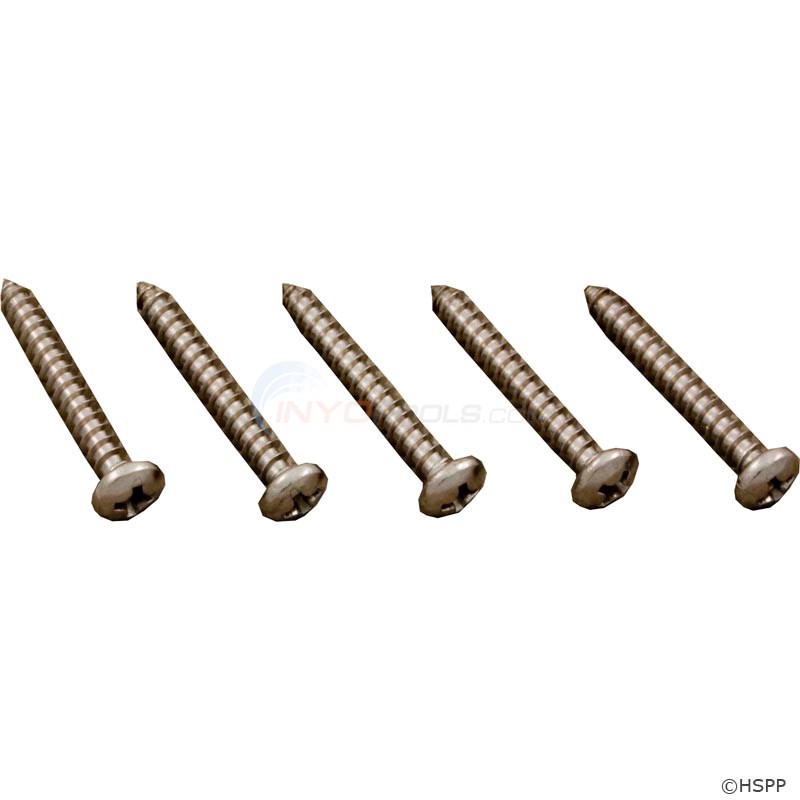

SCREW, (SOLD AS SET OF 5)

$13.05 IN STOCK
Part # 3285-36P Mfg # JV48

SCREW, (SOLD AS SET OF 2)

$11.04 IN STOCK
Part # 3285-37 Mfg # JV49

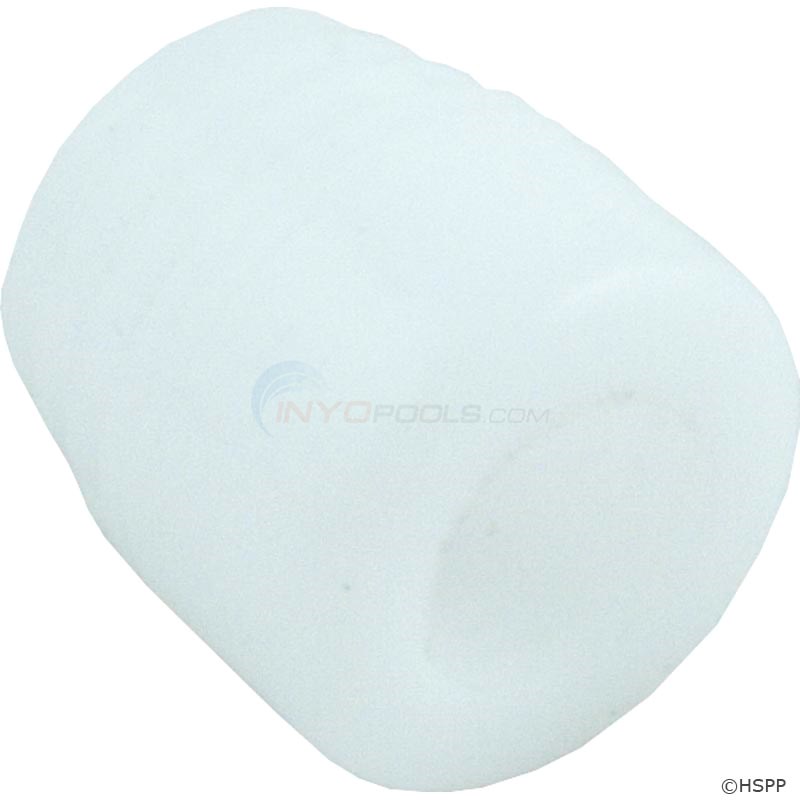

HOSE MENDER

$13.05 IN STOCK
Part # 3285-38 Mfg # JV50

SWIVEL, QUICK DISCONNECT

$63.08 IN STOCK

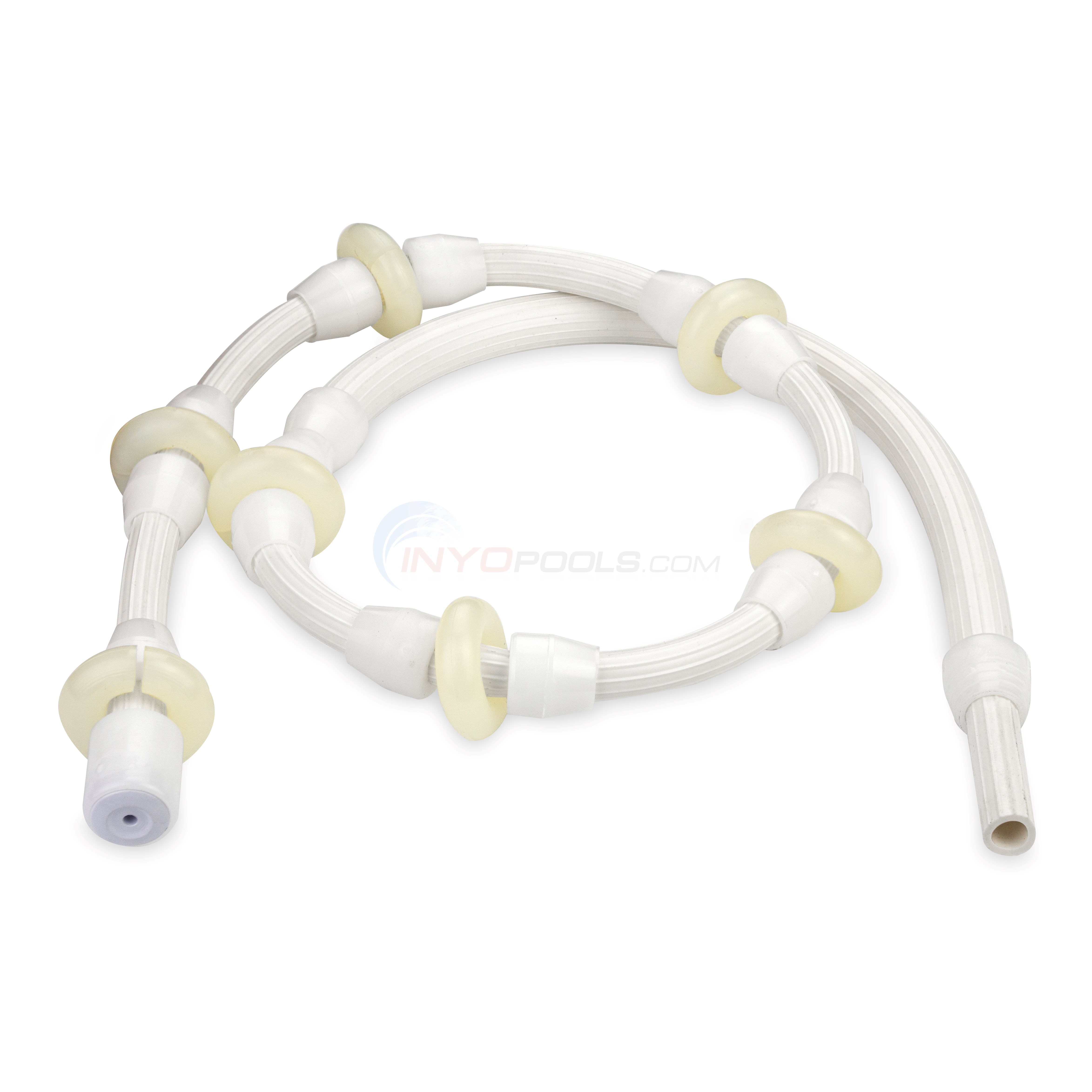

Part # 3285-39 Mfg # JV52

HOSE, SWEEP COMPLETE

$78.59 IN STOCK

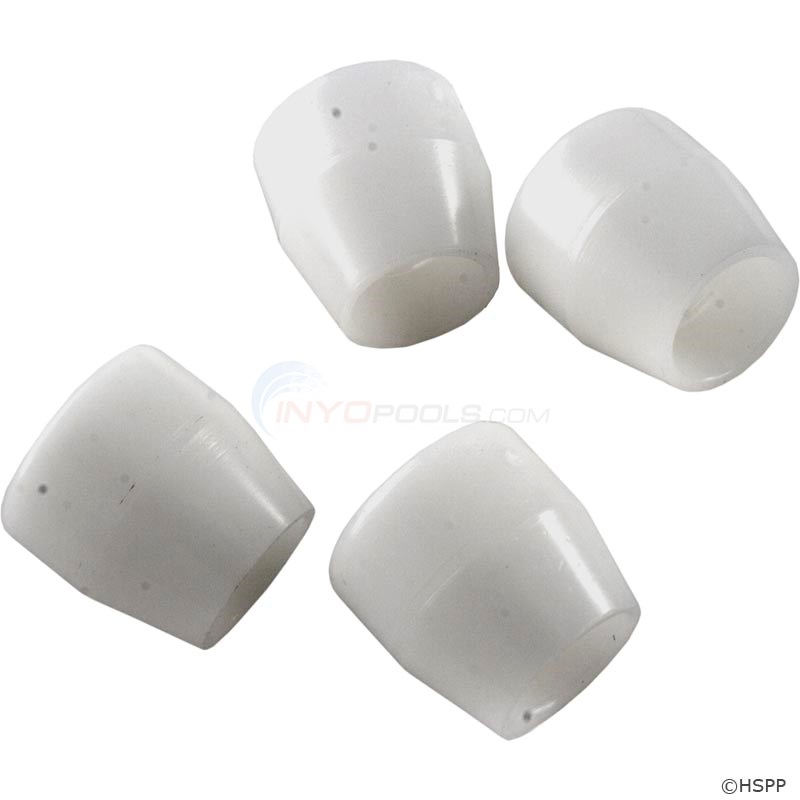

Part # 3285-40 Mfg # JV53

SLEEVE, HOSE

$20.09

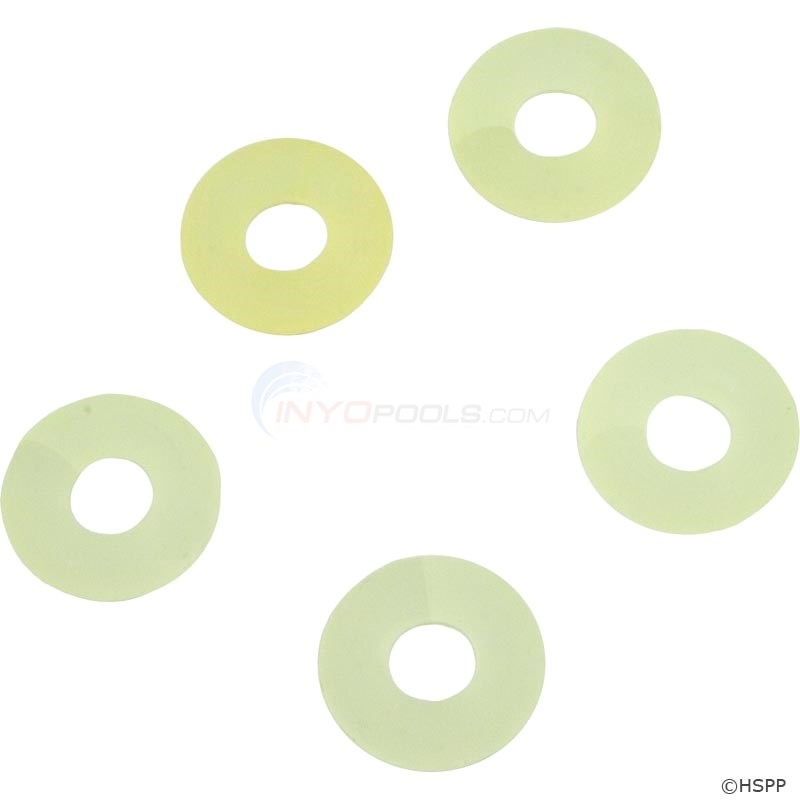

Part # 3285-41P Mfg # JV54

ROLLER RING (SOLD AS SET OF 5)

$58.38 IN STOCK
Part # 3285-42 Mfg # JV55

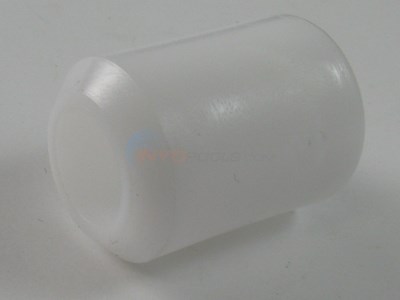

COLLAR, HOSE JET

$18.08 IN STOCK

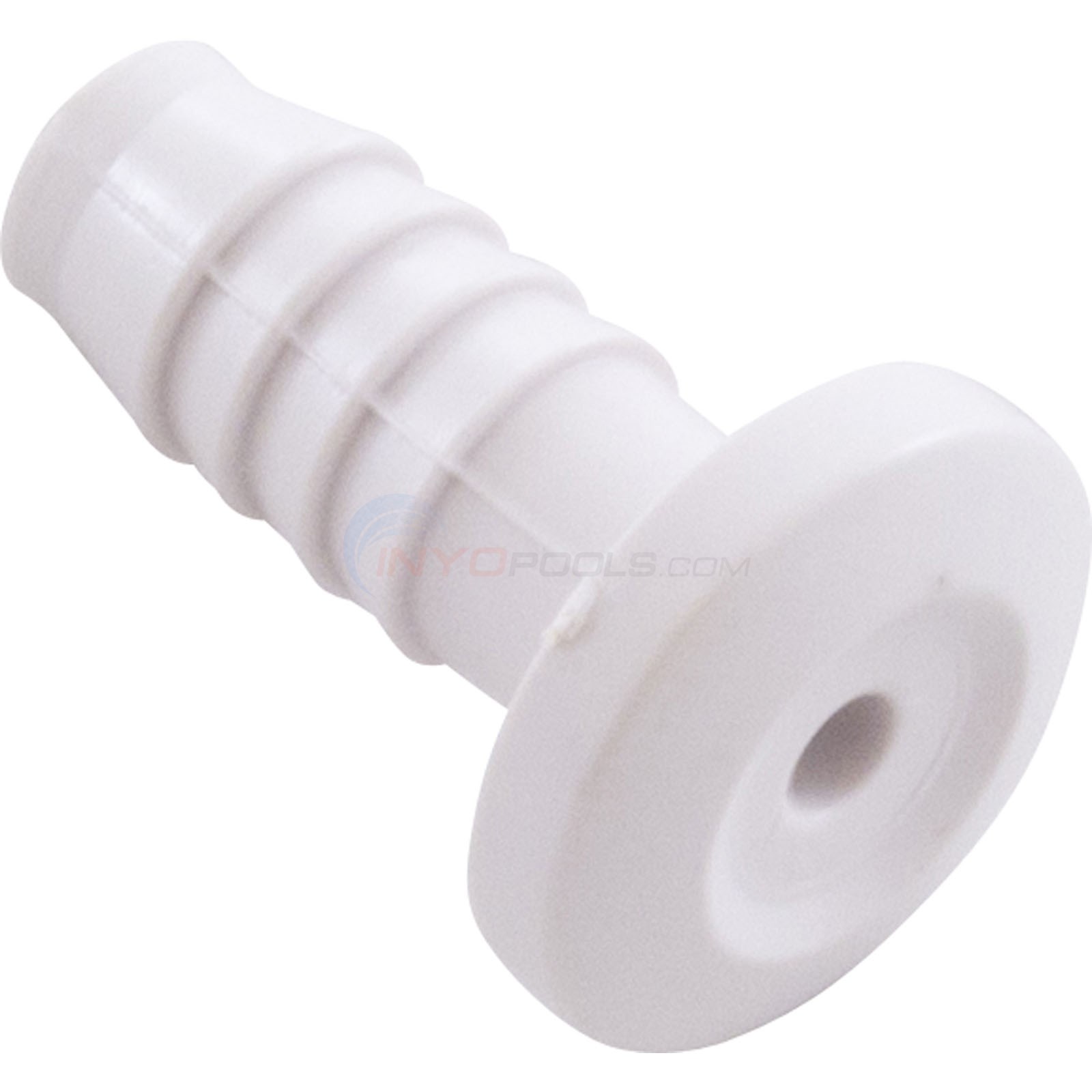

Part # 3285-43 Mfg # JV56

JET, HOSE

$20.09 IN STOCK

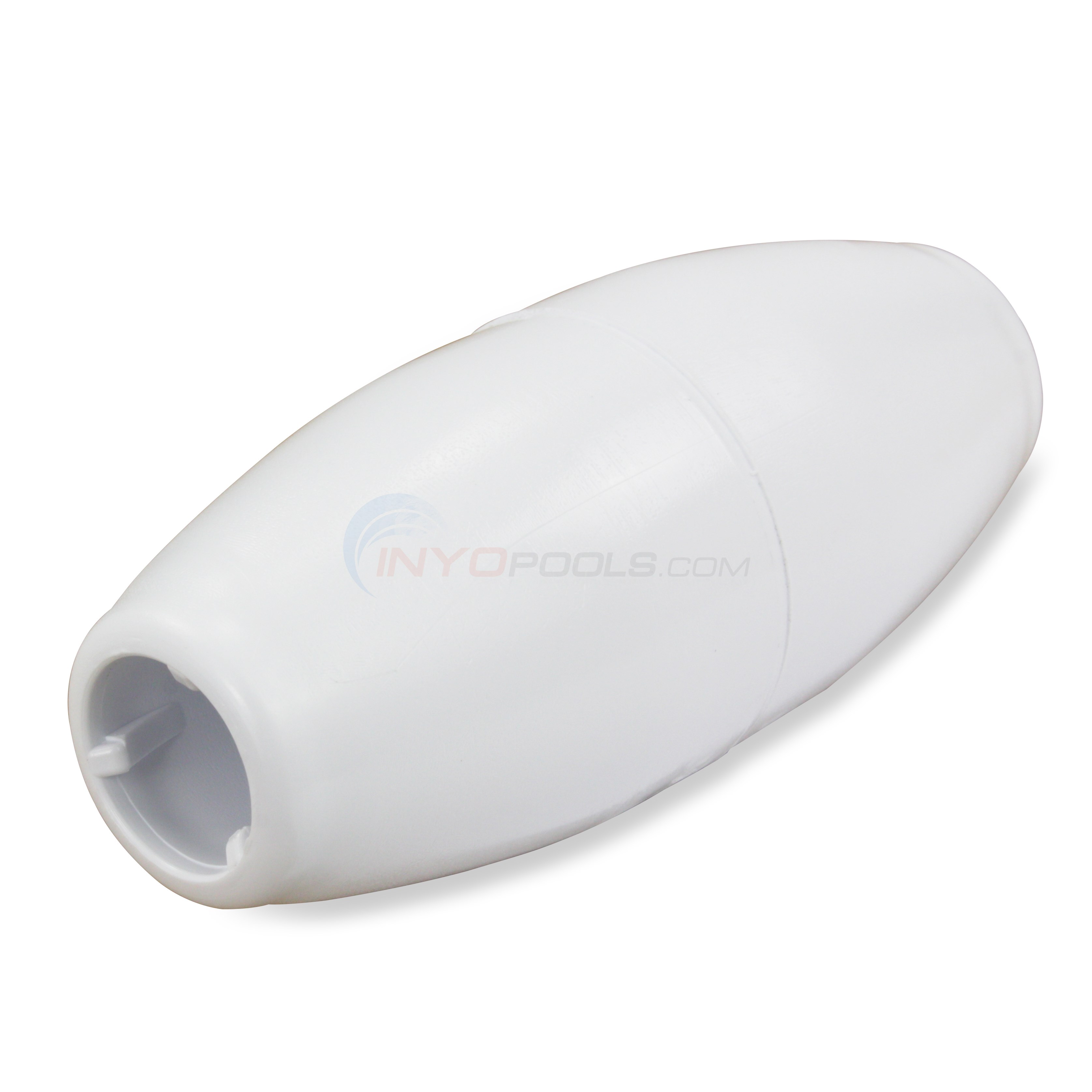

Part # 3285-44 Mfg # JV57

FLOAT, FEED HOSE

$23.10 IN STOCK

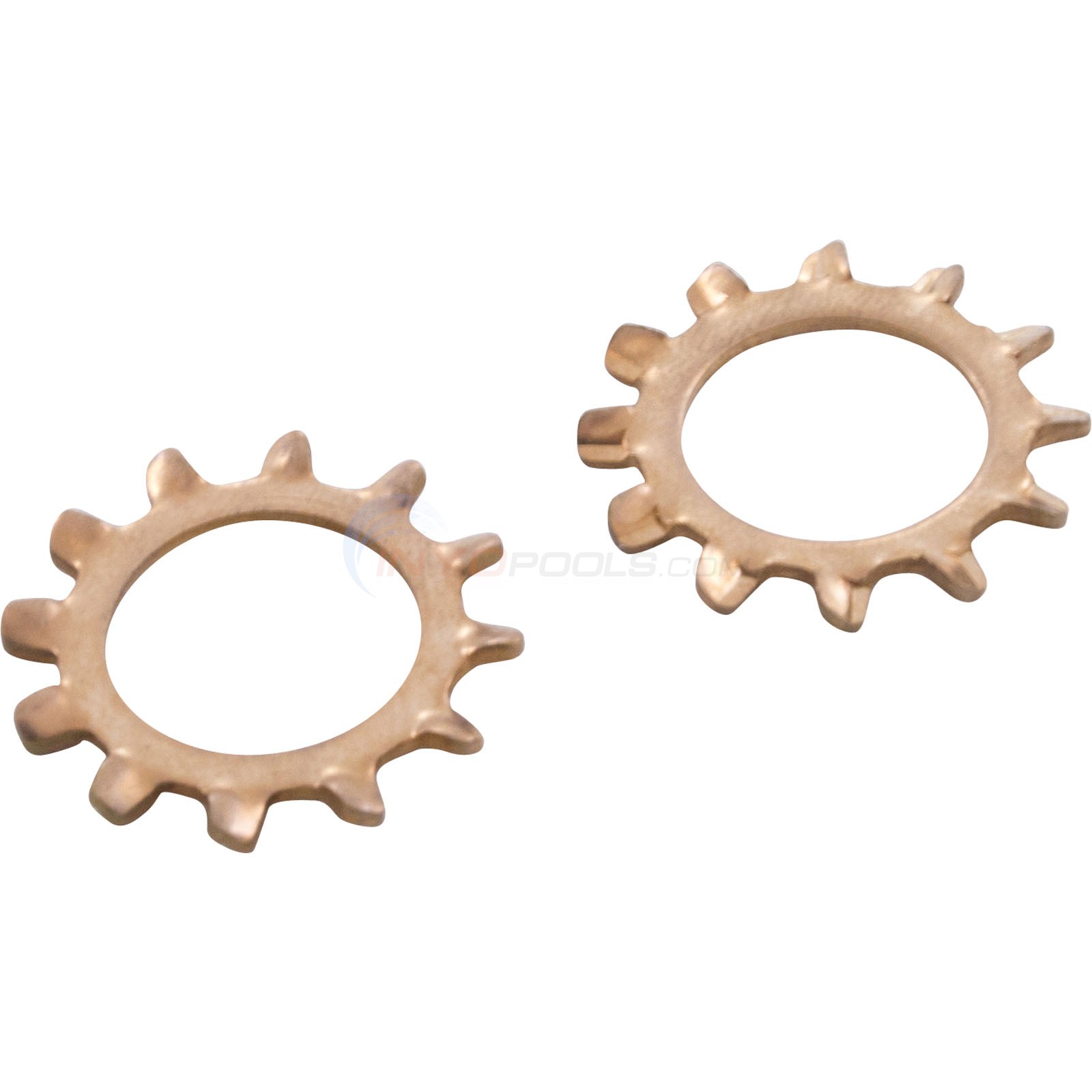

Part # 3285-45P Mfg # JV61

WASHER (PK OF 2)

$21.09 IN STOCK
Part # 3285-46P Mfg # JV62

SIDE WHEEL, (SOLD AS SET OF 2)

$42.20 IN STOCK
Part # 3280-47 Mfg # ED05

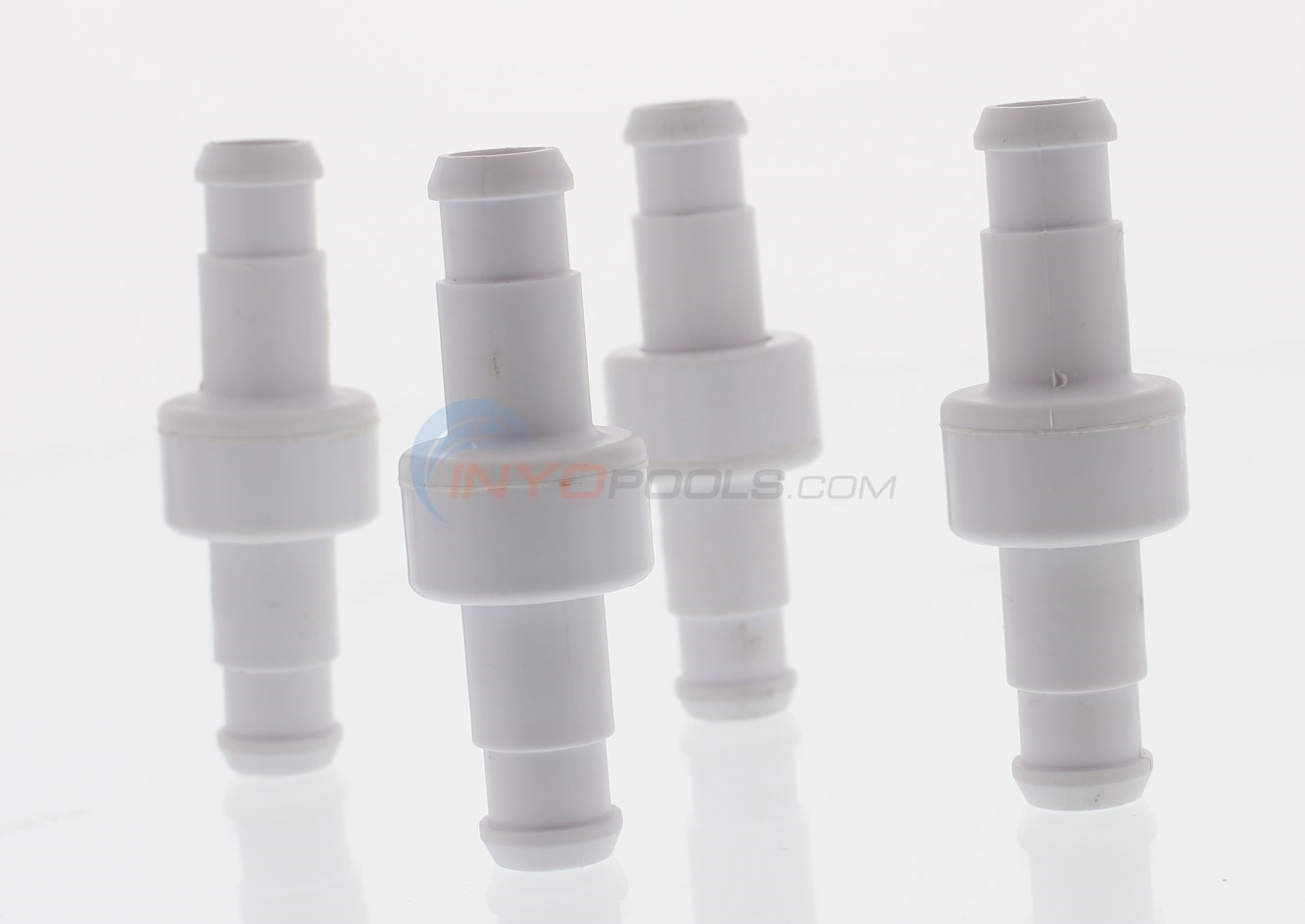

SWIVEL, FEED HOSE

$53.04 IN STOCK
Part # 3280-49P Mfg # ED15

NUT, MENDER FOR FEED HOSE (PK OF 2)

$23.10 IN STOCK
Part # 3285-50 Mfg # JV501

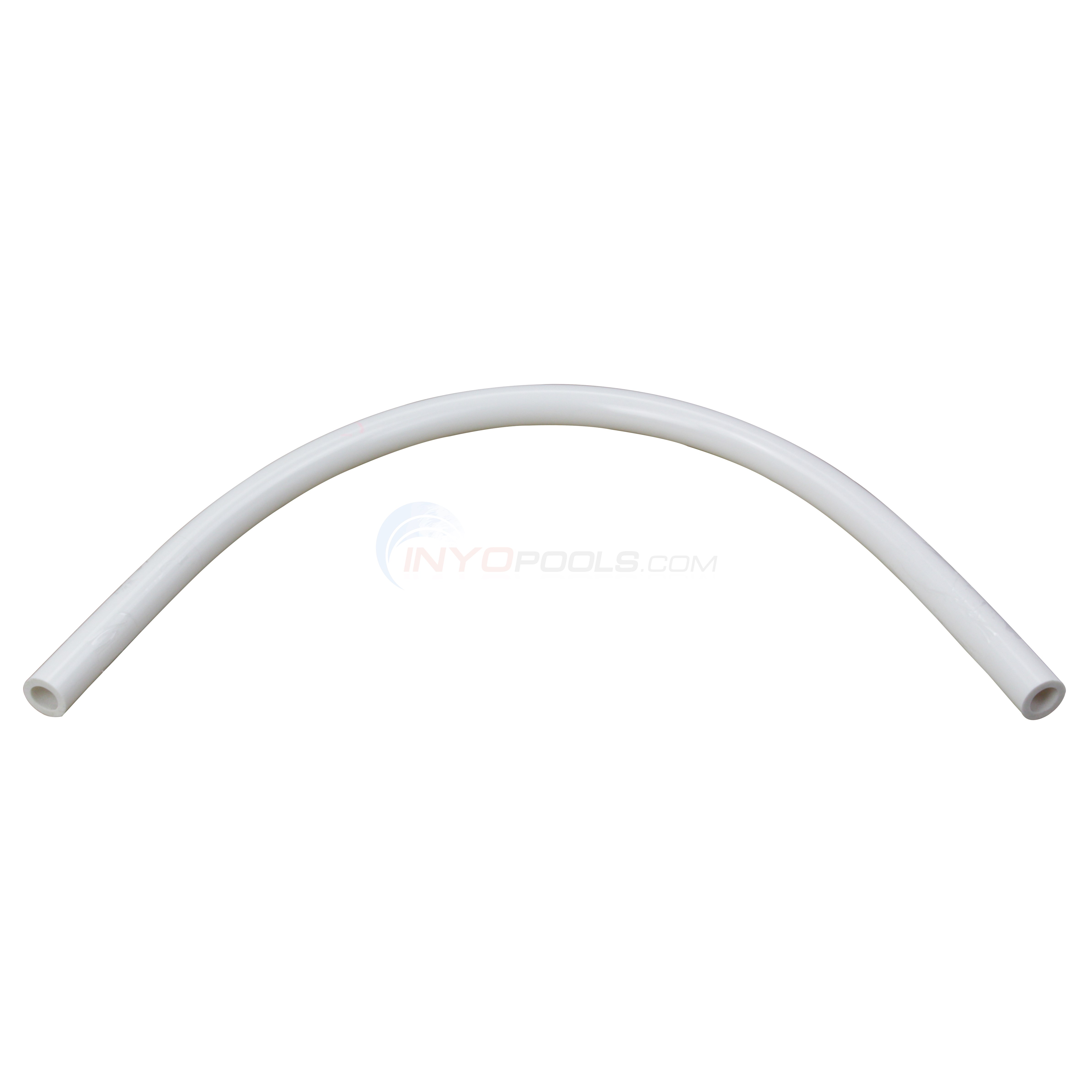

FEED HOSE, 2' WHITE

$30.14 IN STOCK
Part # 3285-51 Mfg # JV502

FEED HOSE, 14' D.BLUE

$101.49

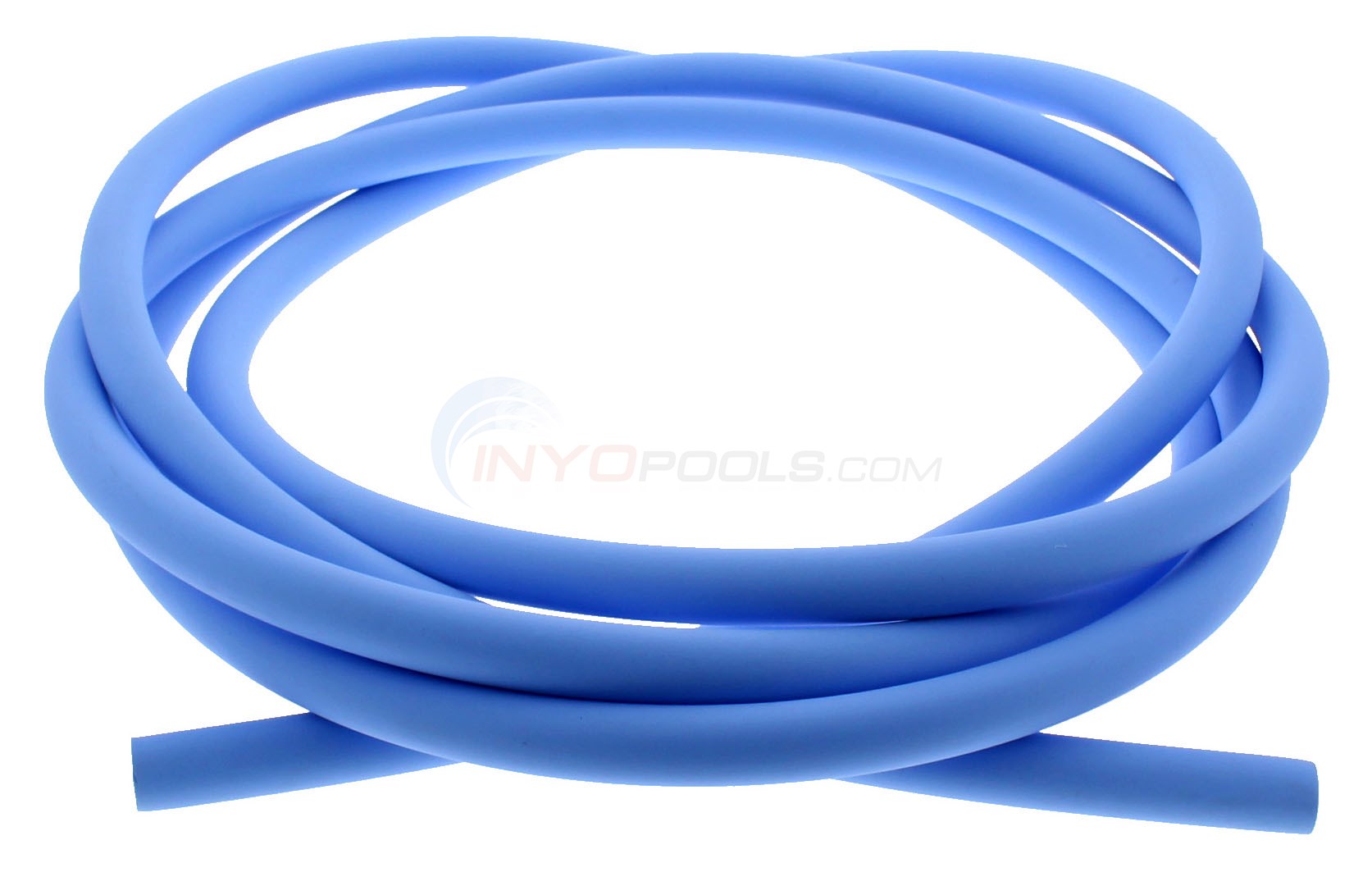

Part # 3285-52 Mfg # JV503

FEED HOSE, 16' L.BLUE

$81.20 IN STOCK
Part # 3285-53 Mfg # JV504C

FEED HOSE COMPLETE

$363.80
54 No Longer Available SCREW Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352033005.htm">3250-G10P</a>
Mfg # LG10

No Longer Available SCREW Replace With 3250-G10P

NOT AVAILABLE
Part # 3285-66 Mfg # JV6

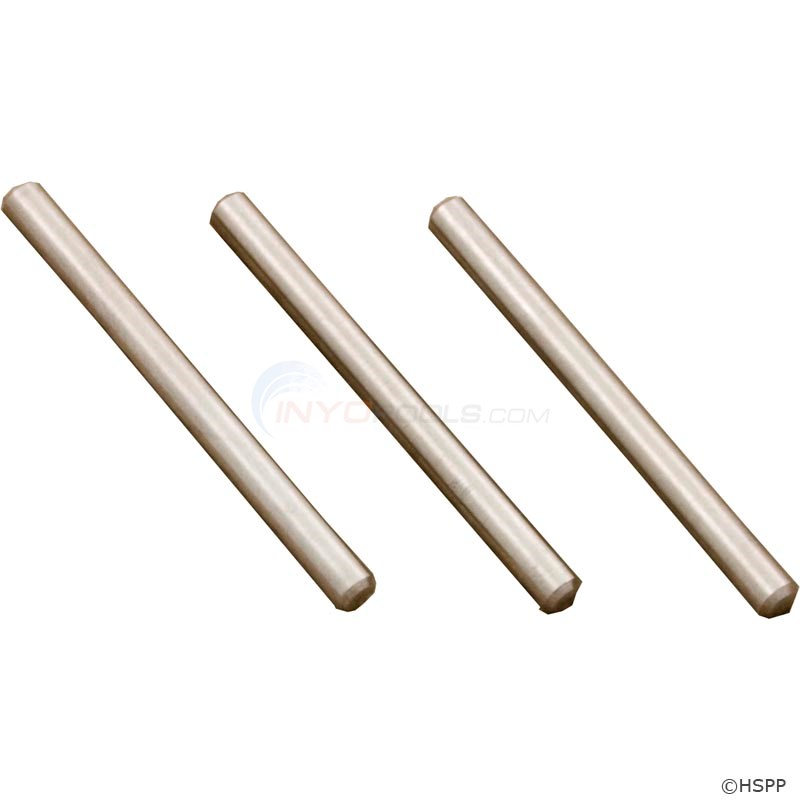

SHAFT, PACKAGE OF 3

$42.20 IN STOCK
Part # 3285-63 Mfg # JVP8

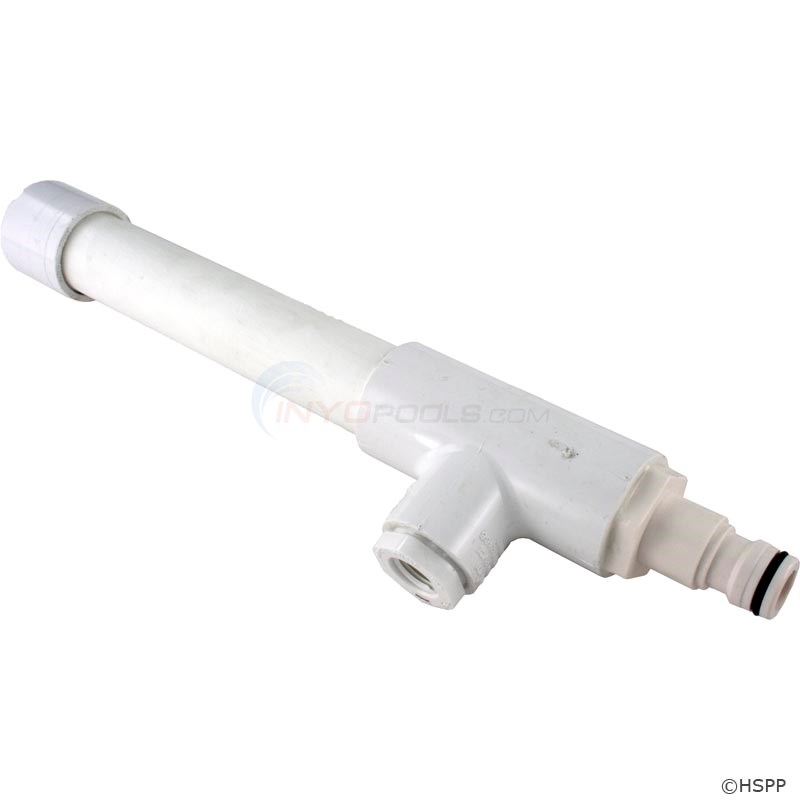

PRESSURE TESTER With O GAUGE

$71.34
Part # 3285-65P Mfg # JV64

SIDE WHEEL, (SOLD AS SET OF 2)

$27.12 IN STOCK
Part # 3280-50 Mfg # EW22

FITTING, WALL - COMPLETE

$40.19 IN STOCK
Part # 3280-68 Mfg # E24

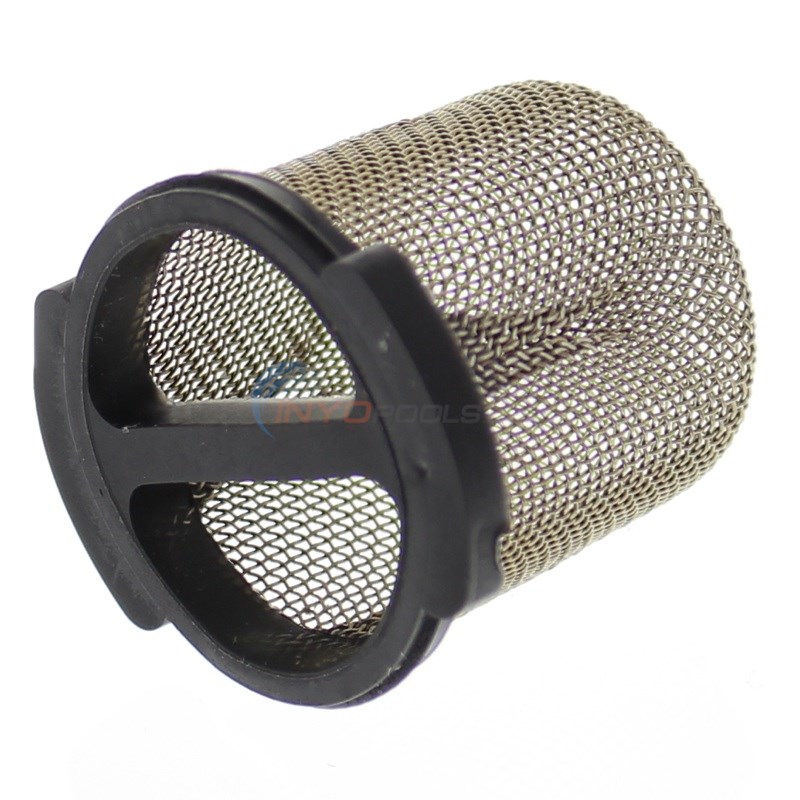

SCREEN F/ NEW LEGEND WALL FITTING

$17.06 IN STOCK
Part # 3280-59 Mfg # EJ28

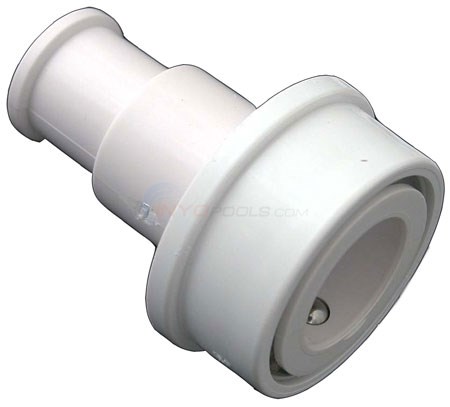

QUICK CONNECT, FEED HOSE

$47.55 IN STOCK

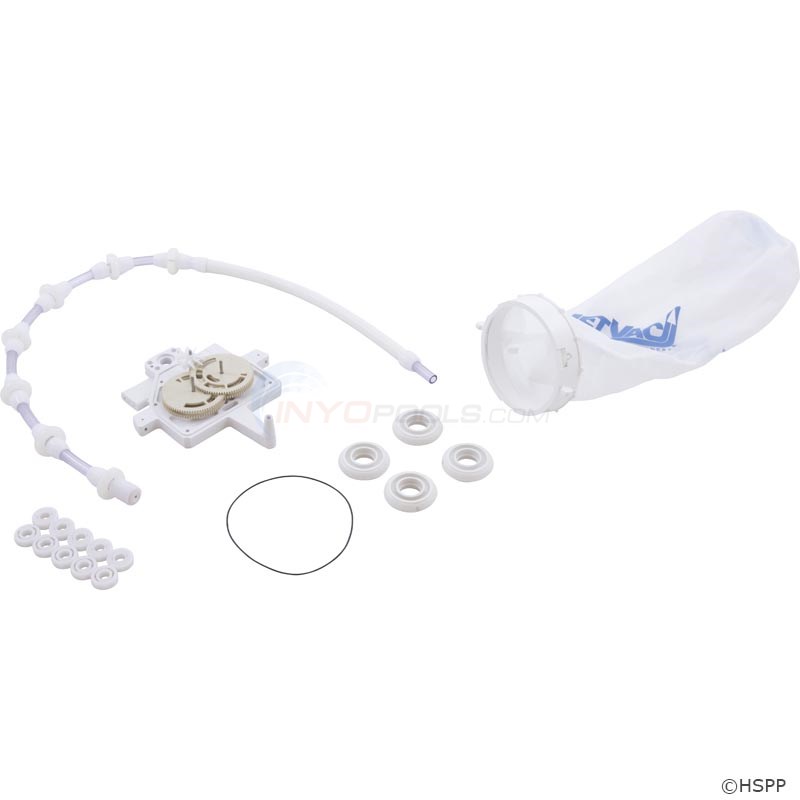

Part # 3285-70 Mfg # JV205

TUNE UP KIT, JET VAC

$404.73
Part # 3280-81 Mfg # E23

QUICK DISCONNECT ADAPTER, PRESSURE CLNR

$14.06 IN STOCK
Part # 3280-83 Mfg # E21

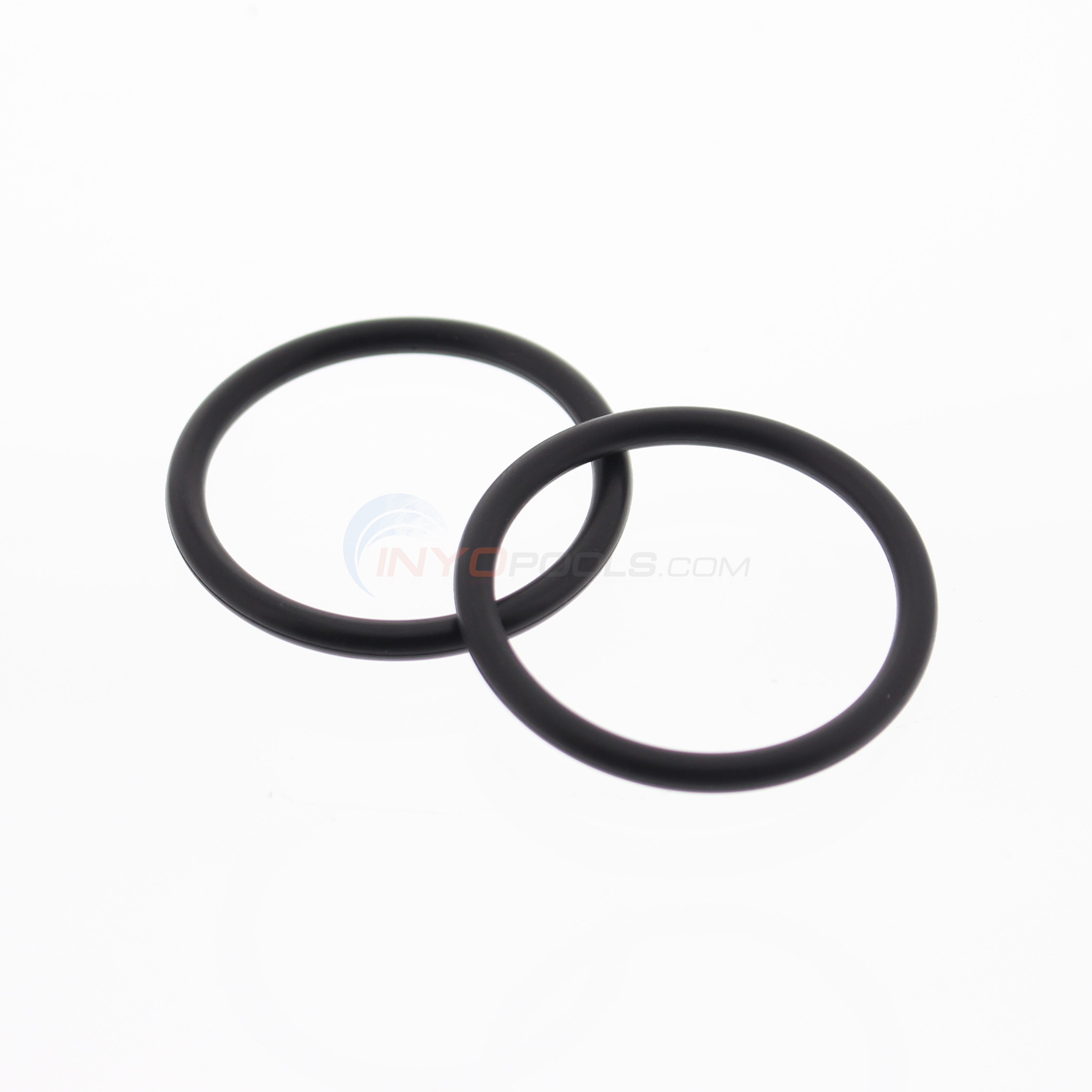

WALL CONNECTION O-RING F/WALL FITTING

$17.07 IN STOCK
Part # 3285-71 Mfg # JV206

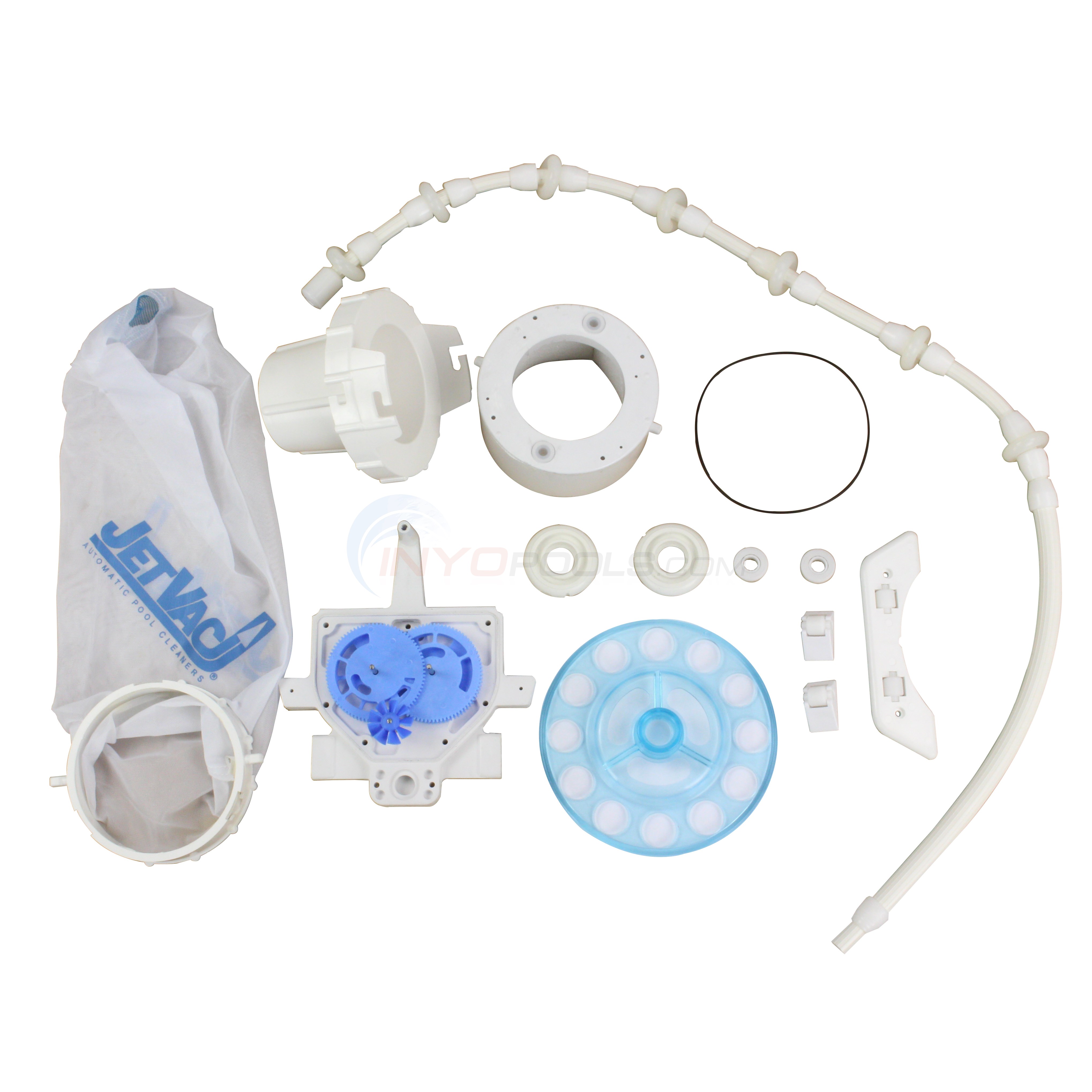

JET VAC OVERHAUL KIT

$486.41
Part # 3285-73 Mfg # JV109

JET VAC HEAD ONLY

$728.61
*NOT SHOWN

NOTE - ORIGINAL WALL FITTING NO LONGER AVAILABLE REPLACE WITH KEY #66

Tune-Up Kit Includes: 1 Bag-Silt, 1 Gear Plate w/ Gears, 2 Tires(Pack of 2), 5 Bearings(Pack of 2), 1 Sweep Hose-Complete, 1 O-ring, and 1 Bushing
