Morada 6 12'x17' Yardmore Oval (Resin Top Rail, Wall Printed Steel Upright) Parts

Model PMOR-YM54RWRSRQ1 (Resin Top Rail, Wall Printed Steel Upright)

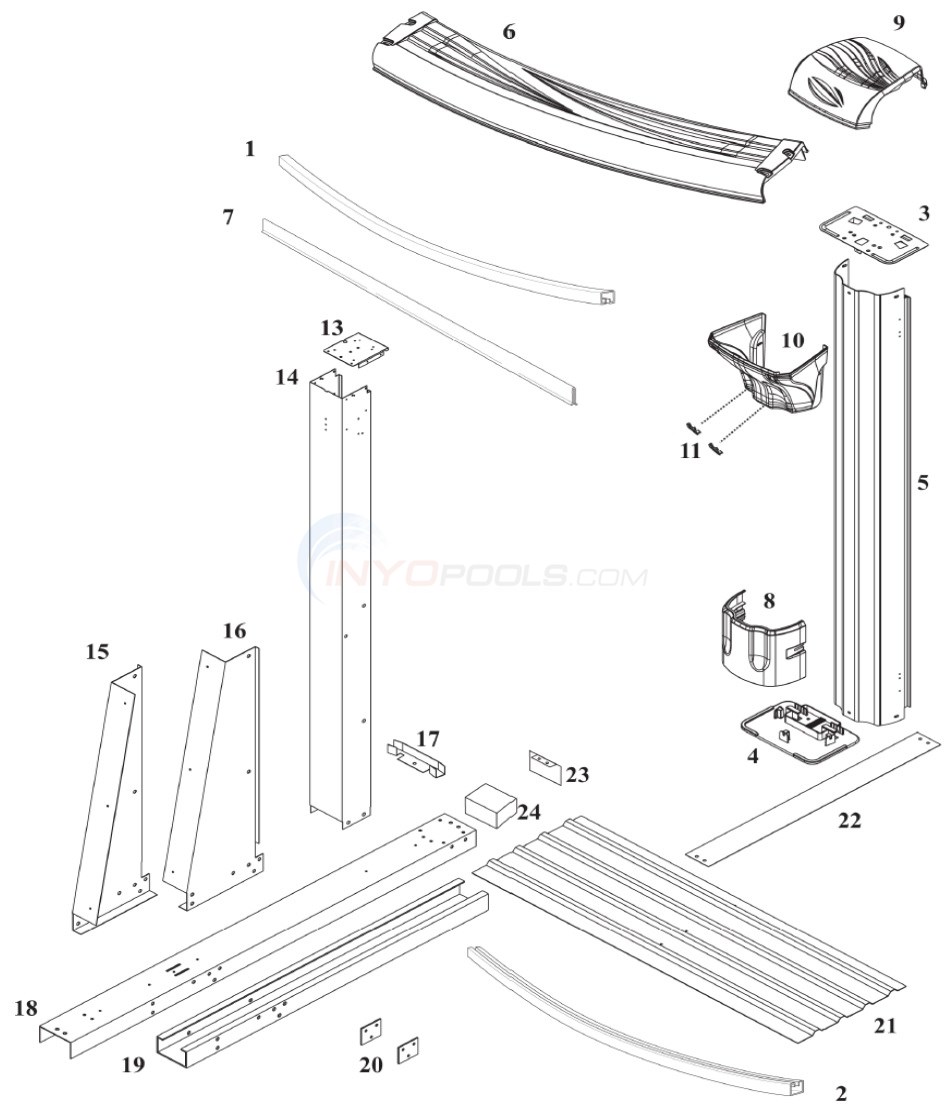

Morada 6 12'x17' Yardmore Oval (Resin Top Rail, Wall Printed Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
Pool	Morada 12' x 17' Oval 54" Hybrid Above Ground Pool (Skimmer Included)
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail 38" Aluminum (Single)
3	Top/Bottom Plate 8" Xylon
4	Bottom Plate 8" Resin
5	Up Right 8" 53 13/16" (Single)
6	Top Rail 8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap 8" Boot (Single)
9	Top Cap 8" (Single)
10	Top Cap 8" SUPT Curved (Single)
11	Top Cap 8" Screw Cover Left (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright Oval 53-13/16"
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware Kit #12
*	Envelope Safety Stickers

View Parts List

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
Pool	Morada 12' x 17' Oval 54" Hybrid Above Ground Pool (Skimmer Included)
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail 38" Aluminum (Single)
3	Top/Bottom Plate 8" Xylon
4	Bottom Plate 8" Resin
5	Up Right 8" 53 13/16" (Single)
6	Top Rail 8" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap 8" Boot (Single)
9	Top Cap 8" (Single)
10	Top Cap 8" SUPT Curved (Single)
11	Top Cap 8" Screw Cover Left (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright Oval 53-13/16"
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Strap Oval Channel 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Hdw SS Base Pack YardMore (4 UPRIGHTS)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Channel End Cap (Single)
24	Oval Channel Foam Block
*	Hardware Kit #12
*	Envelope Safety Stickers

Available Parts:

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1217ASO

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

$299.99 IN STOCK

Qty:

Morada 12' x 17' Oval 54" Hybrid Above Ground Pool (Skimmer Included)

Part # PMORYM121754RWRSRQ1

Morada 12' x 17' Oval 54" Hybrid Above Ground Pool (Skimmer Included)

$3774.99

Note Includes Pool Wall

Note Includes Pool Wall

Inner Stabilizer Steel 42-5/8"

Part # 15325

Inner Stabilizer Steel 42-5/8"

$41.99 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 5/8" (Single) SQ Steel 8" Black

Part # 16799

Rim 5/8" (Single) SQ Steel 8" Black

$9.75

Quantity Per Pool 4

Quantity Per Pool 4

Rim 5/8" (Single) SQ Steel 33" Black

Part # 16798

Rim 5/8" (Single) SQ Steel 33" Black

$40.03 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Inner Stabilizer Steel 42-5/8" (4 pack) REPLACED BY 38501!!

Part # 15325-PACK4

Inner Stabilizer Steel 42-5/8" (4 pack) REPLACED BY 38501!!

$102.38

Quantity Per Pool

Quantity Per Pool

Rim 5/8" (4 pack) SQ Steel 33" Black

Part # 16798-PACK4

Rim 5/8" (4 pack) SQ Steel 33" Black

$108.18 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

Part # 38501-1217-RESKIT

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

$846.44 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail 38" Aluminum (Single)

Part # 10289 Mfg # 10289

Bottom Rail 38" Aluminum (Single)

$39.05 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Rail Str Side Aluminum 37-1/2" (Single)

Part # 16543

Bottom Rail Str Side Aluminum 37-1/2" (Single)

$31.49 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Top/Bottom Plate 8" Xylon

Part # 19164

Top/Bottom Plate 8" Xylon

$16.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 17' Oval Pool Pool

Part # 19164-1217-RESKIT

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 17' Oval Pool Pool

$135.90 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Plate 8" Resin

Part # 19092

Bottom Plate 8" Resin

$15.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Up Right 8" 53 13/16" (Single)

Part # 21509

Up Right 8" 53 13/16" (Single)

$84.95 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Rail 8" (Single)

Part # 21511

Top Rail 8" (Single)

$98.70 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail 8" Resin Straight Side (Single)

Part # 19610

Top Rail 8" Resin Straight Side (Single)

$146.99 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.54 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap 8" Boot (Single)

Part # 19615

Top Cap 8" Boot (Single)

$16.05

Quantity Per Pool 10

Quantity Per Pool 10

Top Cap 8" (Single)

Part # 19612

Top Cap 8" (Single)

$25.84 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap 8" SUPT Curved (Single)

Part # 19613

Top Cap 8" SUPT Curved (Single)

$26.99 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Cap 8" SUPT Straight (Single)

Part # 19614

Top Cap 8" SUPT Straight (Single)

$29.13 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Cap 8" Screw Cover Left (Single)

Part # 19765

Top Cap 8" Screw Cover Left (Single)

$5.40 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap 8" Screw Cover Right (Single)

Part # 19766

Top Cap 8" Screw Cover Right (Single)

$5.40 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.71 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Wrap Upright Oval 53-13/16"

Part # 14573

Wrap Upright Oval 53-13/16"

$110.24

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Left Steel (Single)

Part # 19619

Yardmore Gusset Left Steel (Single)

$86.09

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Right Steel (Single)

Part # 19620

Yardmore Gusset Right Steel (Single)

$85.04

Quantity Per Pool 4

Quantity Per Pool 4

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$35.87 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Strap Oval Channel 52-3/8" (Single)

Part # 16539

Strap Oval Channel 52-3/8" (Single)

$111.29

Quantity Per Pool 4

Quantity Per Pool 4

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$104.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Hdw SS Base Pack YardMore (4 UPRIGHTS)

Part # 16720

Hdw SS Base Pack YardMore (4 UPRIGHTS)

$113.39

Quantity Per Pool 1

Quantity Per Pool 1

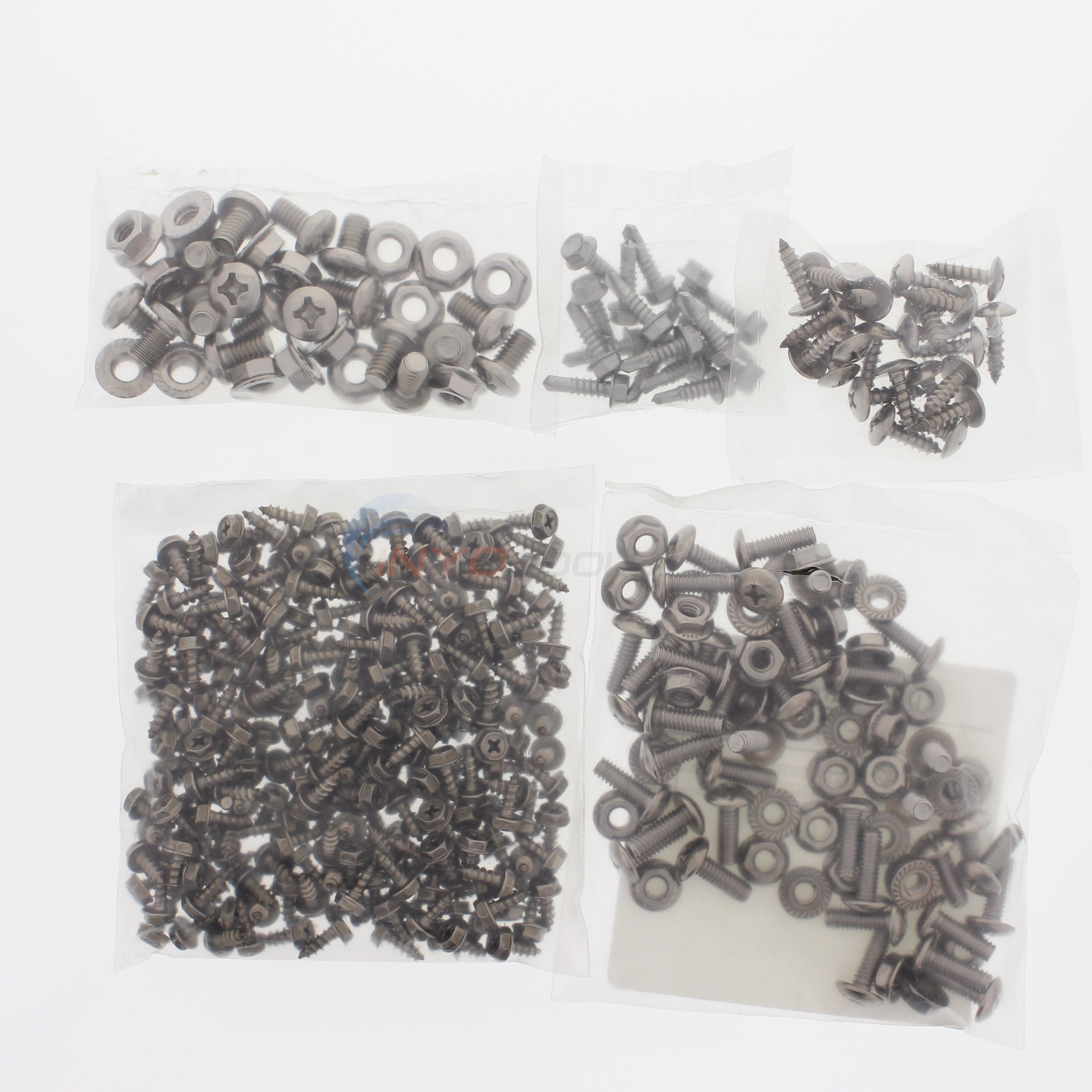

Hardware S/S 12' x 17'

Part # 16606

Hardware S/S 12' x 17'

$225.74 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$127.04

Quantity Per Pool 4

Quantity Per Pool 4

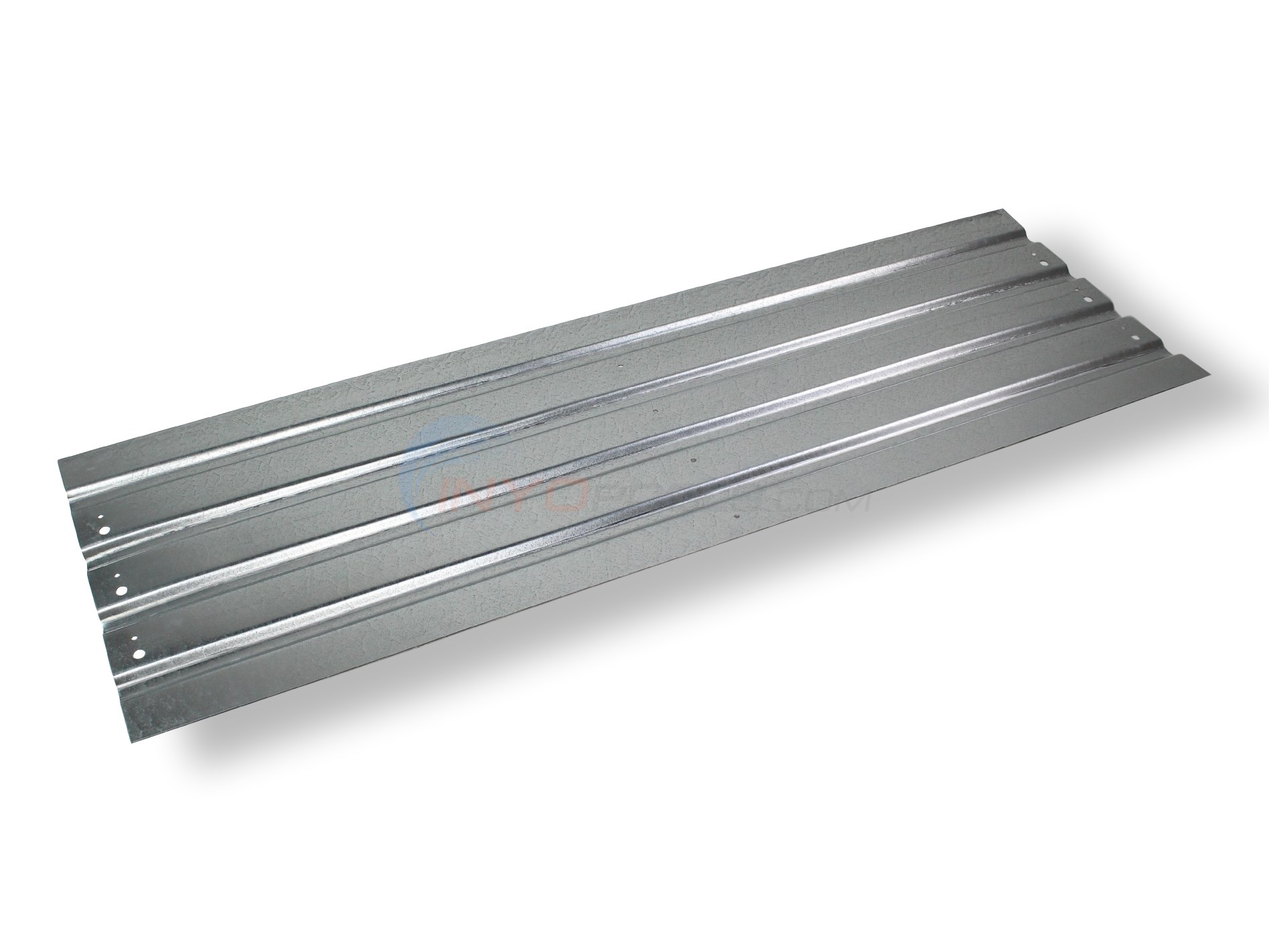

Pressure Plate 44" (4 pack)

Part # 16549-PACK4

Pressure Plate 44" (4 pack)

$426.26 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.32

Quantity Per Pool 4

Quantity Per Pool 4

Oval Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Channel End Cap (Single)

$10.73 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Oval Channel Foam Block

Part # 29917

Oval Channel Foam Block

$4.19 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Hardware Kit #12

Part # 21588

Hardware Kit #12

$55.64

Quantity Per Pool 1

Quantity Per Pool 1

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$15.74

Quantity Per Pool 1

Quantity Per Pool 1

Backyard Leisure Consumer DVD

Part # 36878

Backyard Leisure Consumer DVD

$1086.74

Quantity Per Pool 1

Quantity Per Pool 1

*Not Shown
