Pentair / Pac Fab Bermuda Parts

VINYL & GUNITE VERSIONS

1990-CURRENT

PUREX/TRITON POOL SYSTEMS

Pentair / Pac Fab Bermuda Diagram

Click to zoom in

Diagram #	Part Title
1	SCREW, COVER
2	COVER, SKIMMER (WHITE) (516215)
3	COLLAR, DECK FOR VINYL (BLACK)
4	BASKET/HANDLE, SKIMMER PENTAIR OEM (516112)
5	SCREW
6	PLATE, TRIMMER
7	WEIR, ASSEMBLY
8	PLATE, VACUUM FOR PAC FAB
9	Float Valve Assembly - Pentair
10*	EQUALIZER VALVE ASSEMBLY
11*	O-RING, SKIMMER BODY FLOAT VALVE (516244)
12	BASKET,GENERIC U-3 STA-RITE/HAYWARD 1070 SKIMMER ()
13	E Z LIFT SKIMMER HANDLE - EACH

View Parts List

Diagram #	Part Title
1	SCREW, COVER
2	COVER, SKIMMER (WHITE) (516215)
3	COLLAR, DECK FOR VINYL (BLACK)
4	BASKET/HANDLE, SKIMMER PENTAIR OEM (516112)
5	SCREW
6	PLATE, TRIMMER
7	WEIR, ASSEMBLY
8	PLATE, VACUUM FOR PAC FAB
9	Float Valve Assembly - Pentair
10*	EQUALIZER VALVE ASSEMBLY
11*	O-RING, SKIMMER BODY FLOAT VALVE (516244)
12	BASKET,GENERIC U-3 STA-RITE/HAYWARD 1070 SKIMMER ()
13	E Z LIFT SKIMMER HANDLE - EACH

Available Parts:

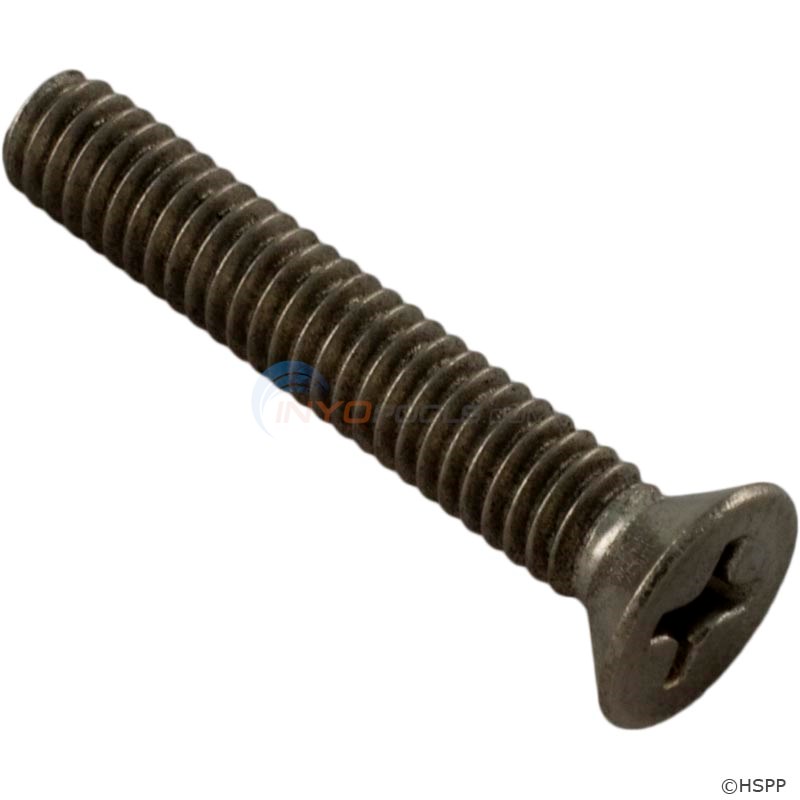

SCREW, COVER

Part # 4035-01 Mfg # 516242

SCREW, COVER

$17.99 IN STOCK

Qty:

COVER, SKIMMER (WHITE) (516215)

Part # 4035-02 Mfg # 516215Z

COVER, SKIMMER (WHITE) (516215)

$68.99 IN STOCK

Qty:

COVER, SKIMMER (TAN)

Part # 4035-02A Mfg # 516216

COVER, SKIMMER (TAN)

$51.99 IN STOCK

Qty:

COVER, SKIMMER (BLACK)

Part # 4035-02B Mfg # 516306

COVER, SKIMMER (BLACK)

$51.99 IN STOCK

Qty:

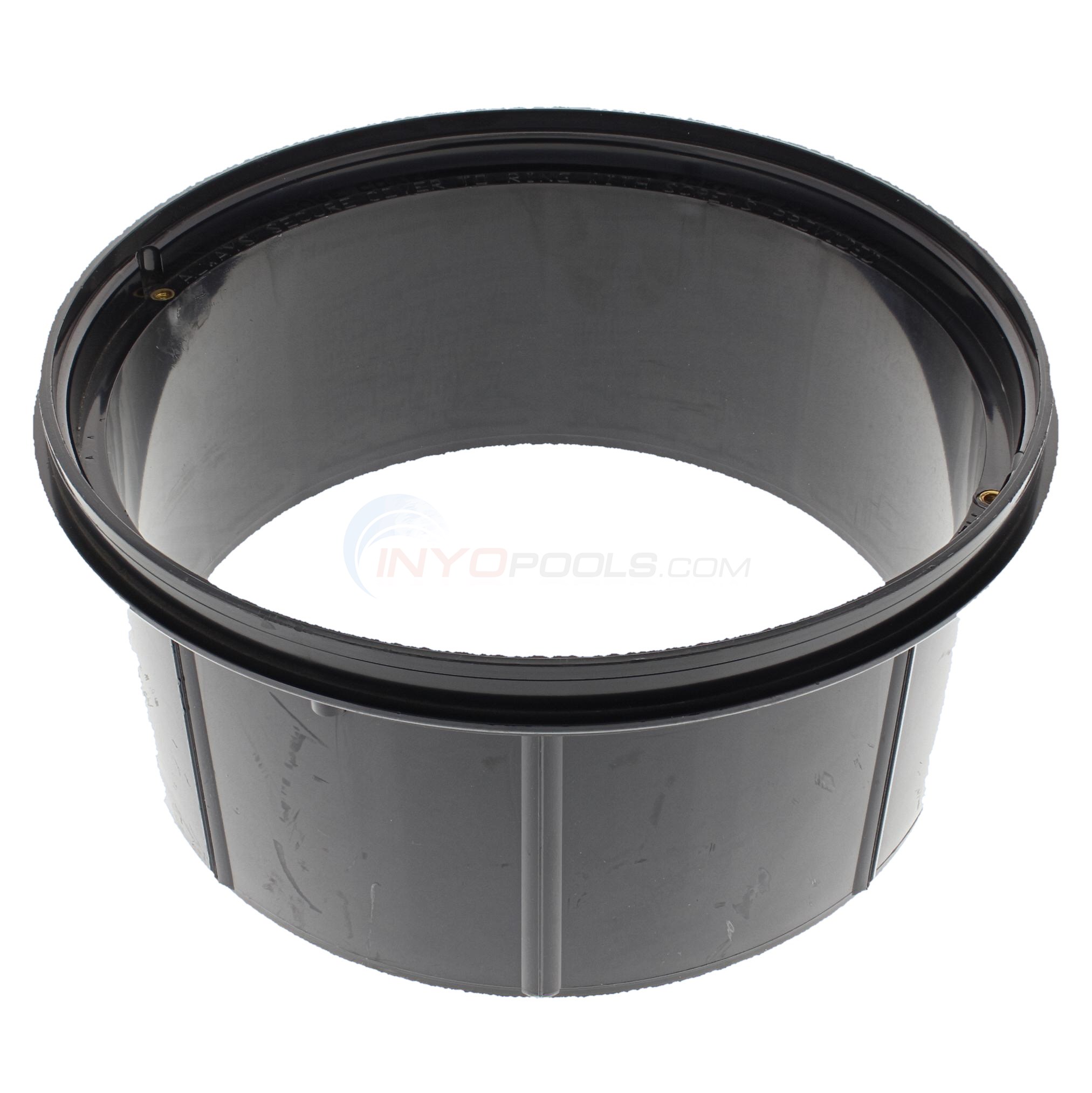

COLLAR, DECK FOR VINYL (BLACK)

Part # 4035-03D Mfg # 516307

COLLAR, DECK FOR VINYL (BLACK)

$67.99 IN STOCK

Qty:

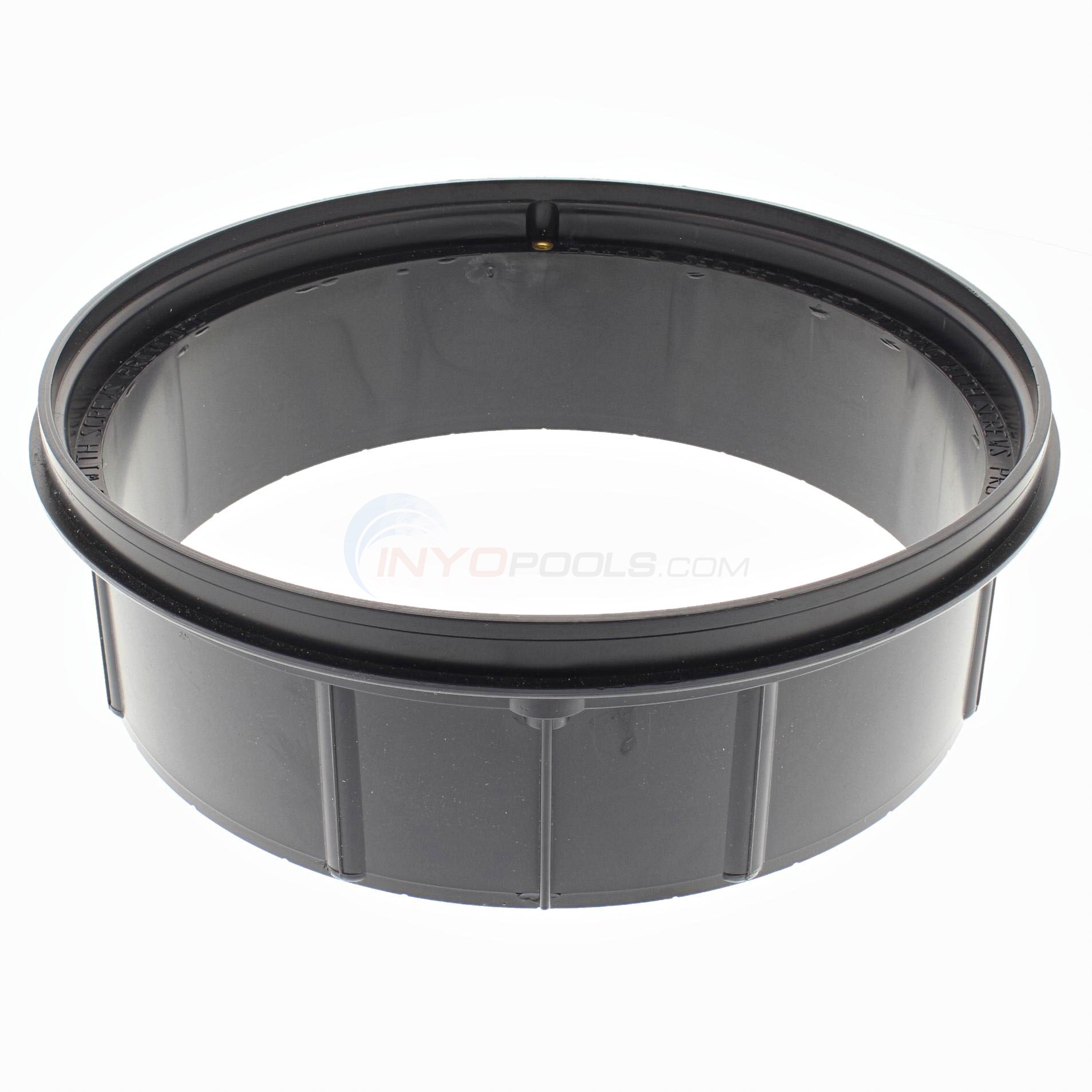

COLLAR, DECK FOR GUNITE (BLACK)

Part # 4035-03E Mfg # 516329

COLLAR, DECK FOR GUNITE (BLACK)

$55.99 IN STOCK

Qty:

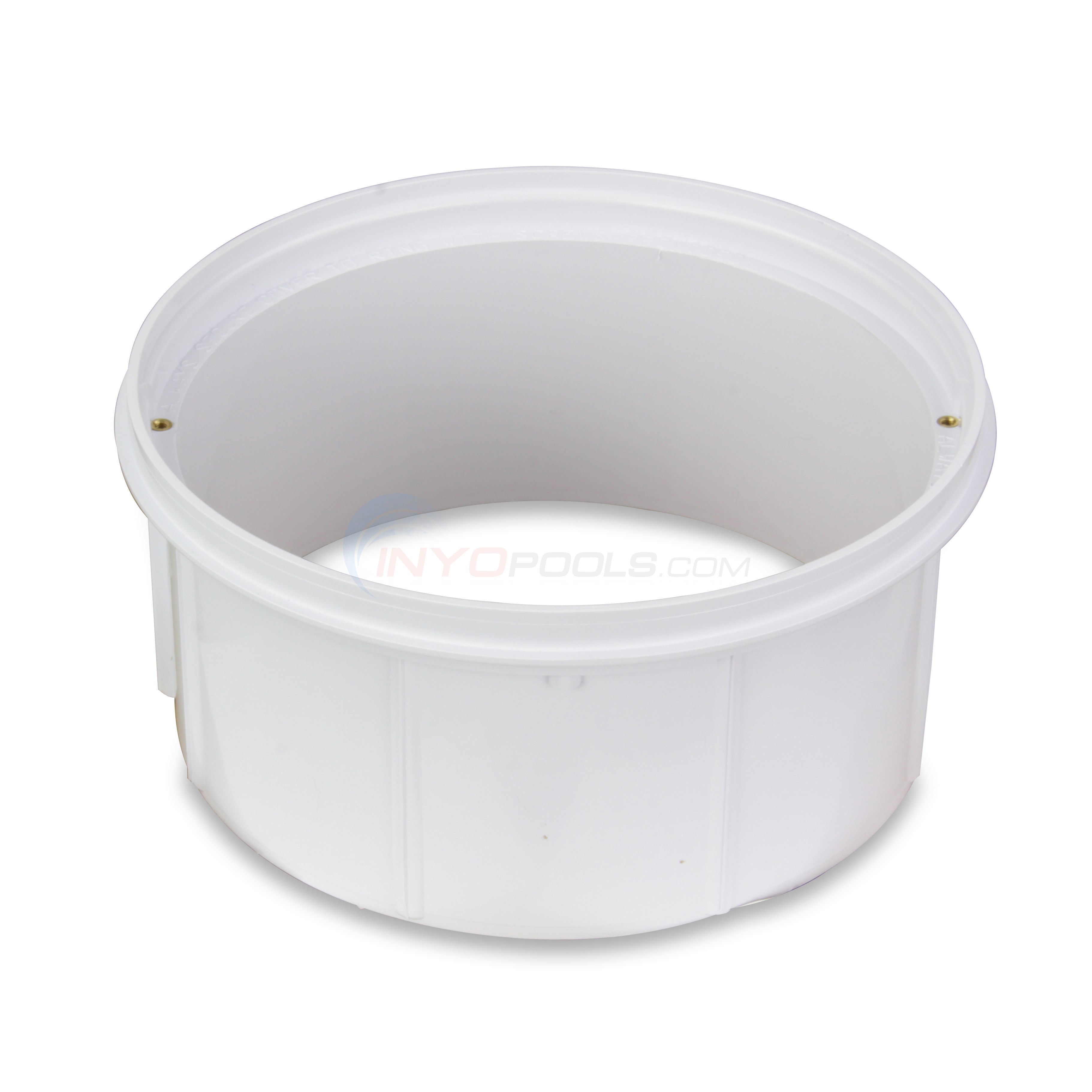

COLLAR, DECK FOR VINYL

Part # 4035-03 Mfg # 516259

COLLAR, DECK FOR VINYL

$52.49 IN STOCK

Qty:

COLLAR, DECK FOR GUNITE

Part # 4035-03A Mfg # 516253

COLLAR, DECK FOR GUNITE

$37.49 IN STOCK

Qty:

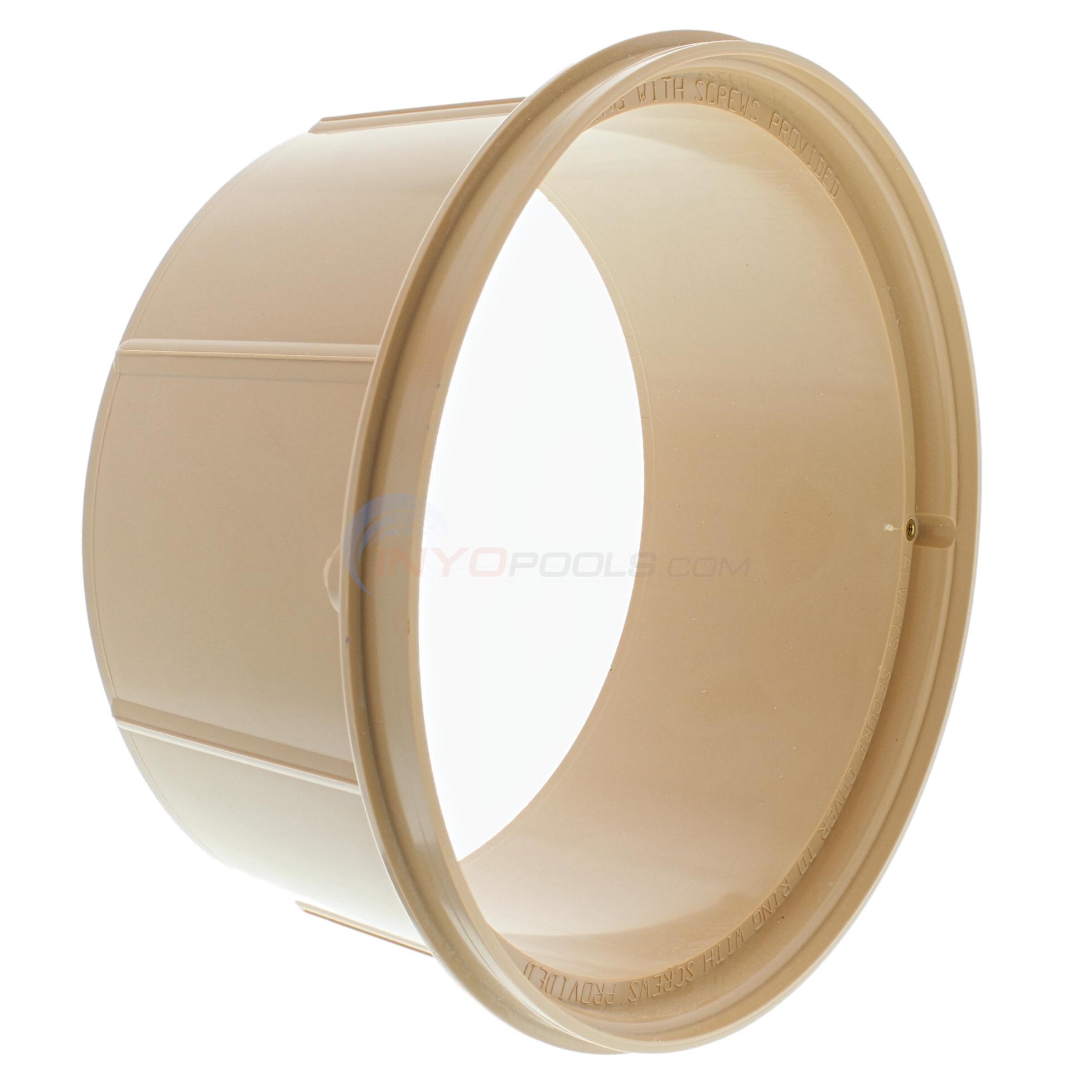

COLLAR, DECK FOR VINYL (TAN)

Part # 4035-03B Mfg # 516260

COLLAR, DECK FOR VINYL (TAN)

$52.49

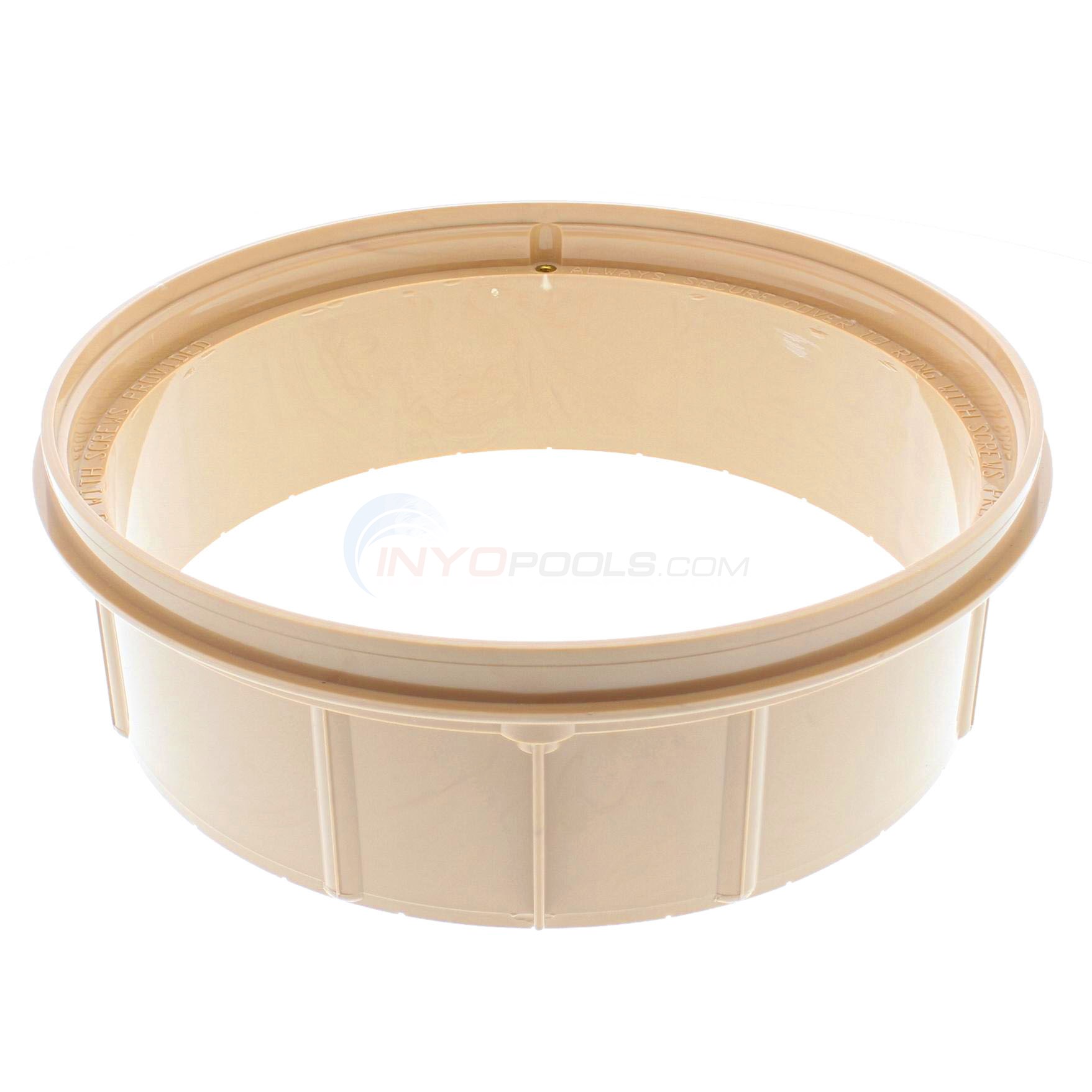

COLLAR, DECK FOR GUNITE (TAN)

Part # 4035-03C Mfg # 516258

COLLAR, DECK FOR GUNITE (TAN)

$50.99 IN STOCK

Qty:

BASKET/HANDLE, SKIMMER PENTAIR OEM (516112)

Part # 4035-04 Mfg # 516112/516112Z

BASKET/HANDLE, SKIMMER PENTAIR OEM (516112)

$34.99 IN STOCK

Qty:

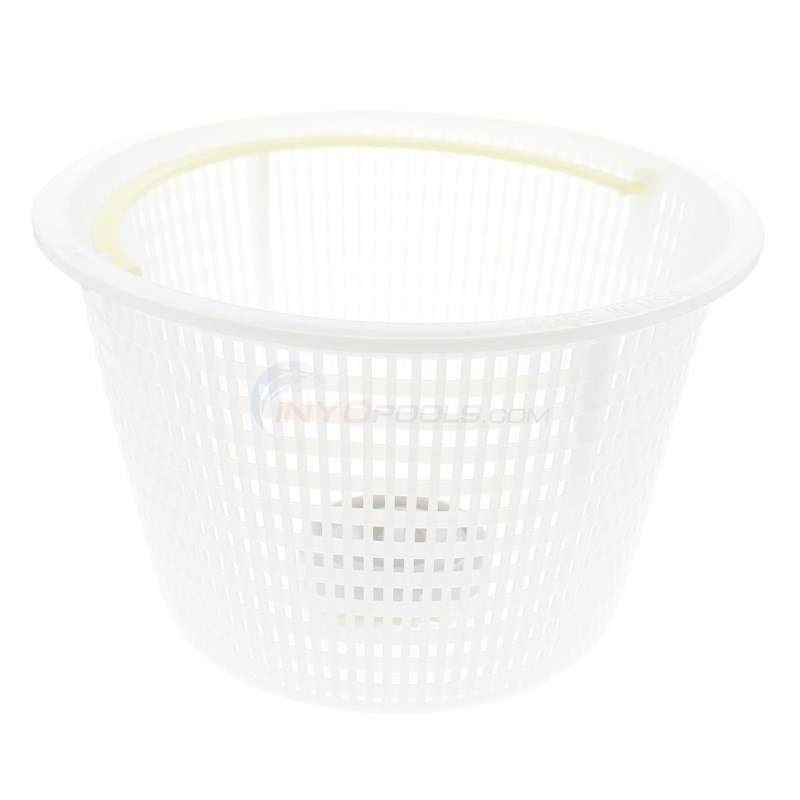

BASKET, GENERIC

Part # 5400-B009 Mfg # B-9

BASKET, GENERIC

$16.49

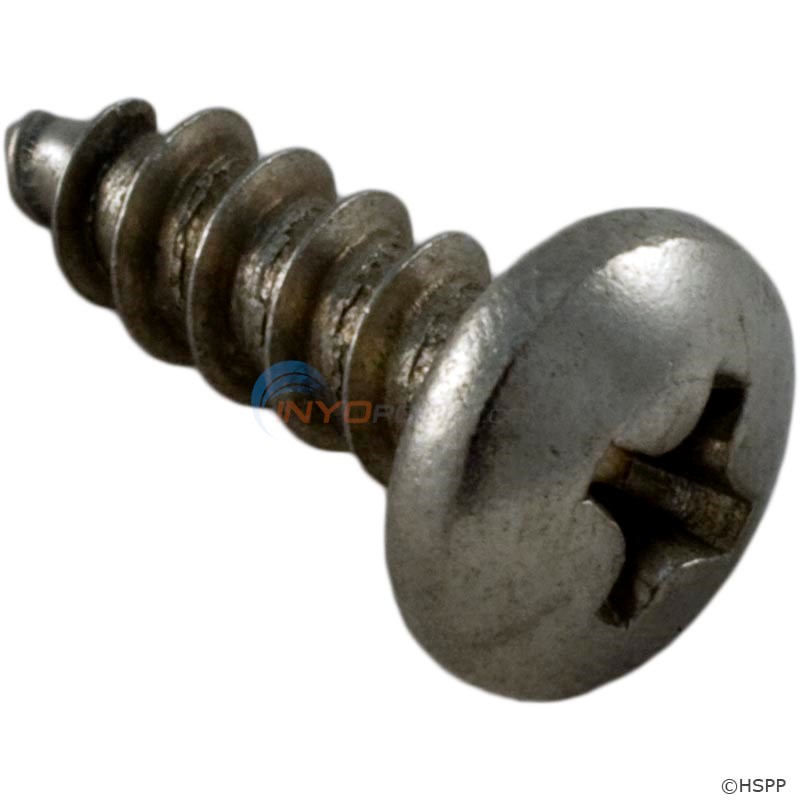

SCREW

Part # 4035-05 Mfg # 516243

SCREW

$13.99

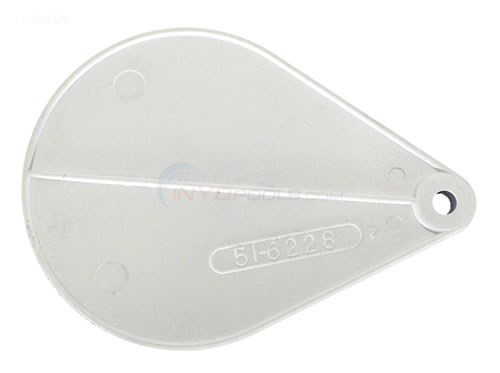

PLATE, TRIMMER

Part # 4035-06 Mfg # 516228

PLATE, TRIMMER

$14.99 IN STOCK

Qty:

WEIR, ASSEMBLY

Part # 4035-07 Mfg # 516252

WEIR, ASSEMBLY

$35.99 IN STOCK

Qty:

WEIR ASSEMBLY (BLACK)

Part # 4035-07A Mfg # 516315

WEIR ASSEMBLY (BLACK)

$55.99 IN STOCK

Qty:

Weir 8 1/2in (Spring Loaded))

Part # 4202-09 Mfg # 939

Weir 8 1/2in (Spring Loaded))

$20.49 IN STOCK

Qty:

PLATE, VACUUM FOR PAC FAB

Part # 3108-0 Mfg # 506161

PLATE, VACUUM FOR PAC FAB

$35.99 IN STOCK

Qty:

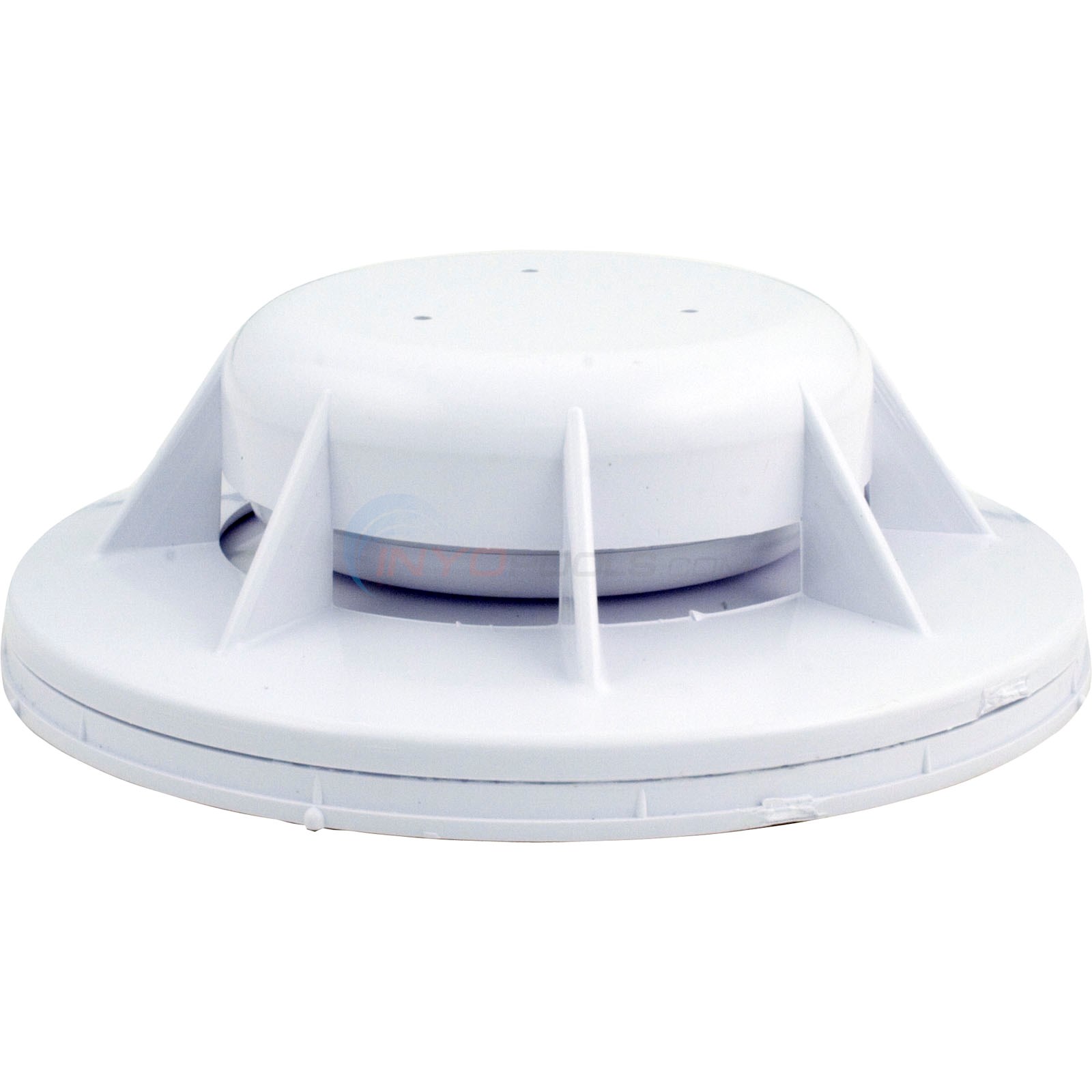

Float Valve Assembly - Pentair

Part # 4035-16 Mfg # 506160

Float Valve Assembly - Pentair

$87.99 IN STOCK

Qty:

Float Valve Assembly - Generic

Part # 51-605-1250 Mfg # 25140-000-700

Float Valve Assembly - Generic

$49.49 IN STOCK

Qty:

EQUALIZER VALVE ASSEMBLY

Part # 4035-18 Mfg # 506162

EQUALIZER VALVE ASSEMBLY

$86.99 IN STOCK

Qty:

O-RING (229)

Part # 5002-21

O-RING (229)

$8.49 IN STOCK

Qty:

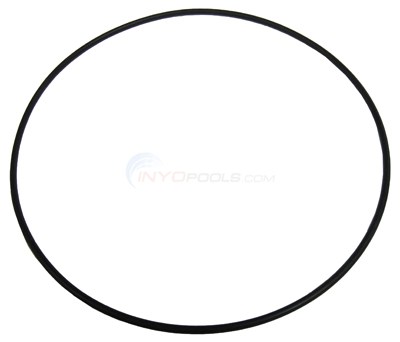

O-RING, SKIMMER BODY FLOAT VALVE (516244)

Part # 4035-17 Mfg # APCO2153

O-RING, SKIMMER BODY FLOAT VALVE (516244)

$41.99 IN STOCK

Qty:

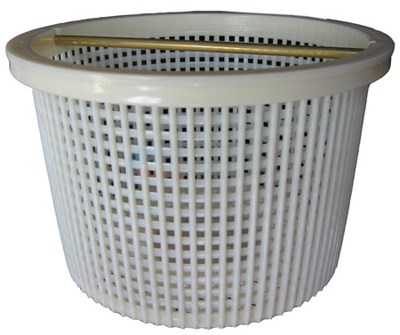

BASKET,GENERIC U-3 STA-RITE/HAYWARD 1070 SKIMMER ()

Part # 5406-009 Mfg # V22-110

BASKET,GENERIC U-3 STA-RITE/HAYWARD 1070 SKIMMER ()

$44.99 IN STOCK

Qty:

E Z LIFT SKIMMER HANDLE - EACH

Part # 5405-010 Mfg # PDS 3200

E Z LIFT SKIMMER HANDLE - EACH

$25.49 IN STOCK

Qty:

E Z LIFT SKIMMER HANDLE P.O.P. (EACH) (PDS 4200)

Part # 5405-020 Mfg # GPIANGEL

E Z LIFT SKIMMER HANDLE P.O.P. (EACH) (PDS 4200)

$30.99 IN STOCK

Qty:

* NOT SHOWN
