Pentair / Pac Fab Commercial R Series Parts

R SERIES 5-15 HP

Pentair / Pac Fab Commercial R Series Diagram

Click to zoom in

Diagram #	Part Title
1	OBSOLETE CLAMP ASSEMBLY
2	OBSOLETE LID
3	O-RING, LID
4	OBSOLETE STRAINER BASKET S/S
5	BOLT 1/2 13 UNC X 1 1/4 S/S HEX
6	WASHER
7	OBSOLETE O-RING DIFFUSER
8	SCREW #10 - 24 X 2 1/4 LG SOC. S/S
9	OBSOLETE LOCKWASHER #10
10	OBSOLETE DIFFUSER 5, 7½, & 10 HP
11	LOCK SCREW, FOR IMPELLER
12	WASHER, IMPELLER
13	KEY, SQUARE 3/16 IN
14	IMPELLER, 5HP HI-HD CHK50
15	SEAL ASSY
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
16	O-RING, SEAL PLATE NEOPRENE #2-371
17	BOLT 1/2 - 13 X 1 S/S HEX
18	OBSOLETE PLATE, SEAL (5 & 7 1/2 HP)
19	OBSOLETE CASING
20	PLUG, DRAIN
21	GASKET
22	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
23	OBSOLETE WASHER
24	OBSOLETE SCREW
25	OBSOLETE ADAPTER
26	OBSOLETE SUPPORT, PUMP
27	MOTOR 5 HP SINGLE PHASE
*	Protective Pool Motor Cover
28	OBSOLETE TEE NUT: 3/8 - 16 UNC

View Parts List

Diagram #	Part Title
1	OBSOLETE CLAMP ASSEMBLY
2	OBSOLETE LID
3	O-RING, LID
4	OBSOLETE STRAINER BASKET S/S
5	BOLT 1/2 13 UNC X 1 1/4 S/S HEX
6	WASHER
7	OBSOLETE O-RING DIFFUSER
8	SCREW #10 - 24 X 2 1/4 LG SOC. S/S
9	OBSOLETE LOCKWASHER #10
10	OBSOLETE DIFFUSER 5, 7½, & 10 HP
11	LOCK SCREW, FOR IMPELLER
12	WASHER, IMPELLER
13	KEY, SQUARE 3/16 IN
14	IMPELLER, 5HP HI-HD CHK50
15	SEAL ASSY
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
16	O-RING, SEAL PLATE NEOPRENE #2-371
17	BOLT 1/2 - 13 X 1 S/S HEX
18	OBSOLETE PLATE, SEAL (5 & 7 1/2 HP)
19	OBSOLETE CASING
20	PLUG, DRAIN
21	GASKET
22	SCREW, MOTOR CAP (3/8-16X 7/8 SS)
23	OBSOLETE WASHER
24	OBSOLETE SCREW
25	OBSOLETE ADAPTER
26	OBSOLETE SUPPORT, PUMP
27	MOTOR 5 HP SINGLE PHASE
*	Protective Pool Motor Cover
28	OBSOLETE TEE NUT: 3/8 - 16 UNC

Available Parts:

1

OBSOLETE CLAMP ASSEMBLY

Mfg # 075845

OBSOLETE CLAMP ASSEMBLY

NOT AVAILABLE

2

OBSOLETE LID

Mfg # 075851

OBSOLETE LID

NOT AVAILABLE

O-RING, LID

Part # 5071-27 Mfg # O-478

$24.99 IN STOCK

Qty:

4

OBSOLETE STRAINER BASKET S/S

Mfg # 075844

OBSOLETE STRAINER BASKET S/S

NOT AVAILABLE

BOLT 1/2 13 UNC X 1 1/4 S/S HEX

Part # 5071-29 Mfg # 075841

BOLT 1/2 13 UNC X 1 1/4 S/S HEX

$34.99

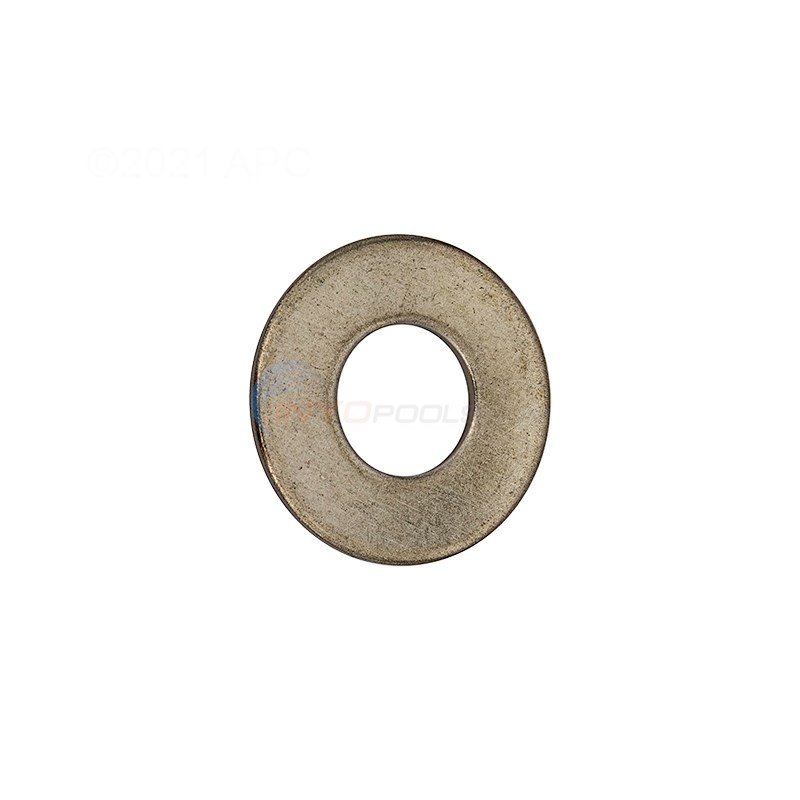

WASHER

Part # 5071-30 Mfg # 075842

$10.99 IN STOCK

Qty:

7

OBSOLETE O-RING DIFFUSER

Mfg # 075848

OBSOLETE O-RING DIFFUSER

NOT AVAILABLE

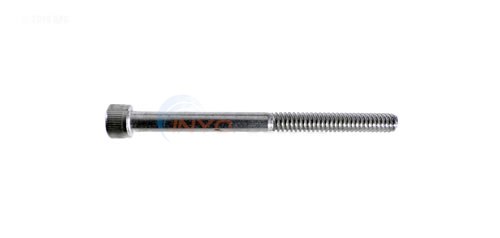

SCREW #10 - 24 X 2 1/4 LG SOC. S/S

Part # 5071-32 Mfg # 075849

SCREW #10 - 24 X 2 1/4 LG SOC. S/S

$19.99

9

OBSOLETE LOCKWASHER #10

Mfg # 075850

OBSOLETE LOCKWASHER #10

NOT AVAILABLE

10

OBSOLETE DIFFUSER 5, 7½, & 10 HP

Mfg # 075914

OBSOLETE DIFFUSER 5, 7½, & 10 HP

NOT AVAILABLE

10

OBSOLETE DIFFUSER 15 HP

Mfg # 075915

OBSOLETE DIFFUSER 15 HP

NOT AVAILABLE

LOCK SCREW, FOR IMPELLER

Part # 5071-20 Mfg # 071037

LOCK SCREW, FOR IMPELLER

$9.31 IN STOCK

Qty:

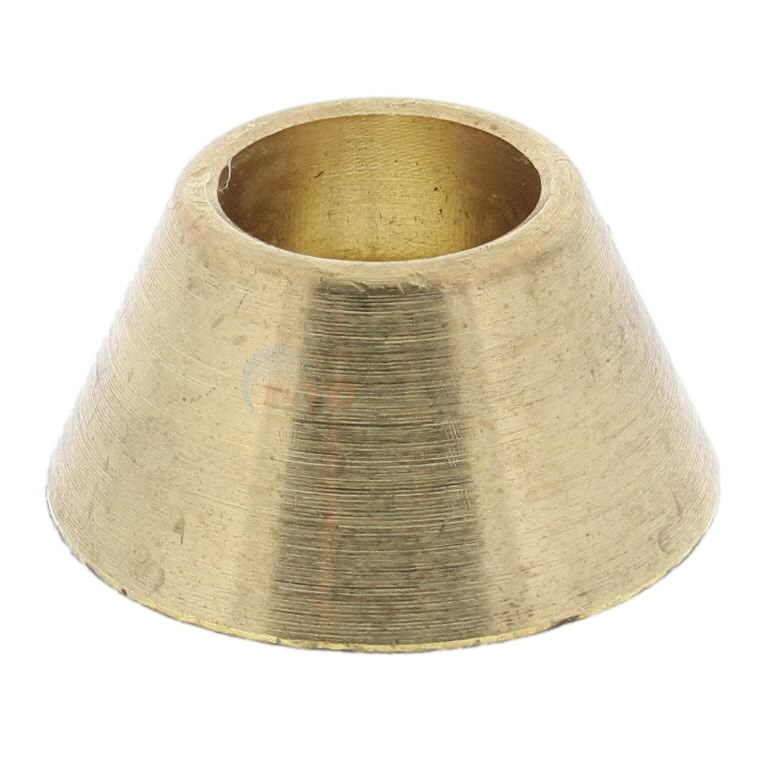

WASHER, IMPELLER

Part # 5071-19 Mfg # 071048

WASHER, IMPELLER

$30.34 IN STOCK

Qty:

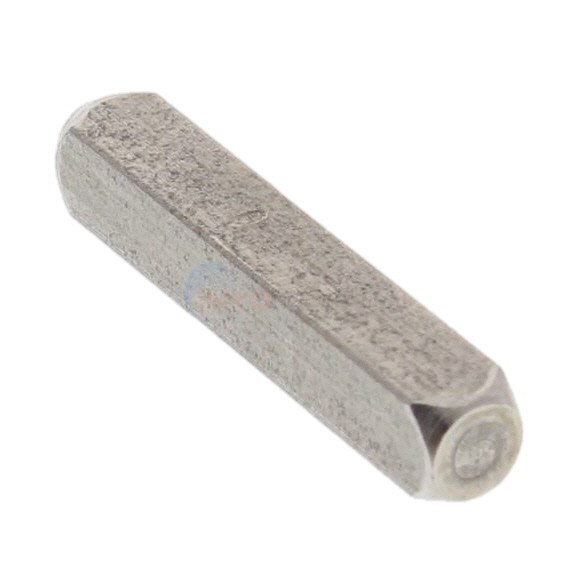

KEY, SQUARE 3/16 IN

Part # 5071-24 Mfg # 071046

KEY, SQUARE 3/16 IN

$34.47 IN STOCK

Qty:

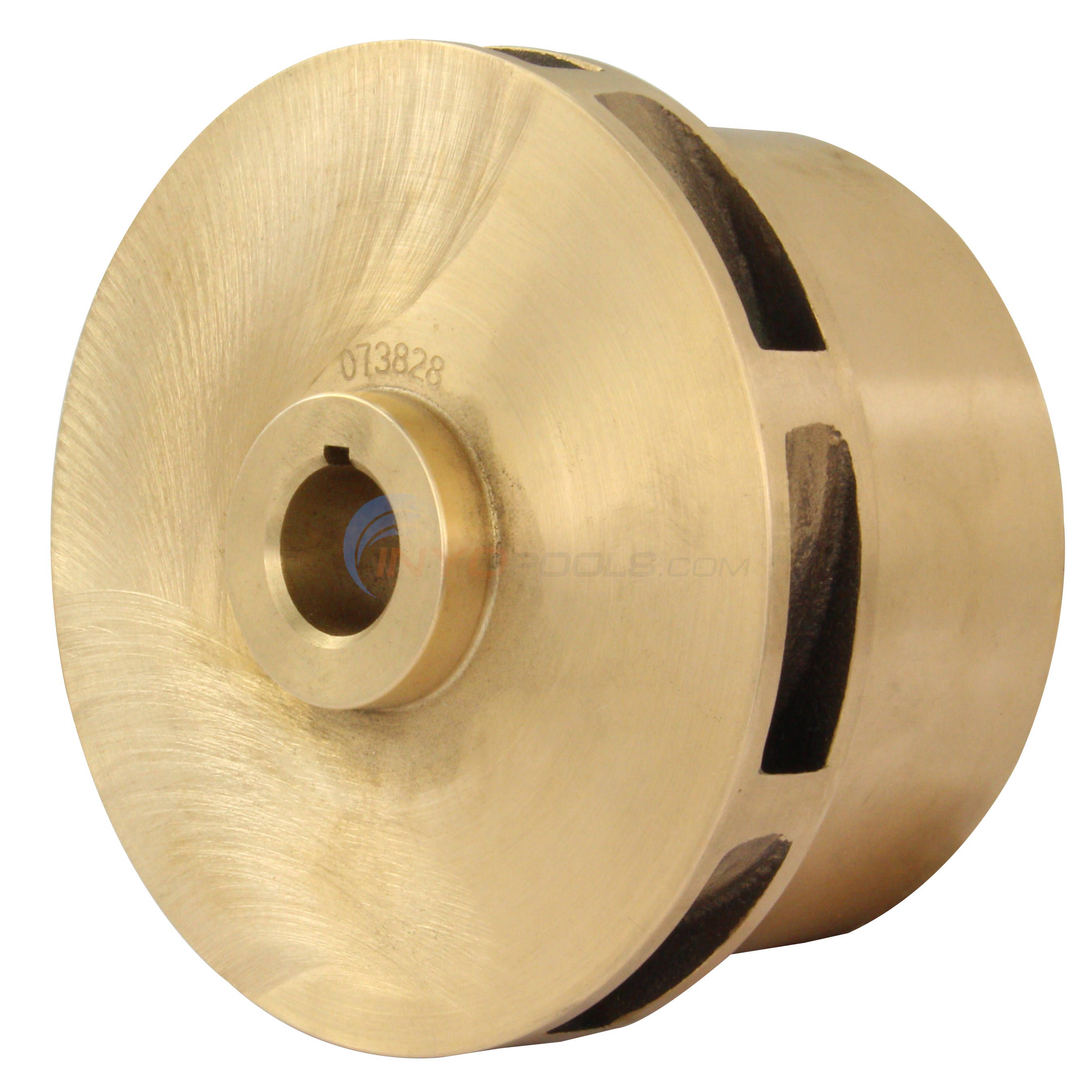

IMPELLER, 5HP HI-HD CHK50

Part # 5071-04BH Mfg # 073828

IMPELLER, 5HP HI-HD CHK50

$1334.19 IN STOCK

Qty:

IMPELLER, 5HP MD-HD CMK-50

Part # 5071-04BM Mfg # 070228

IMPELLER, 5HP MD-HD CMK-50

$1249.99 IN STOCK

Qty:

IMPELLER, 7 1/2HP HI-HD CHK-75

Part # 5071-04CH Mfg # 073829

IMPELLER, 7 1/2HP HI-HD CHK-75

$1299.99 IN STOCK

Qty:

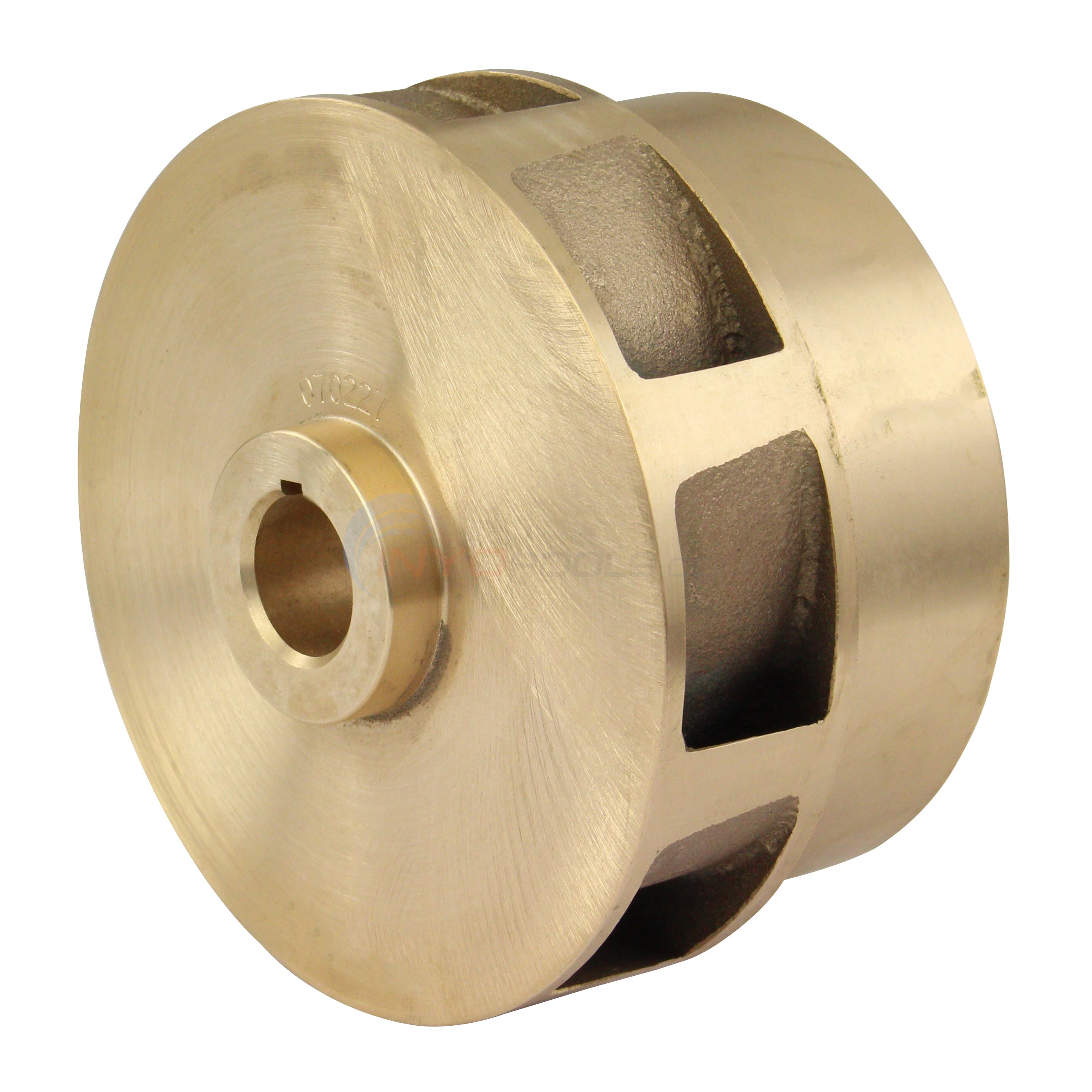

IMPELLER 7 1/2HP,MD-HD CMK-75

Part # 5071-04CM Mfg # 070227

IMPELLER 7 1/2HP,MD-HD CMK-75

$1157.19 IN STOCK

Qty:

IMPELLER, 10HP, HI-HD CHK-100

Part # 5071-04DH Mfg # 073830

IMPELLER, 10HP, HI-HD CHK-100

$1190.14 IN STOCK

Qty:

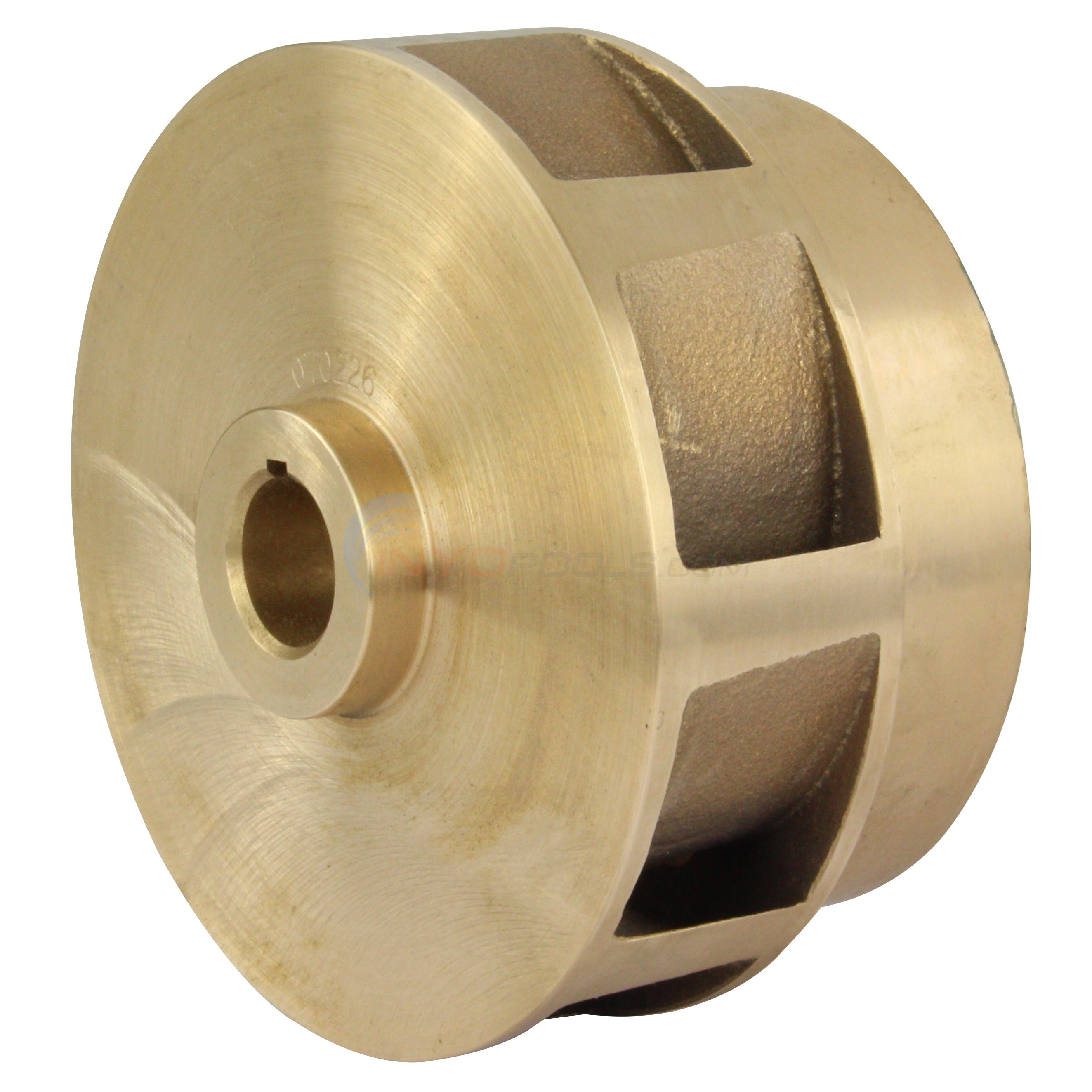

IMPELLER, 10HP,MD-HD, CMK-100

Part # 5071-04DM Mfg # 070226

IMPELLER, 10HP,MD-HD, CMK-100

$1239.99 IN STOCK

Qty:

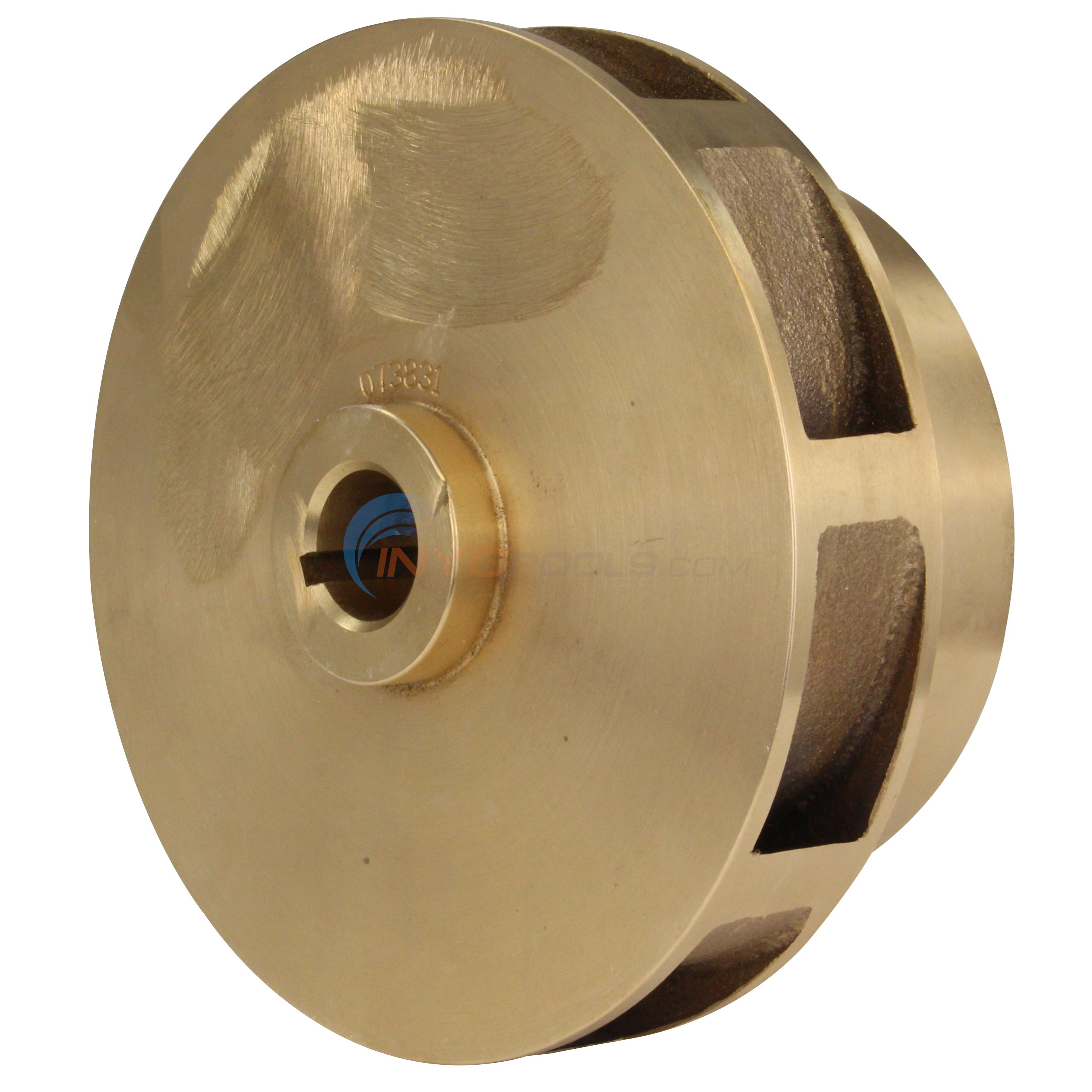

IMPELLER, 15 HP HIHD

Part # 5071-04EH Mfg # 073831

IMPELLER, 15 HP HIHD

$1179.99 IN STOCK

Qty:

IMPELLER, 15HP MD.HD.

Part # 5071-04EM Mfg # 070225

IMPELLER, 15HP MD.HD.

$1276.99 IN STOCK

Qty:

SEAL ASSY

Part # 5071-02 Mfg # 071725

$47.42 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$4.99 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$29.99 IN STOCK

Qty:

O-RING, SEAL PLATE NEOPRENE #2-371

Part # 5071-35 Mfg # 075846

O-RING, SEAL PLATE NEOPRENE #2-371

$38.99

BOLT 1/2 - 13 X 1 S/S HEX

Part # 5071-36 Mfg # 075843

BOLT 1/2 - 13 X 1 S/S HEX

$54.99

18

OBSOLETE PLATE, SEAL (5 & 7 1/2 HP)

Mfg # 075546

OBSOLETE PLATE, SEAL (5 & 7 1/2 HP)

NOT AVAILABLE

18

OBSOLETE PLATE, SEAL (10 & 15 HP)

Mfg # 075549

OBSOLETE PLATE, SEAL (10 & 15 HP)

NOT AVAILABLE

19

OBSOLETE CASING

Mfg # 075544

OBSOLETE CASING

NOT AVAILABLE

PLUG, DRAIN

Part # 5074-24 Mfg # 071131

$4.49 IN STOCK

Qty:

GASKET

Part # 5074-25 Mfg # 074629

$4.99 IN STOCK

Qty:

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

Part # 5110-16 Mfg # SAMPLE S-22

SCREW, MOTOR CAP (3/8-16X 7/8 SS)

$3.99 IN STOCK

Qty:

23

OBSOLETE WASHER

Mfg # 075855

OBSOLETE WASHER

NOT AVAILABLE

24

OBSOLETE SCREW

Mfg # 076063

OBSOLETE SCREW

NOT AVAILABLE

25

OBSOLETE ADAPTER

Mfg # 075541

OBSOLETE ADAPTER

NOT AVAILABLE

26

OBSOLETE SUPPORT, PUMP

Mfg # 075540

OBSOLETE SUPPORT, PUMP

NOT AVAILABLE

MOTOR 5 HP SINGLE PHASE

Part # 5071-44 Mfg # EEQ500

MOTOR 5 HP SINGLE PHASE

$1230.00 IN STOCK

Qty:

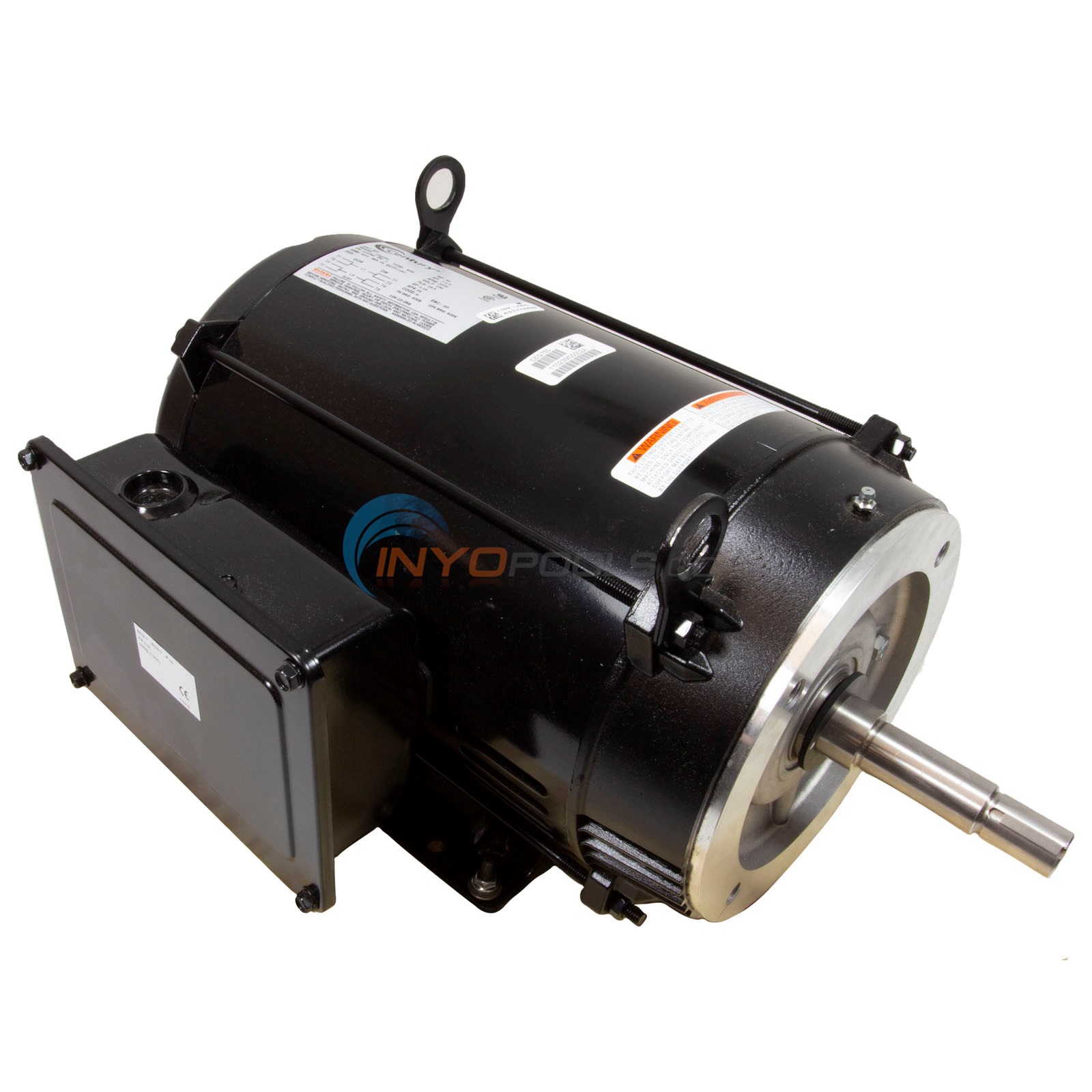

No Ppdfrt, Motor, 7-1/2hp 1 Phase 230v

Part # 5071-64 Mfg # 357066

No Ppdfrt, Motor, 7-1/2hp 1 Phase 230v

$2659.97 IN STOCK

Qty:

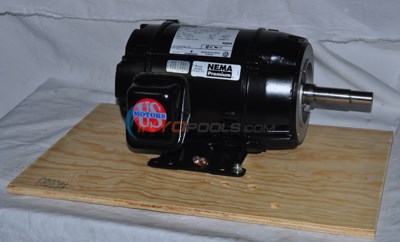

NO PPDFRT, MOTOR, 5 HP 3 PHASE

Part # 5071-67 Mfg # 357068S

NO PPDFRT, MOTOR, 5 HP 3 PHASE

$824.99 IN STOCK

Qty:

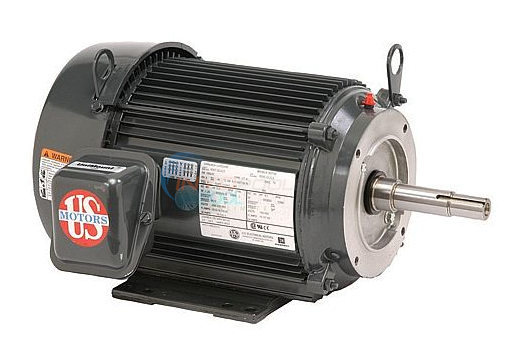

No Ppdfrt, Motor, 7.5hp 3 Phase 208/230/460v

Part # 5071-62 Mfg # 357069

No Ppdfrt, Motor, 7.5hp 3 Phase 208/230/460v

$949.99 IN STOCK

Qty:

No Ppdfrt, Motor, 10hp 3 Phase 208/230/460v

Part # 5071-63 Mfg # 357070

No Ppdfrt, Motor, 10hp 3 Phase 208/230/460v

$1503.99

27

OBSOLETE MOTOR

Mfg # 075853

OBSOLETE MOTOR

NOT AVAILABLE

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$35.71 IN STOCK

Qty:

28

OBSOLETE TEE NUT: 3/8 - 16 UNC

Mfg # 076064

OBSOLETE TEE NUT: 3/8 - 16 UNC

NOT AVAILABLE

SPECIAL NOTE: SOME COMMERCIAL MOTORS
MUST SHIP VIA TRUCK LINE DUE TO WEIGHT.
*NOT SHOWN
