Pentair / Sta-Rite SuperMax VS & Superflo VS/VST Variable Speed Pump (After 11/02/2020) Parts

* = Not Shown Parts for the SuperFlo VST, SuperFlo VS, and SuperMax VS Pumps manufactured after 11/02/2020.

Pentair / Sta-Rite SuperMax VS & Superflo VS/VST Variable Speed Pump (After 11/02/2020) Diagram

Click to zoom in

Diagram #	Part Title
1	Almond SuperFlo/SuperMax VSx Drive Cover
2	Almond SuperFlo/SuperMax VSx Drive Kit
3	Variable Speed Motor Only
4	Motor/Drive Assembly
5	Seal Plate
6	Seal Plate O-Ring
7	Impeller
8	Diffuser
9	Diffuser Gasket
10	Base
11	Drain Plug (2 Required - Gasket Not Included)
12	Drain Plug O-Ring Gasket (2 Required)
13	Volute
14	Strainer Lid O-Ring
15	Strainer Basket
16	Strainer Lid
17	Strainer Lid Clamp Ring
18	Almond Volute Kit Assembly
19	Washer, Stainless Steel (4 Required)
20	Hex Head Bolt (4 Required)
21	Diffuser Screw (3 Required)
22	Impeller Screw
23	Shaft Seal
24	Bolt, Hex (4 Required)
25	Union Adapter (2 Required)
26	Union Adapter O-Ring (2 Required)
27	Union Nut (2 Required)
28	Union Kit (Includes Items 25-27)
*	Pump Digital Communication Cable Kit
*	Motor Fan Guard Kit, TEFC/Super-Duty

View Parts List

Diagram #	Part Title
1	Almond SuperFlo/SuperMax VSx Drive Cover
2	Almond SuperFlo/SuperMax VSx Drive Kit
3	Variable Speed Motor Only
4	Motor/Drive Assembly
5	Seal Plate
6	Seal Plate O-Ring
7	Impeller
8	Diffuser
9	Diffuser Gasket
10	Base
11	Drain Plug (2 Required - Gasket Not Included)
12	Drain Plug O-Ring Gasket (2 Required)
13	Volute
14	Strainer Lid O-Ring
15	Strainer Basket
16	Strainer Lid
17	Strainer Lid Clamp Ring
18	Almond Volute Kit Assembly
19	Washer, Stainless Steel (4 Required)
20	Hex Head Bolt (4 Required)
21	Diffuser Screw (3 Required)
22	Impeller Screw
23	Shaft Seal
24	Bolt, Hex (4 Required)
25	Union Adapter (2 Required)
26	Union Adapter O-Ring (2 Required)
27	Union Nut (2 Required)
28	Union Kit (Includes Items 25-27)
*	Pump Digital Communication Cable Kit
*	Motor Fan Guard Kit, TEFC/Super-Duty

Available Parts:

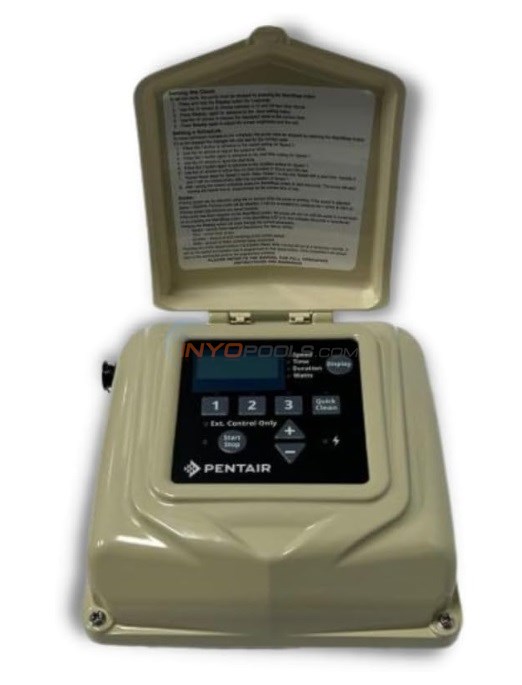

Almond SuperFlo/SuperMax VSx Drive Cover

Part # 356278 Mfg # 356278

Almond SuperFlo/SuperMax VSx Drive Cover

$267.30

Almond SuperFlo/SuperMax VSx Drive Cover (RS-485)

Part # 356279 Mfg # 356279

Almond SuperFlo/SuperMax VSx Drive Cover (RS-485)

$319.99

Almond SuperFlo/SuperMax VSx Drive Kit

Part # 356281 Mfg # 356281

Almond SuperFlo/SuperMax VSx Drive Kit

$703.07

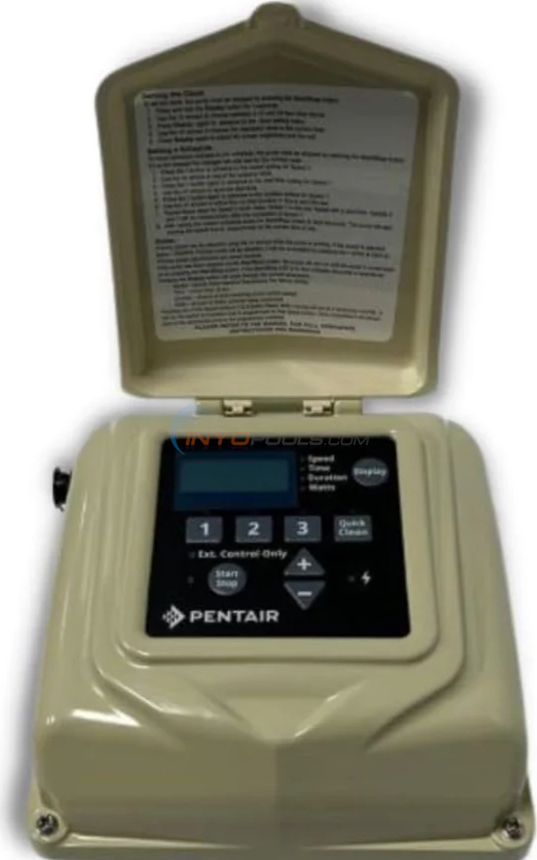

Almond SuperFlo/SuperMax VSx Drive Kit (RS-485)

Part # 356282 Mfg # 356282

Almond SuperFlo/SuperMax VSx Drive Kit (RS-485)

$793.52

Variable Speed Motor Only

Part # 356286S Mfg # 356286S

Variable Speed Motor Only

$599.47

4

Motor/Drive Assembly

Part # 356288S Mfg # NOT AVAILABLE

Motor/Drive Assembly

NOT AVAILABLE

4

Motor/Drive Assembly (RS-485)

Part # 356289S Mfg # NOT AVAILABLE

Motor/Drive Assembly (RS-485)

NOT AVAILABLE

Seal Plate

Part # 356071 Mfg # 356071Z

Seal Plate

$81.80

Seal Plate O-Ring

Part # 5003-04 Mfg # 368

Seal Plate O-Ring

$7.14 IN STOCK

Qty:

Impeller

Part # 5056-88 Mfg # C105-238PDCA

Impeller

$133.52 IN STOCK

Qty:

Diffuser

Part # 355949 Mfg # 355949Z

Diffuser

$83.89 IN STOCK

Qty:

Diffuser Gasket

Part # 355331

Diffuser Gasket

$6.43 IN STOCK

Qty:

Base

Part # 5007-030 Mfg # 350094

Base

$141.55 IN STOCK

Qty:

Drain Plug (2 Required - Gasket Not Included)

Part # 5074-24 Mfg # 071131

Drain Plug (2 Required - Gasket Not Included)

$4.98 IN STOCK

Qty:

Drain Plug O-Ring Gasket (2 Required)

Part # 35-110-1652 Mfg # 192115

Drain Plug O-Ring Gasket (2 Required)

$16.84 IN STOCK

Qty:

Volute

Part # 5007-070 Mfg # 350089

Volute

$285.52 IN STOCK

Qty:

Strainer Lid O-Ring

Part # 35-110-1160 Mfg # 357255

Strainer Lid O-Ring

$7.35 IN STOCK

Qty:

Strainer Basket

Part # 5003-5667 Mfg # 355667

Strainer Basket

$24.02 IN STOCK

Qty:

Strainer Lid

Part # 5007-050 Mfg # 350091

Strainer Lid

$36.49 IN STOCK

Qty:

Strainer Lid Clamp Ring

Part # 5007-040 Mfg # 350090

Strainer Lid Clamp Ring

$55.70 IN STOCK

Qty:

Almond Volute Kit Assembly

Part # 353010 Mfg # 353010

Almond Volute Kit Assembly

$428.04

Washer, Stainless Steel (4 Required)

Part # 6982-0 Mfg # 072184

Washer, Stainless Steel (4 Required)

$3.32 IN STOCK

Qty:

Hex Head Bolt (4 Required)

Part # 5003-18 Mfg # 355621

Hex Head Bolt (4 Required)

$10.55

Diffuser Screw (3 Required)

Part # 5002-12 Mfg # 355334

Diffuser Screw (3 Required)

$6.26 IN STOCK

Qty:

Impeller Screw

Part # 5002-10 Mfg # 355389

Impeller Screw

$5.06 IN STOCK

Qty:

Shaft Seal

Part # 5053-100 Mfg # 17351-0101S

Shaft Seal

$32.95 IN STOCK

Qty:

Bolt, Hex (4 Required)

Part # 6901-0 Mfg # 354290

Bolt, Hex (4 Required)

$7.06 IN STOCK

Qty:

Union Adapter (2 Required)

Part # 5007-080 Mfg # 350093

Union Adapter (2 Required)

$24.56 IN STOCK

Qty:

Union Adapter O-Ring (2 Required)

Part # 5056-11 Mfg # O-49

Union Adapter O-Ring (2 Required)

$9.77 IN STOCK

Qty:

Union Nut (2 Required)

Part # 5007-090 Mfg # 270141

Union Nut (2 Required)

$26.40 IN STOCK

Qty:

Union Kit (Includes Items 25-27)

Part # 35-110-1182 Mfg # 351157

Union Kit (Includes Items 25-27)

$84.74 IN STOCK

Qty:

Pump Digital Communication Cable Kit

Part # 353129Z

Pump Digital Communication Cable Kit

$95.94 IN STOCK

Qty:

Motor Fan Guard Kit, TEFC/Super-Duty

Part # 357923Z Mfg # 357923Z

Motor Fan Guard Kit, TEFC/Super-Duty

$94.85
