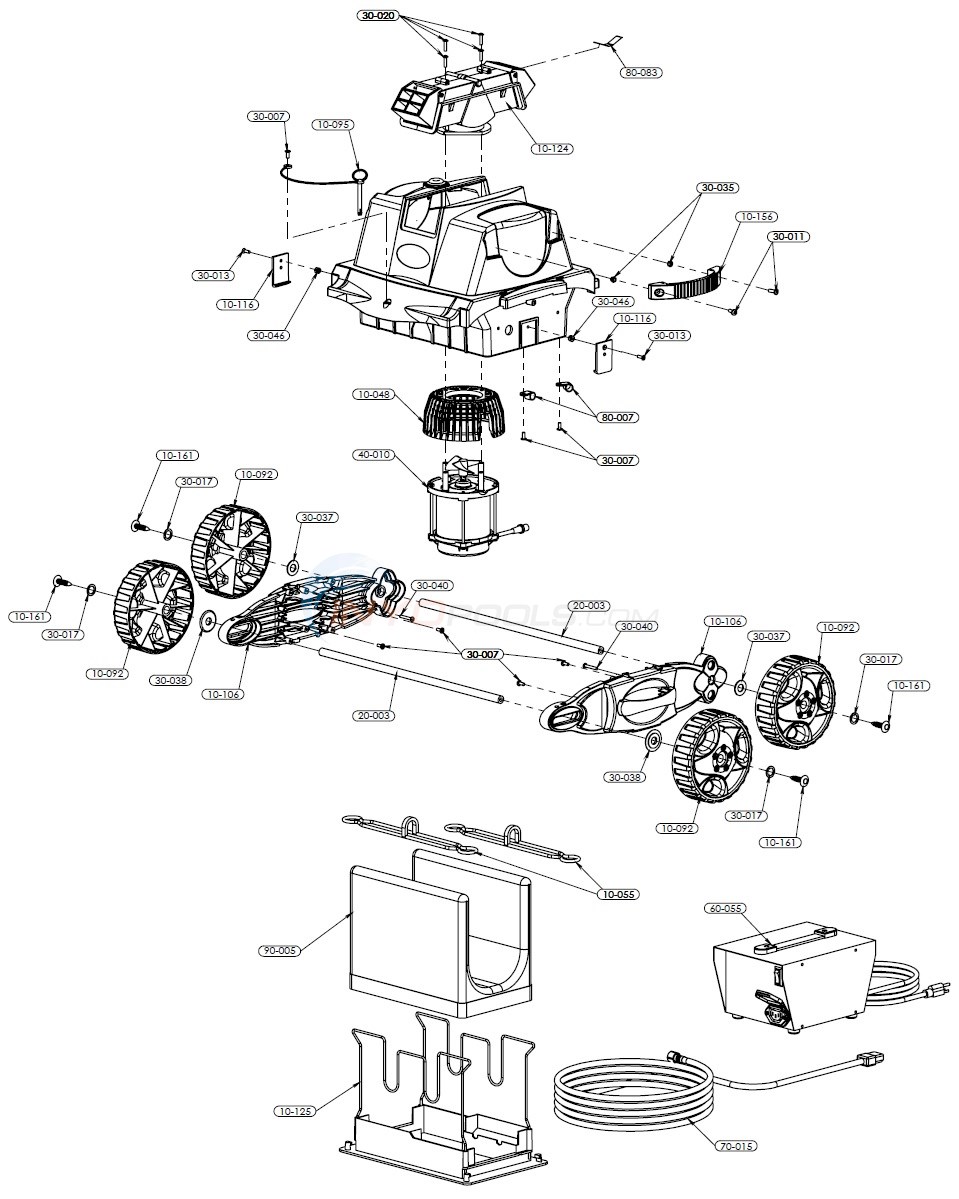

Pool Rover Sport Parts

Click to zoom in

Diagram #	Part Title
10-048	FILTER SCREEN, NYLON, ROUND, NATURAL; (EA/1/1)
90-005	FILTER BAG, MESH; (EA/1/1)
10-055	Filter Bag Clips (set Of 2) (8000)
10-092	WHEEL, 6” x 1.5”, PP, BLUE; (EA/1/1)
10-095	PIN, PLASTIC LOCKING, BLUE, JET UNITS; (EA/1/1)
10-106	SIDE PLATE, BLUE, JET UNITS; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-124	JET VALVE ASSEMBLY , BLUE, PMS 300C
10-125	BOTTOM LID, ASSY, BASIC, NATURAL; (EA/1/1)
10-156	SK HANDLE, PLASTIC, BLUE, W/HDWR; (EA/1/1)
10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (Single)
20-003	AXLE, POLYURETHANE ROD, 17.656"
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-017	WASHER, 510/515 X .750 X .032, DELRIN; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-046	NUT, S/S, LOCK; (EA/1/1)
60-005	POWER SUPPLY, 120/36VAC, 2 PRF SOCKET, INTERNAL TIMER, 2PRGM; (EA/1/1)
70-015	CABLE, ASSY, 2C/40’, 18AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GRMT; (EA/1/1)
80-007	P CLIP, 3/8", 2 WIRE CABLE; (EA/2/2)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371

View Parts List

Diagram #	Part Title
10-048	FILTER SCREEN, NYLON, ROUND, NATURAL; (EA/1/1)
90-005	FILTER BAG, MESH; (EA/1/1)
10-055	Filter Bag Clips (set Of 2) (8000)
10-092	WHEEL, 6” x 1.5”, PP, BLUE; (EA/1/1)
10-095	PIN, PLASTIC LOCKING, BLUE, JET UNITS; (EA/1/1)
10-106	SIDE PLATE, BLUE, JET UNITS; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-124	JET VALVE ASSEMBLY , BLUE, PMS 300C
10-125	BOTTOM LID, ASSY, BASIC, NATURAL; (EA/1/1)
10-156	SK HANDLE, PLASTIC, BLUE, W/HDWR; (EA/1/1)
10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (Single)
20-003	AXLE, POLYURETHANE ROD, 17.656"
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-017	WASHER, 510/515 X .750 X .032, DELRIN; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-046	NUT, S/S, LOCK; (EA/1/1)
60-005	POWER SUPPLY, 120/36VAC, 2 PRF SOCKET, INTERNAL TIMER, 2PRGM; (EA/1/1)
70-015	CABLE, ASSY, 2C/40’, 18AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GRMT; (EA/1/1)
80-007	P CLIP, 3/8", 2 WIRE CABLE; (EA/2/2)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371

Available Parts:

10-048

Part # 531102

FILTER SCREEN, NYLON, ROUND, NATURAL; (EA/1/1)

$41.99
