Sta-Rite PXC Series Above Ground Filter System (Pre-2009) Parts

PXC75, PXC95, PXC125, PXC150 MODELS & PXC ABOVE GROUND SYSTEM

Sta-Rite PXC Series Above Ground Filter System (Pre-2009) Diagram

Click to zoom in

Diagram #	Part Title
1	Pressure Gauge
2	Air Relief
3	Safety Catch
4	Lid, PXC 75
5	O-ring (25230-0010s)
6	Air Bleed Tube
7	Filter, Cartridge 75 Sq.ft. Generic (c-8411)
8	Safety Catch
9	Tank Body
10	Bushing Reducer
11	Drain Cap Assy W/washer
12	Pump to Filter Pipe Assembly (JWP)
13	Platform Base
14	O-ring (228) OD 2-1/2", ID 2-1/4"

View Parts List

Diagram #	Part Title
1	Pressure Gauge
2	Air Relief
3	Safety Catch
4	Lid, PXC 75
5	O-ring (25230-0010s)
6	Air Bleed Tube
7	Filter, Cartridge 75 Sq.ft. Generic (c-8411)
8	Safety Catch
9	Tank Body
10	Bushing Reducer
11	Drain Cap Assy W/washer
12	Pump to Filter Pipe Assembly (JWP)
13	Platform Base
14	O-ring (228) OD 2-1/2", ID 2-1/4"

Available Parts:

Pressure Gauge

Part # 4680-50 Mfg # 15060-0000T

Pressure Gauge

$88.99 IN STOCK

Qty:

Air Relief

Part # 4680-78 Mfg # 24206-0103S

Air Relief

$29.49 IN STOCK

Qty:

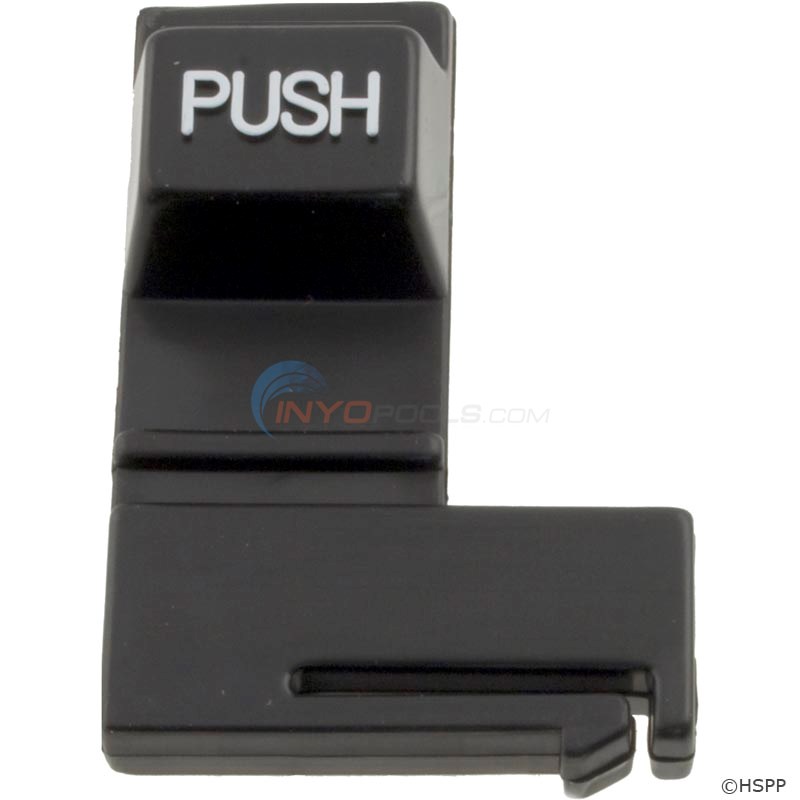

Safety Catch

Part # 4680-56 Mfg # 25200-0007

Safety Catch

$34.99

Lid, PXC 75

Part # 4680-70 Mfg # 25230-0102S

Lid, PXC 75

$388.99

Lid, Pcx 125.150

Part # 4680-71 Mfg # 25230-0103S

Lid, Pcx 125.150

$475.99

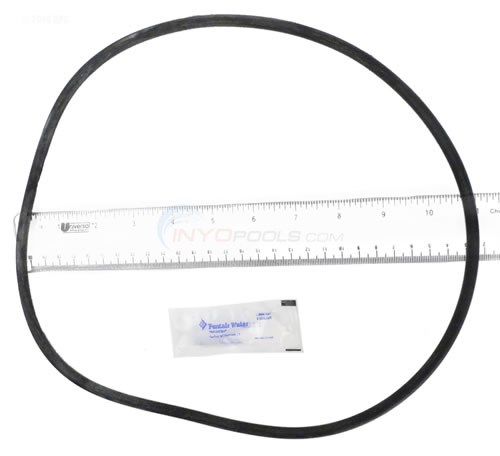

O-ring (25230-0010s)

Part # 4680-72 Mfg # O-419

O-ring (25230-0010s)

$14.99 IN STOCK

Qty:

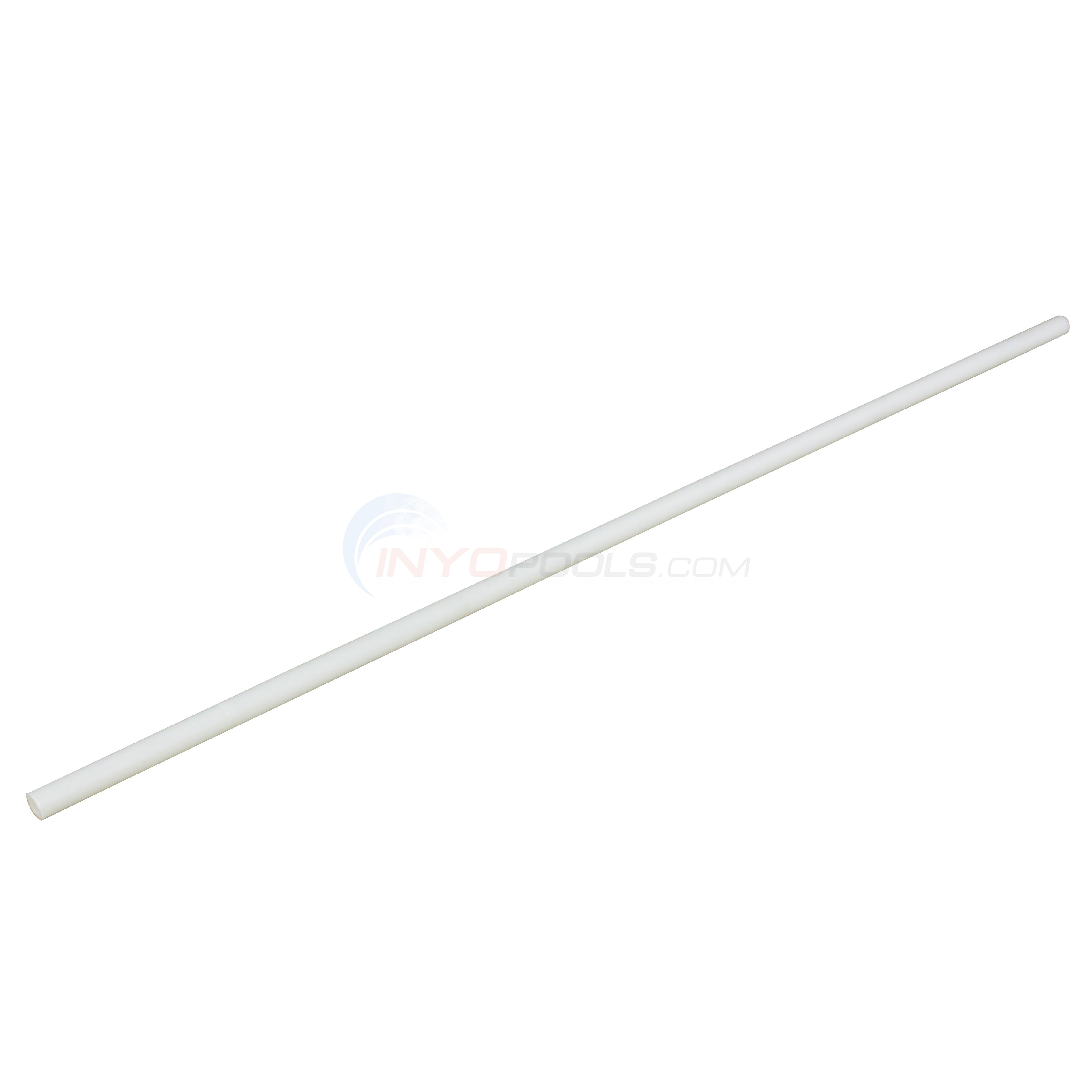

Air Bleed Tube

Part # 4680-76 Mfg # 25230-0007

Air Bleed Tube

$32.99

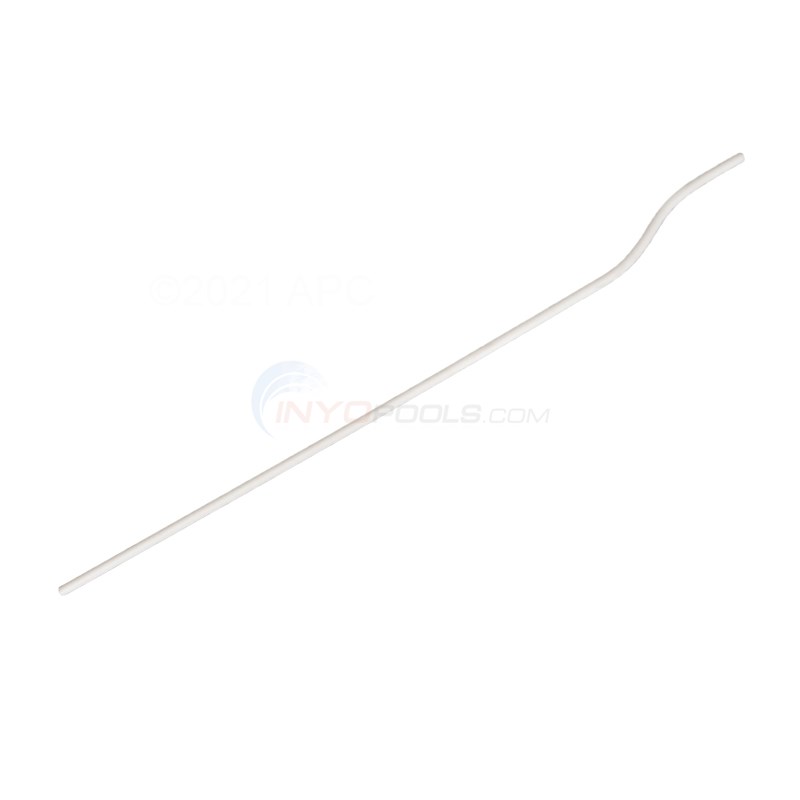

Air Bleed Tube

Part # 4680-77 Mfg # 25230-0008

Air Bleed Tube

$35.99

7

Filter, Cartridge 75 Sq.ft. Generic (c-8411)

Part # NFC1255 Mfg # 25230-0075S

Filter, Cartridge 75 Sq.ft. Generic (c-8411)

NOT AVAILABLE

7

Hayward C-900 & Sta Rite PXC95 Generic Cartridge (PA90)

Part # NFC1292 Mfg # 25230-0095S

Hayward C-900 & Sta Rite PXC95 Generic Cartridge (PA90)

NOT AVAILABLE

Cartridge,125sqft,4"ot,4"ob,8-15/16",28-3/16"4oz

Part # 17-175-1699 Mfg # FC-2575

Cartridge,125sqft,4"ot,4"ob,8-15/16",28-3/16"4oz

$111.99 IN STOCK

Qty:

7

Filter, Cartridge 125 Sq Ft GENERIC (c-8413)

Part # 4900-368 Mfg # 25230-0125S

Filter, Cartridge 125 Sq Ft GENERIC (c-8413)

NOT AVAILABLE

Sta-Rite Posi-Clear PXC125 O.E.M Cartridge

Part # 252300125S Mfg # 25230-0125S

Sta-Rite Posi-Clear PXC125 O.E.M Cartridge

$194.99 IN STOCK

Qty:

Safety Catch

Part # 4680-56 Mfg # 25200-0007

Safety Catch

$34.99

Tank Body

Part # 4680-73 Mfg # 25230-0001S

Tank Body

$466.99

10

Bushing Reducer

Part # U78-820P3 Mfg # U78-820P3

Bushing Reducer

NOT AVAILABLE

Drain Cap Assy W/washer

Part # 4680-59 Mfg # 32185-7074

Drain Cap Assy W/washer

$23.99 IN STOCK

Qty:

12

Pump to Filter Pipe Assembly (JWP)

Part # 155737 Mfg # 155737

Pump to Filter Pipe Assembly (JWP)

NOT AVAILABLE

Platform Base

Part # 4680-60 Mfg # 25200-0010

Platform Base

$149.99

O-ring (228) OD 2-1/2", ID 2-1/4"

Part # 4800-27 Mfg # 228

O-ring (228) OD 2-1/2", ID 2-1/4"

$9.99 IN STOCK

Qty:

* FILTER LID ASSY INCLUDES KEYS 2, 3, & 11
** TANK BODY INCLUDES KEYS 4, 5, 6, & 7
