Reprieve 12' Round 48" Wall (Steel Top Rail, Steel Upright) Parts

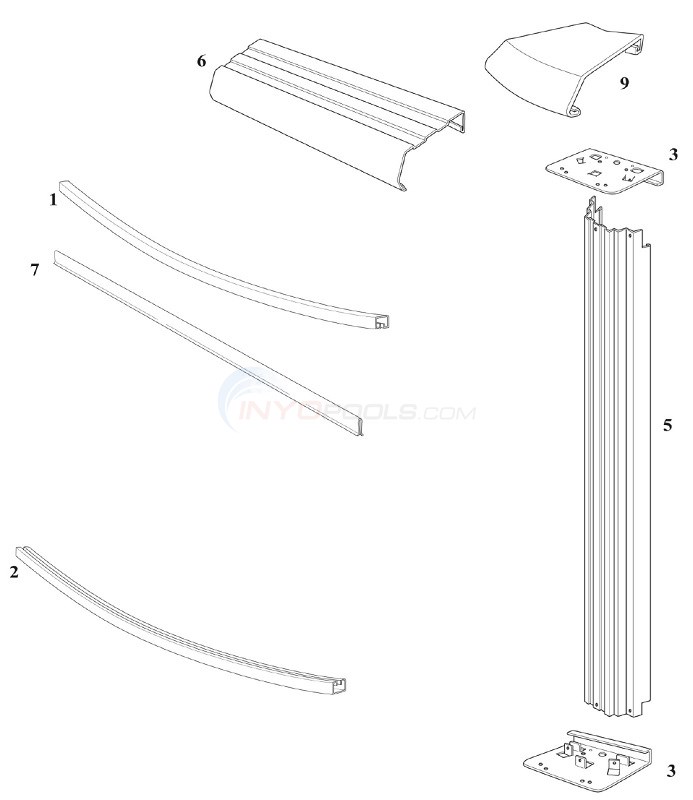

Reprieve 12' Round 48" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail Steel 38"
3	Top/Bottom Plate 4.5"
5	Up Right 4.5" 47 13/16" (Single)
6	Top Rail 6" 40 1/8" (Single)
7	Plastic Coping 48" (Single)
9	Top Cap 6" (Single)
*	Hardware Yellow Zinc 8'/12'/15'
*	Envelope Safety Stickers

View Parts List

Diagram #	Part Title
*Liner	12' Round 48"-52" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8"
2	Bottom Rail Steel 38"
3	Top/Bottom Plate 4.5"
5	Up Right 4.5" 47 13/16" (Single)
6	Top Rail 6" 40 1/8" (Single)
7	Plastic Coping 48" (Single)
9	Top Cap 6" (Single)
*	Hardware Yellow Zinc 8'/12'/15'
*	Envelope Safety Stickers
