Waterway EX2 48Y / 56Y Spa Pump Parts

Direct replacement for the Aquaflo XP2 Spa Pump.

Waterway EX2 48Y / 56Y Spa Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Pump Drain Plug
2	Pump Drain Plug O-ring
3	Screw, 8-32 x 5/8" Phil
4	Volute Faceplate
5	Wear Ring
6	Impeller Assembly - 1.5 HP
7	Pump Shaft Seal Kit
8	Volute O-ring
9	Volute Housing, 2" for 48Y Frame Motor
10	Motor 1.5 HP Thru-Bolt
10	Motor 1.5 HP Thru-Bolt - 2-SPD
11	Wet End, EX2, 1.5 HP, 48/56Y - 2" MBT

View Parts List

Diagram #	Part Title
1	Pump Drain Plug
2	Pump Drain Plug O-ring
3	Screw, 8-32 x 5/8" Phil
4	Volute Faceplate
5	Wear Ring
6	Impeller Assembly - 1.5 HP
7	Pump Shaft Seal Kit
8	Volute O-ring
9	Volute Housing, 2" for 48Y Frame Motor
10	Motor 1.5 HP Thru-Bolt
10	Motor 1.5 HP Thru-Bolt - 2-SPD
11	Wet End, EX2, 1.5 HP, 48/56Y - 2" MBT

Available Parts:

Pump Drain Plug

Part # 5175-501 Mfg # 715-4020

Pump Drain Plug

$11.90 IN STOCK

Qty:

Pump Drain Plug O-ring

Part # 3262-08 Mfg # 112

Pump Drain Plug O-ring

$3.66 IN STOCK

Qty:

Screw, 8-32 x 5/8" Phil

Part # 35-270-1487 Mfg # 819-1110B

Screw, 8-32 x 5/8" Phil

$11.71 IN STOCK

Qty:

Volute Faceplate

Part # 5175-502 Mfg # 311-2311

Volute Faceplate

$65.02 IN STOCK

Qty:

Wear Ring

Part # 5175-503 Mfg # 319-1270

Wear Ring

$21.31 IN STOCK

Qty:

Impeller Assembly - 1.5 HP

Part # 5175-504 Mfg # 310-2330

Impeller Assembly - 1.5 HP

$46.91

Impeller Assembly - 2.0 HP

Part # 5175-505 Mfg # 310-2340

Impeller Assembly - 2.0 HP

$46.91 IN STOCK

Qty:

Impeller Assembly - 2.5 HP

Part # 5175-506 Mfg # 310-2300

Impeller Assembly - 2.5 HP

$46.91

Impeller Assembly - 3.0 HP

Part # 5175-507 Mfg # 310-2350

Impeller Assembly - 3.0 HP

$46.91 IN STOCK

Qty:

Pump Shaft Seal Kit

Part # 5031-105 Mfg # 319-3010B

Pump Shaft Seal Kit

$22.89 IN STOCK

Qty:

Volute O-ring

Part # 5175-508 Mfg # 805-0164

Volute O-ring

$10.90 IN STOCK

Qty:

Volute Housing, 2" for 48Y Frame Motor

Part # 35-270-1773 Mfg # 315-2301

Volute Housing, 2" for 48Y Frame Motor

$65.02 IN STOCK

Frame 48Y

Frame 48Y

Qty:

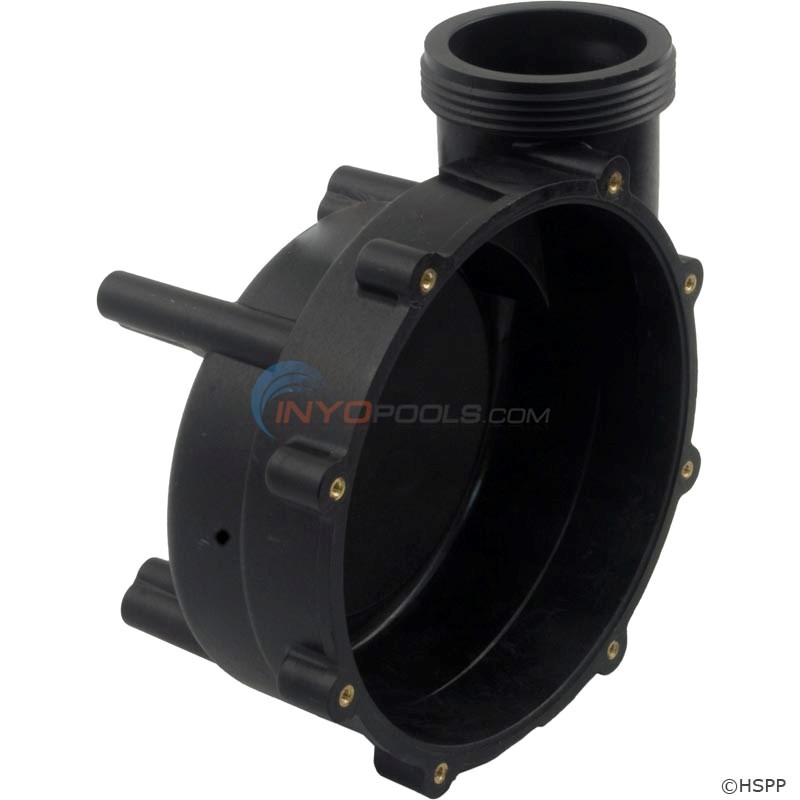

Volute Housing, 2", for 56Y Frame Motor

Part # 35-270-1772 Mfg # 315-2311

Volute Housing, 2", for 56Y Frame Motor

$65.02 IN STOCK

Frame 56Y

Frame 56Y

Qty:

Motor 1.5 HP Thru-Bolt

Part # BN35V1 Mfg # BN35V1

Motor 1.5 HP Thru-Bolt

$249.76 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Qty:

Motor 2.0 HP Thru-Bolt

Part # BN40SS Mfg # BN40SS

Motor 2.0 HP Thru-Bolt

$250.11 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 20.0/10.0 Frame 48Y

Qty:

Motor 3.0 HP Thru-Bolt

Part # 5293-0 Mfg # B237

Motor 3.0 HP Thru-Bolt

$400.97 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Qty:

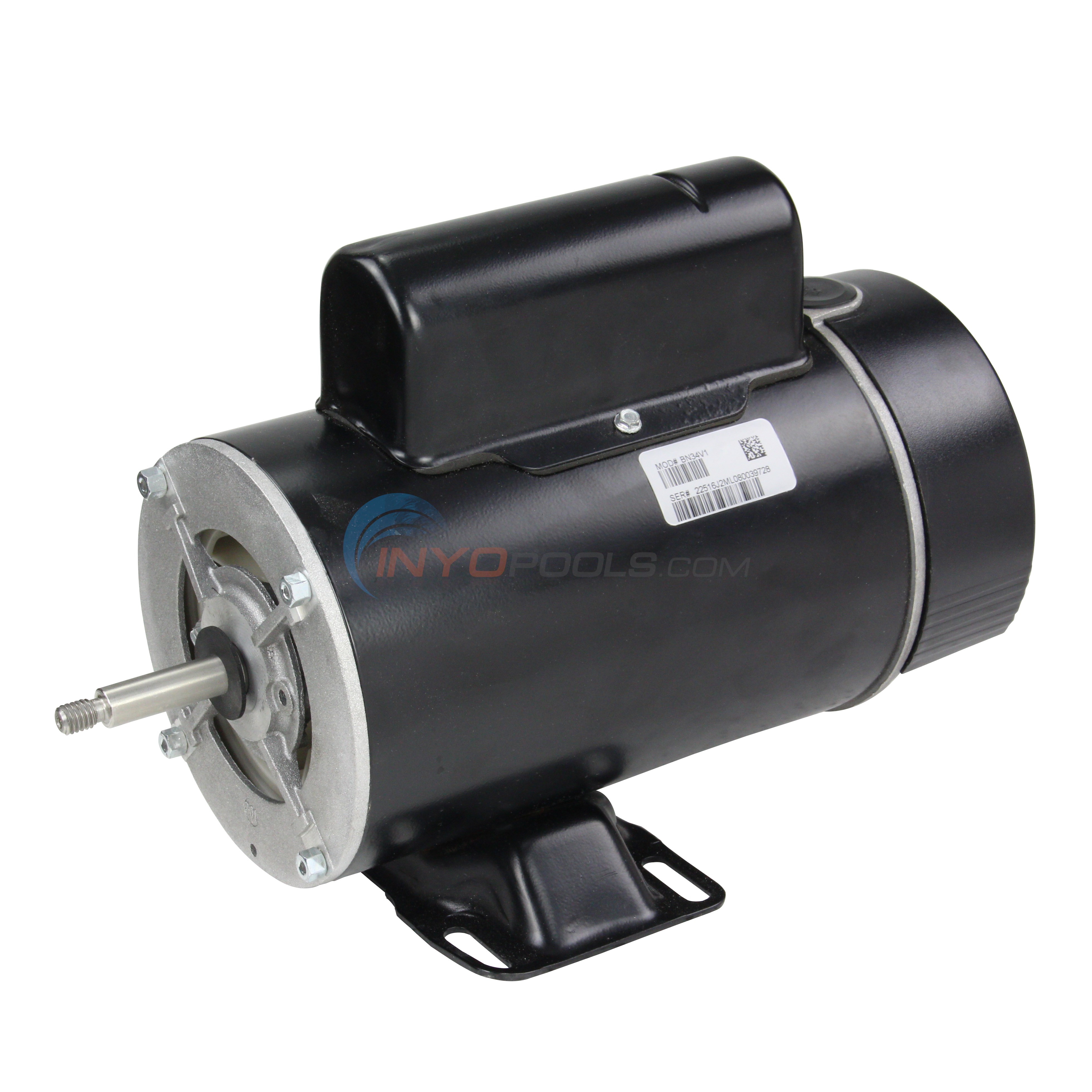

Motor 1.5 HP Thru-Bolt - 2-SPD

Part # BN34V1 Mfg # BN34V1

Motor 1.5 HP Thru-Bolt - 2-SPD

$305.00 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Qty:

Motor 2.0 HP Thru-Bolt - 2-SPD

Part # BN51 Mfg # BN51

Motor 2.0 HP Thru-Bolt - 2-SPD

$343.25 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Qty:

Motor 3.0 HP Thru-Bolt - 2-SPD

Part # BN62 Mfg # BN62

Motor 3.0 HP Thru-Bolt - 2-SPD

$361.79 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Qty:

Motor 2.0 HP Thru-Bolt - 2-SPD

Part # 5296-0 Mfg # B2233

Motor 2.0 HP Thru-Bolt - 2-SPD

$319.58 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 8.0/3.0 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 8.0/3.0 Frame 56Y

Qty:

Motor 3.0 HP Thru-Bolt - 2-SPD

Part # 5297-0 Mfg # B2234

Motor 3.0 HP Thru-Bolt - 2-SPD

$406.99 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.0/3.5 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 10.0/3.5 Frame 56Y

Qty:

Motor 4.0 HP Thru-Bolt - 2-SPD

Part # 5298-0 Mfg # B2235

Motor 4.0 HP Thru-Bolt - 2-SPD

$404.73 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0/4.4 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 12.0/4.4 Frame 56Y

Qty:

Wet End, EX2, 1.5 HP, 48/56Y - 2" MBT

Part # 5175-260 Mfg # 310-2960

Wet End, EX2, 1.5 HP, 48/56Y - 2" MBT

$167.38

Wet End, EX2, 2.0 HP, 48/56Y - 2" MBT

Part # 5175-261 Mfg # 310-2970

Wet End, EX2, 2.0 HP, 48/56Y - 2" MBT

$167.38

Wet End, EX2, 2.5 HP, 48/56Y - 2" MBT

Part # 5175-262 Mfg # 310-2990

Wet End, EX2, 2.5 HP, 48/56Y - 2" MBT

$148.19

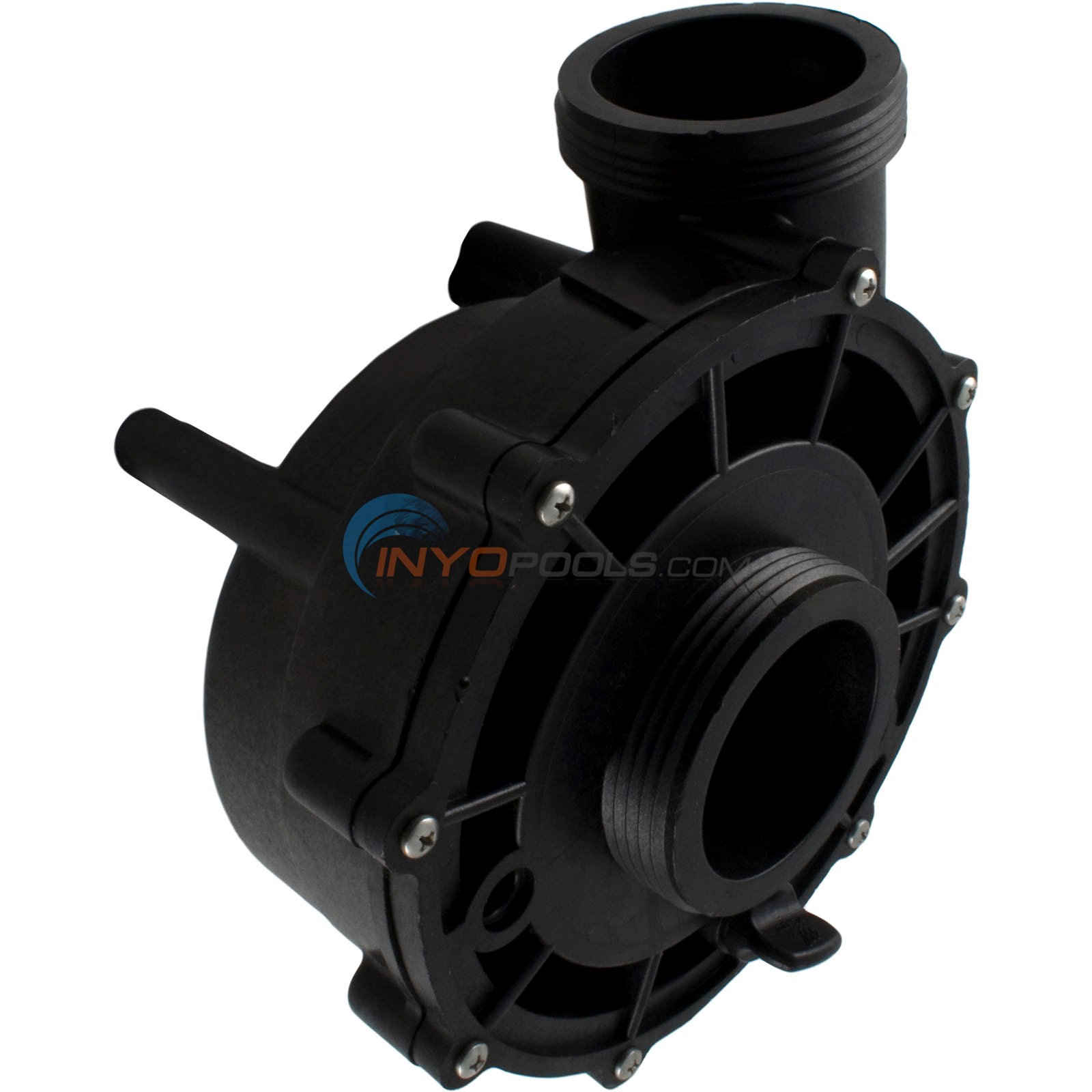

Wet End, EX2, 3.0 HP, 48/56Y - 2" MBT

Part # 34-270-1734 Mfg # 310-2980

Wet End, EX2, 3.0 HP, 48/56Y - 2" MBT

$148.19

* Not Shown
