Waterway Viper 56-Frame Spa Pump Parts

Waterway Viper 56-Frame 2-1/2" Spa Pump
* Not Shown

Waterway Viper 56-Frame Spa Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Quarter Slot 3/8" Drain Plug
2	Drain Plug O-ring
3	Screw, 8-32 x 5/8" Phil
4	Volute Faceplate
5	Wear Ring
6	Impeller 2.0 HP
7	Pump Shaft Seal
8	Volute O-Ring
9	Volute
10	Motor 3.0 HP Thru-Bolt
10	Motor 2.0 HP Thru-Bolt 2-SPD
11	Wet End, 2.0 HP
*	Union, 2" Slip x 2-1/2" FBT

View Parts List

Diagram #	Part Title
1	Quarter Slot 3/8" Drain Plug
2	Drain Plug O-ring
3	Screw, 8-32 x 5/8" Phil
4	Volute Faceplate
5	Wear Ring
6	Impeller 2.0 HP
7	Pump Shaft Seal
8	Volute O-Ring
9	Volute
10	Motor 3.0 HP Thru-Bolt
10	Motor 2.0 HP Thru-Bolt 2-SPD
11	Wet End, 2.0 HP
*	Union, 2" Slip x 2-1/2" FBT

Available Parts:

Quarter Slot 3/8" Drain Plug

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Drain Plug

$17.15 IN STOCK

Qty:

Drain Plug O-ring

Part # 3262-08 Mfg # 112

Drain Plug O-ring

$3.66 IN STOCK

Qty:

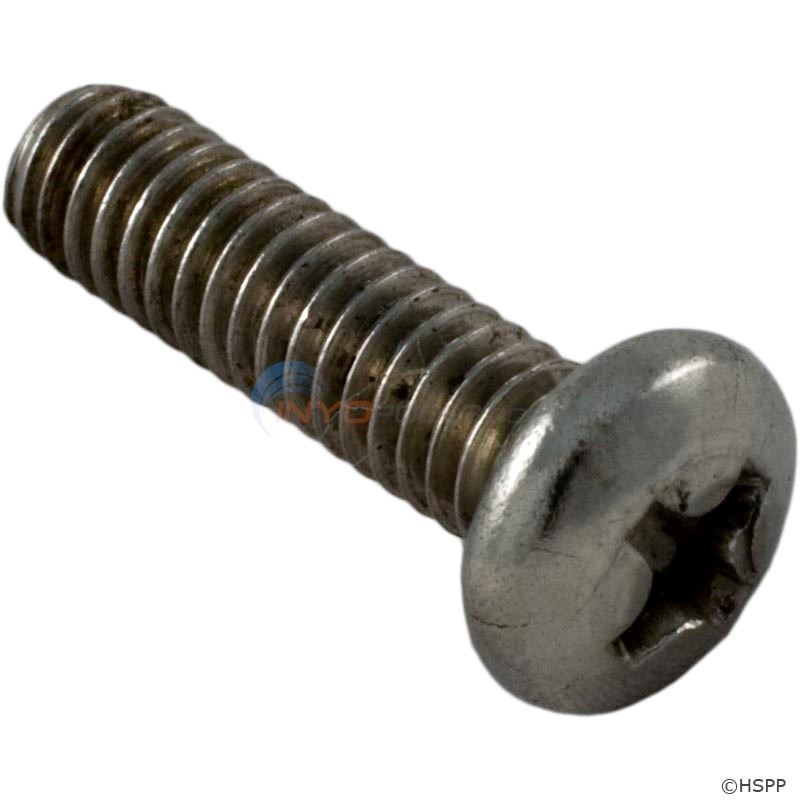

Screw, 8-32 x 5/8" Phil

Part # 35-270-1487 Mfg # 819-1110B

Screw, 8-32 x 5/8" Phil

$11.71 IN STOCK

Qty:

4

Volute Faceplate

Part # 311-1510B Mfg # 311-1510B

Volute Faceplate

NOT AVAILABLE

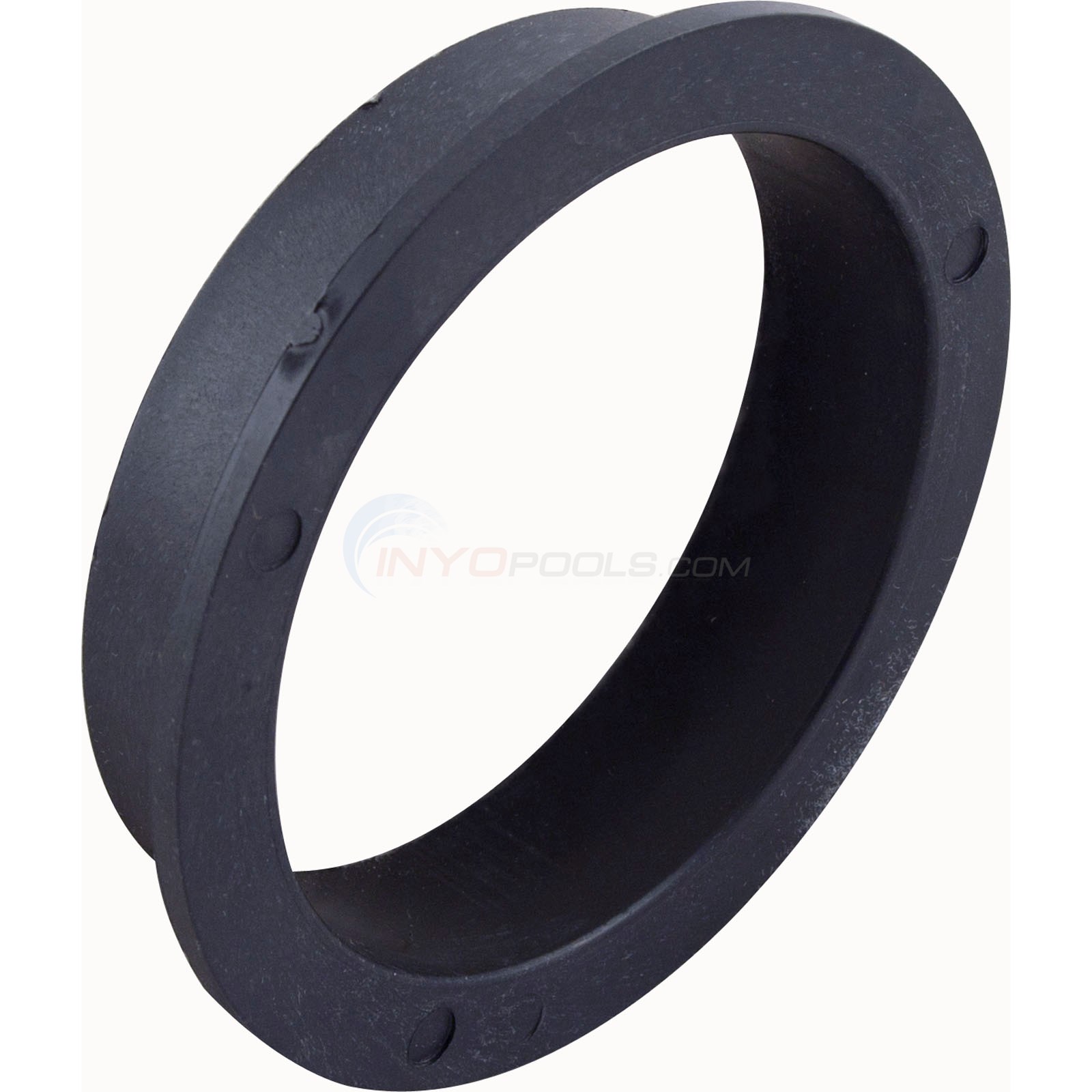

Wear Ring

Part # 35-270-1750 Mfg # 313-3210

Wear Ring

$21.31 IN STOCK

Qty:

Impeller 2.0 HP

Part # 35-270-1736 Mfg # 310-2260

Impeller 2.0 HP

$78.89

Impeller 3.0 HP

Part # 35-270-1738 Mfg # 310-2270

Impeller 3.0 HP

$91.68

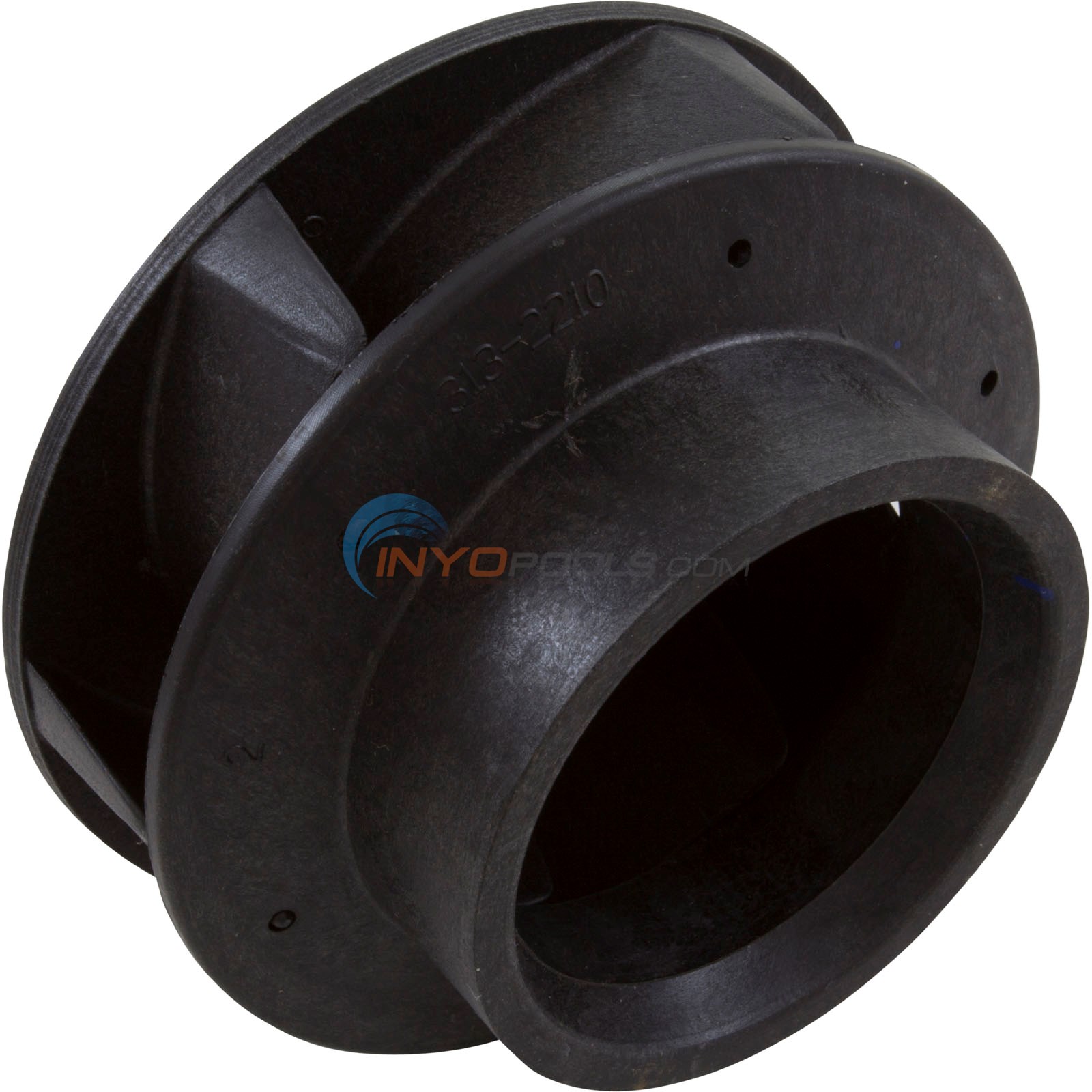

Impeller 4.0 HP

Part # 35-270-1740 Mfg # 310-2200

Impeller 4.0 HP

$46.91

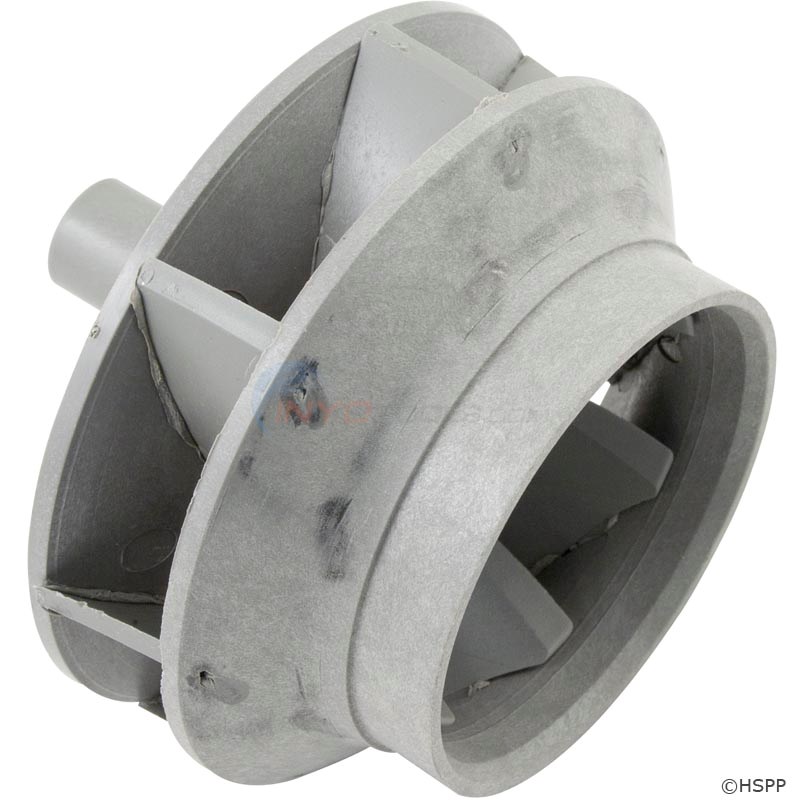

Impeller 5.0 HP

Part # 35-270-1742 Mfg # 310-2280

Impeller 5.0 HP

$91.68

Pump Shaft Seal

Part # 5031-105 Mfg # 319-3010B

Pump Shaft Seal

$22.89 IN STOCK

Qty:

Pump Shaft Seal - Viton

Part # 35-423-1096 Mfg # PS-201V-CMS

Pump Shaft Seal - Viton

$24.09 IN STOCK

Qty:

Volute O-Ring

Part # 35-270-1734 Mfg # 805-0264

Volute O-Ring

$14.91 IN STOCK

Qty:

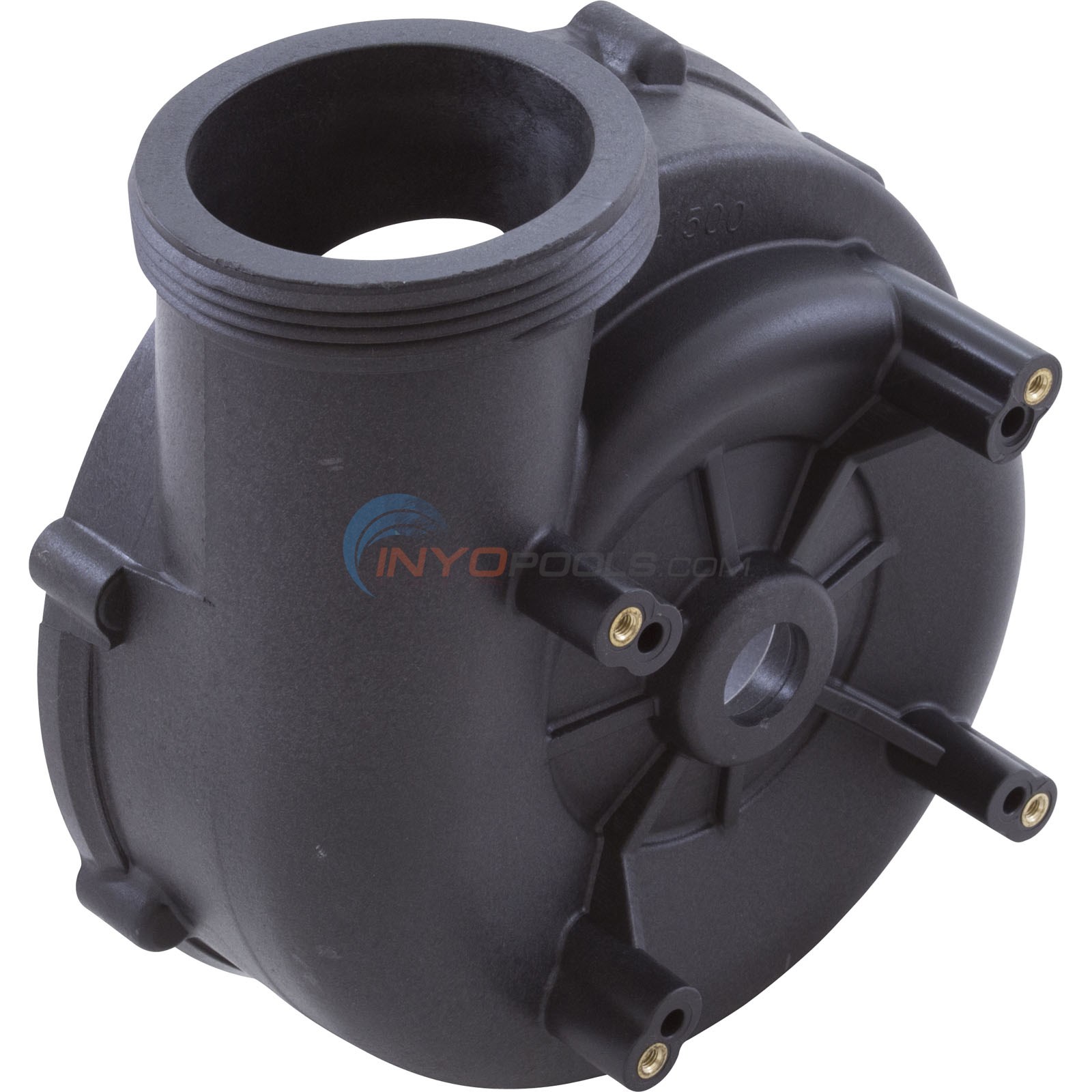

Volute

Part # 35-270-1752 Mfg # 315-1500

Volute

$78.89 IN STOCK

Qty:

Motor 3.0 HP Thru-Bolt

Part # 5293-0 Mfg # B237

Motor 3.0 HP Thru-Bolt

$400.97 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Qty:

Motor 4.0 HP Thru-Bolt

Part # 5238-131 Mfg # TS605

Motor 4.0 HP Thru-Bolt

$417.06

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 12.0 Frame 56Y

Motor 5.0 HP Thru-Bolt

Part # 5294-0 Mfg # B238

Motor 5.0 HP Thru-Bolt

$449.22

Service Factor 1.0 Voltage 230 Max Amps 16.4 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 16.4 Frame 56Y

Motor 2.0 HP Thru-Bolt 2-SPD

Part # 5296-0 Mfg # B2233

Motor 2.0 HP Thru-Bolt 2-SPD

$319.58 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 6.4/1.2 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 6.4/1.2 Frame 56Y

Qty:

Motor 3.0 HP Thru-Bolt 2-SPD

Part # 5297-0 Mfg # B2234

Motor 3.0 HP Thru-Bolt 2-SPD

$406.99 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.0/1.8 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 10.0/1.8 Frame 56Y

Qty:

Motor 4.0 HP Thru-Bolt 2-SPD

Part # 5298-0 Mfg # B2235

Motor 4.0 HP Thru-Bolt 2-SPD

$404.73 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.0 Frame 56Y

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.0 Frame 56Y

Qty:

Wet End, 2.0 HP

Part # 5175-402 Mfg # 310-0160

Wet End, 2.0 HP

$157.79

Wet End, 3.0 HP

Part # 34-270-1215 Mfg # 310-0170

Wet End, 3.0 HP

$148.19

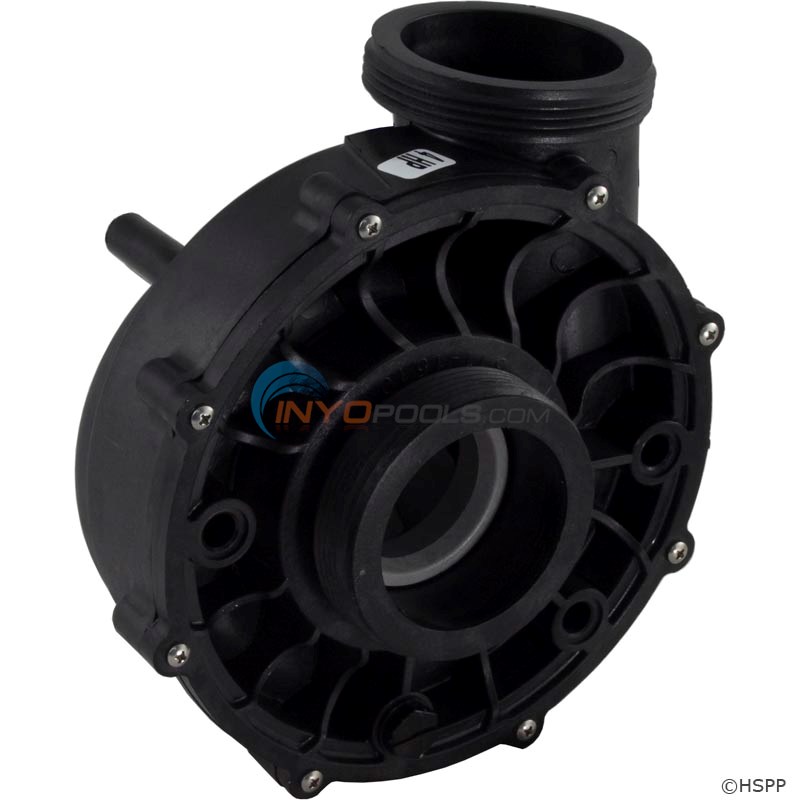

Wet End, 4.0 HP

Part # 5175-404 Mfg # 310-0140

Wet End, 4.0 HP

$120.47 IN STOCK

Qty:

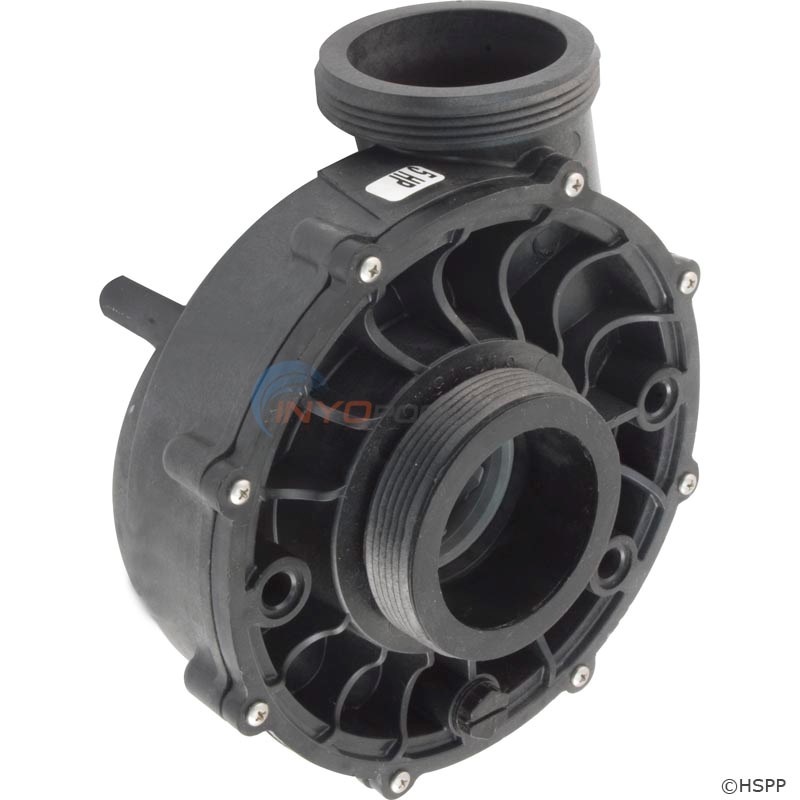

Wet End, 5.0 HP

Part # 5175-405 Mfg # 310-0180

Wet End, 5.0 HP

$148.19 IN STOCK

Qty:

Union, 2" Slip x 2-1/2" FBT

Part # 9175-04 Mfg # 400-5990

Union, 2" Slip x 2-1/2" FBT

$30.11 IN STOCK

Qty:

Union, 2-1/2" Slip x 2-1/2" FBT

Part # 9175-04A Mfg # 400-6010

Union, 2-1/2" Slip x 2-1/2" FBT

$9.66 IN STOCK

Qty:

* Not Shown
