Will a gas heater operate at the low speed of a dual speed motor?
Reply
Probably not - Most gas heater will shut off at low GPM levels (20-40) to keep the heater cores from overheating - 20 for 200 BTUs, 40 for 400 BTUs. Depending on your pool system you might get these GPM levels at the low speed but generally these heaters must be run at the motor's high speed.
Reply
What is the difference between an Electronic and Millivolt ignition?
Reply
The basic answer is that Millivolt is the old style of ignition, using a standing pilot light. While the electronic ignition uses a spark start system like a gas grill. Electronic ignitions are more efficient in gas usage and also are better suited for high wind areas where a pilot light might get extinguished.
Reply
I am replacing an old Raypak 206k BTU heater and I need to know if this will fit on my concrete pad. Do you have the dimensions of the heater cabinet?
Reply
For the Raypak 206 BTU RP2100 Series the cabinet measures are as follows:Width - 20 inches, Depth - 28inches, Height - 38 inches.Any fuirther techinical data be found in the Raypak Specifications Guide
Reply
Please tell me what differences this model has in comparison to the Raypak 180 K BTU CuPru Nickel heater.
Reply
Hello LC - This heater has a copper heat exchanger and the 180K BTU has a cupro-nickel heat exchanger. The cupro-nickel is a more durable material. That is the only significant difference between the two models.
Reply
My house is at 5,600 feet elevation. Spa will be 550 gallons in-ground plaster/concrete.
Natural gas-240VAC. No jets. Does heater sense pressure and temperature? What pump should I get to match with this heater?
Reply
This heater does have a water pressure switch and has a thermostat, so it does sense both water flow and temperature. Since your house is at 5,600 you would need a Raypak High Elevation Heater. The 206,000 BTU Raypak heater has a minimum flow rating of 20 Gallons Per Minute (GPM) and a max flow rating of 120 GPM's. Based on these flow ratings any pump from 1/2 HP to 2 HP would work fine with this heater.
Reply
I am replacing my 17 year old Raypak 2100. will my old venting hood work on a Raypak 206 BTU?
Reply
Hello Dave, the venting kit should crossover to the new heater. Raypak vent kits have not changed in quite a while.
Reply
What are the gas requirements for this heater?
Reply
Hi, You can find the gas requirements in the Raypak Owners/Instructions Manual.
Reply
have a inground pool Grecian goes to 8ft deep end 37ft x16ft would this 206000btu work???
Reply
HI William, This 206,000 BTU unit can heat your pool, however I would recommend the Raypak Heater 266000 BTU NG ELE (009217). It heat your pool faster working less which will make the heater last longer.
Reply
I have never ordered something like this online. Have you ever delivered one of these units to a customer and for some slim chance this heater did not work or a problem with this unit not working. Just curious what the procedure would be if this happen. I know the chance of this happening is minimal. I'm going to be ordering soon and would like to know what to expect in case there was a problem. Thank you and have a great day.
Reply
Hi Gregory, We have had some cases in which you've explained. Once the unit is installed then that will fall under the manufacture warranty. The manufacture will work with the installer to resolve the issue if it's cause by a manufacture defect.
Reply
Can you give me a link to the installation manual for the Raypak heater 206000 BTU NG ELE?
Reply
Hello Bill, Here is a link to the instruction manual for the Raypak 206,000 BTU NG ELE heater. Please note: These instructions are intended only for the use of qualified personnel, specifically trained and experienced in the installation of this type of heating equipment and related system components. Installation and service personnel may be required by some states to be licensed. If your state is such, be sure your contractor bears the appropriate license. Persons not qualified shall not attempt to fix this equipment nor attempt repairs according to these instructions.
Reply
My pool filter and pump motor system is installed inside my garage. Can your type of gas heater be installed indoors and vented or must it be installed outside? Thanks, Bill
Reply
Yes, this heater can be installed indoors with an indoor draft hood. Please refer to the INSTALLATION & OPERATING INSTRUCTIONS with additional questions or concerns regarding the installation of this unit indoors.
Reply
I have a 30'x12' inground pool. The pool goes from 3-6ft in depth. Currently I use a Natural Gas 181,000 BTU Pool heater. The product is a Raypak RP 2100 Mullivolt Plus. I am trying to order a new heater but do not want to change the size of the gas pipe or water connections. Is this the best solution for that? Is this the most efficient size?
Reply
Hi, Carlo. Yes, replacing your current RP2100 with a new RP2100 would minimize having to change plumbing and gas pipe connections. This is an electronic unit, not a millivolt so you would have to run power to this unit but is the smallest BTU unit available. The p/n for the millivolt unit is 009192.
Reply
Does the unit come with the "Pagoda" top or is that sold separately?
Reply
Hi, Alana. If you're referring to the square cover it does but the Indoor Stack Top - 009838 is sold separately.
Reply
how far does the pool heater have to be from the house - huntington ny
Reply

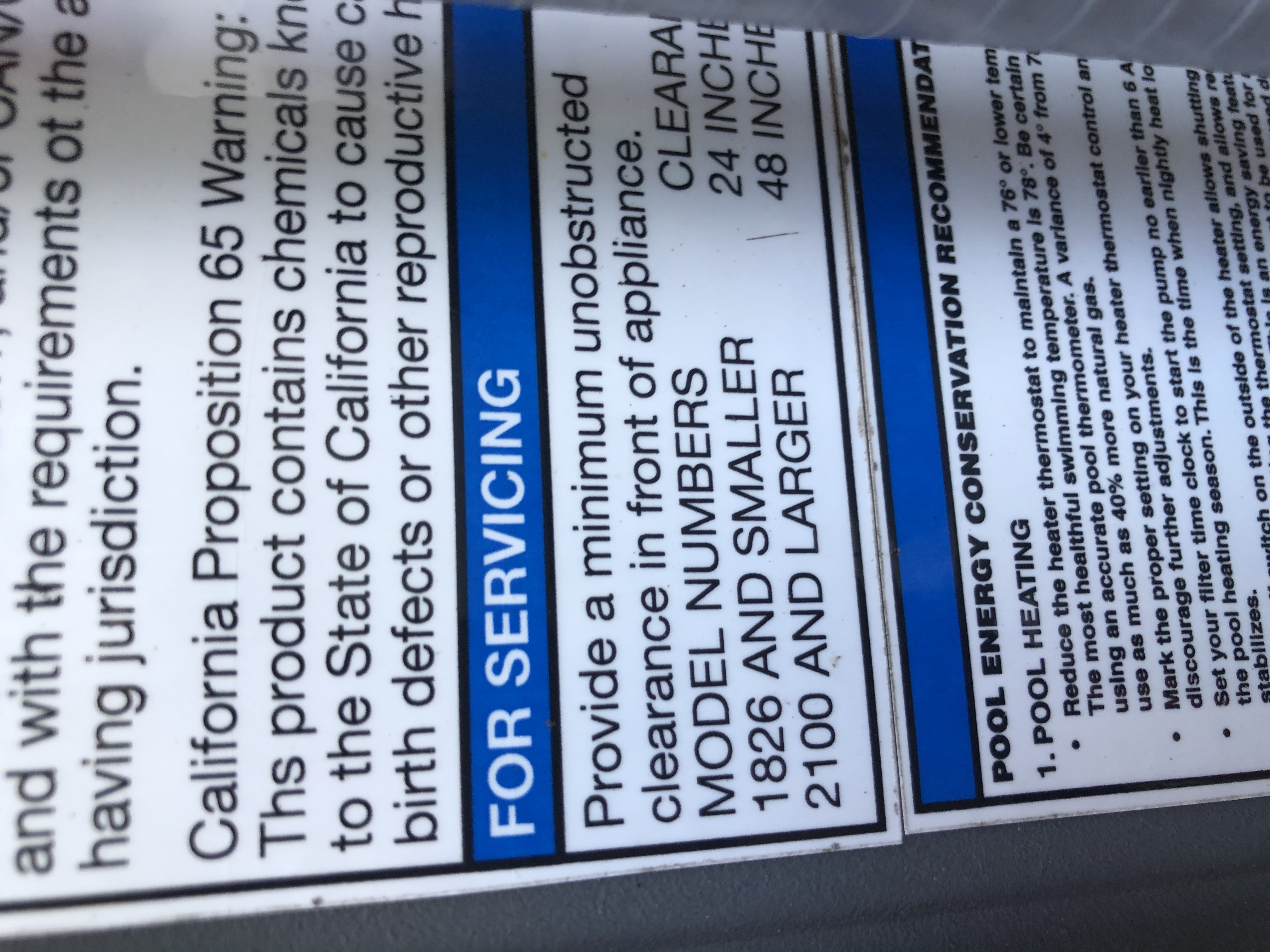

For U.S. installations, the point from where the flue products exit the heater must be a minimum of 4 ft below, 4 ft horizontally from, or 1 ft above any door, window or gravity inlet into any building. The top surface of the heater shall be at least 3 ft above any forced air inlet, or intake ducts located within 10 ft horizontally
Reply
We have a 16x32 above ground pool (rectangle). It is 4 feet deep and then drops to 5 feet deep a little over half way. Would this be the correct size heater to purchase?
Reply
Hi, Bridget. This 206K BTU can be used to heat your pool. If you would like to get more than a 1-degree temperature increase an hour, you can a larger BTU unit.
Reply
We are looking to replace our 17 year old Raypak 2100 natural gas pool heater, model PR185A. What model would be the closest replacement? Are there any other parts to order for installation?
Reply
Hi, Dawn. The Raypak 206A will be the closest replacement for P-R185A.
Reply
I live in Texas. Have an in ground pool with an attached hot tub. Will this heater be adequate for just spa use? Will it heat a spa to 104 deg?
Reply
Hi Joe, this will depend on the capacity of your spa in gallons.
Reply
I use propane, will it come ready for use if I order it for propane or will I need to make changes.HOW LONG WILL IT TAKE TO GET TO cROSBY tX AFTER i PLACE THE ORDER AND IS IT FREE SHIPPING.
Reply
I just have had one of these fail with some kind of fire that has burned the wiring and cracked the heater manifold. I'm using a salt/chlorine generator system that has always been within expected ppm limits. Is there a problem using a salt system with this heater?
Reply
Hi, Scott. There is not a problem using this model with a saltwater pool. However, the cupro-nickel model 014938 is the recommended unit for pools with saltwater.
Reply
I had the exact same thing happen. The unit failed only being a year and a half old. I’m looking to replace it this spring. My old unit was the Raypak 336k BTU. Will this unit work for a 20,000 gal pool?
Reply
I have a Raypak RP2100 and the LCD display is shot can I purchase just the LCD or do I have to get the whole motherboard?
Reply
I have a Rayvac 2100 digital pool heater that has a leak. Is this something that can be repaired or do I need a new heater. Leak is coming from somewhere inside the heater. While pool is running, there is a steady dripping water leaking out. Who do I contact for help or what should I look for?
Reply
Hi, Pennee. Resolving the issue of a leaking heater could be as simple as replacing bad o-rings or as severe as replacing the entire heat exchanger. The unit will have to be inspected to determine the cause of the leak.
Reply
On breezy days the flame is frequently extinguished. Is there an easy fix for this?
Reply
Andrew, unfortunately, there is not an easy fix that we can suggest in most cases you have to reorient the heater unit. If you would like, maybe call RayPak and ask their technicians if they have a quick fix. They can be reached by calling 805.278.5300.
Reply
Thinking of buying the 206,000 btu heater. Natural gas meter is 85 to 100 feet from water heater. Pipe size is 1" Trac pipe. Is this gas pipe big enough to supply. We are replacing a 175,000 btu heater.
Reply
Hello,Thank you for contacting Inyo Pools. The longest gas line you can use with 1" and natural gas is 90 feet. If your piping is longer than this, you will need to go with a smaller heater or increase your gas line size.
Reply
I have a Raypak P-R406A-EN-C pool heater and want to replace it. We use the heater for SPA only. We live in California. Can Raypak P-R206A-EN-C be used to replace? What would be the specific model that we should look to replace the original 406 model? Just want to make sure we are able to use the existing gas and water pipe connections.
Reply
Hi, Vivek. Keeping the P-R406A-EN-C allows you to use the existing gas and water pipe connections. Replacing it with a smaller unit will require you to have to change the gas line size and regulate the meter.
Reply
Our pool is a vinyl 16x32 inground pool. We had a natural gas heater prior , it lasted about 7 years and we recently removed and got rid of it. Would this be a good fit for us.?
Reply
I am not sure what the total gallons is, I will need the average depth of the pool and the shape of it to calculate total gallons. An example; if this pool is 20,000 gallons the minimum BTU size to install is 167K BTUs. If you selected to order the 206K BTU for a 20K gallon pool it would take approximately, 1-hours and 10-minutes to raise the temperature by 1-degree. Please see Swimming Pool Calculations http://www.inyopools.com/swimming-pool- acalculations.aspx and How Long Does It Take to Heat a Pool? http://www.inyopools.com/blog/long-take-heat-pool/
Reply
can this be used on an above ground pool 33 ft in diameter
Reply
Hello Kenneth,Yes, the Raypak RP2100 Digital Heater - R206A - Copper - Natural Gas 009216 unit can be used on that size of a pool. Attached is a guide to help when Sizing Your Pool Heater. And a calculator to show the operation cost when running this unit.
Reply
Is this a commercial pool heater or is it a domestic heater? Do you have a recommendation for a commercial pool heater that will be running year round? The pool is 30'x13' and ranges in depth from 3' to 5'.
Reply
Can i control this heater through my Jandy board iaqualink 2.0?
Reply
The digital model heaters are equipped with the ability to work with external remote controls. The supplied 7-pin remote wiring connector supplies power out to either a toggle switch or the switch contacts of a third party remote. The remote works by either making or breaking the circuit created by the remote wiring. Typically, a remote does not supply power to the heater, it only provides a switching function to turn the heater On or Off. If your remote is suppling its own voltage to the heater, it will not work with this heater and may damage the digital circuit board
Reply
is this the same size or benefits as the raypack 2100 model im replacing the one im replacing was catalog number 6000.52aa iso 9001
Reply
Good afternoon, Frederick, in order to provide the best information we would need more information such as a photo of the data plate on your current unit and the Gas line size used between the heater and the meter. You can send that information to INYO Pools Customer Support.
Reply
I currently have a heater that has died. It needed replaced last year. It was 266000 BTU’s. Are there certain things I need to match to ensure a perfect fit?
Hi Sherry, If you are below 2,000' in altitude then this Raypak 266,000 Natural Gas Heater w/ Heavy Duty Heat Exchanger would be a direct replacement, your heater has a heavy duty heat exchanger which lasts longer against pool chemicals. If you want the standard heat exchanger then you can go with this Raypak 266,000 Natural Gas Heater.
Reply
Hello, Do you have this item in stock? Let me know. Thanks. - Chris
Reply
Hello Chris. The Raypak RP2100 Digital Heater - R206A- Natural Gas is in stock and available. Attached please find a copy of the INYO Pools Shipping Policy. Shipping Policy
Reply
When would this ship and when would it arrive to 534 W. Walnut Ave, Monrovia, California 91016
Reply
Thank you for providing more information about the address. The address requires a LoNox (low fuel emissions) You will need to order the RP2100 Digital Low NOx Heater - R207AL - Copper - Natural Gas - P-R207AL-EN-C #26 if you are seeking a 207K BTU Natural Gas Heater. If you have a salt system, you should consider the Universal H-Series Low NOx Heater 250K BTU - NG - W3H250FDN it has the heavy-duty Cupro-Nickel Heat Exchanger for use with salt systems.
Reply
Does this work with a salt solution in ground pool?
Reply
Hello Joe. The Raypak RP2100 Digital Heater R206A NG model P-R206A-EN-C #50 is compatible with saltwater pools. The Raypak RP2100 Digital Heater R206A model P-R206A-EN-X #51 would be the preferred selection for saltwater pools. Raypak RP2100 Digital Heater - R206A - Cupro-Nickel - Natural Gas - P-R206A-EN-X #51 The cupro-nickel heat exchanger is more robust than the copper heat exchanger resulting in more durability with saltwater pools. Attached please find a copy of the Installation & Operating Instructions for the Raypak Gas-Fired Pool Heater INSTALLATION & OPERATING INSTRUCTIONS Technical Data
Reply
What is the difference between the Electronic and the Milivolt ignition?
Reply
Hello Stewart. Millivolt ignition systems ignite the burner(s) utilizing a standing pilot light and do not require external power. The Millivolt heater generates its own power with a small thermocouple driven by the constant pilot light. Electronic ignition systems ignite the burner(s) utilizing an electronic spark or hot surface. Electronic ignition heaters require external power 120VAC/240VAC to operate.
