How do I change the shaft seal on my pool pump?
Reply
Changing the shaft seal is quite simple. Here's How To Replace a Pool Motor Shaft Seal.
Reply
One measurement on your description says 1.25". Looking at the picture the hole is 5/8" so what is the 1.25"? This looks like my seal but nothing on my 5/8" seal measures 1.75". Looking at the proportions on the picture nothing looks 1.75"
Reply
The 1.25" measurement refers to the outside diameter of the shaft seal.
Reply
Is there any thing special when installing this seal?
Reply
Our guide on "How To Replace a Pool Motor Shaft Seal" will detail the instructions for the shaft seal.
Reply
Looking for replacement seal and orings for Optiflo Plastic Pump Model CPT-N!-1.5 part # 454545 & 357255
Reply
Hi Mickey, You would require the shaft seal on this page for the Optiflo pump. For the o-rings you would need a quantity of two of the 357 O-ring and a quantity of one of the 223 O-ring.
Reply
Will this seal work on a Blue Devil B8386. I've been searching for a week and have found nothing yet. If it does not work can you point me in the right direction?
THX, Chris
Reply
Chris, Based on the information found this Pump Seal 200 (PSR 200) will work on the Blue Devil Pump.
Reply
Appears I have an older Jacuzzi pump, 94024110. Model looks to be an LR type with model # S1-LR-6-S1. Do you know if it uses this same seal?
Thanks!
Reply
Hi Mark, The Pump Seal 200 5/8" (PSR200) would be the correct seal for the older Jacuzzi LR pumps.
Reply
Which specific seal kit (generic part number) do I need for QC-1072 pool pump motor? Thank you.
Reply
The seal kits are not based off of the motor model but the model of the front pump housing that the motor mounts to.
Reply
I have Sta-Rite Pump Model No: P6E6D-205L. Which seal kit (generic part#) do I need for it? The motor that connects to it is QC-1072 (original motor model: K48K2PA105C1). Thank you!
Reply
Hello, will the psr 200 seal fit my aqua flow 20-0108x , it has a 91693601 impeller, it's a Flowmaster pump model 02110408 serial is 2189059,it has both name brands on it ,just want to order the right one first, thanks
Reply
Hi Paul, This shaft seal will fit the Aqua flow and Flow Master pumps.
Reply

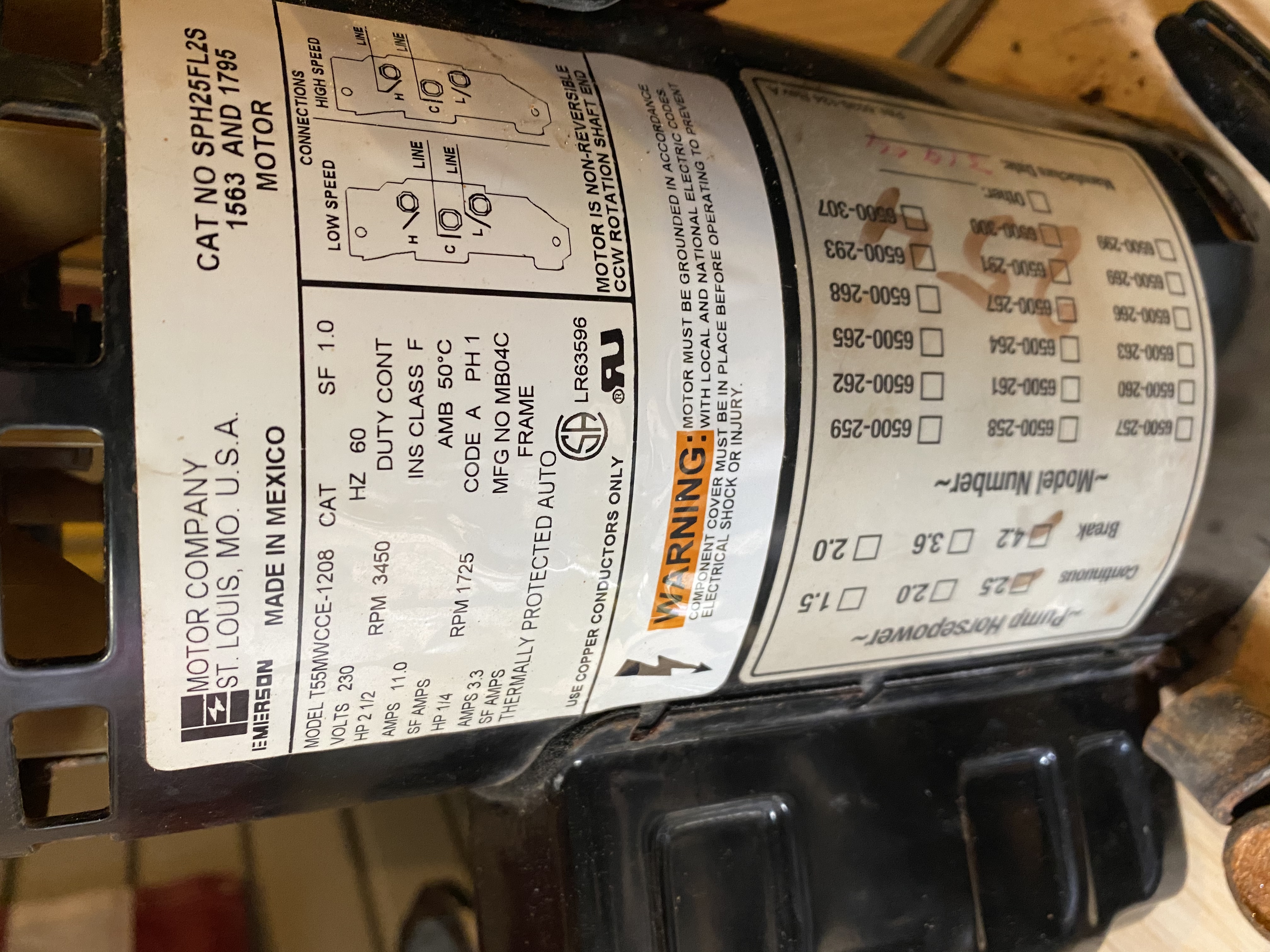

Will this seal fit my Sundance Theramax II 6500-126 ?
Reply
Hi, Based on how these pumps are labeled we can only locate replacement part based on the volute part number. If you can provide that number we can confirm if this PSR-200 seal is the correct replacement.
Reply
I have a Challenger 2HP PENTAIR PUMP CF11-N2-2F .Is a PSR200 shaft seal correct? Is a GO-KIT5 the correct repair kit?
Reply
The Pump Seal 200 PSR 200 is the correct replacement shaft seal for the Pentair Challenger Pump.
Reply
If this part doesn't fit can I return it?
Reply
Hi Dave, Unfortunately, once this part has been installed it can not be returned. If you can provide us with the manufacturer and model of the pump housing I can try to locate the correct pump seal.
Reply
does this fit a DuraGlas pool pump/ I have a 56y frame square flange 3/4 hp motor that i am going to replace, i understand that i need to change the seal as well.
Reply
Hi Robert- Unfortunately with the Dura-glas there are a two possible seals that would depend on the age of the pump. You will either need to know if it is pre-1998 or 98-current, or take your pump apart and see if your seal plate has the copper or stainless steel cone or not.
Reply
Hi, is this PSR 200 shaft seal will fit a Jacuzzi S15lr6 1.5h pump?. I have been buying different ones but none fit since the form of the base is very particular.
Is there a kit for this pump with all the parts to be replaced to avoid leaking?
Regards,
Reply
Yes, that would be the correct replacement shaft seal.
Reply
Hi, is this psr 200 shaft seal will fit a Jacuzzi pump model S1KHMR 9-6 serial # 074322? If not which one do i need? Thanks.
Reply
Hi, Alex. I was unable to locate a Jacuzzi pump with the model S1KHMR. If you can verify the model number and or send us photos of the pump we can try to identify the pump.
Reply
the motor shaft is 1/2 " is this the correct seal?
Reply
Hi, Robert. The pump seal is specific to the pump housing, I will need to know the model of the pump housing in order to confirm if this pump seal will fit into the seal plate.
Reply
Hello,
I have a leak on the shaft seal on my Optfl N1 1 HP HD Part number 347982 serial # 0360070130040L Date 3/11/13 Site. E I looked online and i want to confirm that the replacement seal is part # 5250 - 104 Mfg code PSR200 5/8" is the correct seal before I purchase it? also is there any other parts I should purchase when I change the seal ? Thanks Larry
Reply
Larry, Yes, this is the correct seal for the Pentair OptiFlo pump.
Reply
what are the measurement on the impeller end of the seal ID?
Reply
Hi, Cindy. You can view the dimensions of the pump seal by clicking on this Product Dimensions link.
Reply
I have a Pentair superflow 2HP pool pump p/n: 340040, SF N1 2A HP, which is leaking at bottom between the pump and motor and I am wanting to know what is the correct repair kit so I can fix it.
Thanks!
Reply
Hi, Jim. Replacing the Pump Seal will resolve your issue. This Pump Seal - PSR200 is the correct size for that model pump.
Reply
I have a Pentair 2hp 2sp model #DYNII-N2-2 Motor with a DYNMO Model #DYNII-N2 pump. The pump shaft seal between the motor and pump is leaking. Which seal do I need.
Reply
The main shaft seal for the Dynamo pool pump is part number 5250-104 for the generic one or you can get the complete seal kit being the GOKIT46. You can view the parts diagram here if you would like to view the other types of main shaft seals that you can use as well.
Reply
I have a dura glas swimming pool pump 518R with a 5/8" shaft. Would I get the pump seal 200?
Reply
Hi. You could use this Shaft Seal with the Sta-Rite Dura Glas Pump. If you have the Seal Insert, it can just be removed.
Reply

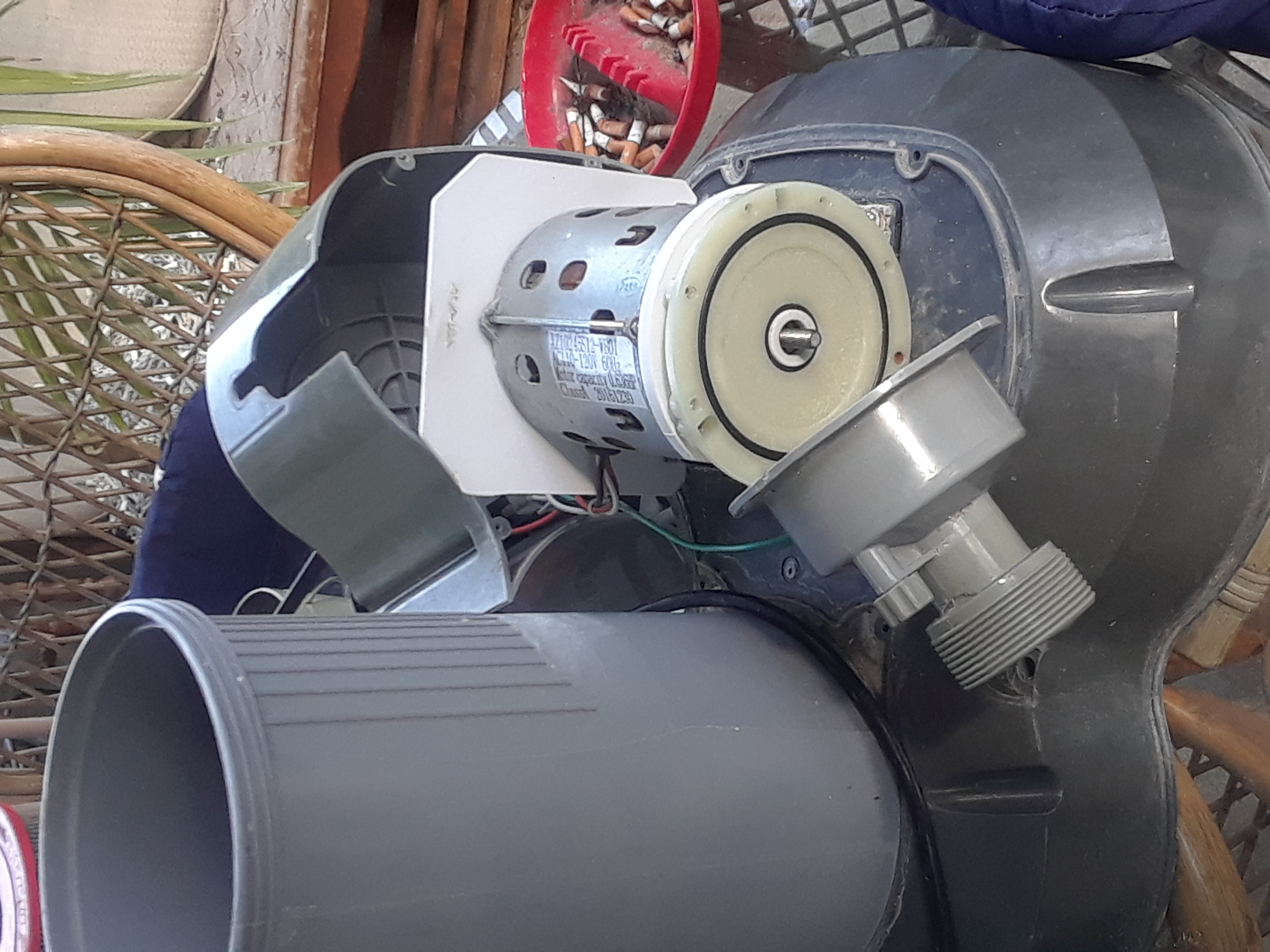

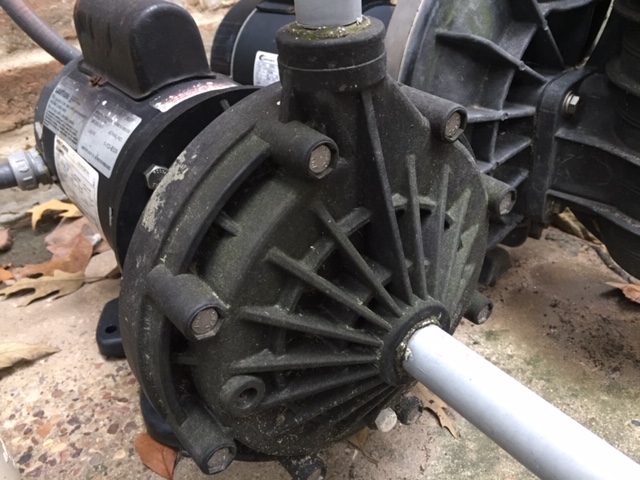

There are no markings on the pump. It was installed with a polaris system. the motor shaft is 5/8". The motor is a centurion B668. Is it likely that this part will fit?
Hi Dick, You have the Letro LA01N Booster Pump and you will require the PSR1000 Shaft Seal. Here is an article we put together on How to Replace a Shaft Seal on a Booster Pump which you may find helpful when you tackle this project.
Reply
Need this rubber gasket for Jacuzzi Magnum Force and a couple other items. Do not see this on list. Can you assist?
Reply
I have a pentair superflo pump that is not leaking externally but is not drawing enough to fill the pump cavity with water (air pocket approximately tennis ball size and bubbles coming out return jets). Could this be a seal problem?
i have a A.O. Smith motor (HP 1.0 SPL (2 speed) PN 7-186554-01. need to replace the pump shaft seal, and impeller
not sure if this is the correct one i need? Looks like S15LR-6 is the replacement motor, not 100% sure on that.
Reply
So these seals and gaskets for the pumps are based on the model of the front pump housing that the motor bolts to. You can call in with that information or you cam email images of that housing to upload@inyopools.com so we can confirm.
Reply

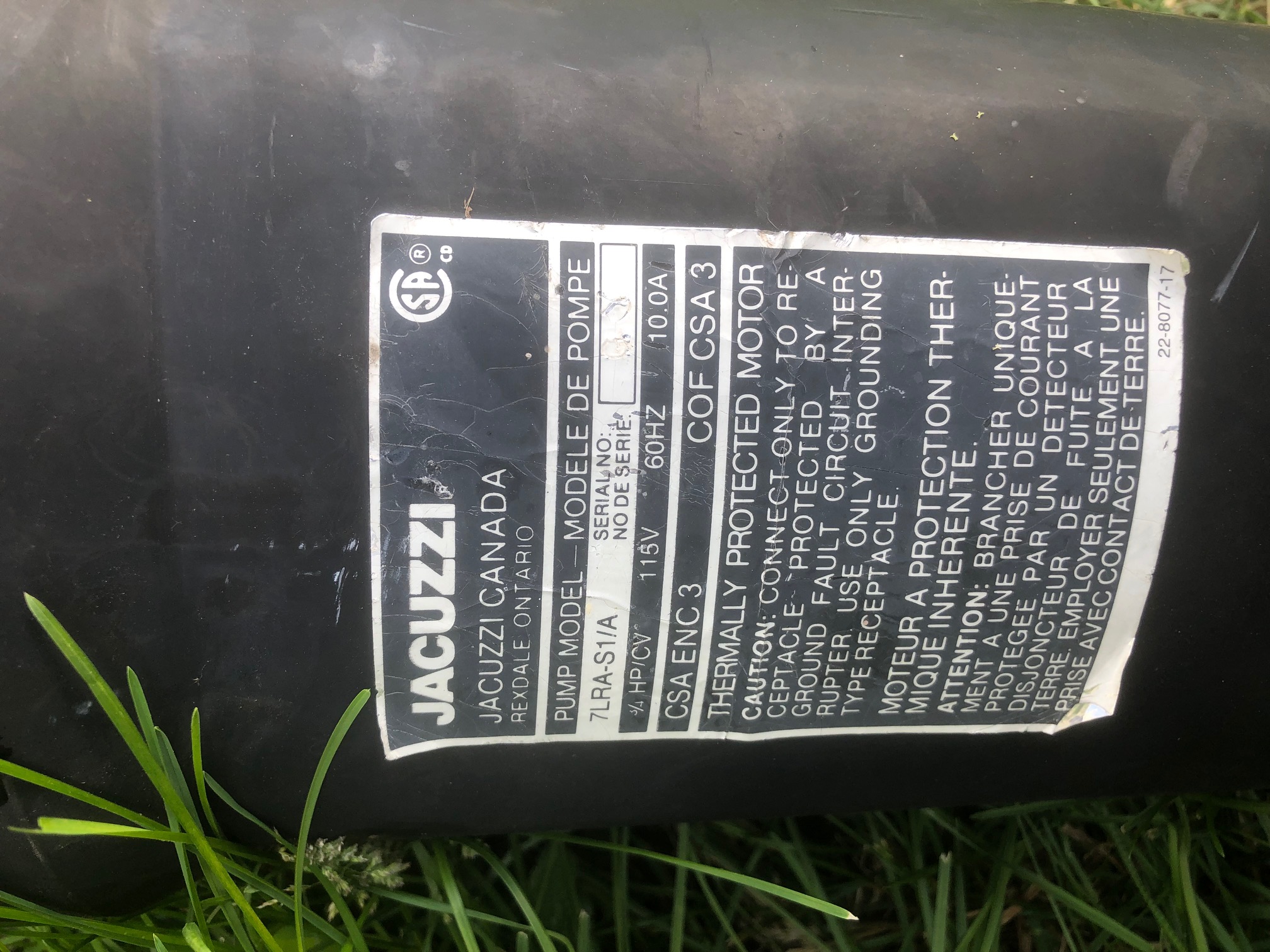

Will this work on a Jacuzzi 7LRA-S1/A pump?
Yes, the correct standard shaft seal for the Jacuzzi LR Series old style is the PSR-200.
Reply
Hi .... just purchased a replacement motor ecm16squ, and a 32salt kit. My pool converted to chlorine 5 years ago.
Unfortunately the shaft seal from the kit broke on me.
Is there a replacement seal I can order?
Old pump model is a Pentair whisperflo 177450.
Reply
What is the difference between the psr-100 and the psr-200 ?
Reply
These seals have different dimensions. In order to confirm the correct shaft seal for your pump, we will need to know the make and model of the pump. If you cannot locate this information please send us a few images of the complete pump to upload@inyopols.com so we can assist.
Reply
Does this PSR-200 fit Century B855 motor?
Reply
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Need pool pump seal kit!
Suilagi, the seal kit for your pump in a chlorine swimming pool is the GOKIT2 and for a saltwater swimming pool is the GOKIT2SALT as you have the Hayward Super 2 series model pool pump.
Reply
could you give me the part numbers for shaft seal, impeller ring and housing gasket for B2859 motor
Reply
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
I’m looking for a replacement seal for my impeller. Are you able to let me know if this is the correct size seal based on the pictures I attached? It’s a Sundance spa.
Hi Karen, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
Thank you for your reply. I have since ordered and replaced the seal. Have a great night!
Reply
Will this part work with the pentair optiflo? I have a leak between the motor and the pump coming out of the bottom of the shaft.
Reply
Yes, this is the correct shaft seal for the Pentair Optiflo pool pump.
Reply
Will this seal fit a B985 Century pump?
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

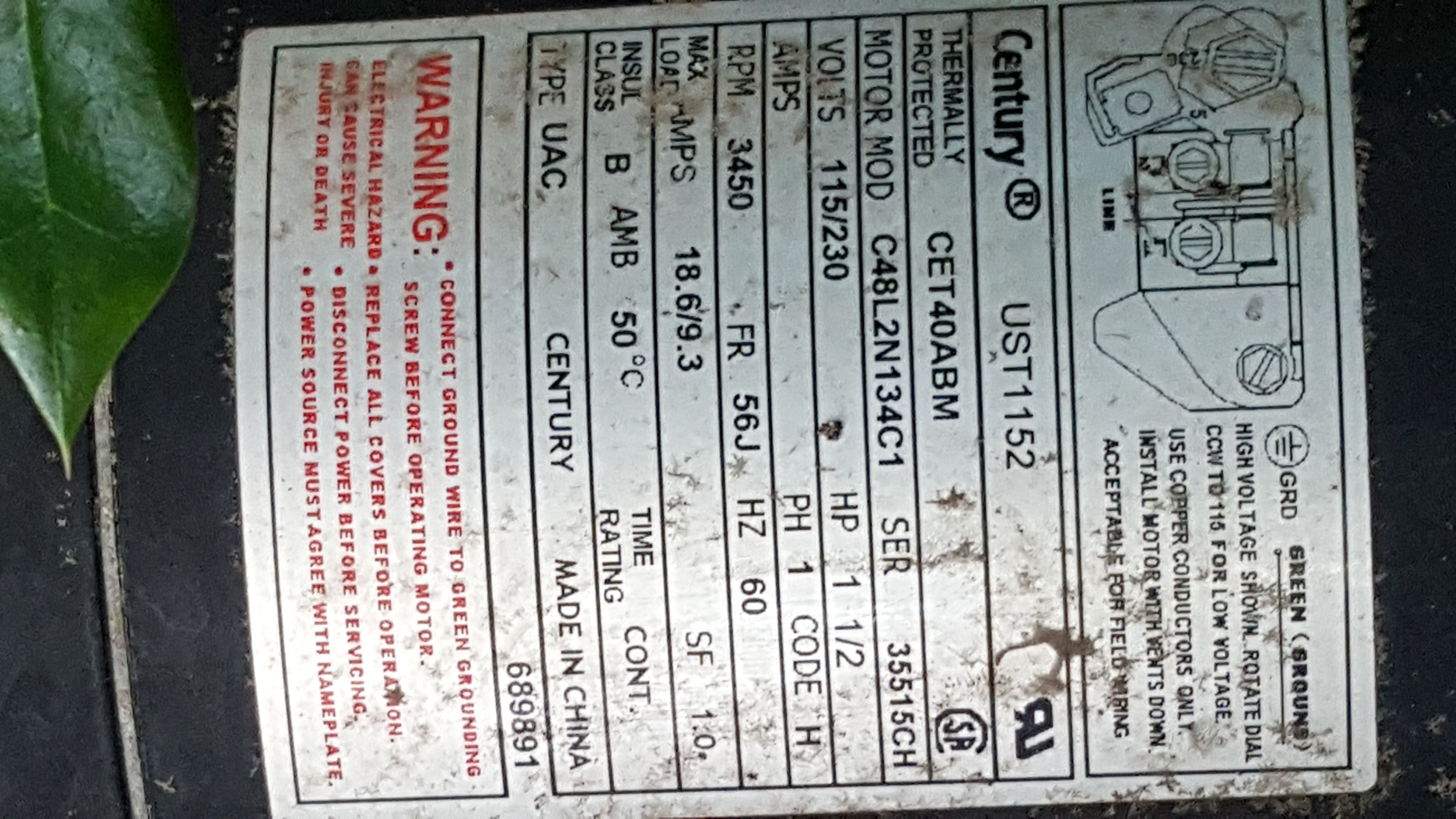

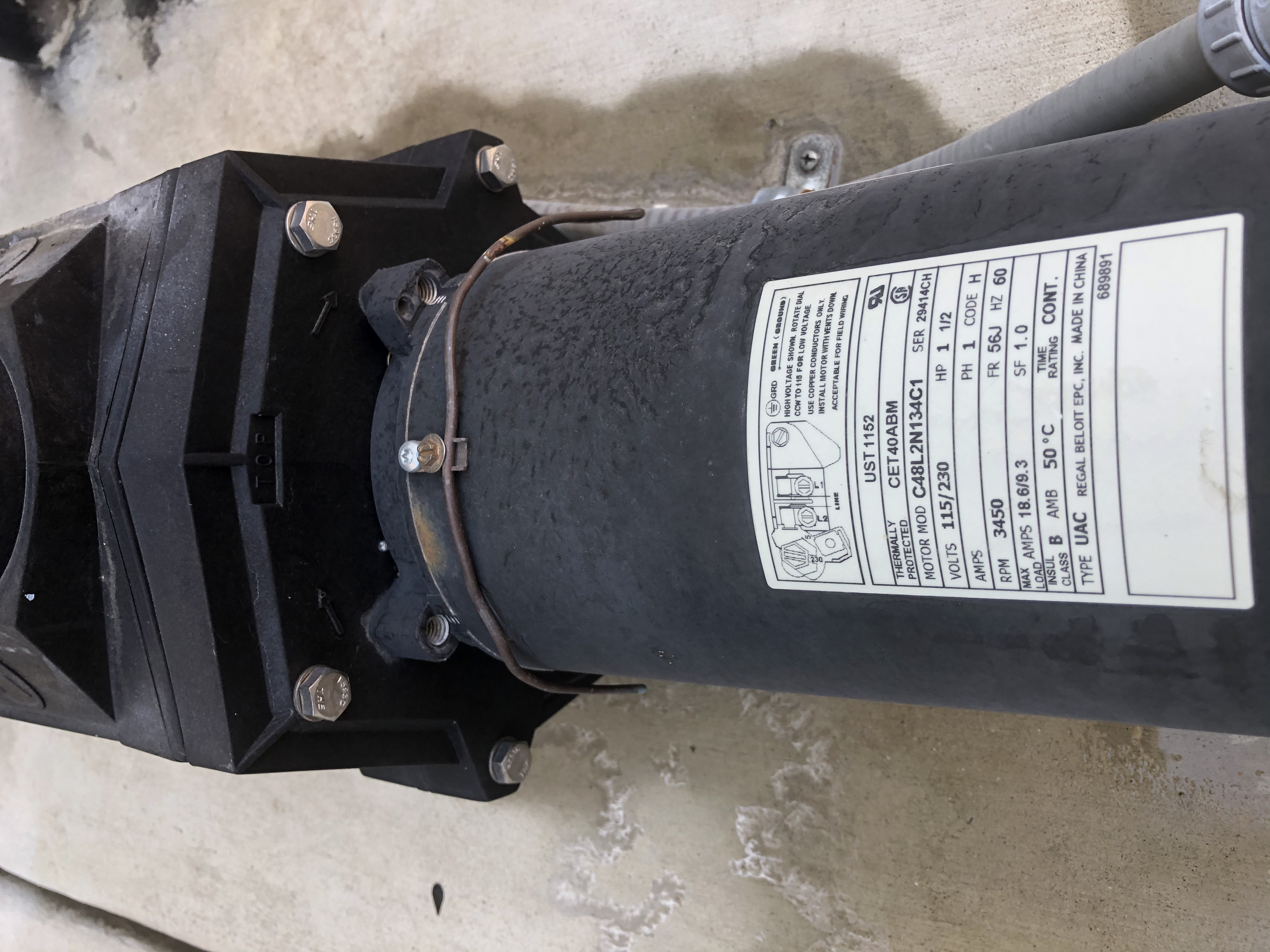

I have a century pool pump model ust1152. Will this seal kit work for me?
For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply

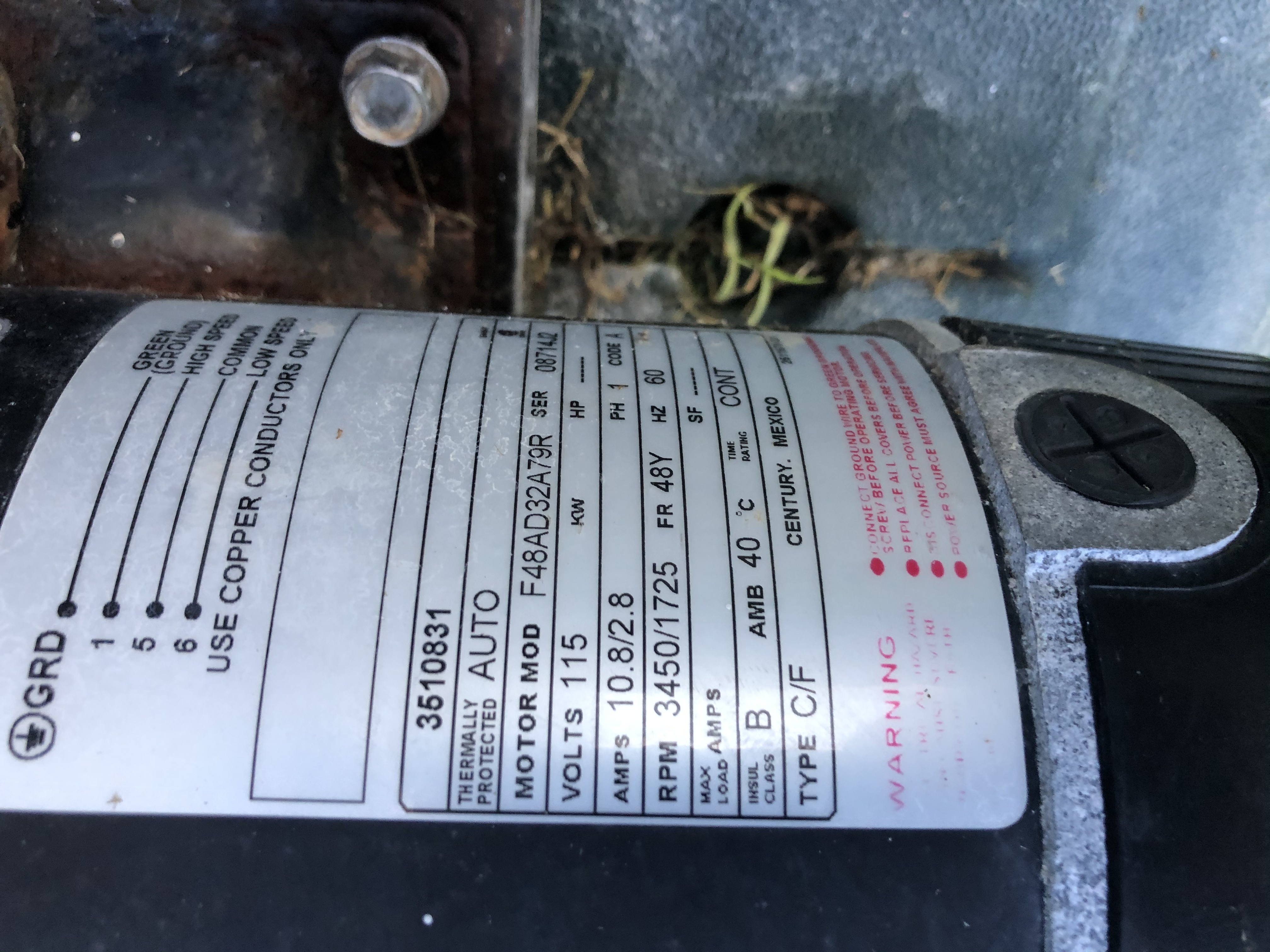

I have a 2 speed waterway pump with Motor mod-f48A032A79R is this the right seal? Thanks, Ed
Hi Ed, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
need a seal kit for Century ST 1152 pool pump motor
can you recommend one
Reply
Hi Lawrence, For us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
Reply
what is the difference between a PSR-200 and a PS-200 shaft seal?
Reply
Hi Marshall, there is no difference between the PSR and PS200 shaft seals. These are merely alternate part numbers as many products in the swimming pool industry have alternate part numbers.
Reply
Will this fit the Hayward SP3007EE ?
Reply
Could you send us a few photos of your pump? Please take a close up shot of the pump label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply

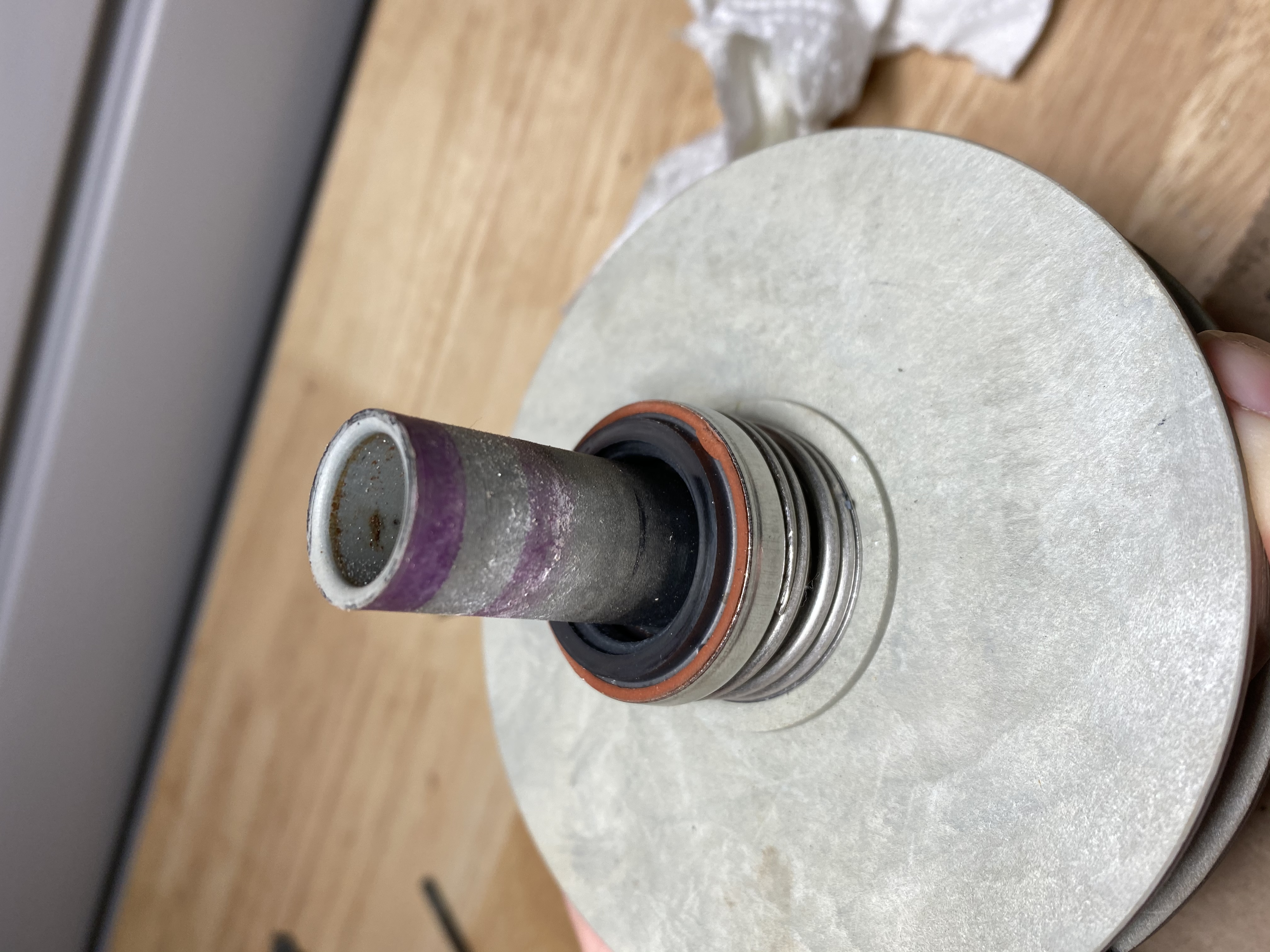

Installing a PSR-200 seal, and i noticed it can easily separate from the bottom piece. Is this normal?
Included pic
Thanks
Hi Tom, these shaft seal collars are known to come apart on an older seal but not so much on a new one.
Reply
is this correct seal for SP1593
Reply
I have a Pentair 340037 Superflo pump, it is leaking from by the impeller on the motor side, will this seal fit my pump and is it the likely cause?
Reply
Hi Nicholas, for the Pentair Superflo series pool pump this is the standard shaft seal most often used with chlorine swimming pools. Also, when there is a leak on the rear side of the pump seal plate at the face of the motor that sometimes runs underneath the motor, it is often due to this seal failing.
Reply
How fast can this ship ???
Reply
Hi Jim, this shaft seal is currently in stock and ready to ship. The average delivery lead time is approximately 3-7 business days. You can also expedite the order by selecting the shipping method once the item is in your cart and will give you an estimated shipping cost.
Reply
Do you have a pump shaft seal for the Sequence 750 pump? The MDM part number is 750-4014. It looks very very similar to the one you're selling here.
Thanks!
Reply
Hello Mark, after review we found based on the Sequence 750 Series Pumps models this would be the correct shaft.
Reply
Correct seal kit for Century USQ1152 motor
C48L2PA105C5
Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.
Reply
What is the Correct seal kit for Century USQ1152 motor?
Model C48L2PA105C5
See pictures
Hi Vicki, Could you send us a few photos of your pump so we can suggest the proper seal kit? If so then please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos or provide those to our online chat feature. Once we get those photos we can make the proper recommendation for your seal kit.
Reply
More pictures attached
Hi Vicki, you have an Everbilt pool pump which we, unfortunately, do not carry parts for. You may want to contact the retailer that you purchased it with as they may have further advice.
Reply
What is the part number of the shaft seal for Century 1.0 HP Square Flange 56Y Full Rate Motor - B2848?
Reply
Thank you for the information on your motor. To better assist you, we will also need the make and model of your pump. This information is typically listed on a label on the housing area, opposite the motor. Once we have this information, we can better answer your questions/concerns. Please let us know if you need help locating this information on your pump.
Reply

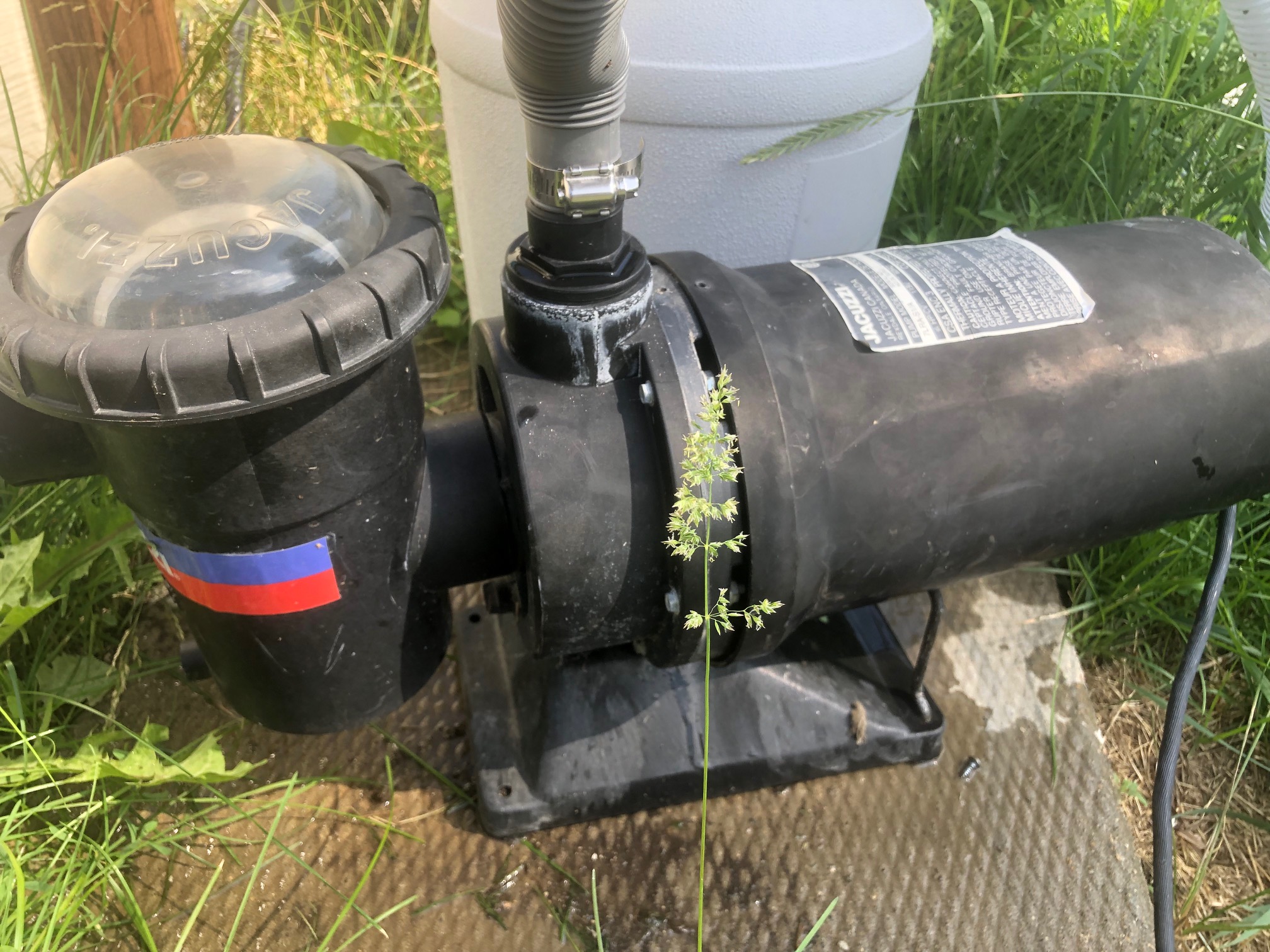

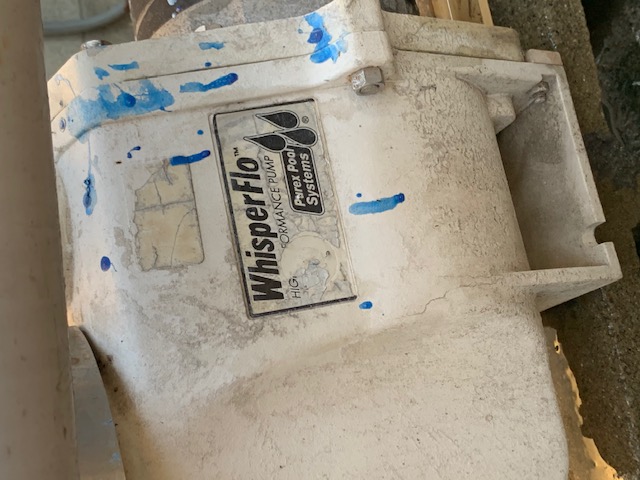

The pump is Whisper Flo, please see attached photos.
Hi David, the seal kit for the Pentair Whisperflo in a chlorine swimming pool is the GOKIT32 and for a saltwater swimming pool is the GOKIT32SALT.
Reply

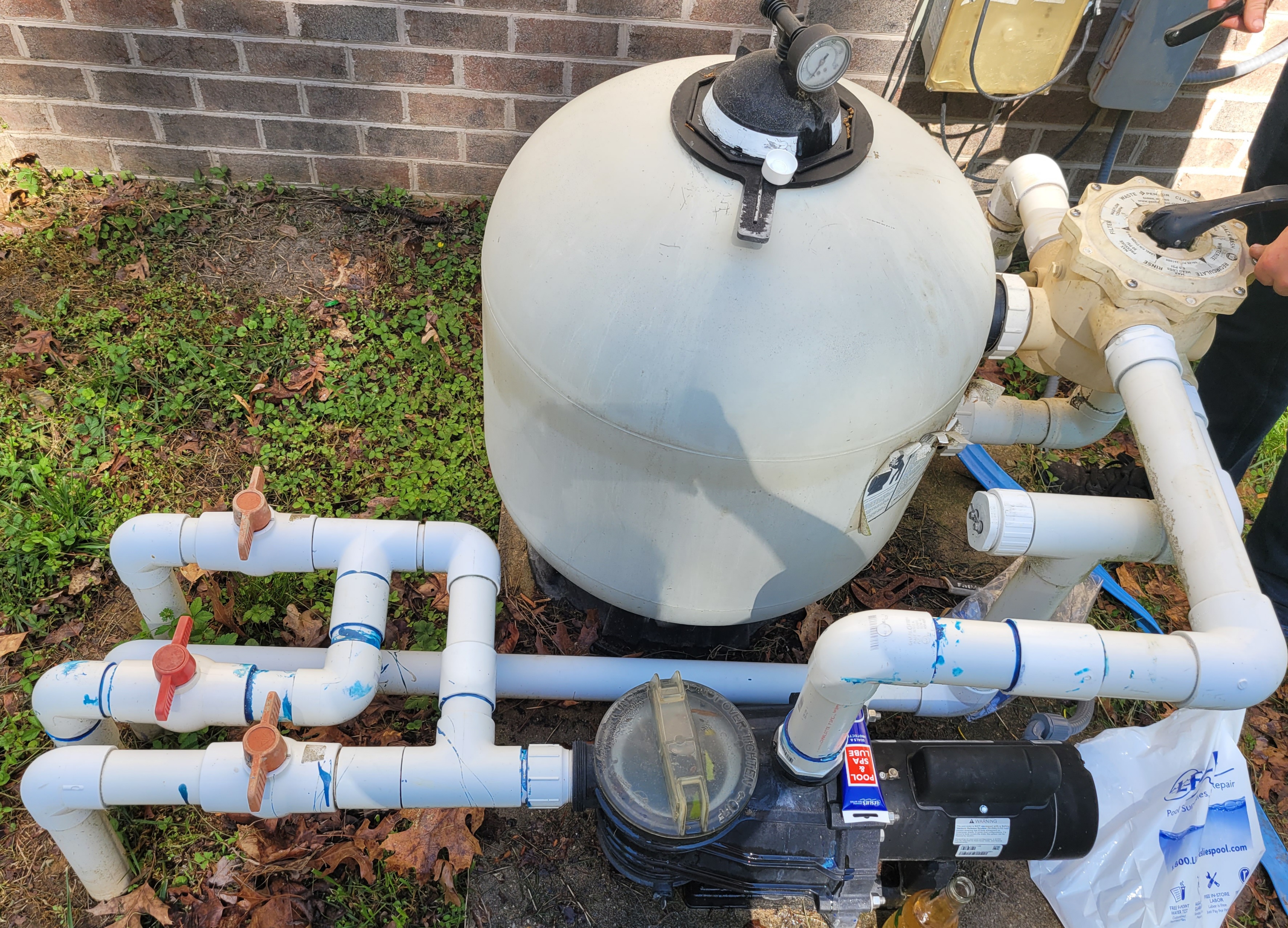

What shaft seal do I need for my pool pump
Could you send us a few photos of your pump and motor? Please take a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Ok
Thanks Melissa,I would suggest GoKit-47 for your DyanMax pool pump
Reply
Can you tell me what impeller we need for this pump?
Reply
Hi Melissa, You will require this Dyna-Max 1.5 HP Impeller
Reply

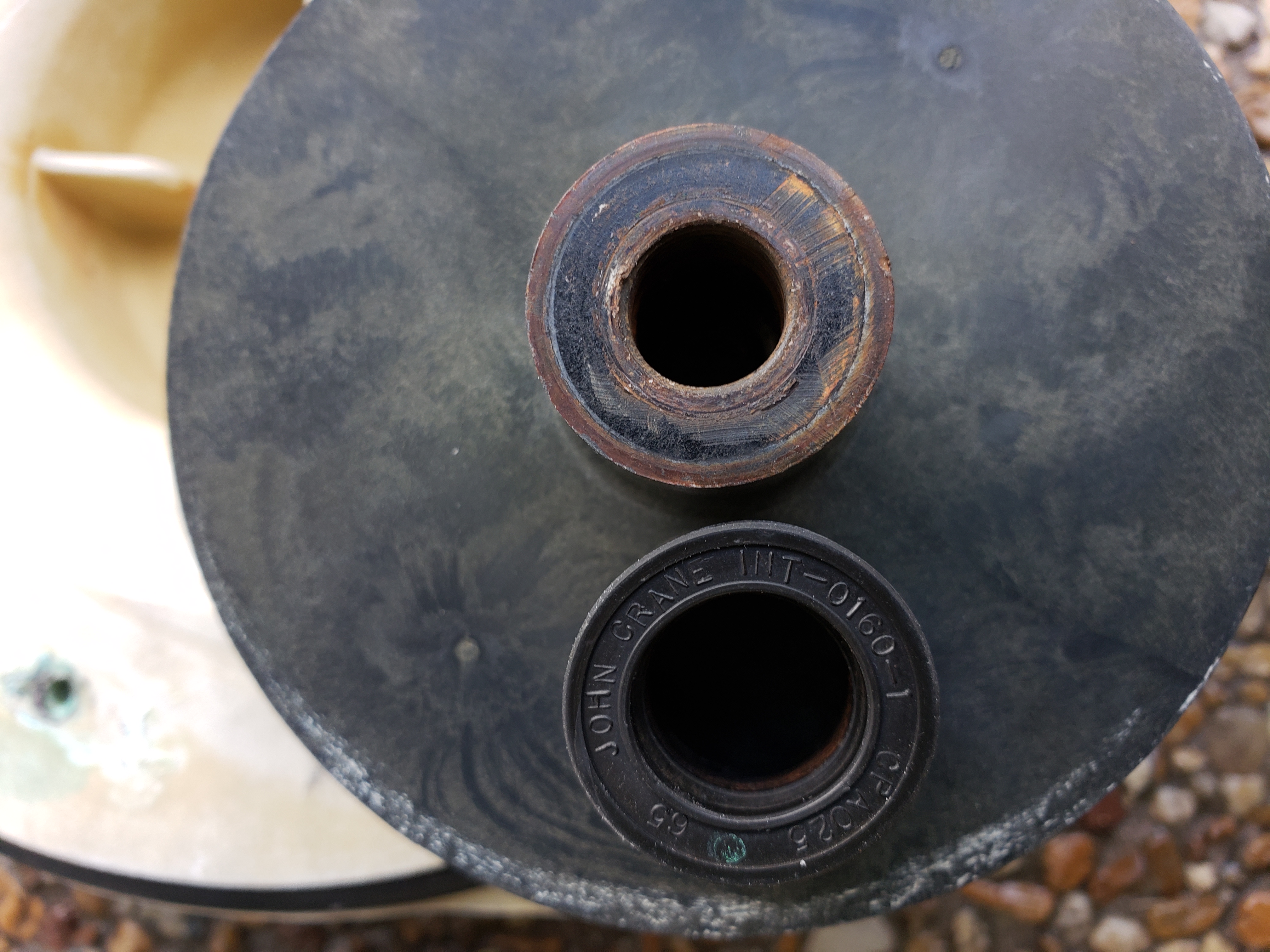

I have an old Pinnacle pump, the impeller has these numbers printed: 35-5041 and 35-5043
Will this work, I already tried ordering shaft seals from other stores and none of them fit.
I am adding a photo of a seal that was in the pump, facing the impeller.
Hello Sandra. The Pump Shaft Seal 5/8" PSR-200 is a compatible shaft seal for the Pentair Pinnacle Pool Pump. Please be sure to install the two parts of the shaft seal in the correct orientation to prevent leaking. Pump Shaft Seal 5/8" - PSR-200 Attached please find an exploded parts diagram of the Pentair Pinnacle Pool Pump for reference. Pentair / Pac Fab Pinnacle
Reply

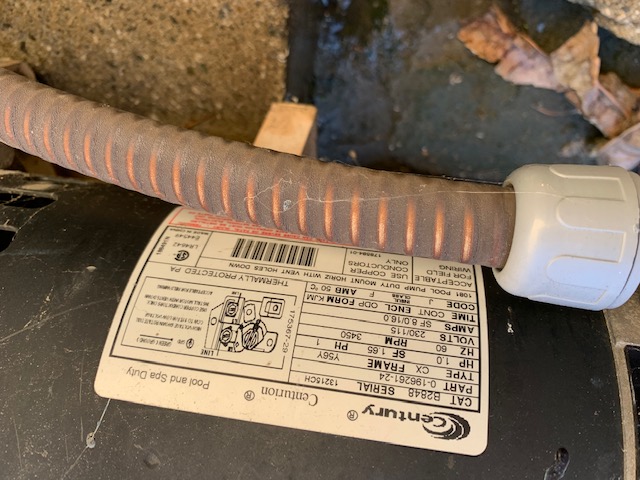

I have a century pump motor: Cat B662 P/N: 7-177375-22 Type: CX Frame: 56Y
Its installed on an arneson booster pump metal housing running a Polaris cleaner. The pump housing is for a vertical pump motor,

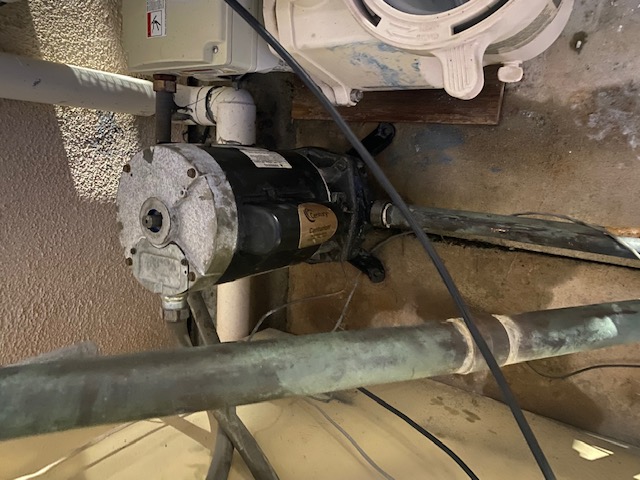

see photos for install, need to replace the pump shaft seal, and i purchased this PSR-200 and its seems to be too long and the motor will bind when installed and will not run properly?
Hi Mike, that should all fit together just fine. Be sure that there is nothing remaining of the old shaft seal in the End Bell on your Arneson Booster Pump or stuck on the impeller.
Reply
Can US Seal PS-200 work with Jandy Stealt SHPF2.0 / SN P08FG1235.
Reply
Hello. The US Seal PS-200 is NOT compatible with the Jandy Stealth Pool Pump model SHPF 2.0, s/n P08FG1235. The Jandy Shaft Seal R0479400 is the correct shaft seal. Jandy Pump Shaft Seal 5/8" - R0479400
Reply
Is this the seal I need for my Dura-glas spa 3/4 hp pump, part number shaft seal 17304-0100.
Reply
Hi Lenny, yes, this is the same as part number 17304-0100 and is used on the Dura-Glas pumps made after 1998.
Reply
Thanks, I will order it now.
Reply
What is the order and direction of the Pump Shaft Seal 5/8" - PSR-200 when putting it on the shaft
Reply
Hi Stephen, our guide on How To Replace a Pool Motor Shaft Seal will show you exactly how to install it.
Reply

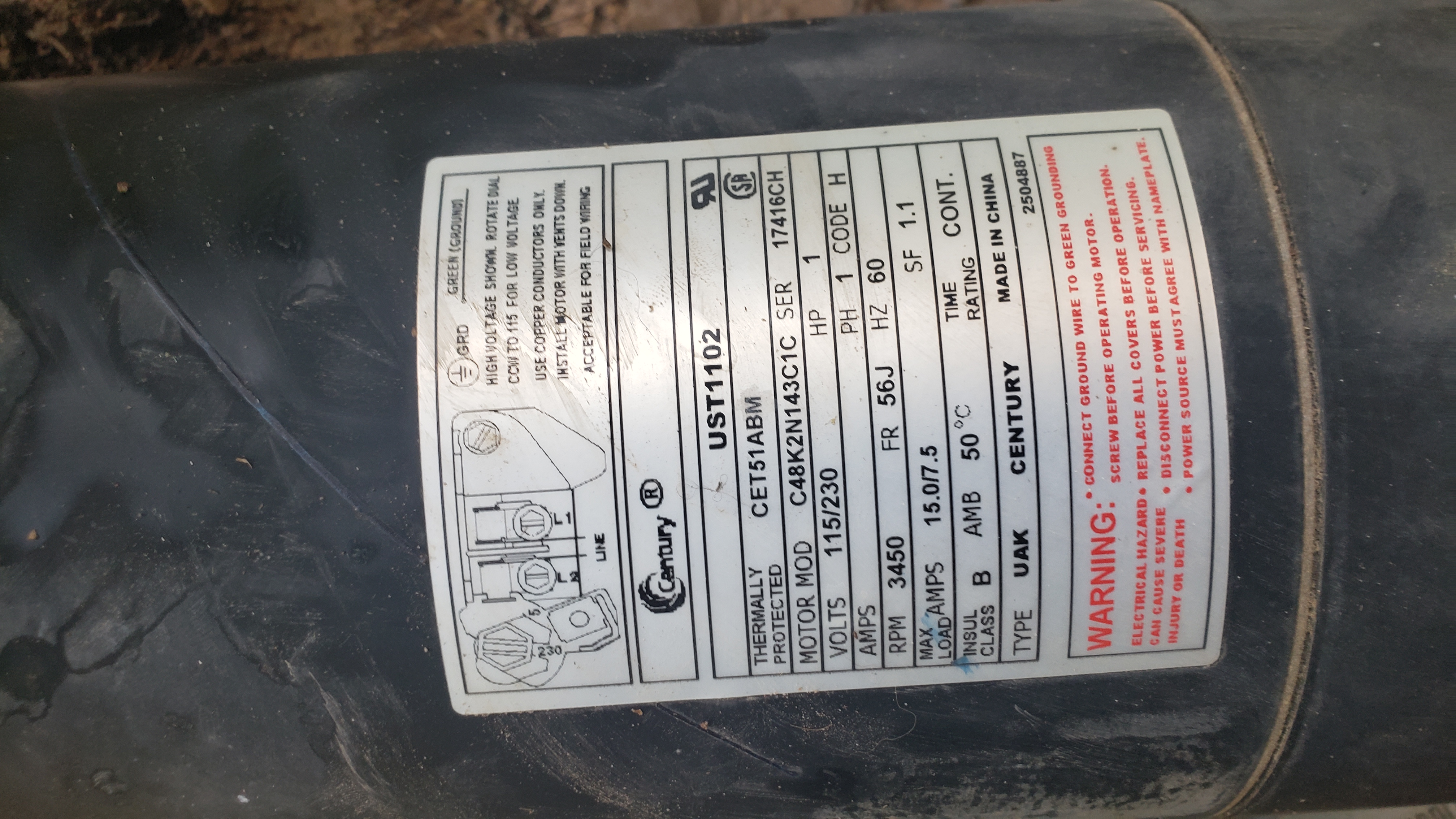

Will this work for a Century UST 1102, 1 hp pump?
Hello John. A shaft seal is specific to the manufacturer/model of the pump and not the motor, UST1102. The attached photo identifies the pump as a Hayward Super Pump or Hayward Super II Pump. In either circumstance, the motor shaft seal is Pump Shaft Seal 3/4" PS-201
Reply
Will the PSR200 pump shaft seal fit my jacuzzi S15LR-E pump.
Hello Ralph. The Pump Shaft Seal 5/8" - PSR-200 is compatible with the Jacuzzi Pool Pump model S15LR-E. Attached please find the Jacuzzi LR and SLR Series exploded parts diagram for reference.
Reply

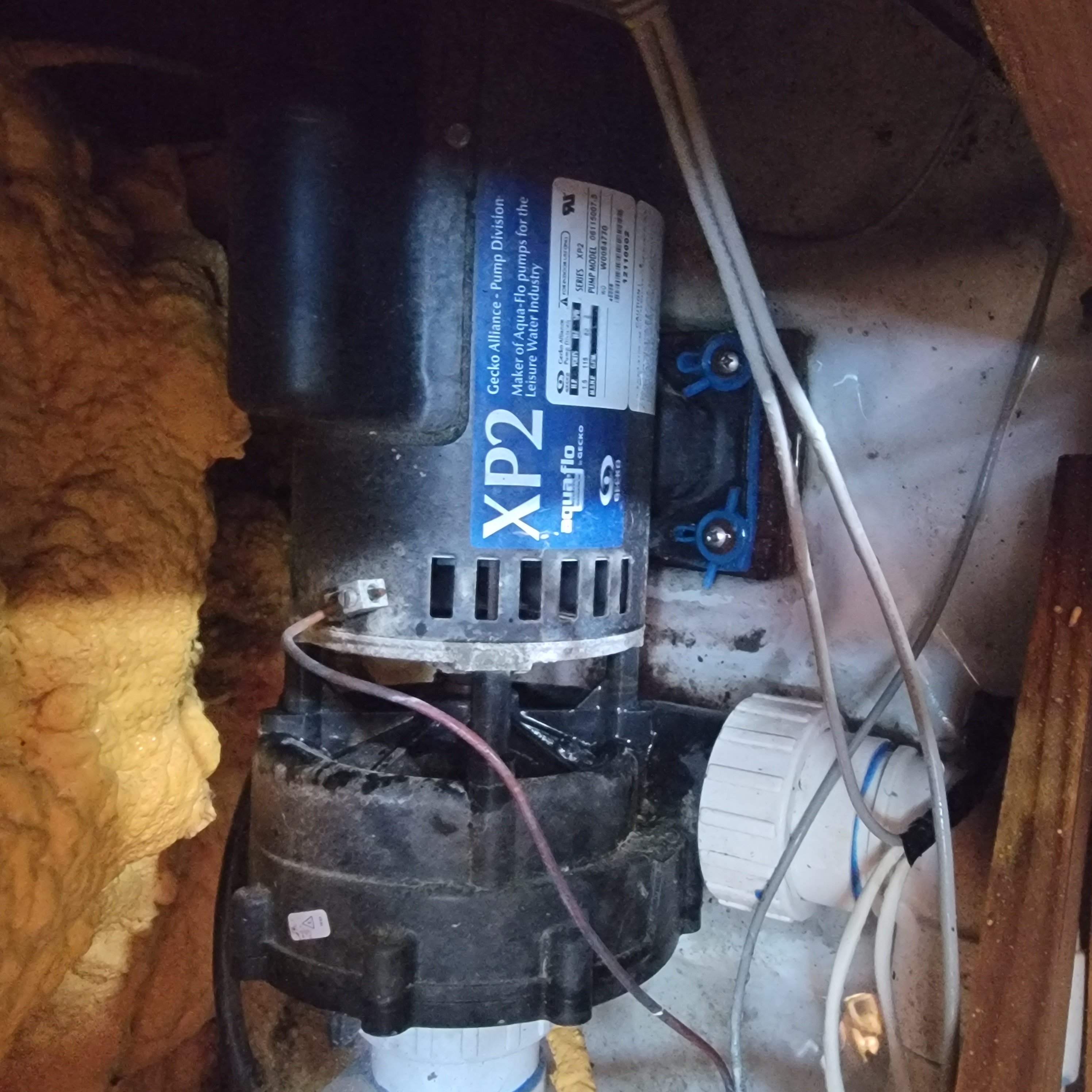

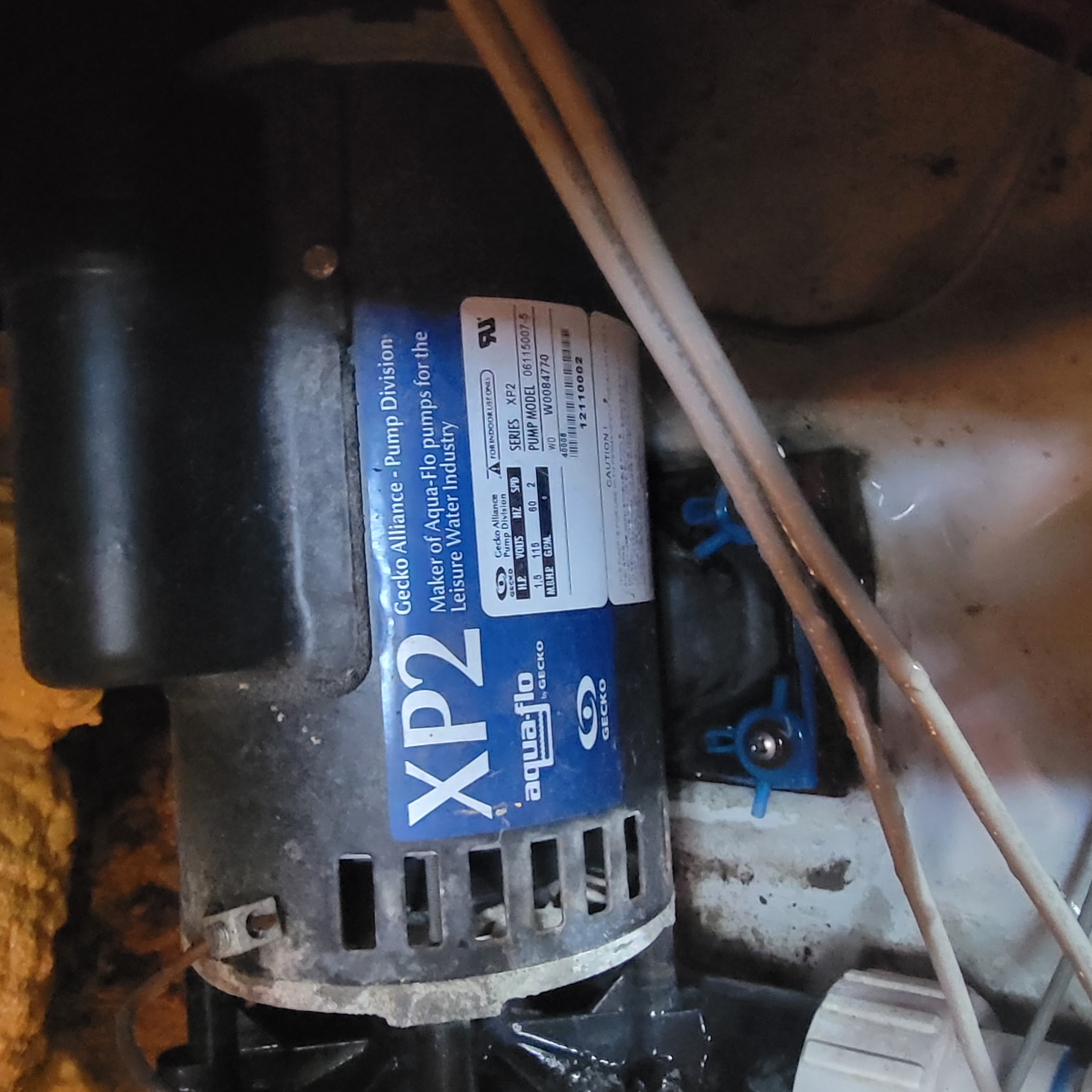

Is this correct for my pump
Hello Eric. Attached please find the Aqua-Flo XP & XP2 exploded parts diagram. The Pump Shaft Seal 5/8" - PSR-200 is the correct pump shaft seal.
Reply
is this the right seal for pentair model # SF-N1-2-1/2A/340041
Reply
Hello Harold. The Pump Shaft Seal 5/8" - PSR-200 is the correct shaft seal for the Pentair SuperFlo model SF-N1-2-1/2A, 340041. Attached please find the Pentair SuperFlo Pump exploded parts diagram for reference.
Reply
