By PureLine



Part # PL0103

Manufacturer Code CX480XRE

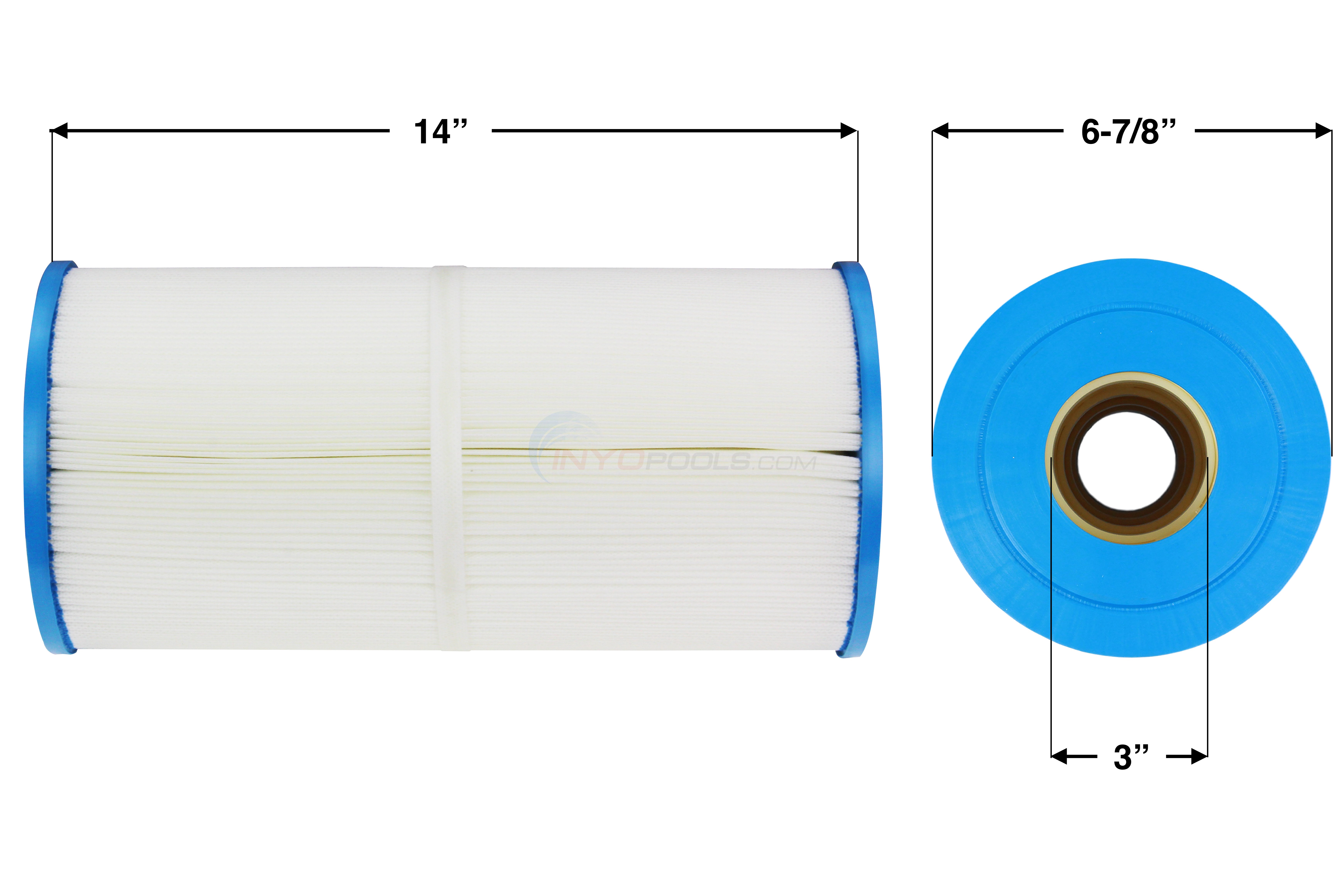

Dimensions End Cap = Round, Length = 14 3/16", Outside Diameter = 7", Inside Diameter = 3"

Alternate Part #'s 15601, C-7458, C7458, CX480XRE, FC-1223, FC1223, NFC1223, PA56SV-4, XLS-767

Product Description

PureLine Aftermarket Replacement Cartridge for Hayward® SwimClear C2020, and 2025 Filters

Is your pool water starting to look a little dull? Is your pressure gauge reading a higher PSI than normal? Are your pool jets a little less powerful? These are all signs that it is time to replace your pool filter cartridge. Replace your pool filter cartridge today and regain that crystal clear pool water and extend the life of your pool pump.

Typically for single cartridge pool filters we suggest replacing your cartridge every 6-12 months and for filters which take multiple cartridges, we suggest replacing your cartridges every 3 years.

This Cartridge is Commonly Used In

PureLine Cartridge Benefits

  • Less expensive than the original manufacturer with the same high-quality standards
  • Designed for maximum water flow to extend cartridge life
  • Designed for even dirt distribution resulting in increased water flow
  • Increased flow rates results in less wear on pump & reduced energy usage
  • Banded Pleats reduce frequency of cartridge cleaning

Not Your Cartridge?

Is this not your Cartridge? Don't worry, we carry thousands of Pool Filter Replacement Cartridges to replace all of the most popular OEM brands such as Sta-Rite®, Pentair® / Pac Fab®, Hayward®, Purex®, American Products®, Jacuzzi®, Hot Springs®, Coleman®, and more. Click here for more Pool Filter Replacement Cartridges


All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

Product Specifications

Filter Model:
Hayward® SwimClear C-2025 (4 Req)
Filtration Area:
56 sq. ft.
14 in.
6-7/8 in.
Top Inside Diameter:
3 in.
Bottom Inside Diameter:
3 in.
Top Style:
Bottom Style:
Media Weight:
4 oz.
OEM #:
Unicel #:
Filbur #:
Pleatco #:

?     Asked on 10/18/2015by Stiffel


A  Answered on 10/19/2015 by InyoPools Product Specialist Bob D.

The cartridge is 14-13/16 tall, 7" wide and the inner diameter is 3."

?     Asked on 8/28/2016by gregg

its expensive to purchase thee filter how do you clean them??

A  Answered on 8/29/2016 by InyoPools Product Specialist Stacey M.

Hello Greg, there is a Filter Clean (Cartridge Cleaner) (1 Qt) - NY205.

?     Asked on 6/24/2017by Inyo Visitor

the filter in my pool is a sta rite p/n 25230=0095 9x4x17 1/4 inches what filter do I need

A  Answered on 6/29/2017 by InyoPools Product Specialist Lennox H.

Hi. You'll the Sta-Rite PXC-95 replacement cartridge, item # 25230-0095S (OEM) or PL0145 (Aftermarket).

?     Asked on 4/18/2018by Inyo Visitor

i have a Haywood Swim Clear ISC 2020. What replacement filters do I need?

A  Answered on 4/18/2018 by InyoPools Product Specialist Patrick P.

Yes this would be the correct replacement cartridge for you.

?     Asked on 12/11/2018by Roy Z

what is the replacement cartridge # for the C-500 Cartridge

A  Answered on 12/11/2018 by InyoPools Product Specialist Steve M.

Good Afternoon- The cartridge that you will be looking for is the Pureline Cartridge for Hayward CX 500 (C-7656) - PL0141.


Est. Repair Time

1 to 2 hrs

Tools Needed

Pliers, Socket Set

2     1

Pool water not really clear and pump pressure to high

Written on 4/13/2020 by Guest

Installed new filters and now crystal clear and 12 pounds pressure. A little surprised to see Made in China
