By Hayward Pool Products



Model # W3SP0583L100

Warranty 1 Year on Parts

Alternate Part #'s HAY-30-1063, HPPW3SP0583L100

Product Description

Hayward AstroLite

Available in a choice of attractive face rim models, from an injection-molded patterned design, made of rugged, non-corrosive glass-filled polypropylene; to a smooth, machine-polished stainless steel design, AstroLite Series light fixtures come standard in a wide range of voltages, wattages, and cord lengths to satisfy virtually any installation. Combined with Hayward`s niches, no other pool lighting system provides such value.

SP0583L15 AstroLite (thermoplastic)
SP0583SL15 AstroLite (stainless steel)


  • Patterned, thermoplastic or smooth, stainless steel face rim designs for corrosion-free performance
  • E-Z Lock™ clamp and reflector assembly for simple relamping
  • Blue lens available on SP0584 and SP0583 with stainless faceplace only. 15', 30', 50', and 100' cord lengths.
  • 12 Volt, 100 and 300 Watt, 120 Volt, 300, 400, and 500 Watt models for any installation requirement
    100% tested for safety and quality assurance
  • U.L. Listed for fresh water (Guide No. WBDT. File No E39338)

Product Notes

Note: AstroLite Series light fixtures mount in the following fixture housings (niches) only:
SP0600U/SP0600 DuraNiche Concrete
SP0607U/SP0607 DuraNiche Vinyl/Fiberglass

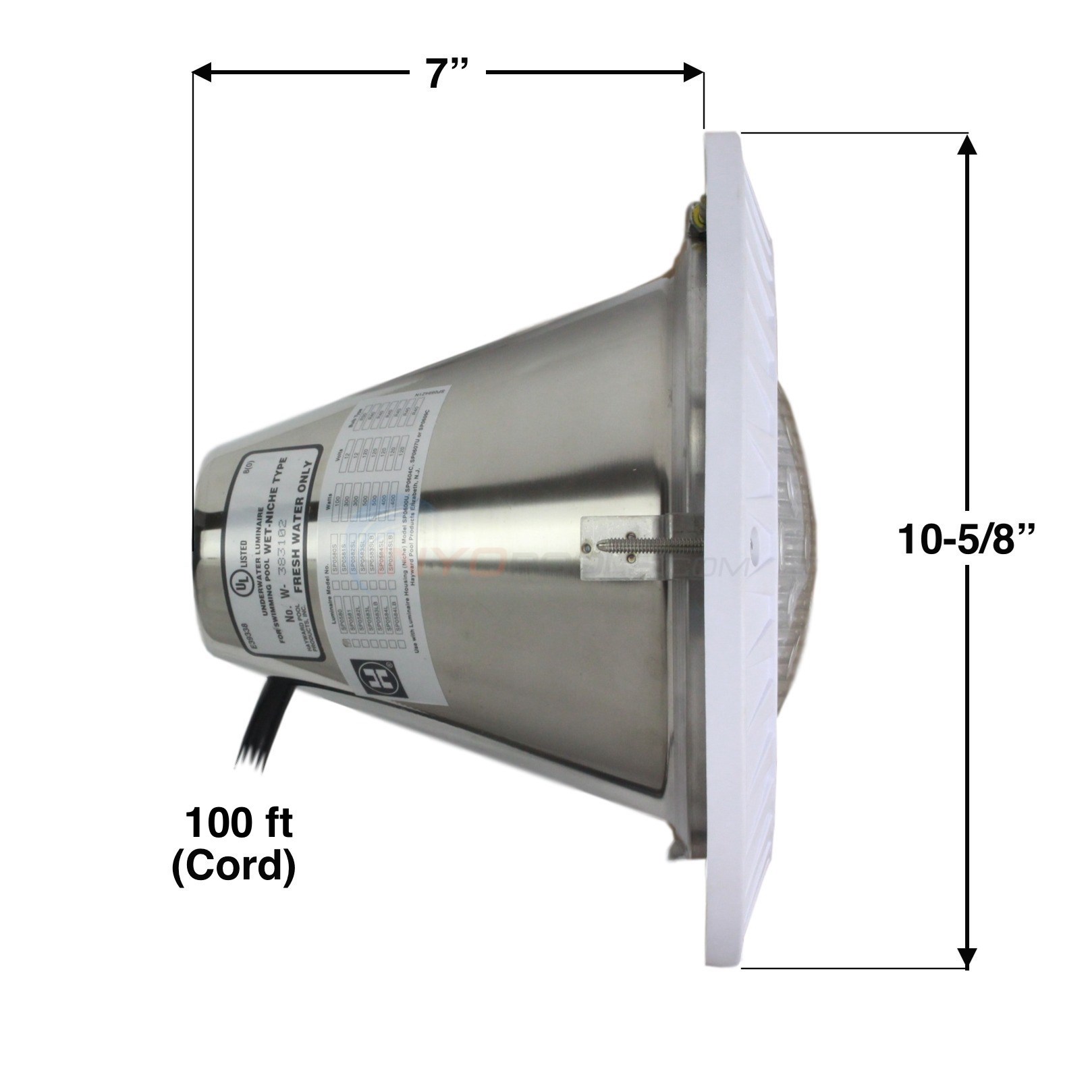

Dimensions: 10 3/4" Wide and 7 15/16" Deep

1 Year Warranty on Parts
Note: SP0600 and SP0607 Niches are no longer manufactured.

Click here for more Hayward Astrolite

Product Specifications

500 W
120 V
Cord Length:
100 ft.

?     Asked on 6/1/2006by Guest

Is it possible to replace the light housing while using the existing electric cable?

A  Answered on 6/1/2006 by InyoPools Product Specialist Patrick P.

You cannot use your existing light cable.  You will need to pull the new cord through the conduit on the new light.


Review Summary

 (Average 1  out of 5 stars)
1 Ratings
5 star:
4 star:
3 star:
2 star:
1 star:
