$1,149.00

Qty:

By Hayward Pool Products


Details

Top

Model # W3AQ-TROL-RJ-TL

Warranty 1-Year Parts-Only Warranty

Alternate Part #'s W3AQTROLRJTL, HPPW3AQTROLRJTL

Product Description

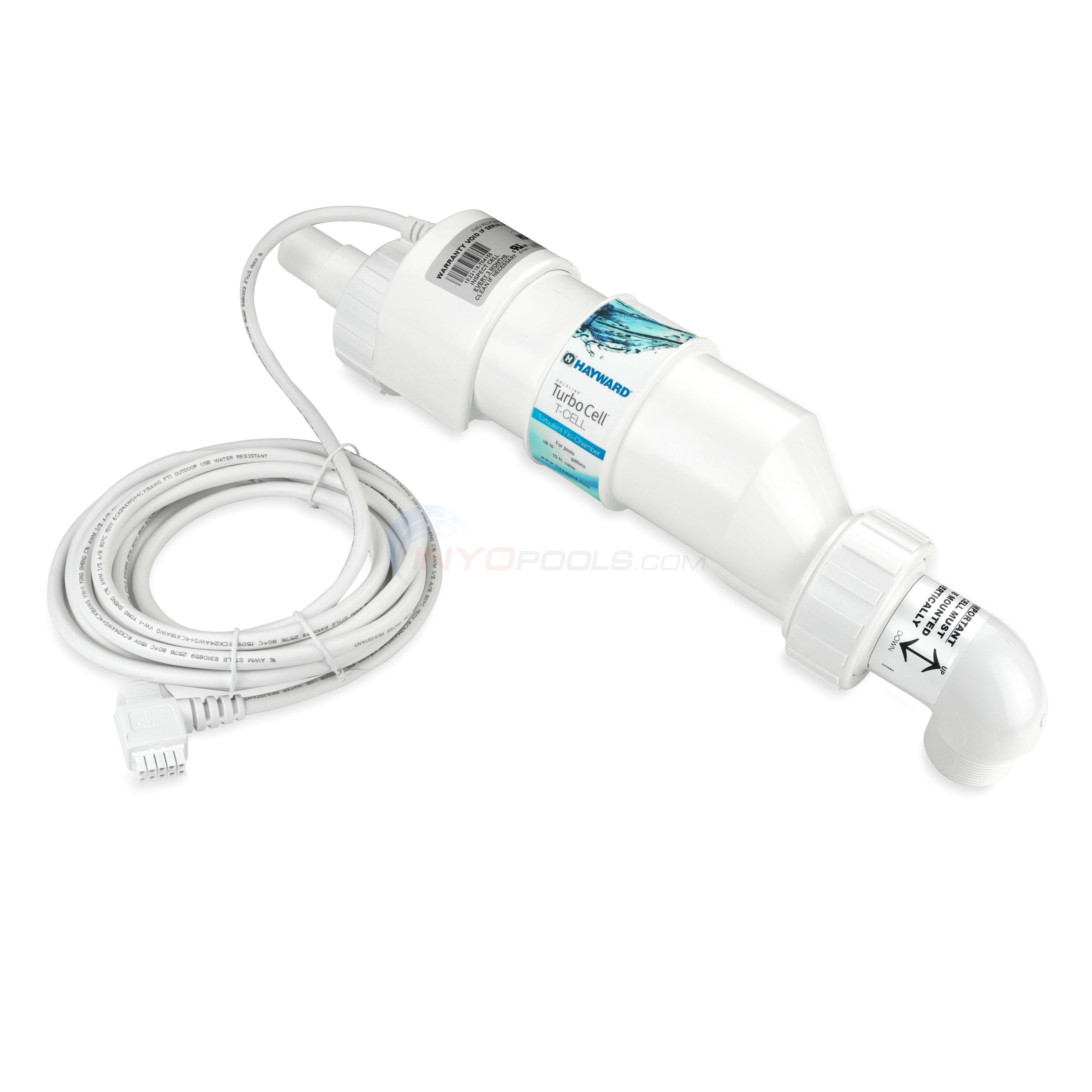

Hayward® AquaTrol® Salt Chlorination System

For Above Ground Pools up to 18,000 Gallons

The Hayward® AquaTrol® is a plug-and-play salt chlorination system designed specifically for above ground pools. With all the core functions of the AquaRite® system—but tuned for lower chlorine output—the AquaTrol offers reliable, cost-effective sanitation, combined with the convenience of a built-in timer and pump control.

Key Benefits: Crystal Clear Water

  • Generates pure chlorine automatically and evenly disperses through return jets

  • Eliminates algae and bacteria before they can grow

  • Maintains consistent chlorine levels without harsh odors or eye irritation

Soft, Silky Water

  • No more itchy skin, red eyes, or bleached swimsuits

  • Gentle on hair, skin, and pool liners

  • Transforms pool water to feel smooth and comfortable

Smart Pump Control

  • Integrated time clock automates pool filtration pump run times

  • Prevents energy waste from 24-hour pump operation

  • Controls filtration and chlorination in one compact system

Cost Savings

  • Pays for itself in as little as 2–3 swim seasons

  • No more need for chlorine tablets, powders, or liquid

  • Reduces algaecide and specialty chemical use

  • Minimizes wear on liners and suits from chlorine swings

Specifications:

  • Pool Size: Up to 18,000 gallons

  • Chlorinator Type: Saltwater (Electronic Chlorine Generator)

  • Voltage: Plug-in 120V with integrated pump timer

  • Installation:

    • For 2″ rigid PVC

    • 1½″ – 1¼″ flexible hose adapters included

  • Installation Time: Typically under 30 minutes

  • Warranty: 1-Year Limited (Parts Only)

What’s Included:

  • AquaTrol control unit with integrated timer

  • Salt cell

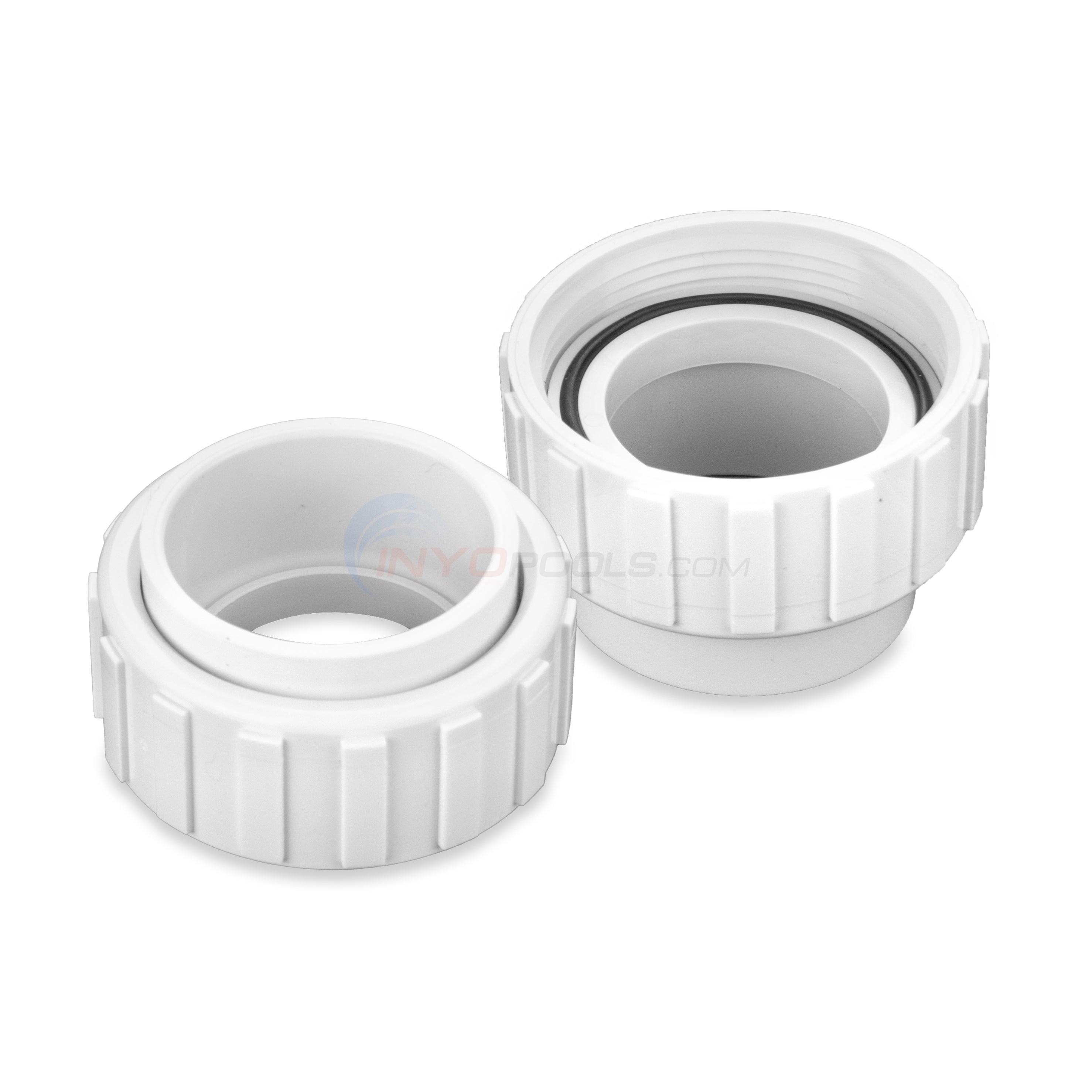

  • Hose adapters and fittings for flexible or PVC plumbing

  • Power cord with built-in outlet for pump control

Enjoy crystal-clear, silky-soft water with a system that runs your pool—whether you're home or away. The Hayward AquaTrol® makes saltwater simplicity affordable and easy for every above ground pool owner.

Click here for more Aquarite Chlorine Generator

Product Specifications

Fittings:
Jet
Plug Type:
Twist Lock
Manufacturer:
Hayward (Goldline)
Gallons:
Up to 18,000 gal.
Pool Type:
Above Ground
Warranty:
1-Year Parts-Only Warranty
Top

?     Asked on 4/6/2008by Guest

What is the difference between the Aqua Trol HP and RJ?
 Reply

A  Answered on 4/6/2008 by InyoPools Product Specialist Patrick P.

The HP (Hose Pipe) version is installed in the hoses/pipes next to your pool filter, where the RJ (Return Jet) version the cell is mounted directly to the return jet on the side of your pool. Both units work exactly the same but you would need to determine which one would be easier to install from a plumbing stand point. You may view or purchase any of the Aqua Trol units through this link http://www.inyopools.com/sanitizers_aquatrol.aspx
 Reply


?     Asked on 5/10/2008by Guest

I see you have a couple salt chlorine generators for above ground pools. Can you tell me what you would recommend and why?
 Reply

A  Answered on 5/10/2008 by InyoPools Product Specialist Patrick P.

I would suggest the AquaTrol Salt Chlorine Generator as it is much higher quality product than the ChlorEase. The AquaTrol has much more titanium coating on the blades of the salt cell which makes the salt cell last much longer, so you should get about 4-6 years out of the salt cell on the AquaTrol. The AquaTrol comes in several models first you can get in an HP model which would be installed in the plumbing next to your pool pump or you can get it in an RJ model which would hook up directly to the return jet on your pool (Both models perform identically, you would just need to choose the one that would work best for your application - the RJ is quite a bit less and operates the same) Lastly the AquaTrol is available with a standard 3 prong plug or a Twist Lock depending on the electrical receptacle you have available to you. You may view or purchase any of the AquaTrols here http://www.inyopools.com/sanitizers_aquatrol.aspx
 Reply


?     Asked on 5/22/2010by Guest

I am confused. The photos all show the generator and the turbo cell as a package. Does the turbo cell come WITH the generator or is this the price of JUST the generator and then you purchase the turbo cell separately? Thanks
 Reply

A  Answered on 5/22/2010 by InyoPools Product Specialist Patrick P.

This price is for the complete AquaTrol with Power Supply and Turbo Cell.
 Reply


?     Asked on 4/25/2013by Guest

Does the Hayward AQTROLRJTL come with a flow sensor?
 Reply

A  Answered on 4/25/2013 by InyoPools Product Specialist Patrick P.

No, the Hayward AQTROLRJTL does not come with a flow sensor. The flow sensor is not required with this model.
 Reply


?     Asked on 4/30/2013by Guest

I received the AquaTrol RJ Chlorine Generator but there is no flow switch. Is there supposed to be one?
 Reply

A  Answered on 4/30/2013 by InyoPools Product Specialist Patrick P.

According to the AQTROLRJ AquaTrol RJ Chlorine Generator owner's manual, return jet units (-RJ option) will NOT have a flow switch.  The manual further states that the RJ installation "does NOT require a flow switch--however it is very important that the cell be mounted vertically directly below the return jet in order to allow the gases produced in the cell to naturally dissipate in the pool."
 Reply
