By Hayward Pool Products



Part # SP0600U

Dimensions 11-1/4" X 9-7/8"

Alternate Part #'s 163606, HAY-30-680, HAYSP0600U

Product Description

Hayward Expert Line of products are available exclusively for purchase by brick and mortar dealers

Unlike metallic niches, DuraNiche niches are injection-molded of PVC for superior performance, non-corrosive durability and plumbing versatility - plus the lowest installed cost. The ability to accept PVC over expensive metal conduit enables DuraNiche to offer true bottom line savings in materials, as well as time to install. DuraNiche comes in three models for concrete/gunite pools, vinyl/fiberglass pools, or for concrete/gunite spas. When paired with a Hayward AstroLite or AstroLite ll light fixture, you have the best quality and value in a lighting system available anywhere.


  • Socket conduit connecton designed for quick and simple gluing to PVC pipe. Provides a cleaner, more reliable seal vs. threaded-type connections
  • All SP0600U, and SP0607U niches have a 45 degree 1" outlet, which can be adjusted for top or rear conduit connection using the 45 degree U.L. approved sweep elbow and coupling or Non-U.L. approved spigot elbow.
  • The SP0601U niche has a 1" rear outlet, which can be adjusted to 45°.
  • All 1" outlets can be quickly converted to 3/4" with either a U.L. approved reducing adapter (included)or Non-U.L. approved reducer (included).
  • Easily accessible connections for grounding/bonding.
  • Internally-threaded connection for pressure testing of conduit line.
  • Replaceable mounting brackets (top and bottom) for serviceability.
  • UL Listed for fresh water and complies with N.E.C. (1993).
  • Injection molded PVC fixture housing for corrosion free performance

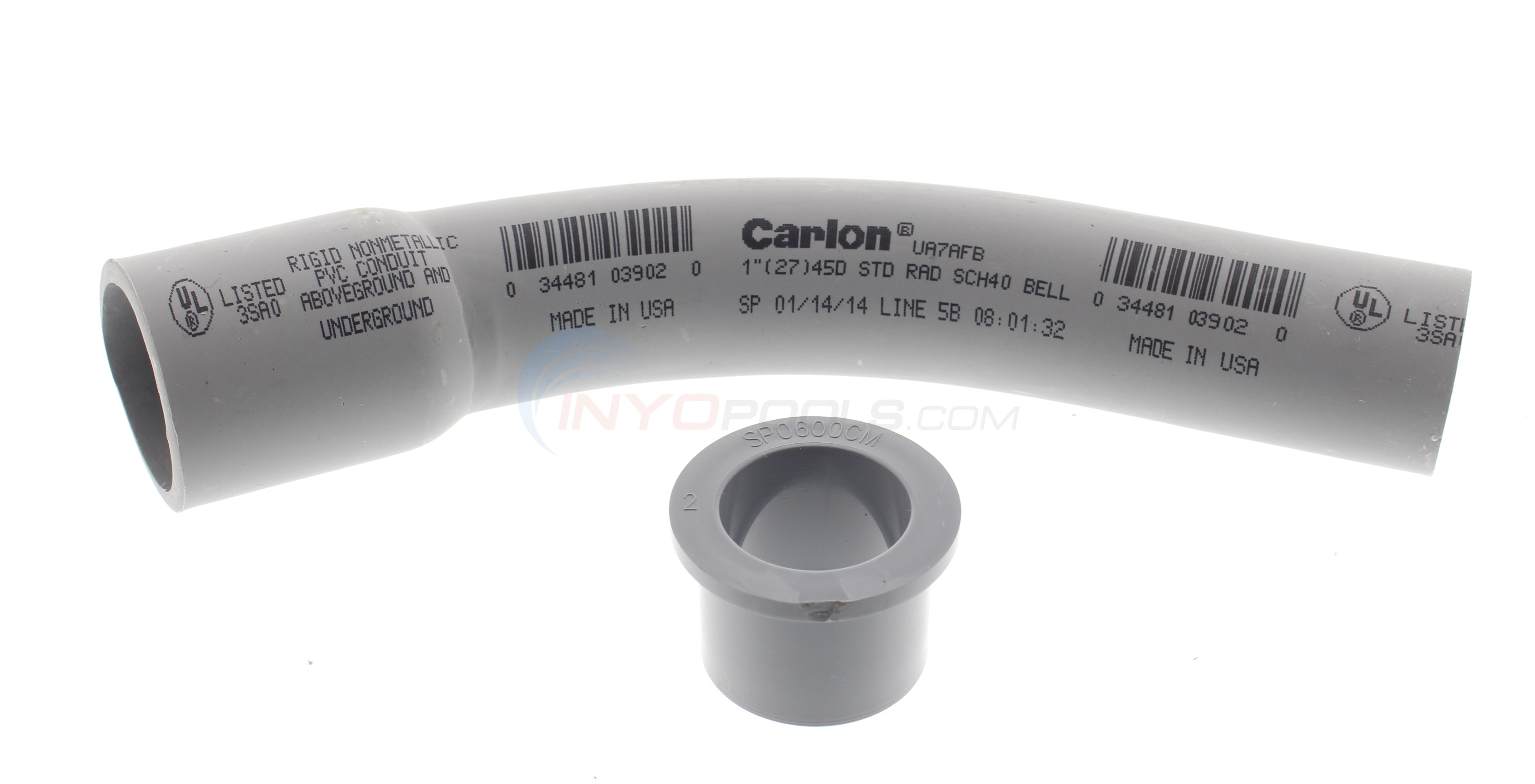

  • New U.L. Approved sweep elbow fitting, coupling and reducer included in SP0600U, SP0601U and SP0607U, meet the highest standard and provide the most convenient installation.

Product Specifications

Pool Type:

?     Asked on 6/11/2006by Guest

Do you carry the wet niche potting kit 2135 to insulate grounding connection?

A  Answered on 6/11/2006 by InyoPools Product Specialist Patrick P.

Yes, we do carry this product which can purchased through the following link: WET NICHE POTTING COMPOUND

?     Asked on 10/8/2013by Guest

What is the difference between a niche and a light?

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

A niche is a housing that is permanently mounted in the pool wall, while the light is a “fixture” that is secured into the niche.

?     Asked on 4/2/2017by Inyo Visitor

I have a hayward ligth and I'm looking for something cheaper to replace it. What did you recommend

A  Answered on 4/6/2017 by InyoPools Product Specialist Lennox H.

Hi, You do not have many options, what kind of light are you looking for (LED or Incandescent)? You can use the Pure Colors LED Pool Light Fixture 12V 30' Cord - PL5820 or PL5823.

?     Asked on 5/8/2017by Jaxson

Hi, I would like to buy this niche to house an underwater speaker. Can you please recommend a face ring, mounting gasket & wire clamp assembly that will fit this niche.

A  Answered on 5/9/2017 by InyoPools Product Specialist Lennox H.

Hi, Jaxson. In order to get you the correct items, we will need to know the model of the speaker that you're installing.

?     Asked on 5/31/2017by Wendy

My pool light keeps coming out and ends up floating in the water, still connected be the wires. Is this an indication that I might need new housing for my light, new light, or are there connectors that might help?

A  Answered on 6/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Wendy. The Pilot Screw may be stripped which can be replaced or the niche mounting tab is broken. A Light Wedge - 132 can be used if the niche mounting tab is the issue.
