By Hayward Pool Products



Model # SP10702

Alternate Part #'s HAY-25-1731, HAYSP10702FLA, SP-1070-2, SP1072T2

Product Description

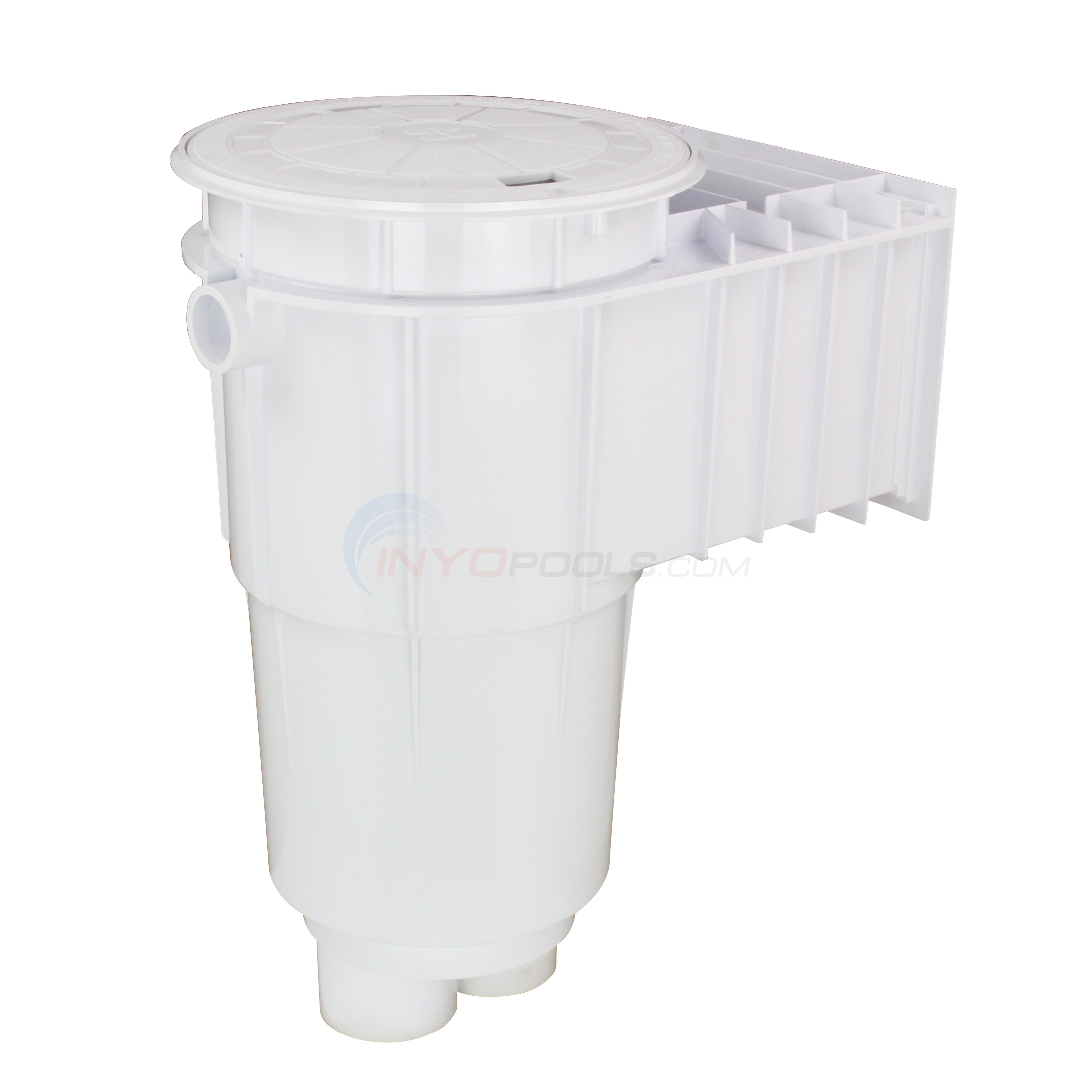

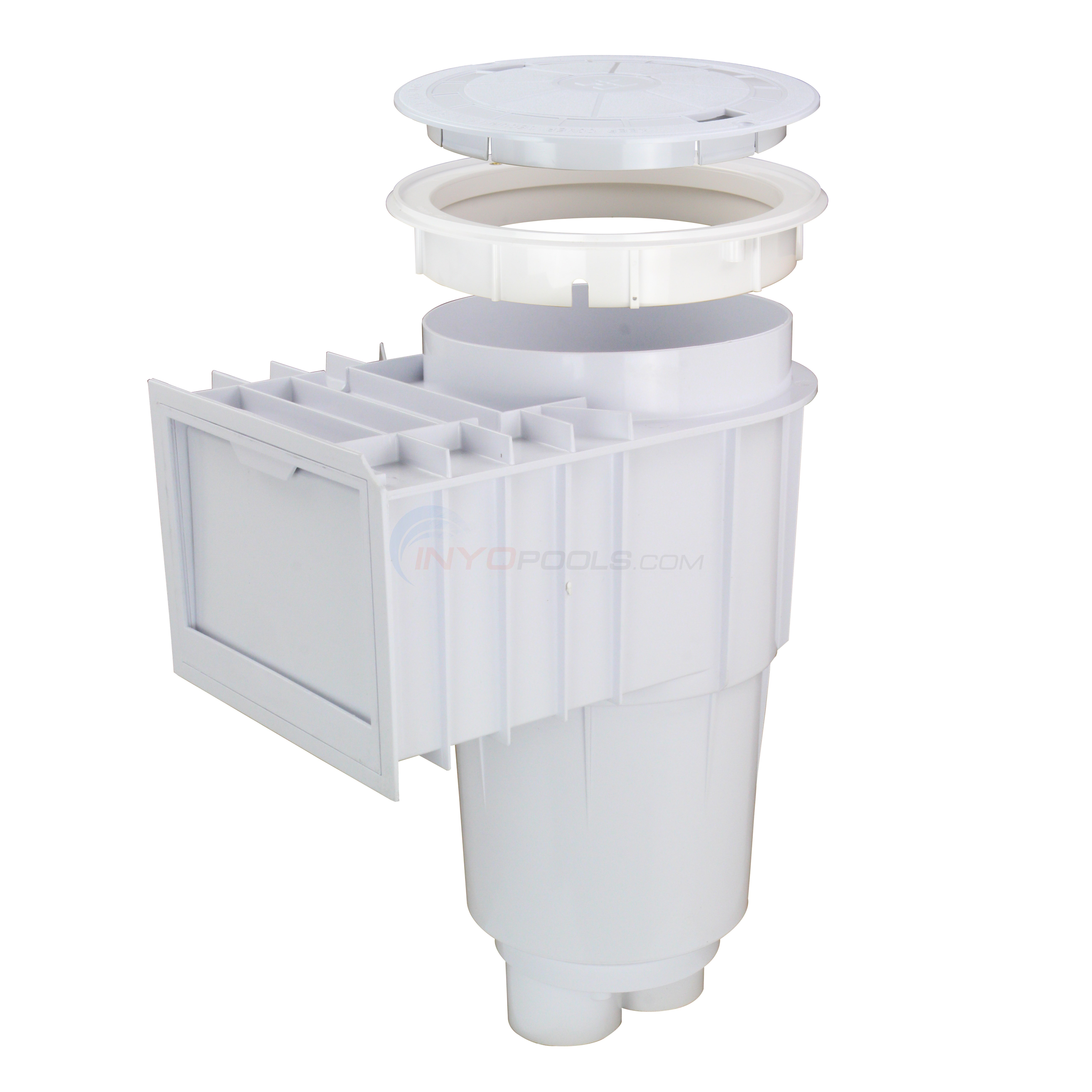

Hayward Skimmer for In-Ground Concrete Pools

The Hayward Skim-Master Skimmer is the standard for the Hayward Concrete Skimmer product line.  This skimmer removes debris such as leafs, bugs and pollen from the surface of your pool. The Skim-Master is a versatile, large capacity, automatic surface skimmer for residential or commercial pools. It features durable corrosion-proof, unibody construction, adjustable deck collar and access cover, self-adjusting 8" weir, large debris basket and multiple plumbing connections for easier installation. Available with Tan collar and cover.


  • Pipe Size: 2" Female
  • Cover: Round
  • Throat Length: 4-1/2"
  • Color: White

Product Specifications

Pool Type:
Port Size:
2 in.
Port Type:
Female Threaded

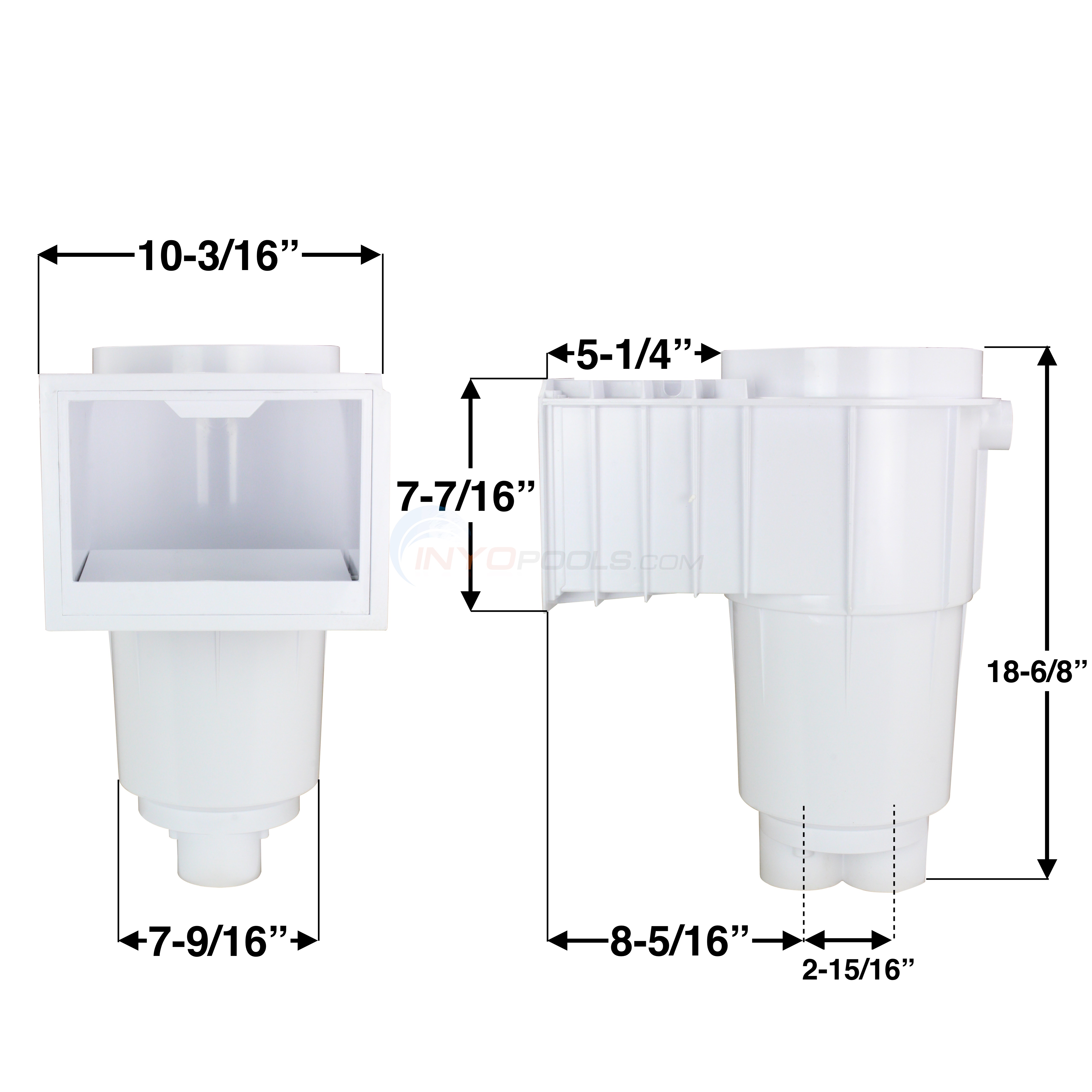

Opening Width:
8 5/8"
Opening Height:
5 1/16"

?     Asked on 7/8/2020by Paul Fava

Building a block pool, inground, will this set up work for me?

A  Answered on 1/12/2021 by InyoPools Product Specialist Megan C.

It really depends on how you will finish the pool, if you finish it with gunite/cement then yes, it could be used for concrete applications. Most of the block pools are using sand packed in with a vinyl pool fit for the block wall. If you use vinyl, the AutoSkim w/ 2-inch Ports Vinyl / Fiberglass - SP1084 is available. Please see How to Choose a Proper Pool Skimmer http://www.inyopools.com/HowToPage/how_to_choose_a_proper_pool_skimmer.aspx

?     Asked on 7/4/2017by Bill Starkey

I have a block wall pool. Do you have a skimmer with a 8" depth?

A  Answered on 8/23/2017 by InyoPools Product Specialist Megan C.

Hello, Bill.I have provided you with a few links you may find helpful. If you have a model number or molded part number off of your existing skimmer lid or body of the skimmer, you should be able to complete a cross-reference for a direct replacement. Admiral S20: file:///C:/Users/inyopools/Downloads/AdmiralS20OM.pdfHayward SP1080-1082: https://www.hayward-pool.com/pdf/manuals/Series-Auto-Skim-SP1080-1082.pdfWaterway Renegade:http://www.waterwayplastics.com/wp-content/uploads/2016_catalog_pdfs/2016-pool_skimmers.pdf

?     Asked on 1/11/2016by Inyo Visitor

does it come with a square cover?

A  Answered on 1/12/2016 by InyoPools Product Specialist Lennox H.

Hi, The Hayward  Auto-Skim Skimmer (SP1082) will be the model with the square cover. This model also has 2" FIP port and is for concrete or gunite surface pools.

?     Asked on 9/23/2014by Guest

What is the throat length of sp10702?

A  Answered on 9/23/2014 by InyoPools Product Specialist Patrick P.

The throat length of sp10702 is going to be 4-1/2".

?     Asked on 6/6/2009by Guest

What is the mouth opening size?

A  Answered on 6/6/2009 by InyoPools Product Specialist Patrick P.

The inside opening of this skimmer is 8 5/8" and the outside measurement of the opening is 10 1/8"
