Product Description

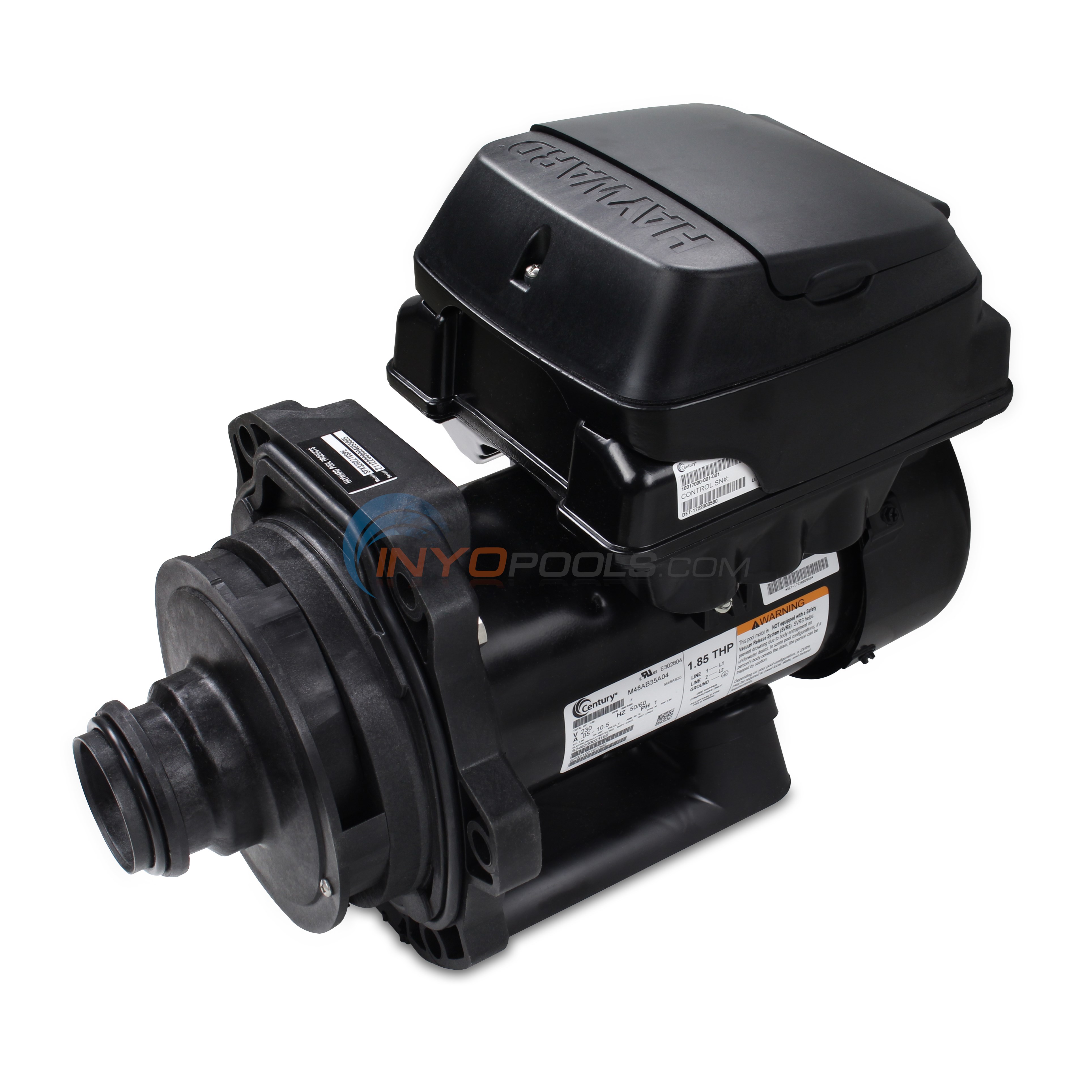

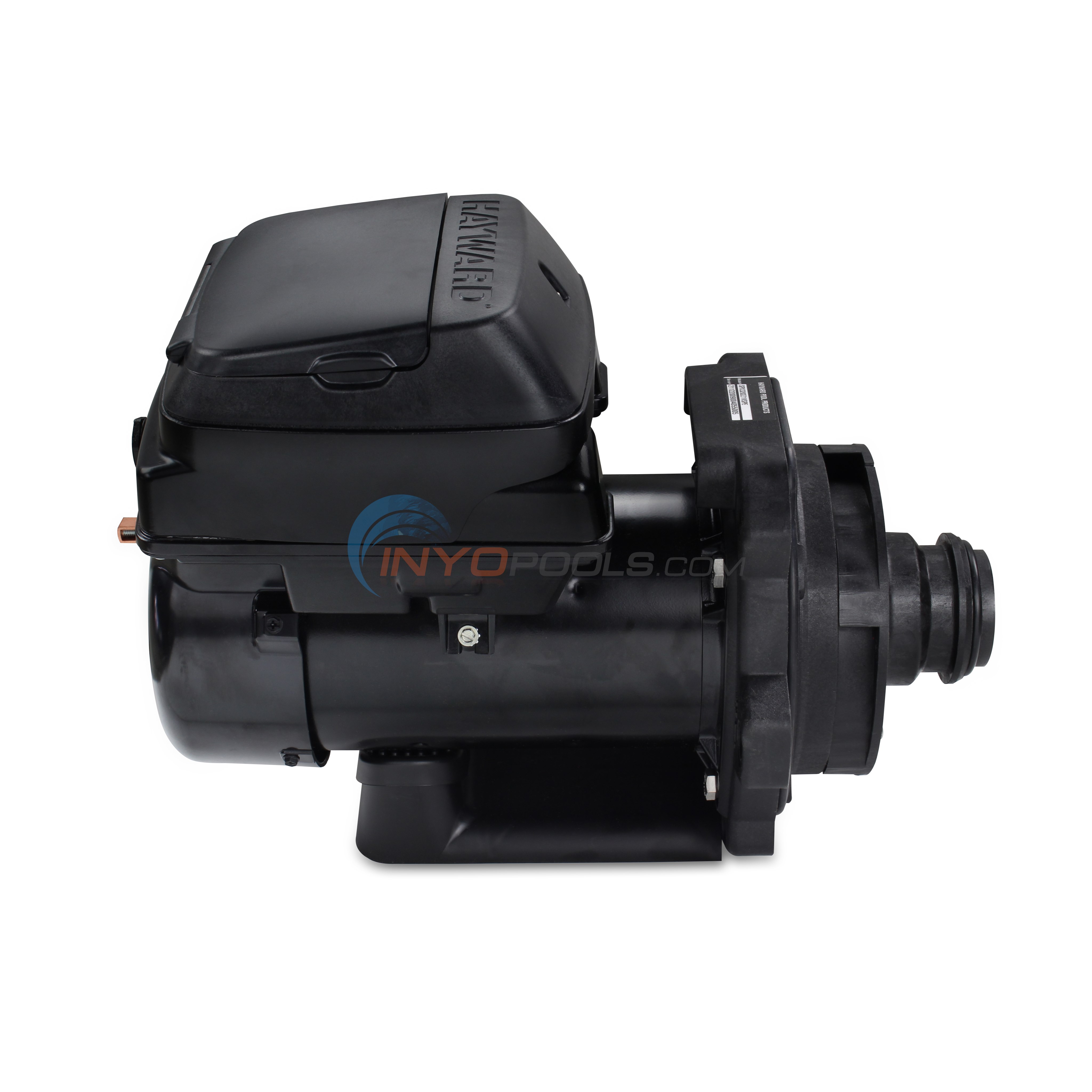

Hayward® TriStar® VS Power End Assembly – SPX3202Z1VSPE

Complete OEM Replacement for SP3200VSP Pumps

This genuine Hayward® Power End Assembly restores full performance to your TriStar® VS variable-speed pump. It includes the motor, drive, and digital display—plus all key internal components required for a seamless drop-in replacement.

✅ What’s Included:

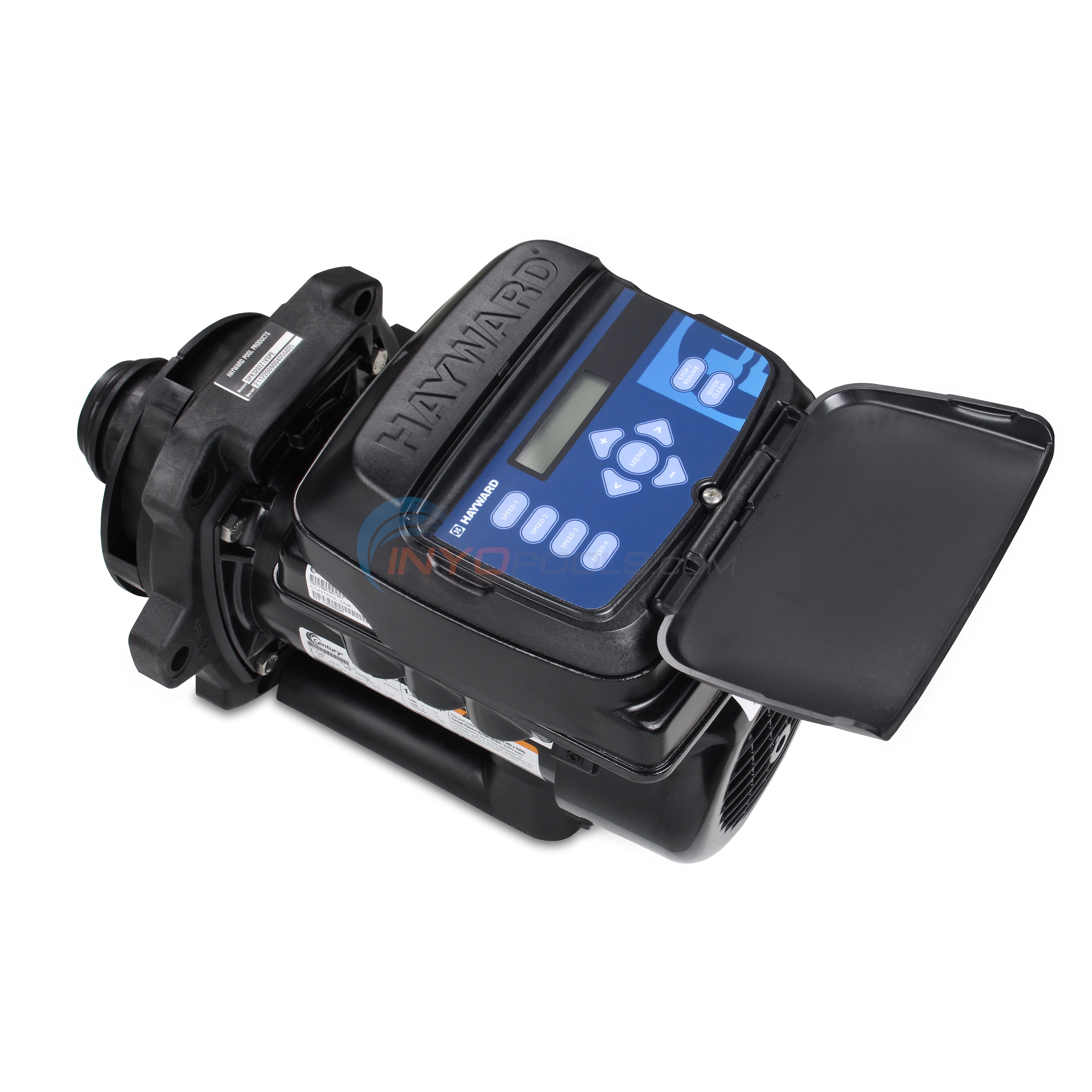

➡️ Motor, Drive & Digital Display (pre-assembled)
➡️ SPX3200Z8 – Diffuser Screw (Qty. 1)
➡️ SPX4000Z1 – Diffuser O-Ring (Qty. 1)
➡️ SPX3200B3 – Diffuser (Qty. 1)
➡️ SPX3200Z1 – Impeller Screw (Qty. 1)
➡️ SPX3021R – Impeller Ring (Qty. 1)
➡️ SPX3210C – Impeller with Screw (Qty. 1)
➡️ SPX3200SA – Shaft Seal Assembly
➡️ SPX3200T – Housing O-Ring (Qty. 1)
➡️ SPX3200E – Seal Plate (Qty. 1)
➡️ SPX3200Z5 – Motor Bolts (Qty. 4)

⚠️ Compatibility

⚠️ Fits Hayward® TriStar® VS Models: SP3200VSP, SP3202VSP
⚠️ Also supports SP3400VSP (EcoStar®) series – check serial for cutoff date
⚠️ Not for models manufactured after January 2019 (Hayward® no longer offers standalone motors for those units)
