Hayward TriStar VS Pump SP3200VSP Series Parts

Models: SP3200VSP, SP3202VSP, SP3200VSPND, SP3202VSPND, W3SP3206VSP, SP3206VSPVR

Hayward TriStar VS Pump SP3200VSP Series Diagram

Click to zoom in

Diagram #	Part Title
*	Hayward TriStar, EcoStar Pool Pump Seal Kit \| By Pureline \| GOKIT80
*	Hayward TriStar, EcoStar Pool Pump Saltwater Seal Kit By \| By Pureline \| GOKIT80SALT
1	Union Connector Kit (Set of 2)
2	Union Gasket
3	Pump Strainer Housing W/ Drain Plugs
4	Strainer Cover Kit (Includes Strainer Cover, Lock Ring, O-ring)
5	Strainer Cover O-ring
6	Strainer Basket
7	Diffuser Screw
8	Diffuser O-ring
9	Diffuser
10	Impeller Screw
11	Impeller Ring
12	Impeller with Impeller Screw
13	Shaft Seal Assembly
14	Housing O-ring
15	Seal Plate
16	Housing Insert/Seal Plate Spacer Kit
17	Housing Bolt
18	Motor Bolt
19	Drain Plug With Gasket
20	Bracket, Motor Support
21	Riser Base (To align TriStar VS with inlet port of Pentair WhisperFlo Pump)
22	Adapter-Motor Support
23	Motor Drive Display Cover (Cover only
*	Digital Control Interface Assembly
*	Wall Mounting Kit
*	TriStar VS Power End with Display

View Parts List

Diagram #	Part Title
*	Hayward TriStar, EcoStar Pool Pump Seal Kit \| By Pureline \| GOKIT80
*	Hayward TriStar, EcoStar Pool Pump Saltwater Seal Kit By \| By Pureline \| GOKIT80SALT
1	Union Connector Kit (Set of 2)
2	Union Gasket
3	Pump Strainer Housing W/ Drain Plugs
4	Strainer Cover Kit (Includes Strainer Cover, Lock Ring, O-ring)
5	Strainer Cover O-ring
6	Strainer Basket
7	Diffuser Screw
8	Diffuser O-ring
9	Diffuser
10	Impeller Screw
11	Impeller Ring
12	Impeller with Impeller Screw
13	Shaft Seal Assembly
14	Housing O-ring
15	Seal Plate
16	Housing Insert/Seal Plate Spacer Kit
17	Housing Bolt
18	Motor Bolt
19	Drain Plug With Gasket
20	Bracket, Motor Support
21	Riser Base (To align TriStar VS with inlet port of Pentair WhisperFlo Pump)
22	Adapter-Motor Support
23	Motor Drive Display Cover (Cover only
*	Digital Control Interface Assembly
*	Wall Mounting Kit
*	TriStar VS Power End with Display

Available Parts:

Hayward TriStar, EcoStar Pool Pump Seal Kit | By Pureline | GOKIT80

Part # GOKIT80

Hayward TriStar, EcoStar Pool Pump Seal Kit | By Pureline | GOKIT80

$52.00 IN STOCK

Qty:

Hayward TriStar, EcoStar Pool Pump Saltwater Seal Kit By | By Pureline | GOKIT80SALT

Part # GOKIT80SALT

Hayward TriStar, EcoStar Pool Pump Saltwater Seal Kit By | By Pureline | GOKIT80SALT

$56.25 IN STOCK

Qty:

Union Connector Kit (Set of 2)

Part # 5112-200 Mfg # SPX3200UNKIT

Union Connector Kit (Set of 2)

$67.29 IN STOCK

Qty:

Union Gasket

Part # 5112-201 Mfg # SPX3200UG

Union Gasket

$21.76 IN STOCK

Qty:

Pump Strainer Housing W/ Drain Plugs

Part # 5112-202 Mfg # SPX3200A

Pump Strainer Housing W/ Drain Plugs

$401.02 IN STOCK

Qty:

Strainer Cover Kit (Includes Strainer Cover, Lock Ring, O-ring)

Part # 5112-203 Mfg # SPX3200DLS

Strainer Cover Kit (Includes Strainer Cover, Lock Ring, O-ring)

$102.66 IN STOCK

Qty:

Strainer Cover Kit (Biguanide Sanitizer Only)

Part # 5112-204 Mfg # SPX3200DLSB

Strainer Cover Kit (Biguanide Sanitizer Only)

$149.26

Strainer Cover O-ring

Part # 5112-205 Mfg # SPX3200S

Strainer Cover O-ring

$7.75 IN STOCK

Qty:

Strainer Basket

Part # 5112-206 Mfg # SPX3200M

Strainer Basket

$28.80 IN STOCK

Qty:

Diffuser Screw

Part # 5112-207 Mfg # SPX3200Z8

Diffuser Screw

$22.37 IN STOCK

Qty:

Diffuser O-ring

Part # 5112-35 Mfg # SPX4000Z1

Diffuser O-ring

$6.70 IN STOCK

Qty:

Diffuser

Part # 5112-208 Mfg # SPX3200B3

Diffuser

$65.01 IN STOCK

Qty:

Impeller Screw

Part # 5112-209 Mfg # SPX3200Z1

Impeller Screw

$15.42 IN STOCK

Qty:

Impeller Ring

Part # 5110-23A Mfg # SPX3021R

Impeller Ring

$11.44 IN STOCK

Qty:

Impeller with Impeller Screw

Part # 5112-81 Mfg # SPX3210C

Impeller with Impeller Screw

$70.73 IN STOCK

Qty:

Shaft Seal Assembly

Part # 5112-216 Mfg # SPX3200SA

Shaft Seal Assembly

$35.73 IN STOCK

Qty:

Housing O-ring

Part # 5112-217 Mfg # SPX3200T

Housing O-ring

$19.38 IN STOCK

Qty:

Seal Plate

Part # 5112-218 Mfg # SPX3200E

Seal Plate

$79.84 IN STOCK

Qty:

Housing Insert/Seal Plate Spacer Kit

Part # 5112-219 Mfg # SPX3200Z211

Housing Insert/Seal Plate Spacer Kit

$43.15 IN STOCK

Qty:

Housing Bolt

Part # 5112-220 Mfg # SPX3200Z3

Housing Bolt

$22.27 IN STOCK

Qty:

Motor Bolt

Part # 5112-221 Mfg # SPX3200Z5PAK4

Motor Bolt

$26.64 IN STOCK

Qty:

Drain Plug With Gasket

Part # 5112-008 Mfg # SPX4000FG

Drain Plug With Gasket

$11.40 IN STOCK

Qty:

Bracket, Motor Support

Part # 5112-222 Mfg # SPX3200GA

Bracket, Motor Support

$76.75 IN STOCK

Qty:

Riser Base (To align TriStar VS with inlet port of Pentair WhisperFlo Pump)

Part # 5112-223 Mfg # SPX3200WF

Riser Base (To align TriStar VS with inlet port of Pentair WhisperFlo Pump)

$73.25

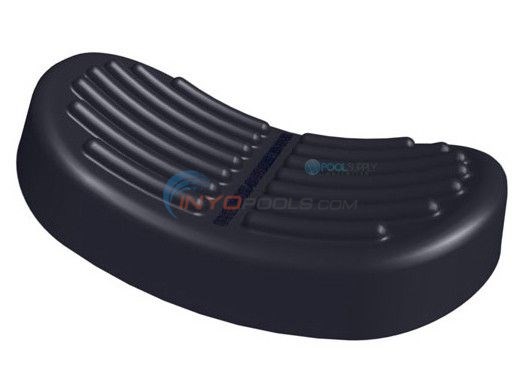

Adapter-Motor Support

Part # SPX3200Q2 Mfg # SPX3200Q2

Adapter-Motor Support

$46.91

Motor Drive Display Cover (Cover only

Part # SPX3400DR4

Motor Drive Display Cover (Cover only

$68.23 IN STOCK

Qty:

Digital Control Interface Assembly

Part # SPX3200LCD Mfg # SPX3200LCD

Digital Control Interface Assembly

$472.00 IN STOCK

Qty:

Wall Mounting Kit

Part # SPX3400DRKIT

Wall Mounting Kit

$163.11 IN STOCK

Qty:

TriStar VS Power End with Display

Part # SPX3202Z1VSPE Mfg # SPX3202Z1VSPE

TriStar VS Power End with Display

$1463.83 IN STOCK

Qty:

* NOT SHOWN
