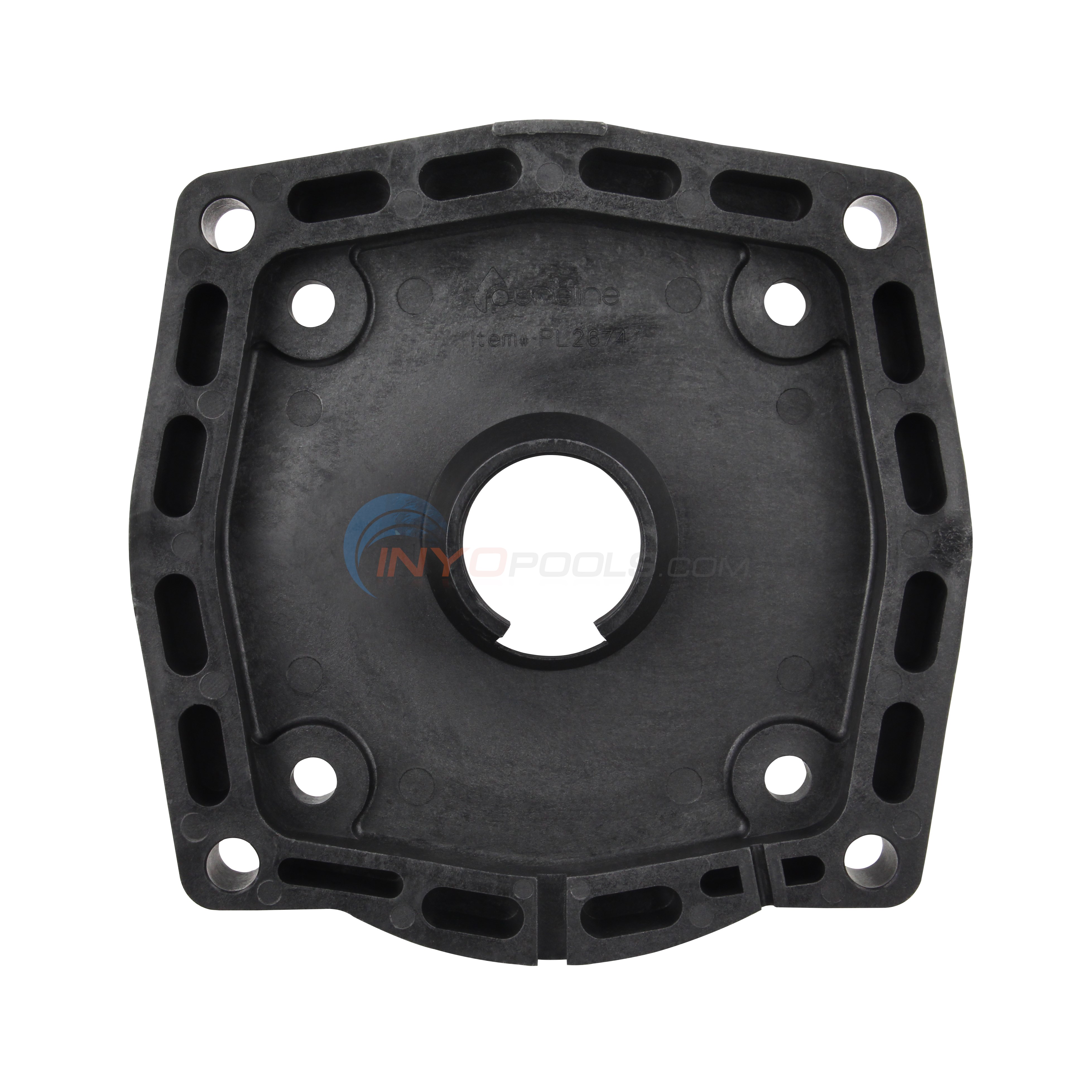

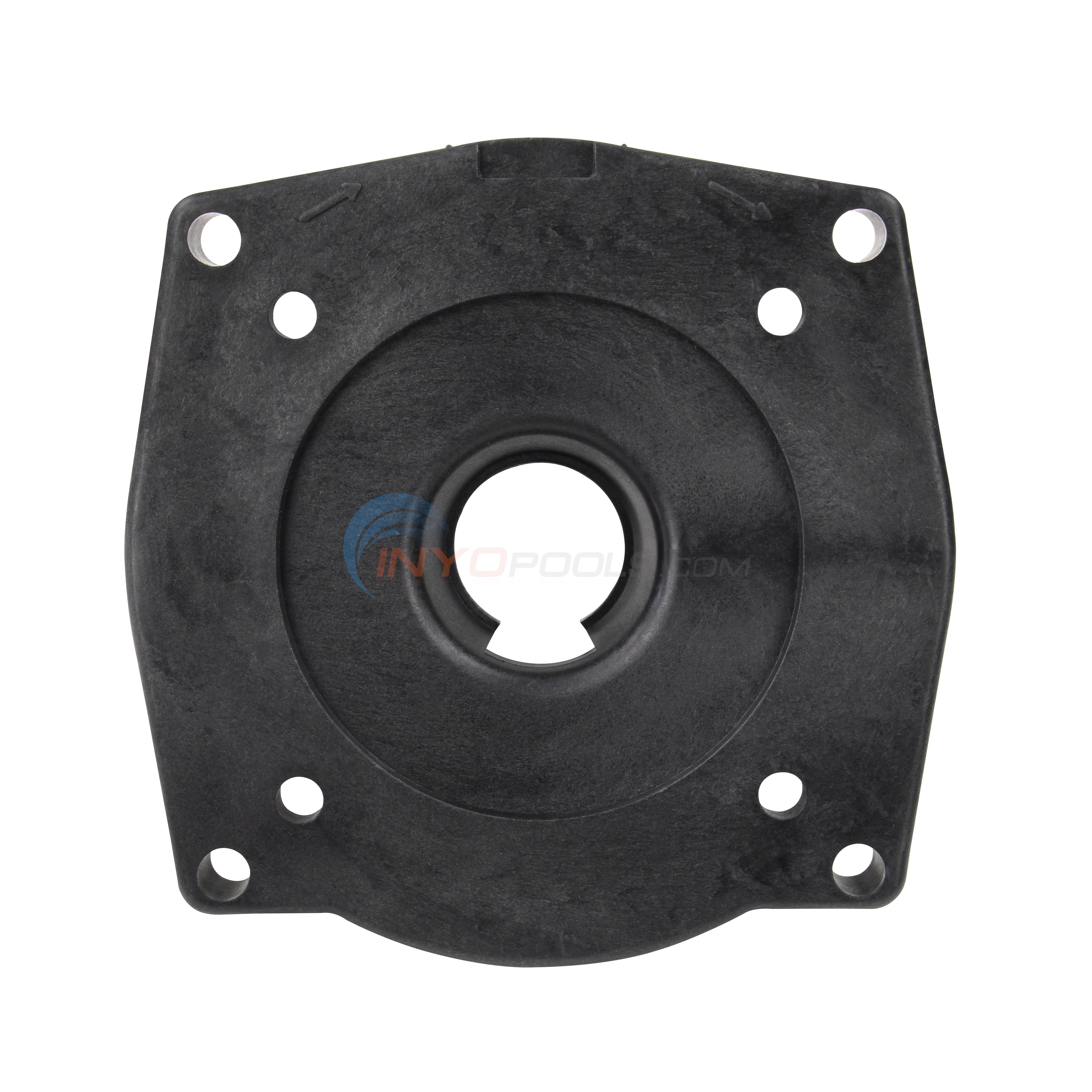

Pureline Generic Super Pump™ Style Motor Mounting Plate - PL2674



Part # PL2674

By PureLine

  4.91 Average



Part # PL2674

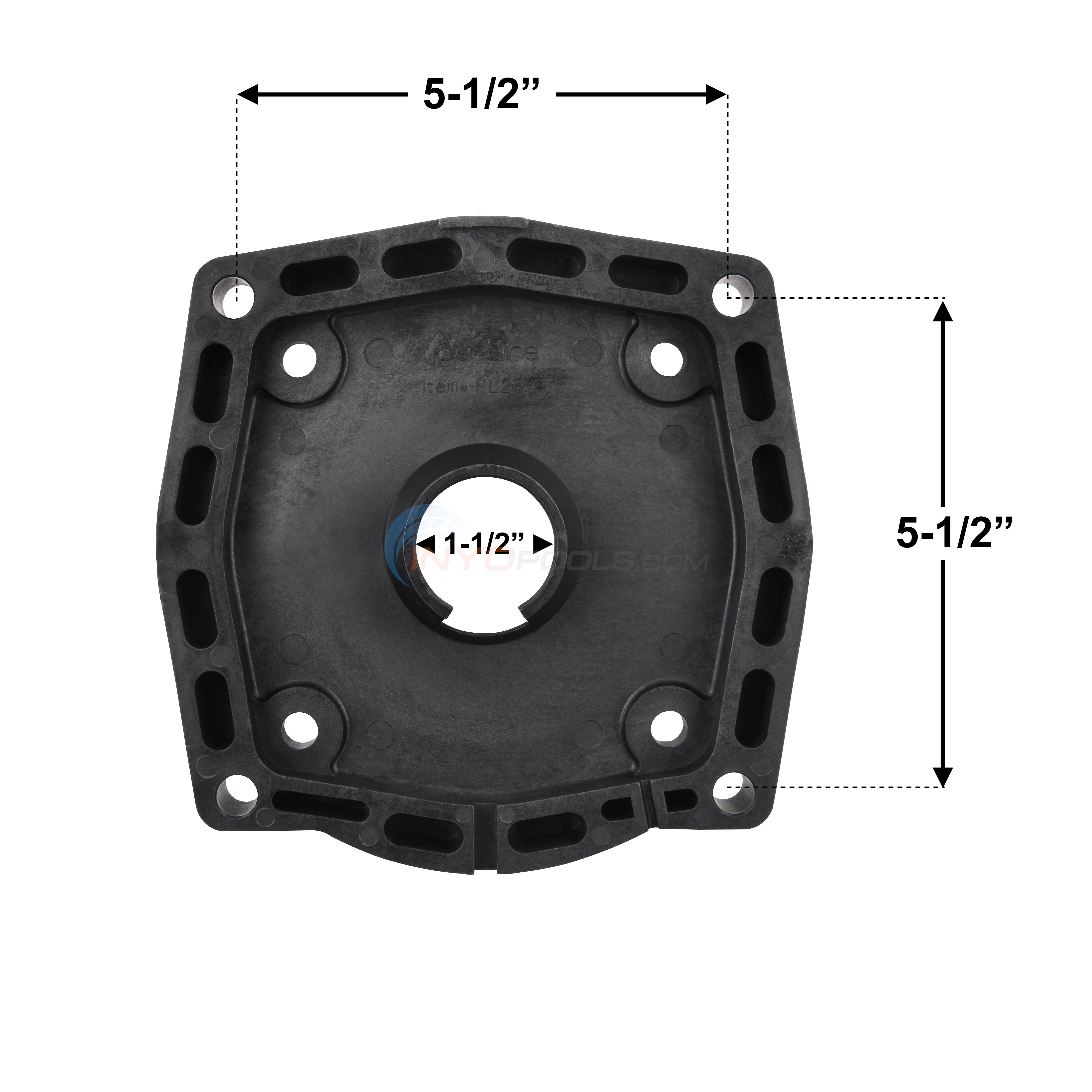

Dimensions 7" L x 7" W x 1" D

Alternate Part #'s 35-150-2033, 6A3036D9261BA7B7, B004VTGQWC, PST-35-150-2033, SPX1600-F5, SPX1600F5

Product Description

This is a Generic Aftermarket Motor Mounting Plate which can be used on the Hayward® Super Pump™ and is not the Hayward® original O.E.M Motor Mounting Plate.

Used on several Hayward® pumps including the Max-Flo™, Super Pump™, Power Flo II™ and Power Flo III™ as well as Leslie's® Hydramax™ pump.

**Housing Gasket not included... Gasket needed is Housing Gasket**

Housing Gasket can also be found in the Gokit3 and Gokit3Salt


All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications


?     Asked on 5/1/2019by del

Hi, I am trying to remove my motor mounting plate so i can put it on my new motor, but i am having difficulty removing one of the bolts, i've tried everything and it wont budge, any recommendations on how to get it out? thank you

A  Answered on 5/2/2019 by InyoPools Product Specialist Steve M.

Del, it is an unfortunate issue to have as there are no real good remedies for this. Our only suggestion would be to get as much leverage as you can on the wrench and really just put as much weight as you can into it. Lubricate any new bolt going into that seal plate.

?     Asked on 6/13/2017by john k

my 1.5 hp motor C48l2n134b3 has the mounting plate welded to motor casing attached to motor with screw holes 5.5" apart what is replacement motor I need

A  Answered on 6/15/2017 by InyoPools Product Specialist Lennox H.

Hi, John K. The replacement motor you'll need is the Century UST1152 Motor.

?     Asked on 5/25/2017by Justin McNamara

Is this compatible with plate SP 1600 F?

A  Answered on 5/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Justin. Yes, this Motor Mounting Plate - SPX1600F5 is compatible with the number you have.

?     Asked on 9/28/2016by Pamela Linhart

Is there a seal or gasket for this item

A  Answered on 9/28/2016 by InyoPools Product Specialist Stacey M.

Hello Pamela, the only seal that goes in around this part is a pump seal which would go in the middle of the motor mounting seal plate.

?     Asked on 7/22/2015by Inyo Visitor

which mountain plate is for the half horse power pump

A  Answered on 7/22/2015 by InyoPools Product Specialist Joe S.

the PART#SPX1600F5 will fit all HP's of the Hayward Max-Flo

?     Asked on 6/7/2015by Tony

I have a Hayward 1HP super pump that is leaking. I took it apart and replaced the diffuser gasket,#SPX1600R,and the housing gasket,#5110-12. After putting it back together, and making sure all bolts were on tight, it still leaked. Is there something else I should do?

A  Answered on 6/7/2015 by InyoPools Product Specialist Megan C.

Hi Tony I would suggest replacing your Hayward Super Pump Shaft Seal as this is a common items which causes leaking.

  • Commented on 6/6/2020 by Product Owner

    Same issue here, and I replaced the pump seal as well. I see a small leak coming from what looks like this piece and the motor connection. Is theirs a part worth replacing before having to buy a new pump?

?     Asked on 3/12/2015by Ralph

The number on my motor mounting plate is spI600f5. Is the spx1600f5 the same?

A  Answered on 3/12/2015 by InyoPools Product Specialist Brian M.

Good morning. I believe the plate you have may read sp1600F5 not spi600fs. Please double check the i or 1, for if it is a 1600 then yes it is the same part. Hayward puts the X in part numbers listed in their catalogs but not on the part itself. A little confusing. If it is an i on the plate, I am not sure. If a question still persists, please take a few pictures of your whole pump and send them to me  and I will see what I can figure out for you.

?     Asked on 12/22/2014by Buzz Adamski

Can I replace a Hayward SP1600F5 mounting plate with a SP1600F? Will the pump work as designed?

A  Answered on 12/22/2014 by InyoPools Product Specialist Robert M.

Hello Buzz - The SP1600F and the SP1600F5 (SPX1600F5) are the same thing. If you order the SP1600F you will receive the SP1600F5 (SPX1600F5).
