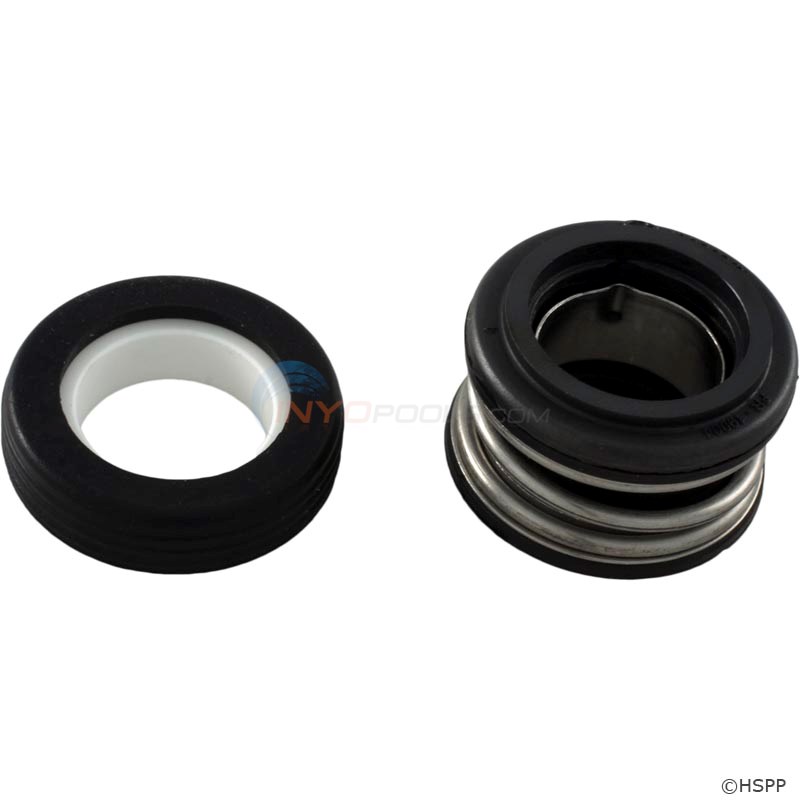

Pump Shaft Seal 3/4" PS-201

$9.99

IN STOCK

Part # 5110-11

  4.84 Average

Details

Top

Part # 5110-11

Manufacturer Code PS-201

Dimensions 0.85" X 1.4"

Alternate Part #'s 01512-30, 0151230, 071728, 10-0477-00-R, 10-0486-00-R, 10-0487-00-R, 10-1390-04-R, 10-1502-09-R, 10139004, 15693, 17351-0101, 31-812, 31812, 320-119, 320119, 344001, 354001, 354231021, 354894, 35B1109, 37400-0026S, 37400-0027S, 37407-0009, 37407-0019, 374070009, 374070019, 3740719, 38592-0, 38592-00, 3859200, 395005, 39500500, 6C-201, 71728, AS-201, AS-851, AS201, P28300, PG-201, PG201, PS201, PSR-972, PUR1013430, SPX1600Z2, SS-1600-Z-2, U109-358, U109-372SS, U9-358, VG-201, VG201, 35-426-1021US, APCAS201, USSPS201

Product Description

This is a replacement pump motor shaft seal that is used on a number of different spa and pool pumps.  Some brands and models include the American Products Americana, Sta-Rite Dura-Glas II and Max-E-Glas II, Jacuzzi Magnum, Pentair / Pac fab Hydropump, and Astral 2000 as well as many others.  A complete list of pumps that use the PS201 seal can be found under the "Parts" tab above.

Frequently Bought with this Shaft Seal

Shaft Seal Lubricant LUBE-PP

Click Here if you would like to purchase the heavy-duty shaft seal. The heavy-duty shaft seal is recommended for saltwater pools but can be used in any application.

  • APPROX 13/16" TALL (NOT COMPRESSED)
  • 3/4" ID
  • 5/16" THICK
  • WHITE PORCELAIN PIECE 1 1/4" OD
  • RUBBER BOOT 1 3/8" OD 5/16" THICK
  • SPRING PIECE 1 3/8" OD
Top

?     Asked on 5/12/2022by Inyo Visitor

I have Hayward SP2600VSP pump and can't figure out the correct shaft seal for it. I bought PS-3868, the ceramic side fits but spring side doesn't. The impeller has a stepped shaft that is 3/4" then steps up to about 1", so the new seal cannot get over that step. I think the correct spring side of the seal needs to be 3/4" on the end facing the ceramic and and 1" on the impeller end, seems like that is what the original OEM one is. Do you know what is the correct seal part number?
 Reply

A  Answered on 5/12/2022 by InyoPools Product Specialist Craig C.

Hello.  The Hayward Pump Shaft Seal (OEM) - SPX1600Z2 is the shaft seal for the Hayward Super Pump VS model SP2600VSP.  The PS-3868 is the U. S. Seal Manufacturing compatible shaft seal.  At times, during the removal process, the spring side of the shaft seal comes apart and is not completely removed from the impeller. The spring side metal insert and rubber ring are mistakenly left behind.   Attached please find Impeller 2.5 THP (2HP Full)- SPX1621C product details.  Please scroll through the photos until viewing the reverse side.  The impeller stem should be "clean" from the impeller to the threads prior to the new shaft seal being installed.
 Reply


?     Asked on 12/28/2021by Tom Scott

Will the Pump Shaft seal 3/4" PS-201 fit my Hayward pool pump SP3015X202AZ?
 Reply

A  Answered on 12/29/2021 by InyoPools Product Specialist Rich N.

Hi Tom, the Pump Shaft Seal 3/4" PS-201 will be perfect for your Hayward Super II Pump 2 HP Dual Speed - SP3015X202AZ.  We would recommend the Heavy Duty Saltwater Pump Seal PS3868 if you have a saltwater pool. For a few dollars more you can get the Freshwater Tune-Up Kit or the Saltwater Tune-Up Kit which contains the motor shaft seal as well as new o-rings to replace the ones you will encounter when replacing the motor shaft seal and some lubricant to help the o-rings do their job and last a long time.
 Reply


?     Asked on 10/17/2021by Narciso Rodriguez

I'm looking for a pump shaft seal for my Hayward super pump SP-1610-Z1-M. Is this the right one? Thank you.

 Reply

A  Answered on 10/18/2021 by InyoPools Product Specialist Stephen B.

Thank you for contacting Inyo Pools, Pump Shaft Seal 3/4" PS-201 and if you have a salt pool Pump Seal 201, Extra Heavy Duty PS3868 (Saltwater Pools) - PS-386 are the right seals for your Super pump.
 Reply


?     Asked on 9/17/2021by Greg W

I ordered a seal for my polaris PB4-60 and was sent a p1000 seal which is too big. Is this the correct seal? Thanks
 Reply

A  Answered on 9/17/2021 by InyoPools Product Specialist Craig C.

Hello Greg.  The Polaris Booster Pump PB4-60 Shaft Seal (2011-Current) is the R0445500.  Pump Shaft Seal 3/4" - R0445500  Generic (2011-Current) is the PS201.   Pump Shaft Seal 3/4" PS-201   The Generic Polaris Booster Pump PB4-60 Shaft Seal (1994-2011) is the PS1000.  Attached please find an exploded parts diagram for the Polaris Booster Pump PB4-60 for the years 2011- Current.  Please compare the volute (wet end), Key 5, to your booster pump and confirm a match. Polaris Booster Pump PB4-60 (2011-Current) Note the ridges that extend from the center are curved.  In the model years 1994-2011, they are straight.
 Reply


?     Asked on 8/4/2021by Christopher Padgett

I have the attached pool pump and motor in it. What shaft seal and bearings would I need to buy to replace?

 Reply

A  Answered on 8/4/2021 by InyoPools Product Specialist Craig C.

Hello Christopher.  The correct shaft seal for your Hayward Products Pool Pump model SP2610X15 is part number 5110-11.  Pump Shaft Seal 3/4" PS-201  The motor bearings for the Century Motors model B129 are 1 each of the following: OSE BRG 10000353 and SE BRG 10000445.    Bearing, 203 (Single) - 62032RS       Bearing, 304 Ntn-6304-ll (6304)
 Reply


?     Asked on 6/28/2021by Inyo Visitor

I have a Hayward super Pump 2 HP SP2615x20 and just did a replacement motor kit AO Smith UST1202. Is the PS-201 Motor seal or SPX1600Z2 the correct shaft seal for this unit? Thanks
 Reply

A  Answered on 6/28/2021 by InyoPools Product Specialist Patrick P.

Yes, the PS-201 is the correct replacement shaft seal for your Hayward Super Pump.
 Reply


?     Asked on 5/29/2021by Brian Murphy

Looking to replace my Hayward Northstar motor 193221 and found the correct replacement, but not sure which shaft seal to get. The pool was built around 2003 and cannot find any part number on housing. Which seal should I use or how do I figure it out?
 Reply

A  Answered on 5/29/2021 by InyoPools Product Specialist Danny R.

Here is the link to the parts breakdown for the Hayward Northstar...Hayward NorthStar SP4000 Series PumpAssuming your pump is from 2003 or after here is the link to the correct shaft seal.Pump Shaft Seal, 5/8", Viton - PS-3890
 Reply


?     Asked on 5/25/2021by Roy Teske

What is the right seal for a Hayward Super Pump Model number SP1610Z1MBK. Thanks
 Reply

A  Answered on 5/25/2021 by InyoPools Product Specialist Danny R.

Here is the link to the Shaft Seal for the Hayward Super Pump...Pump Shaft Seal 3/4" PS-201
 Reply


?     Asked on 5/20/2021by Thomas R. Savino

what orientation does the spring and ceramic seal need to be on the impeller
 Reply

A  Answered on 5/20/2021 by InyoPools Product Specialist Patrick P.

Hi Tom, Please click this link to Watch our Video on Which Orientation Does My Pool Shaft Seal Go and it will explain in depth.
 Reply


?     Asked on 11/12/2020by Inyo Visitor

will this fit a 1993 Hayward SP3520 motor housing?
 Reply

A  Answered on 11/13/2020 by InyoPools Product Specialist Hector F.

Hello, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply


?     Asked on 8/27/2020by Inyo Visitor

Will the ps-201 fit the HAYWARD SP2610X15
 Reply

A  Answered on 8/27/2020 by InyoPools Product Specialist Lennox H.

Hi. Yes, it will.
 Reply


?     Asked on 8/5/2020by Michael Paul

how to install 1-as-1521 pump seal
 Reply

A  Answered on 1/6/2021 by InyoPools Product Specialist Eric J.

Hello, We have a link Here on how to install a shaft seal that should help you with this process
 Reply


?     Asked on 7/16/2020by James Nomides

Is this the right seal kit for motor BN35V1?
 Reply

A  Answered on 11/17/2020 by InyoPools Product Specialist Hector F.

Hi James, for us to suggest the proper seal kit could you send a photo of a wide shot of your complete pool pump to show the pipes going in and out of the pump? To supply this photo simply click the reply link below and upload your photo. Once we get this photo we can make the proper recommendation for the seal kit.
 Reply


?     Asked on 6/23/2020by Brian Messner

Is this the right seal kit for a Hayward model SP2607X10 PUMP?
 Reply

A  Answered on 11/11/2020 by InyoPools Product Specialist Hector F.

Hi Brian, yes this is the correct shaft seal for the Hayward Super Pump model SP2607X10. If you need the complete seal kit that will be the GOKIT3 in a chlorine swimming pool and the GOKIT3SALT for a saltwater pool.
 Reply


?     Asked on 6/6/2020by kris

will this work with a UST1102?
 Reply

A  Answered on 6/9/2020 by InyoPools Product Specialist Hector F.

The seal kit is actually not dependant on the motor model but is based on the front pump wet end housing model that the motor is attached to.
 Reply


?     Asked on 5/30/2020by david thomas weis

is the seal hard to install
 Reply

A  Answered on 5/30/2020 by InyoPools Product Specialist Hector F.

I would rate this at approximately a 6 out of 10 in difficulty. I would advise to check out one of our how-to guide videos as they may further assist.
 Reply


?     Asked on 4/25/2020by Thomas Nguyen

Hi, I need the pump seal for my STA-RITE Model No. P6EA6F-206L. Will this part (5110-11) fit?
 Reply

A  Answered on 4/25/2020 by InyoPools Product Specialist Patrick P.

Hi Thomas, Yes this is the proper shaft seal for the Sta Rite Max E Pro 6EA6F-206L
 Reply


?     Asked on 8/5/2019by Inyo Visitor

Is this the correct seal for a salt water pool?
 Reply

A  Answered on 8/5/2019 by InyoPools Product Specialist Lennox H.

Hi. The saltwater version to this PS-201 seal is P/N PS-3868.
 Reply


?     Asked on 8/27/2018by Norman

Hello. Will this seal work on a Hayward Superpump?
 Reply

A  Answered on 8/27/2018 by InyoPools Product Specialist Lennox H.

Hi, Norman. Yes, this Generic 201 Pump Shaft Seal will fit the Hayward Super Pump.
 Reply


?     Asked on 8/24/2018by Inyo Visitor

Can you please confirm if this will fit on a RS1500?
 Reply

A  Answered on 8/24/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Shaft Seal 201 will fit the RS1500 model pump.
 Reply


?     Asked on 8/15/2017by Tom Savino

What direction do you place the spring seal on the impeller
 Reply

A  Answered on 8/15/2017 by InyoPools Product Specialist Lennox H.

Hi, Tom. The pump is to be installed with the ceramic side touching each other as shown in our How To Replace a Pool Motor Shaft Seal guide.
 Reply


?     Asked on 6/21/2017by Ray Hoerig

I have the RS1000 will this fit
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Hector F.

Yes, this seal will work for your model pump.
 Reply


?     Asked on 6/6/2016by Shelby

Do the same shaft seals fit all Hayward pumps? Mine is a Hayward 1 hp pump. thanks shelby
 Reply

A  Answered on 6/7/2016 by InyoPools Product Specialist Brian M.

Hello. The shaft seal PS-201 does not fit all Hayward Pumps. It is specific for the Max-Flo, the Super Pump and the Super 2 , of the Hayward line. The shaft seal is determined by the specific pump housing it is going into. Please check this CHART to see which seal goes with the Hayward Pump Model you have.
 Reply


?     Asked on 1/25/2012by Guest

How do I change the shaft seal on my pool pump?
 Reply

A  Answered on 1/25/2012 by InyoPools Product Specialist Patrick P.

Changing the shaft seal is quite simple. Here's How To Replace a Pool Motor Shaft Seal.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Socket Set

Leak

Written on 3/22/2020 by Guest

Broke the original seal, (did not read directions, imagine that???). Pulled up your video, then it became exceptionally easy to replace.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

None

Replacing motor

Written on 3/22/2020 by Guest

This is a must for installing a new motor. Make sure to handle it will care. Don't touch the ceramic with your dirty fingers. I use the paper that comes in the box to handle and press it into the motor cover.
Keep it clean!

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Socket Set

Regular Maintenance

Written on 4/1/2019 by Greg L.

I like to change my seal about every other year just so it won't go out on me unexpectedly.

The procedure is quite simple, just remember which way it all came off and follow instructions.

I also like to keep a spare in case something does happen (will save losing the pool).

Were these instructions helpful?
