By Intermatic



Model # PF1103T

Alternate Part #'s _PF1103T, INT-30-742, INTPF1103T

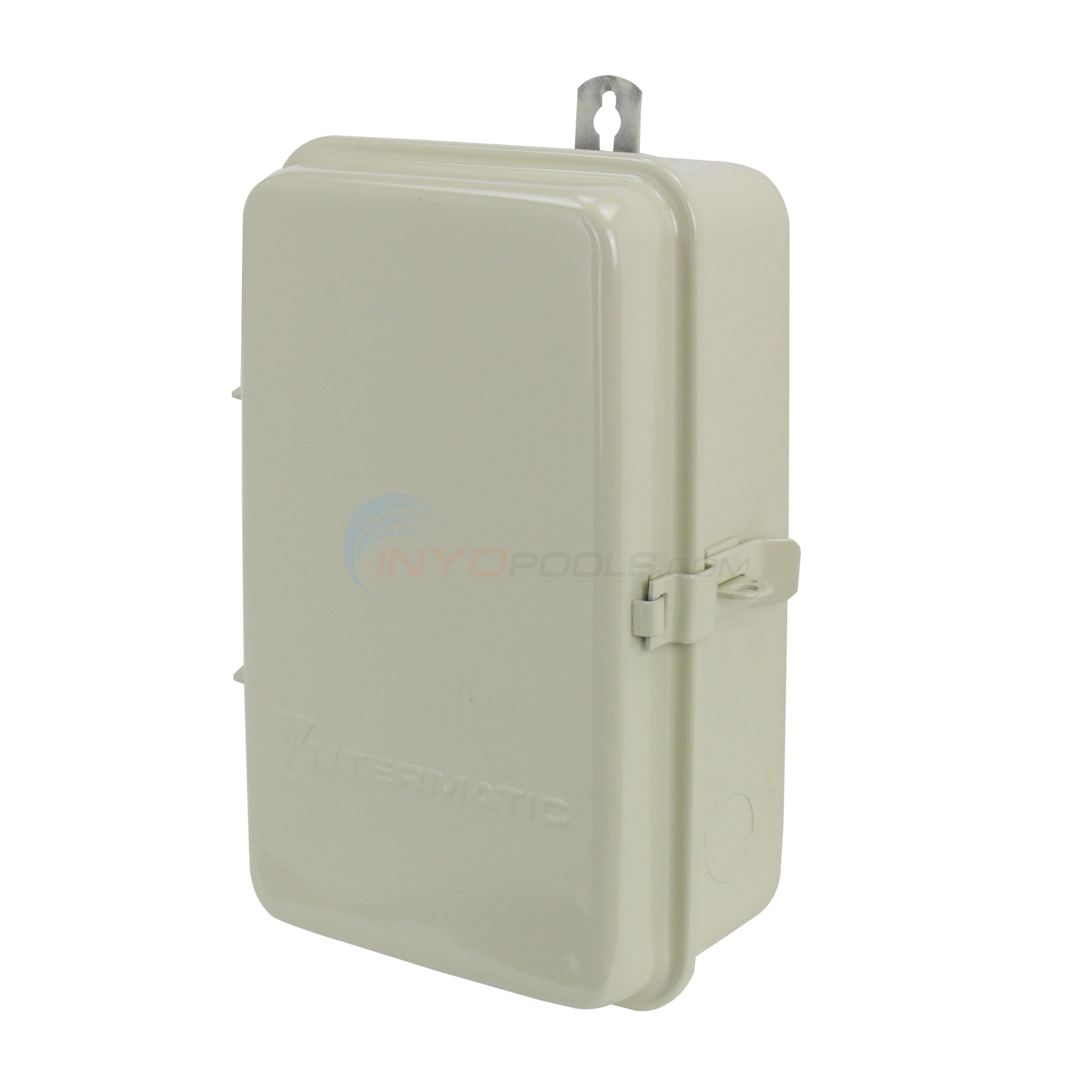

Product Description

Single Circuit Freeze Protections Controls
These Freeze Protection Controls are designed to protect the pool and spa equipment and plumbing against freeze damage. They turn ON the pump and the heater when the outdoor temperature drops below the temperature set by the user adjustable thermostat. Models without timer connect to a timing or switching device and together, they control operation of the equipment as well as protect it against freeze damage. Models with timer provide both automation and protection for the equipment. Please note: For 240v, a neutral must be installed for the PF1103T. If no neutral is available, you would need the PF1102T.<

** PLEASE NOTE: If ordered, this mechanism may come with a mechanical timer, not a digital timer as pictured above. Intermatic has changed back to mechanical timer for these freeze protect mechanisms. Inyo Pools does not guarantee which timer type will be shipped. **
Product Specs

  • Timer with Thermostat
  • 120/240 V Installation
  • 1.5-3 HP Rating
  • 45-degrees to 32-degrees with 5 degree differential
  • Casing is 0.034 inchdrawn steel with electronically coated beige coloring.

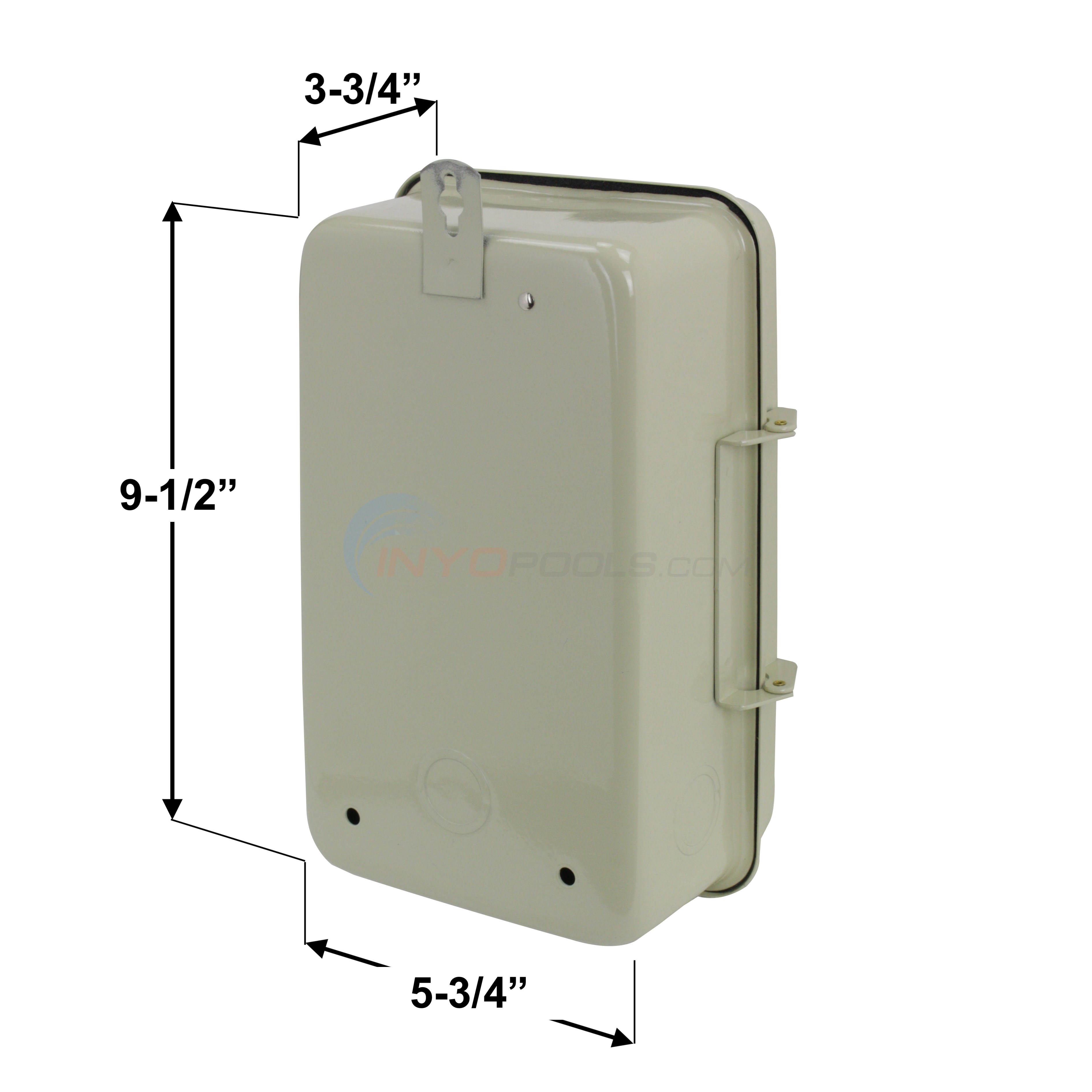

  • Case Dimensions: 9-3/8" High x 5-1/4" Wide x 3-5/8" Deep

• Filter Pumps
• Filter Pump/Booster Pump Combinations
• Waterfalls
• Water Features

Accessories: 156PB10398A Plastic Tripper

Click here for more Intermatic Timers

Product Specifications

120/240 V

?     Asked on 7/3/2007by Guest

I currently have a PF1102T installed, but it needs to be replaced. I'm confused about which specific piece of pool equipment I need to look at to determine whether I can use the PF1103T instead. What confuses me is that while both the 1102 and the 1103 say they can be used for 120/240 v, and while I think I understand having to wire the neutral if I get the 1103, I don't understand the part of the 1103 instructions which say "Both models are designed to operate either on 120 volt or 240 volt, 60

A  Answered on 7/3/2007 by InyoPools Product Specialist Patrick P.

We spoke with our Intermatic sales rep. and he stated that the 1103 model is designed to accomodate 4 wires - 1 Neutral, 2 Hots & 1 Ground and the 1102 is designed to accomodate 3 wires - 2 Hots & 1 Ground. Intermatic stated that you should be able to look at the wires going to your pump or the wires going to your breakers to determin if you have 3 or 4 wires. Thanks!

?     Asked on 8/19/2008by Guest

I am seeking a replacement thermostat only for this model, what is the part #?

A  Answered on 8/19/2008 by InyoPools Product Specialist Patrick P.

The replacement thermostat is the 178T24 which you may view or purchase here http://www.inyopools.com/Products/02400001004524.htm

?     Asked on 1/15/2015by Jim Brown

Can this be used with a 3/4 horse power motor?

A  Answered on 1/16/2015 by InyoPools Product Specialist Robert M.

Hello Jim - You can use a 3/4HP motor with the Intermatic PF1103T.

?     Asked on 2/7/2015by larry howell

I have an PF1103T model thermostatic pool timer and the thermostatic function has stopped working during the cold snaps that we have been having here in south Carolina. But I can turn the knob manually from the 32 degree setting and go upward towards the 35 degree setting and the pool pump will kick on. What do you think is my problem and how to fix it? My timer is only 4 years old.

A  Answered on 2/9/2015 by InyoPools Product Specialist Robert M.

Hello Larry - It sounds like the thermostat may have failed. Part number 178T24 is the replacement thermostat.

?     Asked on 4/30/2016by Craig

Is this unit hard wired to the pump and to the power or is power plugged into an outlet?

A  Answered on 5/3/2016 by InyoPools Product Specialist Lennox H.

Hi Craig, The power has to be hard wired to this timer and also hard wired to the pump.
