$756.01

Qty:

By Pentair Pool Products


Details

Top

Model # EC-160354

Warranty Ecommerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products beginning with EC-) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty.

Alternate Part #'s 160354, CCRP 100, CCRP100, EC160354, PAC-05-0094, PENEC-160354

Product Description

Inyo Recommended Filters

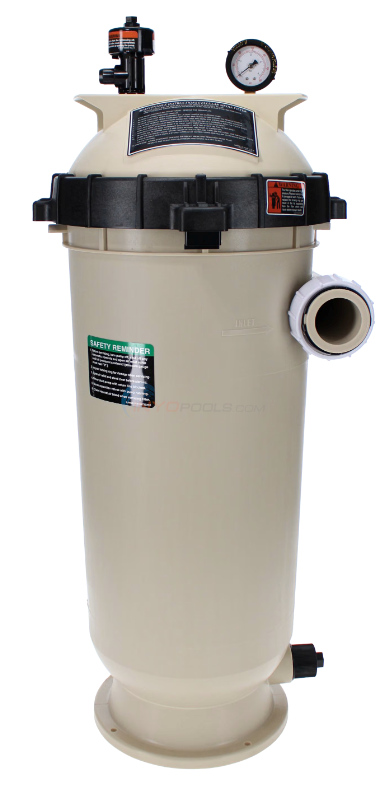

The Clean & Clear® RP Cartridge Filter has a side entry port, which provides nearly 50% more efficiency than any other single cartridge filter available. Inside, the Clear & Clear RP has increased cartridge surface consistency to block and trap particles as small as 20 microns.

FEATURES

  • Nearly 50% more efficient than other single cartridge filters
  • Cartridge is easy to remove and rinse
  • Low-force, quick-connect diamon-seal fastens easily with no tools required
  • Chemical resistant tank body
  • High Flow Manual Air Relief valve and continuous internal air relief
  • 1-1/2 in drain and wash outashourt for quick and convenient maintenance and winterization
  • Easy turn Lock-ring

NOTE: Actual system flow will depend of plumbing size and other system components.

Pentair Pool Products does not recommend flow rates above 150 GPM

Product Specifications

Filtration Area:
100 sq. ft.
Flow Rating:
100 GPM
Port Size:
2 in.
Height:
33 in.
Top

?     Asked on 5/19/2016by Jane leathera

Need to drain water off pool do to excessive rain do you make a hose to fit drain valve?
 Reply

A  Answered on 5/19/2016 by InyoPools Product Specialist Hector F.

These filters have a 1.5 inch drain port that you can thread a water spigot to then attach any standard water hose to for draining. You can get these spigots from any local hardware store.
 Reply


?     Asked on 5/4/2017by Ray

I assume it comes with a filter?
 Reply

A  Answered on 5/4/2017 by InyoPools Product Specialist Lennox H.

Hi, Ray. Yes, the cartridge is included with the filter.
 Reply


?     Asked on 10/4/2017by Ray Hardy

If the center core lifts out when removing the cartridge, is there a particular way it must be reinstalled?
 Reply

A  Answered on 10/4/2017 by InyoPools Product Specialist Lennox H.

Hi, Ray Hardy. The Center Core can only be installed one way. You will have to line up the groves with the grove in the tank body.
 Reply


?     Asked on 5/21/2018by Inyo Visitor

How to drain water from pool through the filter?
 Reply

A  Answered on 5/21/2018 by InyoPools Product Specialist Hector F.

You can install a 1.5-inch spigot on the drain port then attach a water hose so you can drain in when the pump is on. Or you can add a 3-way valve in the plumbing before the filter and attach a backwash hose to that.
 Reply


?     Asked on 6/18/2019by Paul Sames

Is this one good for inground pool 10,000 gallon
 Reply

A  Answered on 6/18/2019 by InyoPools Product Specialist Lennox H.

Hi, Paul. Yes, this filter is good for a 10,000 gallon pool.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Pliers, hacksaw

1     0

Original filter too small

Written on 2/22/2020 by Guest

Shut off pool timer and tripped breaker
Drained water from old smaller filter
Took picture and marked influent & effluent lines
Cut pvc pipe to filter and removed old filter
Placed larger filter into position
Original pvc pipes did not line up
With multiple fitting made corrections to piping
Using 90* sweeps and couplers dry fit all new connections.
Leveled new filter into positions and adjusted piping.
Marked pipes to ensure proper locations prior to using pvc primer & glue.
Made all connections and allowed for glue to set.
Filled new filter and checked for leaks.
Flooded new pipes as well to check for leaks
Installed new cartridge into filter
Replaced filter cover, primed pump
Breaker and time clock on
Released air in filter at vent
Checked for leaks again
New filter system installed and works great.

Were these instructions helpful?


Top

Review Summary

 (Average 5  out of 5 stars)
2 Rating
5 star:

(2)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Recent Reviews
