Pureline 175 Sq. Ft. Replacement Cartridge Compatible with Hayward® C-1750 (PA175) - PL0147



Part # PL0147

By PureLine

  4.58 Average



Part # PL0147

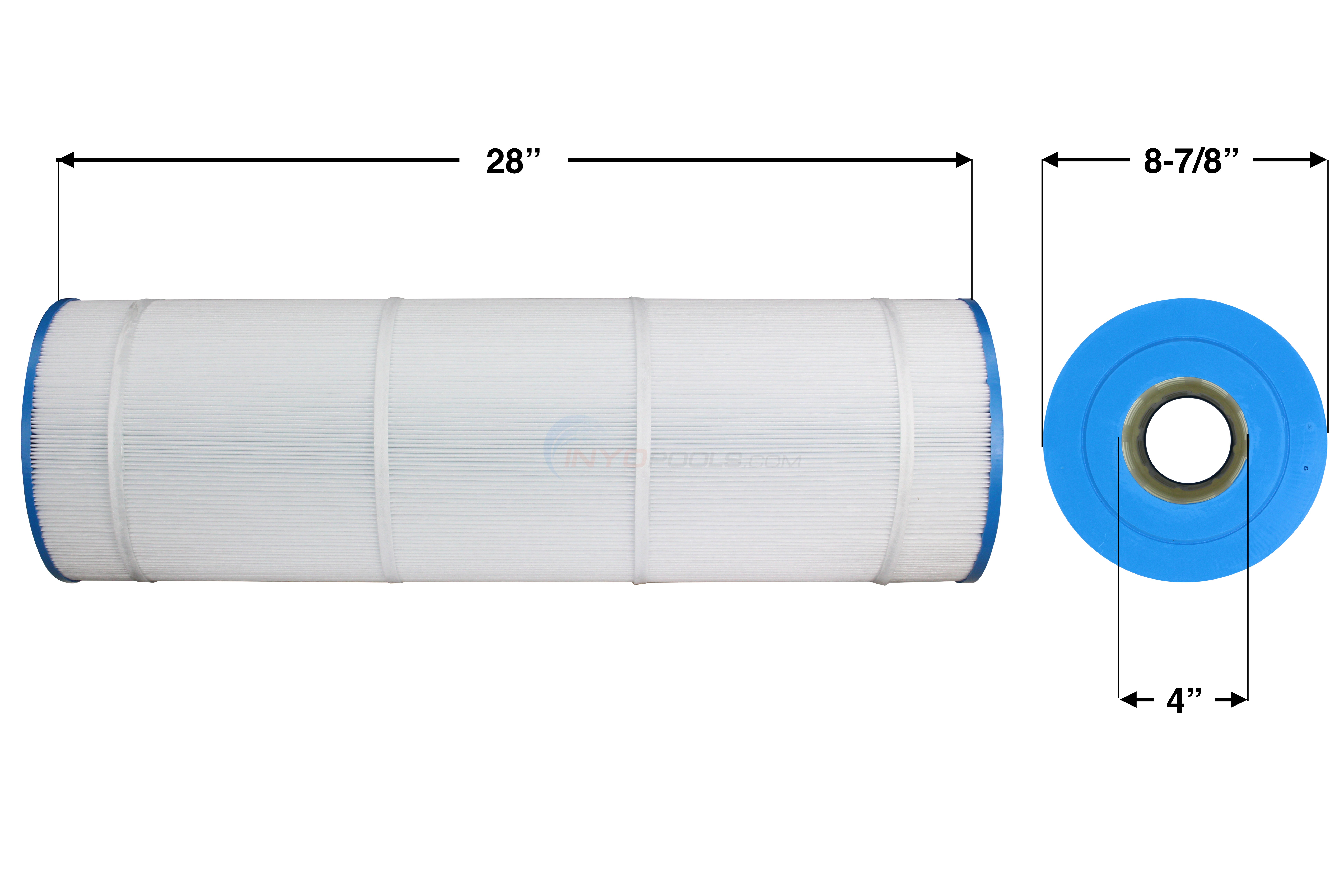

Dimensions End Cap = Round, Length = 28 3/16", Outside Diameter = 8 15/16", Inside Diameter = 4"

Alternate Part #'s 25230-0150S, 252300150S, 27501, 817-0175P, 8170175P, C-8417, C8417, CX1750RE, CX1750REGEN, FC-1294, FC1294, PA175, XLS-803, PLEPA175

Product Description

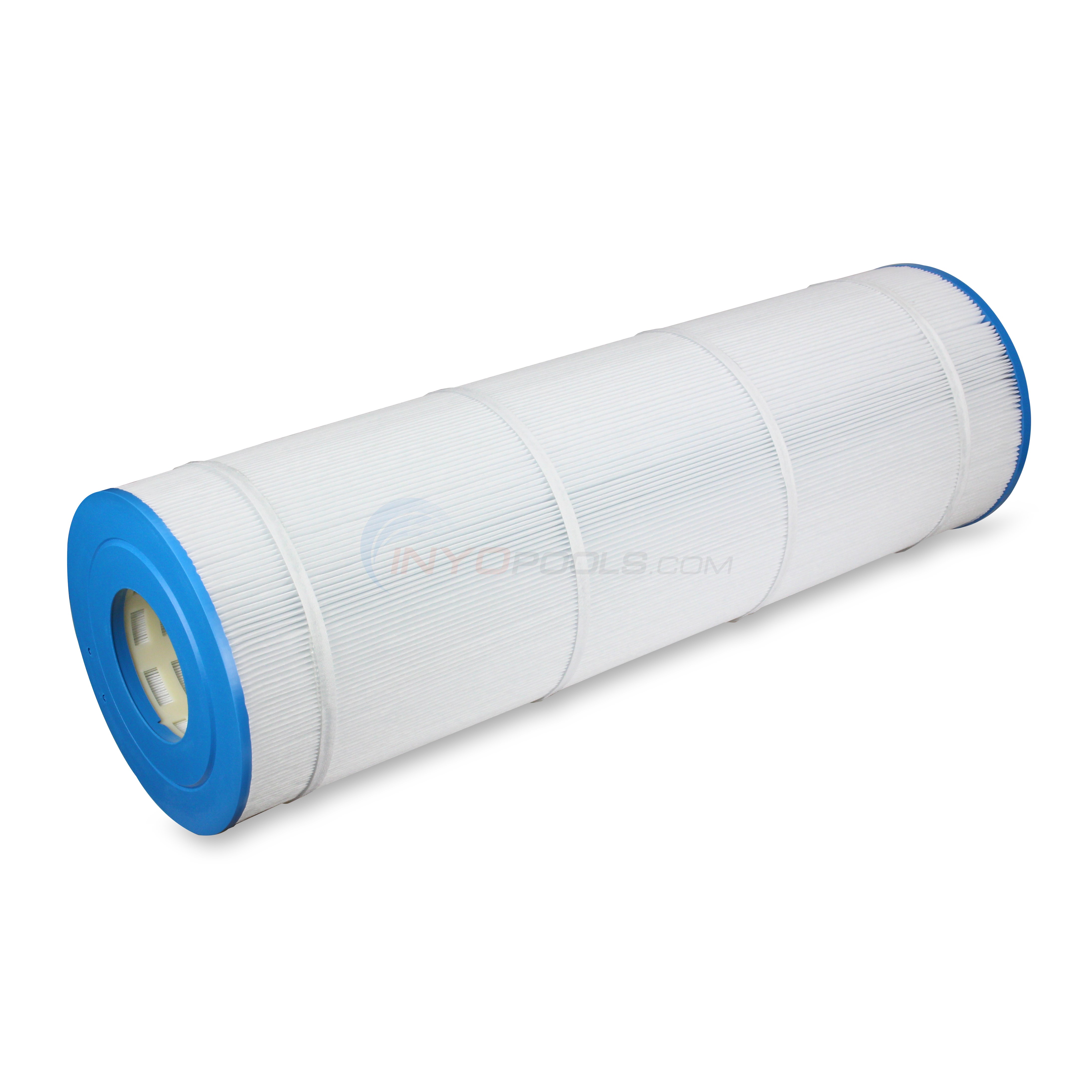

PureLine Aftermarket Replacement Cartridge for Hayward® Star Clear Plus C-1750 and Waterway® Proclean 175 SQ. FT. Filters

Is your pool water starting to look a little dull? Is your pressure gauge reading a higher PSI than normal? Are your pool jets a little less powerful? These are all signs that it is time to replace your pool filter cartridge. Replace your pool filter cartridge today and regain that crystal clear pool water and extend the life of your pool pump.

Typically for single cartridge pool filters we suggest replacing your cartridge every 6-12 months and for filters which take multiple cartridges, we suggest replacing your cartridges every 3 years.

This Cartridge is Commonly Used In

PureLine Cartridge Benefits

  • Less expensive than the original manufacturer with the same high-quality standards
  • Designed for maximum water flow to extend cartridge life
  • Designed for even dirt distribution resulting in increased water flow
  • Increased flow rates results in less wear on pump & reduced energy usage
  • Banded Pleats reduce frequency of cartridge cleaning

Not Your Cartridge?

Is this not your Cartridge? Don't worry, we carry thousands of Pool Filter Replacement Cartridges to replace all of the most popular OEM brands such as Sta-Rite®, Pentair® / Pac Fab®, Hayward®, Purex®, American Products®, Jacuzzi®, Hot Springs®, Coleman®, and more. Click here for more Pool Filter Replacement Cartridges


All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

Product Specifications

Filter Model:
Hayward® Star Clear Plus C1750
Filtration Area:
175 sq. ft.
8 - 15/16 in.
28 - 3/16 in.
Top Style:
Top Inside Diameter:
Bottom Style:
Bottom Inside Diameter:
Media Weight:
4 oz.
Unicel #:
Filbur #:
Pleatco #:
OEM #:

?     Asked on 3/16/2022by Kenny o Anita Sjöholm

Hi, I bought in December 2019 a Hayward Star with part number W3C17502. Now wondering which cartridge that fits. Is Part number PL0147 correct? Thank's Kenny

A  Answered on 3/17/2022 by InyoPools Product Specialist Rich N.

Hi Kenny, the Pureline Cartridge for Hayward C-1750 will be perfect for your Hayward Star-Clear Plus W3C17502 filter.

?     Asked on 8/10/2021by Janice Thon

is this a replacement for hayward C17502C

A  Answered on 8/11/2021 by InyoPools Product Specialist Stephen B.

Thank you for contacting Inyo Pools, Yes this Pl0147 is the correct replacement for the filter

?     Asked on 4/22/2021by Linda Milne

i just received this filter and it is shorter than the PA-175 . Will it do the same job ?

A  Answered on 4/22/2021 by InyoPools Product Specialist Craig C.

Hello Linda.  Yes.  The Pureline Cartridge PLO147 will do the same job as the PA-175 and fits the Hayward Star Clear Plus c-1750 filter.

?     Asked on 6/13/2020by paula balluff

Will this fit Hayward C 1750 E

A  Answered on 6/13/2020 by InyoPools Product Specialist Patrick P.

Hi Paula, Yes this will fit a Hayward C 1750 E this is the cartridge you will need.

?     Asked on 5/4/2020by Angie R Handwerg

I was told to order Hayward filter cartridge ccx17500remn, I cannot find this anywhere. Is the ccx1750re the one I want? I have a Hayward swimpro voyager MD SW17543DDVTL. We purchased it in 2007.

A  Answered on 5/5/2020 by InyoPools Product Specialist Alex V.

Angie, The SwimPro Voyager was a private label for the Hayward XStream. There replacement cartridge for the CCX1750 is our part # 4900-375.

?     Asked on 5/4/2020by John W Maxwell

does this cartridge fit a c17502 hayward filter

A  Answered on 5/6/2020 by InyoPools Product Specialist Alex V.

John, Yes, this will fit the Hayward C17502 filter.

?     Asked on 4/28/2020by John Donohue

I need to order hayward pool filter number I have is cc1750e is it the same as c1750

A  Answered on 4/28/2020 by InyoPools Product Specialist Patrick P.

Hi John, You can go with this PL0132 Hayward 150 Sq. Ft. X Stream Cartridge your cartridge has 175 Sq. Ft. of filtering material and this one has 150 Sq. Ft. but the dimensions of the cartridge are the same and you should see minimal difference in the filtering capability.

?     Asked on 4/10/2020by Jeff

Cc1750e, is my filter, I bought a replacement last year and it was way to right and just didn't fit great. What filter can I order??


A  Answered on 4/10/2020 by InyoPools Product Specialist Lennox H.

Hi, Jeff. The correct replacement is P/N CCX1750RE.

?     Asked on 8/11/2019by Debbie

Can this be used if your pump uses the Hayward C1200 120 SqFt filter?

A  Answered on 8/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Debbie. Unfortunately, you're unable to use the C1750 cartridge in a C1200 canister.

?     Asked on 5/29/2019by Inyo Visitor

can the cartridge be returned or exchanged if I have ordered the wrong size? Are there any additional charges for that other than shipping charges?

A  Answered on 5/29/2019 by InyoPools Product Specialist Patrick P.

As long as the cartridge is in unused condition (i.e. water has not passed through it) then you would just be responsible for the return shipping charges. We also ask that you place your return within 30 days of purchase and try to keep the original packaging in good shape.

?     Asked on 5/22/2019by Mike Dill

will this filter replace my Hayward cc1750e cartridge?

A  Answered on 5/23/2019 by InyoPools Product Specialist Michelle B.

Yes, that will be the correct cartridge for your filter.

?     Asked on 5/4/2019by Alvin

My last order was Hayward star clear plus C-1750 O. E.M cartridge, item #C-1750RE. I could not find with confidence which cartridge to order.

A  Answered on 5/5/2019 by InyoPools Product Specialist Patrick P.

Hi Alvin, This PL0147 is the aftermarket replacement cartridge made by PureLine for the Hayward C-1750 filter and will work on your filter. If you would like the C-1750 replacement cartridge which is manufactured by Hayward then you will require the Hayward CX1750RE Replacement Cartridge. The After Market PureLine cartridge is quite a bit less expensive than the cartridge made by Hayward and in our opinion, the PureLine After Market is just as good of quality.

?     Asked on 12/6/2018by Inyo Visitor

Is this cartridge a replacement for a Hayward C-1750-E cartridge?

A  Answered on 12/7/2018 by InyoPools Product Specialist Steve M.

Good Morning- Yes, the Pureline Cartridge for Hayward C-1750 (PA175) - PL0147 is the replacement for your Hayward C-1750-E cartridge.

?     Asked on 12/4/2018by Inyo Visitor

Does this cartridge fit the Hayward C17502 Star Clear Plus Cartridge Filter?

A  Answered on 12/4/2018 by Industry Professional

Yes this is the proper replacement cartridge for the Hayward C17502 Filter

?     Asked on 9/6/2018by Josep

I have a filter cartridge cx1750re....would this filter be compatible, and what does the cx....re stand for? Thank you.

A  Answered on 9/6/2018 by InyoPools Product Specialist Lennox H.

Hi, Josep. This PL0147 is a compatible replacement. The CX....RE letter are just variable that the MFG use for their cartridge replacements.

?     Asked on 8/16/2018by Pat

Is this returnable if it does not fit?

A  Answered on 8/16/2018 by InyoPools Product Specialist Hector F.

Yes, as long as it is in new and unused condition with the original packaging. You should be able to place it next to your current element to compare the size and dimensions. Please click here to view the details of our return policy.

?     Asked on 7/8/2018by Tonya

my filter says C-1750-E. Will this work for me?

A  Answered on 7/8/2018 by InyoPools Product Specialist Lennox H.

Hi, Tonya. Yes, this Pureline C-1750 Generic Replacement Cartridge - PL0147 will work as a replacement for C-1750-E.

?     Asked on 7/4/2018by Mike Dill

I have a cc1750 cartridge for a voyager swim pro filter. Will this cartridge be ok for my filter?

A  Answered on 7/4/2018 by InyoPools Product Specialist Alex V.

Mike, Unfortunately, this would not fit. You would need the CCX1750RE cartridge.

?     Asked on 5/28/2018by Inyo Visitor

what is lifetime of this filter in years?

A  Answered on 5/28/2018 by InyoPools Product Specialist Lennox H.

Hi. This life of this cartridge will vary based on usage how dirty the pool gets etc. It can last 1-2 years before having to replace it if maintained and cleaned properly.

?     Asked on 5/11/2018by Inyo Visitor

I have a Haywood Star Clear Plus c2002. Is this the correct replacement?

A  Answered on 5/11/2018 by InyoPools Product Specialist Hector F.

No, we, unfortunately, do not carry that model filter cartridge.

?     Asked on 2/24/2018by Dpm

howdy! does this fit the hayward stay clear+ C17502 ? the 2 at the end is throwing me off.. appears to be close, size-wise, but i'd like to be certain. thank you, you guys are great!

A  Answered on 2/24/2018 by InyoPools Product Specialist Patrick P.

Hi DPM,  yes this cartridge is indeed the correct replacement cartridge for the Hayward C17502 filter. This will be a perfect fit for you.

?     Asked on 6/20/2017by Melissa

We have an ecco pump and filter system. Replacement #817-0175N. Is this the right filter to get? Thanks in advance.

A  Answered on 6/21/2017 by InyoPools Product Specialist Lennox H.

Hi, Melissa. This Pureline PL0147 Cartridge can be used as a replacement for the 817-0175N element.

?     Asked on 6/6/2017by Alyssa

We have an ECCO filter. Replacement Cartridge notes #817-0175N. Cartridge currently in it says 25014SVP. Will this work? Just bought the house and don't have a ton of knowledge on product.

A  Answered on 6/12/2017 by InyoPools Product Specialist Lennox H.

Hi, Alyssa. Based on the information I've gathered the PL0147 filter is the correct replacement cartridge.

?     Asked on 6/5/2017by Inyo Visitor

I have a Hayward Swimpro missle system. Model SW1750. Is this the correct filter? I can't find this model anywhere. I'm wondering if it was discontinued and replaced with a different name.

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Hi, This is not the correct cartridge for the SW1750 filter. You would need this SwimPro SW1750 Replacement Cartridge.

?     Asked on 5/18/2017by Allison

Cant read the brand from sun damage on the filter canister itself but it does say filter cartridge CP 46345. Any idea what I would need by that #??

A  Answered on 5/18/2017 by InyoPools Product Specialist Patrick P.

Allison, Could you take a picture of your filter canister and label and email to us at upload@inyopools.com we should be able to identify your cartridge when we see your photos.

?     Asked on 5/1/2017by Joe

What is the replacement for filter Hayward C 1750E I only see c1750 What is the E stands for

A  Answered on 5/1/2017 by InyoPools Product Specialist Lennox H.

Hi, Joe. This PureLine PL0147 or the Hayward CX1750RE OEM cartridge can be used as a replacement.  The RE or in some case E stands for replacement.

?     Asked on 3/12/2017by Mark Miller

I have a Hayward Star Clear Plus C17502S pool filter. What is the correct part/model number and dimensions for a new cartridge filter for it? Your part numbering system and web site are both very confusing! Thanks, Mark

A  Answered on 3/12/2017 by InyoPools Product Specialist Patrick P.

Hi Mark, Yes this is the correct replacement cartridge for your Hayward  Star Clear Plus C17502S pool filter. Here are the PL0147 Cartridge Dimensions.

?     Asked on 3/7/2017by George

Are the holes on the inner plastic tube rectangular, as it is shown on the photo, or circular?

A  Answered on 3/7/2017 by InyoPools Product Specialist Patrick P.

Hi George, the holes are rectangular as shown in the photo.

?     Asked on 11/6/2016by melissa

Sorry, updated model info. Hayward SwimClear model C5530BHMB Filter replacement model CX1380REM Please let me know if this is the correct replacement filter. Thanks! Melissa

A  Answered on 11/7/2016 by InyoPools Product Specialist Adam Y.

Good morning Melissa, Unfortunately the CX1380REM is no longer available.

?     Asked on 7/9/2016by Charles

Looking for filter cartridge-10.5 x 28.25 with 4 inch center hole for a Hayward filter 225 sq feet of filter area

A  Answered on 7/14/2016 by InyoPools Product Specialist Matt S.

What is the model number of your Hayward filter? I do not show a Hayward cartridge that matches those specs.

?     Asked on 3/13/2016by Charlene

Our Hayward filter has the number C1750E, this is the 1st time trying to find a filter replacement the pool is a year old. Would the PA175 filter work?

A  Answered on 3/15/2016 by InyoPools Product Specialist Lennox H.

Hi Charlene, This generic replacement cartridge will fit into the Hayward C1750 unit.

?     Asked on 8/19/2015by Rodo

Hi: I noticed you have a procedure to calculate shipping charges to Puerto Rico. I am interested in this generic cartridge but do not want to go thru the process. Is it possible? I will be paying my purchase with a credit card or paypal which better fits. Thanks.

A  Answered on 8/20/2015 by InyoPools Product Specialist Bob D.

Hi Rodo. You can get to the point where you put it in your shopping cart and estimate he shipping cost then cancel if you like. It won't process until you complete "Checkout." I tried it on my account to ship to several different postal codes in Puerto Rico via UPS Ground (the cheapest) and got $88 for shipping. The size (28") of the cartridge is what drives the price up. A much heavier item but smaller will usually be much less expensive.

?     Asked on 8/18/2015by frank

Is this filter a hayward filter or another brand ????

A  Answered on 8/18/2015 by InyoPools Product Specialist Hector F.

This is a cartridge element that works in a Hayward model filter but is manufactured by Filbur as a generic version.

?     Asked on 3/11/2015by Beth

We want to replace our filter cartridge. It says we have a Porpoise PA175. What is the correct replacement cartridge?

A  Answered on 3/12/2015 by InyoPools Product Specialist Robert M.

Hello Beth - The correct replacement cartridge for the Porpoise PA175 is the NFC1294.


Est. Repair Time

Less than 1 hr

Tools Needed

May need pliers to loosen knobs.

2     0

Filter needed replacement due to heavy contaminants.

Written on 12/24/2020 by Guest

Ordered new filter cartridge. Released pressure on the filter itself with small knob on top of filter. Rotated large handle until top half of filter released. Took top half of filter off and removed old filter. Opened bottom knob on filter allowing water and any debris to run out. Sprayed with hose to rinse thoroughly. Replaced knob after lubing gasket. Inserted new filter. Replaced top half of filter. Be sure to lube large gasket before tightening top half of filter. Turn on pump. Release pressure on filter as appropriate.

Were these instructions helpful?


Est. Repair Time

Less than 1 hr

Tools Needed


3     0

Needed a replacement cartridge

Written on 4/2/2020 by Guest

The product was delivered before its scheduled time (grateful for that). Also, free shipping (grateful for that also). My husband installed it after removing a deteriorated cartridge.

Were these instructions helpful?
