$39.99

Qty:

By Custom Molded Products


Details

Top

Part # 7512

Manufacturer Code 25830-774-000

Product Description

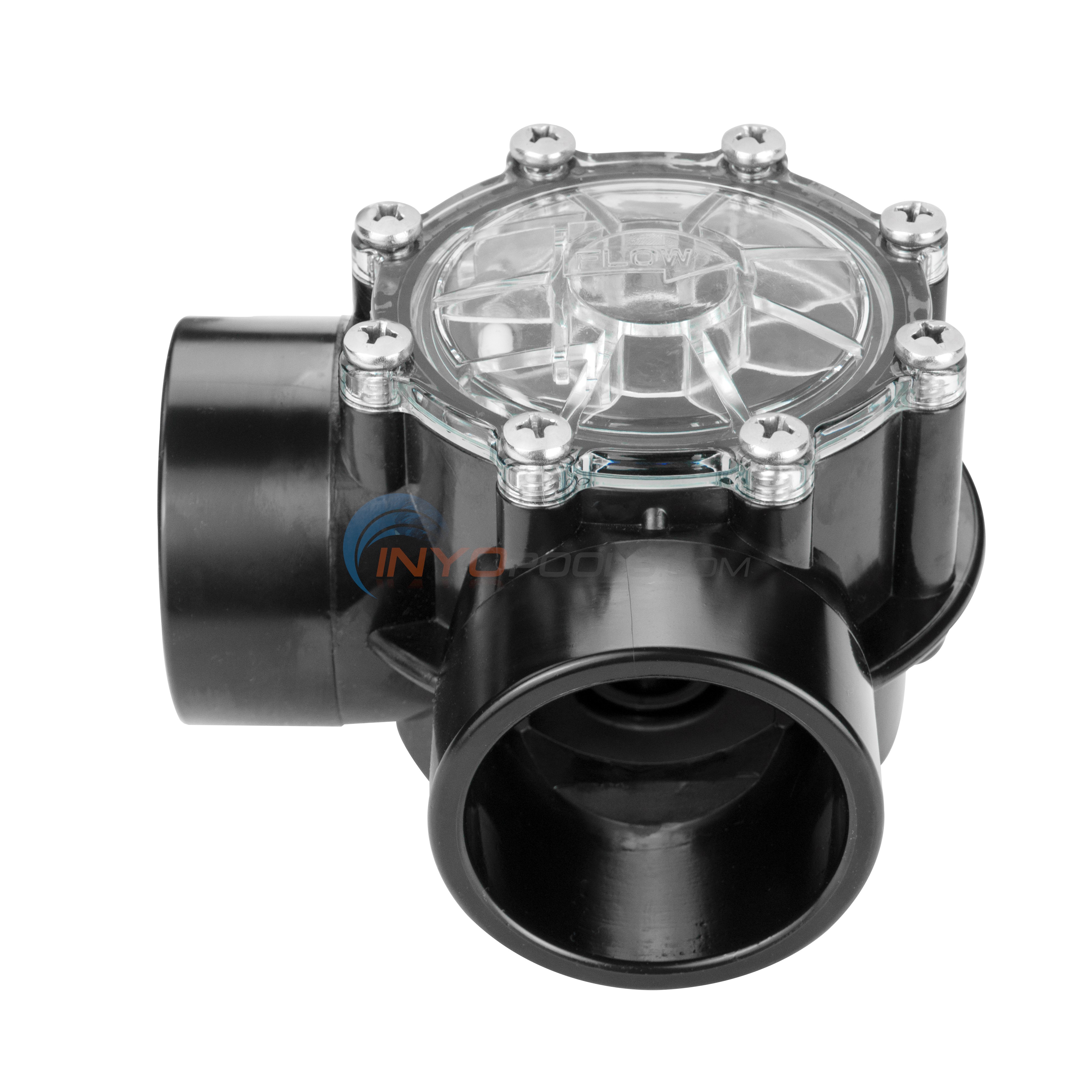

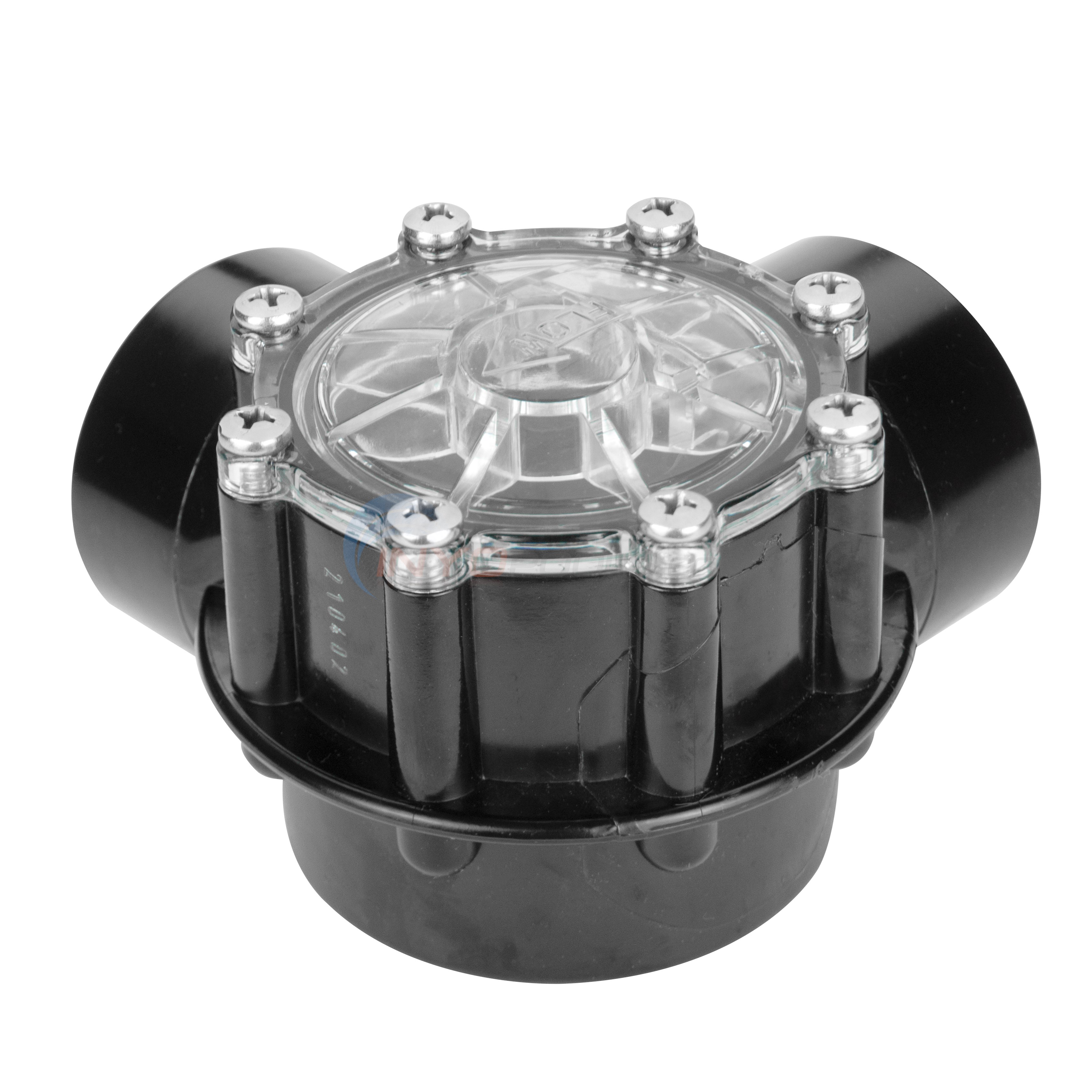

Constructed of the same tough CPVC material used on the NeverLube. Our Check Valve’s clear lid and red seal plate let you easily see and access debris. It features a unique swing/spring design for both return and intake water. The diverter swings completely open with minimal back pressure and no water turbulence.

Features:

  • Minimal hydraulic loss
  • Clear lid for easy inspection
  • Easy to disassemble when clearing debris
  • Available in straight-through and 90°
  • Corrosion resistant stainless steel swing
  • Highly resistant to Chlorine

Click here for more Jandy Check Valves



Note: We may ship Jandy or CMP based on availability

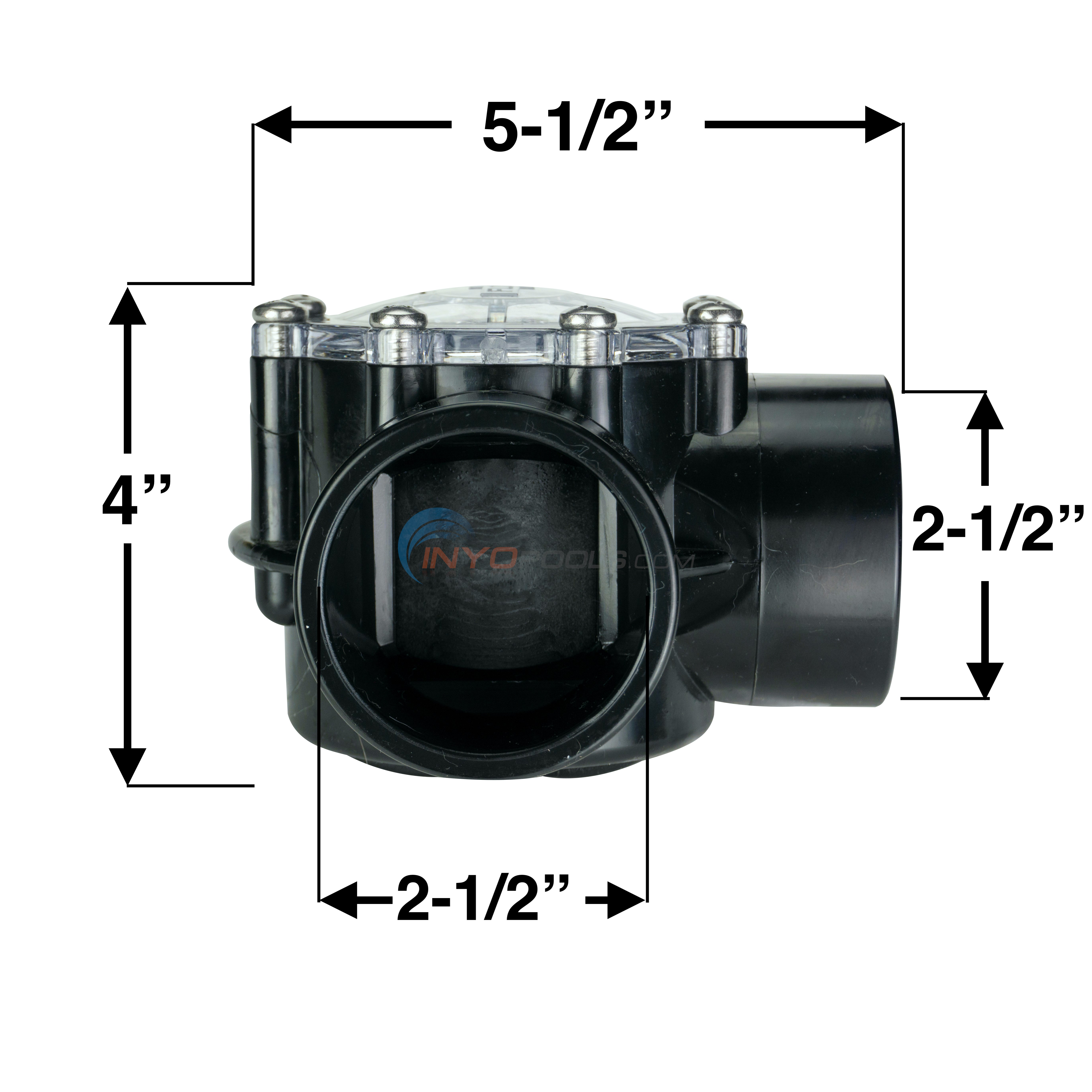

Product Specifications

Inside Diameter:
2 in.
Outside Diameter:
2 1/2 in.
Degree:
90
Top

?     Asked on 2/13/2012by Guest

Can this valve be mounted vertically?
 Reply

A  Answered on 2/13/2012 by InyoPools Product Specialist Patrick P.

Yes, the valve can be mounted vertically. The flow of the water must be moving up. The flow of the water cannot be moving down.
 Reply


?     Asked on 4/26/2022by Graham Courtney

I have 2" PVC pipes. I plan to replace the T with cleanout with this check-valve. Is it the correct size?

 Reply

A  Answered on 4/26/2022 by InyoPools Product Specialist Craig C.

Hello Graham.  The Custom Molded Products 2" x 2 1/2" Check Valve 90 Degree is compatible with 2" PVC plumbing.  The 2" PVC pipe attaches to the port's inside (female socket).   A 2 1/2" PVC pipe would fit over the port.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

PVC fitting for, take measure, PVC primer and glue

Therapy pump on commercial spa kept losing prime

Written on 11/3/2021 by Guest

I chose to use this 90┬░check valve to conserve on space. I placed the check valve on the suction side of the pump. One you are able to prime the pump, the check valve will maintain prime.
