Clamp, Flange (sx310n)

$90.77

IN STOCK
FREE SHIPPING

Part # 4802-03C

By Hayward Pool Products

  5 Average

Details

Top

Part # 4802-03C

Manufacturer Code SX310N

Dimensions 8.2" X 0.75"

Alternate Part #'s HAY0518258, SX310N, 31-150-1322, HAY-051-8258, HAYSX310N

Product Description

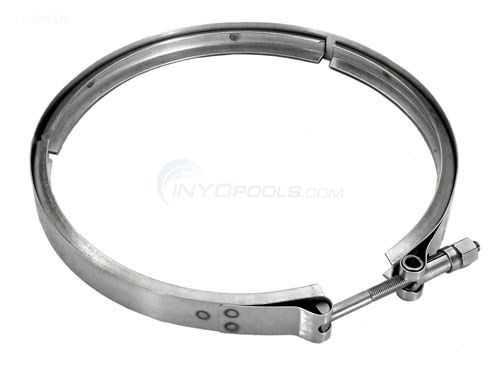

THIS IS A COMPLETE ONE PIECE STAINLESS STEEL CLAMP USED TO ATTACH THE VALVE TO THE FILTER ON A NUMBER OF HAYWARD TOP MOUNT FILTERS THIS CLAMP WILL ALSO WORK VERY WELL AS A REPLACEMENT FOR 2 OF THE MUSKIN OBSOLETE CLAMPS THIS WILL REPLACE THE MUSKIN 48030 STAINLESS STEEL CLAMP AND THE MUSKIN 72113, 2 PIECE PLASTIC CLAMP THIS ASSEMBLY INCLUDES THE ONE PIECE CLAMP, A CAPTIVE T-BOLT WHICH IS 3-1/2" LONG, A NUT TO TIGHTEN THE CLAMP, AND A RUBBER CAP TO PROTECT THE END OF THE BOLT OUTSIDE DIAMETER: 8" (WITH THE CLAMP ENDS TOUCHING) TOP TO BOTTOM: 3/4" THE CLAMP IS ABOUT 5/16" THICK FROM INSIDE TO OUTSIDE

Top

?     Asked on 11/1/2021by Gabriel Correa

Hello: I need remplace a clamp Flange for a Hayward Sand Filter Model S-310S. I don´t sure if a Clamp Flange No. SX310n is suitable for my filter. Can you tell me if is a correct remplace part?? Thanks and waiting your reply

 Reply

A  Answered on 11/1/2021 by InyoPools Product Specialist Rich N.

Hi Gabriel, the Flange Clamp SX310N will be perfect for your Hayward Pro Series Sand Filter S-310S.
 Reply


?     Asked on 9/1/2020by karl peterson

will the Pac fab stainless flange clamp part number 58915000, fit in place of SX310N on the Hayward top mount filter tank? They look alike and both are approx. 8 inches.
 Reply

A  Answered on 12/21/2020 by InyoPools Product Specialist Hector F.

Hi Karl, unfortunately, the Pentair clamp assembly will not replace the Hayward clamp assembly part number SX310N. However, we do carry the Hayward clamp assembly part number SX310N.
 Reply


?     Asked on 8/14/2020by SUSIE KUHN

WILL THIS FLANGE WORK FOR DREAM LINE S190TSCP
 Reply

A  Answered on 8/14/2020 by InyoPools Product Specialist Lennox H.

Hi, Susie. Unfortunately, it will not. You will need to use P/N GMX600N
 Reply


?     Asked on 4/9/2020by Fermin Garcia

Does this clamp fit a Hayward C2020L filter? Thank you! Fermin

 Reply

A  Answered on 4/9/2020 by InyoPools Product Specialist Hector F.

Actually, the clamp assembly for the Hayward C2020 filter is part number 4811-100 that you can view by clicking here.
 Reply


?     Asked on 5/29/2019by JOE

IS THIS A REPLACEMENT FOR HAYWARD S310T2 TOP MOUNT SAND FILTER?
 Reply

A  Answered on 5/29/2019 by InyoPools Product Specialist Michelle B.

Hello, Yes, this will be the correct clamp for your filter.
 Reply


?     Asked on 5/14/2018by Roy

I have a 2005 C2025 Clamp assy. I need to replace the bolt and a washer. Will this one work? It looks like the old one. And does it come with the large washers and bolt? thanks
 Reply

A  Answered on 5/15/2018 by InyoPools Product Specialist Charlie R.

Roy, Yes, this clamp assembly is the correct replacement for your Hayward C2025 filter. It comes with the bolt, nut, and clamps.
 Reply


?     Asked on 1/10/2018by wg

will this clamp work with s200s filter
 Reply

A  Answered on 1/10/2018 by InyoPools Product Specialist Lennox H.

Hi, WG. This Flange Clamp - will not fit the S200, but the S210S sand filter.
 Reply


?     Asked on 10/1/2017by Freddy

Will this fit a Hayward C2025?
 Reply

A  Answered on 10/3/2017 by InyoPools Product Specialist Stacey M.

Hello Freddy, the Clamp Assembly (dex2420j) - DEX2421JKIT fits the c2025 filter.
 Reply


?     Asked on 6/26/2016by allen

Will this clamp fit a Hayward sp-711 300 lb. sand filter ?
 Reply

A  Answered on 6/26/2016 by InyoPools Product Specialist Alex V.

Allen, What is the model # on the filter tank?
 Reply


?     Asked on 6/22/2016by Inyo Visitor

Does clamp, flange (sx310n) fit an opening of 8" or slightly bigger say 81/4" sand filter it's Hayward.
 Reply

A  Answered on 6/22/2016 by InyoPools Product Specialist Lennox H.

HI, This clamp can fit the selected Hayward Filters: Hayward Pro Series - Side Mount Sand FilterHayward Pro Series Plus- Side Mount Sand Filter and Hayward Pro Top Mount Sand Filter 27", 31" & 36" which has an 8" or Dome opening.
 Reply
