Musking Cartridge Filter - Model FE029-5 Parts

MODEL FE029-5

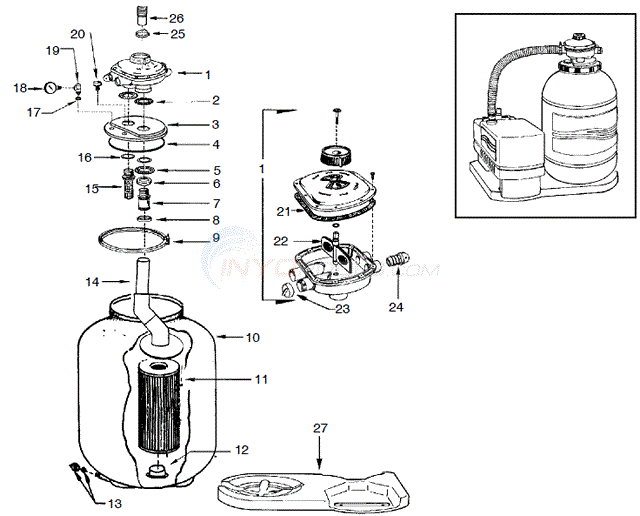

Musking Cartridge Filter - Model FE029-5 Diagram

Click to zoom in

Diagram #	Part Title
1	OBSOLETE VALVE COMPLETE
2	GASKET TANK OUTLET
3	TANK COVER HMLI 3 POSITION
4	No Longer Available TANK GASKET Replace With 4880-132
5	GASKET
6	SPACER RING (VALVE TO THREAD SL) (55095)
7	THREADED SLEEVE, 1-1/4" HMLI 96
8	SEAL THREADED SLEEVE PLAS SAND
9	CLAMP, FLANGE
10	OBSOLETE FILTER TANK, 15” DIA
11	CARTRIDGE
12	OBSOLETE CARTRIDGE CAP
13	DRAIN CAP & WASHER
14	SEALING SLEEVE
15	LTD QTY UPPER DISTRIBUTOR
16	GASKET
17	GASKET
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	GAUGE ADAPTER ASSEMBLY HMLI TANK
20	AIR RELIEF VALVE
21	VALVE GASKET
22	No Longer Available VALVE VANE ASSY Replace With 4880-15
23	POLY BG 1" THRD CAP. With GASKET
24	PLUG BACKWASH 3 & 5 POS VALVE
25	HOSE CLAMP KD/MUSKIN
26	"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"
27	LTD QTY FILTER BASE
27	LTD QTY FILTER BASE

View Parts List

Diagram #	Part Title
1	OBSOLETE VALVE COMPLETE
2	GASKET TANK OUTLET
3	TANK COVER HMLI 3 POSITION
4	No Longer Available TANK GASKET Replace With 4880-132
5	GASKET
6	SPACER RING (VALVE TO THREAD SL) (55095)
7	THREADED SLEEVE, 1-1/4" HMLI 96
8	SEAL THREADED SLEEVE PLAS SAND
9	CLAMP, FLANGE
10	OBSOLETE FILTER TANK, 15” DIA
11	CARTRIDGE
12	OBSOLETE CARTRIDGE CAP
13	DRAIN CAP & WASHER
14	SEALING SLEEVE
15	LTD QTY UPPER DISTRIBUTOR
16	GASKET
17	GASKET
18	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
19	GAUGE ADAPTER ASSEMBLY HMLI TANK
20	AIR RELIEF VALVE
21	VALVE GASKET
22	No Longer Available VALVE VANE ASSY Replace With 4880-15
23	POLY BG 1" THRD CAP. With GASKET
24	PLUG BACKWASH 3 & 5 POS VALVE
25	HOSE CLAMP KD/MUSKIN
26	"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"
27	LTD QTY FILTER BASE
27	LTD QTY FILTER BASE

Available Parts:

1

OBSOLETE VALVE COMPLETE

Mfg # 47007

OBSOLETE VALVE COMPLETE

NOT AVAILABLE

GASKET TANK OUTLET

Part # 4880-29 Mfg # 54007

GASKET TANK OUTLET

$24.50

TANK COVER HMLI 3 POSITION

Part # 4880-28 Mfg # 43015

TANK COVER HMLI 3 POSITION

$41.57

4

No Longer Available TANK GASKET Replace With 4880-132

Mfg # 54027

No Longer Available TANK GASKET Replace With 4880-132

NOT AVAILABLE

GASKET, 8" HMLI TANK, 3/32" (54056)

Part # 4880-132

GASKET, 8" HMLI TANK, 3/32" (54056)

$78.89

GASKET

Part # 4880-073 Mfg # 54021

GASKET

$35.16

SPACER RING (VALVE TO THREAD SL) (55095)

Part # 4880-45

SPACER RING (VALVE TO THREAD SL) (55095)

$12.78

THREADED SLEEVE, 1-1/4" HMLI 96

Part # 4880-069 Mfg # 45048

THREADED SLEEVE, 1-1/4" HMLI 96

$24.50

SEAL THREADED SLEEVE PLAS SAND

Part # 4880-076 Mfg # 54045

SEAL THREADED SLEEVE PLAS SAND

$101.27

CLAMP, FLANGE

Part # 4802-03C Mfg # SX310N

CLAMP, FLANGE

$78.35 IN STOCK

Qty:

10

OBSOLETE FILTER TANK, 15” DIA

Mfg # 43024

OBSOLETE FILTER TANK, 15” DIA

NOT AVAILABLE

11

CARTRIDGE

Mfg # 58036

CARTRIDGE

NOT AVAILABLE

12

OBSOLETE CARTRIDGE CAP

Mfg # 56014

OBSOLETE CARTRIDGE CAP

NOT AVAILABLE

DRAIN CAP & WASHER

Part # 4880-42

DRAIN CAP & WASHER

$23.44

14

SEALING SLEEVE

Mfg # 46033

SEALING SLEEVE

NOT AVAILABLE

LTD QTY UPPER DISTRIBUTOR

Part # 4880-14A Mfg # 45043

LTD QTY UPPER DISTRIBUTOR

$38.38

GASKET

Part # 4880-073 Mfg # 54021

GASKET

$35.16

GASKET

Part # 4880-072 Mfg # 54006

GASKET

$20.24

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

GAUGE ADAPTER ASSEMBLY HMLI TANK

Part # 4880-27 Mfg # 48016

GAUGE ADAPTER ASSEMBLY HMLI TANK

$14.91

AIR RELIEF VALVE

Part # 4880-31 Mfg # 55086

AIR RELIEF VALVE

$20.24

VALVE GASKET

Part # 4880-007 Mfg # 54017

VALVE GASKET

$65.02

22

No Longer Available VALVE VANE ASSY Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352011325.htm">4880-15</a>

Mfg # 47009

No Longer Available VALVE VANE ASSY Replace With 4880-15

NOT AVAILABLE

POLY BG 1" THRD CAP. With GASKET

Part # 4880-10 Mfg # 72042

POLY BG 1" THRD CAP. With GASKET

$60.76

PLUG BACKWASH 3 & 5 POS VALVE

Part # 4880-57 Mfg # 55003

PLUG BACKWASH 3 & 5 POS VALVE

$47.97

HOSE CLAMP KD/MUSKIN

Part # 4880-043 Mfg # 56010

HOSE CLAMP KD/MUSKIN

$26.64

"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"

Part # 4880-112

"LTD QTY HOSE, 1-1/4"" ID x 7-1/2' LONG"

$71.42

LTD QTY FILTER BASE

Part # 4880-034

LTD QTY FILTER BASE

$133.26

LTD QTY FILTER BASE

Part # 4880-034

LTD QTY FILTER BASE

$133.26
