By Sta-Rite
Part # 4684-13A
Manufacturer Code WC137-517P
Dimensions 23" X 1.5"
Alternate Part #'s 24100-40, 24100-42, 2410040, 2410042, STA0518376, WC137517P, 31-102-1202, PENWC137-517P, PENWC137517P
INYO # 4684-13A STA-RITE # WC137-517P
************************************************

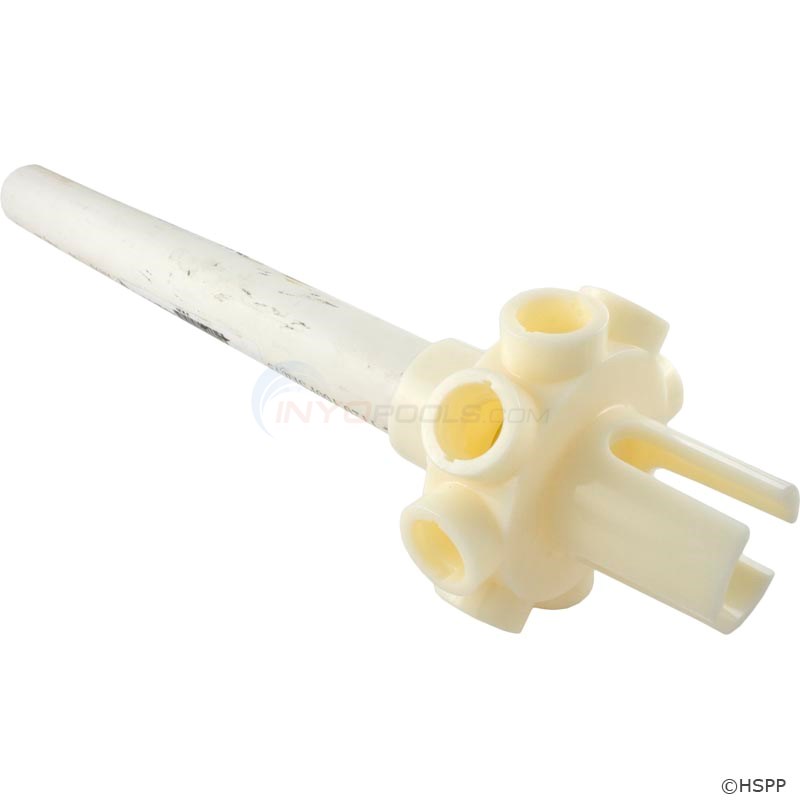

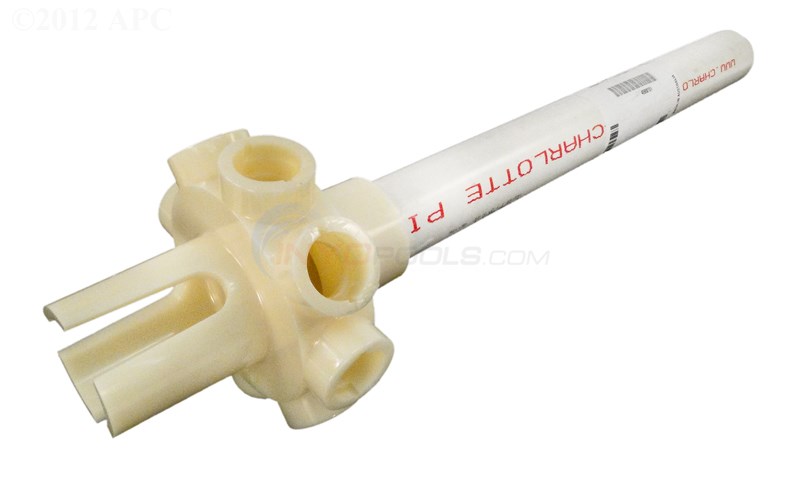

GENERAL DESCRIPTION: THIS IS THE STANDPIPE AND HUB ASSEMBLY USED ON THE WATERFORD / CRISTAL FLO TOP MOUNT T-200 FILTER THERE ARE NO LATERALS INCLUDED
************************************************
MATERIAL: VARIOUS COLOR PLASTIC LATERAL TYPE: PUSH TWIST THIS USES 8 LATERALS WITH A SMALL TAB ON EACH SIDE
************************************************
DIMENSIONS: TOTAL HEIGHT: 22-3/4" TOP PIPE ONLY HEIGHT: 16-1/4" TOP PIPE DIAMETER: 1-7/8" OD (1-1/2" THINWALL PVC PIPE) HUB DIAMETER: 5-5/8" THERE IS NOT A PIPE EXTENSION UNDER THE HUB BUT THERE IS AN EXTENSION BUILT INTO THE HUB. THIS EXTENDS 2-7/8" BELOW THE MAIN HUB BODY AND HAS 3 SLOTS IN IT THE EXTENSION IS ABOUT 2-3/8" IN DIAMETER
************************************************
INCLUDES: HUB WITH STANDPIPE ONLY
************************************************
LATERALS USED WITH THIS: THIS USES 8 OF THE 24600-0003 LATERALS WHICH ARE 4-9/16" LONG THESE ARE NOT INCLUDED
************************************************
MARKINGS: SWIMQUIP 24100-40 IS MOLDED ON THE TOP OF THE HUB SWIMQUIP 24100-42 IS MOLDED ON THE BOTTOM OF THE HUB
Ho do I remove the laterals from the standpipe so that I may remove it from the top of the filter?
Reply
These laterals should have locking tabs near one end to lock into the hub also has 2 more locking tabs near the middle.
Reply
