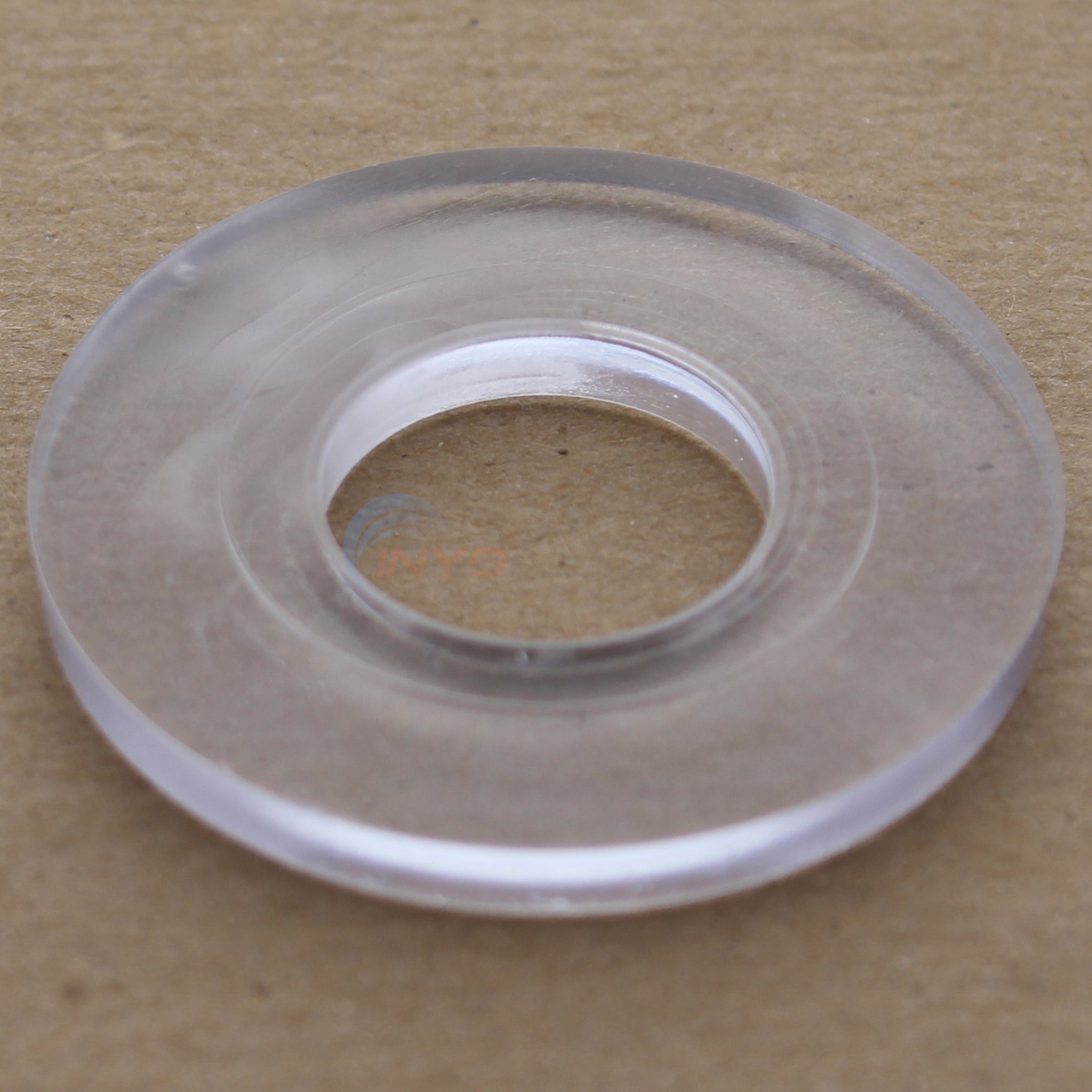

Controller, Flow (ecx1055)

$14.99

IN STOCK

Part # 4810-05A

By Hayward Pool Products


Details

Top

Part # 4810-05A

Manufacturer Code ECX1055

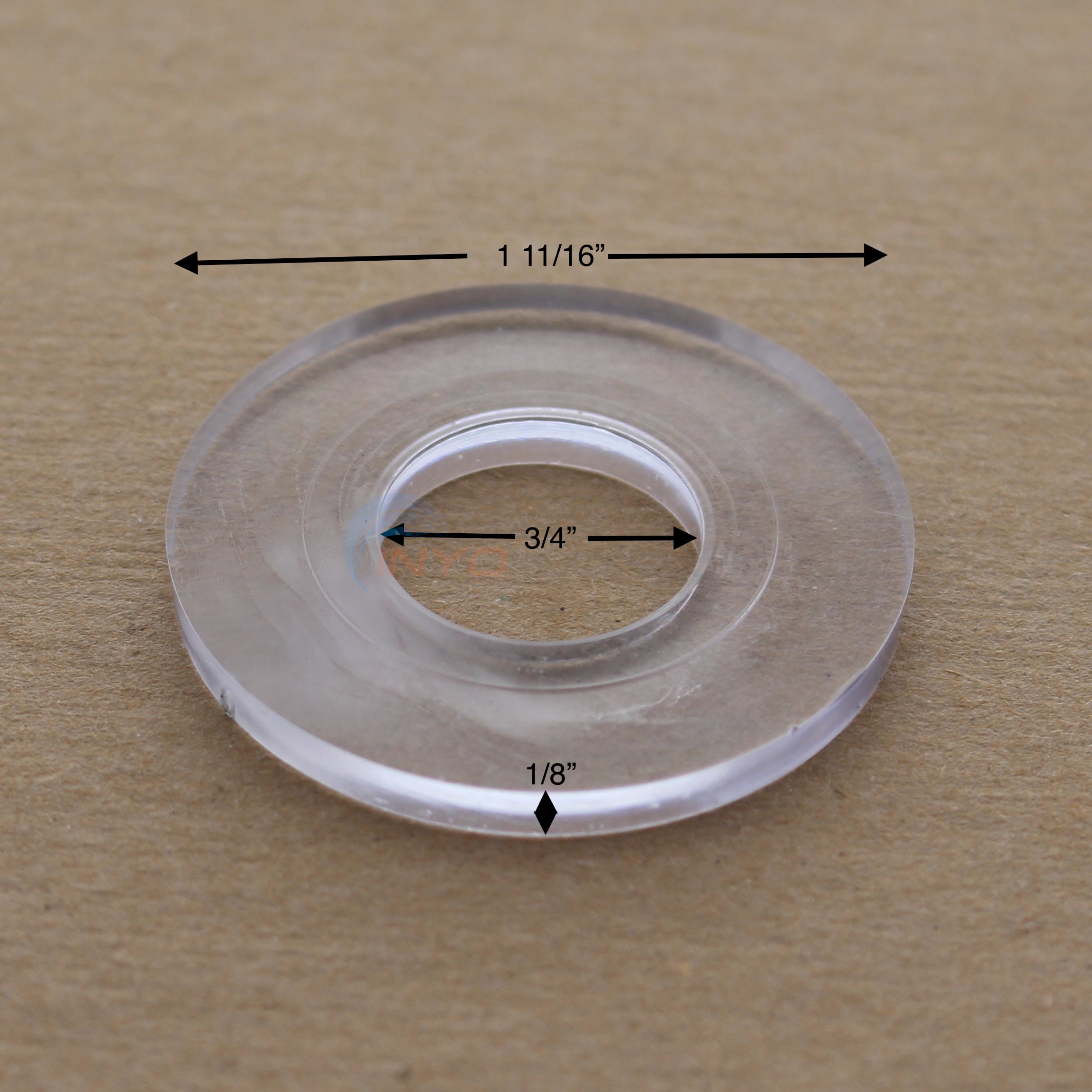

Dimensions 1.7" L x 1.7" W x 0.15" D

Alternate Part #'s 44267, 4810-05A, 610377024136, EC1055, ECX1055, HAY0511833, 14-150-1058, HAY-051-1833, HAYECX1055

Product Description

CONTROLLER, FLOW (ECX1055)

Top

?     Asked on 6/6/2019 by Pete

is this flow controller needed on a EC40AC filter with a 1hp pump or can it be removed.
 Reply

A  Answered on 6/7/2019 by Industry Professional

It is needed to prevent damage to the filter and blow back of DE and debris into the pool. The filter works best with water traveling through it at a slower speed.
 Reply


A  Answered on 6/10/2019 by Industry Professional

Yes, it is needed
 Reply


A  Answered on 6/7/2019 by Industry Professional

https://hayward-pool-assets.com/assets/documents/pools/pdf/manuals/Perflex-EC40AC.pdf?fromCDN=true It would be best to leave it in and watch your pressure gauge for a period of time. Avaerage clean would be 5 to 15 lbs
 Reply


?     Asked on 7/12/2017 by Enrico Musco

Where is the placement for this clear Pak-flow EC1055pak go/ Location?
 Reply

A  Answered on 8/30/2017 by InyoPools Product Specialist Andy O.

Hello Enrico- The Controller, Flow (ecx1055) would go on the inside of the Star-Clear Check Valve (ECX4077B1) on the bottom of the filter.
 Reply


?     Asked on 6/10/2017 by eric

Where does the flow controller go
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Eric. The Flow Controller goes inside of the Check Valve - ECX4077B1.
 Reply


?     Asked on 10/2/2016 by Kate

I would like to replace the check valve in my perflex ec 40 de filter, how do I remove the flow restrictor?
 Reply

A  Answered on 10/7/2016 by InyoPools Product Specialist Alex V.

Kate, The flow restrictor simply sits in front of the check valve. It is not attached to it,
 Reply


?     Asked on 8/16/2016 by david

I have a new Hayward EC 45 earth filter with a 11/2 hp pump motor, the filter is putting earth back in the pool, I have had it apart 2 times and can't see any tears or cracks in the diaphragm, filter elements or the tube sheets. I did not have the flow controller in the inlet. My question is can the pump be sized to big for the filter and be pushing the earth through the filter elements.
 Reply

A  Answered on 8/20/2016 by InyoPools Product Specialist Lennox H.

Hi David, It's possible but can't say with a 100% certainty. You can contact Hayward directly at 908-355-7995 to troubleshoot this issue.
 Reply


?     Asked on 6/30/2016 by Penny

What does the flow controller do? We just purchased a new filter and did not put this part in when assembling, do we need to take it apart and put part in or can it be used without it?
 Reply

A  Answered on 7/4/2016 by InyoPools Product Specialist Lennox H.

Hi Penny, The Flow Controller controls the water pressure flow going into the filter, I will recommend installing it mainly for backwashing purposes.
 Reply


?     Asked on 6/15/2015 by

If this part is damaged or missing, would it cause earth to release back into the pool?
 Reply

A  Answered on 6/18/2015 by InyoPools Product Specialist Lennox H.

The Flow Controller (ECX1055) if it is missing or damage will not cause D.E. to get back into the pool. You may have a damage DE Flex Tube, Tube Sheet or diaphragm.
 Reply


?     Asked on 6/9/2015 by frank

where do this flow go
 Reply

A  Answered on 6/9/2015 by InyoPools Product Specialist Lennox H.

Frank, The Flow Controller (ECX1055) goes at the end of the Check Valve (ECX4077B1).
 Reply
