Hayward Perflex D.E. FIlters EC-30, EC-40 & EC-40AC Parts

MODEL EC-30, EC-40 & EC-40AC CLICK HERE FOR EC-50 & EC-50C PARTS CLICK HERE FOR EC-65 & EC-75 PARTS

Hayward Perflex D.E. FIlters EC-30, EC-40 & EC-40AC Diagram

Click to zoom in

Diagram #	Part Title
*	Hayward EC40 O-Ring Kit
1	COVER
2A	HEAD, FILTER With VENT (EC30)
3	VALVE, AIR RELIEF
4	Clamp Assy W/hardware
5	Hardware Kit, 2 Bolts, 1 Nut, 1 Spacer, 2 Washers
6A	HANDLE EC30
7A	GRIP
8	Screw (ecx4236)
8A	Pin, Pivot
9A	SHAFT, BUMP (1/2") EC30 & EC40
10	SCREW
11A	TUBE SHEET (EC30) TOP OR BOTTOM
12A	GASKET, DIAPHRAGM (EC30)
13	Bump Shaft Kit Perflex
14	DE FLEX TUBE
15	Tube Sheet Bolt Set
16	PRESSURE GAUGE HAYWARD OEM BOTTOM MOUNT
17	PLUG With O-RING 1 1/2IN WG
--	Valve, Ball Wg
18	Star-Clear Check Valve
19	DIFFUSER W/ CHECK VALVE
20	Flow Controller
21A	BODY EC30
--	Flex Tube Nest, Ec30
22	3-Prong Pump Power Cord, 6', 14 GA, 115V
23	Pump Mounting Screw With Washer
24	Platform Base Wg
25	1-1/2 In Union Male Thd -black
26	Elbow Adaptor, 1 1/2" Barb X 1 1/2" Mpt
27	Hose, Clear, 1-9/16" Id
28	Clamp,s.s.hose 1 5/16 To 2in
30	Pump Mounting Screw With Washer
31	Platform Base Wg
32	1-1/2 In Union Male Thd -black
34	Screw
--	3-Prong Pump Power Cord, 6', 14 GA, 115V

View Parts List

Diagram #	Part Title
*	Hayward EC40 O-Ring Kit
1	COVER
2A	HEAD, FILTER With VENT (EC30)
3	VALVE, AIR RELIEF
4	Clamp Assy W/hardware
5	Hardware Kit, 2 Bolts, 1 Nut, 1 Spacer, 2 Washers
6A	HANDLE EC30
7A	GRIP
8	Screw (ecx4236)
8A	Pin, Pivot
9A	SHAFT, BUMP (1/2") EC30 & EC40
10	SCREW
11A	TUBE SHEET (EC30) TOP OR BOTTOM
12A	GASKET, DIAPHRAGM (EC30)
13	Bump Shaft Kit Perflex
14	DE FLEX TUBE
15	Tube Sheet Bolt Set
16	PRESSURE GAUGE HAYWARD OEM BOTTOM MOUNT
17	PLUG With O-RING 1 1/2IN WG
--	Valve, Ball Wg
18	Star-Clear Check Valve
19	DIFFUSER W/ CHECK VALVE
20	Flow Controller
21A	BODY EC30
--	Flex Tube Nest, Ec30
22	3-Prong Pump Power Cord, 6', 14 GA, 115V
23	Pump Mounting Screw With Washer
24	Platform Base Wg
25	1-1/2 In Union Male Thd -black
26	Elbow Adaptor, 1 1/2" Barb X 1 1/2" Mpt
27	Hose, Clear, 1-9/16" Id
28	Clamp,s.s.hose 1 5/16 To 2in
30	Pump Mounting Screw With Washer
31	Platform Base Wg
32	1-1/2 In Union Male Thd -black
34	Screw
--	3-Prong Pump Power Cord, 6', 14 GA, 115V

Available Parts:

Hayward EC40 O-Ring Kit

Part # APCK1152

Hayward EC40 O-Ring Kit

$53.99 IN STOCK

Used On EC40

Used On EC40

Qty:

COVER

Part # 4810-01B Mfg # ECX10066

COVER

$80.49 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

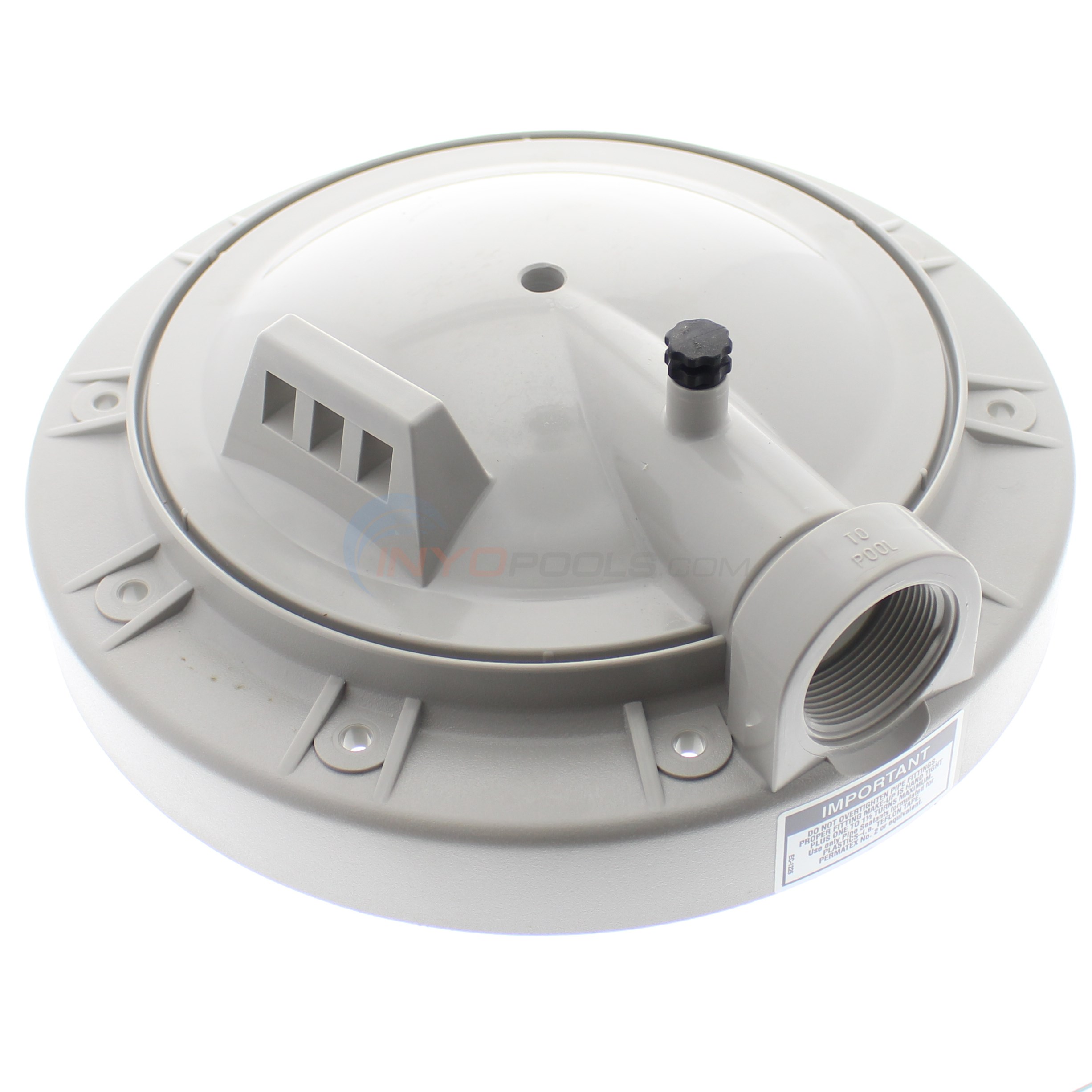

HEAD, FILTER With VENT (EC30)

Part # 4810-04A Mfg # ECX1131P

HEAD, FILTER With VENT (EC30)

$228.99

Used On EC30

Used On EC30

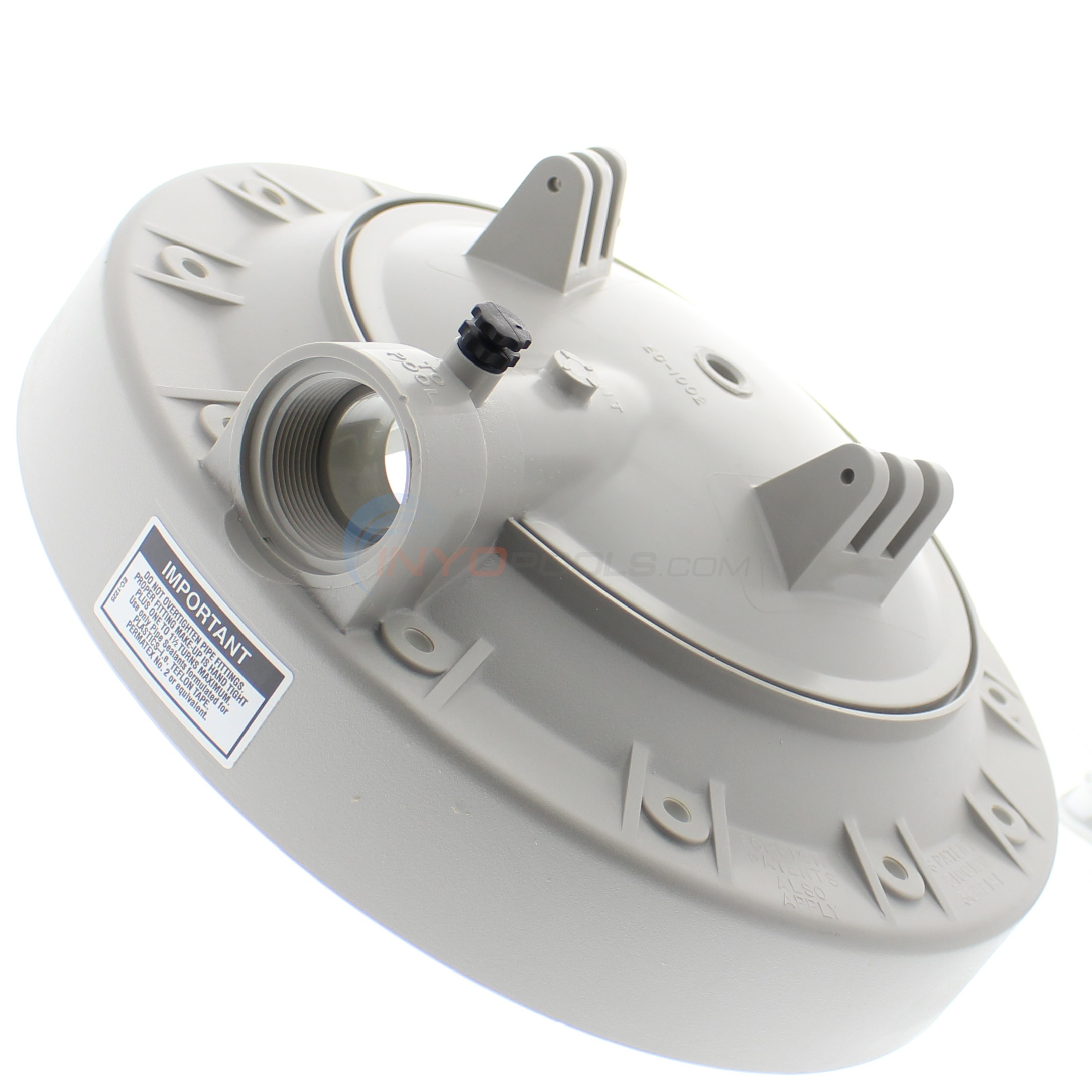

HEAD, FILTER With VENT (EC40)

Part # 4810-041 Mfg # ECX10334P

HEAD, FILTER With VENT (EC40)

$236.99 IN STOCK

Used On EC40

Used On EC40

Qty:

HEAD, FILTER With VENT (EC40AC)

Part # 4810-04E Mfg # ECX5000BP

HEAD, FILTER With VENT (EC40AC)

$229.99 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

VALVE, AIR RELIEF

Part # 4662-03B Mfg # ECX1322A

VALVE, AIR RELIEF

$19.99 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

Clamp Assy W/hardware

Part # 4810-78 Mfg # ECX4000C

Clamp Assy W/hardware

$152.99 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

Hardware Kit, 2 Bolts, 1 Nut, 1 Spacer, 2 Washers

Part # 4810-76 Mfg # ECX4000CHK

Hardware Kit, 2 Bolts, 1 Nut, 1 Spacer, 2 Washers

$56.99 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

HANDLE EC30

Part # 4810-08B Mfg # ECX1037A

HANDLE EC30

$63.49

Used On EC30

Used On EC30

HANDLE EC40/EC40AC

Part # 4810-08C Mfg # ECX1040

HANDLE EC40/EC40AC

$67.49 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

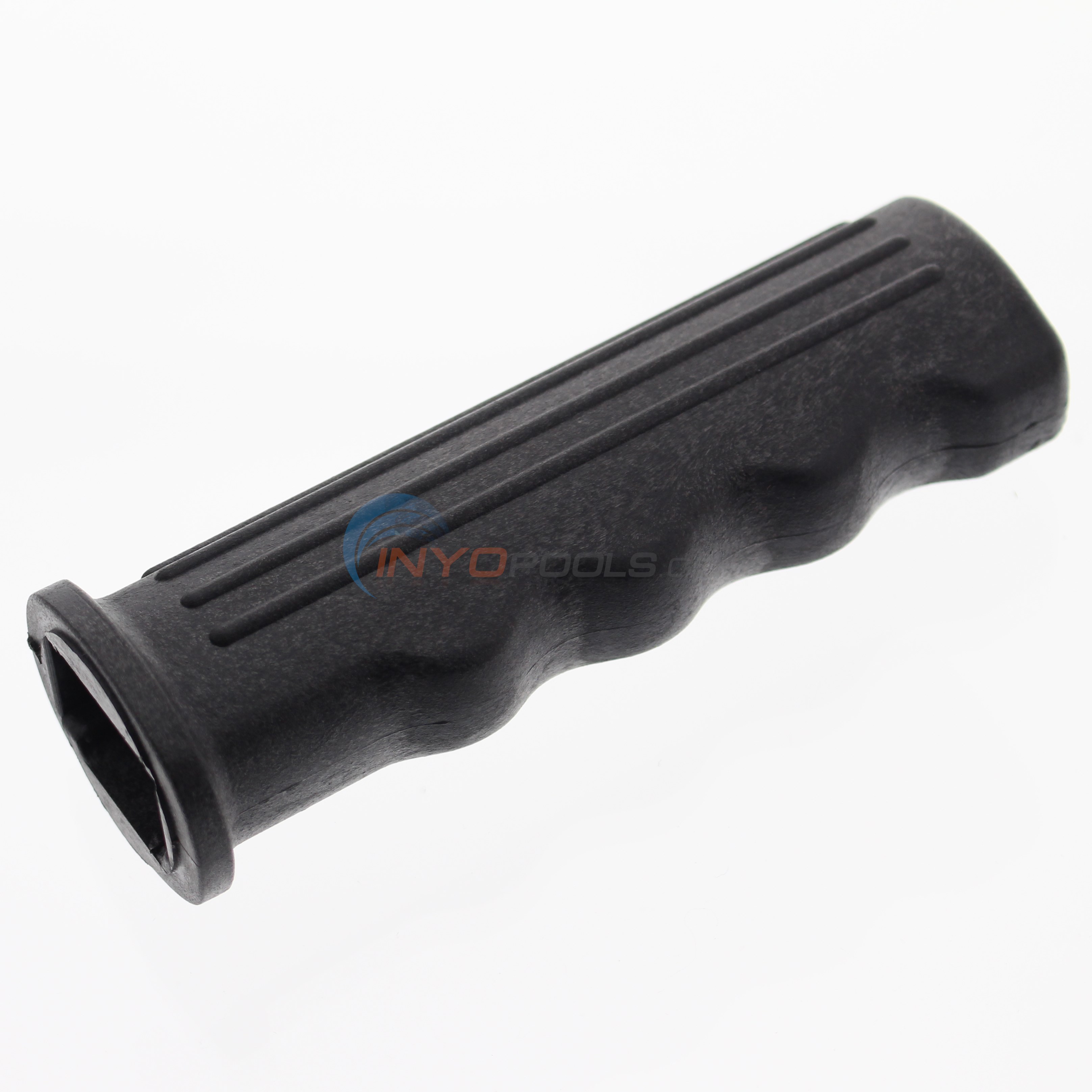

GRIP

Part # 4810-09A Mfg # ECX1037B

GRIP

$12.99 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

Screw (ecx4236)

Part # 4810-07A Mfg # ECX4236A

Screw (ecx4236)

$23.99 IN STOCK

Qty:

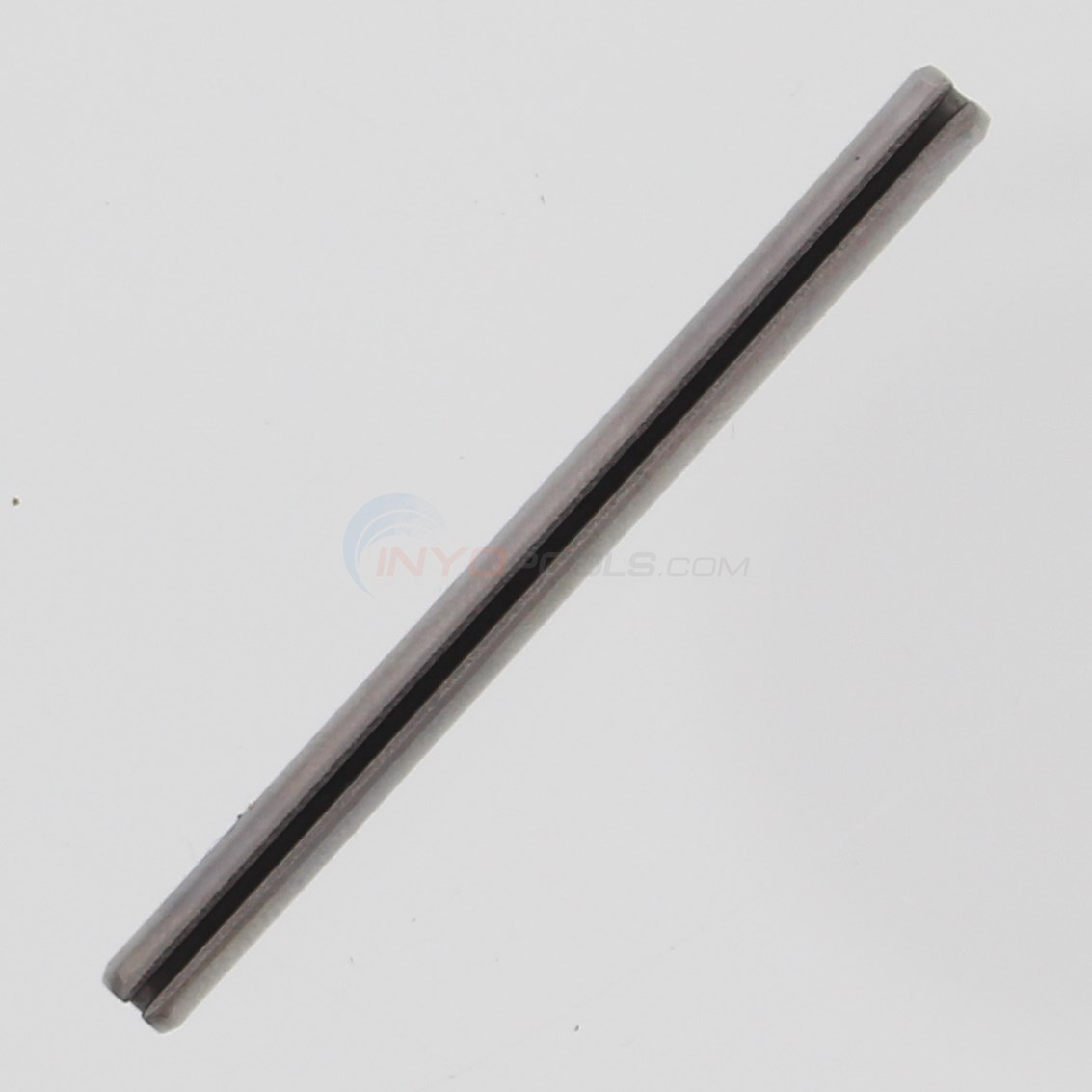

Pin, Pivot

Part # 4810-07B Mfg # ECX100Z9

Pin, Pivot

$15.49 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

SHAFT, BUMP (1/2") EC30 & EC40

Part # 4810-15A Mfg # ECX1009

SHAFT, BUMP (1/2") EC30 & EC40

$71.99 IN STOCK

Used On EC30 & EC40

Used On EC30 & EC40

Qty:

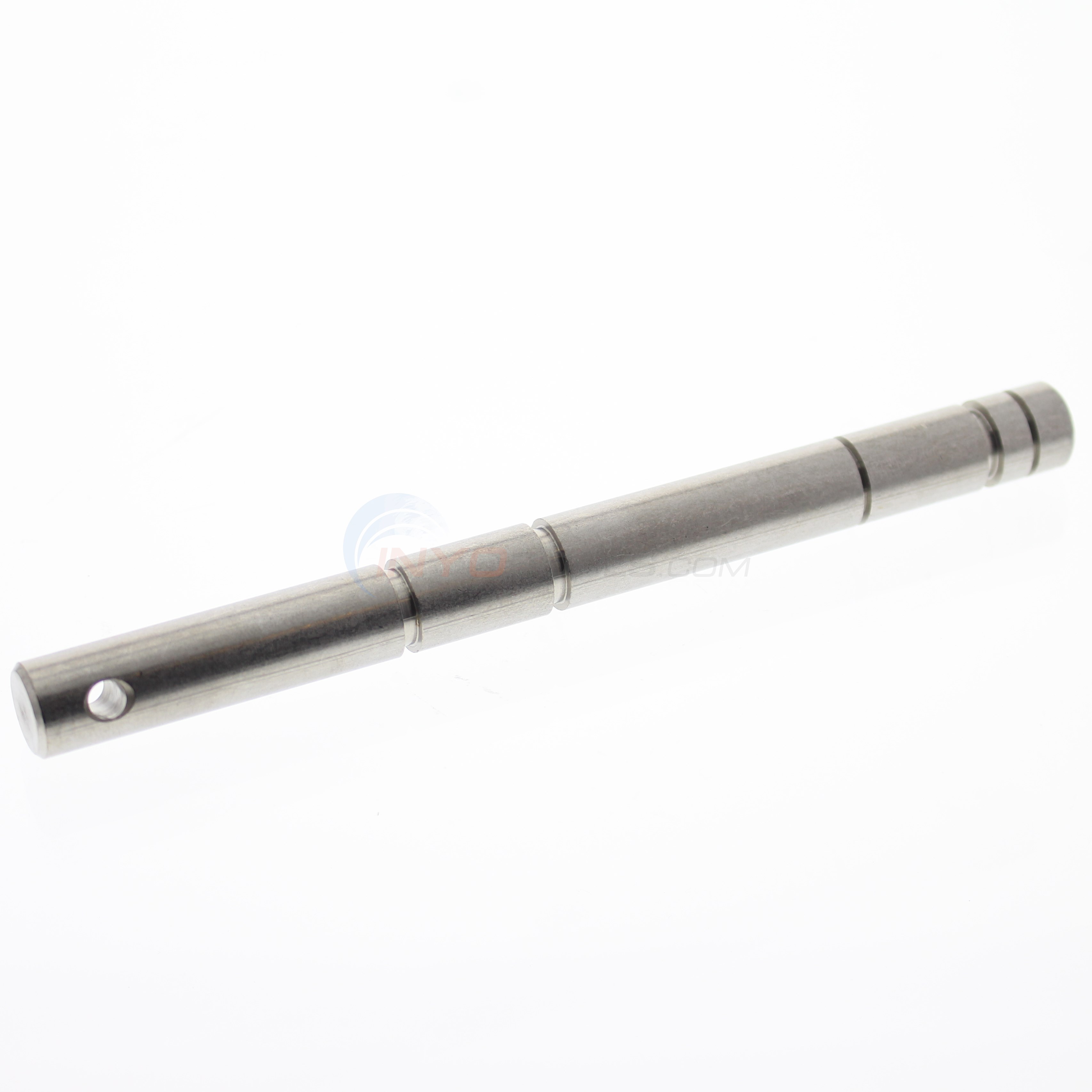

SHAFT, BUMP (1/2") EC40AC

Part # 4810-15B Mfg # ECX5000F

SHAFT, BUMP (1/2") EC40AC

$85.99 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

SCREW

Part # 4810-11 Mfg # ECX10271

SCREW

$14.99 IN STOCK

Used On EC30 & EC40

Used On EC30 & EC40

Qty:

TUBE SHEET (EC30) TOP OR BOTTOM

Part # 4810-19B Mfg # ECX1038

TUBE SHEET (EC30) TOP OR BOTTOM

$72.99 IN STOCK

Used On EC30

Used On EC30

Qty:

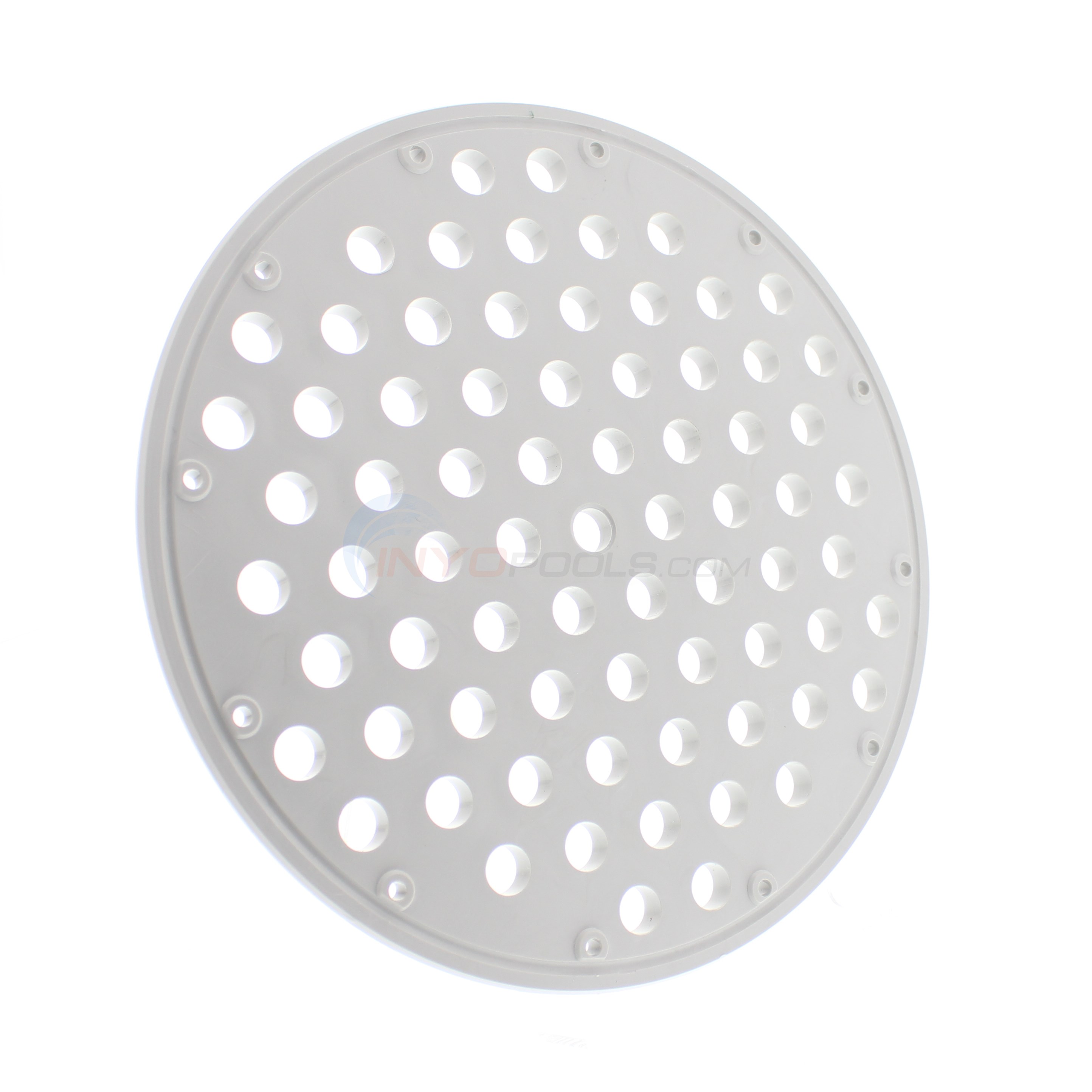

TUBE SHEET (EC40) BOTTOM

Part # 4810-19A Mfg # ECX1004

TUBE SHEET (EC40) BOTTOM

$66.99

Used On EC40 & EC40AC

Used On EC40 & EC40AC

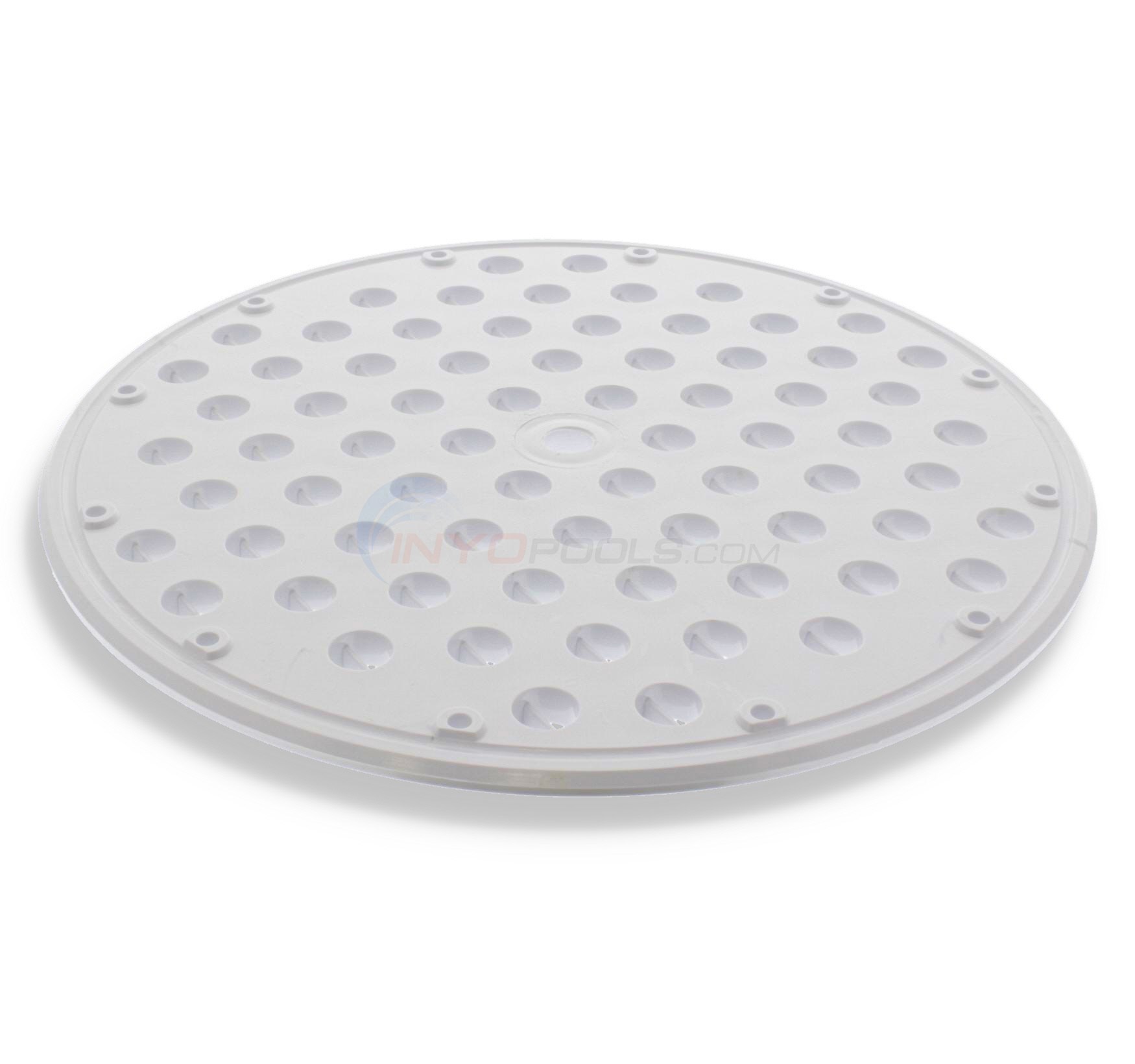

TUBE SHEET TOP -EC40/45/50-

Part # ECX1004A

TUBE SHEET TOP -EC40/45/50-

$111.99

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Tube Sheet, Hayward Perflex EC40/40AC, EC50/50AC, Top/Bottom

Part # ECX1004ASET

Tube Sheet, Hayward Perflex EC40/40AC, EC50/50AC, Top/Bottom

$113.99 IN STOCK

Used On EC40/40AC, EC50/50AC, Top/Bottom

Used On EC40/40AC, EC50/50AC, Top/Bottom

Qty:

GASKET, DIAPHRAGM (EC30)

Part # 4810-12B Mfg # ECX1039

GASKET, DIAPHRAGM (EC30)

$100.99 IN STOCK

Used On EC30

Used On EC30

Qty:

GASKET, DIAPHRAGM (EC40)

Part # 4820-04 Mfg # ECX1003

GASKET, DIAPHRAGM (EC40)

$122.99 IN STOCK

Used On EC40

Used On EC40

Qty:

GASKET, DIAPHRAGM (EC40AC)

Part # 4820-08 Mfg # ECX5000G

GASKET, DIAPHRAGM (EC40AC)

$123.99 IN STOCK

Used On EC40AC

Used On EC40AC

Qty:

Bump Shaft Kit Perflex

Part # 4810-10 Mfg # ECX1014A

Bump Shaft Kit Perflex

$37.99 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

DE FLEX TUBE

Part # 4810-23 Mfg # ECX1031PAK5

DE FLEX TUBE

$43.99 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

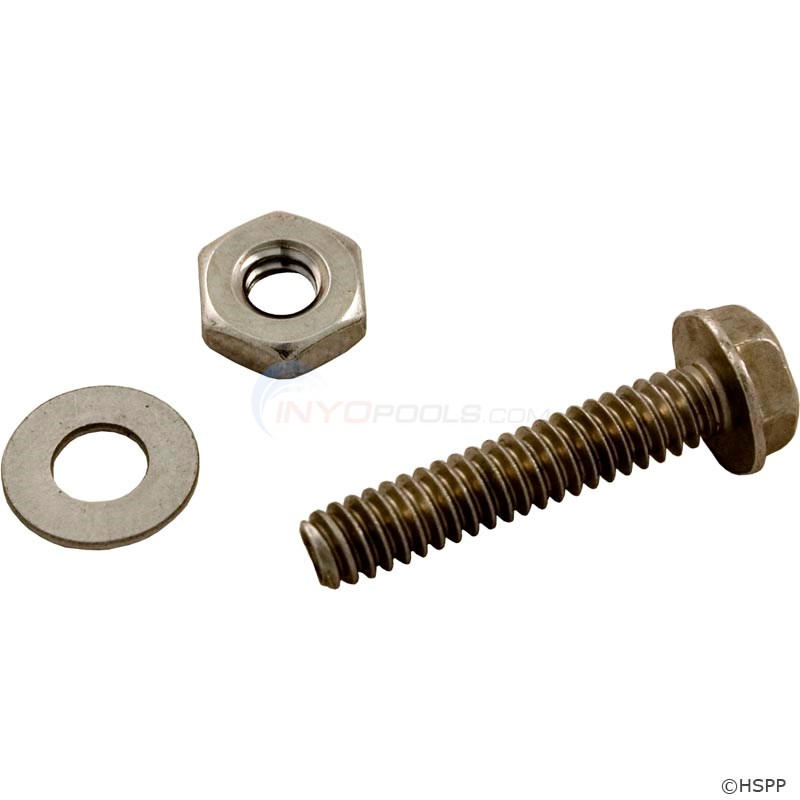

Tube Sheet Bolt Set

Part # 14-150-1048 Mfg # SPX1500NYA

Tube Sheet Bolt Set

$16.99 IN STOCK

Used On EC30 & EC40

Used On EC30 & EC40

Qty:

PRESSURE GAUGE HAYWARD OEM BOTTOM MOUNT

Part # 4810-72 Mfg # ECX270861

PRESSURE GAUGE HAYWARD OEM BOTTOM MOUNT

$31.49 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

PLUG With O-RING 1 1/2IN WG

Part # 4700A Mfg # 552622

PLUG With O-RING 1 1/2IN WG

$13.49 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

Valve, Ball Wg

Part # 4810-26 Mfg # SP0723

Valve, Ball Wg

$46.49 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

Star-Clear Check Valve

Part # 4662-16 Mfg # ECX4077B1

Star-Clear Check Valve

$26.49 IN STOCK

Qty:

DIFFUSER W/ CHECK VALVE

Part # 4810-20 Mfg # ECX1256

DIFFUSER W/ CHECK VALVE

$74.49 IN STOCK

Used On EC30, EC40 & EC40AC

Used On EC30, EC40 & EC40AC

Qty:

Flow Controller

Part # 4810-05A Mfg # ECX1055

Flow Controller

$22.99 IN STOCK

Qty:

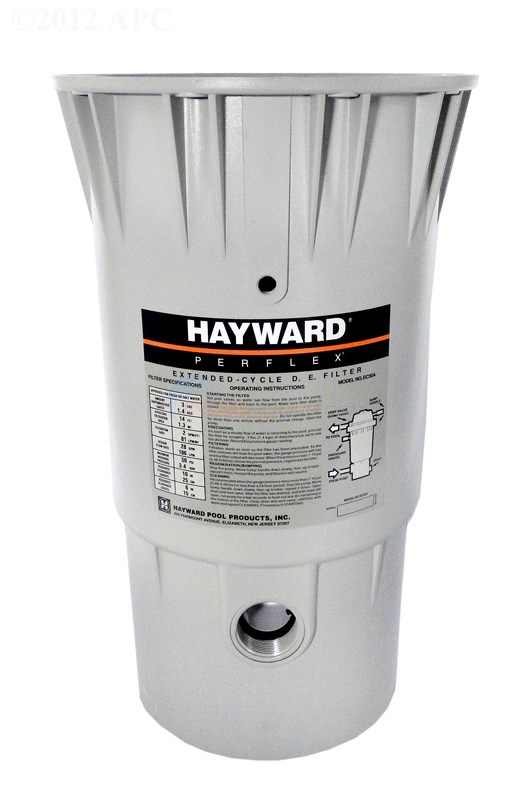

BODY EC30

Part # 4820-12 Mfg # ECX1132P

BODY EC30

$267.99

Used On EC30

Used On EC30

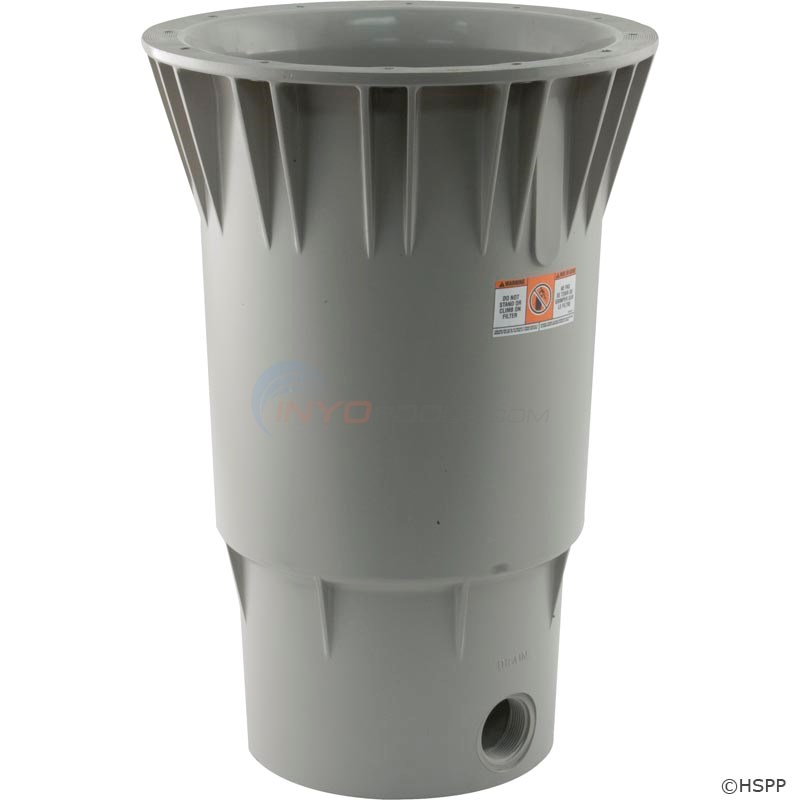

Filter Body w/ Flow Diffuser

Part # 4820-101 Mfg # ECX10344P

Filter Body w/ Flow Diffuser

$366.99

Used On EC40

Used On EC40

FILTER BODY W/FLOW DIFFUSER-EC40AC-

Part # ECX4034

FILTER BODY W/FLOW DIFFUSER-EC40AC-

$397.99

Used On EC40AC

Used On EC40AC

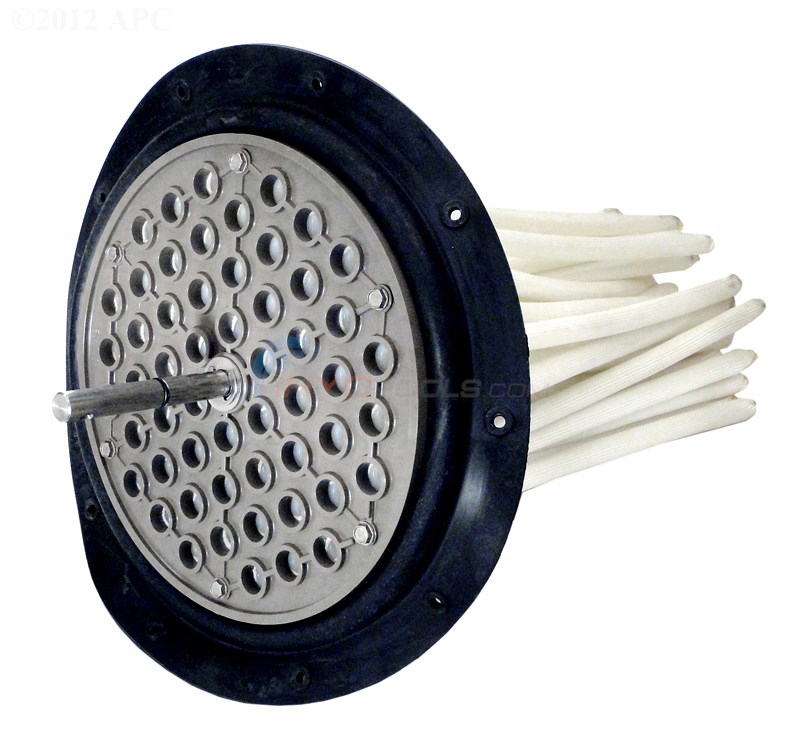

Flex Tube Nest, Ec30

Part # 5110-61 Mfg # ECX1133

Flex Tube Nest, Ec30

$625.99 IN STOCK

Used On EC30

Used On EC30

Qty:

Flex Tube Nest, Ec40

Part # 5110-60 Mfg # ECX1035

Flex Tube Nest, Ec40

$557.99

Used On EC40

Used On EC40

FLEX TUBE NEST -EC40AC-

Part # ECX4035 Mfg # ECX4035

FLEX TUBE NEST -EC40AC-

$742.99

Used On EC40AC

Used On EC40AC

3-Prong Pump Power Cord, 6', 14 GA, 115V

Part # 3118-0 Mfg # SPX1250WA

3-Prong Pump Power Cord, 6', 14 GA, 115V

$50.49

Used On EC30

Used On EC30

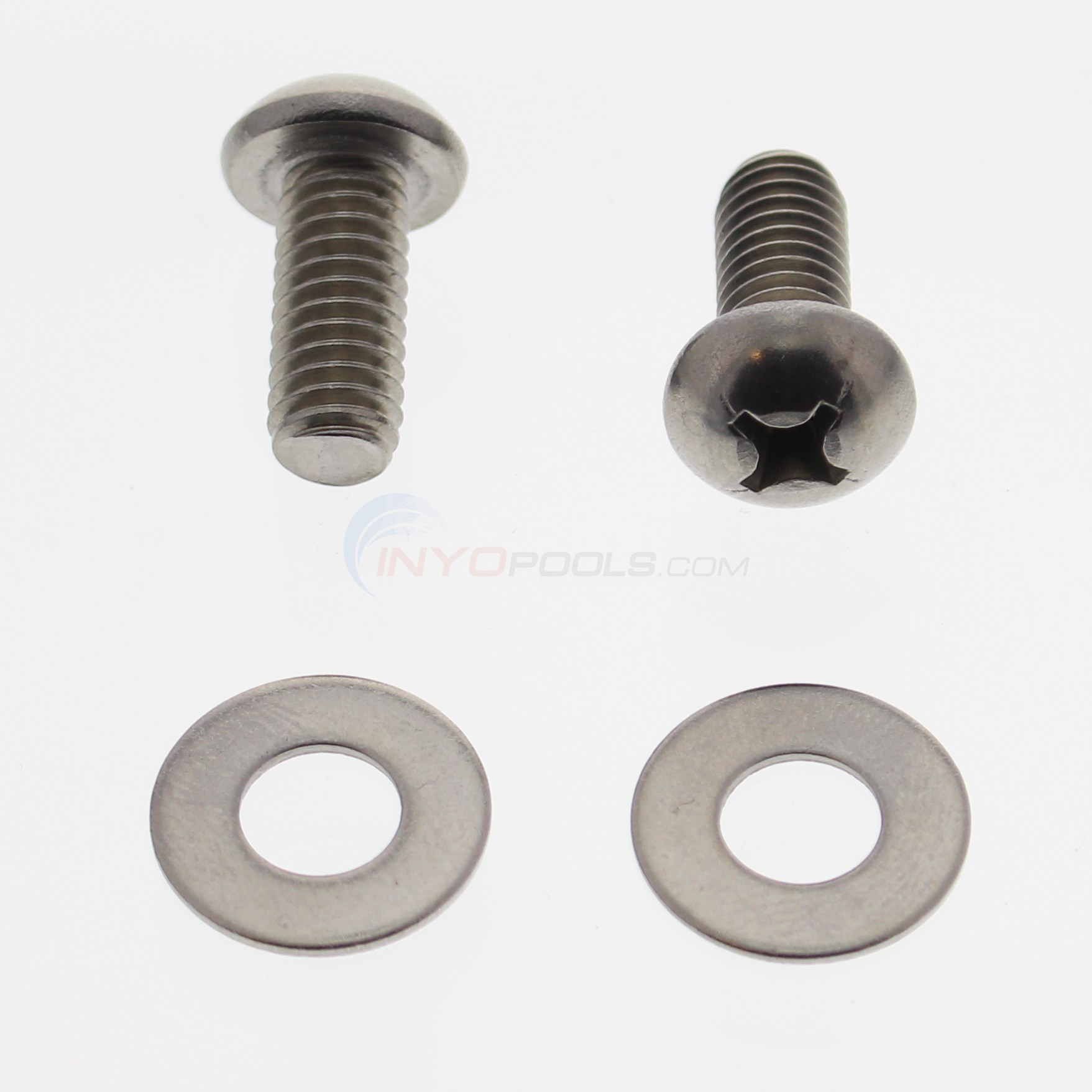

Pump Mounting Screw With Washer

Part # 4820-13 Mfg # ECX1108A

Pump Mounting Screw With Washer

$20.99 IN STOCK

Used On EC30

Used On EC30

Qty:

Platform Base Wg

Part # 4810-74 Mfg # EC1161PAK

Platform Base Wg

$73.99 IN STOCK

Used On EC30

Used On EC30

Qty:

1-1/2 In Union Male Thd -black

Part # 4663-40 Mfg # SP1480BLK

1-1/2 In Union Male Thd -black

$25.49 IN STOCK

Used On EC30

Used On EC30

Qty:

Elbow Adaptor, 1 1/2" Barb X 1 1/2" Mpt

Part # 7251-0 Mfg # SPX1105Z4

Elbow Adaptor, 1 1/2" Barb X 1 1/2" Mpt

$15.49 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

Hose, Clear, 1-9/16" Id

Part # 4824-57 Mfg # ECX27071

Hose, Clear, 1-9/16" Id

$64.99 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

Clamp,s.s.hose 1 5/16 To 2in

Part # 6660-0 Mfg # 276-28

Clamp,s.s.hose 1 5/16 To 2in

$4.49 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

Pump Mounting Screw With Washer

Part # 4820-13 Mfg # ECX1108A

Pump Mounting Screw With Washer

$20.99 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

Platform Base Wg

Part # 4810-74 Mfg # EC1161PAK

Platform Base Wg

$73.99 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

1-1/2 In Union Male Thd -black

Part # 4663-40 Mfg # SP1480BLK

1-1/2 In Union Male Thd -black

$25.49 IN STOCK

Used On EC40 & EC40AC

Used On EC40 & EC40AC

Qty:

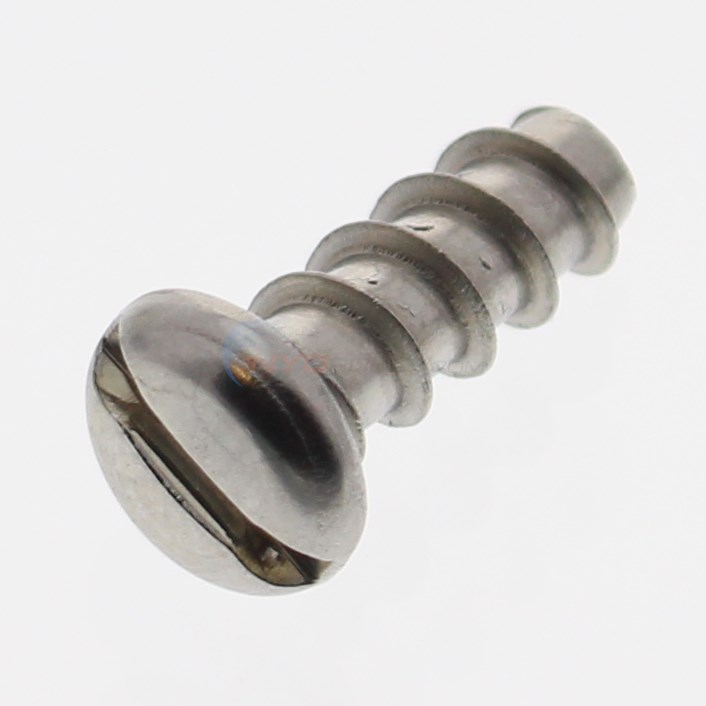

Screw

Part # 4810-02 Mfg # SPX1411Z3

Screw

$12.99

Used On EC40 & EC40AC

Used On EC40 & EC40AC

3-Prong Pump Power Cord, 6', 14 GA, 115V

Part # 3118-0 Mfg # SPX1250WA

3-Prong Pump Power Cord, 6', 14 GA, 115V

$50.49

Used On EC40 & EC40AC

Used On EC40 & EC40AC

*O-RING/GASKET REPAIR KIT
