By Gecko Alliance

Details

Top

Part # 5121-09

Manufacturer Code 91231301

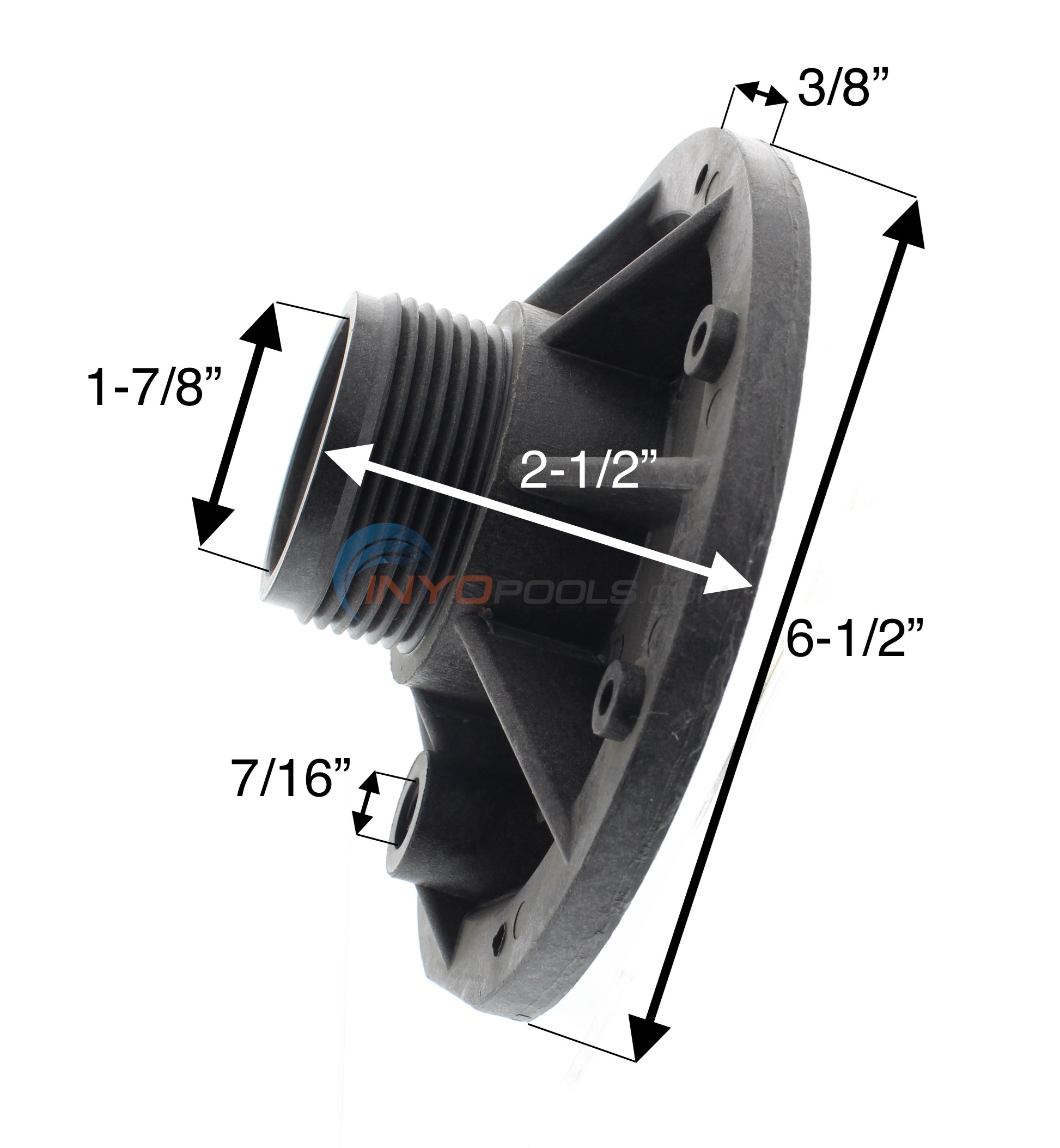

Dimensions 6-1/2" X 1-7/8"

Alternate Part #'s 354021056, 70217, 9123130, 91231301, AF91231301, AQF1018570, 35-402-1056

Product Description

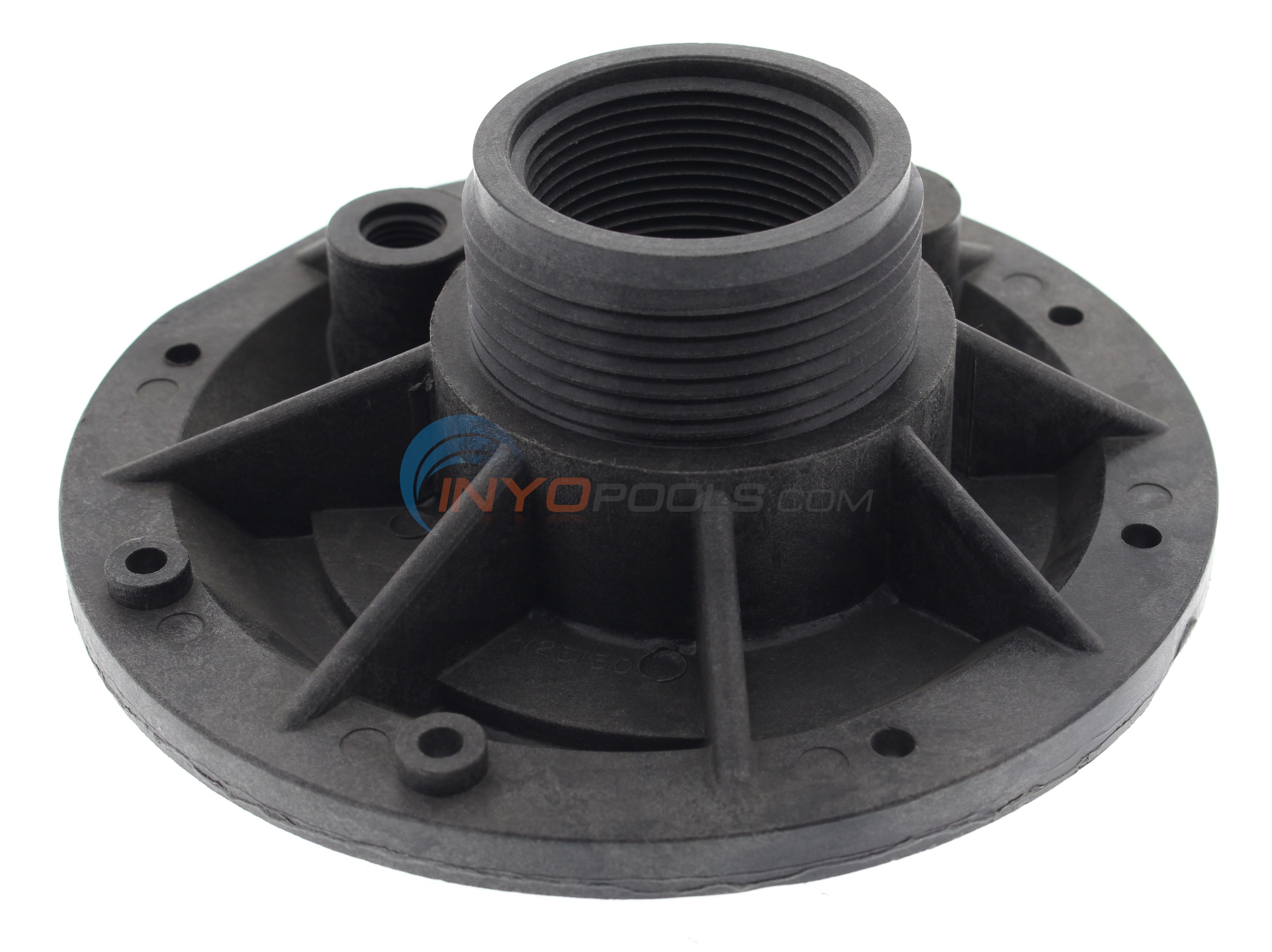

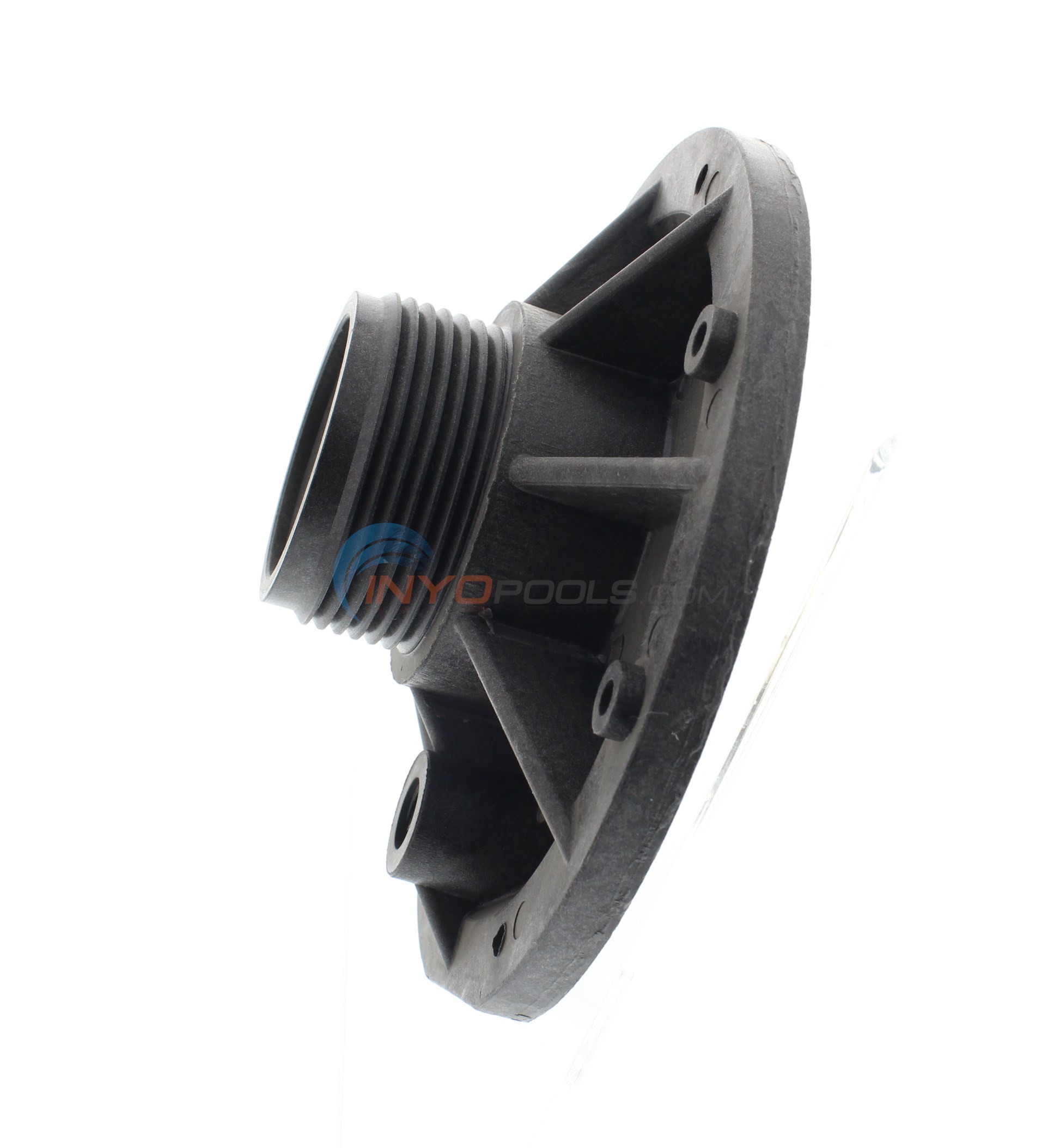

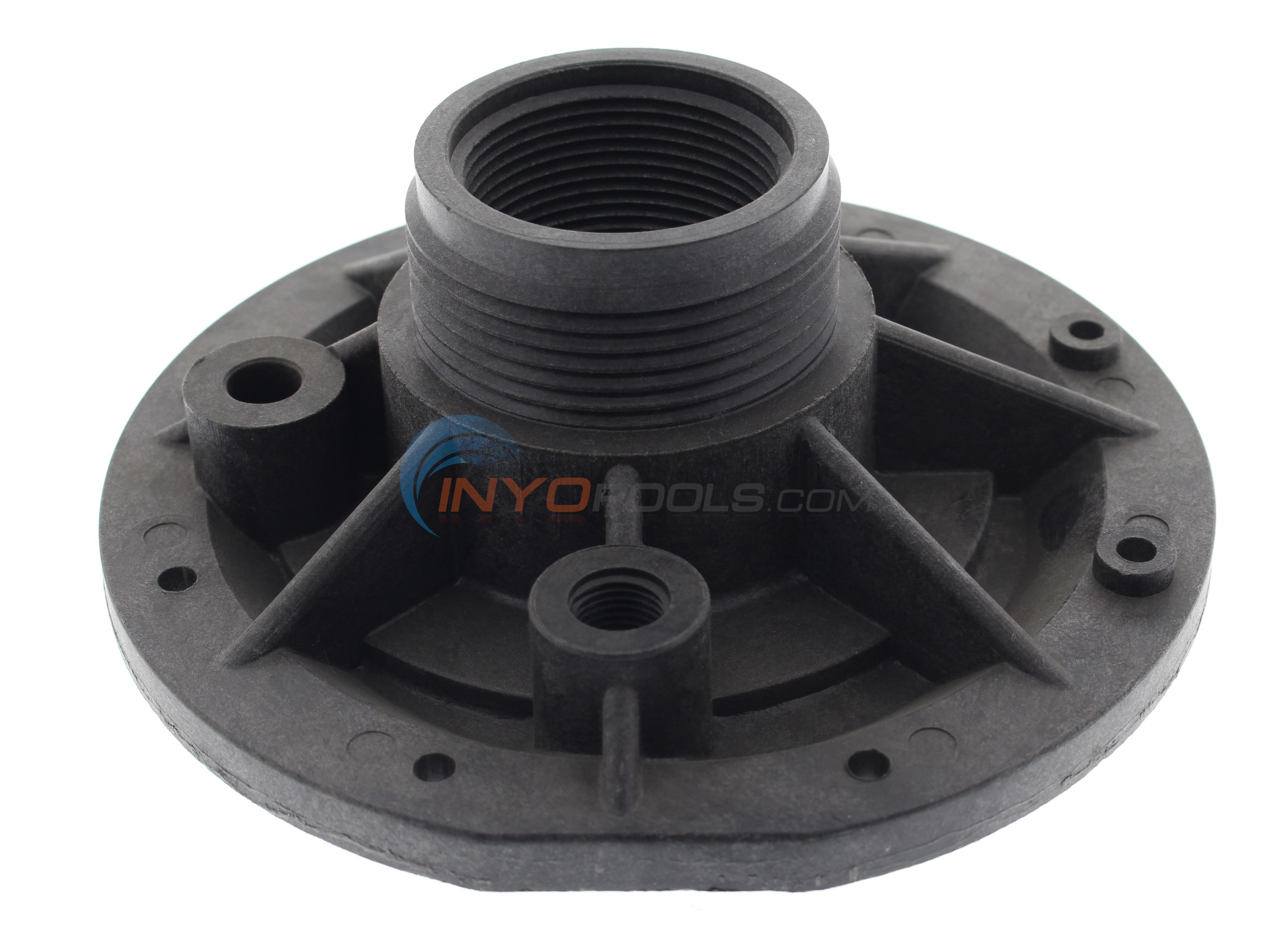

COVER, SIDE DISCHARGE (91231301)

Top
Ask A Question

?     Asked on 6/27/2015by Andy

I ordered this pump head replacement. Is there an o-ring that comes with it?
 Reply

A  Answered on 6/28/2015 by InyoPools Product Specialist Dennis R.

Hi Andy, The O-ring you need depends on which Aqua Flo Master pump you ordered the side discharge cover for. If you have a CMHP pump, the O-ring is 4700-05A. If you have a FMHP pump, the O-ring is 5120-04  The O-ring goes between the cover and the Volute.
 Reply


?     Asked on 9/11/2017by Christine Schlichting

Does this plate come with the o ring seal?
 Reply

A  Answered on 9/11/2017 by InyoPools Product Specialist Lennox H.

Hi, Christine. The Volute O-ring - 158 is not included with this part, it's sold separately.
 Reply


?     Asked on 9/11/2017by Christine Schlichting

There is an o ring for cover 252 which measures 5 1/2 inches. We need an O ring that is 5 inches, I believe. Or is this the correct oring for the cover?
 Reply

A  Answered on 9/12/2017 by InyoPools Product Specialist Lennox H.

Hi, Christine. The correct o-ring for this Side Discharge Cover is p/n 5120-04 - Volute O-ring (158).
 Reply


?     Asked on 7/28/2018by Joe

What is the discharge size of the outer threads?
 Reply

A  Answered on 8/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Joe. The discharge OD with the threads is 2-7/16 inches.
