$3.21

Qty:

Details

Top

Part # 4700-05A

Manufacturer Code 252

Dimensions 5-1/4" ID, 1/8"

Alternate Part #'s 1124, 2603102007, 271103, 3030172, 355051408, 92200080, E7S1, HAY0612121, O-139, O139, SP704F, SP710Z3, SPP-2520, SPX0710Z3, SPX710Z3, SWQ1013962, 90-423-5252, AEQO139, ALDO-139-0, APCO2396

Product Description

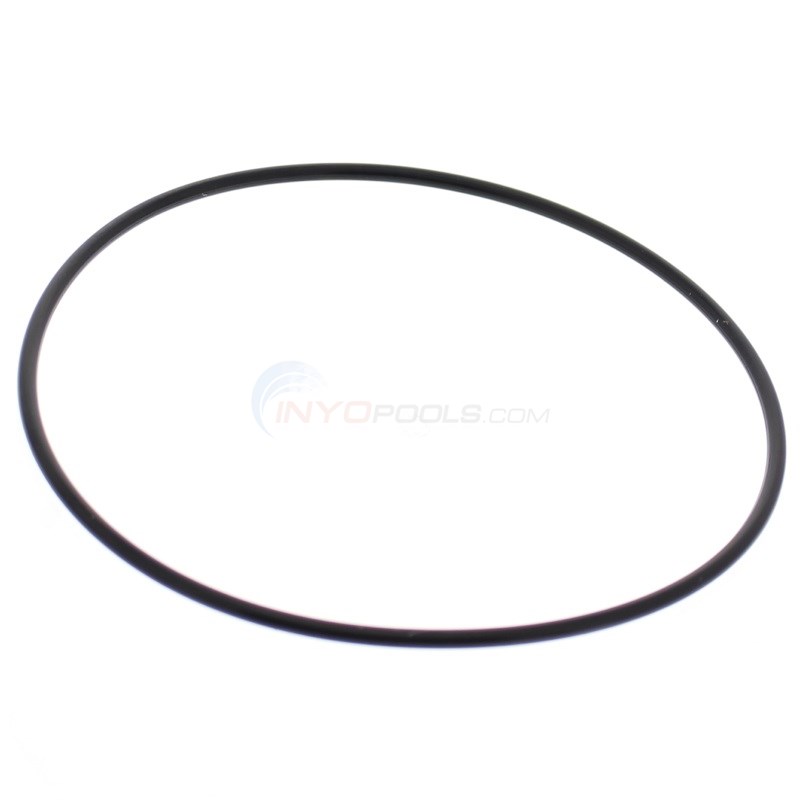

Replacement Cover O-ring

Frequently Bought with O-rings

Magic Lube O-ring Lubricant

Top

?     Asked on 7/17/2015by Florence Keels

If the water is still running out of the backwash after putting it on filter does the multiport need a new o ring
 Reply

A  Answered on 7/17/2015 by InyoPools Product Specialist Matt S.

Florence, the spider gasket on your valve likely needs to be replaced. The spider gasket is a spoked gasket within the valve that directs the flow to the correct pipe. Take some time to read this guide How to Replace a Spider Gasket on a Multiport Valve
 Reply


?     Asked on 8/22/2015by Robert Evans

Key 7A appears to be the O-ring that I need for my old HY-TEC hot tub with an AquaFlo Model FMH 07-2 pump. HOWEVER, key 7A indicates 5.5" diameter and my old unbroken item is only 5 1/8" diameter [and is 1/8" thick], and is flat on both sides [by design, or from age is unknown]. Can you help me determine what part I need and can you provide it for me? Your help is appreciated.
 Reply

A  Answered on 8/27/2015 by InyoPools Product Specialist Lennox H.

Hi Robert, The FMHP Volute O-ring (92200090) will be the correct o-ring you will need for your AquaFlo FMH Pump.
 Reply


?     Asked on 10/11/2015by gary kemp

I just bought this o-ring. the one that came off is bigger by about .5 inches on the diameter and the cross section is about .2 diameter instead of .125 diameter. the part number on the valve is 262506
 Reply

A  Answered on 10/13/2015 by InyoPools Product Specialist Lennox H.

Hi Gary, The Cover O-ring (358) would be the correct o-ring for the Pentair model 262506 valve.
 Reply


?     Asked on 5/30/2016by James

I am looking for an O-ring for a splash Pak sand filter model #94086675. Is part# 4700-05A $7.99 the correct part?
 Reply

A  Answered on 6/4/2016 by InyoPools Product Specialist Lennox H.

Hi James, This o-ring will work with Splash Pak filter valve but not the actual Splash Pak filter tank. The Tank O-ring (47617204R000) is the o-ring that goes between the valve and the filter body if that's that o-ring that you need.
 Reply


?     Asked on 5/30/2016by Robert McClair

I've got a Praher tm12a filter valve and need a top cover o-ring. Can you give me a part number for ordering and/or tell me what my alternative parts are?. (I've measured the diameter of the threaded top at a little under 6 inches). Can you help? Thanks, Rob.
 Reply

A  Answered on 6/4/2016 by InyoPools Product Specialist Lennox H.

Hi Robert, This o-ring is the correct cover o-ring for the TM12-A valve.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

Need to Replace Diverter Gasket in Multi-Function Valve

Written on 5/18/2022 by Guest

Removed the screws on the top of the multi-function valve.
Took the top off by gently prying it loose with a straight blade screwdriver.
The O ring was easily visible and needing to be replaced.
I also took the time to replace the diverter gasket while replacing the O ring.
Put the top back on.
Put the screws back in and tightened it all down.
Turned pump back on and checked for leaks. There were no leaks.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

1     0

O-ring was leaking

Written on 2/10/2018 by Guest

Removed screws from top of the replacement valve and put in new O ring

Were these instructions helpful?
