By Hayward Pool Products



Part # 5110-03

Manufacturer Code SPX1600D

Dimensions 7" X 1.75"

Alternate Part #'s HAY1012010, SP1600D, SPX1600D, 35-150-2006, HAY-101-2010, HAYSPX1600D

Product Description

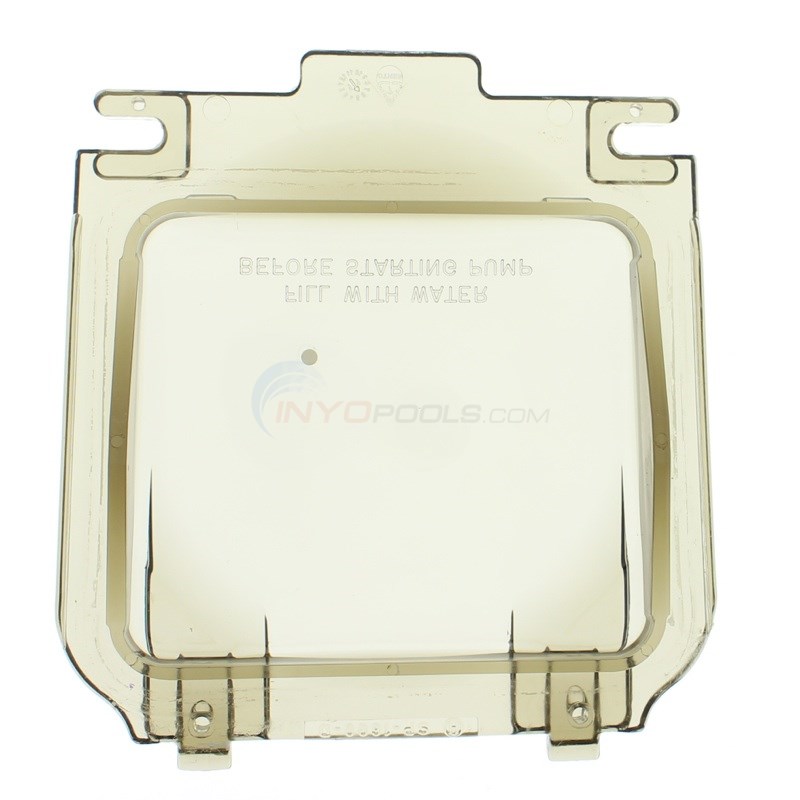

Strainer Cover OEM - SPX1600D

Frequently Bought with Strainer Cover

Cover Gasket 5110-04

Hand Knob Kit 5110-62

Pump Basket 5400-B167



?     Asked on 8/4/2021by joe

i appear to be sucking air from the strainer lid. is it the gasket or is it a warped lid?

A  Answered on 8/4/2021 by InyoPools Product Specialist Craig C.

Hello Joe.  Under most circumstances the pump lid gasket is not sealing properly, allowing air to enter the circulation system when the pump is running.  Super Pump Lid Gasket (O-177) (SPX1600S)   It is possible that the lid is warped but a good first step in diagnosing this situation is to replace the pump lid gasket.

?     Asked on 6/3/2021by William R. Butler

Does this come in a clear plastic?

A  Answered on 6/3/2021 by InyoPools Product Specialist Craig C.

Hello William.  Unfortunately, the strainer cover for Hayward's Super Pump is only available in a colored translucent style.

?     Asked on 5/28/2021by wally

is this a see through cover??

A  Answered on 5/28/2021 by InyoPools Product Specialist Craig C.

Hello Wally.  Yes, this cover is constructed of translucent material that is see-through.

?     Asked on 6/26/2020by Inyo Visitor

Can I get a clear strainer cover, I can't see when I am trying to prime it.

A  Answered on 11/10/2020 by InyoPools Product Specialist Hector F.

Hi John, we only carry these Hayward Super Pump lids with the original manufacturer tint on them however they are see through so you will be able to see the water moving underneath it.

?     Asked on 5/7/2020by Inyo Visitor

can you get this part clear without the smoke tint

A  Answered on 12/8/2020 by InyoPools Product Specialist Hector F.

Hello, unfortunately, this lid only comes with a tinted color.

?     Asked on 4/5/2020by Kenneth Newman

I have a SP2610X15 Hayward strainer and need the strainer gasket for the strainer housing.Is there also a gasket needed for the lid or is the housing strainer gasket the only gasket needed?I checked my lid and there seems to be a slot to house a round gasket in the lid but there is no gasket there.Thought I remembered it being there and think I may have lost it when cleaning the basket. Thanks

A  Answered on 4/9/2020 by InyoPools Product Specialist Hector F.

Yes, there is a lid gasket as well as some others for your pump model if you need them. Please click here to view your pump parts diagram where you can view the individual seals and gaskets or you can select a seal kit(GOKIT) which will have all of the pump seals and gaskets.

?     Asked on 7/17/2019by Greg

How can I get new knobs for the Hayward pool lid (knob style). Don't need the lid but need the knobs that tighten the lid down to keep air out.

A  Answered on 7/17/2019 by InyoPools Product Specialist Hector F.

The knobs used on the Hayward pool pump lids are part number 5110-62.

?     Asked on 6/24/2019by jgr

is this lid clear or tinted?

A  Answered on 6/24/2019 by InyoPools Product Specialist Matt S.

The lid is tinted.

?     Asked on 3/28/2019by Evan

I have strainer cover # SP-1600-D (not SPX) with a raised molding on the inside of the cover that seats the top of the strainer gasket. The gasket for the SPX1600 does not fit this cover. Do you have a gasket that will?

A  Answered on 3/31/2019 by InyoPools Product Specialist Lennox H.

Hi, Evan. The Strainer Lid Gasket - SPX1600S (OEM) or O-177 (Generic) are compatible with your pump and this Lid.

?     Asked on 6/9/2015by Inyo Visitor

Is cover for sp=1600d same as spx1600d also gasket is that ordered seperate?

A  Answered on 6/9/2015 by InyoPools Product Specialist Patrick P.

Yes these would be the same parts and the SPX1600S Hayward Super Pump Cover Gasket is ordered separately.


Est. Repair Time

Less than 1 hr

Tools Needed


Strainer cover visible crack in tab fitting

Written on 6/8/2021 by Guest

Noticed lots of water swirl under cover so thought about sealing crack with glue but decided against it and ordered new Hayward strainer cover. Fits perfectly and no more swirling water. Apparently, air was being sucked into the strainer basket area through a crack in the cover, and no problem now with the new proper fitting cover.
