Part # 5110-04
Manufacturer Code O-177

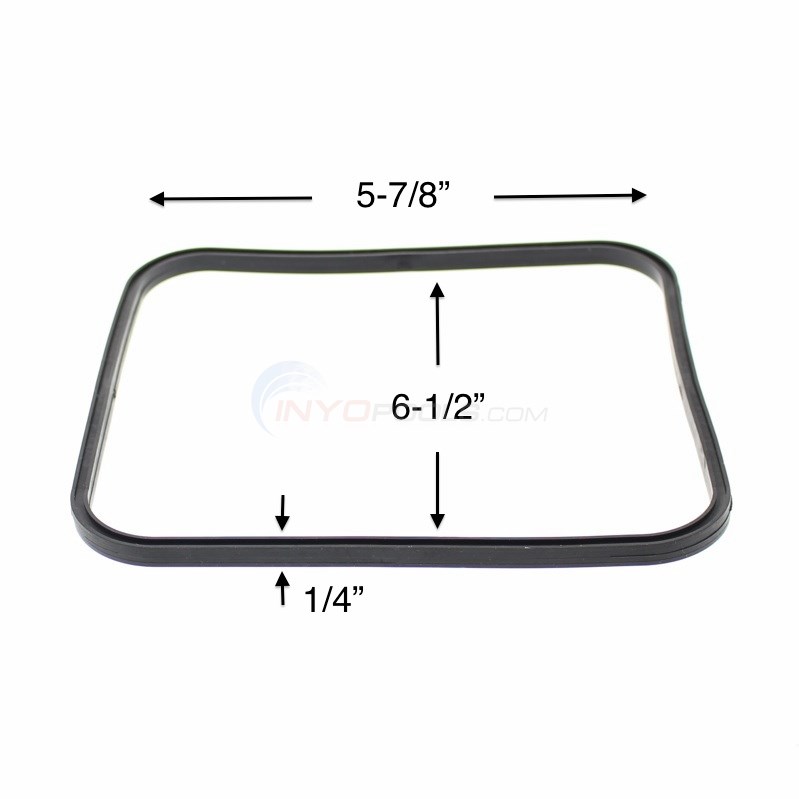

Dimensions 6.25" X 7"
Alternate Part #'s AT1600S, HAY1012017, HWSP1600S, O-1226, O-177, O177, PL2649, SP1600S, SPX1600S, SS-1600-S, 90-423-1177, ALDO-177-0, APCO2036

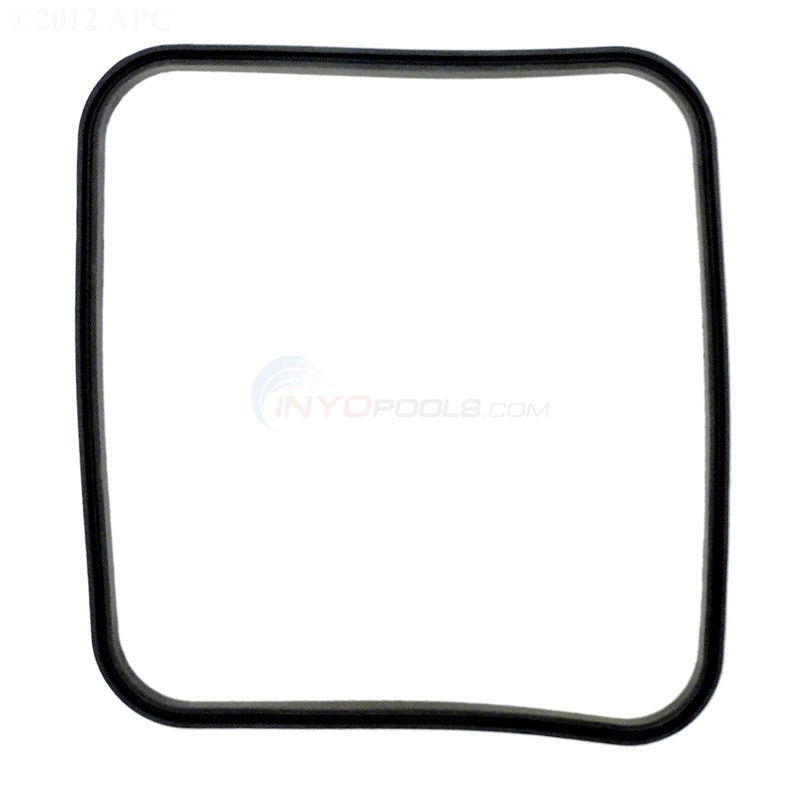

This is a replacement strainer cover lid gasket used on the Hayward Super Pump and WMC / PPC AT Series pumps. Replacing this gasket will correct pump strainer leaks in many cases.
Frequently Bought with Lid Gasket
Will this fit a hayward sp2615x202s? This pump is barely a year old and it seems too new to need a gasket already but water came out of it when the pump lost it's prime and I put the lid back on after priming. It has lost it's prime repeatedly in the last week.
Reply
Hi Deborah, this will fit your Hayward Super Pump SP1600 Series pump. Be sure to put a little lubricant on the gasket to help it seal. And check out our article on How to test for suction side air leaks if your pump continues to lose its prime. The motor shaft seal can become damaged if the pump runs without water in it, so that could be a leak source as well.
Reply
sp2615x202s is the model number. Wouldn't this be a 2600 model? I don't want to order the wrong part. Thanks.
-(SPX1600S).jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-(SPX1600S).jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Super Pump Strainer Lid Cover Gasket O-177 - SPX1600S")
The gasket/O-Rings and pump seal interchange for the SP1600 and SP2600 Series. Click to view the parts page https://www.inyopools.com/pool_parts_pumps_hayward_super_pump.aspx If the seal plate, motor mounting plate, impeller, or diffuser are for the SP1600 series the Drive Train Upgrade kit would be required as those parts are different. You are okay to place the order for the model sp2615x202s
Reply
Wouldn't this model number be a 2600 series instead of 1600? sp2615x202s
Reply
Disney this a 2600 series? I want to make sure I get the correct gasket.
Is this lid gasket (o-177)(spx1600s) able to fit the super pump 2600zlg
Reply
Hello Deborah. The Super Pump lid gasket 0-177 SPX1600s is compatible with the Hayward Super Pump 2600 Series Pumps.
Reply
Is this the right gasket for the Hayward super pump 1 hp model #C48k2n143b?
Reply
Hello Maureen. Yes, this is the correct pump lid gasket for the Hayward Super Pump. If you are looking for additional seals and gaskets, the GOKIT3 contains a Motor Shaft Seal, Diffuser Gasket, Pump Lid o-ring, Housing Gasket, and lubricant. Please see attached. Tune Up Kit Hayward Super Pump - GOKIT3
Reply
I have a Hayward SP-1608 x 10 super pump. Will this super pump lid gasket fit the 1608 x 10 model?
Thanks
Reply
Yes, the gasket part number SPX1600S is the correct lid o-ring for the Hayward Super Pump SP1600 & SP2600 Series.
Reply
I have a hayward super pump model sp2602vsp, I need a gasket for the see thru lid. I tried a spx1600s gasket but that seems a little to big, wont fit in channel right. Is this the right one? thanks
Reply
Hi Ronald, yes for the model Hayward Super Pump sp2602vsp pool pump this would be the correct lid gasket.
Reply
I have a Hayward Super Self-priming pump 1hp which is an older model and I need a gasket for the pump lid. I believe the Model number is CASK27143B1. which gasket do I need so I can order it from you
Reply
This is the correct lid gasket for the Hayward Super Pump.
Reply
will this fit on Sp2615X20?
Reply
How do I get the cover?
Reply
Hi. This Strainer Cover Gasket - HWSP1600-S works with the Hayward Strainer Cover - SPX1600D.
Reply
I ordered this gasket and it is about 1/2 inch to large, I've looked and can't seem to find the correct one. I had ordered a kit that was for Hayward super pump series 1600,2600,2600x and I thought based on the measurements the one I ordered which was item number 5110-04 was supposed to be smaller than the first one but they are both the same size and both are slightly too large to seal. Is there one smaller than this one?
Reply
Karen, It sounds like you have the correct gasket for the Hayward Super Pump. The gasket is slightly larger so it has to be worked into place for a tight seal.
Reply
I need a new gasket for Hayward super pool pump. SP 2607X10. I bought what I thought was correct a year ago, it doesn't fit. I find SP's but not the SP 2607X10.
Reply
Hello, the pump that you have is the SP2607X10. For the gaskets, you can either go with the GOKIT3 or the GOKIT3SALT.
Reply
If I order this product, do I also need gasket cement and if so what do you recommend ?
Thanks
Reply
Hi. You will only need to use a little Magic Lube O-ring Lubricant - 630 when installing this o-ring.
Reply
should I use an adhesive compound to hold gasket hwsp 1600-s in place?
Reply
Negative. Do not use an adhesive on this gasket. Just standard o-ring lubricant. One type is magic lube.
Reply
Less than 1 hr
Nut Drivers, Socket Set
I was between buying a new pump and replacing my Hayward super pump. The more I thought about it I figured I’d give it a shot with repairing it. So when I called to get the parts, the person I talked to was very professional. A lot of good information ended up taking the whole pump apart finding out which gasket needed to be replaced. Actually bought the whole kit and while I had a part, I replaced all the gaskets. It went back together very easily. I’ve got it hooked up now and things are going well. thanks, inyopool.com!
Less than 1 hr
None
I located the gasket at inyopools.com
Ordered the gasket that was made to fit the Hayward pump and it arrived within the week.
After installing the new gasket, there was no more water leakage.
Less than 1 hr
None
2 0
The Most Helpful Review
5 0
(5 out of 5 stars)
Reviewed By: Stefano C. from Durham, NC ()
Clean the gasket seat with alcohol and grease well the gasket with silicon. Then install it. These gaskets are damaged by uv so you are going to change them every 3-5 years. Stock a few far from the sun and you're cool.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Fits well. Leak stopped.
Was this review helpful to you?
(3 out of 5 stars) Seals well but doesn’t stay put
Reviewed By: Inyo Customer ()
We saw some air bubbles coming from a jet and just started replacing everything we could think of before digging up pipes so we purchased this on the off chance the seal wasn’t tight. Sadly it was not the cause of the issue. Our old gasket stayed put, but this one seems to lift with the lid every time we remove it & we have to push it back in each time. It could be operator error, but I had hoped it wild just stay in the groove after installing.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Outstanding
Was this review helpful to you?
(5 out of 5 stars) Fits great!
Reviewed By: Inyo Customer ()
Fits great!
Was this review helpful to you?
(5 out of 5 stars) Perfect fit!
Reviewed By: Inyo Customer ()
Perfect fit!
Was this review helpful to you?
(5 out of 5 stars) Great gasket OEM fits perfect
Reviewed By: Inyo Customer ()
Great gasket OEM fits perfect, no more leak!
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
fits perfect
Was this review helpful to you?
