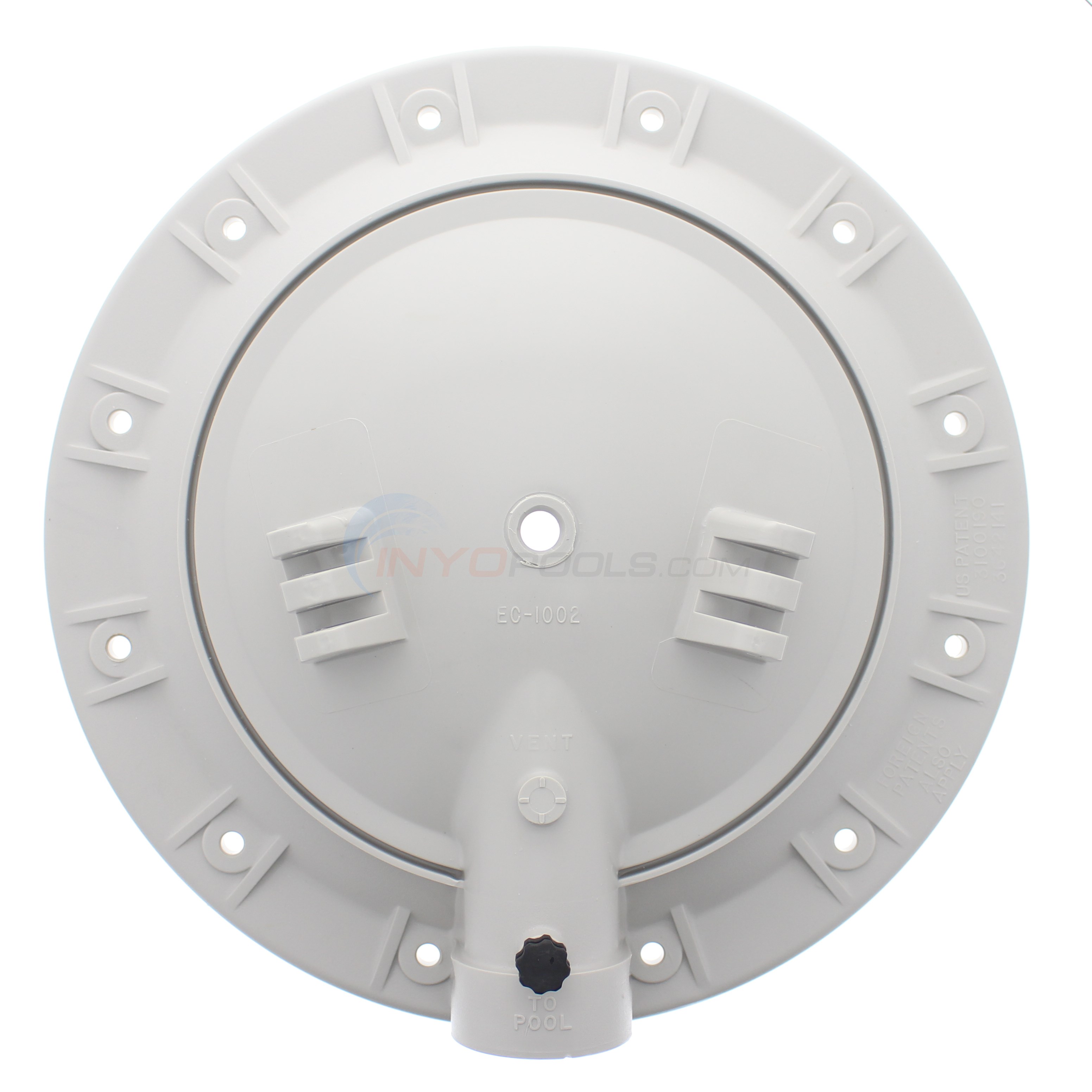

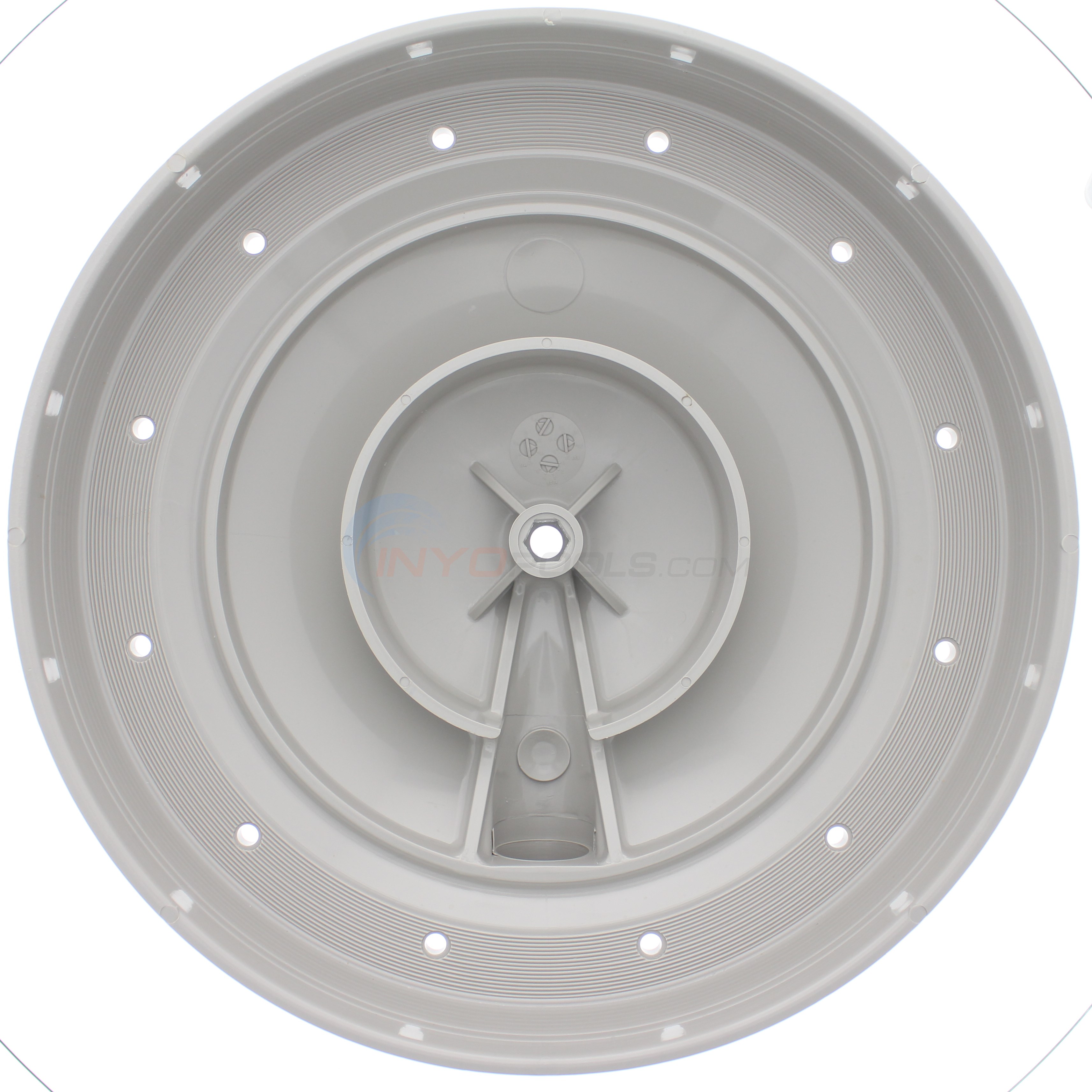

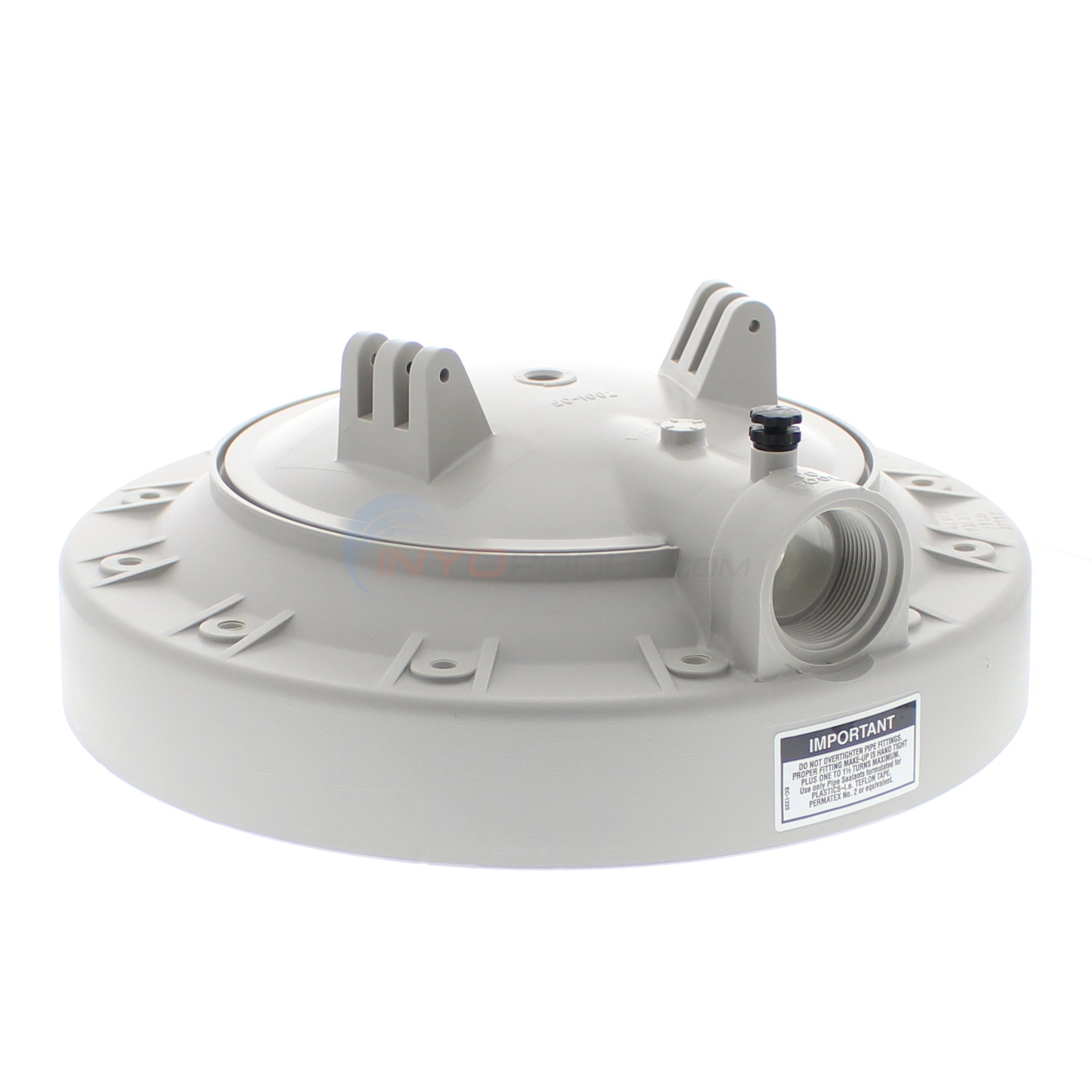

Filter Head w/ Vent Valve, EC40 - Platinum (ecx10334p)

$164.99

IN STOCK
FREE SHIPPING

Part # 4810-041

By Hayward Pool Products


Details

Top

Part # 4810-041

Manufacturer Code ECX10334P

Dimensions 14.75" L x 14.75" W x 5.75" D

Alternate Part #'s ECX10334P, 14-150-1004, HAY-051-1474, HAYECX10334P

Product Description

Filter Head w/ Vent Valve, EC40 - Platinum (ecx10334p)

Top

?     Asked on 6/11/2019 by Terry

I have the Hayward model EC45 and the filter head is leaking from the area where there is a gasket. Can I take this apart and replace the gasket or do I need to purchase the whole filter head unit?
 Reply

A  Answered on 6/11/2019 by InyoPools Product Specialist Patrick P.

Hi Terry, You can use the ECX1003 Diaphragm Gasket listed as key # 12B on the Hayward Perflex Parts Diagram
 Reply


?     Asked on 3/1/2019 by Ryan Grandel

I have a Hayward filter with a crack in lid and needs to be replaced. Cannot find a # on filter of size. Numbers I did find on filter are sn#5604 and another# below that is 340H32. Are u able to tell me the correct size so I can order the appropriate lid. Thank you
 Reply

A  Answered on 3/4/2019 by InyoPools Product Specialist Michelle B.

Hello, Can you please provide a picture of the lid and entire unit?
 Reply


?     Asked on 4/29/2018 by Brian Mcvey

I have a cracked filter head for an ec45 Hayward filter. What filter head fits this model?
 Reply

A  Answered on 5/2/2018 by InyoPools Product Specialist Charlie R.

Brian, This filter head (ecx10334p) fits both the EC40 and EC45 models.
 Reply


?     Asked on 7/25/2017 by Paul

I need the male connecter for the Hayward EC-40 that connects the pump to the flexible pipe that goes to the pool? Seems to be 7/8 inch thread on one side and 1 1/4 " diam to connect to pipe.
 Reply

A  Answered on 7/25/2017 by InyoPools Product Specialist Lennox H.

Hi, Paul. You can use the 1-1/2" MPT x 1-1/2" / 1-1/4" Hose Adapter - 417-6060
 Reply


?     Asked on 6/16/2017 by George

I have a Hayward ec45a filter and then top has a crack and is leaking . How much is the cover compared to a whole new filter
 Reply

A  Answered on 6/25/2017 by InyoPools Product Specialist Lennox H.

Hi, George. The replacement Head is a little less that half the amount of a complete EC40AC or the EC50AC units.
 Reply


?     Asked on 4/26/2017 by bill, Oakforest

I have a crack on my Hayward perflex filter head model EC-45. Is there a replacement filter head ?
 Reply

A  Answered on 4/26/2017 by InyoPools Product Specialist Lennox H.

Hi, Bill. This particular head is used with the EC40 which is the bolt-on style model. If you have the clamp style model you will need p/n ECX5000BP.
 Reply


?     Asked on 9/30/2015 by bill

hi i have a ec50 the head has two cracks in it would this let de back into pool I've already changed the diaphragm
 Reply

A  Answered on 10/6/2015 by InyoPools Product Specialist Lennox H.

Hi Bill, A crack lid would not allow DE powder to get back into the pool. There is probably a tear in one or a few of the Flex Tubes (ECX1032) which would need to be replaced.
 Reply


?     Asked on 5/30/2015 by Pete

Will the exc10334p fit our model EC-50 Series filter. I think this was purchased in the mid 1980s.
 Reply

A  Answered on 5/30/2015 by InyoPools Product Specialist Patrick P.

Hi Pete, Yes this would be the correct cover for your Hayward Perflex EC50 DE Filter.
 Reply


?     Asked on 4/14/2015 by Kurt Gustafson

We have a Hayward EC 45 filter with a damaged top. It is similar to a EC-10334P shown in your catalog (the one in the catalog is for a EC 40 filter). Does it fit an EC 45?
 Reply

A  Answered on 4/15/2015 by InyoPools Product Specialist Charlie R.

Kurt, Yes, this filter head (ecx10334p) fits both the EC40 and EC45 models.
 Reply
