Part # 5002-14
Manufacturer Code 355329
Dimensions 10.5" X 0.2"
Alternate Part #'s 355329, PAC1013133, 35-102-3068, ALDO-506-0, PAC-101-3133

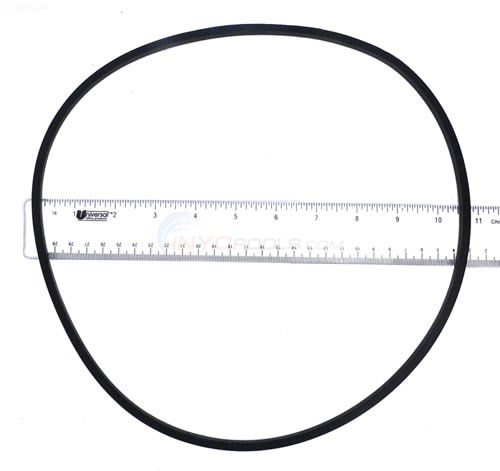

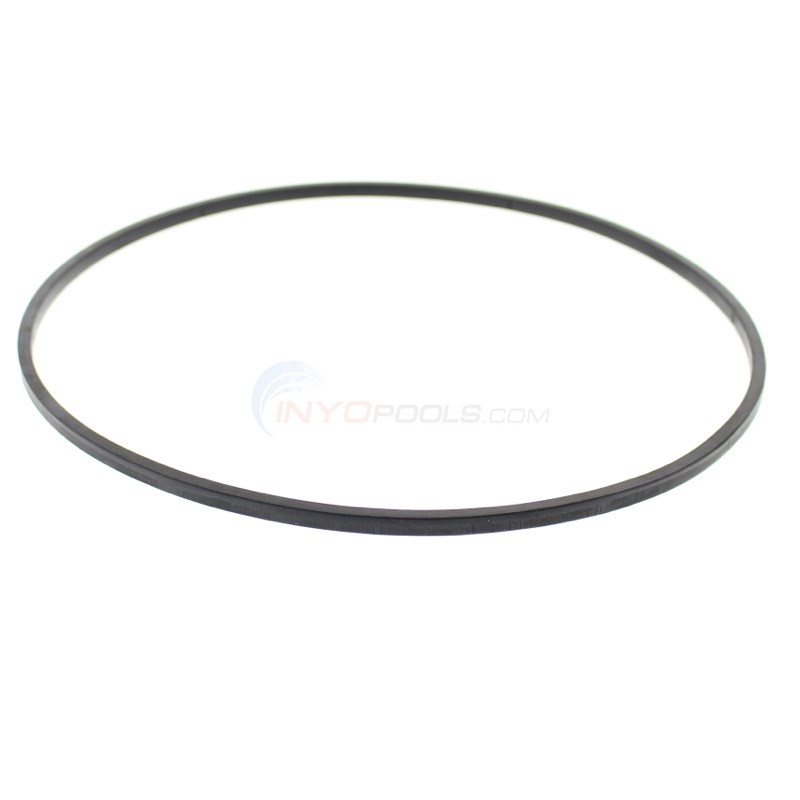

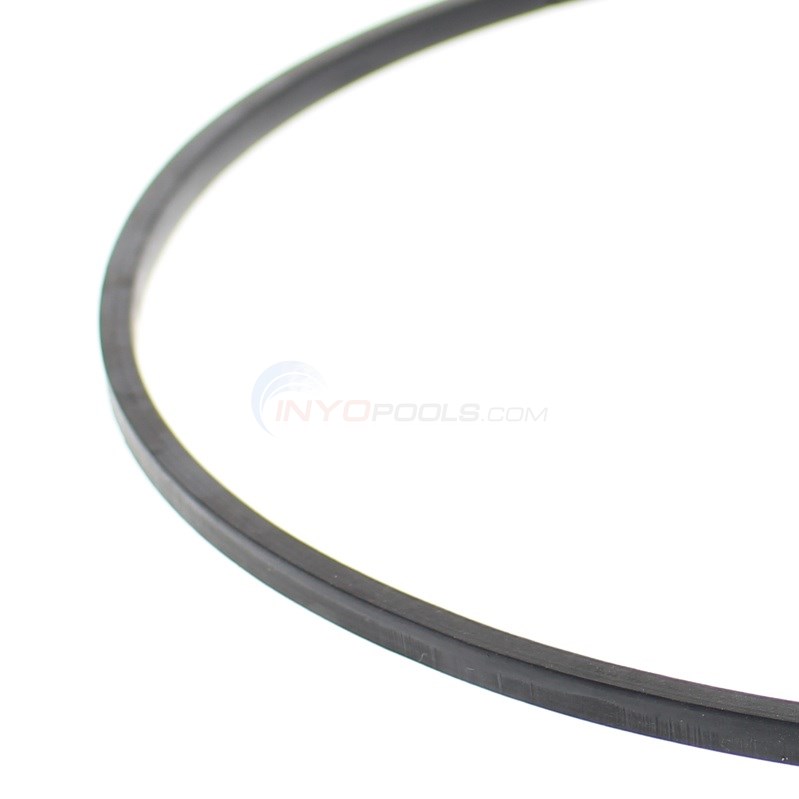

Black rubber front housing o-ring for Pentair / Pac Fab Challenger and Waterfall pumps.
Square Ring, Pentair PacFab/Sta-Rite, Volute, O-506
The motor on my system went out, my system is a Challenger High Performance Pump. I had it since 2004. My old motor model number is K63CXERW-4785, I ordered the replacement motor, part # B2853. I need a new impeller now, can I still use impeller part #355067 with my new motor? When I took apart the system, the housing that use the square gasket was the only gasket on it. Is there another gasket I need for the diffuser?
Reply
Hi Greg, Yes your 355067 Impeller will work on the B2853 motor. The only other part we suggest is a shaft seal. If you have a Challenger Pump then you will require this Challenger Shaft Seal.
Reply
Thanks, will impeller part #355074 also work on my B2853 motor?
Reply
Hi Greg, No the 355074 would not work on the B2853 as that impeller is too strong for the B2853 and would cause the B2853 to fail.
Reply
I have a PAC-FAB Challenger 2HP
Frame: Y56Y
Pump Housing: Part #: 35-5460
1081 Pool Pump duty mount horizontal with vent holes down
It is leaking between the seal plate and the front housing. The water is coming out the top, right around the clamp band.
I think I just need a new O-ring, but I suspect I will need to replace other seals if I take the pump apart. What parts will I need to do this job right?
Hi, Wayne. You will be better off getting the Tune Up Kit - GOKIT5 like you did a few years ago.
Reply
I have the same problem now that I did a couple of years ago. The kit does not have the O-ring that seals the pump housing to the strainer basket (i.e. where I have the leak). the kit has everything but that. And I made the same mistake again. I took the pump apart before I looked at the kit closely. I need the square O-ring. Not happy. Mostly with me. Will try to get it locally.
The gasket is not square, so my question is does the longer edge get installed against the front housing or the short? It does not seem to fit 100% tightly with the thinner edge, but also does not seem to fit perfectly the other way either.
The one that came off the pump was the square cut one as well, but I am wondering if even that one was the correct one...
Reply
Hi, Chris. The short side of this gasket is placed against the volute. It will seal once the two halves compresses the longer side of the gasket.
Reply
Does the Gasket housing 35-5329 have a round or square profile.
I recently installed a new motor on my Challenger pump and used the Gokit5, but the round gasket in the kit didn't work and I need the square gasket.
Thanks
Reply
Hi, John. This Housing Gasket - 355329 is squared.
Reply
procedure for replacing housing gasket 355329
Reply
Unscrew the clamp holding both halves of the pump together. Remove the old gasket. Lubricate and install the new gasket. Reattach both halves of the pump and tighten with the clamp.
Reply
I have an older Challenger pump with 35-5188 diffuser. I need to find out how to tell whether I need a round o-ring or square o-ring for both the diffuser and the housing. I ordered the GO-KIT5 that contains both round o-rings. The pump has been serviced multiple times by various people and not sure if round is correct versus square….I have found both types in the used parts box. Thanks
Reply
Hi John, The Diffuser (35-5188) is used on the Pentair Challenger High Pressure Pumps. The round o-rings not the gaskets are used with the high pressure pumps.
Reply
I've just replaced my housing gasket because I had quite a water leak. The new gasket also leaks. Is there one way the gasket should go on? Or is there something else that could be causing the leak? Water is coming out at a pretty good clip.
Reply
Have you checked the shaft seal yet? The shaft seal is located behind the impeller and if it leaks it will come from the union where the motor bolts to the pump. Shaft seals depend on the pump model.
Reply
Less than 1 hr
None
Turn pump off
Drain water from pump
Remove big clamp around housing
Seperate pump from strainer housing.
Remove o ring from front of pump and replacewith new one.
Marry pump back to strainer
Put clamp back in position lining up with arrow
Tighten clamp
Fill strainer with water to help prime pump
Turn pump on and check for leaks
The Most Helpful Review
3 2
(4 out of 5 stars) What would happen if company sends wrong part by mistake?
Reviewed By: S.T.P. from STP in Lodi, CA ()
Pros: Right parts and right customer service.
Cons: Warehouse mistake, but immediate fix--no hassle.
I have an older Pac Fab pump and impeller set up--pre 1990. Local CA pool supply says can't get parts--so sorry. Inyo has parts and says no problem. Gasket shown is square while my older equip needs round gasket. Look close at pic. Inyo has both in stock. Square arrived instead of round. Called Inyo--no prob--correct part arrived 5 days later, no charge, no questions asked. Both parts and customer service--top drawer.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Quality product and fast delivery
Was this review helpful to you?
(5 out of 5 stars) Well made square o-ring to replace old stretched one
Reviewed By: Inyo Customer ()
It works great. Installed it with a new motor 14 months ago and it's been working great !
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Good quality
Was this review helpful to you?
(5 out of 5 stars) Works like it should
Reviewed By: Inyo Customer ()
Works perfectly.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
worked great
Was this review helpful to you?
(5 out of 5 stars) Critical part
Reviewed By: davis11 from Lafayette, LA ()
I wasn't sure about the size or type I needed but customer support advised me and it was a perfect fit.
Was this review helpful to you?
(5 out of 5 stars) Helps make the pool pump strong
Reviewed By: Michael N. from Copperas Cove, TX ()
Pros: Fits well, does what it supposed to.
Cons: None
My pump had a problem pumping strongly, so I ordered this and some other items and replacing everything at once cleared up all problems.
Was this review helpful to you?
