Pentair Challenger Pump

Pentair Challenger Pump Diagram
CHII-HIGH HEAD (HIGH PRESSURE) AND CFII-MEDIUM HEAD (HIGH FLOW)
3/4 HP Square Flange 56Y Up Rate Motor (B852, B2852)
Key Part # Item Price
1 B852 3/4 HP Square Flange 56Y Up Rate Motor (B852, B2852) $218.95
1 B853 1.0 HP Square Flange 56Y Up Rate Motor - B2853 $239.62
1 B854 1.5 HP Square Flange 56Y Up Rate Motor - B2854 $252.99
1 B855 2.0 HP Square Flange 56Y Up Rate Motor - B855 $354.99
1 B840 2.5 HP Pool Motor Square Flange 56Y Up Rate (B840, B2840) $397.57
1 5237-0 5 HP 3 Phase (355704, H995) $734.23

1/2 HP Standard Motor - Full Rate (B846, B2846)
Key Part # Item Price
1 B846 1/2 HP Standard Motor - Full Rate (B846, B2846) $238.47
1 B847 3/4 HP Standard Motor - Full Rate (B847, B2847) $247.55
1 B848 1 HP Standard Motor - Full Rate $273.52
1 B858 1.5 HP Standard Motor - Full Rate $356.63
1 B748 2 HP Standard Motor - Full Rate (B748, B2748) $399.79

A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981
Key Part # Item Price
1 B981 A.O. Smith 3/4 HP Square Flange 56Y Dual Speed Full Rate Motor - B2981 $377.23
1 B2982 A.O. Smith 1 HP Square Flange 56Y Dual Speed Full Rate Motor - B2982 $373.39
1 5282-5 A.O. Smith 1.5 HP Square Flange 56Y Dual Speed Full Rate Motor - B2983 $427.66
1 B984 A.O. Smith 2 HP Square Flange 56Y Dual Speed Full Rate Motor - B2984 $541.67

V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU
Key Part # Item Price
1 ECM16SQU V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU $611.99
1 ECM27SQU V-Green 2.7 HP Square Flange 48Y Variable Speed Motor - ECM27SQU $957.89

Generic Challengerâ„¢ Style Drive Train Kit 3/4 HP (Full Rate) 1 HP (Up Rate)
Key Part # Item Price
*** HKIT510 Generic Challengerâ„¢ Style Drive Train Kit 3/4 HP (Full Rate) 1 HP (Up Rate)
Normally $499.99!
$229.99
*** HKIT515 Generic Challengerâ„¢ Style Drive Train Kit 1 HP (Full Rate) 1.5 HP (Up Rate)
Normally $499.99!
$241.64
*** HKIT520 Generic Challengerâ„¢ Style Drive Train Kit 1.5 HP (Full Rate) 2 HP (Up Rate)
Normally $509.99!
$241.31
*** HKIT525 Generic Challengerâ„¢ Style Drive Train Kit 2 HP (Full Rate) 2.5 HP (Up Rate)
Normally $509.99!
$249.99

Protective Pool Motor Cover
Key Part # Item Price
*** 3050-38 Protective Pool Motor Cover $44.79

SEAL PLATE (ALL EXCEPT 5 HP)
Key Part # Item Price
2 5002-02 SEAL PLATE (ALL EXCEPT 5 HP) $99.64
2 5002-02A SEAL PLATE, 5HP (THIS WILL WORK ON 1/2 - 5 HP) $138.99

Mounting Plate, CF Series 1/2 & 3/4HP Full Rated, 3/4 & 1HP Up Rated
Key Part # Item Price
3 5002-03B Mounting Plate, CF Series 1/2 & 3/4HP Full Rated, 3/4 & 1HP Up Rated $41.99

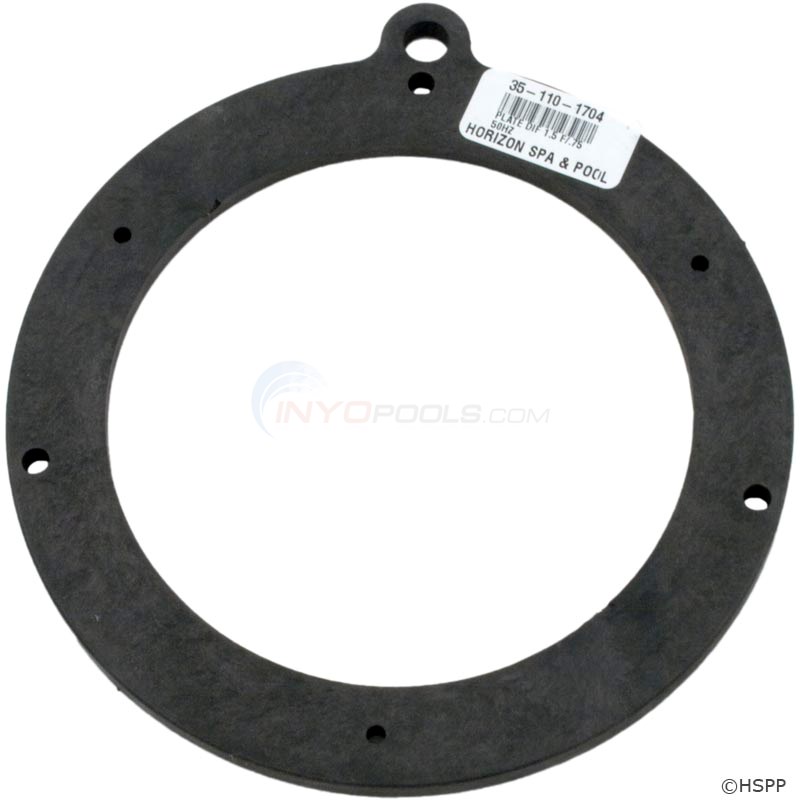

3 5002-03C Mounting Plate, CF Series 1 & 1-1/2HP Full Rated, 1-1/2 & 2HP Up Rated $32.99
3 5002-03D Mounting Plate, CF Series 2HP Full Rated, 2-1/2HP Up Rated $31.99

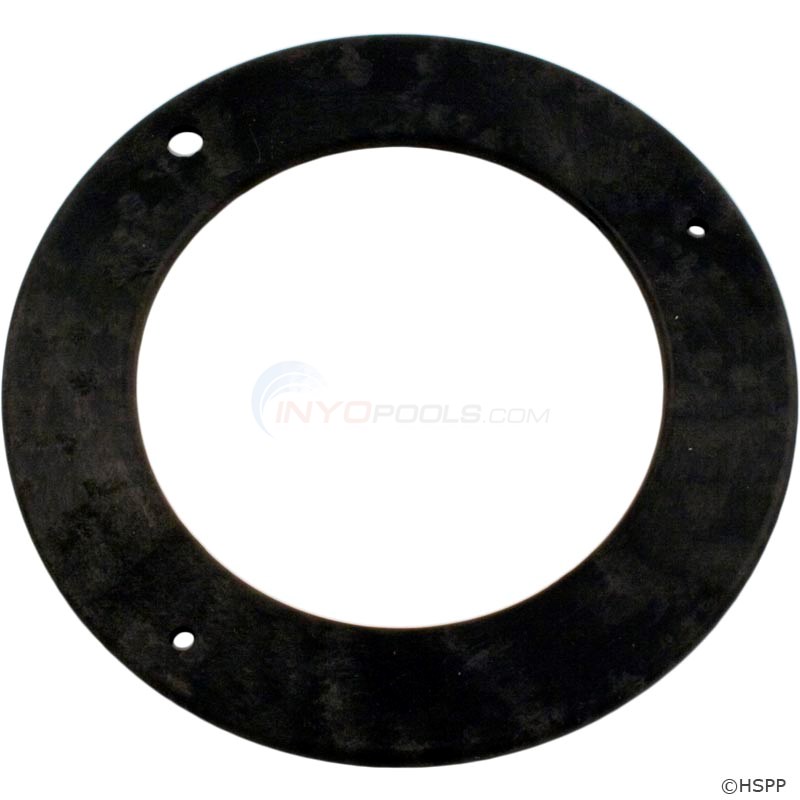

3 5002-03E Mounting Plate, CF Series 5HP Full Rated $23.99

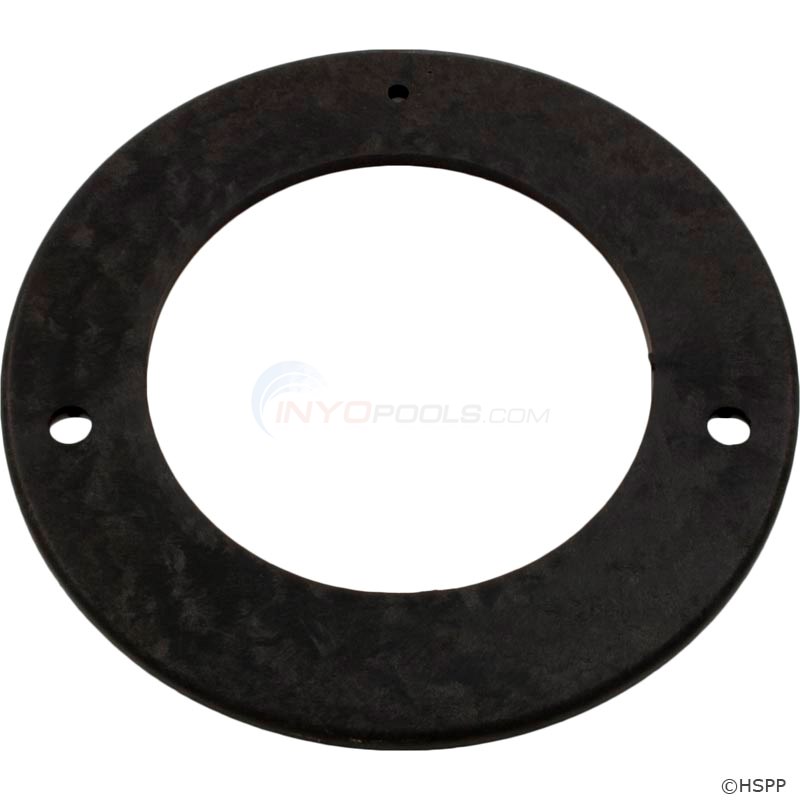

3 5002-03A Mounting Plate, CH Series 1/2HP Full Rated, 3/4HP Up Rated $40.79
3 5002-03 Mounting Plate, CH Series 3/4HP - 3HP Full Rated, 1HP - 2-1/2HP Up Rated $18.73

Shaft Seal
Key Part # Item Price
4 5250-104 Shaft Seal $10.99
4 5250-210 Heavy Duty Shaft Seal (For Saltwater Pools) $19.99

Impeller, CF Series 1/2HP Full Rated & 3/4HP Up Rated
Key Part # Item Price
5 5002-05AA Impeller, CF Series 1/2HP Full Rated & 3/4HP Up Rated $59.99
5 5002-05BA Impeller, CF Series 3/4HP Full Rated & 1HP Up Rated $73.90
5 5002-05CA Impeller, CF Series 1HP Full Rated & 1-1/2HP Up Rated $68.48
5 5002-05DA Impeller, CF Series 1-1/2HP Full Rated & 2HP Up Rated $71.40
5 5002-05EA Impeller, CF Series 2HP Full Rated & 2-1/2HP Up Rated
Normally $59.99!
$56.70
5 5002-05FA Impeller, CF Series 5HP Full Rated
Normally $69.99!
$53.03
5 5002-05 Impeller, CH Series 1/2HP Full Rated & 3/4HP Up Rated $62.99
5 5002-05A Impeller, CH Series 3/4HP Full Rated & 1HP Up Rated $53.55
5 5002-05B Impeller, CH Series 1HP Full Rated & 1-1/2HP Up Rated $63.91
5 5002-05C Impeller, CH Series 1-1/2HP Full Rated & 2HP Up Rated $56.43
5 5002-05F Impeller, CH Series 2HP Full Rated & 2-1/2HP Up Rated $82.61

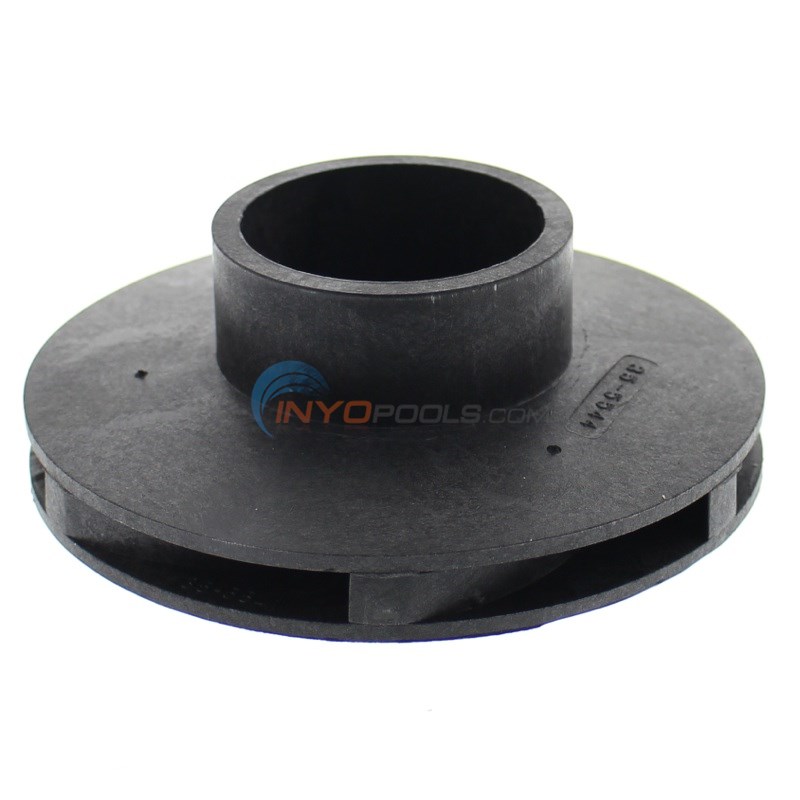

5 5002-05E Impeller, CH Series 3HP Full Rated $87.09

Diffuser, CF Series 1/2 & 3/4HP Full Rated, 3/4 & 1HP Up Rated
Key Part # Item Price
6 5002-06AA Diffuser, CF Series 1/2 & 3/4HP Full Rated, 3/4 & 1HP Up Rated $31.23
6 5002-06BA Diffuser, CF Series 1 & 1-1/2HP Full Rated, 1-1/2 & 2HP Up Rated $47.99
6 5002-06CA Diffuser, CF Series 2HP Full Rated, 2-1/2HP Up Rated $65.27

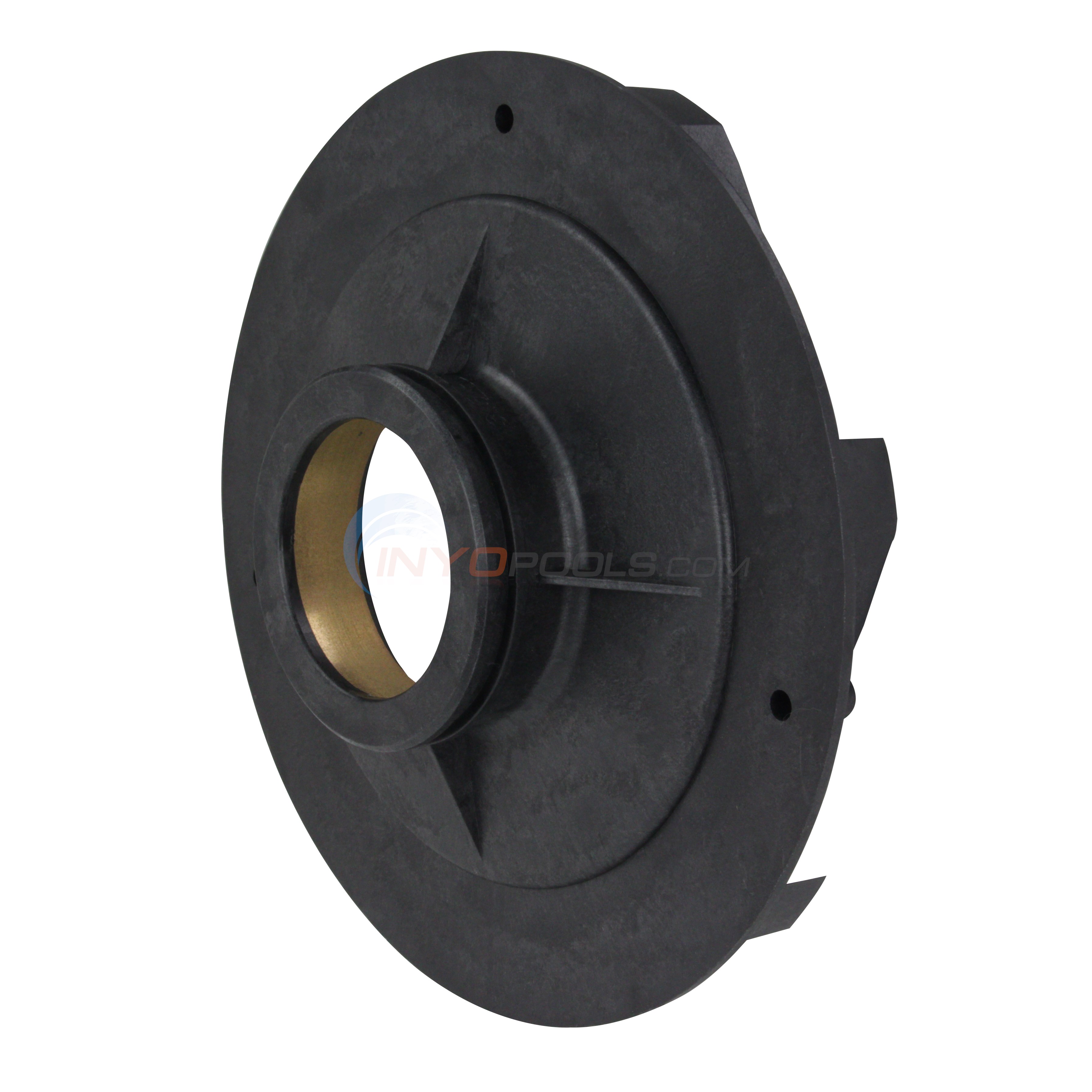

6 5002-06DA Diffuser, CF Series 3HP Full Rated $37.73
6 5002-06 Diffuser, CH Series 1/2 HP Full Rated, 3/4HP Up Rated $45.89
6 5002-06A Diffuser, CH Series 3/4 & 1HP Full Rated, 1 & 1-1/2HP Up Rated
Normally $47.99!
$30.55
6 5002-06B Diffuser, CH Series 1-1/2HP Full Rated, 2HP Up Rated $38.51
6 5002-06D Diffuser, CH Series 2 & 3HP Full Rated, 2-1/2HP Up Rated $63.91

Clamp Assembly. Complete
Key Part # Item Price
7 5002-07 Clamp Assembly. Complete $92.37

Challenger Front Housing - Universal Fit
Key Part # Item Price

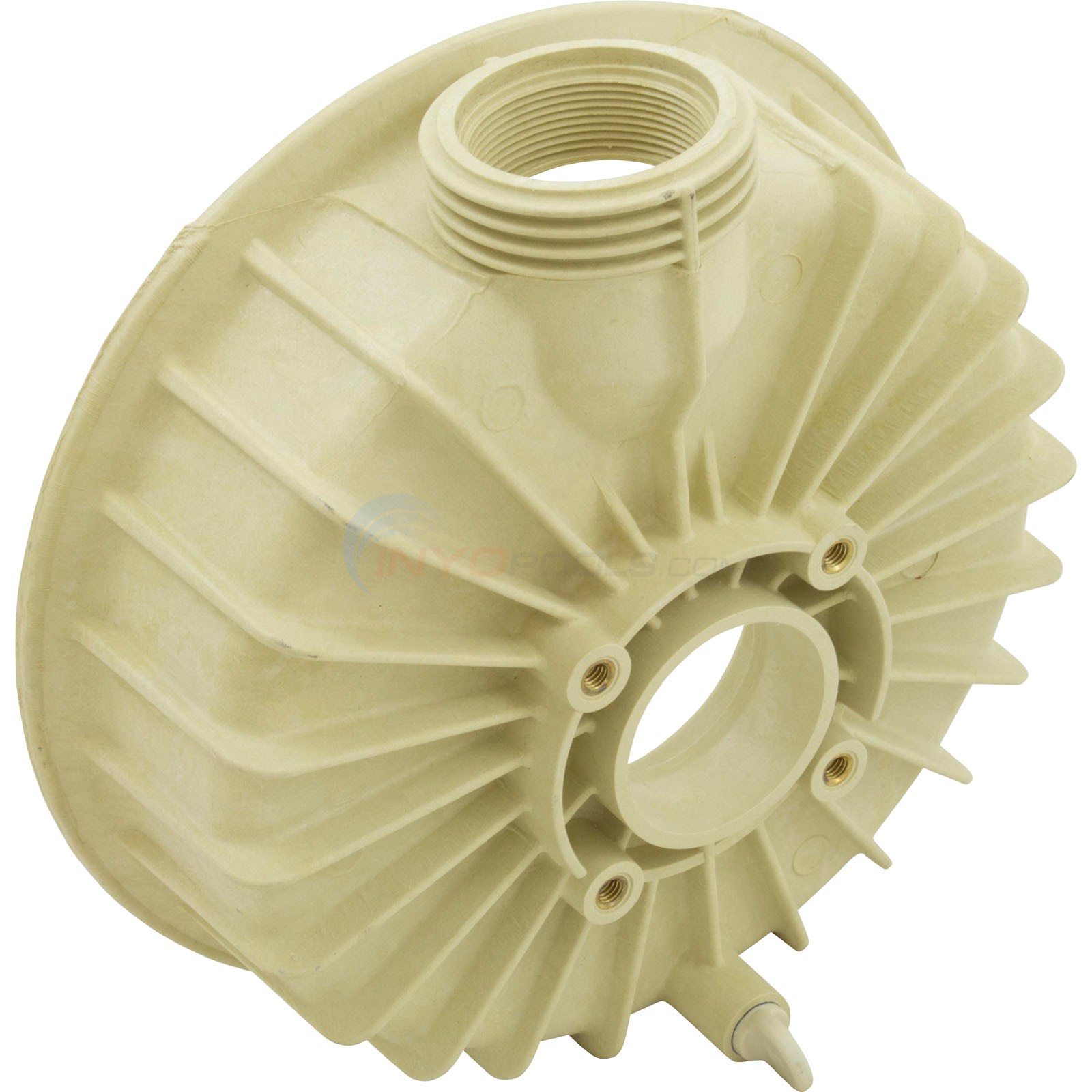

8 25357-004-000 Challenger Front Housing - Universal Fit $163.19

Screw Hex Head
Key Part # Item Price
9 6901-0 Screw Hex Head $4.40

Impeller Locking Screw
Key Part # Item Price
10 5002-10 Impeller Locking Screw $5.57

Pump Base
Key Part # Item Price
11 5002-11 Pump Base $61.71

Hex Head Screw
Key Part # Item Price
12 5002-12 Hex Head Screw $3.45

Diffuser O-ring HI-HEAD (CH Series)
Key Part # Item Price
13 5002-13 Diffuser O-ring HI-HEAD (CH Series) $12.08
13 5002-13A Diffuser Gasket (SQ. RING) MED-HEAD (CF Series) $10.99

O-Ring, O-419 (CH Series)
Key Part # Item Price

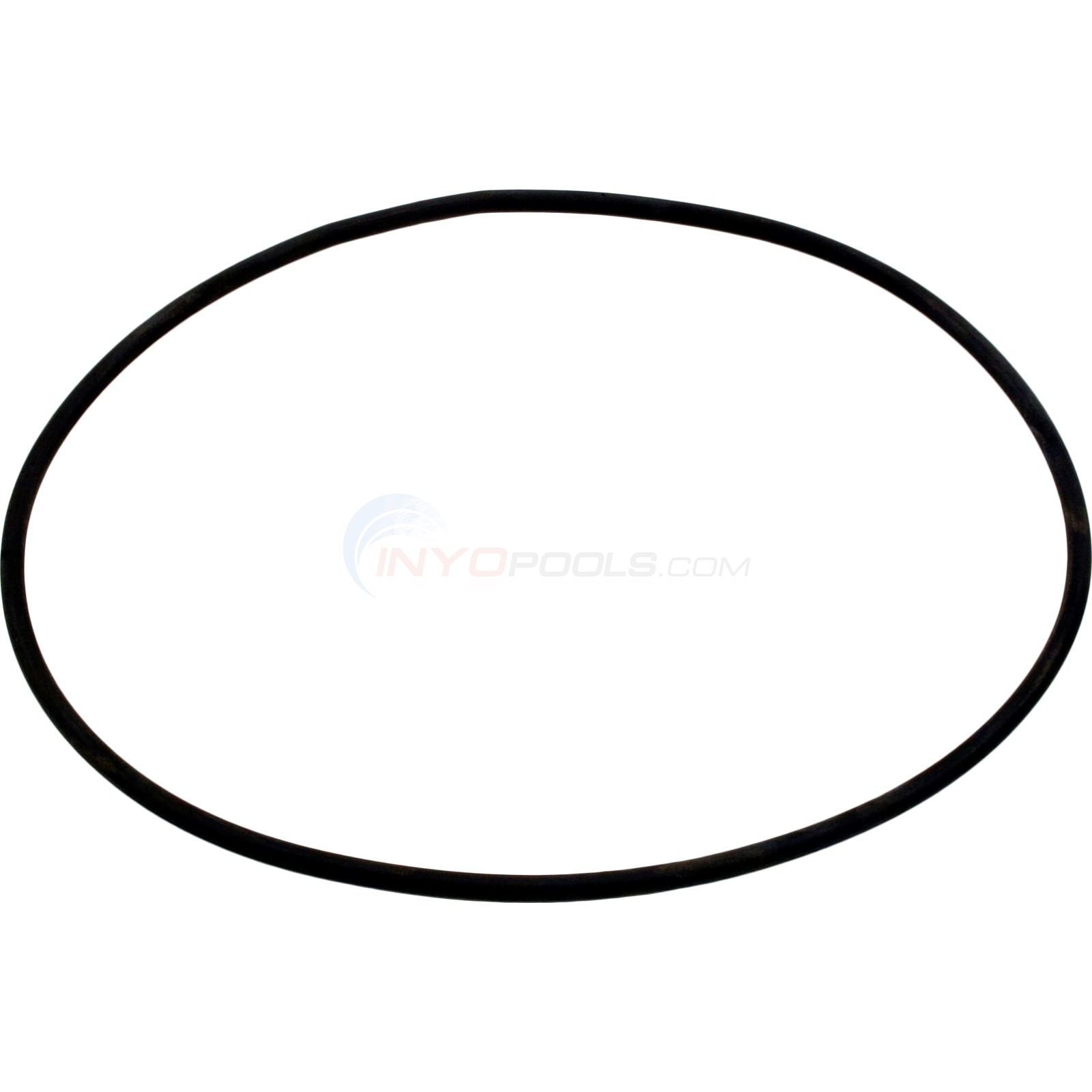

14 90-423-1419 O-Ring, O-419 (CH Series) $17.99

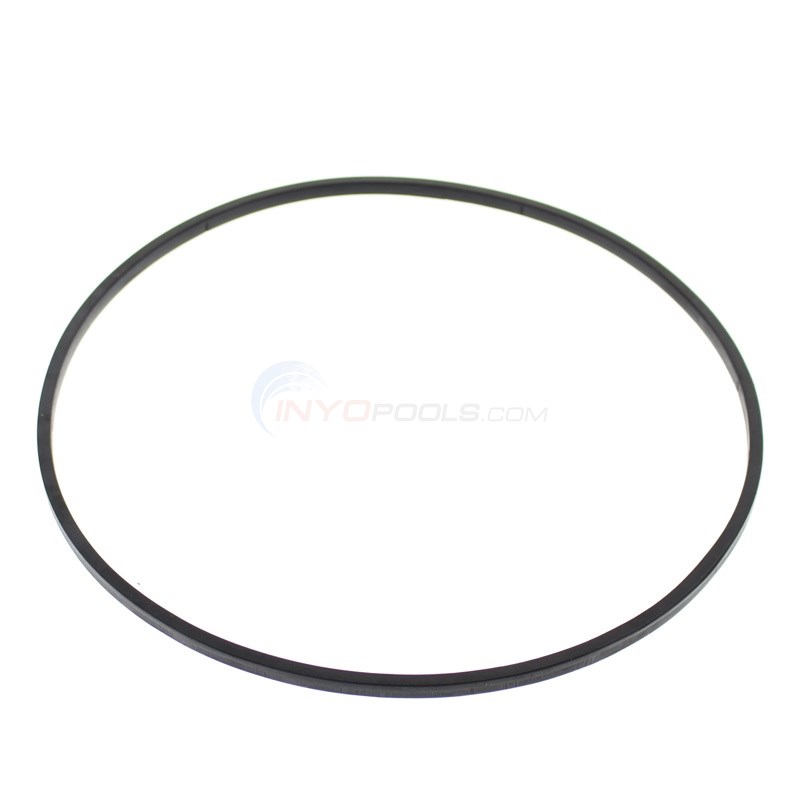

14 5002-14 Square Profile Housing Gasket 355329 (CF Series) $21.99

SCREW, CAP 5/16-18 X 5/8IN
Key Part # Item Price
15 6913-0 SCREW, CAP 5/16-18 X 5/8IN $4.99

O-RING OD 11/16"
Key Part # Item Price
16 3262-08 O-RING OD 11/16" $2.85

Drain Plug 1/4"
Key Part # Item Price
17 4600-4699 Drain Plug 1/4" $6.99

Carriage Bolt
Key Part # Item Price
18 4600-2060 Carriage Bolt $13.21

Washer SS 5/16"ID X 3/4"OD (SAMPLE W-2)
Key Part # Item Price
19 6981-0 Washer SS 5/16"ID X 3/4"OD (SAMPLE W-2) $11.99

KNOB FOR REMOVEABLE BOLT
Key Part # Item Price
20 5002-20 KNOB FOR REMOVEABLE BOLT $56.09

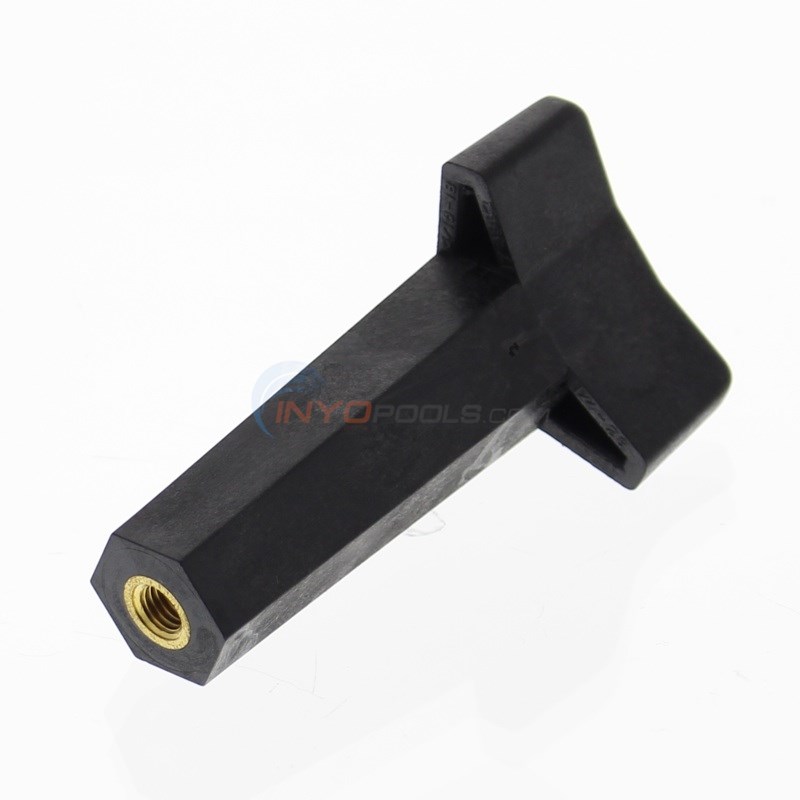

20 5002-20A KNOB FOR CLAMP With CAPT. T BOLT $45.89

O-ring
Key Part # Item Price
21 5002-21 O-ring $7.43

Cap Screw 5/16-18 X 3/4IN
Key Part # Item Price
22 6914-0 Cap Screw 5/16-18 X 3/4IN $6.99

Wrench, 8 1/2" CLOSURE
Key Part # Item Price
24 4600-4527 Wrench, 8 1/2" CLOSURE $38.10

Challenger Trap Assembly, .5-2.5HP w/Plastic Basket
Strainer Pot
Key Part # Item Price
25 5002-25 Strainer Pot $193.63
25A 5002-25A Strainer Pot, 5 HP $429.99

Pac-Fab Challenger Basket (355318)
Key Part # Item Price
26 B-219 Pac-Fab Challenger Basket (355318) $16.31

Strainer Basket Stainless Steel 3HP
Key Part # Item Price

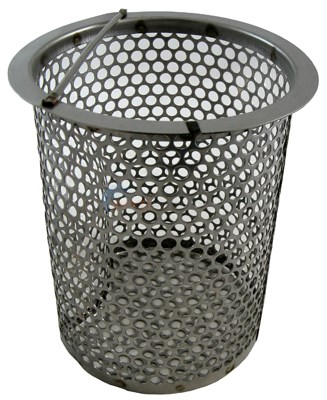

26 5002-26A Strainer Basket Stainless Steel 3HP $151.40

Stainless Steel Basket 5HP
Key Part # Item Price
26C 5002-26B Stainless Steel Basket 5HP $349.43

Lid O-ring
Key Part # Item Price
27 O-318 Lid O-ring $9.99

Lid Gasket, 8 1/2" - 5  HP Model
Key Part # Item Price
27A 4600-2509 Lid Gasket, 8 1/2" - 5 HP Model $14.99

Standard Pump Lid (355301)
Key Part # Item Price
28 25305-000-020 Standard Pump Lid (355301)
Normally $59.99!
$51.49
28 5002-28A Pump Lid for Baquacil Pools $94.99

Strainer Pot Lid 5HP
Key Part # Item Price
28C 5002-28B Strainer Pot Lid 5HP $78.27

BUSHING, 2" X 1 1/2"
Key Part # Item Price
29 7194-0 BUSHING, 2" X 1 1/2" $17.99

Key Part # Item Price
30 OBSOLETE OBSOLETE SUPPORT, MOTOR -
30 5002-30A OBSOLETE SUPPORT, MOTOR, DUAL RADIUS -

ADAPTER
Key Part # Item Price

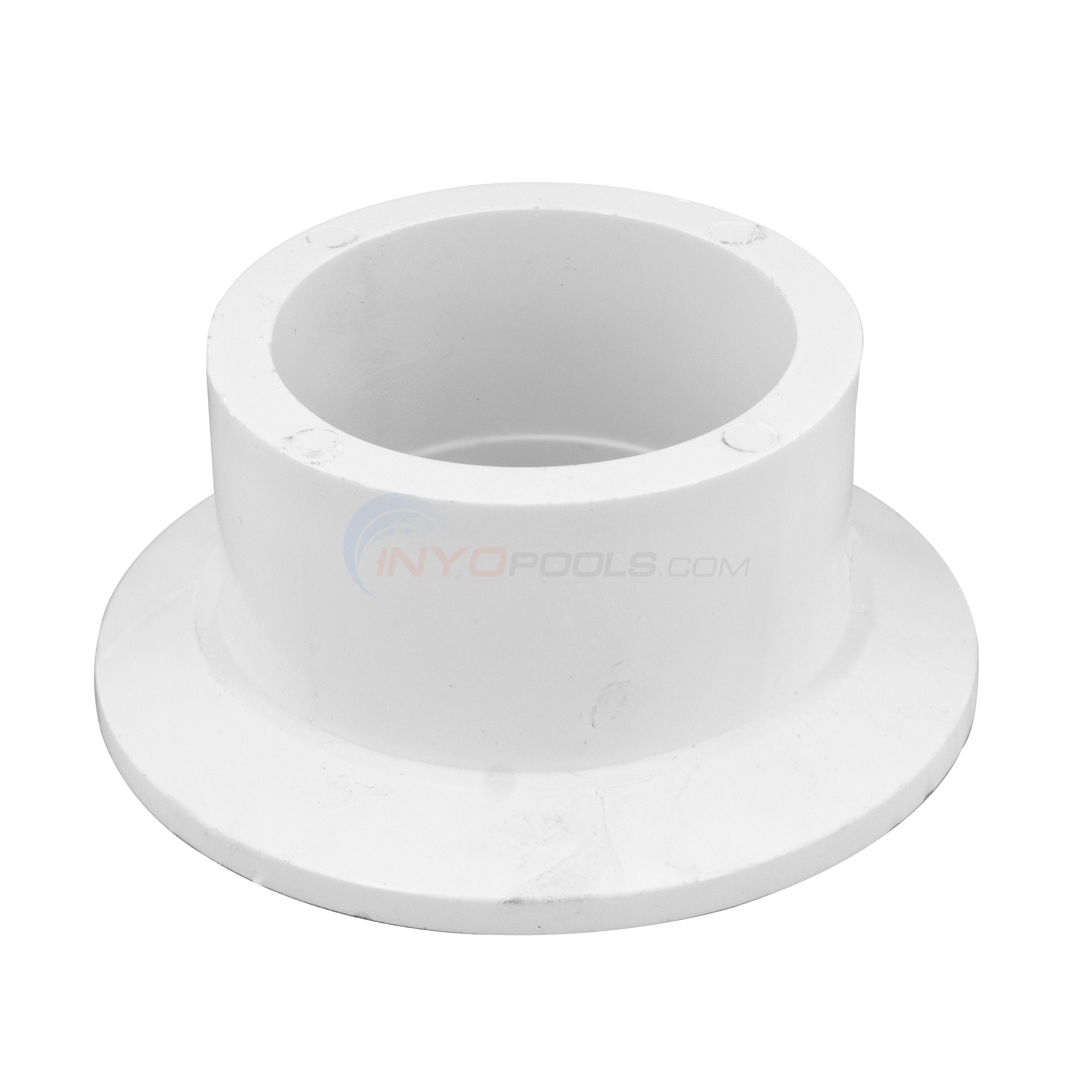

31 5002-31 ADAPTER $17.99

NUT, VALVE ADAPTER
Key Part # Item Price
32 4600-4407 NUT, VALVE ADAPTER $29.99

O-RING, VALVE ADAPTER
Key Part # Item Price
33 4600-4494 O-RING, VALVE ADAPTER $6.01

ADAPTER, QUICK CONNECT
Key Part # Item Price
34 4600-5304 ADAPTER, QUICK CONNECT $36.71

CMP 2" MPT, 2" Socket Union (Single)
Key Part # Item Price
35 21063-200-000 CMP 2" MPT, 2" Socket Union (Single) $11.49

THE 5HP MOTORS ARE UNIQUE TO THIS PUMP
OTHER HP PUMPS USE STANDARD MOTORS.
*NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN
