Part # 5110-07B
Manufacturer Code SPX1620AA

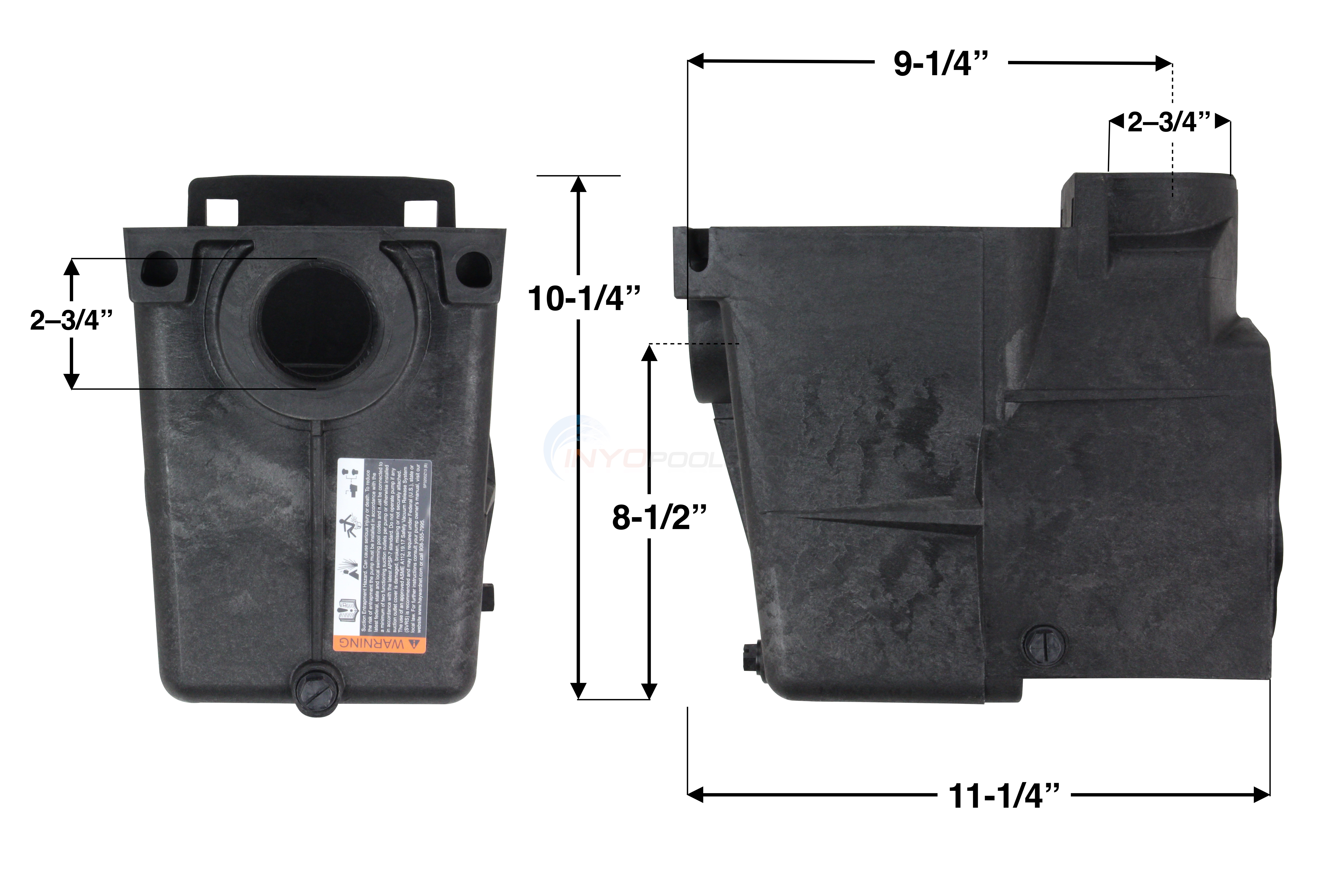

Dimensions 10" X 9.5"
Alternate Part #'s 35-150-2003, HAY-101-2030, HAY1012030, SP-1620AA, SP1620AA, SPX1620AA, HAYSPX1620AA, HPPSPX1620AA

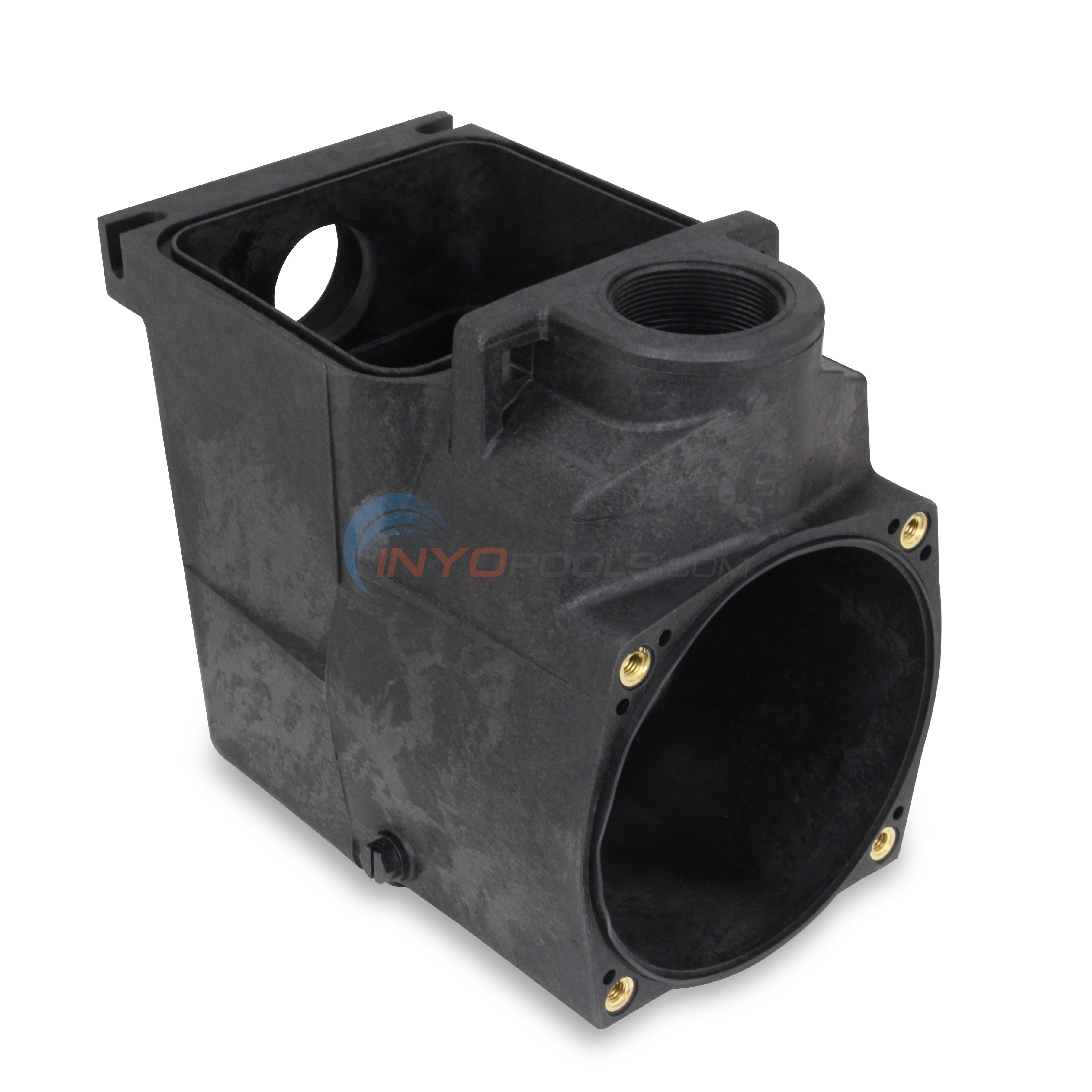

Pump Housing
I have a Hayward pump housing that has cracked & it is about 20 years old. It appears to be a model 9392 and has 2, 2inch ports and uses a 1 hp motor. The motor is new and has been working for a couple of months before the system stopped pumping, even though the motor kept running.
I patched the housing cracks that I could see, and the water is now pumping through, but the pressure is low.
Is the housing fairly generic, such that my pump motor and impeller will adapt to it?
Thanks.
Reply
If your pump is a Hayward Super Pump, then yes this housing with match up with your existing motor and impeller. Hayward only makes one residential pump that has a square pump basket. That is a very telling piece of the pump. Please click on the Hayward Super Pump and see if yours is that pump. There will also be part numbers stamped into the impeller , diffuser and other parts. Please cross-reference before ordering.
Reply
Hi,
Will this one be the same size as sp1611XE161?
Which one will be the same for me to replace with the 1611?
BR
Christine
Reply
I have a super pump 2.0 HP with cracked housing with 2" x 2" inlet and outlet. Is this the correct housing for this pump and will it also replace the housing on the 2.5 HP SPX2621X25 super pump with 2" x 2" inlet/outlet?
Will you ship express to Philippines?
Reply
Hi, Lawrence. Yes, this Super Pump Housing 2" - SPX1620AA is the correct housing. We're unable to express ship to the Philippines. If you can provide the shipping address I can provide you with a quote.
Reply
This part seems to measure the same as mine, but does this part use 1-1/2 in pvc. Thanks
Reply
My actual pump is pumping air, even after changing all gaskets.
I have decided to change the housing since all else is quite new (less than 4 months)
I am wondering if going to 2" ports would make any difference.
I am piped in 2" all across and the 1 1/2 downsize happens only for a few inches.
I need to redo the pool pipes so I have choice of changing to 2" ports.
Would it actually make any difference (easing the pump effort) ?
Reply
Louis, Since most of the plumbing is already 2", the difference will be minimal in terms of how hard/easy the pump will work. As for your leak, I would recommend checking any fittings or valves before the pump. They can cause the air leaks you are experiencing.
Reply
The Most Helpful Review
1 0
(5 out of 5 stars) Replacement pump housing
Reviewed By: ALLAN M. from St Petersburg, FL ()
Pros: New
Cons: none
The housing was just what I needed - however, since my old one was around 20 years old, I had to get a new style cover to complete the repair. Luckily I found a local shop that had the cover.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars) Happy customer!
Reviewed By: Lewin B. from Haverford, PA ()
It's nice to be able to get an exact replacement for your old faulty part. This keeps you from having to figure out how to make the new part fit and do the job.
Was this review helpful to you?
1 0
(5 out of 5 stars)
Reviewed By: Jeffrey R M. from Fort Myers, FL ()
Pros: Price
Cons: None
First delivery was damaged. Replacement received in a week. I am very satisfied with the response.
Was this review helpful to you?
1 0
(4 out of 5 stars)
Reviewed By: Ronald F. from toledo Ohio ()
Parts were very good quality
Was this review helpful to you?
