Discontinued Out of Stock Hayward Super Pump Strainer Housing 1-1/2" Ports - SPX1600AA

Part # 5110-07A

By Hayward Pool Products

  4.7 Average

Details

Top

Part # 5110-07A

Manufacturer Code SPX1600AA

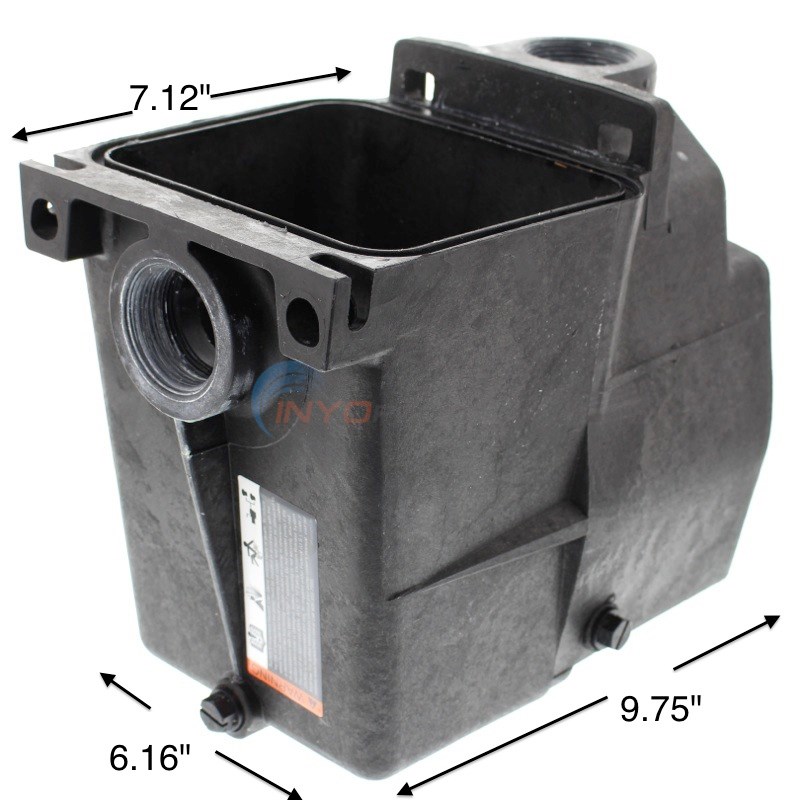

Dimensions 10" X 9.5"

Alternate Part #'s 35-150-2000, 76181957, B001EXHRO4, B003SR72EE, D3866F030DE18887, HAY1012009, PST-35-150-2000, SP1600AA, SPX1600-AA, SPX1600AA, SPX1600AA-U-A, SPX1600AA-U-B, SPX1600AA-U-D, HAY-101-2009, HAYSPX1600AA

Product Description

Pump Housing for Hayward Super Pump

Top

?     Asked on 7/22/2021by Ricky Kirkland

Our pump is a model SP2603VSP. Our motor is a Century C48L2N134C1, 1.5hp ,3450 RPM motor. Not variable speed. Is it compatible with this pump housing? Is there a special impeller or diffuser for this housing. It was replaced because the old one had a pinhole leak. Took the motor from the old housing and bolted it onto this one. It filters but not as much suction at the scuppers as I would like. Small floating items float past the scupper opening being just a couple of inches from the opening.

 Reply

A  Answered on 7/23/2021 by InyoPools Product Specialist Craig C.

Hello Ricky.  The Century Motors model C48L2N134C1 (UST1152) is compatible with the pump housing from the Hayward Super Pump VS model SP2603VSP.  There is only a drop of 0.15 total horsepower between the two motors. A side-by-side comparison of parts between the single speed Super Pump and the variable speed Super Pump reveals that many of the parts are identical.  The impellers are interchangeable but the diffuser has a different part number.  Attached are exploded parts diagrams for each pump variation.  Your reference to scupper suction:  do the scuppers gravity drain to a pit or are they directly connected to the pump intake?  Hayward Super Pump SP1600 & SP2600 Series  Hayward Super Pump VS - SP2603VSP, SP26115VSP
 Reply


?     Asked on 7/10/2021by Sharon

I need a lid (clear)
 Reply

A  Answered on 11/5/2021 by InyoPools Product Specialist Megan C.

The Strainer Cover - SPX1600D https://www.inyopools.com/Products/07501352015249.htm is the part number for the Hayward Super Pump Strainer Housing 1-1/2" Ports - SPX1600AA. The Super Pump Lid Gasket (O-177) (SPX1600S) and Magic Lube O-ring Lubricant 1 Oz. Teflon - 630 are available too.
 Reply


?     Asked on 6/9/2021by howard troob

i need a strainer housing model w3sp2610x15 what is right replacement part?
 Reply

A  Answered on 6/9/2021 by InyoPools Product Specialist Craig C.

Hello Howard.   The correct Strainer Housing for Hayward pool pump model 3wsp2610x15 is part number SPX1600AA.  This strainer housing has 1.5" ports.  If you have 2" plumbing the correct replacement is part number SPX1620AA.   Hayward Super Pump Strainer Housing 2" Ports (spx1620aa)
 Reply


?     Asked on 10/28/2020by Ken Cranford

Does this housing come with the screws (bottom front and right side)?
 Reply

A  Answered on 10/29/2020 by InyoPools Product Specialist Joe S.

Hello Ken, this unit does not come with the Screw, Housing Cap 3/8-16 X 2 (37c200hcs1).
 Reply


?     Asked on 7/23/2019by KBlackwell

We will be ordering the 2" version of this, having looked at the pvc labels outside, however our old Hayward Super Pump plastic strainer lid had 4 turn knobs to hold it in place, rather than the 2 turn knobs and the other 2 being hinge points, as I'm seeing everywhere now. That means we will also need the actual lid that fits. Do you also sell that and if so, what is the part number that will go with the 2" housing, please?

 Reply

A  Answered on 7/23/2019 by InyoPools Product Specialist Lennox H.

Hi, KBlackwell. Unfortunately, the pump you have is NOT a Hayward Super Pump, it a WMC / PPC AT Series Pumps. This Housing, Strainer Super Pump 1 1/2" - SPX1600AA will NOT fit.
 Reply


?     Asked on 6/28/2019by Ken Schurr

Is this an original Hayward housing or a reproduction?
 Reply

A  Answered on 6/28/2019 by InyoPools Product Specialist Michelle B.

Hello, This would be a Hayward OEM product.
 Reply


?     Asked on 3/26/2018by Robert

What is the part number to replace the strainer housing for a Century B129 1.5hp pump?
 Reply

A  Answered on 3/27/2018 by InyoPools Product Specialist Lennox H.

Hi, Robert. Unfortunately, they are several housings that can work with the B129 motor. In order to locate the correct one you need, I will need to know the model of your existing pump housing.
 Reply


?     Asked on 9/27/2016by Rob

I sent a message yesterday and did not receive a response. I am looking for a replacement for my pump housing strainer part number SP2607x10. Could you direct me to the right part? Thank you!
 Reply

A  Answered on 9/27/2016 by InyoPools Product Specialist Stacey M.

Hello Rob, the 5110-07A part number is a correct replacement for the housing of a Hayward Super Pump SERIES 1600, 1600X, 2600, 2600X MODELS. The 5110-07A housing is for 1 1/2" pvc pipe.
 Reply


?     Asked on 9/14/2016by roy

how do I measure the strainer basket to see if mine is 1 1/2 or 2 inches
 Reply

A  Answered on 9/14/2016 by InyoPools Product Specialist Scott W.

The 1.5" is the diameter of the ports in the pump housing so if it's the 1.5" the one you would get is part number 5110-07A, if it's 2" then it'd be part number 5110-07B.
 Reply


?     Asked on 5/14/2016by Diane

I have a Hayward Model EC-65 System pool filter, in ground pool. I need this housing strainer, SP-2600 series The pump discharge elbow is SP-1485-B. Do you think that this well fit my filter ?? Thank You, Diane
 Reply

A  Answered on 5/16/2016 by InyoPools Product Specialist Lennox H.

Hi Diane, This Strainer Housing and the EC-65 filter can be used with the Pump Discharge Elbow (SPX1485B)
 Reply


?     Asked on 5/24/2015by virginia burgess

i do not under stand 11/2or 2'' I NEED THE HOUSING WITH BOLTS IF YOU CAN HELP I WILL ORDER THANK YOU VBURGESS
 Reply

A  Answered on 5/24/2015 by InyoPools Product Specialist Patrick P.

Hi Virginia, this is speaking of the pipe size which is going into your pump. If you look at the pipes going into the pump there should be computerized writing on the pipe which says 1-1/2" or 2". The vast majority of Super Pump Housings are 1-1/2".
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Socket Set

Housing was leaking.

Written on 8/16/2019 by Guest

Great fit worked no more leaking.
