Lateral Assembly w/ Pipe - SX180DA

$143.16

IN STOCK
FREE SHIPPING

Part # 4802-04C

By Hayward Pool Products

  5 Average

Details

Top

Part # 4802-04C

Manufacturer Code SX180DA

Dimensions 21" X 2"

Alternate Part #'s HAY0512181, SX180DA, 31-150-1300, HAY-051-2181, HAYSX180DA

Product Description

INYO # 4802-04C

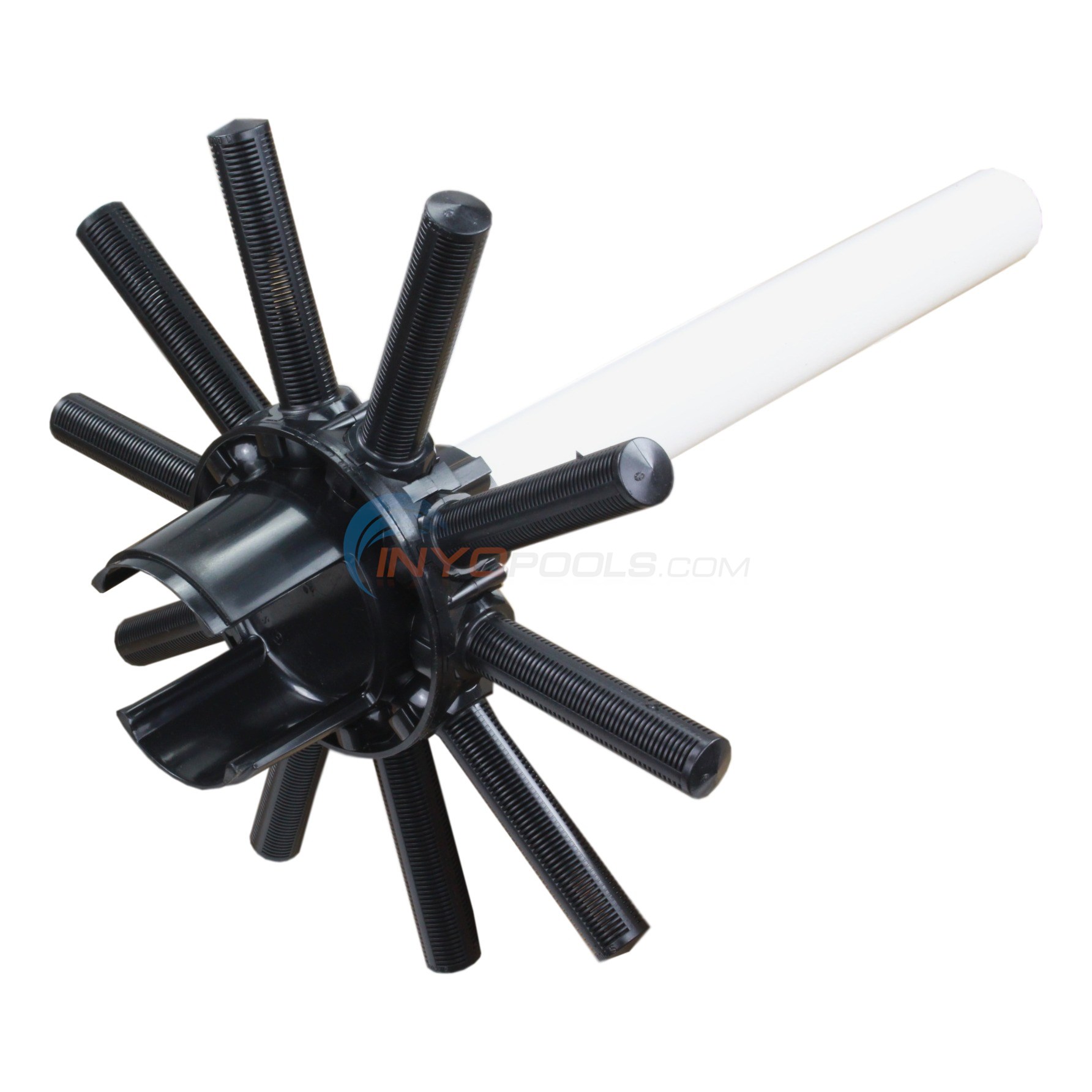

MFG # SX180DA THIS IS THE STANDPIPE, MANIFOLD, AND LATERAL ASSEMBLY

USED IN THE S180T FILTER

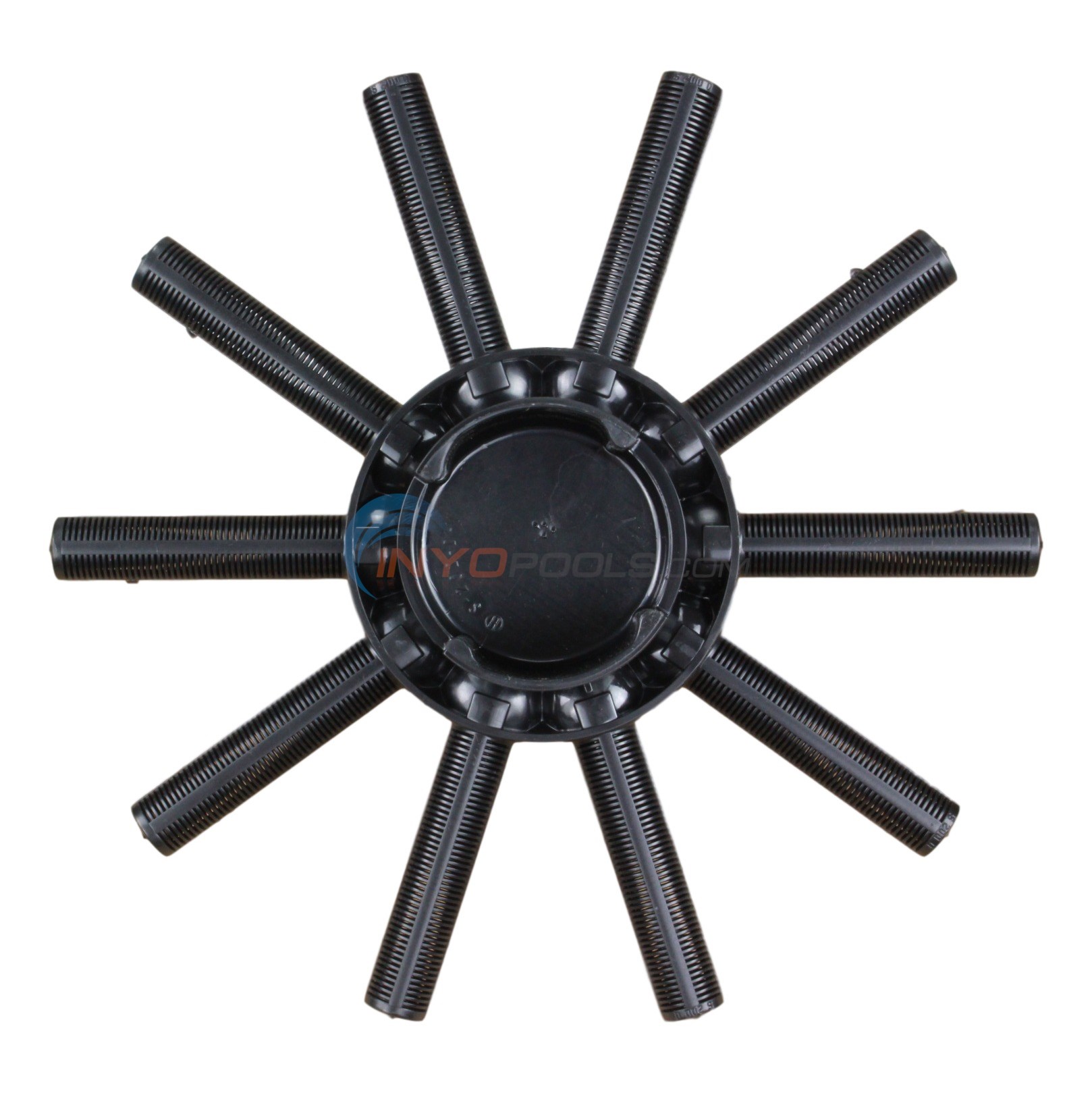

THIS INCLUDES THE SWIVEL TYPE LATERALS THERE ARE 10 OF THE SX200QN LATERALS INCLUDED

EACH LATERAL IS 4-3/16" LONG, NOT INCLUDING THE SWIVEL S 200 Q IS MOLDED INTO EACH LATERAL

TOTAL LENGTH: 21"

TOP PIPE ONLY LENGTH: 16"

Top

?     Asked on 6/21/2021by Dan

Hello, is this lateral assembly compatible with the hayward sw190tcpaks? Thank you for your help.

 Reply

A  Answered on 6/22/2021 by InyoPools Product Specialist Danny R.

The correct laterals for the Swimpro are the...Lateral Assembly with Center Pipe - SWX236DA2
 Reply


?     Asked on 5/24/2021by Tom

I am looking for the correct lateral assembly for my hayward sand filter model sm1900t. Is this the correct one?
 Reply

A  Answered on 5/24/2021 by InyoPools Product Specialist Patrick P.

Hi Tom, yes this is the correct lateral assembly for your Hayward sm1900t.
 Reply


?     Asked on 5/9/2021by Crystal

I am needing the lateral assembly with pipe for S190-TSCP but your website says it is obsolete. Would the lateral assembly with pipe-sx180DA be compatible? Or is there another lateral assembly with pipe that would work. Thanks.
 Reply

A  Answered on 5/10/2021 by InyoPools Product Specialist Patrick P.

Hi Crystal, Yes you can use this SX180DA lateral assembly for the S190-TSCP
 Reply


?     Asked on 8/2/2020by Bruce Ketchum

Is this the right assembly for our Hayward SandMaster sm1906T? Thank you for your indispensable help.
 Reply

A  Answered on 8/3/2020 by InyoPools Product Specialist Patrick P.

Hi Bruce, Yes this is the proper lateral assembly for our Hayward SandMaster sm1906T.
 Reply


?     Asked on 7/22/2020by Inyo Visitor

I need a lateral assembly with pipe for my Hayward sand filter. S190TSCP
 Reply

A  Answered on 10/27/2020 by InyoPools Product Specialist Hector F.

Hello, this lateral assembly is compatible with your Hayward model S190TSCP sand filter.
 Reply


?     Asked on 6/29/2020by Travis

Will this lateral assembly fit my E200 series sand filter model number e2001543s2sv

 Reply

A  Answered on 10/22/2020 by InyoPools Product Specialist Hector F.

Hi Travis, yes this is the correct lateral assembly for the model Hayward E-200 model sand filter.
 Reply


?     Asked on 5/30/2020by Constance Elswick

Will the SX180DA replace the SX180DA2?
 Reply

A  Answered on 12/23/2020 by InyoPools Product Specialist Hector F.

Hi Constance, yes this is the correct lateral assembly for your lateral assembly part number SX180DA2.
 Reply


?     Asked on 5/23/2020by Dominick Zirilli

Will this replace the obsolete laterals and pipe in Hayward 245t sand filter?
 Reply

A  Answered on 12/30/2020 by InyoPools Product Specialist Hector F.

Hi Dominick, unfortunately, the lateral assembly for the Hayward S245T sand filter is no longer fabricated with no replacement. You may want to consider replacing the entire sand filter or you can always contact Hayward directly to confirm if by chance there is another replacement option.
 Reply


?     Asked on 5/16/2020by Mike

I am blowing sand back into pool - pool filter is s244t Haywood pro series - will this assembly fit in the filter for replacement
 Reply

A  Answered on 5/16/2020 by InyoPools Product Specialist Patrick P.

Hi Mike, This is NOT the correct lateral assembly for your Hayward S244T sand filter. You will need this Hayward S244T Hayward Lateral Assembly SX244DA
 Reply


?     Asked on 5/9/2020by L J Holland

Is this the correct parts for Hayward Filter S244T with a Hayward Vari-Flo XL Valve? Thanks for your help L J

 Reply

A  Answered on 5/10/2020 by InyoPools Product Specialist Patrick P.

Hi L J, No this is not the correct lateral assembly for the Hayward S244T Sand Filter. You will need this Hayward S244T Lateral Assembly which we do have in stock ready to ship!
 Reply


?     Asked on 7/26/2019by Dustin Barber

Just wanted to check and see if this would work on a Hayward Dream Line S190TSCP?
 Reply

A  Answered on 7/26/2019 by InyoPools Product Specialist Lennox H.

Hi, Dustin. This Lateral Assembly w/ Pipe - SX180DA will fit the Hayward Dream Line S190TSCP model filter.
 Reply


?     Asked on 6/10/2019by Tina Russell

I need a lateral set with pipe mine whole set up is 20 inches long n it's a Hayward. Would that be sx180da?
 Reply

A  Answered on 6/11/2019 by InyoPools Product Specialist Patrick P.

Hi Tina, Could you please grab the model # off of your filter which should be located on a label on the side of the filter tank? Or could you send us a few photos of your filter? A close up of the label on the filter and a wide shot of the filter? To supply filter model # or photos simply click the reply link below and upload your photos. Once we get any of this information we can make the proper recommendations.
 Reply


?     Asked on 6/4/2019by Don O'Neill

I actually have 2 issues that I believe are related. 1., Losing some sand when I backflush, not a lot, but noticeable, maybe 1/2 cup. 2., as the filter gets dirty, the pressure drops and water flow is reduced. After backflushing, pressure returns to normal, about 15PSI. System is Aquaflow 1HP 2 sp, and a Hayward S180T filter.
 Reply

A  Answered on 6/8/2019 by InyoPools Product Specialist Lennox H.

Hi, Don. Losing some sand while backwashing is normal, how much is based on the pump's flow rate. The second issue is normal when the filter gets dirty, the water pressure and flow decrease and the filter pressure increases.
 Reply


?     Asked on 4/23/2019by Brenda

I need to replace my lateral assembly and there's 3 options to order. How do I know which one I need? The options are SM1700T, SM1900T and SM2300T
 Reply

A  Answered on 4/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Brenda. You will need to measure the diameter of your tank. The SM1700T (17"), SM1900T (18"), and SM2300T (23").
 Reply


?     Asked on 3/20/2019by opey

Will lateral part sx180da fit in filter E200?
 Reply

A  Answered on 3/20/2019 by InyoPools Product Specialist Lennox H.

Hi, Opey. Yes, this Lateral Assembly w/ Pipe - SX180DA will fit the E200 model filter.
 Reply


?     Asked on 6/18/2018by Inyo Visitor

I have a crack in lateral pipe, am using new product Aqualoon which is a cotton ball instead of sand. Will filter still work with this crack since cotton will not fit through crack like sand would?
 Reply

A  Answered on 6/18/2018 by InyoPools Product Specialist Lennox H.

Hi. That is correct, using Aqualoon if the lateral is cracked it can still be used.
 Reply


?     Asked on 6/9/2018by Darrin

Will this work in my sta-rite t-240by-1 sand filter. I don’t like the collection stand that comes with it. It is cracked.
 Reply

A  Answered on 6/10/2018 by InyoPools Product Specialist Lennox H.

Hi, Darrin. This Later Assembly is NOT compatible with the Sta-Rite T240BP-1. You will need to purchase the Collector Hub Assy - WC137-519P along with eight (8) Laterals - 24600-0003
 Reply


?     Asked on 6/4/2018by Tommy

can you buy center pipe without laterals ?
 Reply

A  Answered on 6/4/2018 by InyoPools Product Specialist Lennox H.

Hi, Tommy. Unfortunately, the hub assembly is not sold that way.
 Reply


?     Asked on 6/14/2017by John Comer

I have been getting sand in my pool for a couple of years. I was told to and did inspect the Lateral Assembly in my sand filter before I put sand in. It visually appeared fine but I am still getting sand in the pool. Could there be a very small crack somewhere in the lateral assembly in the sand filter? I am thinking about replacing just the lateral assembly w/pipe. Advice?
 Reply

A  Answered on 6/14/2017 by InyoPools Product Specialist Hector F.

Yes, we recommend inspecting that lateral assembly. They are known to get damaged and cause sand to get back to the pool. Also, you may want to inspect the spider gasket in the multi-port valve. If as soon as you backwash the sand returns back to the pool then it may also be the spider gasket.
 Reply


?     Asked on 8/14/2016by jerry

small black cap was found in top of power head do you know what this may be
 Reply

A  Answered on 8/20/2016 by InyoPools Product Specialist Lennox H.

Hi Jerry, That is called a protective cap which is now obsolete.
 Reply


?     Asked on 8/6/2016by Joe

I have an E Series Sand filter but cannot identify if it is a 100, 200 or 250 model. Packing slip when delivered simply says 23" filter system. I need to order a standpipe and want to make sure I get the correct one. Filter is 13 years old so most of the tags on it are illegible
 Reply

A  Answered on 8/17/2016 by InyoPools Product Specialist Stacey M.

Hello Joe, For the E-series the only one available that is not obsolete is 4802-04C which is for e-200 Lateral Assembly With Pipe (sx180da). You can try and contact Hayward 800-657-2287 to see if they have a replacement part for that model.
 Reply


?     Asked on 6/4/2016by CARLTON VERLANDER

I HAVE A HAYWARD 1.5 HP PUMP AND E200 SAND FILTER I KNOW 1 OF THE LATERALS ARE BAD BECAUSE IT SPITS SAND BACK IN POOL BUT WHEN I TRY TO VACUM OR BACK WASH THERE SEEMS NOT TO BE ANY PRESSURE TO DO OR VERY LITTLE FLOW THROW VACUM
 Reply

A  Answered on 6/11/2016 by InyoPools Product Specialist Lennox H.

Hi, You may need to do a thorough backwash or the sand in the filter is old and needs to be replaced along with any broken lateral(s). You may also want to inspect your pump to make sure nothing is clogging it.
 Reply


?     Asked on 6/3/2016by mel mackey

does this come as a complete assembly,i need the base that the laterals screw in to
 Reply

A  Answered on 6/8/2016 by InyoPools Product Specialist Alan M.

Hello Mel, Yes this Lateral Assembly With Pipe is a complete assembly, as pictured, including the base the laterals attach to.
 Reply


?     Asked on 5/31/2016by Theresa

How do you install
 Reply

A  Answered on 6/1/2016 by InyoPools Product Specialist Lennox H.

Hi Theresa, You can review our How To: Replace a Lateral in a Pool Sand Filter for installation instructions.
 Reply


?     Asked on 5/22/2016by Cathy

I have a hayward sand filter that is 4 years old and the sand was coming out in the pool a sales person at watsons told me the tube inside was cracked and it is but the problem is the number on the piece doesn't match any of the parts I have looked up on line what will work ?
 Reply

A  Answered on 5/22/2016 by InyoPools Product Specialist Patrick P.

Could you reply to this email with the make and model of your filter, also if you could send photo's of the filter and/or the filter label that would help.
 Reply


?     Asked on 5/2/2016by LORRAINE

Will this lateral Assembley with pipe work with Hayward Sand Filter Model E-200 HP 1.5 ?
 Reply

A  Answered on 5/3/2016 by InyoPools Product Specialist Hector F.

Yes this assembly is correct for the Hayward E-200 sand filter.
 Reply


?     Asked on 4/25/2016by Bill

Will this fit the Hayward E 100 series filter?
 Reply

A  Answered on 4/25/2016 by InyoPools Product Specialist Lennox H.

Hi Bill, This Lateral Assembly will not fit the E-100 Filter, the SWX196DA2 will be the correct lateral assembly.
 Reply


?     Asked on 8/4/2015by steve

how long is pipe
 Reply

A  Answered on 8/4/2015 by InyoPools Product Specialist Joe S.

DIMENSIONS 20.89" X 1.5" for the pipe
 Reply


?     Asked on 5/29/2015by debbie

The Pipe is broke can I just replace it?
 Reply

A  Answered on 5/29/2015 by InyoPools Product Specialist Patrick P.

Hi Debbie, The standpipe is not sold alone and only as a part of this assembly, so you would need to get this assembly to replace your standpipe.
 Reply
