Hayward Pro Top Mount Sand Filter 18”,21”,22”,23”,24”,27” Parts

POLYMERIC SAND FILTER S-180T, 210T, 220T, 230T, 244T, & S270T

Hayward Pro Top Mount Sand Filter 18”,21”,22”,23”,24”,27” Diagram

Click to zoom in

Diagram #	Part Title
**	Hayward Pro Series O-ring Kit
*	Replacement Upper Handle Assy. for Hayward SP0714T (1.5" Valves)
*	Replacement Diverter w/ Spider Gasket for Hayward SP0714T
*	Diverter with Spider Gasket for Hayward SP0714T Multiport Valve - SPX714CA
*	Replacement Upper Handle Assy. for Hayward SP071621 (Black)
1***	Top Mount Valve for Sand Filter, Replaces Vari-Flo XL SP0714T, 1.5" Ports - PL0714
1***	Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T
1	Top Mount Valve for Hayward 2" Sand Filters
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
3	O-RING, ID 6-3/4", OD 7-1/8"
4	CLAMP, FLANGE NORYL
5	OBSOLETE CAP
6	LATERAL ASSEMBLY WITH PIPE (S-180T)
7	FILTER TANK (S-180T)
8	LATERAL OLD THREADED STYLE for S108T
8	Hayward Lateral Ball Pivot Style (10-Pack) S180T/S210S/S220T/S230/S245T
9	GASKET, DRAIN CAP
10	DRAIN CAP & GASKET 2005 & PRIOR
11	STAND, FILTER SUPPORT
12	DRAIN CAP ASSY AFTER 2005
*	Hayward System Base (S180T Systems)

View Parts List

Diagram #	Part Title
**	Hayward Pro Series O-ring Kit
*	Replacement Upper Handle Assy. for Hayward SP0714T (1.5" Valves)
*	Replacement Diverter w/ Spider Gasket for Hayward SP0714T
*	Diverter with Spider Gasket for Hayward SP0714T Multiport Valve - SPX714CA
*	Replacement Upper Handle Assy. for Hayward SP071621 (Black)
1***	Top Mount Valve for Sand Filter, Replaces Vari-Flo XL SP0714T, 1.5" Ports - PL0714
1***	Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T
1	Top Mount Valve for Hayward 2" Sand Filters
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)
3	O-RING, ID 6-3/4", OD 7-1/8"
4	CLAMP, FLANGE NORYL
5	OBSOLETE CAP
6	LATERAL ASSEMBLY WITH PIPE (S-180T)
7	FILTER TANK (S-180T)
8	LATERAL OLD THREADED STYLE for S108T
8	Hayward Lateral Ball Pivot Style (10-Pack) S180T/S210S/S220T/S230/S245T
9	GASKET, DRAIN CAP
10	DRAIN CAP & GASKET 2005 & PRIOR
11	STAND, FILTER SUPPORT
12	DRAIN CAP ASSY AFTER 2005
*	Hayward System Base (S180T Systems)

Available Parts:

Hayward Pro Series O-ring Kit

Part # APCK1133

Hayward Pro Series O-ring Kit

$31.49 IN STOCK

Qty:

Replacement Upper Handle Assy. for Hayward SP0714T (1.5" Valves)

Part # 4703-20 Mfg # PL0734

Replacement Upper Handle Assy. for Hayward SP0714T (1.5" Valves)

$58.00 IN STOCK

Series SP714

Series SP714

Qty:

Replacement Diverter w/ Spider Gasket for Hayward SP0714T

Part # 4703-23 Mfg # SPX714CA

Replacement Diverter w/ Spider Gasket for Hayward SP0714T

$25.75 IN STOCK

Series SP714

Series SP714

Qty:

Diverter with Spider Gasket for Hayward SP0714T Multiport Valve - SPX714CA

Part # SPX714CA

Diverter with Spider Gasket for Hayward SP0714T Multiport Valve - SPX714CA

$65.49 IN STOCK

Qty:

Replacement Upper Handle Assy. for Hayward SP071621 (Black)

Part # 4701-15B Mfg # SPX0715BA3

Replacement Upper Handle Assy. for Hayward SP071621 (Black)

$222.99 IN STOCK

Series SP716

Series SP716

Qty:

Replacement Upper Handle Assy. for Hayward SP071621 (White)

Part # 4701-15 Mfg # SPX0715BA

Replacement Upper Handle Assy. for Hayward SP071621 (White)

$224.99 IN STOCK

Series SP716

Series SP716

Qty:

Top Mount Valve for Sand Filter, Replaces Vari-Flo XL SP0714T, 1.5" Ports - PL0714

Part # PL0714

Top Mount Valve for Sand Filter, Replaces Vari-Flo XL SP0714T, 1.5" Ports - PL0714

$107.99 IN STOCK

Replaces SP0714T

Replaces SP0714T

Qty:

Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T

Part # SP0714T

Top Mount Valve Flange 1-1/2" FPT for Hayward Sand Filters SP0714T

$185.99 IN STOCK

Qty:

Top Mount Valve for Hayward 2" Sand Filters

Part # SP071621

Top Mount Valve for Hayward 2" Sand Filters

$218.22 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

Bottom Mount Pressure Gauge 0-60 1/4" NPT (101D-204D)

$18.99 IN STOCK

Qty:

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$13.99 IN STOCK

Qty:

CLAMP, FLANGE NORYL

Part # 4802-03D Mfg # GMX600NM

CLAMP, FLANGE NORYL

$62.99 IN STOCK

Qty:

Replacement Valve Clamp for Hayward Sand Filters - Generic

Part # 27515-154-070

Replacement Valve Clamp for Hayward Sand Filters - Generic

$39.99 IN STOCK

Qty:

5

OBSOLETE CAP

Mfg # SX200Z10

OBSOLETE CAP

NOT AVAILABLE

LATERAL ASSEMBLY WITH PIPE (S-180T)

Part # 4802-04C Mfg # SX180DA

LATERAL ASSEMBLY WITH PIPE (S-180T)

$173.99 IN STOCK

Qty:

LATERAL ASSEMBLY WITH PIPE (S-210T)

Part # 4802-04D Mfg # SX210DA/SX210DAS

LATERAL ASSEMBLY WITH PIPE (S-210T)

$138.99 IN STOCK

Qty:

LATERAL ASSEMBLY WITH PIPE (S-220T)

Part # 4802-04E Mfg # SX220DA/SX244DAS

LATERAL ASSEMBLY WITH PIPE (S-220T)

$149.99 IN STOCK

Qty:

LATERAL ASSEMBLY WITH PIPE (S-230T)

Part # 4800-65 Mfg # SX230DA

LATERAL ASSEMBLY WITH PIPE (S-230T)

$168.99

LATERAL ASSY WITH PIPE (S-244T & S-270T)

Part # 4802-04F Mfg # SX244DA/SX244DAS

LATERAL ASSY WITH PIPE (S-244T & S-270T)

$160.99 IN STOCK

Qty:

FILTER TANK (S-180T)

Part # 4802-72 Mfg # SX180AA2

FILTER TANK (S-180T)

$525.99

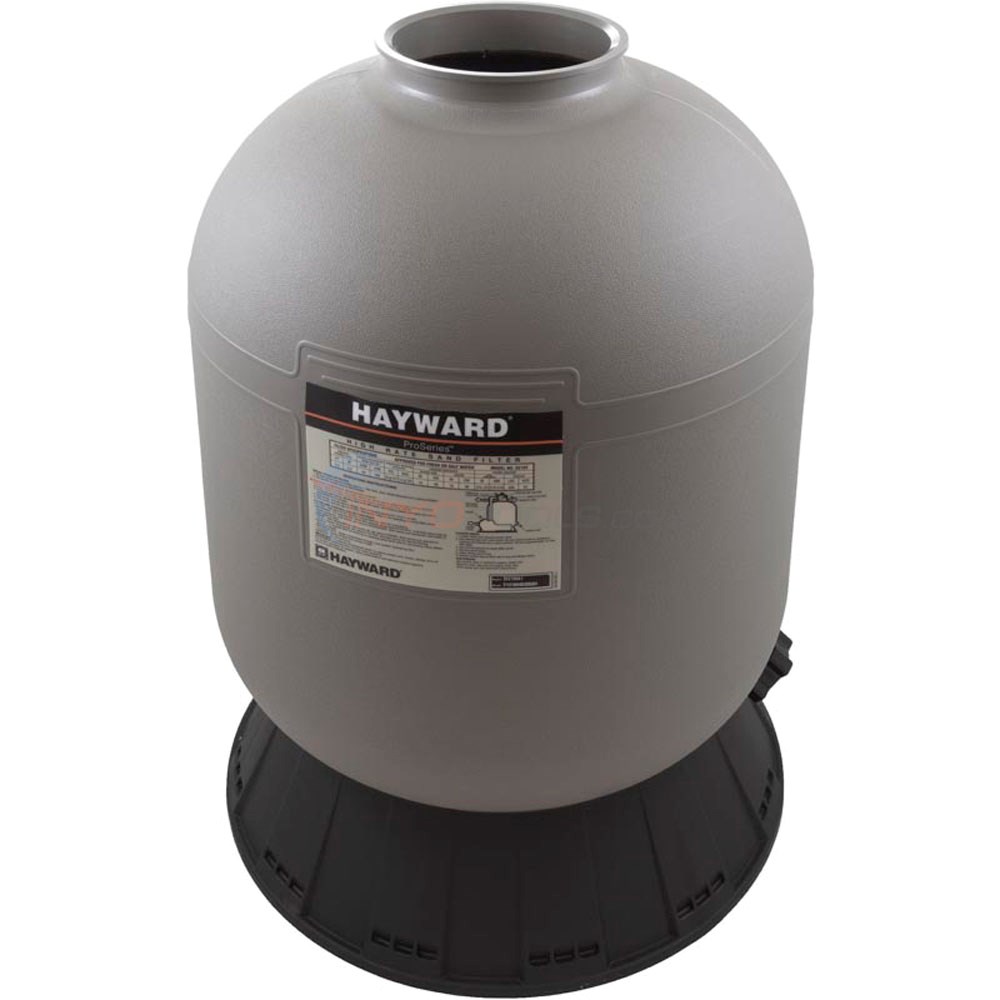

FILTER TANK (S-210T)

Part # 4802-72A Mfg # SX210AA1

FILTER TANK (S-210T)

$590.99

FILTER TANK (S-220T)

Part # 4802-72B Mfg # SX220AA1

FILTER TANK (S-220T)

$652.99

FILTER TANK (S-230T)

Part # 4802-721 Mfg # SX230AA1

FILTER TANK (S-230T)

$893.99

FILTER TANK (S-244T)

Part # 4802-72C Mfg # SX244AA1

FILTER TANK (S-244T)

$664.99

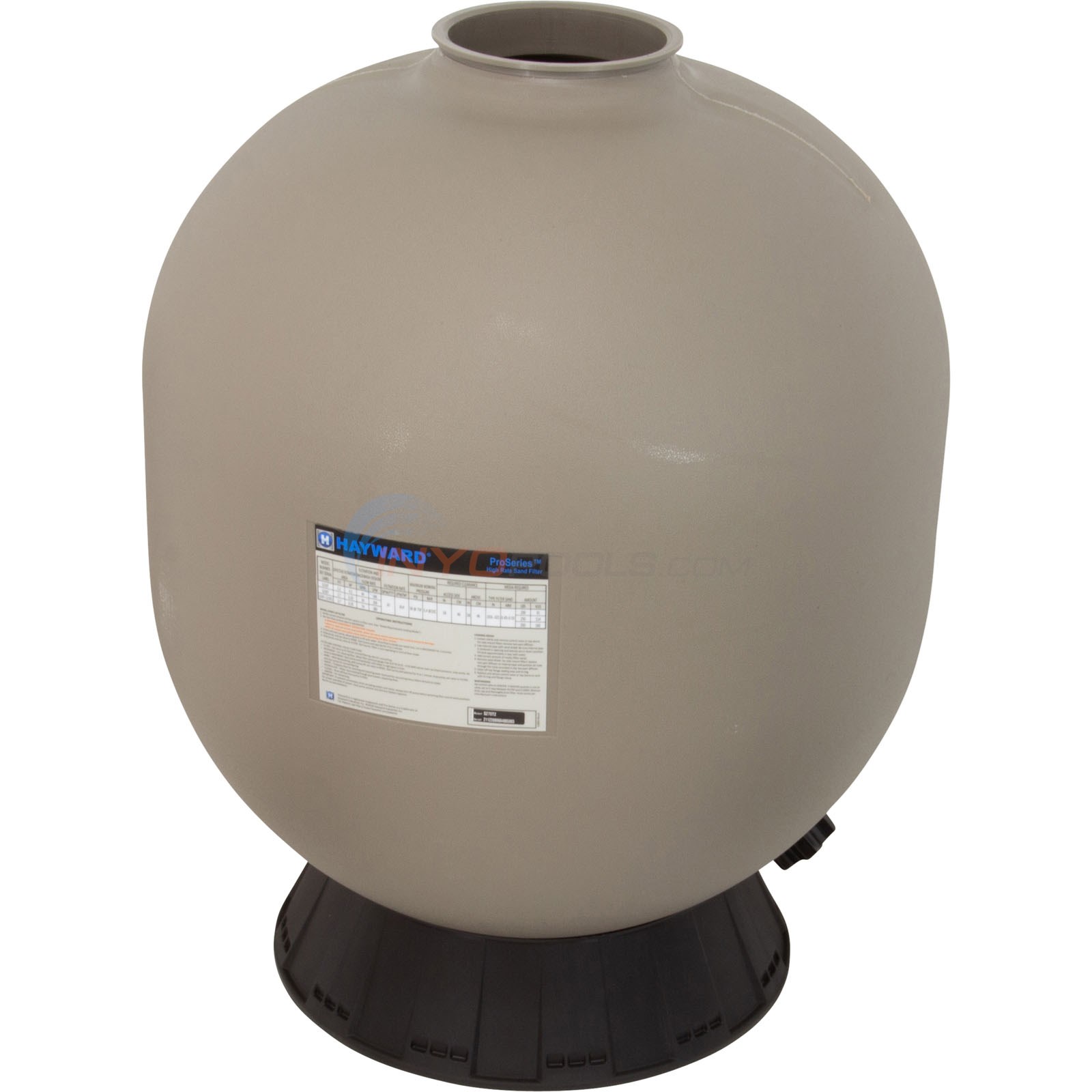

FILTER TANK (S-270T)

Part # 4802-722 Mfg # SX270AA1

FILTER TANK (S-270T)

$808.99

LATERAL OLD THREADED STYLE for S108T

Part # 4800-15 Mfg # SX200Q

LATERAL OLD THREADED STYLE for S108T

$10.49

Models S180T

Models S180T

LATERAL NEW PIVOT STYLE for S108T

Part # 4800-30 Mfg # SX200QN

LATERAL NEW PIVOT STYLE for S108T

$14.49

Models S180T

Models S180T

LATERAL OLD THREADED STYLE for S210T,S220T,S230T,S244T

Part # 4800-15A Mfg # SX240D

LATERAL OLD THREADED STYLE for S210T,S220T,S230T,S244T

$13.49

Models S210T,S220T,S230T,S244T

Models S210T,S220T,S230T,S244T

LATERAL NEW PIVOT STYLE for S210T,S220T,S230T,S244T

Part # 4800-31 Mfg # SX240DN

LATERAL NEW PIVOT STYLE for S210T,S220T,S230T,S244T

$11.99

Models S210T,S220T,S230T,S244T

Models S210T,S220T,S230T,S244T

Hayward Lateral Ball Pivot Style (10-Pack) S180T/S210S/S220T/S230/S245T

Part # SX240DNPAK10

Hayward Lateral Ball Pivot Style (10-Pack) S180T/S210S/S220T/S230/S245T

$85.99 IN STOCK

Qty:

GASKET, DRAIN CAP

Part # 4802-08 Mfg # G-382

GASKET, DRAIN CAP

$11.99 IN STOCK

Qty:

DRAIN CAP & GASKET 2005 & PRIOR

Part # 4802-09B Mfg # SX180HG

DRAIN CAP & GASKET 2005 & PRIOR

$15.49 IN STOCK

Qty:

STAND, FILTER SUPPORT

Part # 4800-19 Mfg # SX200J

STAND, FILTER SUPPORT

$161.99 IN STOCK

Qty:

DRAIN CAP ASSY AFTER 2005

Part # 4802-16 Mfg # SX180LA

DRAIN CAP ASSY AFTER 2005

$11.99 IN STOCK

Qty:

Hayward System Base (S180T Systems)

Part # SX180K

Hayward System Base (S180T Systems)

$169.99 IN STOCK

Qty:

* REPLACEMENT VALVE BY PRAHER
** O-RING/GASKET KIT (includes o-rings, valve o-ring, tank lid o-ring, & gasket)
***REPLACEMENT VALVE BY CMP
